RESOURCE SUBSTITUTION WITH COMPONENTS

Optimizing Energy Consumption

Christian Bunse and Hagen Höpfner

International University in Germany, School of IT, Campus 3, 76646 Bruchsal, Germany

Keywords: Resource Awareness, Software Engineering, Adaptability, Mobile Systems.

Abstract: Software development for mobile systems is becoming increasingly complex. Beneath enhanced

functionality, resource scarcity of devices is a major reason. The relatively high energy requirements of such

systems are a limiting factor due to reduced operating times. Reducing energy consumption of mobile

devices in order to prolong their operation time has thus been an interesting research topic in past years.

Interestingly the focus has mostly been on hardware optimization, energy profiles, or techniques such as

“Micro-Energy Harvesting“. Only recently, the impact of software on energy consumption by optimizing

the use of resources has moved into the center of attention. Extensive wireless data transmissions, that are

expensive, slow, and energy intensive can - for example - be reduced if mobile clients locally cache

received data. Unfortunately, optimization at compile time is often inefficient since the optimal use of

existing resources cannot really be foreseen. This paper discusses and applies novel strategies that allow

systems to dynamically adapt at runtime. The focus is on resource substitution strategies that allow

achieving a certain Quality-of-Service while sticking to a given energy limit.

1 INTRODUCTION

Mobile and small embedded systems usually have

their own energy supply, an energy management

system, internal logic, (wireless) communication

interface, sensors and actors. Data is transmitted

between single devices and/or servers by means of

standardized communication protocols (e.g., ZigBee,

Bluetooth, W-LAN, etc.). While such devices

provide a growing range of functionality they are

typically characterized by a scarcity of resources.

The power/energy requirements of such systems are

a limiting factor. To increase the quality and user

acceptance it is therefore necessary to optimize the

energy consumption for provide improved uptimes.

Research in the area of mobile phones and ad-

hoc sensor networks has shown that especially

communication (i.e., (wirelessly) transmitting data)

is one of the largest cost factors (Domis 2006),

(Stark et al 2002) (Zhang et al 2005). This makes

communication an ideal candidate for optimizing a

system’s uptime. Energy optimization has to be

aware of the tradeoffs between performance, energy

consumption, and quality-of-service (QoS). In

contrast to hardware optimizations, software systems

are usually optimized at development time by

specifying their energy characteristics and by

adapting the implementation. However, this requires

individual adaptations of each system variant, and

often implies a negative impact on the performance

or QoS of such systems. The challenge is to explore

the relations among the various components and to

understand the tradeoffs between performance, QoS

and energy consumption (Zhang et al 2005). This

enables the development of systems that achieve an

optimal balance between performance, QoS, and

energy consumption by adapting themselves at

runtime (i.e., dynamic optimization).

Component-Based Software Development

(CBSD) (Szyperski 2002) aims at reducing the

complexity of software development and improving

a system’s maintenance by increasing reuse and

independence. CBSE allows focusing on changes at

the component level instead of changes at the

implementation level. Adaptability is managed in

terms of the creation/destruction of component

instances and their links (i.e., dynamic

reconfiguration or structural dynamism). But,

runtime component replacement is not sufficient

since the current state of a component is lost. Thus,

self-adaptability of components is needed allowing

updates at runtime while preserving the state.

Bunse C. and Höpfner H. (2008).

RESOURCE SUBSTITUTION WITH COMPONENTS - Optimizing Energy Consumption.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 28-35

DOI: 10.5220/0001879000280035

 SciTePress

This paper describes the component-based

development of low-energy systems, based on the

MARMOT/KobrA approach (Atkinson et al 2001).

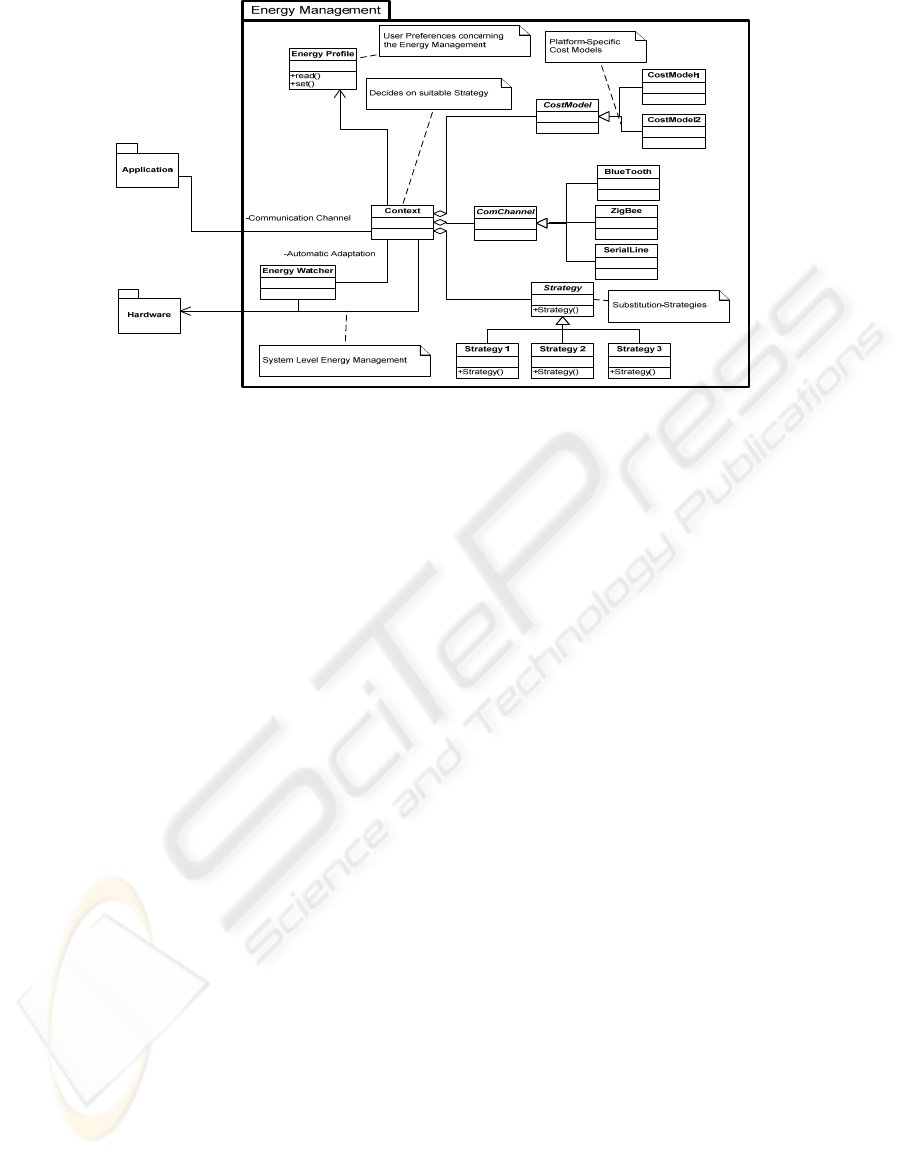

The central idea is the development of an energy-

management component (EMC) that serves as a

communication channel and makes use of resource

substitution strategies (Höpfner & Bunse 2007) to

improve energy consumption. The selection of

strategies is based on an energy cost model. Typical

strategies in this regard are caching, replication or

hoarding. In addition, the paper reports on first

findings obtained in a small series of case studies.

Results show that systems that make use of wireless

communication can profit from using the EMC. In

contrast, systems that make use of cable-based

communication do not show such significant

improvements. This supports the assumption that

wireless communication is a dominant factor

concerning energy consumption.

The remainder of this paper is organized as

follows. Section 2 provides an overview on resource

substitution strategies in mobile information

systems. Section 3 introduces the MARMOT

approach for the component-based development of

such systems, while Section 4 discusses static and

dynamic optimization approaches and provides some

insights to the EMC. Section 5 presents preliminary

evaluation results and Section 6 provides a short

summary and some conclusions.

2 RESOURCE SUBSTITIUTION

IN MOBILE INFORMATION

SYSTEMS

Mobile information systems are aimed at providing

important data in real time at almost every place and

anytime to assist decision makers (Gurun & Krintz

2003). In most cases mobile clients, like Java

enabled mobile phones, connect to static and

powerful information system servers. Unfortunately,

lightweight mobile clients suffer from various

limitations (reduced bandwidth, weak CPU, less

memory, limited energy supply, etc.) that can be

ease by a proper substitution strategy. We

researched the possibilities and benefits of resource

substitution for this application scenario.

The following subsections briefly describe the

relevant resources and how they can be substituted

by each other (see Höpfner & Bunse 2007) for more

details).

2.1 Resources and their Usage

The client/server scenario used in our work implies

that (1) mobile clients query data from a server, (2)

compute and display them, and (3) synchronize

changes with the server. Hence, data communication

is extensively used in the first and the third phase.

Another resource affected in both steps is the energy

supply. Wireless data communication is energy

intensive. Standard techniques for handling this

problem include replication, hoarding, and caching.

Replication stored explicitly defined data parts on

the mobile device, caches keep queried data

implicitly, and hoarding automatically extends

explicitly or implicitly received data by additional

data that might be useful for answering upcoming

requests without communications. Hence, reducing

data communication is done by storing data on the

mobile client by using the memory resource. The

CPU resource is not only used in the second phase

for the “normal” computation and visualisation of

the data but also necessary for supporting the local

data management. If, for example, data is cached in

a semantic manner (Ren & Dunham 2003) query

processing becomes more CPU intensive since

queries must be rewritten regarding the locally

available data. In fact, some of these algorithms are

known to be NP-hard. However, studies (Marwedel

2007) show that even complex calculations consume

less energy than memory accesses.

2.2 Substitutability

We discussed the most relevant resources and how

they are generally used in mobile information

systems in Subsection 2.1 and also mentioned that

extensive communications might be substituted by

memory usage. However, there are more possible

substitutes, such as:

 CPU vs. Communication

In order to reduce CPU usage one can

delegate complex calculations/conversions to

a server or use web services (Ion, Caracaş &

Höpfner 2007). So, communication is a

substitute for CPU usage. On the other hand,

reducing communication means either

transmitting compressed data, to specify

requested data more precisely or to maintain

local copies. Hence, communication might be

substituted by CPU usage.

 CPU vs. Memory

If certain computations are frequent the results

might be stored. In the database world this is

RESOURCE SUBSTITUTION WITH COMPONENTS - Optimizing Energy Consumption

called view materialization. In other words,

CPU usage is reduced by storing additional

data; memory substitutes CPU usage. Saving

memory can be done by compressing and

decompressing data.

 Memory vs. Communication

Caching, hoarding, or replications are well

known techniques of a resource substitution.

All create redundant data on the mobile

device, and this data have to be stored. In

order to substitute memory by communication

one can think about storing all information the

server only as it is supported by IMAP.

 Energy vs. CPU, Memory, Communication

The resource energy interacts with all other

resources. However, the intensity of energy

consumptions is different for each other

resource. Energy consumption associated

with wireless data transmission is not

negligible (Feeney & Nilsson 2001). Storing

data locally requires less energy than wireless

transmissions depending on data-size, storage

time, and other factors. CPU usage needs

comparatively less energy than memory

storage (Marwedel 2007).

In order to implement software for mobile

devices that fits the user’s needs one has to consider

the resources provided by the mobile device and the

environmental infrastructure. So, the discussed

substitutions are only some alternatives beside

others. However, the examples illustrate the

dynamics an implementation must support.

3 COMPONENT ENGINEERING

Reuse is a key success factor in industry today, and

it can be seen as a major driving force in hardware

and software development. Reuse is pushed forward

mainly by the growing complexity of systems. This

section introduces the MARMOT method (Bunse,

2006) that facilitates reuse in embedded systems

development. MARMOT is an extension to the

KobrA method (Atkinson 2001), a component-based

development framework for information systems.

MARMOT adds diagram types (UML and

electronics related), model relationships, verification

mechanisms, and transformation rules to KobrA that

are specifically adapted to embedded systems.

Composition is a key activity in component-

based development with MARMOT. A system is

viewed as a hierarchy of components, in which the

parent/child relation-ship represents composition,

i.e., a super-ordinate component is composed out of

its contained sub-ordinate components. Another

established principle is the separation of interface

and implementation that supports independent

component development, and allows versions of a

component to be exchanged. Following those

principles, each component can be described through

a suite of models (e.g., UML diagrams) as if it was a

system in its own right (see Figure 1).

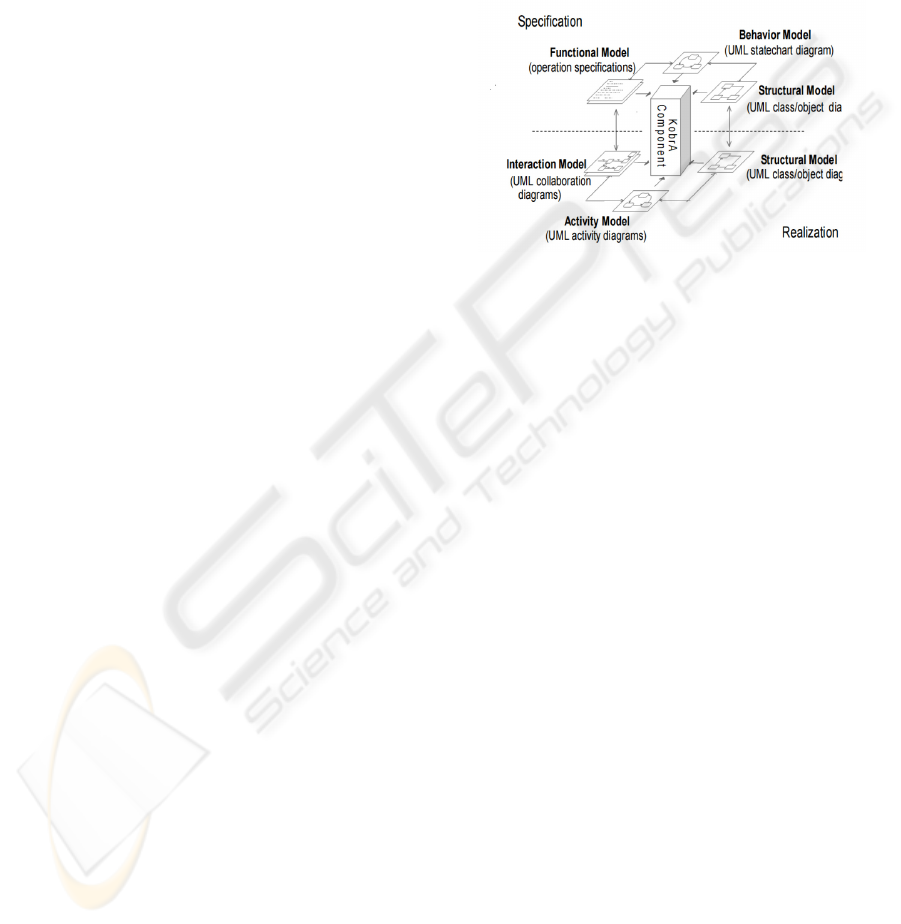

Figure 1: MARMOT Component Model.

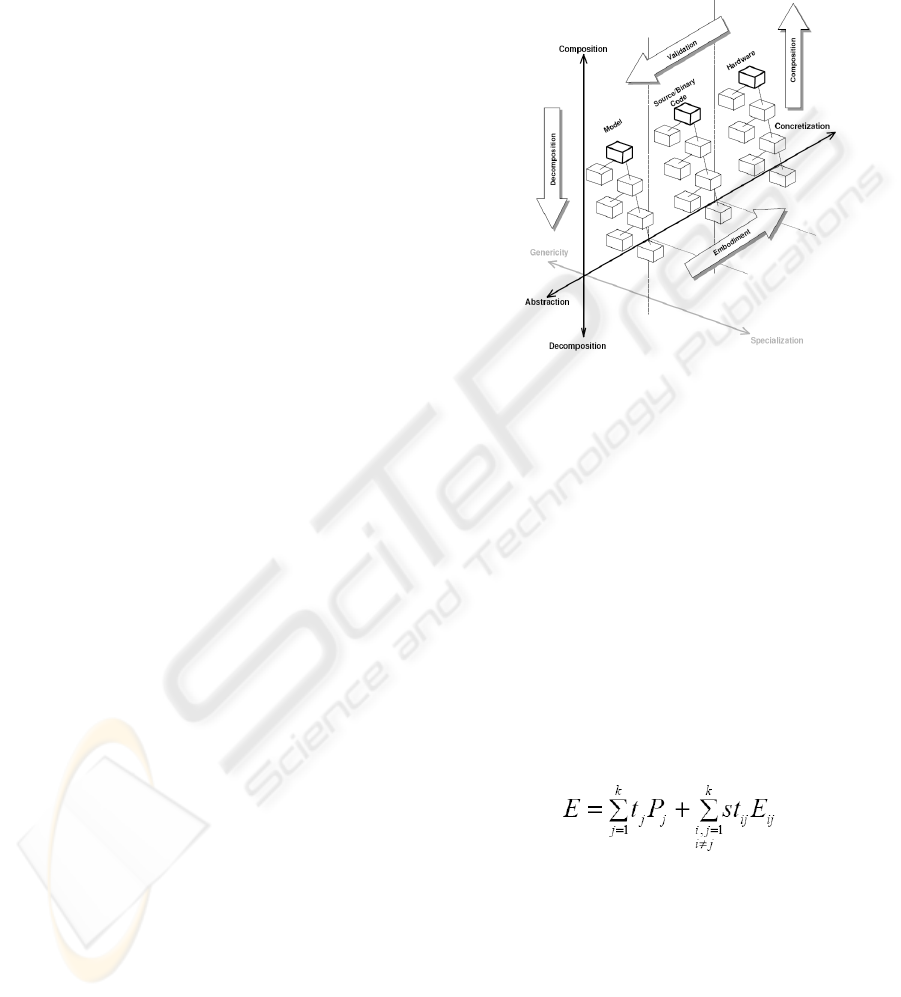

3.1 MARMOT Process Model

The core principle of MARMOT is separation of

concerns, with two basic development dimensions

(Composition/Decomposition and Abstraction

Concretization) that map to four basic activities

(Decomposition, Embodiment, Composition, and

Validation). These are depicted in

Figure 2: 2 and

described in the following list:

• Decomposition. A development project starts

above the top left-hand side box in

Figure 2: 2. It

represents the entire system to be built. Before

the specification of the box, the concepts of the

domain in which the system is supposed to

operate must be determined comprising

descriptions of all entities relevant in the

domain such as standard hardware components

that will appear on the right-hand side towards

concretization. These implementation specific

entities determine the way in which a system is

divided into smaller parts. Decomposition

determines the shapes of identified individual

components in an abstract and logical way.

• Embodiment. The systems, or its parts, are

moved towards more concrete representations,

mostly through reusing existing components (or

custom development). There is no distinction

between hard- and software components at this

early phase since all components are treated in

form of abstract models.

ICSOFT 2008 - International Conference on Software and Data Technologies

• Composition. The reused and implemented

components are assembled according to the

abstract model, and the subordinate boxes have

to be coordinated with their respective super-

ordinate boxes according to the MARMOT

component model.

• Validation assesses to which extent the concrete

composition of the embedded system

corresponds to its abstract description.

3.2 MARMOT Properties

MARMOT follows the principles of encapsulation,

modularity and unique identity, which lead to a

number of obligatory properties:

• Composability is the primary property and it can

be applied recursively: components make up

components, which make up components, etc.

• Reusability is the second key property,

separated into development for reuse, i.e.,

components are specified to be reusable, and

development with reuse, dealing with the

integration and adaptation of existing

components in a new application.

• Having unique identities requires that a

component may be uniquely identifiable within

its development and runtime environment.

• Modularity/encapsulation refer to a

component’s scoping property as an assembly

of services (also true for a hardware

component), and as an assembly of common

data (true for hardware and software

components). The software represents an

abstraction of the hardware.

• An additional important property is

communication via interface contracts that

becomes feasible in the embedded world

through typical software abstractions. Here,

additional hardware wrappers guarantee that the

hardware communication protocol is translated

into a component communication contract.

4 OPTIMIZATION

Research in the area of mobile- and small embedded

systems (e.g., ad-hoc sensor networks) have shown

that especially communication (i.e., wirelessly

transmitting data) is one of the largest cost factors

(Stark 2002, Zhang 2005). Therefore, we limit the

focus of our approach towards optimizing a systems

communication effort with respect to energy.

MARMOT supports the optimization of energy

consumption in two different ways: (1) Statically at

development time (preferred means for optimizing

“isolated” systems), and (2) dynamically at runtime.

Static optimization has already been evaluated by

(Domis, 2006). Therefore, the focus of this paper is

on the dynamic optimization aspects.

Figure 2: Development Dimensions.

4.1 Static

Static energy optimization in MARMOT is based on

(Nieberg 2003), who follows a state-based approach

by assigning a set S of all states s

,..., s

with (k є Ν

and 1≤ k) to all hardware component. This set is used

to create a state transition matrix ST, whereby

elements st

of ST specify the number of state

transitions from state s

to s

( i, j є Ν, 1≤ i ≤k and 1 ≤

j ≤ k). In addition each state s

of S is combined with

the power consumption P

in this state, and each state

transition st

becomes assigned to the energy

consumption E

for the transition. By knowing the

time t

, in which the component is in state s

, the

energy consumption can be calculated by:

Within MARMOT this approach is used to

model the energy related properties of a component

(i.e., hardware node with embedded software

components). Therefore, the component model (see

Figure 1) was adapted at the specification- and at the

realization level (see

Figure 3: ).

At the specification level (i.e., the component

interface) the externally visible behavior of a

component is already modeled by an abstract state

machine. Following (Nieberg 2003) an additional

power state machine is created that specifies the

RESOURCE SUBSTITUTION WITH COMPONENTS - Optimizing Energy Consumption

power consumption for single states and the duration

of transitions. It thus, depicts the externally visible

energy consumption of a component. In addition the

functional model, specifying the external visible

operations of a component, is enhanced by an energy

consumption attribute to specify the consumption of

those operations that are not already covered by the

power state machine.

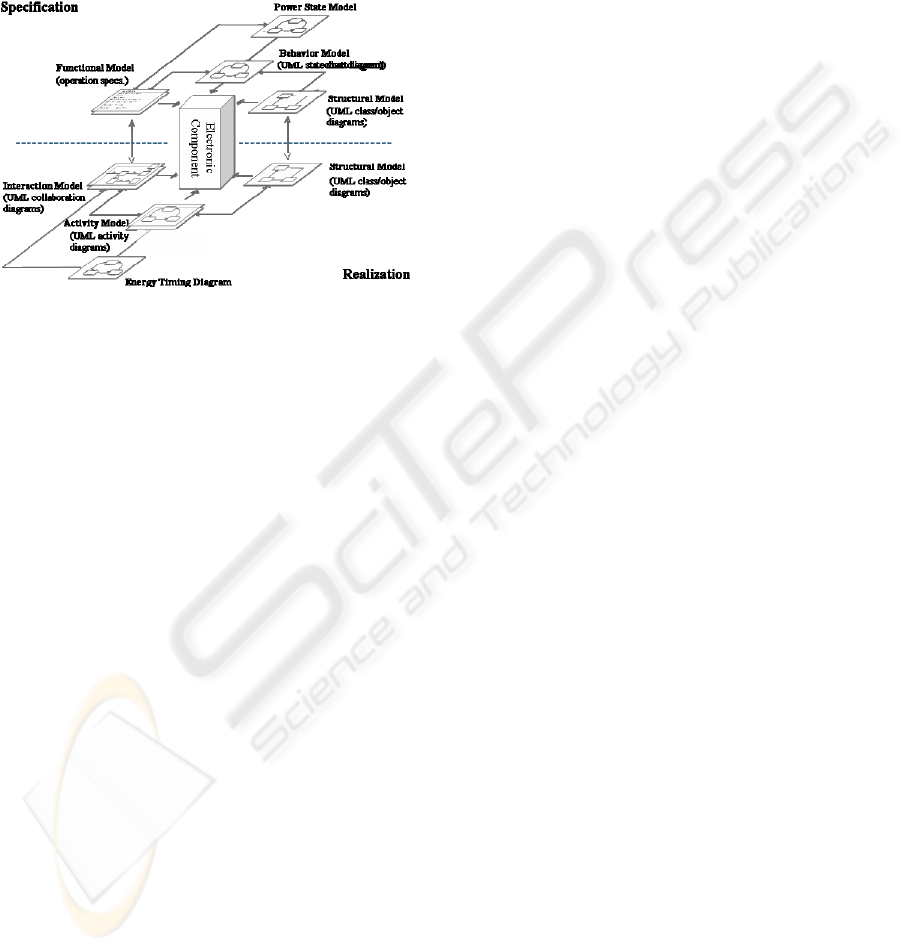

Figure 3: Energy Component Model (Domis 2006).

At the realization level a UML timing diagram is

created for every operation, modeling the

operation’s control flow in relation to time. This

allows (in cooperation with the specification

models) to analyze the energy consumption of an

operation and to manually optimize operations &

control with a focus on communication routines

(e.g., shortened communication cycles and

messages, using sleep modes, reducing wake-up

cycles, etc.).

4.2 Dynamic

In mobile systems, devices, services, environmental

objects, and requirements are subject to change.

Therefore, static optimization might not always be a

suitable solution since the optimization of one

property might have a negative impact onto other

properties (e.g., improving energy consumption via

communication optimization might deteriorate the

system’s quality-of-service). To avoid this, a system

should be able to adapt its operation to the current

requirements and the available resources.

Optimally, run-time adaptation requires that

single components are analyzed at run-time (e.g.,

concerning their energy consumption) and are then

dynamically exchanged. However, this would not

only require implementation support (i.e., dynamic

code exchange is not supported by Java), but also

the provision of different component variants.

When focussing on optimizing communication to

reduce energy consumption, another solution is the

development of a component (-wrapper) that is

plugged into a system and that acts as a facilitator

between the software and the hardware

communication facilities (i.e., hardware wrapper).

Such a component (-wrapper) can be developed

or specified using the MARMOT approach and then

be “easily” integrated into existing systems. This is

supported by MARMOT’s inbuilt component reuse

mechanisms that make use of conformance maps

and wrappers (Atkinson 2001). The component then

analyzes the communication requests to or from the

system with the help of an internal (energy) cost

model and then selects the “optimal” (substitution)

concerning energy consumption.

The central element of such a component is the

cost model. Within in MARMOT such a model can

be developed by following the static optimization

approach (i.e., specifying energy properties of a

(hardware) component) as discussed in Section 4.1

whereby the model must be platform-specific. By

having a platform specific power state machine as

well as the energy-related costs for specific

operations (functional and timing model) it is “easy”

to calculate the differences between alternatives.

Examples of substitution strategies are on a

lower level the accumulation of data, the decision to

let the server perform specific operations, etc. On a

more advanced level caching (i.e., the operation of

storing information in the user’s device after it has

been sent from the server) and hoarding (i.e., the

process of predicting the information that the user

will request, for transferring it in advance to the

client cache) might be used. As discussed in Section

2, caching and hoarding seem to be beneficial for

systems with high communication loads (e.g.,

mobile information systems).

One obvious disadvantage of the substitution

approach is that functionality has to exist at both the

client and the server side (i.e., duplication).

Therefore, substitution strategies, although in

principle generally applicable, have to be specialized

(refined) for a specific system. In addition, more

memory space is required. However, first results

(see Section 5) are quite promising.

4.3 The EMC

To dynamically adapt the energy consumption of

mobile and embedded systems we developed a

component, known as EMC (Energy Management

Component), that manages the communication

to/from the system and that therefore optimizes the

ICSOFT 2008 - International Conference on Software and Data Technologies

Figure 4: Architecture of the Energy Management Component.

system’s energy consumption. In general, the EMC

was developed by applying the MARMOT

approach. On the one hand this eases reusing the

EMC within different projects and also allowed to

statically optimize the EMC regarding its own

energy consumption. Technically, the EMC

implements/realizes the resource substitution

strategies outlined in section 4.2).

At its core the EMC defines a family of

strategies, encapsulate each of these, and makes

them interchangeable. This is nicely supported by

the strategy pattern defined by (Gamma 1995). The

strategy pattern supports the development of

software systems as a loosely coupled collection of

inter-changeable parts. The pattern decouples a

strategy (algorithm) from its host, and encapsulates

it into a separate class. It thus, supports the

separation of an object and its behaviour by

organizing them into two different classes. This

allows switching to the strategy that is needed at a

specific time.

There are several advantages of applying the

strategy pattern for an adaptable software system.

First, since the system has to choose the “best”

substitution strategy it is simpler to keep track of

them by implementing each strategy by a separate

class instead of ‘burying’ it in the body of a method.

Having separate classes allows simply adding,

removing, or changing any of the strategies. Second,

the use of the strategy pattern also provides an

alternative to sub-classing an object. When sub-

classing an object to change its behaviour, that

behaviour is static. Changes therefore require the

creation/instantiation of a different subclass and

replacing that object with it. The strategy pattern

allows switching the object's strategy, and it will

immediately change how it behaves. Third, using the

strategy pattern also eliminates the need for various

conditional statements. When different strategies are

implemented within one class, it is difficult to

choose among them without resorting according to

the conditional statements. The strategy pattern

improves this situation since strategies are

encapsulated as an object that is interchangeable at

runtime. In the context of this paper we specified an

Energy Management component (EMC) that makes

use of strategy pattern variant, and that uses resource

substitution strategies for optimizing energy

consumption (see

Figure 4: ).

To select the most appropriate strategy the

component has to ‘know’ the cost of operations.

Therefore, a cost model is needed (see Section 4.2).

Since these costs vary between target platforms the

cost model entity provides a generic interface that

has to be specialized prior to deployment.

Selecting the ‘best’ strategy concerning energy

consumption might have a negative impact on other

quality attributes (e.g., performance, memory, etc.).

Thus, the best possible optimization might not be

desirable from the user’s point of view. The decision

on suitable strategies cannot be made by the

component on its own. Thus, the component has to

be aware of user preferences. The EM component

therefore provides a profile mechanism that allows

users to specify their requirements concerning

energy saving, performance, and quality-of-service.

Furthermore, it allows to specify how the system

should behave if the energy level gets low.

RESOURCE SUBSTITUTION WITH COMPONENTS - Optimizing Energy Consumption

In addition to user profiling the EM component

needs an interface to the underlying platform or

hardware layer to monitor the actual battery status.

In order to make the component deployable across

different platforms the component uses a generic

interface that is specialized according to the selected

platform. In addition to monitoring battery levels

this interface is also used to directly access hardware

implemented energy saving procedures (e.g.,

reducing the transmitting power, graceful

degradation, or dynamic voltage scaling).

Since the EMC itself was developed with

MARMOT two facts have to be noted. First, due to

the method’s inbuilt reuse mechanisms the EMC can

quickly and efficiently be adapted and reused within

other projects systems (this is supported by the low

reuse effort as reported in section 5.1.) Second, the

EMC itself was optimized, regarding its energy

consumption, by using the static optimization

mechanisms outlined in section 4.1. The reason was

to avoid that achieved savings are wasted by the

EMC’s own energy consumption. The results

reported in section 5.1 support this assumption.

5 EVALUATION

Optimizing the communication behaviour is a

promising means for reducing the energy

consumption of mobile and embedded systems. The

EMC component is based on the idea of resource

substitution and can be plugged into other systems

that have been developed using the MARMOT

approach. In the following preliminary results of

three, currently running, case studies are discussed.

Case studies were selected according to the used

communication technology (e.g., ZigBee, Bluetooth

and Cable-based). In addition, all case studies are

micro-controller based. Systems that use an

operating system (OS) do not allow to clearly

investigating the energy relevant behaviour since it

is not possible to differentiate between system and

OS activities when measuring energy consumption.

All measurements are performed and recorded

automatically using a digital oscilloscope that has a

PC-communication module. During measurement

three different versions of a system have to undergo

the same, pre-specified action sequence that is

repeated until the battery level reached a critical

value. Measurements focus on energy consumption.

In order to obtain valid measurement results the case

studies are performed several times (multiple battery

cycles), resulting in an overall measurement time of

several days. Measurements currently continue in

order to further confirm the initial findings.

5.1 Case Studies

As a first step towards evaluating the effected of

using the EMC three case-studies were defined:

• A wireless sensor network that consists out of a

controller, router- and end-nodes. Each node has

a set of sensors and communicates with the

other nodes using the ZigBee protocol. The

system supports the surveillance of animals

(i.e., cattle). Nodes integrated in a collar,

measure life data (temperature, pulse …) and

provide these together with localization

information to the controller. The controller can

then monitor movement, identify escaped, ill, or

dead animals, can issue alarm calls, and create

movement profiles (optimal land utilization).

• A fork-lifter system for handling transport

within a warehouse. The system consists of a

vehicle and a central control unit (i.e., a PC).

The fork lifter is able to independently navigate

through the warehouse and solve transportation

tasks. The central control unit communicates

with the vehicle via Bluetooth, provides new

tasks, monitors its actual state and position,

provides roadmaps and routes, and offers a

manual control of all vehicle functions.

• A mirror control system, part of a larger door

control unit, allows movement of a car mirror

horizontally and vertically into the desired

position whereby movement is indicated on a

small LCD panel. Cars supporting driver

profiles can store the mirror position and recall

as soon as the profile is activated. Furthermore,

the system provides a defreeze/defog function

with a humidity sensor and a heater.

5.2 Initial Results and Discussion

Initial measurement within the case-studies shows

that the EMC-related optimization results are close

to those that can be obtained by static optimization.

However, the perceived QoS is higher for dynamic

optimization and the effort for integrating the EMC

into a system is significantly lower than the required

effort for static optimization. On average the

adaptation and integration of the EMC required 10h.

One reason for this is the use of MARMOT and its

inbuilt reuse mechanisms. Interestingly, static

optimization required nearly double this effort.

ICSOFT 2008 - International Conference on Software and Data Technologies

One finding is that using the EMC seems to be

more effective when using the EMC within systems

that make use of wireless communication (e.g.,

ZigBee/Bluetooth). Here the uptime was extended

from ~13 to ~110 hours. Systems that make use of

cable-based communication (e.g., UART) showed

less significant results (i.e., uptime extension from

10 to 13 hours). This, indirectly, confirms that

wireless communication is one of the largest cost

factors regarding energy consumption.

Results reveal that the curves, formed by

measurement-data, show some of the typical

characteristics of battery-powered systems. If the

energy consumption passes a maximum value they

seem to suddenly lose their capacity, while, after

phases with minimum energy consumption that

follow short high-energy consumption phases they

seem to re-charge themselves. This effect is known

as Recovery Effect and depends on the charge

history, age, and environment temperature of the

battery. In addition, batteries are known to

discharge themselves based on the environmental

temperature and the actual use. Although, these

effects make measurement and forecasts quite

difficult, they did not have an impact onto the results

of the case studies since every run used fresh

batteries and followed the same scenario.

6 SUMMARY & CONCLUSIONS

Given the rising importance of mobile and small

embedded devices, energy consumption becomes

increasingly important. Currents estimates by

EUROSTATS predict that in 2020 10-35 percent

(depending on which devices are taken into account)

of the global energy consumption is consumed by

computers and that this value will likely rise.

Therefore, means have to be found to save energy.

The focus of this paper is on resource

substitution as a means for energy saving. Based on

general substitution strategies (Höpfner & Bunse,

2007) we presented a general energy management

component (EMC) that can be plugged into

component based systems developed with

MARMOT. The component acts as a mediator

between system and communication facilities. All

communication requests are analyzed concerning

energy related cost and substitution strategies are

used for optimization. Preliminary case-study results

indicate that wireless communication is the major

cost factor concerning energy consumption and that

by using the EMC it is possible to significantly

extend the uptime and to decrease the energy

consumption of mobile & small embedded systems.

Our initial results are based on micro-controller

systems. To systematically evaluate the effects of

strategies such as caching or hoarding we currently

prepare a case study for mobile information systems

running on a PDA or Smartphone.

REFERENCES

Atkinson, C., Bayer, J., Bunse, C., et al (2001).

Component-Based Product-Line Engineering with

UML. Addison-Wesley, UK.

Bunse, C. (2006) Developing µController-Systems with

UML. A MARMOT Case Study‘. Technical Report

111.06/E, Fraunhofer IESE, Germany.

Domis, D.J. (2006), Component-based Energy-Modeling

for Ambient Intelligence Systems, in German. Master

Thesis, Technical University Kaiserslautern.

Gurun, S. & Krintz, C. (2003), Addressing the energy

crisis in mobile computing with developing power

aware software, Technical Report 2003-15, University

of California, Santa Barbara.

Feeney, L. M. & Nilsson, M. (2001), Investigating the

energy consumption of a wireless network interface in

an ad hoc networking environment, IEEE Conference

on Computer Communications, Anchorage, USA.

Gamma, E., Helm, R., Johnson, R.E. (1995), Design

Patterns. Elements of Reusable Object-Oriented

Software, Addison-Wesley Longman.

Höpfner, H. & Bunse, C. (2007). Resource Substitution for

the Realization of Mobile Information Systems. 2nd

International Conference on Software and Data

Technologies, Barcelona, Spain. pp. 283-289.

Ion, I., Caracaş, A. & Höpfner, H. (2007).

MTrainSchedule: Combining Web Services and Data

Caching on Mobile Devices, Datenbank-Spektrum

5(21), 51-53.

Marwedel, P. (2007), Embedded System Design, Springer.

Nieberg, T., Dulman, S., Havinga, P., van Hoesel, L.,

Wu, J. (2003), Ambient Intelligence. Impact on

Embedded System Design Ambient Intelligence:

Collaborative Algorithms for Communication in

Wireless Sensor Networks. Kluwer.

Ren, Q. & Dunham, M. H. (2003), Semantic caching and

query processing, Transactions on Knowledge and

Data Engineering 15(1), 192–210.

Stark, W., Wang, H., Worthen, A. Lafortune, S. Teneketzis,

D. (2002), Low-energy wireless communication network

design. IEEE Wireless Communications, Vol 9(4), pp.

60-72.

Szyperski, C. (2002), Component Software. Beyond

Object-Oriented Programming, Addison-Wesley.

Zhang, Y., Teng, X., Yu, H., Hu, H. (2005), The Energy

Cost Model of Clustering Wireless Sensor Network

Architecture. In Wu, Chen, Guo, Bu (Eds.): Embedded

Software and Systems. Springer Verlag, pp 374-380.

RESOURCE SUBSTITUTION WITH COMPONENTS - Optimizing Energy Consumption
