FUNCTION POINT SIZE ESTIMATION FOR OBJECT

ORIENTED SOFTWARE BASED ON USE CASE MODEL

A. Chamundeswari and Chitra Babu

SSN College of Engineering, Rajiv Gandhi Salai, SSN Nagar – 603110, India

Keywords: Object-Oriented Software, Use Case Model, Function Point, Object Model.

Abstract: Precise size estimation earlier in the software development life cycle has always been a challenge for the

software industry. In the context of object oriented software, Use Case Model (UCM) is widely used to

capture the functionality addressed in the software. Existing size estimation techniques such as use case

points and use case size points do not adhere to any standard. Consequently, lots of variations are possible,

leading to inaccurate size estimation. On the other hand, Function Point Analysis (FPA) has been

standardized. However, the current estimation approaches based on FPA employ object modeling that

happens later in the software development life cycle rather than the UCM. In order to gain the advantages of

FPA as well as UCM, this paper proposes a new approach for size estimation of object oriented software.

This approach is based on the UCM by adapting it to FPA. Mapping rules are proposed for proper

identification and classification of various components from UCM to FPA. Estimation results obtained

using the proposed approach are compared with those using finer granular level object model which adapts

FPA at design phase. The close agreement between these two results indicates that the proposed approach is

suitable for accurate software size estimation earlier in the software development life cycle.

1 INTRODUCTION

Software size estimation is a challenging activity in

software development life cycle (Kusumoto et al.,

2004). One of the widely used size estimation

techniques is FPA. It was initially proposed

(Albrecht, 1979) to estimate the software size based

on the functionality from requirements specification,

independent of the technology used to build the

software. It contains five components namely

External Interface File (EIF), Internal Logical File

(ILF), External Input (EI), External Output (EO) and

External Inquiry (EQ). All these five components

are estimated based on the functionality. Fourteen

Technical Complexity Factors (TCF) are evaluated

based on the non-functional requirements. FPA has

been approved by International Function Point User

Group (IFPUG) and it became a standard. It is

widely accepted in software industry as a superior

metric compared to the naïve Lines of Code

counting for size estimation.

As object oriented methodology was embraced

by several software organizations, there was a need

to suitably adapt the FPA approach. Many

researchers have proposed the adaptation of FPA

approach for object oriented software size estimation

using object model (Antoniol et al., 1999, Ayman et

al., 2006 , Zivkovic et al., 2005). These approaches

estimate size of software by mapping the various

key notions of object model to the FPA components.

However, UCM has certain distinct advantages in

capturing the system requirements earlier in

software development life cycle (Kusumoto et al.,

2004). Some researchers have contributed to size

estimation based on UCM in terms of use case

points or use case size points (Edward, 2005,

Kusumoto et al., 2004, Marico et al, 2006). Use case

points size estimation technique is an extension of

FPA and Mark II FPA (Marico et al., 2006).

However, these approaches are not standardized as

opposed to FPA which is governed by IFPUG.

Furthermore, the UCM captures different

granularities such as brief, fully-specified and

refinements in the requirement analysis phase

(Cockburn, 2001) in detail. This paved the way to

the formulation of the hypothesis that the more

detailed the UCM, the more accurate will be the

anticipated system’s predicted size (Ayman et al.,

2006).

139

Chamundeswari A. and Babu C. (2008).

FUNCTION POINT SIZE ESTIMATION FOR OBJECT ORIENTED SOFTWARE BASED ON USE CASE MODEL.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 139-145

DOI: 10.5220/0001879701390145

 SciTePress

The main motivation for this research stems from

the hypothesis that UCM is more appropriate in

capturing the system requirements earlier in the

software development life cycle and consequently

provides accurate size estimation. Even though use

case points and use case size points are based on the

UCM, they do not adhere to any standard. On the

other hand, FPA is standardized. In order to combine

the advantages of UCM as well as FPA, this paper

proposes a new size estimation technique based on

the UCM.

The objective of this research work is to provide

accurate size estimation using FPA technique. This

has been achieved as follows:

1. Mapping the UCM components to FPA

components during the analysis phase.

2. Estimating size of object oriented

software in terms of function points by

applying this FPA mapping.

3. Comparing the estimated size with the

existing object model size estimation

technique.

The proposed approach is substantiated with

finer granularity level object model during design

phase.

The remainder of the paper is organized as

follows. Section 2 surveys work related to size

estimation of object oriented software. In Section 3,

a size estimation model which applies FPA on UCM

is presented. Section 4 discusses the results. Section

5 concludes and suggests future work.

2 RELATED WORK

The research work on quantitative size estimation

for object oriented software has been the focus of

many researchers. Size estimation has been dealt

during the various phases of the software

development life cycle such as analysis (Fetcke et

al., 1997, Antoniol et al., 2003, Fernandez et al.,

2004, Harput et al., 2005, Zivkovic et al., 2005),

design (Ram et al., 2000, Uemura et al., 2001,

Antoniol et al., 2003, Zivkovic et al., 2005) and

development (Whitmire, 1992, Schooneveldt, 1995,

Minkiewicz, 1997). FPA technique cannot be

directly used for estimating size of object oriented

software (Fetcke et al., 1997, Antoniol et al., 1999,

Ram et al., 2000, Harput et al., 2005, Zivkovic et al.,

2005). Hence mapping rules were framed, to adapt

FPA for estimating the size of object oriented

software.

Use case point method for estimating size of

projects developed with object oriented

methodology was first proposed by (Karner, 1993).

However, it has been tested only on a few small

projects. Therefore, more research is needed to

establish the general usefulness of the method. FPA

technique was applied on OOSE Jacobson method

(Fetcke et al., 1997). This was the first attempt to

apply FPA on object oriented software to estimate

the size.

A measure on UCM and object model was

proposed by (Zivkovic et al., 2005). In their study,

the approach of ISBSG statistical tool kit was

adapted for calculating the size estimation based on

use case diagram.

Use case point size estimation was proposed

considering the various parameters for UCM such as

actors, use cases, technical factors and eight

experience factors by (Edward, 2005). An analysis

of the performance with empirical data based on use

case point, it was shown that there was a deviation in

effort from planned to actual by -41.43%.

Use case size points estimation from UCM was

also proposed by (Marico et al., 2006). Finer

granularity such as classification of actors,

preconditions, main scenarios, alternative scenarios,

exceptions, post conditions, TCF and environment

adjustment factor were considered for estimation.

Manual measurement was done using original FPA.

Error rate of the estimate showed no significant

difference between FPA and use case size point.

However, size estimation techniques such as use

case point and use case size point based on UCM

follow different procedures and hence produce

varied results. In addition, these techniques also

have the following shortcomings:

1. Focus on the internal structure alone.

2. Lack of boundary identification.

3. Lack of identifying interaction with other

external use case.

4. Not considering overlapping use cases

that capture the same functionality.

In order to address these shortcomings, this paper

proposes a new estimation technique based on UCM

by applying FPA standard.

3 PROPOSED SIZE ESTIMATION

MODEL

Figure 1 gives a pictorial overview of the proposed

size estimation model. Software comprises of many

applications and it is essential to identify the

boundaries of different applications. Boundary of an

ICSOFT 2008 - International Conference on Software and Data Technologies

140

application is classified into two categories: internal

and external.

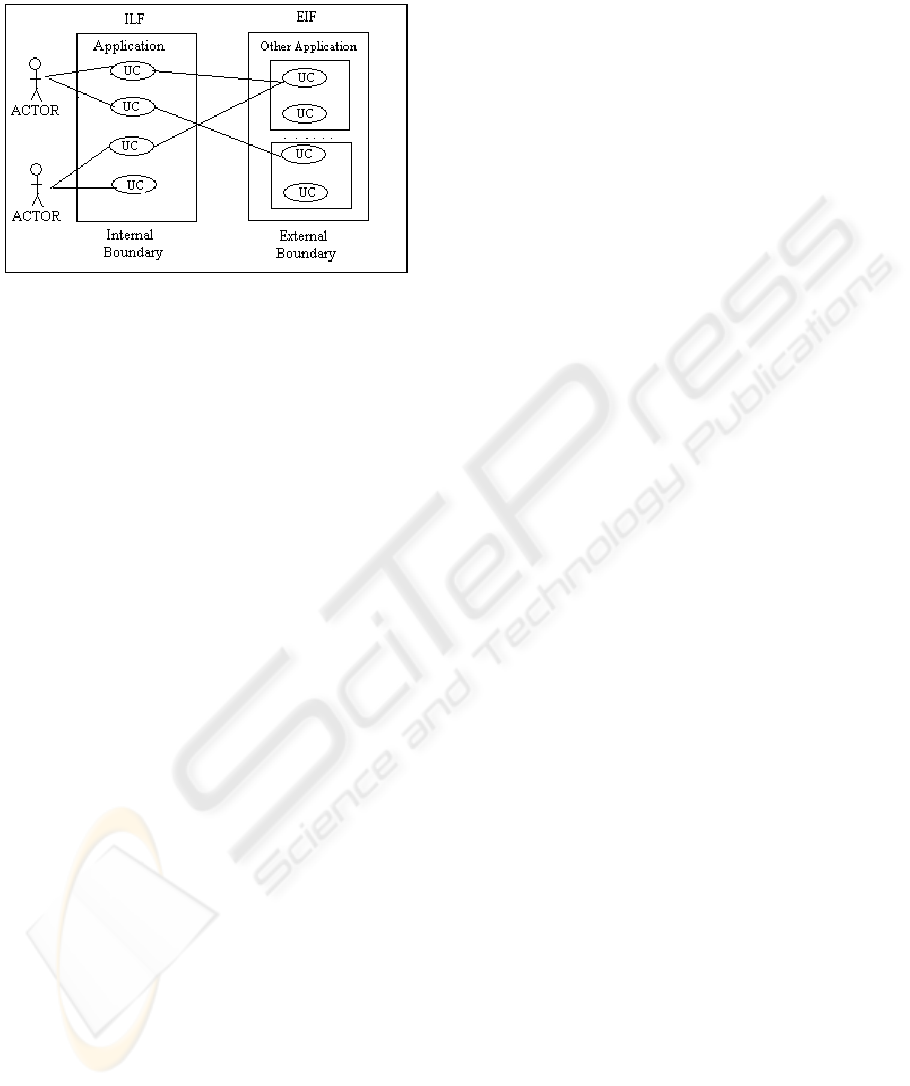

Figure 1: An overview of size estimation model.

An internal boundary contains actors which

directly invoke a set of use cases in an application.

An external boundary contains use cases of different

applications, which can be referenced by use cases

from an internal boundary. Logical files in FPA are

of two categories: ILF and EIF. ILF are identified

based on the artifacts that affect the internal

boundaries of the system, while EIF are identified

based on the artifacts that affect the external

boundary of the system. Thus the artifacts related to

an internal boundary of UCM are mapped to ILF

components, while the artifacts related to an external

boundary is mapped to EIF components of FPA.

Transactions in the FPA technique are classified

as EI, EO and EQ. The classifications EO and EQ

are not easily applicable in UCM, because scenarios

are the main transactions in use case and are defined

as Transaction Function (TF). TF of UCM is

mapped to EI components of FPA.

The detailed size estimation procedure consists

of four steps. The first step is identification of the

boundaries (internal and external). The second step

is identification of files and transactions within these

boundaries. The third step is to assign weights for

files based on their classification. The fourth step is

to count the size of the software application. The

following subsection discusses these steps in detail.

3.1 Mapping UCM to FPA

3.1.1 Boundary Identification

The main objective of FPA is to determine the size

based on functional requirements of the software

application. Identification of boundary is essential to

determine the artifacts under estimation. The

boundary indicates the border between different

applications. The various parameters in UCM are

boundaries, abstract use case, concrete use case,

active actors, passive actors, devices and scenarios.

The following mapping rules are proposed for

proper identification of internal and external

boundaries in UCM.

1. Active actors who are directly

communicating with the use cases within

the system boundary are internal.

2. Passive actors who are directly

communicating with the use cases for data

storage purpose within the system boundary

are internal.

3. Devices which are directly interacting with

the use case within the system boundary are

internal.

4. All other external references are external.

3.1.2 Identification & Classification of

Logical Files

Use cases are the main candidates in the UCM based

on which the estimation is carried out. A set of use

cases form the candidates for logical files. An actor

that directly invokes one or more use cases are

grouped as an ILF. The following mapping rules are

proposed for proper identification of ILF in UCM.

5. Select use cases that have direct

connection to an actor or device as stated

in rules 1, 2 or 3.

6. Group the use cases with their respective

actor or device separately.

7. Reject all other use cases that have

relationship uses or extends.

Classification of ILF depends on two parameters

namely Record Element Type (RET) and Data

Element Type (DET). RET represents a user

recognizable group of logically related data. DET

represents a simple unique user recognizable, non-

recursive data in RET. Each use case invoked by an

actor is counted as an RET. Data that flows from

actor to use case or from use case to actor is counted

as a DET. When RET and DET parameters are

classified and measured, ILF complexity table

defined as in IFPUG is used for classifying

complexity as low, average and high.

In the case of EIF, internal use case within the

internal boundary refers to external use case

maintained by other applications. An actor through

internal use case can invoke indirectly one or more

external use cases from another application. An

actor with external use cases is grouped as an EIF.

The following mapping rules are proposed for

proper identification of EIF in UCM.

FUNCTION POINT SIZE ESTIMATION FOR OBJECT ORIENTED SOFTWARE BASED ON USE CASE MODEL

141

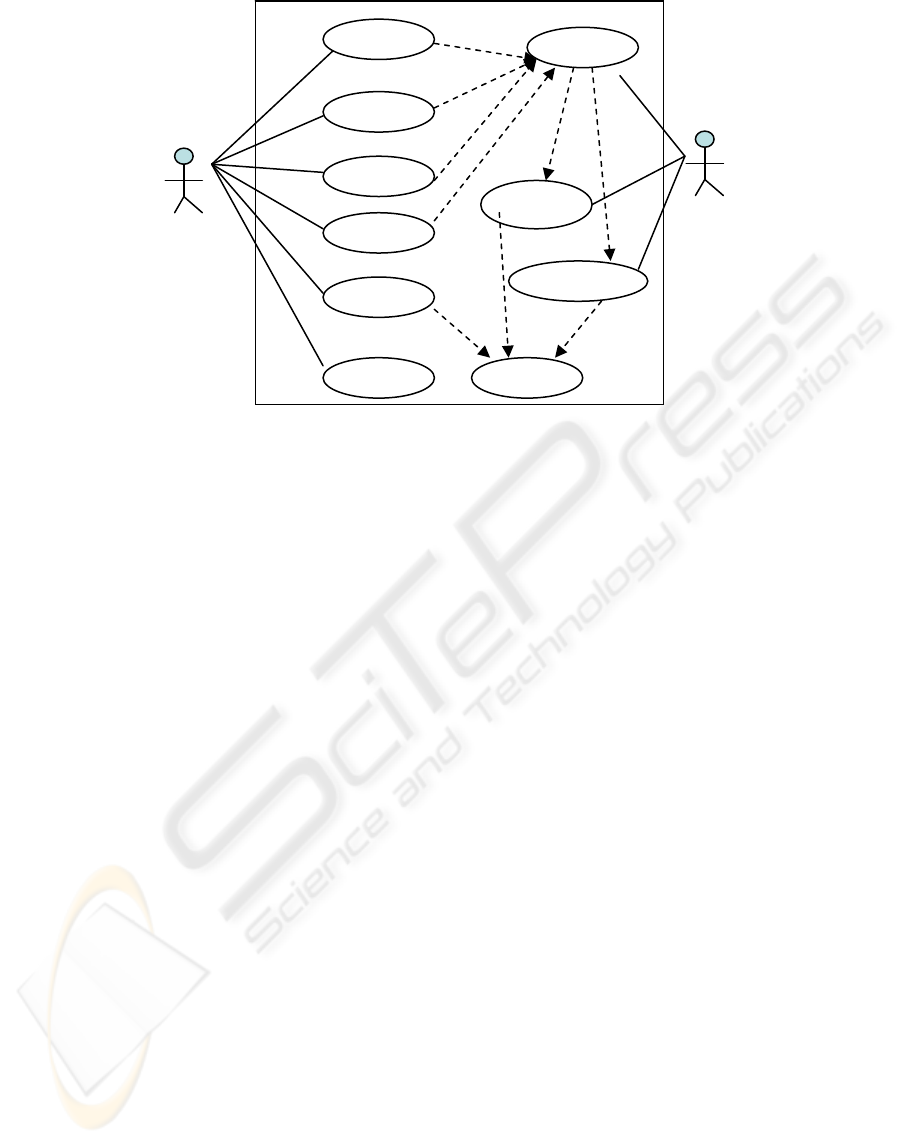

Figure 2: Typical Use Case diagram.

8. Select internal use cases that refer

external use cases.

9. Identify the related actor or device of

internal use cases that invoke the external

use cases.

10. Group the actor or device with the

corresponding external use cases.

11. Reject all other external use cases.

Classification of EIF also depends on the two

parameters namely RET and DET. Each external use

case that is invoked though an actor is counted as an

RET. Data that flows from actor to external use case

or from external use case to actor is counted as a

DET. When RET and DET parameters are classified

and measured, EIF complexity table defined as in

IFPUG is used for classifying complexity as low,

average and high.

3.1.3 Identification & Classification of

Transactions

The following mapping rules are proposed for

proper identification of TF in UCM.

12. Select concrete use case and identify the

scenarios for each.

13. Identify the various transaction messages

for each scenario.

14. Identify the unique transaction messages

for different scenarios in each use case.

15. Reject all overlapping transaction messages

for different scenarios in each use case.

Classification of transactions depends on two

parameters, namely, File type referenced (FTR) and

DET. FTR represents a transaction in ILF or EIF.

DET represents a simple unique user recognizable

and non-recursive data in FTR. Each use case

scenario is counted as an FTR and each transaction

message is counted as a DET. When the DET and

FTR parameters are classified and measured, EI

complexity table defined as in IFPUG is used for

classifying complexity as low, average and high.

3.2 Size Estimation

The size estimation of a software application can be

determined by applying all the above 15 proposed

rules. The proposed estimation, UCM

, is calculated

as shown below.

UCM

= Unadj FP

usecase-estimation

* TCF

where

Unadj FP

usecase-estimation

= EIF

size-complexity

+ILF

size-complexity

+TF

size-complexity

EIF

size-complexity

= f (RET, DET)

ILF

size-complexity

= f (RET, DET)

size-complexity

= f (FTR, DET)

TCF = 0.65 + 0.01 * Σ t

i = 0

UCM

is determined from four components

namely EIF

size-complexity

ILF

size-complexity

, TF

size-complexity

and TCF. By determining the complexities of the

corresponding parameters RET and DET the size

complexity of EIF

size-complexity

and ILF

size-complexity

calculated. Parameters FTR and DET determine the

complexity of the

size-complexity

. TCF is determined

from t

for fourteen characteristics, as defined in

(Albrecht, 1979). A case study for which the

proposed size estimation technique is applied is

described in the next section.

New

Help

Enquiry

Renew

Tatkal

Duplicate

Validate

Update Status

View

Status

extends

include

extends

include

extends

Admin

Applicant

ICSOFT 2008 - International Conference on Software and Data Technologies

142

4 RESULTS AND DISCUSSION

As a case study for validating the proposed

estimation model, passport automation system

developed in the Software Engineering Laboratory

in our Institute has been considered. Fifteen

mapping rules as specified in section 3.1.1, 3.1.2,

3.1.3 and the formula in section 3.2 are applied for

validation. Figure 2 shows the UCM of this

application. This case study consists of all activities

in software development life cycle such as analysis,

design, implementation and testing. The total

number of use cases is 10 with 2 active actors and 3

passive actors. Number of data provided or received

from the use cases are 85. Number of scenarios

addressed by all these use cases is 18 with message

flow of 100.

By applying rules 1, 2, 3 and 4 the boundaries of

the application is identified. By applying rules 5, 6

and 7 the internal files are identified and classified to

determine RET and DET. Table 1 shows the ILF

size-

complexity

for the passport automation system. By

applying rules 12, 13, 14 and 15 the scenarios and

unique transaction messages are identified.

Considering the use case diagram shown in

Figure 2, ‘new’ use case addresses two scenarios:

‘completed form’ and ‘uncompleted form’. An

identified transaction message for two scenarios is

represented as a list of sequential steps in Figure 3.

This is also represented using sequence diagrams as

shown in Figure 4(a) and 4(b).

Table 1: ILF Size Complexity.

Actor

RET DET COMP

Applicant 6 45 15

Administrator 3 15 7

Passport_details 2 15 7

Passport_renew 1 5 7

Passport_status 1 5 7

Total 43

Figure 3: Transaction messages of new use case.

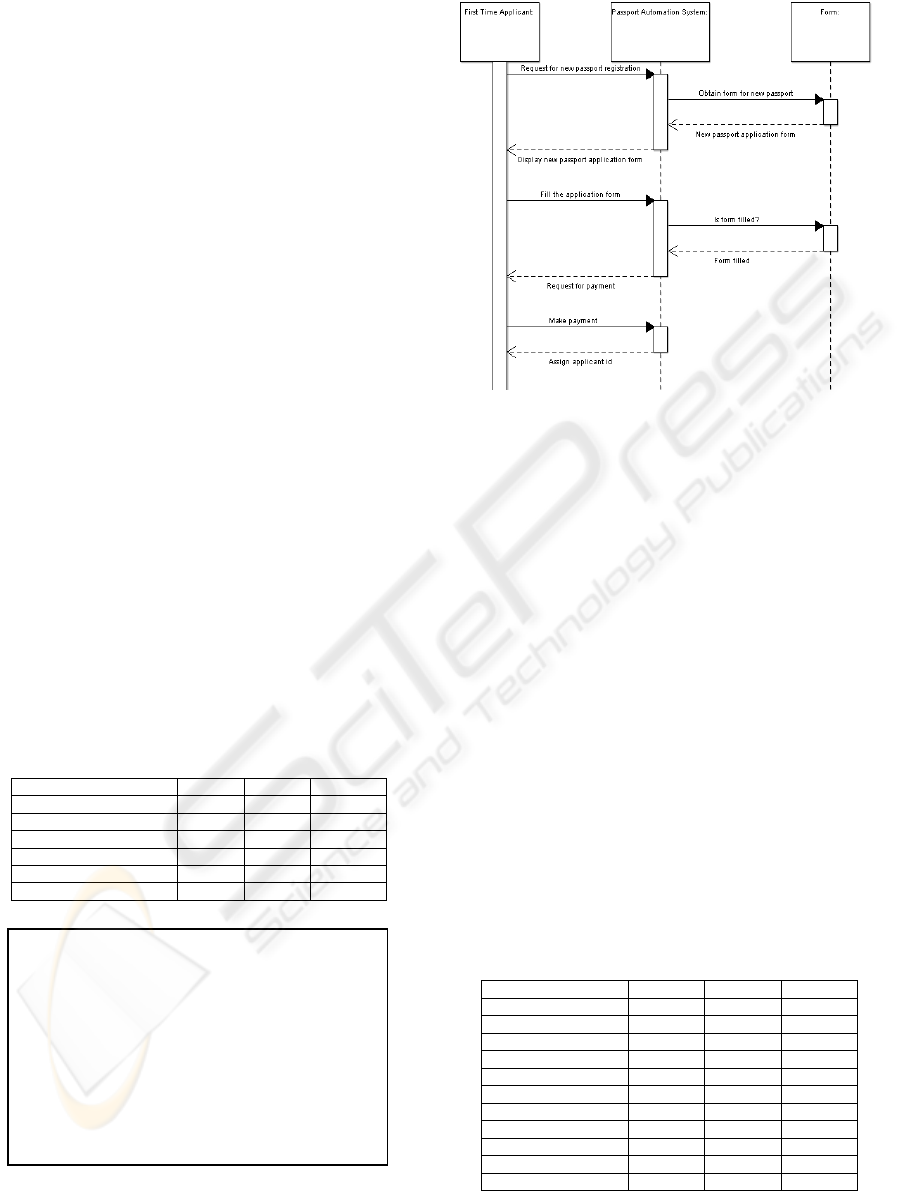

Figure 4a: View of ‘complete form’ scenario.

Through the sequence diagrams it is clear that

the ‘completed form’ scenario has 10 transaction

messages and ‘uncompleted form’ scenario has 8

transaction messages. However 6 messages are

overlapping out of the total 18 messages. Rejecting

the overlapping messages, DET is calculated as 12

and RET is calculated as 2. Table 2 shows the TF

size-

complexity

for the passport automation system. TCF is

calculated as 1.07.

Unadjusted FP = ILF + TF

= 43+41 = 84

Adjusted FP = Unadjusted FP * TCF

= 84 * 1.07 = 89.88 FP

The proposed size estimation technique, UCM

is also applied on different projects developed in our

software engineering laboratory. For the same set of

projects, fine granular level object model size

estimation technique, object_model

which adapts

FPA during design phase proposed by (Antoniol et

al., 1999) is also applied.

Table 2: TF Size Complexity.

Use case FTR DET COMP

New 2 12 4

Renew 2 9 4

Duplicate 2 9 4

Talkaal 2 9 4

StatusEnquiry 2 5 4

Help 3 3 4

Validate 1 4 3

ViewStatus 1 5 4

UpdateStatus 1 6 4

Total 41

The comparison of projects using UCM

and

object_model

is tabulated in Table 3. It is observed

1. An applicant request new form

2. Obtain the form

3. New passport application form

4. Display new passport application form

5. Fill and submit the application form

6. Is form filled? Yes go to step 9

7. Some fields not entered

8. Display message and go to step 4

9. Form filled

10. Request for payment

11. Make payment

12. Assi

n a

licant id

FUNCTION POINT SIZE ESTIMATION FOR OBJECT ORIENTED SOFTWARE BASED ON USE CASE MODEL

143

from Table 3 that passport automation system

project UCM

predicts more number of FPs when

compared to object_model

. In the case of other

projects, object_model

is predicting higher number

of FPs than UCM

. The accuracy evaluation of the

estimation models are assessed using Magnitude of

Relative Error (MRE), which is defined as

MRE= | UCM

– object_model

| / UCM

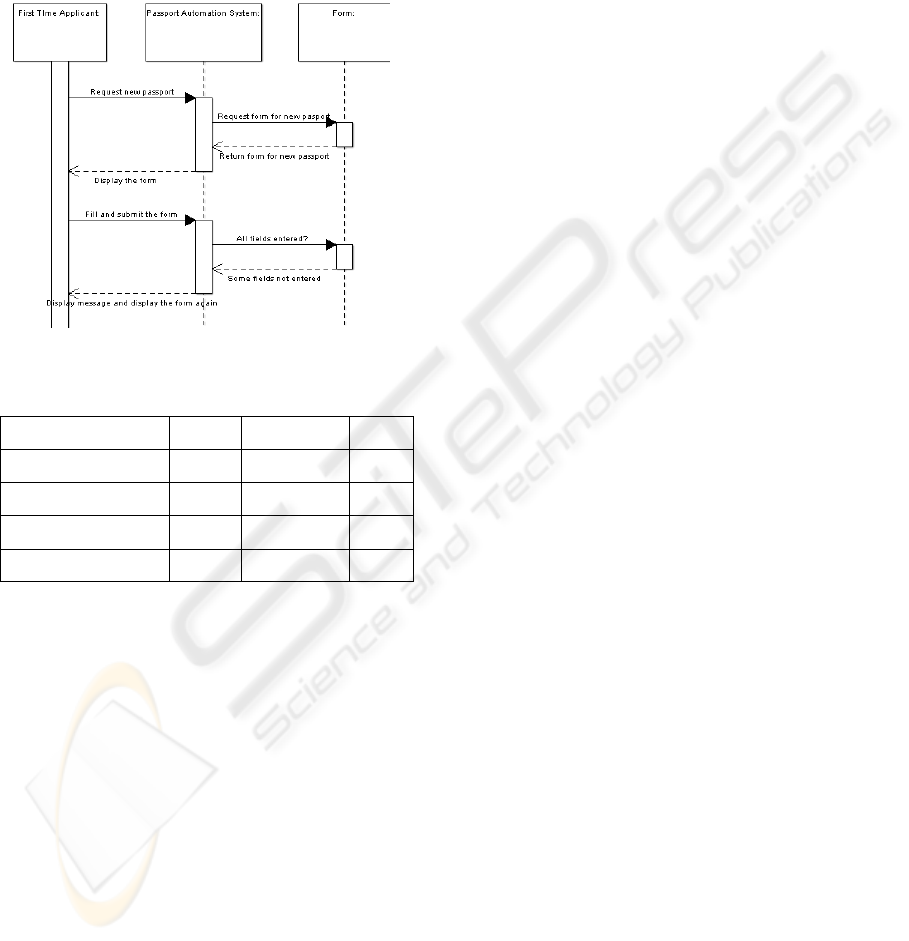

Figure 4b: View of ‘uncompleted form’ scenario.

Table 3: Comparison of FP Size Estimation.

Project Name UCM

object_model

MRE

Passport automation

System

89.88 83.46 0.071

e-book management

system

83.46 87.74 0.069

On-line photo sharing and

indexing

92.02 93.09 0.011

Foreign exchange system 108.07 115.56 0.069

Although there are some differences in the

results obtained from the existing model to the

proposed one, it is clear that FPA can be applied on

UCM

. Also, the MRE between two techniques is

found to be very low. This result shows that FPA

predicts size accurately during early analysis phase

when UCM components are mapped to FPA

components for size prediction.

The advantages of the proposed estimation

technique can be summarized as follows:

1. Size estimation using FPA can be applied at

an early stage of software development life

cycle using UCM.

2. Coarse granular size prediction can be

achieved using UCM

and more fine

granular size estimation can be done using

object model

5 CONCLUSIONS AND FUTURE

WORK

A new size estimation technique is proposed for

estimating the size of object oriented software by

applying FPA at the early analysis phase based on

UCM. This approach involves mapping UCM

components to FPA components. Clear and precise

rules are proposed for identification and

classification of various FPA components for size

estimation. The results obtained from different

projects by applying this technique is compared with

the existing object model size estimation which

applies the principles of FPA. The MRE achieved

through these results are minimal and it signifies that

FPA can be applied at an early stage based on UCM.

Future work is to empirically validate this size

estimation model by applying it to real projects from

software industry.

REFERENCES

Albrecht, A., “Measuring application development

productivity”, IBM Application Development

Symposium, 1979, pp. 83-92.

Al-Hajri, M.A., Ghani, A.A.A., Sulaiman, M.N., Selamat

M.H., Modification of standard function point

complexity weights system, Journal of Systems and

Software volume 2, 2004, pp. 195–206.

Antoniol, G., Lokan, C., Caldiera, G., Fiutem, R., “A

function point-like measure for object oriented

software”, Journal of Empirical Software Engineering,

volume 4 Sep 1999, pp. 263-287.

Antoniol, G., Calzolari, F., Cristoforetti, L., Fiutem, R.,

Caldiera, G., “Adapting function points to object

oriented information systems”, Lecture notes in

computer science, Advanced Information System

Engineering, volume 13, 1998, pp. 59-76.

Antoniol, G., Fietum, R., Lokan, C., “Object oriented

function points: An empirical validation”, Journal of

Empirical Software Engineering, volume 8, no 3, Sep

2003, pp. 225-254.

Ayman, I., Mohammed, O., David, C., “Software cost

estimation using use case models: a critical

evaluation”, Proceedings of Second conference on

Information and Communication Technologies,

volume 2, April 2006, pp. 2766-2771.

Cockburn, A., “Writing effective use cases”, Boston,

London: Addison-Wesley, 2001.

Edward, R.C., “Estimating software based on use case

points”, Conference on Object Oriented Programming

Systems Languages and Applications, 2005, pp. 257-

265.

Fernandez, N.C., Abrahao, S., Pastor, O., “Towards a

functional size measure for object oriented systems

from requirements specifications”, Proceedings of the

ICSOFT 2008 - International Conference on Software and Data Technologies

144

Fourth International Conference on Quality Software,

volume 00, 2004, pp. 94-101.

Fetcke, T., Abran, A., Nguyen, T.H., “Mapping the OO-

Jacobson approach into function point analysis”,

Proceedings of IFPUG, 1997 Spring Conference,

1997, pp. 134-142.

Harput, V., Kaindl, H., Kramer, S., “Extending function

point analysis of object oriented requirements

specifications”, Eleventh IEEE International Software

Metrics Symposium, volume 0, 2005, pp. 39-49.

Karner, G., “Resource Estimation for Objectory

Projects”, Objectory Systems, 1993.

Kusumoto, S., Matukawa, F., Inoue, K., Hanabusa, S.,

Maegawa, Y., “Estimating effort by use case points:

method, tool and case study”, Proceedings of the Sixth

International Symposium on Software Metrics, Sep

2004, pp. 292 – 299.

Marico, R.B., Silvia, R.V., “Software effort estimation

based on use cases”, Proceedings of the thirty Annual

International Computer Software and Applications

Conference, Sep 2006, pp. 221 - 228

Minkiewicz, A.F., “Measuring object oriented Software

with predictive object points”, Proceedings of the

Conference on Applications in Software

Measurements, Oct 1997.

Ram, D.J., Raju, S.V.G.K., “Object oriented design

function points”, Proceedings of the First Asia Pacific

Conference on Quality Software, Hong Kong, 2000,

pp. 121-126.

Schooneveldt, M., “Measuring the size of object oriented

systems”, Proceedings of the Second Australian

Conference on Software Metrics, Metrics Association,

Nov 1995, pp. 168-177.

Uemura, T., Kusumoto, S., Inoue, K., “Function point

analysis using design specification based on the

Unified Modeling Language”, Journal of Software

Maintenance Evolution-Research Practice, volume 13,

2001, pp. 223-243.

Whitmire, A.S., “Applying function points to object

oriented software models”, Software Engineering

Productivity Handbook, Mc Graw-Hill, New York,

1992, pp. 229-244.

Zivkovic, A., Hericko, M., “Tips for estimating software

size with FPA method”, Proceedings of the IASTED

International Conference on Software Engineering,

Acta Press, 2004, pp. 515-519.

Zivkovic, A., Hericko, M., Brumen, B., Beloglavec, S.,

Rozman, I., “The impact of details in the class diagram

on software size estimation”, Informatica (Lithuania),

volume 16, no 2, 2005, pp. 1-18.

Zivkovic, A., Hericko, M., Kralj, T., “Empirical

assessment of methods for software size estimation”,

Informatica (Lithuania) volume 4, 2003, pp. 425-432.

Zivkovic, A., Rozman, I., Hericko, M., “Automated

software size estimation based on function points

using UML models”, Journal of Information and

Software Technology, volume 47, 2005, pp. 881-890.

FUNCTION POINT SIZE ESTIMATION FOR OBJECT ORIENTED SOFTWARE BASED ON USE CASE MODEL

145
