INTEGRATION OF ARCHITECTURAL DESIGN AND

IMPLEMENTATION DECISIONS INTO THE MDA

FRAMEWROK

Alti Adel

and Smeda Adel

Department of Computer Science, Engineering Faculty, University of Setif, P.O. Box 19000, Setif, Algeria

Department of Data-Analysis, Faculty of Accounting, University of Al-Jabel Al-Gharbi

P.O. Box 64200, Gharian, Libya

Keywords: Software Architecture, ADL, MDA, decision-centric design, decision-centric implementation, DCMDD.

Abstract: Model Driven Development (MDD) is typically based on models which heavily lead the quality production

of application’s architecture. This is because architectural decisions are often implicitly embedded in

software engineering, therefore lacks first-class consideration. Architecture has been established as a key to

develop software systems that meet quality expectations of their stakeholders. The explicit definition of

architectural decisions, aims to well control the quality on the software development process. In this paper,

we propose to extend the MDA framework by integrating decision aspects. We propose also an approach to

use architectural decisions as a meta-model for the MDD process. Integration of architectural decisions

allows architectural design to be defined explicitly and guides architects in creating systems with desirable

qualities; and for MDA it extends the approach by integrating true decisional concerns into MDD process.

1 INTRODUCTION

MDA (Model Driven Architecture) is a recent

initiative of the OMG that supports the definition of

models as first-class elements for the design and

implementation of systems. According to the MDA

approach, the most important activity now is

modelling the different aspects of the system and

then defining the transformations from one model to

another in a way that allows them to be automated

(Fernández and Vallecillo-Moreno, 2004).

MDA is increasingly becoming popular as a

widely accepted standard for software development

process. These have been elaborated in order to

improve the comprehensibility of complex systems,

favourite their portability, their productivity as well

as their maintainability. MDA doesn’t really take

into account the architecture design and

implementation decisions. Architectural decisions

are defined implicitly in software development

process and lack a first class consideration and

therefore the quality control in software

development process is limited. The inclusion of the

architecture design and implementation decisions

into the MDA framework yield two main

advantages. On the one hand, it allows architectural

decisions to benefit from the advantages of the

MDA approach and on the other hand, it introduces

a change in the development process, turning the

MDD approach into a decision-centric MDD

(DCMDD). This aims for controlling quality on

software development process.

In this article, we try to integrate architectural

decisions into a MDA framework. We also discuss

the usefulness and the importance for architectural

design and implementation decisions to use an

appropriate Architecture Description Language

(ADL) that meet quality expectations and an

appropriate MDA platform that meet software

architecture integration. The development process is

supported by the architecture decision. For this

reason this approach is called Decision-Centric

Model-Driven Development (DCMDD). The

proposal approach presented here is the result of our

previous work on using profile transformations for

integrating software architecture concepts into MDA

platform (Alti, Khammaci, Smeda and Bennouar,

2007), we identified the need to specifically consider

architectural decisions concerns. Different ways to

integrate architectural decisions into our model-

driven software architecture have consequently been

tested; in this paper we present the outcome of this

work. We provide also in this paper a description of

366

Adel A. and Adel S. (2008).

INTEGRATION OF ARCHITECTURAL DESIGN AND IMPLEMENTATION DECISIONS INTO THE MDA FRAMEWROK.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 366-371

DOI: 10.5220/0001881403660371

 SciTePress

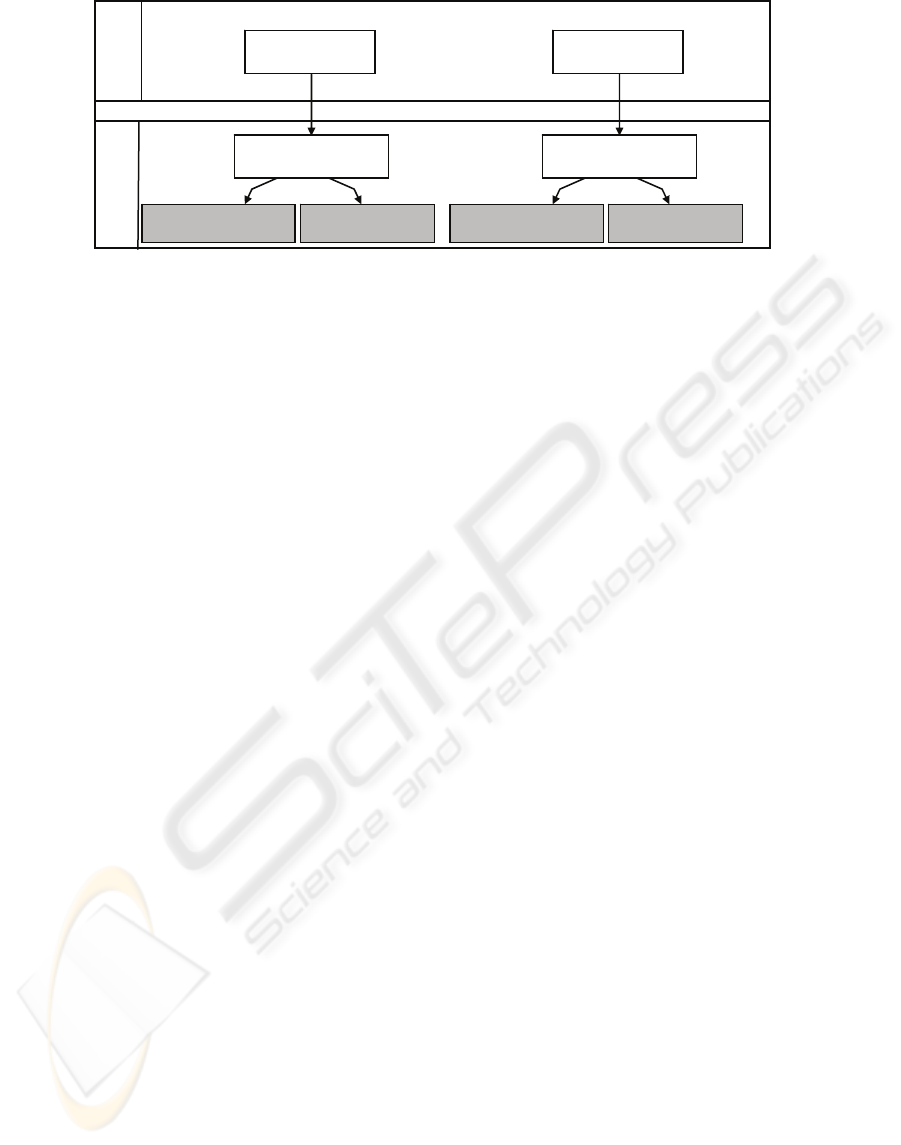

Figure 1: Model-driven software architecture construction and integration (structural view).

a suitable case study, which applies the DCMDD

approach to the model-driven software architecture

design and integration and illustrates its use with the

help of a client/server system.

The remainder of this article is organized as

follows. Section 2 provides a brief overview of the

model-driven software architecture construction and

integration. Section 3 presents the related work.

Section 4 proposes a model-driven for software

architecture construction and integration that

includes the architecture design and implementation

decisions; this new model architecture becomes the

Model Driven Development (MDD) approach in a

Decision-centric Model Driven Development

(ACMDD). As a case study, we use the previous

DCMDD approach to in the development of the

client/server system. Finally, section 5 concludes

this article and presents some future works.

2 INTEGRATION OF

SOFTWARE ARCHITECTURE

CONCEPTS INTO MDA: AN

OVERVIEW

In our previous work (Alti, Khammaci, Smeda and

Bennouar, 2007), we integrated software

architecture concepts (e.g. connectors,

configurations...etc) into MDA platform, concepts of

ADLs such as COSA (Oussalah, Smeda and

Khammaci, 2004), ACME (Garlan, 1997) and π-

ADL (Ouquendo, 2004) are considered as PIM and

explored in MDA platform as PSM. We proposed a

strategy for direct transformation using a UML

profile. It represents both software architecture

model (PIM) and MDA platform model (PSM) in

UML meta-model then elaborates transformation

rules between resulted UML meta-models. The goal

is to automate the process of deriving

implementation platform from software concepts

(see Figure 1).

The main problem found when applying this

strategy was that the architecture decision was not

being considered. The software architecture was

designed with an arbitrary ADL and also was

integrated into a given MDA platform.

At PIM level the description of software systems

using an arbitrary ADL; that do not meet quality

design such as resuabilty and extensibility. This is

because various ADLs are based on different

architectural concepts and treated them differently;

each ADL evaluate systems behaviors with its

appropriate method (B method for COSA (Alti,

Khammaci and Smeda, 2007), CSP method for

ACME (Garlan, 1997) and π calculus for π-ADL

(Oquendo, 2006). We need to find a software

architecture model to describe software systems and

we need to find a well MDA platform to integrate

architecture concepts.

When do we use a given ADL? What happens

with the architectural design and implementation

decisions? How does it affect the MDA platform? Is

it easy or difficult to describe a given software

system with a given ADL? Early design decisions

can greatly affect the amount of architecture changes

are required. To be able to answer these questions,

we included architectural decisions in the model-

driven software architecture as configuration inputs.

3 RELATED WORK

Alesseandro and al (Alessendro, Thais, Awais and

Claudio, 2006) handled architectural decisions as

separate architectural aspects, not just simply

symmetric view. They used Aspect-Oriented

Software Development (AOSD) techniques for

capturing widely-scoped architectural decisions and

for compositing them. Their approach allows a well

SA at the

PIM level

SA at the

PSM level

PIM to PSM

PSM to PSM

Architecture Model

with COS

PSM to PSM

Component model with

COSA UML 2.0 profile

Component model with

CORBA UML 1.4

rofile

Component model

with EJB UML 2.0

PIM to PSM

PSM to PSM

Architecture Model

with π-ADL

PSM to PSM

Component model with

ACME UML 2.0 profile

Component model with

CORB

UML 1.4

rofile

Component model

with EJB UML 2.0

….

INTEGRATION OF ARCHITECTURAL DESIGN AND IMPLEMENTATION DECISIONS INTO THE MDA

FRAMEWROK

367

separation between different crosscutting decisions,

but disagrees in more representation of architectural

decisions at the ADLs level and in the driving of the

MDD process. Jansen et al (Jansen, Jan ven der,

Avgeriou and Hammer, 2007) treated software

architecture as a composition of a set of architectural

decisions. They supported the definition of design

decisions as first-class elements that guide the

architecture construction process. They proposed a

meta-model for maintaining relationships between

design decisions and software architectures with

support tool. They studied the solutions and their

consequences of Athena system related to some

design decisions into Archium meta-model. They

ended up with one solution for each design decision.

They concluded that even though architectural

decisions are associated with the description of

software architecture, they still have considerable

drawbacks. Our approach shares the elements of the

architectural design decisions model, and differs

since software architecture language is our potential

solutions. In (Capila, Nav and Dueňas, 2007) Capila

et al. turned traditional approach of software

architecture as a set of components and connectors

as the result of a set of design decisions. They

proposed a meta-model and a web-based tool able of

recording, maintaining and managing the decisions

tacking during the architecture construction process.

They define an integrated view for evolving design

decisions. Then describe decisions (architectural

products are defined using PDF documents); this

makes it difficult to promote decisions reuse. The

Architecture-Centric Concern Analysis (ACCA)

method (Wang, Sherdil and Madhavju, 2007)

employs a meta-model for capturing architectural

design decisions which are linked to software

requirements and architectural concerns. The authors

identify the causes of architectural concerns and they

assess the wrong or incorrect decisions that are

taken. Zimmermann et al (Zimmerman, Koehler,

Leymann, 2006), positioned architectural decision

models as the control center of model-driven SOA

construction and followed a transformation approach

on the top of decision models. This approach is

decision-centric because it defines the model-driven

devolvement process on top of a decision meta-

model which provide powerful tool support.

Our approach is similar but different. In our

proposal, decision is on top of the systems which

drives the rest of the development process, and play

the central role that defines the structure of our

concrete model architecture, and decides which

architecture models are considered and which are

not. Since decision is in charge of controlling the

development process. That is the reason why our

approach is a DCMDD process. In our approach,

decisions can be seen as a meta-model for the

Decision-Centric Model Driven Developement

(DCMDD) itself. In fact, it shows which of software

architecture languages instantiated for the

representing software systems, which technologies

are instantiated during the decision-centric MDD

process, and in which of them are not. This quality is

missing in the other models.

4 INTEGRATING OF

ARCHITECTURAL DECISIONS

INTO THE MDA FRAMEWORK

We think that the best way to build an architecture is

to quantify the metrics of the decision binding

software architecture design with a given ADL.

Based on the ADL quality characteristics

(extensibility, portability, reusability, etc.), design

decisions give us a best architecture model that

better represent our software architecture needs. In

order to build a system that fulfil the expectations, it

is essential to systematically take decisions and their

rationales into account in architecture design step

and not as an afterthought during transformation.

From this point of view, we can not describe

software systems with an arbitrary ADL but we need

to justify our choice. Of course, architecture is an

abstraction of the structure of a system, provided in

terms of ADL, but what benefits gained by the

software systems? Such ADL answer the

architecture design needs or not? Therefore, we

suggest placing architectural decisions as a control-

centre for designing software architecture systems.

On the other hand, we think that the best way to

integrate software architecture into the MDA

platform is to quantify the decision binding software

architecture integration with a given MDA platform.

Based on the MDA platform quality metrics (facile

integration of software architecture concepts and

supportability), implementation decisions gives us a

best implementation model that better represents our

software implementation needs. From this point of

view, we can not integrate software concepts with an

arbitrary MDA platform but we must justify our

choice.

4.1 Decision Models as a New

Dimension in the Model-driven for

Software Architecture

After different attempts to include architectural

decisions in the model-driven software architecture

ICSOFT 2008 - International Conference on Software and Data Technologies

368

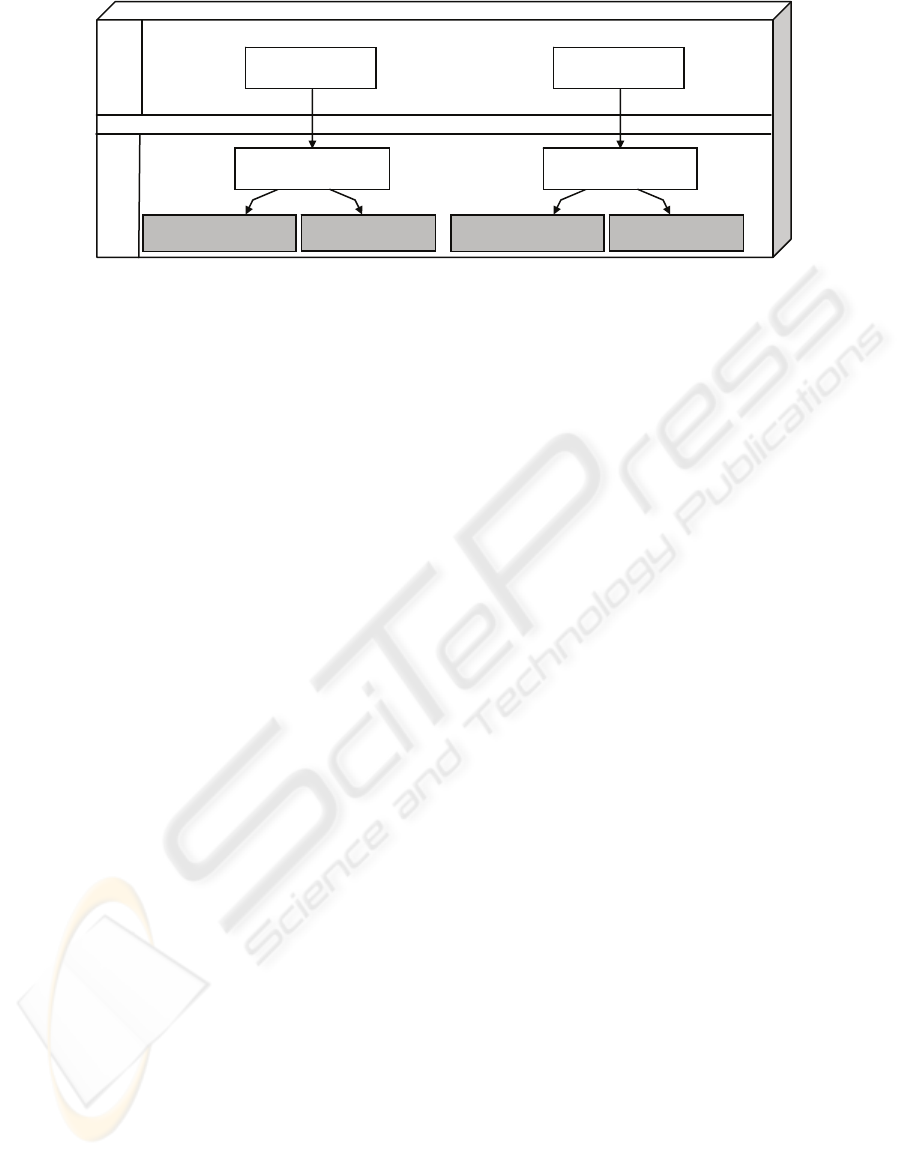

Figure 2: Model-driven software architecture, including the architecture decision model (structural view).

integration, we decided finally that the architecture

decision has to be a different view, but in a new

dimension. This new dimension will be orthogonal

to the level of abstraction and to the aspects (see

Fig.2). This is because architecture design decisions

are related to the other system aspects (structure and

behavior). Moreover, architectural design decisions

will determine which software architecture models

of each aspect we’ll need for better describing

software architecture from a conceptual point of

view, allowing an architectural design decisions to

be free from the technological constraints. Next,

after some design decisions, all the required

components of software systems can be

implemented by specific technologies depending on

specific needs, available technologies, etc. at PSM

level.

We propose to consider software quality

attributes (

Jansen et al, 2007) of the link binding

software system with a given ADL as a primary

input before the design phase. Next, we propose to

consider software quality attributes of the link

binding software architecture integration with a

given MDA platform before the implementing

phase. In fact, it is recommendable in the MDA

framework, to select an adequate software

architecture model and to drive the transformation

between software architecture models and the

implementation models.

4.2 Improving the Development

Process using DCMDD

To illustrate how our approach can be used, we

apply it to the well known client/server system.

Section 4.2.1 introduces the design decisions at the

PIM level and Section 4.2.2 introduces the

implementation decisions at the PSM level.

4.2.1 Design Decisions at PIM Level

4.2.1.1 Problem

It is indispensable to reason about and to explore, in

architectural level (PIM), the completeness and

quality attributes of the final product resulting from

the architecture. In order to determine whether the

client/server system fulfills non-functional

properties as security, a powerful ADL is needed.

Motivations. Modeling and formally specifying

architectural components of the client/server system

using appropriate ADL and a specific technique is

considered as an important factor that helps in the

construction phase especially in terms of flexibility.

Other properties like security and reusability are

needed.

Cause. Divers ADLs (Medvidovic and Taylor,

2000) are available for describing software

architecture systems, which makes it difficult to

select an appropriate ADL for a given system.

Context. The client/server system.

4.2.1.2 Potential Architectural Descriptions

 π-ADL

π-ADL (Oquendo, 2006) is an ADL based on π-

calculus for modeling behavioral aspects. π-ADL

supports formal architecture-centric model-driven

development and semantics checking. It has been

applied in several realistic case studies.

Design Rules. For each connection of the

client/server system provided by a port of a

component is attached to a connection provided by a

port of a connector by unification or value passing.

Design Constraints. We must ensure that the given

model complies with the semantic constraints

defined by the π-ADL.

SA at the

PIM level

SA at the

PSM level

PIM to PSM

PSM to PSM

Architecture Model

with COSA

PSM to PSM

Component model with

COSA UML 2.0 profile

Component model with

CORBA UML 1.4 profile

Component model

with EJB UML 2.0

PIM to PSM

PSM to PSM

Architecture Model

ADL

PSM to PSM

Component model with

ACME UML 2.0 profile

Component model with

CORBA

UML

1.4

profile

Component model

with EJB UML 2.0

….

ARCHITECTURAL DECISIONS

INTEGRATION OF ARCHITECTURAL DESIGN AND IMPLEMENTATION DECISIONS INTO THE MDA

FRAMEWROK

369

Consequences. The client/server system becomes

dependent on the π-ADL.

Pros. (+) flexibility (+) Achieving a comfortable

system (+) better manageability and administration

(+) multi-layered architecture specifications.

Cons. (-) doses not ensure security and extensibility.

 COSA

COSA (Oussalah, Smeda and Khammaci, 2004) is

hybrid model, based on both object and component

modeling to describe software systems. The basic

principal of this model is to define architectural

concepts extended with object-oriented concepts and

mechanisms to specify software architectures. For

behavioral view, a B formal method given in (Alti,

Khammaci and Smeda, 2007) need to be used.

Design Rules. For each connection of the

client/server system provided by a port of a

component is attached to a connection provided by a

port of a connector by unification or value passing.

Design Constraints. We must ensure that the given

model complies to the semantic constraints defined

by the COSA approach

Consequences. The client/server system becomes

dependent on the COSA language.

Pros. (+) more simplicity and genericity (+) facile

construction (+) satisfy the more specific system

security by using component redefinition (+) assist

the configuration management (+) more reusability

and extensibility (+) B formal method applied in

several industrial cases.

Cons. (-) has not been used yet for industrial cases.

4.2.1.3 Decision

The decision is made to use COSA software

architecture for modeling the client/server system. It

allows more simplicity, extensibility, and genericity.

It satisfies reusability with object-oriented

mechanisms and security with B formal method.

4.2.2 Implementation Decisions at PSM

Level

4.2.2.1 Problem

Actually, there are several middleware platforms

(CORBA, J2EE, .Net, etc.) that focus on developing

component-based systems. Which of them is

appropriate platform to provide increased

performance and can easily map COSA concepts?

Motivations. It is indispensable to explore, in

implementation level (PSM), the integration of

COSA software architecture concepts (components,

connectors, configurations, etc.) in order to explicit

the communications and the coordination of

distributed components by mapping COSA

connectors.

Cause. Various MDA platforms available for system

implementation.

Context. Client/server system with COSA-UML.

4.2.2.2 Potential MDA Platforms

 CORBA Platform

CORBA is an international standard middleware

platform that provides simplicity for development by

report to other platforms.

Mapping Rules. We must define how the

transformation rules map COSA concepts into

CORBA.

Implementation Constraints. The CORBA model

must be evaluated by the CORBA UML profile.

Consequences. The client/server system becomes

dependent on the CORBA.

Pros. (+) solving the problem of interaction in

CORBA components by mapping COSA connectors

(+) simplicity of development (+) integrating COSA

concepts can be achieved easily.

Cons. (-) has not been used yet for industrial cases.

 J2EE Platform

EJB is the core component model of the J2EE

platform developed by sun Microsystems for full

support of distributed operations/services.

Mapping Rules. We must define how the

transformation rules map COSA concepts into EJB.

Implementation Constraints. The EJB model must

be evaluated by the EJB UML 2.0 profile.

Consequences. The client/server system becomes

dependent on the EJB.

Pros. (+) achieve a higher level of abstraction (+)

solving the problem of interactions among EJB

components by mapping COSA connectors into EJB

Cons. (-) has not been used yet for industrial cases.

4.2.2.3 Decision

The decision is made to use CORBA, which hides

the complexity of distributed processing systems and

ICSOFT 2008 - International Conference on Software and Data Technologies

370

therefore help in integrating COSA concepts. The

COSA-CORBA transformation (Alti, Khammaci

and Smeda, Bennouar, 2007) is applied to the COSA

model for elaborating its correspondent CORBA

model for the Client-Server system.

4.3 Implementing the DCMDD

Approach

We have developed a plug-in in Eclipse to

implement the DCMDD approach. The DCMDD

tool provides a more pragmatic approach to the

usage of architectural decisions: it links the

architecting process with the system implementation

through transformation.

The Plug-In is developed in four steps: 1) the

metamodels of Pi-ADL (COSA, CORBA and EJB)

with all tagged values and OCL constraints is

defined by the UML 2.0 profile 2) the architecture

decisions and its consequences are expressed using

Java 3) The architectural description language

(MDA platform) is selected and the model is

elaborated through its transformation 4) the

elaborated model is evaluated by its profile.

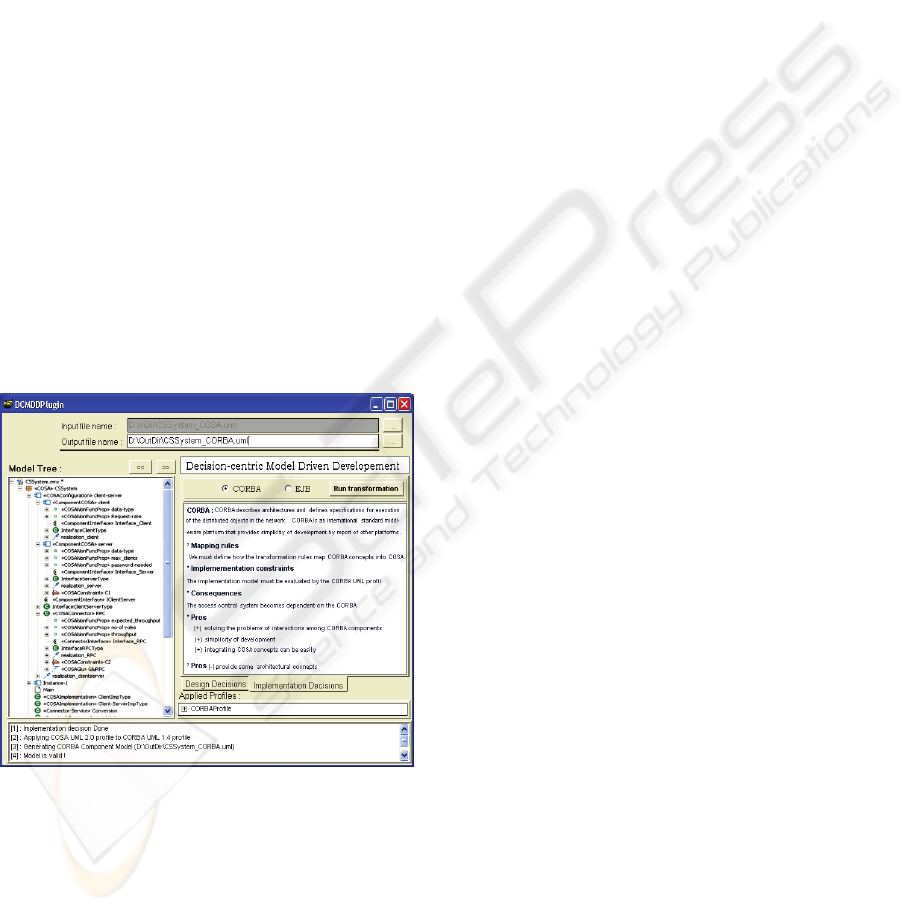

Figure 3 shows the applied CORBA model of

Client-Server system after deciding to apply COSA

to CORBA transformation.

Figure 3: The DCMDD Eclipse Plugin.

5 CONCLUSIONS

In this paper we have showed how to include the

architecture design and implementation decisions as

a new aspect in the MDA architecture. We have also

illustrated the usefulness and importance of

architectural decisions in the context of MDA

platform. Architectural decisions will play an

important role as they promise to explicit and

guidance to an architect in creating systems with

desirable qualities. However, our approach does not

include the description of architectural styles. In our

future works we will apply DCMDD in the other

SA-based and on top of a Grid architectured.

REFERENCES

Alti, A., Khammaci, T., and Smeda, A., 2007. Using B

Forma method to Define Software Architecture

Behavioral Concepts, IRECOS Review, Vol. 2, No 1,

pp. 510-519, ISSN: 1828-6003.

Alti, A., Khammaci, T., Smeda, A., Bennouar, D., 2007.

Integrating Software Architecture Concepts into the

MDA platform, In ICSOFT’2007, 2

Int. Conf. on

Software and Technologies.

Alessandro G., Thais, A.B., Awais, R.S., 2006. Driving

and managing architectural decisions with aspects,

ACM SIGSOFT Software Engineering Notes, Vol.31

No 5, pp. 30-37.

Capila, R., Nava, F., and Dueňas, J.C., 2007. Modeling

and Documenting the Evolution of Architectural

Decisions, 6th IEEE/IFIP Working Conference on

Software Architecture (WICSA’07).

Fuentes-Fernández, L., Vallecillo-Moreno, A., 2004. An

Introduction to UML Profiles. The European Journal

for the Informatics Professional, 7(2), pp. 6-13.

Garlan, D., 1997. ACME: An Architecture Description

Interchange Language, In CASCON’97.

Jansen, A., Jan ven der, J., Avgeriou, P., and Hammer,

D.K, 2007. Tool Support for Architectural Decisions”,

Proceedings of the 2nd Workshop on Sharing and

Reusing Architectural Knowledge, ICSE Workshop,

IEEE DL.

Medvidovic, N., Taylor, R. N., 2000. A classification and

comparison framework for software architecture

description languages. IEEE Transactions on Software

Engineering, 26(1), pp. 2–57.

Oquendo, F., 2004. Formally Describing Software

Architecture with π-ADL, World Scientific and

Engineering Transactions on Systems, Vol. 3. N°.8,

pp. 673-679.

Oussalah, M., Smeda, A., Khammaci, T., 2004. An

explicit definition of connectors for component based

software architecture. In ECBS’2004, the 11th IEEE

Conference Engineering of Computer Based Systems,

Czech Republic.

Zimmerman, O., Koehler, J., and Leymann, F., 2006. The

Role of Architectural Decisions in Model-Driven SOA

Construction, In Best Practice and Methodologies in

SOA, OOPSLA’06.

Wang, A., Sherdil, K., Madhavju, N.H., 2005. An

Architecture-centric concern analysis method, In

WICSA’05, the 5

IEEE/IFIP Working Conference on

Software Architecture.

INTEGRATION OF ARCHITECTURAL DESIGN AND IMPLEMENTATION DECISIONS INTO THE MDA

FRAMEWROK

371
