ITAIPU DATA STREAM MANAGEMENT SYSTEM

A Stream Processing System with Business Users in Mind

Azza Abouzied, Jacob Slonim and Michael McAllister

Faculty of Computer Science, Dalhousie University, 6050 University Avenue, Halifax, Canada

Keywords:

Business Activity Monitoring (BAM), Business Intelligence (BI), Data Stream Management System (DSMS),

Architecture.

Abstract:

Business Intelligence (BI) provides enterprise decision makers with reliable and holistic business information.

Data Warehousing systems typically provide accurate and summarized reports of the enterprise’s operation.

While this information is valuable to decision makers, it remains an after-the-fact analysis. Just-in-time, ﬁner-

grained information is necessary to enable decision makers to detect opportunities or problems as they occur.

Business Activity Monitoring is the technology that provides right-time analysis of business data. The purpose

of this paper is to describe the requirements of a BAM system, establish the relation of BAM to a Data Stream

Management System (DSMS) and describe the architecture and design challenges we faced building the Itaipu

system: a DSMS developed for BAM end-users.

1 INTRODUCTION

Business Activity monitoring (BAM) is the right-time

analysis of business events from multiple applications

to produce alerts of problematic situations or opportu-

nities. Right-time differs from real-time analysis. In

right-time analysis, the main goal is to signal oppor-

tunities or problems within a time frame in which de-

cision making has a signiﬁcant value. The shorter the

time frame the higher the value of the decision. Real

time analysis requires that opportunities or problems

be signaled in a pre-speciﬁed, very short time-frame,

even if the alert has the same decision-making value

a day after the occurrence of the events that triggered

it. Therefore while real-time operation is preferred, it

is not essential. The goal is to analyze and signal op-

portunities or problems as early as possible to allow

decision making to occur while the data is fresh and

is of signiﬁcance. BAM pushes organizations towards

proactive decision making.

Traditional Business Intelligence (BI) tools intro-

duce latencies from data arrival to production of valu-

able information. The main component of BI is a

Data Warehouse (DW). A DW is a central repository

of data collected from the entire organization. “The

data are stored to provide information from a histor-

ical perspective (such as the past 5-10 years) and are

typically summarized” (Han and Kamber, 2000). An-

alytical and data-mining tools enhance the utility of

a DW by enabling strategic

decision makers to dis-

cover trends in the organization or build prediction

models from historical data. The main limitation of

the DW is that it provides an after-the-fact analysis.

It encourages retroactive decision making. BI tech-

nology, so far, does not include tools necessary for

just-in-time analysis.

Our main research goal is to build a BAM system

that can support operational decision makers. Op-

erational decisions are made daily by all employees

within an organization. They are predominantly re-

actionary in nature, prompt (or allow for little delay

between the triggering business event and notiﬁcation

of the decision maker) and have immediate effects.

Hence, they require a data analysis tool that analyzes

business events as they occur.

We built the Itaipu system, a BAM system that

re-uses the data model and querying model of Data

Stream Management Systems (DSMS). Since BAM

is an emerging BI trend, the purpose of this paper is to

(i) establish the importance of BAM systems (section

1.1), (ii) describe the requirements of a BAM system

Strategic decision making differs from operational de-

cision making. While strategic decisions address long-term

goals and usually effect the entire organization, operational

decisions have immediate effects and generally have mini-

mal consequences.

Abouzied A., Slonim J. and McAllister M. (2008).

ITAIPU DATA STREAM MANAGEMENT SYSTEM - A Stream Processing System with Business Users in Mind.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 54-64

DOI: 10.5220/0001882000540064

 SciTePress

(section 1.2), (iii) discuss systems that could be used

to provide BAM functionality (section 2) and ﬁnally

(iv) describe the design and architecture of the Itaipu

system in relation to the identiﬁed BAM requirements

(section 3).

1.1 Motivating BAM: The Intelligent

Oilﬁeld

IBM accurately described the oil business as the infor-

mation business (IBM, 2007). To operate an oilﬁeld,

local and geographically remote experts, engineers,

geologists and business analysts need to analyze and

share terabytes of data daily (IBM, 2007). This data

arrives from a variety of sources such as as tempera-

ture and pressure sensors on drilling rigs, stock feeds,

news feeds and weather and seismic activity monitor-

ing networks.

In the oil industry, making the right decision at

the right time saves both money and lives. Analyzing

drilling data (such as rock type, temperature and pres-

sure at rig) in real-time enables the perception of criti-

cal situations such as blowouts ahead of time. The rig

crew could be warned to take precautionary measures.

Hence, right-time analysis of data could save lives.

With traditional data warehouse technology, if the rig

crew is apprehensive for their safety, all drilling ac-

tivity is stopped, until experts could collect the data

and analyze it. Such downtime, while necessary is

costly. According to a Cisco case study “avoiding

just 10 hours downtime drilling time per month saves

US$125,000 per rig potentially US$9 million a year”

for the Belayim Petroleum Company operating rigs

in the Mediterranean sea off Egypt (Cisco, 2008).

By continuously analyzing data through persistent

queries that monitor for critical conditions (such as

temperature or pressure readings rising above a cer-

tain threshold) BAM could save downtime caused due

to latencies between data collection and processing.

Apart from monitoring for dangerous conditions,

Business analysts could use BAM to optimize their

productions rates for maximum proﬁt in relatively

shorter time frames. Oil prices are extremely volatile.

Oil production is inﬂuenced by (and inﬂuences) oil

price. Therefore, deciding an appropriate production

rate is a complex task that depends on geological, po-

litical and economic factors. Business analysts could

enhance their oil production models by real-time in-

formation.

The beneﬁts of BAM are not limited to the oil

industry. BAM could beneﬁt other organizations by

providing right-time decision support. Supply-chain

management, resource distribution and scheduling,

and real-time pricing are a few applications that reap

beneﬁts from the following BAM functions:

• BAM is designed to deal with real-time data. DWs

are pushed beyond their intended designed to sup-

port frequent updates. This comes at the cost of

less querying functionality and less data. BAM,

unlike data warehouses is not designed as a long

term data store. Instead, it is designed to support

persistent queries and process real-time data with-

out necessarily storing data. BAM is not meant to

replace DWs or DBMSs. It does not modify or

update data. Hence, BAM does not affect other

systems which can store data.

• BAM enables users to place ad-hoc queries.

While custom-made applications could provide

right-time data analysis, they handle queries and

data sources speciﬁed at design time. BAM is

meant to be a ﬂexible data analysis solution that

does not require high development costs and al-

lows users to pose ad-hoc queries at run-time on

data transfered on the organization’s networks. It

could also integrate new data sources at run-time.

• BAM targets end-users, not IT assistants. Unlike

other BI technology that are heavily reliant on IT

assistants. BAM’s ad-hoc querying functionality

is only of use if end-users could circumvent IT

assistants. Hence, BAM is designed to enable

end-users to place queries without depending on

technically-skilled users.

1.2 Problem Statement

Researches have approached the problem from two

different perspectives, leading to two different solu-

tions:

1. If BAM is seen as a right-time data aggregation

and summarization tool, a Data Stream Manage-

ment System (DSMS) could be utilized.

2. If BAM is seen as an event detection system,

Complex Event Processing (CEP) systems were

utilized.

A DSMS evaluates queries on data streams. A

data stream is an append-only sequence of time

stamped, structured tuples. Similar to database sys-

tems (DBMS), a DSMS will manage the planning,

optimization and execution of queries on data. Un-

like a database system, a DSMS does not store the

entire data. A DSMS typically supports persistent,

continuous queries, which are evaluated as new data

arrives. This compares with one-time queries that are

evaluated once over a snapshot or the entire data as in

traditional database systems.

CEP systems also deal with stream data but target

event monitoring applications (Demers et al., 2007).

ITAIPU DATA STREAM MANAGEMENT SYSTEM - A Stream Processing System with Business Users in Mind

These systems do not focus on data processing to pro-

duce new summaries or metrics, instead they focus on

specifying a sequence of events to monitor (event pat-

terns) and implementing efﬁcient detectors (Demers

et al., 2007; Wu et al., 2006).

Proponents of CEP for BAM, argue that DSMS

could express event detection patterns but the result-

ing queries are cumbersome “and almost impossible

to read and to optimize.” (Demers et al., 2007). They,

also, argue that DSMS are “less scalable in the num-

ber of queries, capable of supporting only a small

number of concurrent queries.” (Demers et al., 2007).

This is based on the observation that most DSMSs

have been targeted for applications such as network

trafﬁc monitoring that involve real-time processing of

high-volume data. While we partially agree with the

ﬁrst statement, we disagree with the second.

Thus, our research questions and hypotheses are:

1. Could a DSMS be used as a BAM system? Both

BAM and DSMS need to support the following:

• Continuous and unbounded data streams: This

has implications on the memory management

strategy. Mainly blocking queries (queries that

require to see all values in a stream before they

could return an answer) need to run on bounded

sections of the stream.

• Continuous queries: Continuous queries have

implications on processing performance. At

any given time, several continuous queries

could be running simultaneously. Therefore,

multiple-query optimization is essential.

• Unstable operating environment with ﬂuctuat-

ing data arrival rates: This means that at cer-

tain times, the system may be overloaded and

incapable of satisfying all queries.

A DSMS supports the above properties (Stone-

braker et al., 2005; Babcock et al., 2002). There-

fore, a DSMS supports at least these requirements

of a BAM system.

The key difference between BAM and DSMS is

that while BAM requires right-time performance,

a DSMS requires real-time performance. Right-

time may include real-time performance. Also,

BAM focuses on supporting more queries but a

DSMS focuses on response time and query (input)

load (deﬁned as the amount of input a DSMS can

process while still maintaining real-time and cor-

rect responses by the Linear Road DSMS bench-

mark (Arasu et al., 2004)). Therefore, BAM could

compromise certain performance metrics but not

query support.

2. Could we enable end-users to write queries with-

out IT support in a DSMS? An essential require-

ment of the BAM system is usability. End-users

are not expected to write or learn to write queries

in a functional language such as SQL or in a

procedural language. Since the data streams are

created from events signaled from different en-

terprise applications, it is unlikely that the end-

user will know which data sources are relevant

to his/her query. With these requirements, the

DSMS needs to be designed to facilitate query

write up for the end user. We propose a query

frame approach: Data analysts write frames or

skeleton queries which end-users parameterize at

run time.

3. What are the design goals for a BAM system? Tra-

ditional BI systems have evolved over time to sup-

port a growing number of users, queries and data.

We expect that a BAM system will undergo such

an evolution. In addition to supporting the func-

tional requirements, (i) a BAM system should be

ﬂexible (for example, it should adapt its query pro-

cessing techniques based on the nature of the data

and the queries), (ii) the system should be capable

of scaling gracefully to support more queries or

data at run-time and (iii) ﬁnally, the system should

be reusable such that different components could

interact with other front-end applications that re-

quest querying services. We hypothesized that a

DSMS could be built to satisfy these goals and

we built the Itaipu system. Our solution is based

on the following:

(a) Loose coupling between components: The op-

timizer and the query execution engine are in-

dependent of each other. Also, the stream pro-

duction and query result visualization clients

are decoupled from the other components in the

system. This loose coupling allows the sys-

tem to evolve gracefully. For example, if a

higher quality visualization tool is developed,

it could be swapped with the existing visualiza-

tion client.

(b) Encapsulated operators: We model queries as

data processing operators in a connected graph

where each operator encapsulates its function

from the query execution engine. The execu-

tion engine manages each operator’s position

within the graph (i.e. input and output) and

schedules running time for it.

implementations for resource management but

is designed to allow the extension of any imple-

mentation or addition of new implementations.

Implementing these design goals, generally,

comes at the cost of performance. Since real-time

ICSOFT 2008 - International Conference on Software and Data Technologies

performance could be compromised for query

support and right-time performance, we argue that

these goals are attainable without risking BAM

functionality.

2 RELATED WORK

We brieﬂy describe systems that we compare to the

Itaipu system. These systems have partly inﬂuenced

our work especially in the areas of query optimization

and processing.

• STREAM developed by Widom et al. processes

streams by converting them to relations and uti-

lizing database relational operators to process the

stream (Arasu et al., 2006). The systems uses an

SQL variant, Continuous Query Language (CQL).

CQL and the query algebra used has operators for

stream-to-relation and relation-to-stream conver-

sion. This allows the re-use of relational database

query optimization and processing technology at

the cost of end-user usability.

• Borealis (Abadi et al., 2005) (an extension of Au-

rora (Abadi et al., 2003)) is a distributed DSM

that uses a procedural language to specify queries.

A query is formed by connecting operators into

the currently executing network of operators. In

Aurora, run-time optimizations are performed by

draining small sections of the operator network

and running an optimizer over the subnetwork.

Borealis extends Aurora to run over distributed

machines and balances load across the different

machines. Borealis introduces the idea of revi-

sion records that could correct previously output

results. Borealis also provides algorithms for sys-

tem recovery.

• TelegraphCQ (Krishnamurthy et al., 2003) uses a

unique model for query processing; Continuously

Adaptive Continuous Queries (CACQ). It avoids

the use of a ﬁxed query plan and instead creates

on-the-ﬂy query plans for each tuple. (Shah et al.,

2001) discusses some of the limitations and fea-

tures of Java as a language for building a BAM

system. This discussion was instrumental in some

of our design decisions.

• Cayuga (Demers et al., 2007) Cayuga is a CEP

system. It uses a non-deterministic ﬁnite state

automaton to physically describe a sequence of

events. Cayuga Event Language (CEL) is de-

signed to describe pattern matching queries using

SQL-like keywords. While expressing event pat-

terns is almost natural to Cayuga, certain DSMS

queries are not expressible by the Cayuga query

algebra (Demers et al., 2007).

Table 1 summarizes the current state of affairs in

DSMS’s and CEP’s research and illustrates the areas,

the Itaipu system contributes to.

3 THE ITAIPU SYSTEM

The Itaipu dam is the largest operational hydroelec-

tric dam in the world. The dam controls the ﬂow of

the Paran

a river satisfying 20% of Brazil’s and 94%

of Paraguay’s electricity demands

. Our Data Stream

Management System (DSMS) is like the Itaipu dam.

It processes data streams to produce information

power. This chapter will examine our DSMS, as data

ﬂows from its Spring (or source), to the Dam query

processing system and ﬁnally to the Delta where it is

displayed.

3.1 Deﬁnitions

Before we discuss our system’s architecture, we cover

key data stream management concepts necessary to

our discussion.

Deﬁnition 1 Data Streams. A data stream is an

append-only (possibly inﬁnite) sequence of times-

tamped, structured items (tuples) that arrive in some

order. A stream S is a pair (s, τ) where s is a sequence

of tuples with a ﬁxed schema S and τ is a timestamp

associated for each tuple. The tuples s are ordered

by timestamps. The tuples arrive from a variety of

sources such as messages transferred on an organiza-

tion’s network and RSS feeds.

Deﬁnition 2 Tuple. A tuple is a ﬁxed size, sequence

of values or data objects. A sales stream with schema

S = (sales agent, store id, total sale), could have a tu-

ple s

= (“Willy Loman”, 123, 10$).

Deﬁnition 3 Timestamp. A timestamp τ is a value

from a discrete, ordered set representing time values

T (Arasu et al., 2006). Timestamps could be ex-

plicit (i.e. assigned by data sources) requiring all data

sources and query processing systems to be time syn-

chronized or they could be implicit (i.e assigned on

entry to the processing system, therefore, represent-

ing tuple arrival time and not tuple production time).

There are two main reasons for having timestamps.

First, from a memory requirement perspective, the

Source: Itaipu Binacional http://www.itaipu.gov.br

ITAIPU DATA STREAM MANAGEMENT SYSTEM - A Stream Processing System with Business Users in Mind

Table 1: Itaipu in comparison to the research contribution of other systems.

Research Focus DSMS CEP

Performance (Query optimization and

query plan reconﬁguration)

Aurora (Abadi et al., 2003), Tele-

graphCQ (Krishnamurthy et al., 2003)

Cayuga (Demers et al.,

2007), SASE (Wu et al.,

2006)

Distributed Systems Borealis (Abadi et al., 2005)

Reliability (Hwang et al., 2007)

Query Language:

1. Declarative STREAM Continuous Query Lan-

guage (Arasu et al., 2006), Itaipu

SASE Complex Event Lan-

guage (Wu et al., 2006)

2. Procedural Aurora (Abadi et al., 2003)

3. Combination TelegraphCQ StreaQuel (Krishnamurthy

et al., 2003)

Cayuga (Demers et al.,

2007)

Usability (Query Language) Itaipu

Implemenation ﬂexibility and component

reusability

Itaipu

Scalability Borealis (Abadi et al., 2005), Itaipu

Functionality:

1. Multi-dimensional data analysis Itaipu, Stream cubes (Han et al., 2005)

Speciﬁc Target Applications:

1. BAM Itaipu Cayuga (Demers et al.,

2007)

2. (Network, Road) Trafﬁc Monitoring and

RFID and other sensor network monitor-

ing

Aurora (Abadi et al., 2003), Bore-

alis (Abadi et al., 2005)

SASE (Wu et al., 2006)

streams are unbounded and therefore storing an entire

stream is infeasible in a DSMS. Storing a time-based

window of the streams, however, is feasible. Second,

from a user perspective, the purpose of a DSMS is

to inspect recent data (a DBMS is more suited for

querying historical data), timestamps provide a prac-

tical way to measure data freshness.

Deﬁnition 4 Time-based Window. A window de-

ﬁnes processing bounds over data streams due to their

inﬁnite nature. All tuples within a window are equally

processed and all tuples outside the window range are

discarded. A time-based window deﬁnes a time in-

terval in which tuples are processed based on their

timestamp value. Windows could be ﬁxed or moving.

Deﬁnition 5 Query. A query is an information re-

quest deﬁned in precise terms using a query language.

The query indicates the data sources and the process-

ing necessary to fulﬁll the information request. Each

query needs to be converted ﬁrst into a query plan. A

query plan is a sequence of operators that are executed

to satisfy the information request. A query plan is the

physical counterpart of the logical query.

Deﬁnition 6 Operator. A query is physically com-

posed of a sequence operators. Each operator has a

unique function. This function takes tuples from one

or more streams as input, could maintain state and

outputs one or more streams of modiﬁed or ﬁltered

tuples. In a DSMS, operators are non-blocking (they

do not need to read the entire stream before they could

produce an output) and pipelined (they could maintain

state as a side-effect, their output is a stream of tuples

not a change in memory state).

Deﬁnition 7 Consumer. A consumer is an operator

that processes tuples output by another operator.

Deﬁnition 8 Producer. A producer is an operator

that produces tuples that are input into another opera-

tor.

Deﬁnition 9 Query Frame. A frame is a query

with open parameters that users could modify at run-

time. These parameters could deﬁne dimensions users

could view the data along. For example, an open pa-

rameter could be the size of the window.

3.2 Architectural Overview

There are three main components to the Itaipu sys-

tem: Spring, Dam and Delta. Figure 1 layouts the

different components and the relationships between

them. Spring (section 3.3) manages the data sources

and produces structured data streams from the differ-

ent sources it listens to. It is the entry point to the

DSMS. Dam (sections 3.4, 3.6) is the core of Itaipu.

ICSOFT 2008 - International Conference on Software and Data Technologies

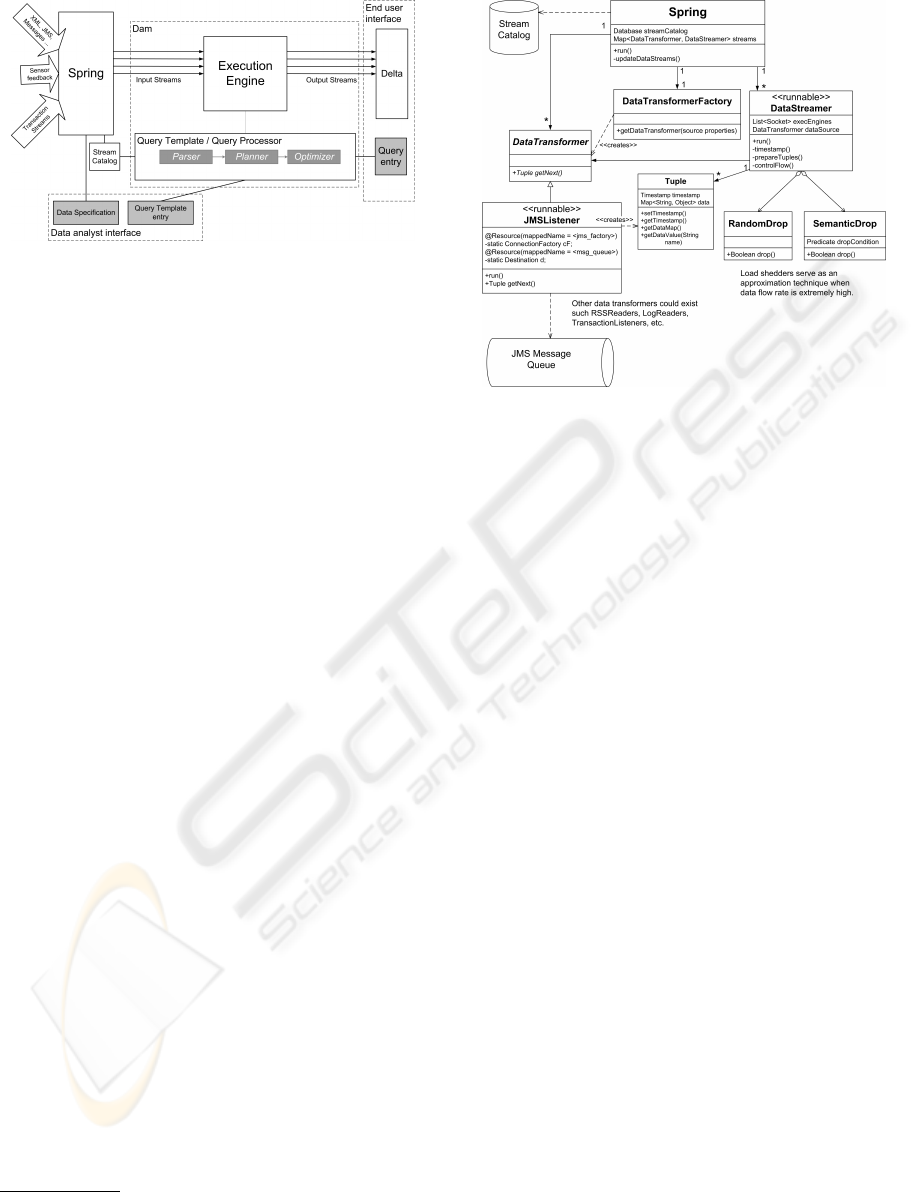

Figure 1: The overview of the Itaipu Data Stream Manage-

ment System.

It consists of two parts, a back-end execution engine

and a front-end query processor. Within the execution

engine, operators form a variant of the pipe and ﬁlter

architecture

: queues (pipes) buffer tuples passed be-

tween operators (ﬁlters). The query processor parses,

plans and optimizes queries as well as query frames.

Finally, Delta (section 3.7) is the user interface to the

query results. The system is written in Java. The

following sections will examine each components of

Itaipu in detail. In each section, a set of design ques-

tions will be listed ﬁrst, followed by a discussion of

our solutions to these questions.

3.3 Spring

Given a variety of input sources for business data

and events, how do we build a system ﬂexible enough

to transform all of them into ﬁxed schema streams?

Spring has three components: Data transformer,

Data streamer and Data deﬁner. Figure 2 illustrates

the relationship between the Data transformer and the

Data streamer modules.

The data transformer consists of extensible li-

braries of modules that convert data from a variety

of input sources into a ﬁxed schema stream. Data

sources can be broadly classiﬁed into two types: pull

and push sources. Itaipu subscribes to push events.

These events include transactions and messages from

messaging systems. Any module that converts push

events to streams must adhere to a Listener interface.

Pull events require Spring to actively poll other ap-

plications for data. Really Simple Syndication (RSS)

feed is an example of a pull event. Any module that

actively polls for data from sources must adhere to

a Reader interface. Spring allows experts to provide

application speciﬁc implementations of readers or lis-

teners and provides a standard factory module that

Unlike a traditional pipe and ﬁlter architecture, the

topology of the operators (ﬁlters) affects the correctness of

results and/or system performance

Figure 2: Operator scheduling, communication and con-

struction interfaces with components of the execution en-

gine.

builds appropriate transformers based on the proper-

ties of the data source.

The Data streamer sends data streams to the ex-

ecution engine for processing. The streamer adds a

timestamp to each tuple which marks the time the

tuple was released from the data streamer. We use

an implicit timestamp to eliminate the need to time-

synchronize the different (potentially remote) compo-

nents of the Itaipu system.

The Data deﬁner allows data analysts to describe

the schema of different data sources, the type of data

transformer required as well as other parameters nec-

essary to convert any data source into a stream. This

information is stored in a stream catalog.

3.4 Dam: Execution Engine

The purpose of the execution engine is to pro-

vide a framework in which operators could inter-

communicate seamlessly. The execution engine:

1. enables the dynamic addition, removal and move-

ment of operators.

2. modiﬁes the behaviour of aggregators by chang-

ing window sizes and aggregation dimensions

3. provides mechanisms for tuple passing between

operators.

4. operates logically as a single engine while execut-

ing physically on multiple machines.

The complete encapsulation of operators means

that neither the execution engine has an awareness of

the inner workings of an operator nor does an oper-

ator know the execution engine’s inner workings or

ITAIPU DATA STREAM MANAGEMENT SYSTEM - A Stream Processing System with Business Users in Mind

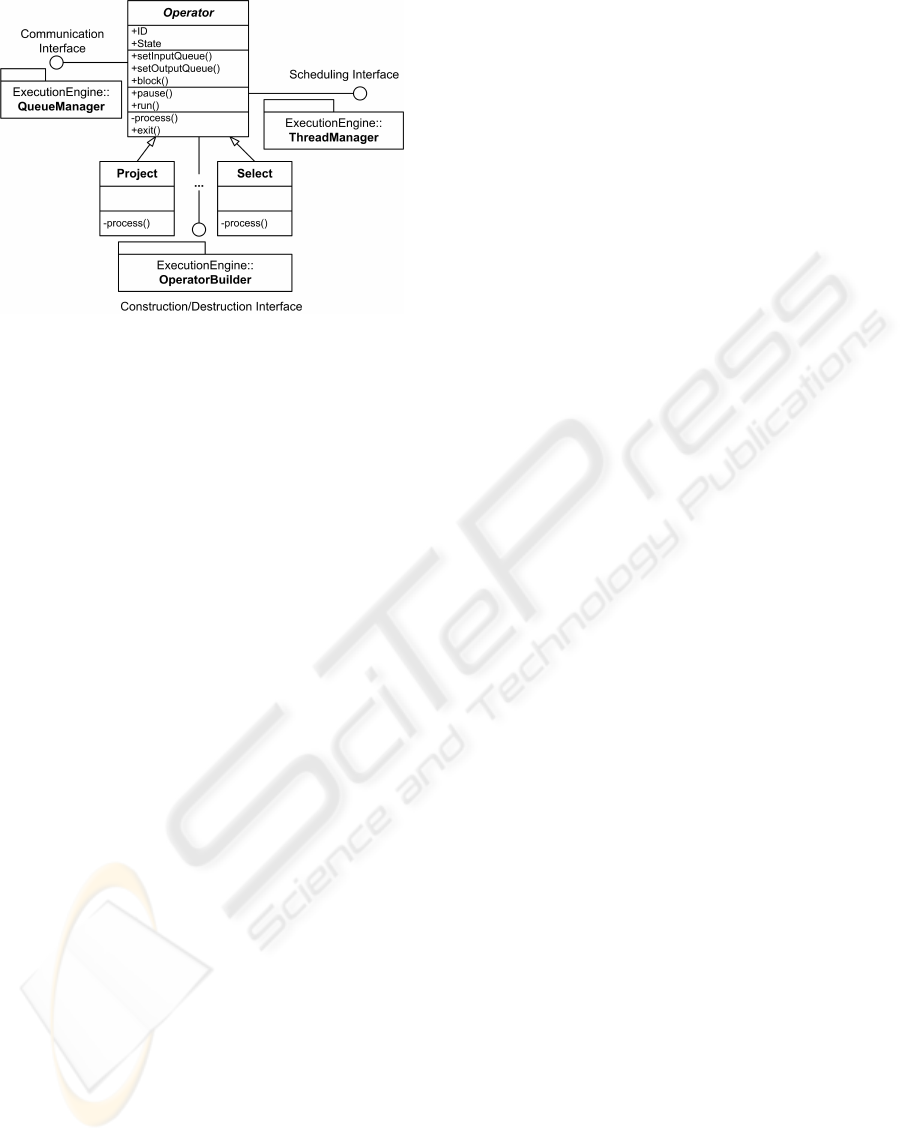

Figure 3: Operator scheduling, communication and con-

struction interfaces with components of the execution en-

gine.

even its location within the pipelined network of oper-

ators. Operators are designed and built independently

of the execution engine as long as they adhere to the

interface.

Figure 3 illustrates the main components of the ex-

ecution engine and the operator interfaces required.

A communication interface is necessary to manage

movement of tuples from one operator’s output to

another’s input. A scheduling interface is necessary

to share limited run-time resources such as execution

threads. Finally, the execution engine constructs and

destructs operators as queries are modiﬁed, added or

removed. This necessitates a construction interface.

3.4.1 Scheduling, Thread Manager

How do we allocate Threads (Execution Time) to the

Operators to Maximize CPU Utilization?

We evaluated three different approaches. We will de-

scribe each approach, its shortcomings and our pre-

ferred approach.

Single Thread of Execution and an Event-driven

Operation Model. In this approach, we think of op-

erators processing data as actions and the availability

of data for an operator as an event. In an event-driven

model, the execution engine tests for different events

within a single loop. If an event occurred (data be-

came available for a certain operator), the control is

transfered to the appropriate operator via a function

call such as process(). Such a model does not take

advantage of an underlying multi-processor system

where several threads could be executed concurrently.

Even if the model is adapted to run on a multi-

processor system, we believe the model has several

shortcomings. First, the execution engine incurs the

overhead of event detection. Second, this model com-

plicates the implementation of operators with time-

based windows that issue their results at regular time-

intervals. Since the presence of data causes an event

which drives the operators into action, time-based

window operators cannot ﬁre their results unless they

have data.

A Thread for a Sequence of Operators. Any ap-

proach that involves assigning a thread to a sequence

of operators leads to an extremely complicated de-

sign. Operators that are part of different sequences

need to implement locking strategies to prevent sev-

eral execution threads running within the operator at

the same time. Locking adds unnecessary overhead

costs and introduces blocking time as threads wait for

another thread to exit a shared operator. Any task

that involves a change in the operator graph (such

as adding or removing queries or graph replanning)

could halt the system; if a sequence of operators

needs to be changed, any thread controlling execu-

tion within that sequence needs to halt to prevent sit-

uations where one operator waits on another operator

that no longer exists (but was in sequence before the

graph change).

A Thread for each Operator. Assigning each op-

erator a thread is a simple but costly solution. With-

out no limit on the number of threads, the system

may exhaust its CPU resources in order to support

a large number of threads. The execution engine,

sets a bound on the number of threads by using a

thread pool. The size of the thread pool is conﬁg-

urable. Each operator is both an object with state in-

formation and a runnable task. The Thread Manager

is a component of the execution engine that manages

the thread pool and moves operators onto and off the

threads. The execution engine also maintains refer-

ences to the operator objects. This way, the operators

are not garbage collected when they are removed from

a thread. This approach requires operators to commu-

nicate with each other using queues. The previous ap-

proaches did not need queues as function calls could

be used to transfer data. An operator is in Ready state

if it not currently running on a thread and is in Block

state if it has no input data. The Queue Manager (dis-

cussed next) blocks operators and places them in a

blocked queue when there are no tuples to process.

When data becomes available, it changes the state of

the operator to Ready. We chose this approach be-

cause it takes advantage of a multi-threaded environ-

ment, it does not require any locking and it preserves

the loose coupling between operators as no function

calls are required to pass data between operators.

ICSOFT 2008 - International Conference on Software and Data Technologies

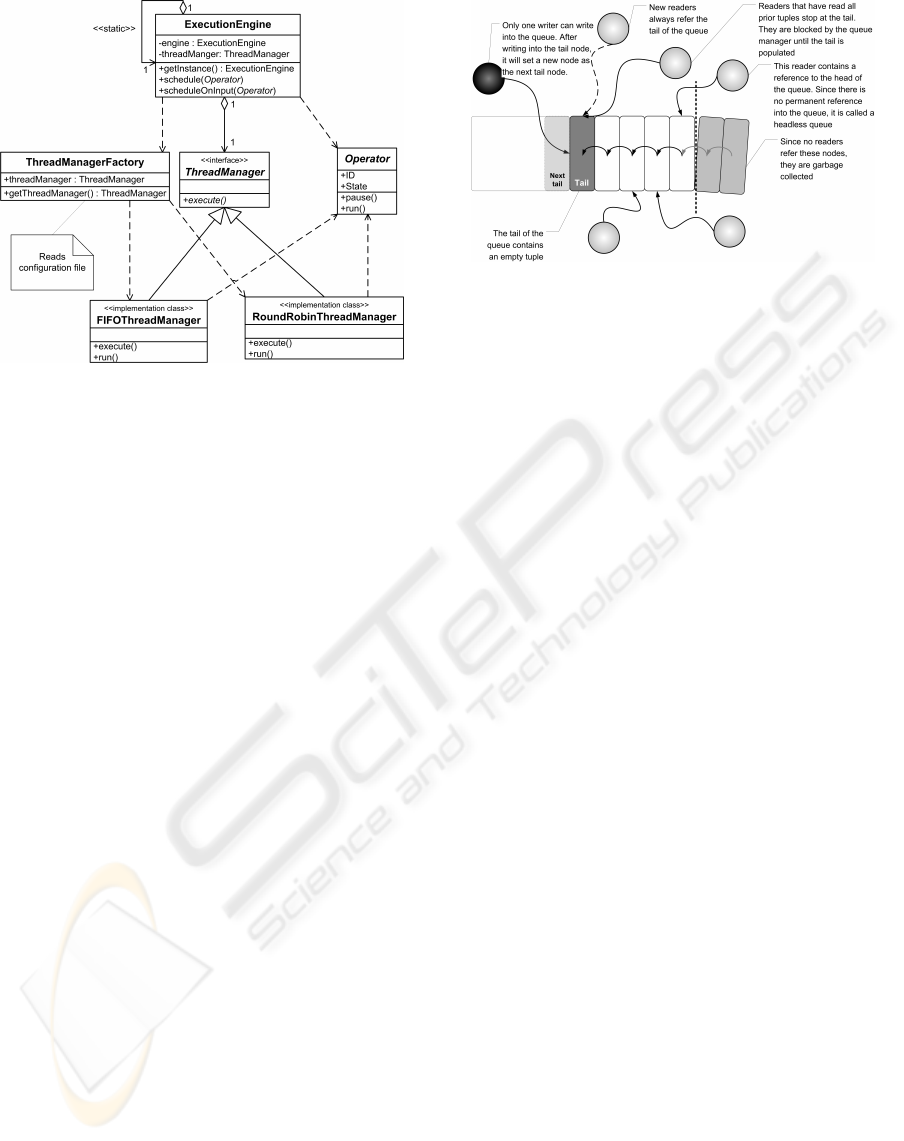

Figure 4: UML diagram illustrating interactions between

the thread manager factory, execution engine, operators and

scheduling implementations.

Two implemented strategies are round-robin

scheduling and ﬁrst-in-ﬁrst-out scheduling. Our de-

sign, however, enables the extension of the thread

manager to implement any scheduling strategy. Fig-

ure 4 illustrates how the execution engine utilizes a

thread manager factory to determine the appropriate

thread manager scheduling strategy based on conﬁg-

uration settings.

3.5 Communication, Queue Manager

Given that we assign each operator a thread to run

independently within, the only viable inter-operator

communication strategy involves using queues.

1. How do we prevent tuple duplication across mul-

tiple queues when an operator connects to mul-

tiple consumers?

2. How do we ensure that queued tuples are not

maintained longer than necessary and dropped

when all consumers have processed the tuple?

We use a specialized queue-based data structure:

Headless queue. The main property of a headless

queue is that it enables multiple concurrent access to

tuples at different positions within the queue. Each

consumer maintains a reference to the next tuple they

will consume. Therefore, no tuples are duplicated.

When a tuple has been read by all consumers, it is de-

referenced and garbage collected. Figure 5 illustrates

the operation of the headless queue.

In addition to using headless queues, our imple-

mentation uses the queue manager as a mediator. Op-

erators, therefore, maintain no reference to other op-

erators or physical headless queues. Instead they ac-

cess mediators that control input (Input Queue View)

Figure 5: Reading from and writing to a headless queue.

and output (Output Queue View). This both preserves

the loose coupling between operators and allows for

a simpler, light-weight operator. By having the queue

manager manage operator input and output, the queue

manager can synchronize operator execution without

locks (an operator thread is locked by a queue un-

til data arrives) or spins (the operator continuously

polls for data on the input queue). The queue man-

ager simply changes the state of the operator to Block

and places it in a queue of blocked operators until data

arrives. The operator, in turn, releases its execution

thread to allow other operators to run on the thread.

3.5.1 Construction Interface, Generating the

Operator Graph

1. How to represent the multiple-query plan pro-

duced by the query processor to enable the gen-

eration of the physical operator graph?

2. How to build the operator graph from this repre-

sentation

A good software engineering practice is to decou-

ple systems into components, where each unit rep-

resents an independent unit that provides a distinct

function. Decoupling allow the systems to evolve eas-

ily. Immature components that are prone to change

such as the query processing and optimization unit

could evolve without drastically affecting other com-

ponents. By limiting the functionality of each com-

ponent, decoupling enhances system re-use. For ex-

ample, different front-end user-interface clients could

communicate with the execution engine. Decoupling

also allows our system to adapt to different applica-

tion properties. Different applications will have dif-

ferent proportions of select-project-join (SPJ) queries

to aggregation queries. Different optimization strate-

gies could be used depending on the nature of queries

used in an application. By decoupling the query pro-

cessor from a relatively stable execution engine, dif-

ferent processors could be tested without a need to

ITAIPU DATA STREAM MANAGEMENT SYSTEM - A Stream Processing System with Business Users in Mind

change the execution engine.

Decoupling, however, compromises performance

by introducing an indirection layer. Since the query

processor and execution engine do not form a single

component, the query processor can no longer effect

query plan changes by directly reconnecting operators

in the executing operator graph. Instead, the proces-

sor needs to create a representation of the modiﬁed

multiple-query plan. The execution engine then reads

this representation and builds the operator graph from

it. Decoupling, therefore, comes at an increased over-

head cost in representing the multiple-query plan and

reading this representation to build the operator graph.

We use an Extensible Markup Language (XML)

representation for the multiple-query plan produced

by the query processor. This choice is motivated by

the following reasons:

1. An XML representation is suitable for an evo-

lutionary design process. XML models semi-

structured data. Initially in the Itaipu design pro-

cess, the complete structure of operator graphs

is not known. The structure continues to evolve

as new operator attributes are discovered or cer-

tain operator attributes are recognized as redun-

dant and eliminated. XML provides an easy way

to add structure to the operator graph representa-

tion without a need for regularity.

2. Java Architecture for XML Binding (JAXB) un-

marshals an XML document or converts it to Java

object instances. This simpliﬁes access to XML

documents. Java content objects are created rep-

resenting both the organization and content of the

XML documents. Each java content object has an

equivalent operator object augmented with tuple

processing functions. Therefore the content ob-

jects parameterize actual running operators.

3.6 Dam Query Processing

While the execution engine provides a framework

where operator could execute and inter-communicate,

the query processing unit validates, plans and opti-

mizes user queries to produce a multiple query-plan.

1. Which query language to use?

2. How to make query entry more natural for the

business user? (i.e. How could we reduce the

involvement of IT in query write-up?)

We use a declarative, SQL variant as Itaipu’s

query language for the following reasons:

1. SQL is well-understood and industry-adopted

query standard. This enhances the reusability of

the Itaipu system by other front-end applications.

Table 2: A sample query frame.

Oil well production rate frame

SELECT AVERAGE(production rate)

FROM pump data

TILT 15MIN-1HOUR-1DAY-7DAY

GROUPING region, rig company, cost;

Description: This frame returns the average oil well pro-

duction rate over a titled-time window ranging from a 15

minutes to a week. Specify the abstraction levels for re-

gion, rig company and cost dimensions. For example,

by specifying ‘country’ as the abstraction level for region,

production rates will be grouped for all wells within a

country.

With enough DSMSs interested in using SQL for

querying streams, SQL with windowing exten-

sions could become a stream querying standard.

2. SQL is a language for querying relational

databases. Even though, streams are not rela-

tions, relational operators could be modiﬁed to

work with streams and streams could be converted

to relational sets with the help of windowing op-

erations. This means, we could adapt existing

query processing technology found in relational

databases for our purposes.

While using an SQL variant for querying streams

requires less understanding of the data stream query-

ing model compared to a procedural language

, it is

still not business-user friendly. Since data streams are

created from events signaled from different applica-

tions, it is unlikely that the business-user will know

which data sources are relevant to his/her query.

We use a query frame approach, where a data an-

alyst speciﬁes a skeleton queries which users param-

eterize at runtime. One natural implementation of a

query frame is the use data cube, that pre-aggregates

data across multiple dimensions and the users specify

the dimensions they are interested in. See table 2 for

a sample query frame.

Frames deﬁned by data analysts are stored in a

query catalog. Each frame contains a description

ﬁeld. The data analyst speciﬁes in detail the purpose

of the frame and the data sources it processes. The

system provides a simple search engine that enables

users to retrieve queries based on keywords. The key-

words are matched to the description ﬁeld and a set of

Procedural querying languages involve users connect-

ing operators into a stream processing operator graph to ob-

tain their queries (Abadi et al., 2003; Demers et al., 2007). It

relies heavily on user optimizations. As the operator graph

increases in size, manual optimizations become more chal-

lenging to manage.

ICSOFT 2008 - International Conference on Software and Data Technologies

frames are returned in order of relevance. In addition,

the frames contain a help ﬁeld that describes how a

business-user could parameterize the frame.

Query frames may ease the query entry process.

However, they are far from enabling users to provide

queries in natural language.

3.7 Delta, the User Client

Delta is the ﬁnal destination of data streams. It is the

end-user interface into the Itaipu system. Each end-

user uses a Delta client which communicates with the

Dam Execution Engine and Query Processing units.

These units act as servers and communicate via a

custom-made XML protocol over TCP sockets. Each

delta client initiates a ﬁxed listening port, which the

Execution engine pushes output from its operators

into. Delta provides the following functions:

1. Visualizes output streams. All visualization tools

such as graph kits are part of Delta and not the

execution engine.

2. It forwards user queries to the query processing

unit and allows users to search and parameterize

existing frames.

4 PROJECT STATUS

The focus of this paper is to discuss the architecture

of the Itaipu system. We are currently working with

Business Objects to build a typical BAM data set to

validate our system. We ran a basic validation sys-

tem using simulated sales data collected from Point

of Sales (POS) terminals. This data set is typically

used to test data warehouses.

5 FUTURE WORK

We hope to extend the Itaipu system in the following

ways:

1. We wish to produce a more ﬂexible query model

that has the beneﬁts of complex event processing

systems while still providing DSMS functionality.

Our next research goal is to provide users with the

ability to enter a sequence of queries where each

query is triggered based on conditions satisﬁed by

results from the preceding query, hence produc-

ing an adapting query. Our approach will involve

utilizing workﬂows to deﬁne these querying se-

quences. (A workﬂow describes relationships and

dependencies between processes. It provides a

way to model a sequence of processing activities

and with the help of a workﬂow management sys-

tem enact or schedule the sequence.)

2. We would like to provide collaboration tools in

Delta. This would enable users to share queries

and results. Collaboration would enable a group

of users to create joint queries such that all users

within a group maintain a consistent view into the

data.

ACKNOWLEDGEMENTS

Our thanks to the Business Objects

research team for

providing us with invaluable feedback on our system

and providing us with realistic BAM scenarios and

simulated data that we used for testing our system.

We would like to thank NSERC and the Killam Trusts

for funding this research.

REFERENCES

Abadi, D. J., Ahmad, Y., Balazinska, M., C¸ etintemel, U.,

Cherniack, M., Hwang, J.-H., Lindner, W., Maskey,

A. S., Rasin, A., Ryvkina, E., Tatbul, N., Xing, Y.,

and Zdonik, S. (2005). The design of the borealis

stream processing engine. In CIDR ’05: Second Bi-

ennial Conference on Innovative Data Systems Re-

search, Online Proceedings.

Abadi, D. J., Carney, D., C¸ etintemel, U., Cherniack, M.,

Convey, C., Lee, S., Stonebraker, M., Tatbul, N., and

Zdonik, S. (2003). Aurora: a new model and archi-

tecture for data stream management. The Very Large

Data Bases (VLDB) Journal, 12(2):120 – 139.

Arasu, A., Babu, S., and Widom, J. (2006). The cql continu-

ous query language: Semantic foundations and query

execution. The Very Large Data Bases (VLDB) Jour-

nal, 15(2):121–142.

Arasu, A., Cherniack, M., Galvez, E., Maier, D., Maskey,

A. S., Ryvkina, E., Stonebraker, M., and Tibbetts,

R. (2004). Linear road: a stream data management

benchmark. In VLDB ’04: Proceedings of the Thirti-

eth international conference on Very large data bases,

pages 480–491. VLDB Endowment.

Babcock, B., Babu, S., Datar, M., Motwani, R., and Widom,

J. (2002). Models and issues in data stream systems.

In PODS ’02: Proceedings of the twenty-ﬁrst ACM

SIGMOD-SIGACT-SIGART symposium on Principles

of database systems, pages 1–16, New York, NY,

USA. ACM.

Cisco (2008). Petroleum company improves real-time in-

formation sharing with rigs. Retrieved March 31,

2008, from Cisco Customer Case Study on First

Mile Wireless: http://www.cisco.com/web/strategy/

docs/energy/ Caseworks 31530 Petrobel CS.pdf.

www.businessobjects.com

ITAIPU DATA STREAM MANAGEMENT SYSTEM - A Stream Processing System with Business Users in Mind

Demers, A. J., Gehrke, J., Panda, B., Riedewald, M.,

Sharma, V., and White, W. M. (2007). Cayuga: A

general purpose event monitoring system. In CIDR,

pages 412–422.

Han, J., Chen, Y., Dong, G., Pei, J., Wah, B. W., Wang, J.,

and Cai, Y. D. (2005). Stream cube: An architecture

for multi-dimensional analysis of data streams. Dis-

trib. Parallel Databases, 18(2):173–197.

Han, J. and Kamber, M. (2000). Data Mining: Concepts

and Techniques. Morgan Kaufmann.

Hwang, J.-H., C¸ etintemel, U., and Zdonik, S. (17-20 April

2007). Fast and reliable stream processing over wide

area networks. Data Engineering Workshop, 2007

IEEE 23rd International Conference on, pages 604–

613.

IBM (2007). Smarter oilﬁelds make dollars and sense.

Retrieved March 31, 2008, from IDEAS from

IBM: http://www.ibm.com/ibm/ideasfromibm/us/ oil-

ﬁelds/042307/ images/SmartOF 042307.pdf.

Krishnamurthy, S., Chandrasekaran, S., Cooper, O., Desh-

pande, A., Franklin, M. J., Hellerstein, J. M., Hong,

W., Madden, S., Reiss, F., and Shah, M. A. (2003).

Telegraphcq: An architectural status report. IEEE

Data Engineering Bulletin, 26(1):11–18.

Shah, M. A., Franklin, M. J., Madden, S., and Hellerstein,

J. M. (2001). Java support for data-intensive systems:

experiences building the telegraph dataﬂow system.

SIGMOD Rec., 30(4):103–114.

Stonebraker, M., C¸ etintemel, U., and Zdonik, S. (2005).

The 8 requirements of real-time stream processing.

SIGMOD Rec., 34(4):42–47.

Wu, E., Diao, Y., and Rizvi, S. (2006). High-performance

complex event processing over streams. In SIGMOD

’06: Proceedings of the 2006 ACM SIGMOD interna-

tional conference on Management of data.

ICSOFT 2008 - International Conference on Software and Data Technologies
