senseGUI – A DECLARATIVE WAY OF GENERATING

GRAPHICAL USER INTERFACES

Mariusz Trzaska

Polish Japanese Institute of Information Technology, Koszykowa 86, Warsaw, Poland

Keywords: Graphical User Interfaces, GUI, library, tools, Model-Based GUIs.

Abstract: A declarative way of creating GUIs is also known as model-based generation. Most of existing solutions

require dedicated tools and quite complicated knowledge from the programmer. They also use special

languages. In contrast, we propose a method which utilizes annotations existing in present programming

languages. The method greatly improves generating common GUIs for popular languages. Annotations

allow the programmer for marking particular parts of a source code defining class structures. Using such

simple annotations, the programmer can describe basic properties of the desired GUI. In the simplest form it

is enough just to mark attributes (or methods) for which widgets should be created. There is also a way to

define more detailed description including labels, the order of items, different widgets for particular data

items, etc. Using a generated form, the application user can create, edit and see instances of data objects.

Our research is supported by a working prototype library called senseGUI (Java).

1 INTRODUCTION

According to (Basnyat, 2005), the Model-based

development (MBD) is a developing trend in the

domain of software engineering that advocates the

specification and design of software systems

through declarative models. A part of this approach

are Model-Based GUIs (MB-GUI) which assume

that GUIs are automatically generated by the

software system. Specification of the generation is

described in a model. (da Silva, 2000) discusses

different kinds of models. All the models are

necessary if one would like to define entire

applications, including some parts of activity

specification (i.e., business logic). Unfortunately

such description is quite complex and time

consuming, hence it is not so popular in the

development of commercial applications.

Generally, developers utilize three main

approaches to creating graphical user interfaces:

 Defining GUIs using manually written source

code. Every popular programming language

has its own dedicated libraries. In case of Java

it could be Swing (Walrath, 2004) or SWT

(Guojie, 2005). C# developers have

WinForms (Sells, 2006);

 Utilizing dedicated visual editors (designers)

which allow for “drawing” a GUI and for

generating an appropriate source code. The

quality of such generators varies considerably.

Some of them allow for round-trip

engineering (i.e. (Jigloo, 2008)). In contrast,

there are also solutions which act as pure

generators;

 Using a special declarative approach including

MB-GUI. The idea is to focus on “what to do”

rather than “how to do it”. A recent,

commercially used example of such an

approach is MS XAML. Particular GUI items

are defined using a dedicated programming

language (or a description language).

Unfortunately, all of the presented approaches

require quite serious involvement from the

programmer. Starting from the first one, which is the

most time-consuming (and needs also specified

knowledge), through the second one, which of

course saves time but needs a lot of attention, up to

the last one which cuts some effort, but a little bit.

Hence our idea was to develop a solution which is

very easy to use yet powerful and does not require

so much programmer’s effort. Our research is

supported by a working prototype implemented for

the Java language as a library, called senseGUI. The

library could be applied to any program written in

Java. It is worth mentioning that following our

Trzaska M. (2008).

senseGUI – A DECLARATIVE WAY OF GENERATING GRAPHICAL USER INTERFACES.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 71-76

DOI: 10.5220/0001883400710076

 SciTePress

concepts it is possible to create implementations for

any language which supports reflection.

The rest of the paper is organized as follows. To

fully understand our motivation and approach some

general information are presented in section 2. Next

sections briefly discuss key concepts of our research:

utilization capabilities (Section 3) and technical

overview (Section 4). Section 5 concludes.

2 RELATED WORK

In general terms, an ordinary application’s user

needs a Graphical User Interface as an:

 Input. To fill a data (model) elements with

some content. To achieve this, a programmer

creates widgets (i.e. text box) and connects

them with data. When a user enters some data

to the widget, a dedicated part of the program,

writes them to the model;

 Output. To show a content of data or a model.

To accomplish this, a programmer writes a

code which reads a part of the application’s

model and writes it to a widget.

The most common way of fulfilment

input/output needs is utilizing a GUI library

delivered with a given programming language. Most

of Java’s GUIs are implemented using Swing

(Walrath, 2004) or SWT (Guojie, 2005) libraries.

The following listing contains definition of a simple

Java class:

public class Person {

private String firstName;

private String lastName;

private Date birthDate;

private boolean higherEducation;

private String remarks;

private int SSN;

private double annualIncome;

public int getAge() {// [...]}

}

In case of creating GUI for the class, we need to

write a source code performing the following steps

(aside adding necessary “model” methods):

 Create an empty form;

 Add a layout manager;

 For each needed attribute add a widget which

will show its content and will allow edition;

 For each widget add a describing label;

 For each widget add a code which will read

the value of a particular attribute and will put

it into the widget;

 Add “Accept” button which will read widgets’

contents, update appropriate attributes and

will hide the form;

 Add “Cancel” button hiding the form.

Implementing the above steps means writing a

few tenths lines of code (7 attributes multiplied by 5

to 10 lines per widget plus handling layout, control

buttons, etc), which are quite similar to each other.

Different approach has been utilized in the GUI

editors concept. One of them is Jigloo GUI Builder

working with the Eclipse IDE platform. Using the

editor one can visually draw a form by placing

appropriate widgets. An example, for our sample

Person class, is presented on fig. 1. For the figure,

the editor has generated 105 lines of Java code. This

number is without a code needed to read/write

values from/to the data instance, which should be

written manually. Comparing to hand coding GUI,

using an editor is a big facilitation. However, the

programmer has to spend some time on placing

widgets in a window, adding “data code” and

handling resizing the window (which is not always

easy to achieve).

Figure 1: A sample form designed using Jigloo GUI

editor.

We believe that, in the case of typical graphical

user interfaces, i.e. forms for editing or entering

data, the most promising approach is the declarative

one. The reason is that a programmer focuses on

defining what he/she would like to achieve, rather

than how to do it.

Systems like Teresa (Mori, 2004), JUST-UI

(Molina, 2002), SUPPLE (Gajos, 2004) support a

declarative approach and have features which

facilitate creating really powerful applications. Most

of them work with dedicated model definition

languages (i.e. pattern definition language in case of

(Molina, 2002) and their own platforms. It means

that a programmer has to learn something new and

quite complicated. Sometimes, the new knowledge

introduced by the systems is much more complex

than the basic problem (GUI to create) which has to

be solved. Unfortunately, most of the proposed

solutions seem to be too complicated for an average

programmer and average tasks.

ICSOFT 2008 - International Conference on Software and Data Technologies

3 senseGUI CAPABILITIES

Our goal was to create a library which will

automatically generate a GUI form for an ordinary

Java class. Using that form, an application’s user

will be able to enter new data, update existing

information or just see the data. For instance, a

programmer has the

Person class and he/she does

not want to manually create a GUI similar to the one

in fig. 1. Our basic assumption was that the entire

process will be performed without any additional

involvement of programmer. To make sure if our

library is useful we have decided to create a working

sample of a typical business application: a software

for a video store.

We had to solve three main problems:

• how to read a class content (structure)?

• what kind of widgets should be generated for

particular class items (attributes)?

• how to connect generated widgets with data?

The first problem was quite easy to solve. We

have decided to employ technology called reflection.

This functionality is available for all modern

programming languages including Java, C# and

partially C++. It allows reading classes’ structures

and instantiating their objects.

Answers to the rest of the questions are

presented in the next sections.

3.1 Basic Usage

Roughly speaking it is not possible, in a generic case

to automatically discover which part of a data class

should be visualized. Hence we had to introduce

some kind of markers. The markers were responsible

for tailoring generated GUI to programmer’s needs.

The open question was how to connect the markers

with a program, framework and a working GUI?

There were some options like configuration files (i.e.

XML or Java-properties) or passing parameters to

the library. Finally, after some research, we decided

to use another approach: annotations. They exist for

the Java and MS C# and allow describing a class or

their content. We tried to make them as simple as

possible, but during the implementation of our

sample application, the number of annotation’s

parameters grew to 11. Fortunately, all of them had

some default values and did not need to be changed

each time. We introduced two basic kinds of

annotations:

GUIGenerateAttribute,

GUIGenerateMethod. The first one is dedicated to

marking attributes and the later to marking methods.

Each of them has additional parameters (with

different default values):

 label. Describes a label for a widget. If it is

an empty string (default) then a name of the

attribute or the method (without a prefix

get/set) will be used.



widgetClass. Widget class which will be

used to handling editing of the attribute or

method. Default value is a

JTextBox.



tooltip. A short text presented to the user

when a mouse cursor hovers over the widget.



getMethod. A method to read a value of the

attribute. Default value employs a standard

setters/getters approach.



setMethod. A method for writing the value.



showInFields, showInTable,

showInSearch Flags telling if this item

should be visible in a form with fields, table

(grid) view, search criterion view.



order. A number defining order in a form.



readOnly. If true then the widget is read

only.



scaleWidget. Indicates if this widget should

change size during resizing the form.

Our generic solution is capable of working with

languages common types: numbers, strings,

booleans, dates and enumerations (

enum type). For

objects see section 3.2.

Default implementation for most of them uses

text boxes as widgets with two exceptions:

 booleans work with special version of check

box (see further),

 enumerations are processed using combo

boxes automatically filled with all possible

values (read via language reflection).

Our sample code (the

Person class), modified

using our approach is shown below. Notice that all

we had to do was adding annotations telling which

parts of the class should have their own GUI.

public class PersonAnnotated {

@GUIGenerateAttribute

private String firstName;

@GUIGenerateAttribute

private String lastName;

@GUIGenerateAttribute

private Date birthDate=new Date();

@GUIGenerateAttribute

private boolean higherEducation;

@GUIGenerateAttribute

private String remarks;

@GUIGenerateAttribute

private int SSN;

@GUIGenerateAttribute

private double annualIncome;

@GUIGenerateMethod

public int getAge() { // ...}

}

senseGUI – A DECLARATIVE WAY OF GENERATING GRAPHICAL USER INTERFACES

The result of calling appropriate (single)

senseGUI method showing the generated window is

shown on fig. 2.

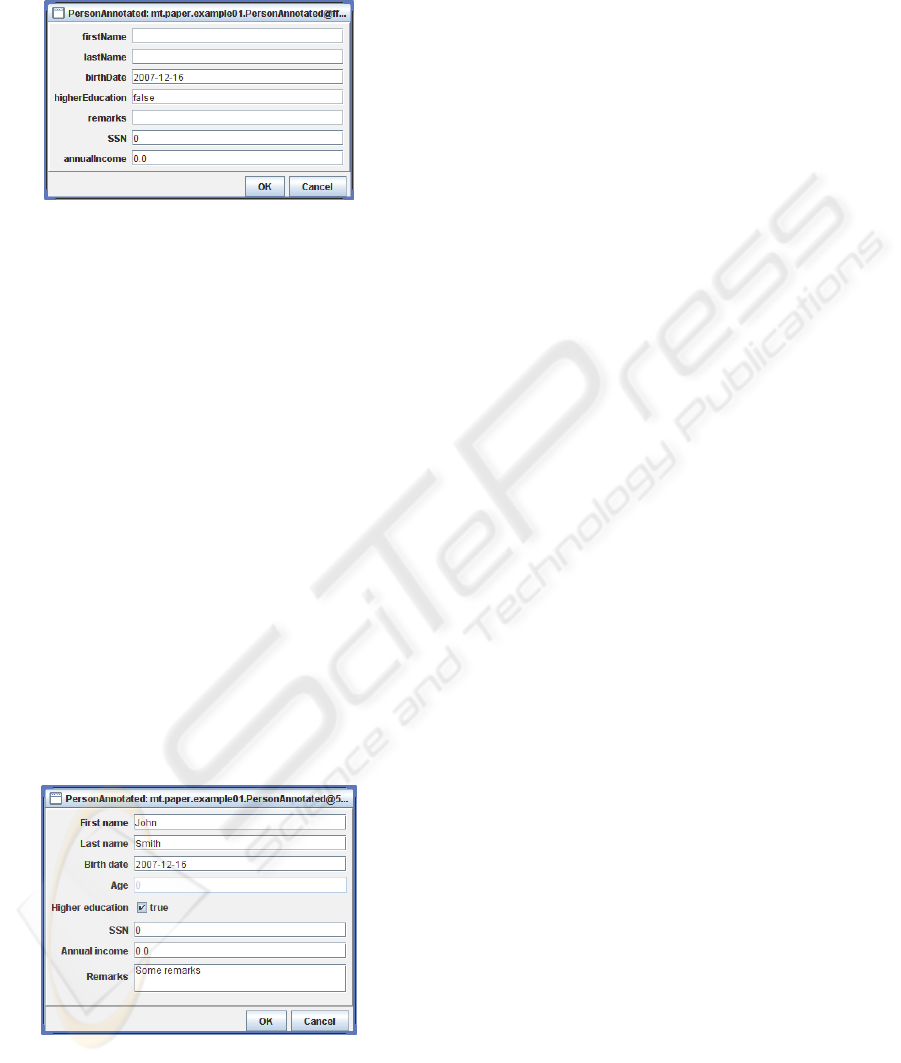

Figure 2: A form generated automatically by the

senseGUI.

As it can be seen, using annotations with only

defaults values could lead to improper overall form

visualization. Thus, a programmer should utilize

some of the annotation parameters. Part of the

appropriate sample code is shown below and its

result frame is presented on fig. 3.

@GUIGenerateAttribute(label =

"First name", order = 1)

private String firstName;

@GUIGenerateAttribute(label =

"Higher education", widgetClass=

"mt.mas.GUI.CheckboxBoolean", order

= 5)

private boolean higherEducation;

@GUIGenerateAttribute(label =

"Remarks", order = 50, widgetClass=

"javax.swing.JTextArea", scaleWidget

=false)

private String remarks;

@GUIGenerateMethod(label = "Age",

showInFields = true, order = 4)

public int getAge() { // ...}

Figure 3: A form generated automatically by the senseGUI

based on modified annotations.

A few things should be noted:

 All widgets have proper labels,

 An age value is read-only,

 Information about higher education is

presented using a check box,

 All widgets are placed in an order explicitly

defined by a programmer,

 Current value of the item is automatically

placed in the widget,

 Remarks area could have many lines and is

properly scaled during resizing the form.

3.2 Advanced Possibilities

We have mentioned that our library works with

some common data types (including the basic ones).

What if a programmer would like to show the

content of a custom defined type embedded in

another custom type (i.e. person has a job

information described using a dedicated class)?

Generally speaking, there are two ways of achieving

such a functionality.

The first one takes advantage of another

capability of our solution. As we said, a programmer

can generate an entire window for a class in just one

method call. However, behind the scene, the call

utilizes other methods. One of them is a method

which creates a panel containing all data widgets.

Then, the panel is merged with some other control

widgets and embedded inside a window. The

window is shown to a user, allowing performing

requested operations. The idea is based on utilizing

just the widget panel and embedding them in a

custom designed window.

Another approach requires cooperation with our

other library called senseObjects. The library is a

result of our research regarding supporting common

data management using a solution native for a

particular programming language (i.e. without using

a database). Similarly to the senseGUI, the current

prototype is developed for the Java and requires

minimal programmer’s involvement. In order to use

it, a programmer has to:

 inherit his/her data objects from a particular

class,

 call the constructor from the super class.

The senseObjects library supports a programmer

in important data management areas:

 managing the class extent. Every instantiation

of the data class is automatically added to the

proper extent. Moreover, the instance is

added to all extents of super classes, i.e.

programmers – employees – persons.

 links between objects. It is possible to create a

bidirectional link using just one method call.

Furthermore, there are also possibilities of

ICSOFT 2008 - International Conference on Software and Data Technologies

creating: compositions, qualified links, links

with the {xor} constraint, links with the

{subset} constraint.

 persistency of the classes’ extents including

all existing connections. It is just one method

call to save or load all extents.

Going back to our problem with presenting in

one window information described using another

class (i.e. jobs “within” a person’s window), we can

link instances of Job class with our Person object.

Thanks to this approach it is possible to utilize the

part of the senseObjects functionality, which is

dedicated to managing links.

The data management library (senseObjects)

together with the senseGUI add an extra automatic

functionality regarding links. Using a special

annotation (similar to the one dedicated to attributes)

it is possible to manage links between data objects

using automatically generated GUI. Special

annotation (

@GUIGenerateAssociation)

describing class’s connections consists of an array

with definitions of particular links. We had to use an

array because a class could have many associations.

Each of the link’s definition contains the following

elements:

 Name of the role (UML semantic),

 Name of the reverse role,

 Cardinalities,

 Qualified name of the target class,

 Information if a link is read-only.

Note that the

PersonAnnotated class inherits

from the

senseObject class and calls the

constructor from the super class.

The following code (without attributes) allows

generating a form presented on the figure 4.

@GUIGenerateAssociation(definitions=

{"Employer; Employee; 1; *; mt.paper.

example01.Company; readOnly=false"})

public class PersonAnnotated

extends SenseObject {

public PersonAnnotated() {

super();

} // Attributes with annotations

}

Using buttons generated by the library it is

possible to modify information about the

connections:

 Select an existing target object,

 Add a new target object (create it),

 Edit target object’s information,

 Remove a selected link.

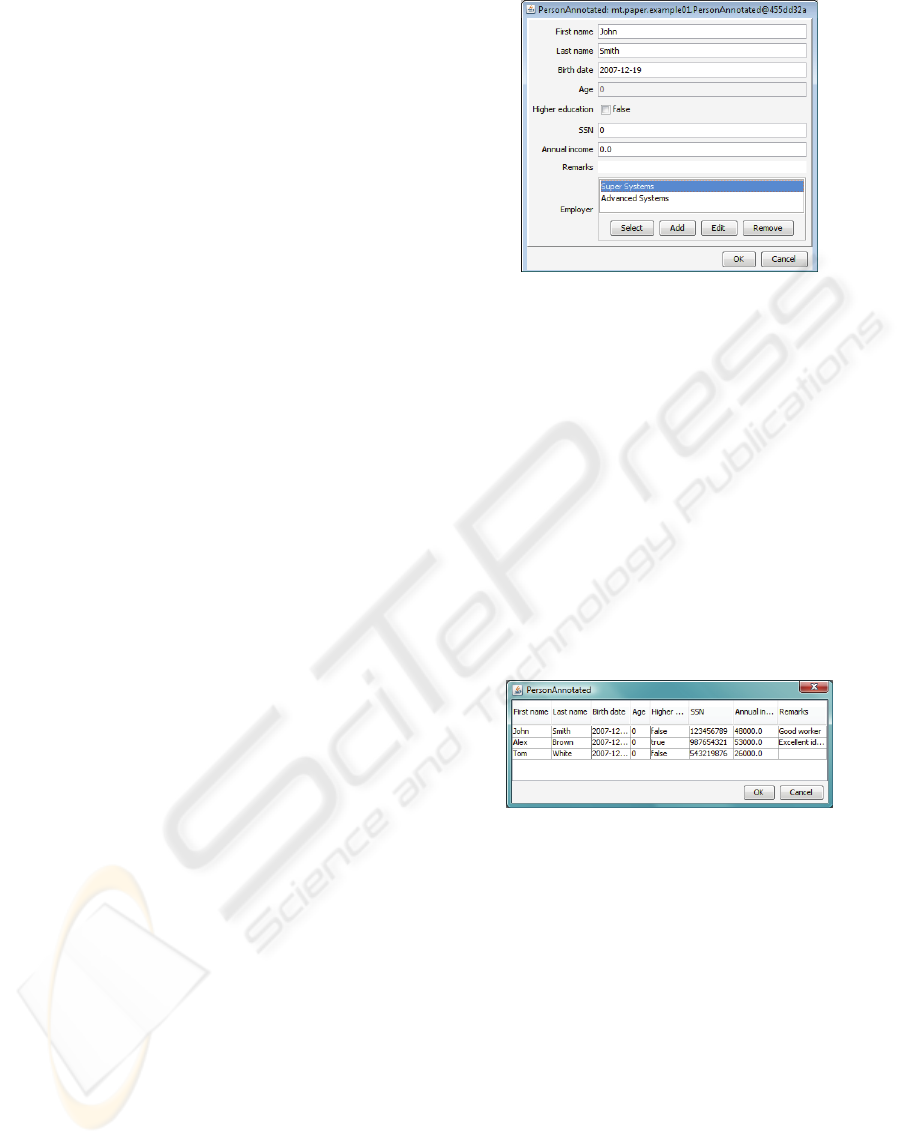

Figure 4: The generated window with links management.

Another useful functionality provided by the

library is a table (grid) view of a group of objects.

The dedicated method, which provides an access to

the function works with just two parameters:

 a collection containing objects to show,

 a class definition object (subclass of the Java

Class class).

A sample window showing information about

instances of the

PersonAnnotated class (see

previous source codes) is presented on the fig. 5.

The window has been shown using only one line of

Java code. It also supports selecting a particular

object (from the shown ones) which could be

processed later.

Figure 5: The table window generated by the library.

The last (but not least) capability of our solution,

which is worth mentioning, is automatic searching

of objects based on a parameters entered by a user. It

is really easy for a programmer to show a dedicated

dialog which allows inputting values of searched

items. We use the term “item” rather than an

attribute, because it is also possible to search within

results of a method (if they were properly annotated

– they have own widgets). During the search

process, which could be time-consuming, an

application’s user see an animated progress bar.

We would like to emphasize that from a

programmer’s point of view, all of these

functionalities have been run using only a few

simple annotations in data classes and a couple lines

of Java code (needed to show the generated form).

senseGUI – A DECLARATIVE WAY OF GENERATING GRAPHICAL USER INTERFACES

4 DESIGN AND

IMPLEMENTATION

From the very beginning, our solution has been

designed as a generic one. It means that most of the

functionality could be utilized with any Java classes.

Moreover, our approach may be implemented for

other languages supporting reflection, i.e. MS C#.

One of the problems which had to be solved, was

exchanging data between class items (attributes and

methods) and widgets. After some research we

decided to use the following approach:

 For every annotated attribute, there must be a

read method named as the attribute with get

prefix, i.e.

getLastName(). Annotated

attributes could be of any basic type, Data,

String or enumeration.

 If the marked attribute is writeable (not read-

only), then there must be a similar method but

with a “set” prefix, i.e.

setLastName(...)

with an appropriate parameter.

 The above rules could be modified by

explicitly defined methods.

 A widget used to visualize/modify the item

has to have methods:

setText(...) and

getText() with parameter and return types

of String. The methods are used to set and

read widget’s state (based on the states of the

connected item). Most of existing widgets (i.e.

JTextField) work that way. However, if a

widget does not have the methods a simple

wrapping must occur. This is the case of

boolean type and JCheckBox. We have

provided a new class

CheckBoxBoolean

which simply overrides the mentioned

methods.

 A special case are enumerations. We have

created a generic widget (

ComboBoxEnum)

which automatically works with all

enumerations defined by a programmer.

The similar situation occurs for generating GUI

for methods (

GUIGenerateMethod annotation).

5 CONCLUSIONS

We have presented the result of our research

regarding automatic generation of Graphical User

Interfaces for business applications. The generated

GUI is based on annotations of data items processed

by a developed application. A programmer chooses

which attributes or even methods should be reflected

as widgets and writes only a couple of source code

lines. Then, our library automatically generates

windows for creating, editing or presenting data.

Our contribution could be evaluated from two

points of view. Firstly, our approach could work

with popular technologies (i.e. it works with Java

and Swing) and would not require any dedicated

systems or sophisticated interface description

language. Secondly, the working prototype has been

developed for the Java language and Swing GUI

library. It is possible to develop similar libraries for

other programming languages supporting reflection.

Our future work will focus on formal usability

and performance tests. However, informal

benchmarks show that the performance is good

enough for small and medium size systems.

In our future work we would like to focus on

improving our approach, because, in our opinion, the

declarative (model-based generation) way of

creating GUIs has a big potential which could save a

lot of programmers’ time.

REFERENCES

Basnyat S., Bastide R., Palanque P.: Extending the

Boundaries of Model-Based Development to Account

for Errors. MDDAUI '05. 2005.

da Silva P.: User interface declarative models and

development environments: a survey. Proceedings of

DSVIS 2000, 2000,pp. 207–226.

Gajos K., Weld D.: SUPPLE: Automatically Generating

User Interfaces, in Proceedings of IUI'04, Funchal,

Portugal,2004, pp.83-100.

Guojie J. L.: Professional Java Native Interfaces with

SWT/JFace. ISBN: 978-0470094594. Wrox. 2005.

Jigloo SWT/Swing GUI Builder:

http://www.cloudgarden.com/jigloo/.

Molina P., Meliá S., Pastor O.: JUST-UI: A User Interface

Specification Mode, in Proceedings of CADUI 2002,

Valenciennes, France, 2002, pp.63-74.

Mori G., Paterno F., Santoro C.: Design and Development

of Multidevice User Interfaces through Multiple

Logical Descriptions, IEEE ToSE, 30(8), 2004, pp.1-

14.

Sells Ch., Weinhardt M.: Windows Forms 2.0

Programming. ISBN: 978-0-321-26796-2. AWPddison

Wesley Professional. 2006.

Walrath K., Campione M., Huml A., Zakhour S.: The JFC

Swing Tutorial (2nd Edition). ISBN 0201914670.

Prentice Hall. 2004.

ICSOFT 2008 - International Conference on Software and Data Technologies
