FINE-GRAINED INTEGRATED MANAGEMENT OF SOFTWARE

CONFIGURATIONS AND TRACEABILITY RELATIONS

Pietro Colombo

, Vieri del Bianco

and Luigi Lavazza

1,2

Dipartimento di Informatica e Comunicazione, Università dell’Insubria, Via Mazzini, 5 – 21100 Varese, Italy

CEFRIEL, Via Fucini 2 – 20133 Milano, Italy

Keywords: Model versioning, XML.

Abstract: Software Configuration Management is essential to manage the evolution of non trivial software systems.

Requirements for SCM support are continuously growing, demanding for seamless integration with the

traditional development tools and support for management activities like change management, change

impact analysis, etc. This paper presents SCCS-XP, a SCM platform supporting change management and

traceability among fine-grained software artifacts. SCCS-XP exploits a XML-based language to represent

versioned software artifacts. SCCS-XP provides the basic capabilities to build full-fledged SCM

environments featuring traceability management, change management and integrates nicely with

development tools.

1 INTRODUCTION

Software Configuration Management (SCM) is the

discipline of managing the evolution of large and

complex software systems (Tichy, 1988). SCM

provides both functionalities that assist developers in

performing coordinated changes to software

products and change management (CM) services,

like impact analysis. In the case of impact analysis

the traceability relations are used to determine the

consequences of changes in requirements or in other

software artifacts. The level of support to the

configuration and change management activities can

be classified with respect to the following issues:

• Abstraction. Tools should be as orthogonal as

possible to the structure and contents of the

managed items, as well as to the relations

involving items.

• Granularity. The platform has to be able to deal

with composition hierarchies. Since we do not

know a priori the requirements for the SCM and

CM system, the platform should treat in a uniform

way all the elements of the hierarchy.

• Automation. In order to be effective, SCM

activities must be largely supported by automated

functionalities. Besides, since software

development typically exploits a variety of

development tools, it is necessary that the SCM

system exchanges data seamlessly with such tools

The proposed platform aims at supporting

version and configuration management, as well as

the typical change management activities. We do not

intend to provide a full-fledged SCM and/or change

management environment, but a platform with the

functionalities needed to build such environment.

We identified the following requirements for the

platform:

• Flexibility. The platform has to support the

building of different functionalities, strategies, and

policies. No constraint is expressed on the model,

methodology or process; different tool builders

can build their own tool by implementing the

features needed in each specific environment.

• The platform has to be relatively light-weight. It

has to exploit an existing DBMS to focus on the

provision of functionalities specifically oriented to

SCM and CM. Moreover, it has to be based on a

standard DBMS API, in order to exploit any

available implementation, thus increasing

portability and interoperability.

• The platform has to support a development

environment where SCM and change management

functions are effectively integrated with the

development tools.

It can be noted that several of the properties

mentioned above call for a representation of artifacts

that is standard, precise, detailed, and supported by

data management systems. From this point of view

159

Colombo P., del Bianco V. and Lavazza L. (2008).

FINE-GRAINED INTEGRATED MANAGEMENT OF SOFTWARE CONFIGURATIONS AND TRACEABILITY RELATIONS.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 159-164

DOI: 10.5220/0001883501590164

 SciTePress

the technology is mature to build the desired SCM

platform. XML perfectly fits the requirements since

it enables the representation of information at the

required granularity level. XML was chosen both to

represent and to exchange data with the development

tools. Our platform is thus called SCCS-XP

(Software Change and Configuration System XML

Platform).

The paper is organized as follows: Section 2

presents the conceptual organization and

implementation of SCCS-XP. Section 3 presents a

set of case studies where SCCS-XP is used to build

SCM tools. Section 4 accounts for related work.

Section 5 presents some conclusions and illustrates

future work.

2 SCCS-XP: CONCEPTS AND

IMPLEMENTATION

In this section we define the architecture of SCCS-

XP.

2.1 Conceptual Organization

The proposed architecture is conceptually organized

in an Abstract layer, featuring an Abstract data

model, a Uniform layer, featuring the Uniform data

model, and a Model layer, featuring Specific data

models (see Figure 1).

Conceptually the Abstract layer is simple, as it

corresponds to a DBMS featuring a standard query

language: the Abstract data model corresponds to

the logic data model of the adopted DBMS. The

functions provided by the Abstract layer do not

make distinction between different types of artifacts.

A relevant requirement for the abstract data layer

is that it must be easy to represent the data belonging

to the Uniform layer by means of the Abstract data

model. Another requirement is that it has to provide

some sort of aggregation mechanism, in order to

represent data at the suitable granularity level.

The Uniform layer supports the evolution

process, with particular reference to versioning,

traceability and change management.

The Uniform data model defines the concept of

artifact on the basis of the Abstract data model; in

particular it exploits the aggregation mechanism to

provide access at different granularity levels. The

Uniform layer can then be regarded as organized

internally in two sub-layers: the first one exploits the

Abstract layer to make artifacts versionable, while

the second sub-layer provides functionalities to

support traceability and change management, which

operate on versioned artifacts (or on their parts).

We decided to build the Versioned DBMS

(VDBMS) exploiting a XML-based DBMS. The

language employed to internally represent versioned

artifacts is based on XML (see Section 2.3). Since

the activities carried out at the upper layers are

typically supported by existing tools it is essential

that they interface with the platform: SCCS-XP

supports loose integration at the data level by means

of dynamically generated Virtual Files (Leblang,

1994). Translators have to be developed to convert

the tools’ specific formats into the format supported

by SCCS-XP. Virtual Files do not exist as files in

the SCCS-XP platform: actual files are produced

upon request by composing the information

available in the platform. This guarantees openness

and scalability of the platform.

The Specific layer includes the tools that are

dedicated to the crafting of the different kinds of

artifacts that are created and managed throughout the

software lifecycle. These tools employ different data

models to represent the data that have to be

exchanged with the kernel of the platform.

Repository

Query engine

DBMS

Versioning

Virtual

files

VDBMS

Change

management

Traceability

management

CASE tool

IDE

. . .

Abstract layer

Uniform layer

Specific layer

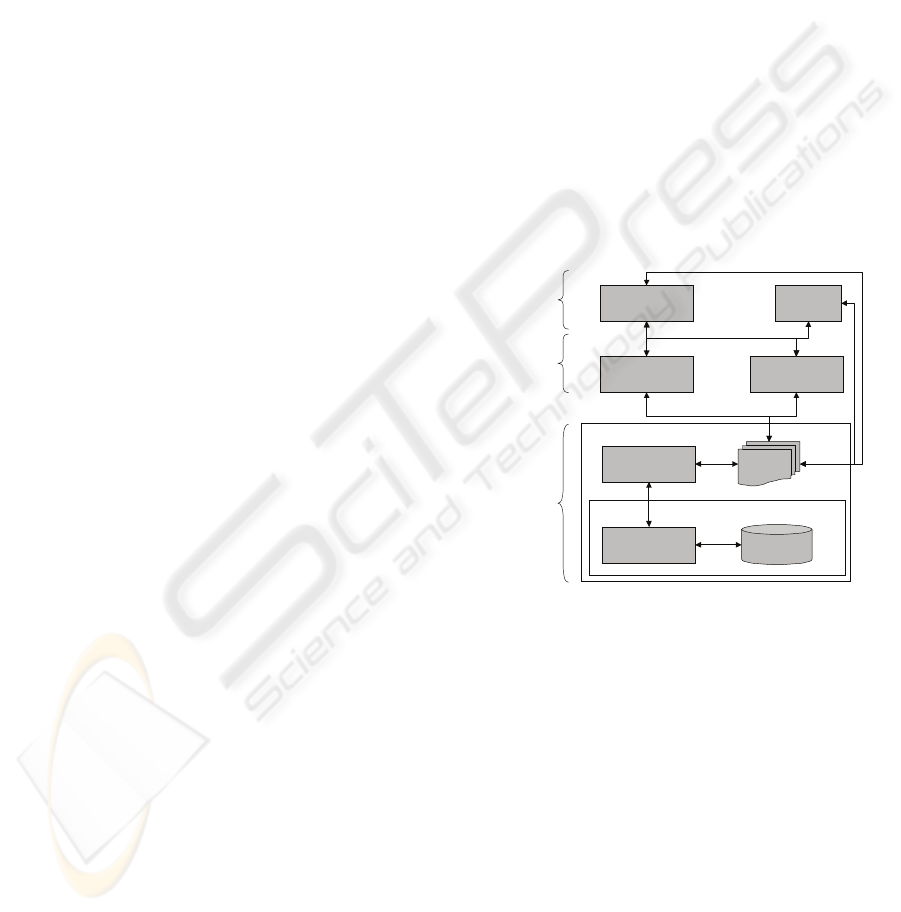

Figure 1: SCCS-XP Conceptual Architecture.

The organization of SCCS-XP requires that the

data managed by the external tools can be converted

(through Virtual Files) into/from data conformant to

the Uniform data model. The conversion must be

possible for every data format supported by the tools

and subject to versioning, and involved in

traceability and control management. When XML is

not directly supported, translators can be used.

2.2 The Versioning Model

The versioning model supported by SCCS-XP is

traditional. According to the classification proposed

by Conradi and Westfechtel (1998), our model

features symmetric deltas, and directly implements

extensional versioning. Intensional versioning can

ICSOFT 2008 - International Conference on Software and Data Technologies

160

also be achieved, by means of the querying

capabilities of the Versioned DBMS.

As already mentioned, SCCS-XP aims at

managing XML artifacts. Since an XML tag could

represent a versioned item, we need to version single

tags. This is achieved by coupling the product model

and the versioning model.

Custom relations can be defined by means of

suitable plug-ins (see Section 2.4). Specialized

relations among versioned artifacts are defined by

means of XML elements belonging to the Uniform

data model.

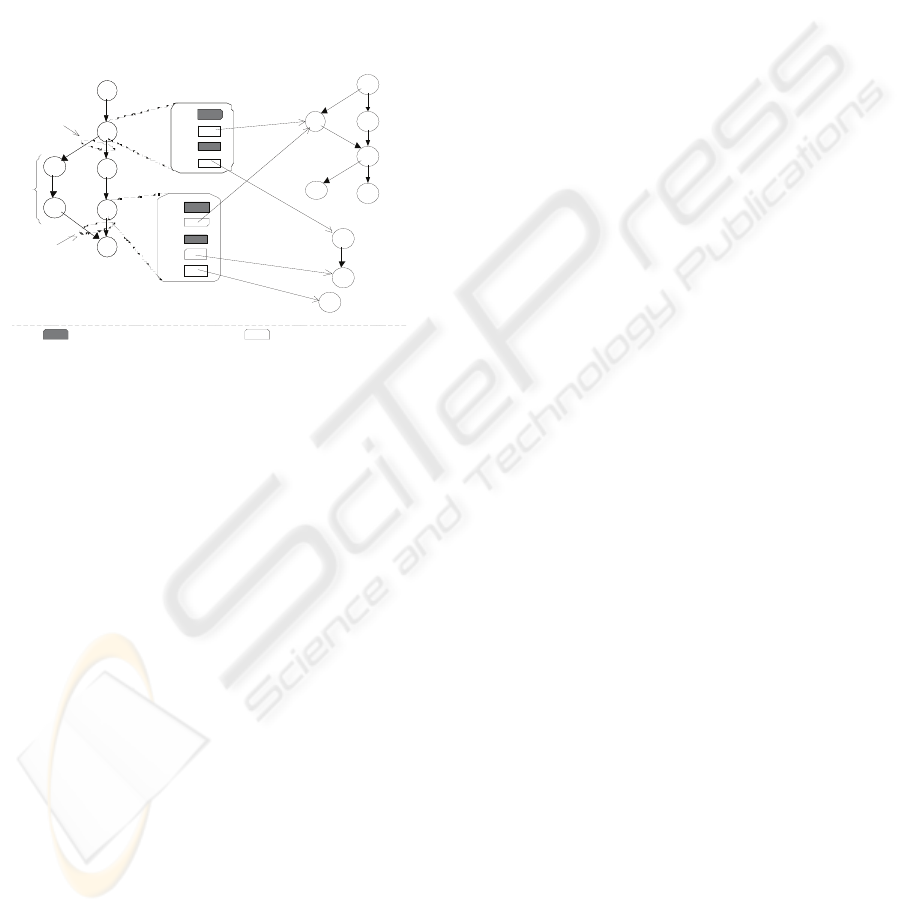

Figure 2: Artifact composition and fine-grained

versioning.

2.3 Internals of the Versioned DBMS

In order to make the implementation of the platform

practical, we needed to make the data models as

uniform as possible. For this purpose we defined a

meta-model that can be used to define the various

data models used in the platform. In this way, all the

data models share a common layer; moreover their

definition, correspondences, transformations, etc. are

precisely defined in the meta-model. In particular,

the meta-model has to support data definition, data

exchange procedures, data persistency and querying.

XML provides the most comprehensive support for

the aforementioned features, thus it was employed

for the Abstract layer.

Having adopted XML for the Abstract layer, we

had to make XML data versionable. For this

purpose, we defined a XML-based language named

VerML (Versioned XML), which supports the

representation of the versioning information

contained in the models illustrated in Section 2.2.

2.4 Implementation

The implementation of the Abstract layer of SCCS-

XP is based on an XML DBMS. Versioning of XML

tags was implemented according to the models

presented in Section 2.2. For this purpose we

adopted the following strategy:

• XML data are stored exploiting the functionality

of the DBMS.

• It is possible to decompose a piece of XML data

into individual XML tags that are stored

separately, thus implementing a fine-grained

repository.

• Information concerning the composition of

documents is contained in VerML data, which is

stored in the DBMS as well.

• Different versions of the same artifact, possibly

belonging to a composite artifact, are individually

stored.

• Versioning information is also stored in VerML

data. For instance, consider the following

situation: class C contains attribute A and method

M, and there are two versions of method M. The

database contains artifacts representing attribute

A, version 1 of method M, version 2 of M, version

1 of C and version 2 of C. Each version of C

contains a VerML tag pointing to the correct

version of M.

The Abstract layer of SCCS-XP implements the

operations of the VDBMS (see Figure 1): creation of

a new versioned artifact, insertion of a new version,

extraction of a given version of a (possibly

composed) artifact, etc. Basic check-in and check-

out services were implemented as part of the

Abstract layer. They are accessible via a simple

command line interface. The operations can involve

any XML tag individually stored; therefore it is

possible to extract pieces of a document. In this way

the Abstract layer provides the Uniform layer with

the flexibility needed to build the Uniform data

model required by the user.

Locking is currently not implemented; SCCS-XP

does not manage safe concurrent access to the

versioned data.

Items stored in the database are manipulated by

means of queries. The querying capabilities were

implemented using XPath (Clark and DeRose,

1999); the more powerful XQuery (Boag et al.,

2007) will be considered for future improvements of

SCCS-XP XML query engine. The implementation

of the Uniform layer is based on the modular plug-in

architecture described in Figure 3.

The Uniform data model is obtained by means of

suitable plug-ins that define data and operations on

the basis of the abstract data layer. For instance, we

developed the Java plug-in, which is able to parse

Java files and translate them into XML data, which

can then be versioned and stored by means of the

services provided by the Abstract layer. The Java

v1 1

v1 2

v1 3

v1 4

v1 5

v21

v22

v1 1

v1 2

v1 3

v1 4

v1 5

v21

v22

v1 1

v1 2

v1 3

v1 4

v21

v3 1

v11

v12

Artifact X

Artifact Y

Artifact Z

Vers io n v12

of artifact X

Vers ion v14

o f a rt ifa c t X

v1 1 Artifact U

Versioned item Non versioned item

fo r k

merge

branc h

FINE-GRAINED INTEGRATED MANAGEMENT OF SOFTWARE CONFIGURATIONS AND TRACEABILITY

RELATIONS

161

plug-in can also retrieve a given version of a Java

XML artifact and un-parse it, generating a Java text

file that can be read by any suitable development

tool. In order to manage requirements expressed in

natural language, we developed a plug-in, named

SimpleReq, which parses LaTeX files and builds a

XML hierarchical representation of the requirements

contained in LaTeX files.

XML database

Abstract layer

Event bus

Plug-in 1Plug-in 1

Plug-in 2

SCM system CLI

Data file

Development

tools

Development

tools

Development

tools

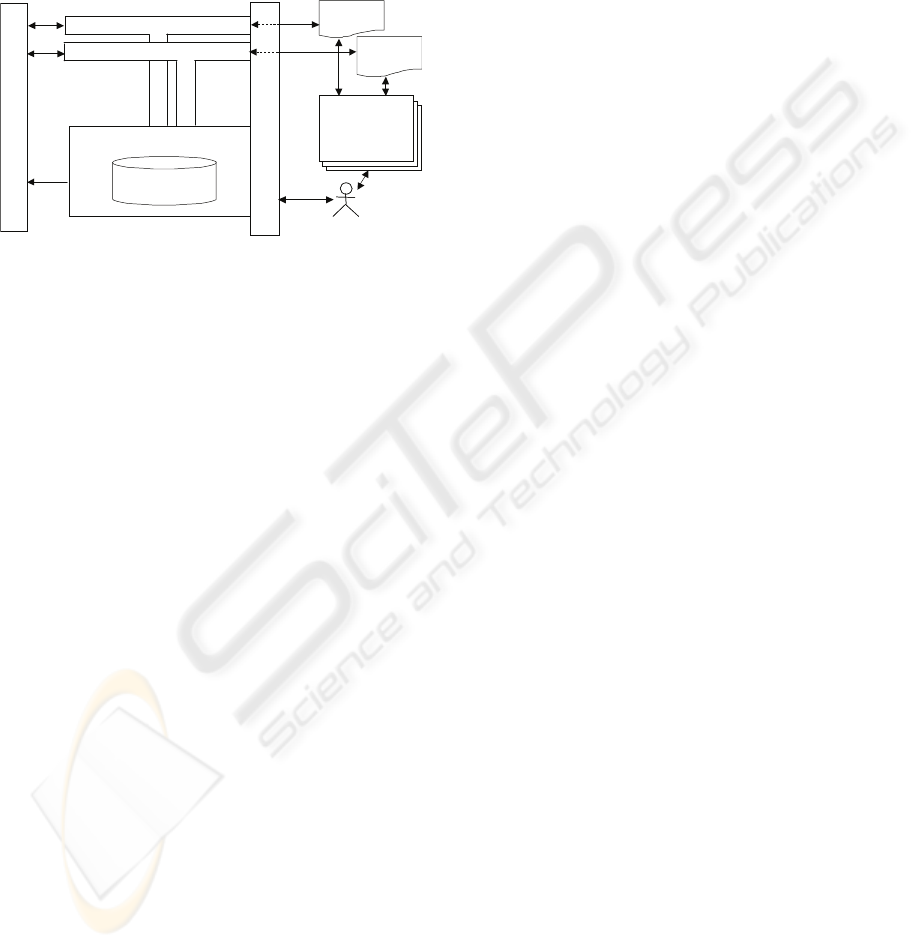

Figure 3: Architecture of SCCS-XP based SCM tools.

A difficulty in managing data exchange with

external tools consists in understanding which parts

of a given document correspond to elements already

stored in the platform and which parts are new, thus

requiring the creation of new sub-element versions.

For this purpose it is possible to insert annotations in

the files exported from SCCS-XP. For instance the

Java plug-in exports a source code file containing

annotations, so that when editing it, the user can

recognize the annotations and preserves them; when

the plug-in re-imports the modified file, it can

recognize annotations as marking parts

corresponding to existing artifacts. A plug-in could

also exploit the XML diff techniques (Mouat, 2002).

Besides managing the conversion of data

between the format understood by external tools and

the format supported by the Abstract layer, the plug-

in can be employed for more complex goals. The

StructureX plug-in introduces new artifact types, and

uses them to correlate the versioned artifacts with an

external hierarchical file system (see Section 3). The

new artifacts representing files, directories, etc. are

managed by the Abstract layer in the usual way, but

are not made visible to the user, who interacts with

these objects only through a suitable interface.

The more complex plug-in named RelationX (see

Section 3) reacts to artifact changes in order to

maintain referential integrity. For this purpose the

plug-in is connected to the event bus: it receives the

relevant events from the Abstract layer and triggers

operations that update the links between artifacts

that are defined by the plug-in itself.

Every plug-in can add or modify the commands

provided by the command line interface (CLI)

originally defined by the Abstract layer. During the

usage of the system, the user can declare a context

corresponding to a plug-in: this determines which

commands are executed in case of conflicts.

3 VALIDATION

In order to assess the validity of SCCS-XP we

employed it in three different applications, each

conceived to exercise a specific set of features of the

platform.

The first application consisted in the

development of a basic single user SCM tool “a la

CVS” (XVS). The goal was to assess the ability of

SCCS-XP with respect to effective and efficient

management of data of realistic size. XVS features

the usual functionality: check-in, check-out,

branching, etc. XVS uses the Java plug-in to version

fragments of source code; in particular, class and

methods are versioned as separate artifacts.

SCCS-XP was then employed to develop a

second application, with the purpose of showing that

the platform can be used to build a proper

configuration management tool. The main goal of

this tool, called XCM, was to provide the user with

the possibility of managing configurations consisting

of coherent sets of file versions. For this purpose the

concept of structured project was introduced. Such

concept is implemented by means of a new artifact,

which is treated by the Abstract layer as any other

artifact. We developed a specific plug-in (called

StructureX) to deal with the specificity of the

concept of project: new versions of a project are

created whenever files or directories are added,

changed or removed from the project. StructureX

interprets project artifacts and correlates them to the

other artifacts and the underlying file system.

Thanks to StructureX, the concept of artifact evolves

independently from the hierarchical structure (the

file system) which it belongs to. StructureX can be

reused in different contexts, for instance it can be

used to enhance XVS, providing the user with the

possibility of versioning both Java files and projects

containing such files. In fact, we actually added

StructureX to XVS (obtaining XCM). Consider that

StructureX employs the Abstract layer in order to

define an enhancement of the Uniform layer data

model, in which the concepts of project, directory

and files are defined (see Figure 1).

Finally, a third plug-in named RelationX, was

developed to manage the semantic relations among

artifacts. In particular, we considered the typical

traceability relations that link requirements

specification documents (managed by the

SimpleReq plug-in) to the source code, and the

relations that link the code with unit test cases. The

ICSOFT 2008 - International Conference on Software and Data Technologies

162

goal of the application was to perform impact

analysis on the basis of the known relations among

artifacts. The application handles three types of

relations:

• Relations already present in the data managed at

the level of the Abstract layer. For instance, the

composition relationships and the derivation and

branch relationship.

• Relations that have to be specified explicitly by

the user: for instance, the relations that link a

requirement to the classes that implement it. These

relations are represented extensionally.

• Finally, some relations can be inferred from the

information normally present in the repository.

For instance, the dependence of a method M from

a given requirement R may be inferred by the fact

that M belongs to class C, and class C implements

R. In order to ease the management of relations,

they are expressed intensionally by rules that the

plug-in is able to interpret, thus freeing the user

from explicitly entering them.

The RelationX plug-in enhances the Uniform

layer data model with the aforementioned types of

relations. This plug-in is able, given a (versioned)

artifact, to exploit the knowledge of the relations for

finding the set of related (versioned) artifacts. This

ability can be used to reason about dependencies

among artifacts.

4 RELATED WORK

The Software Configuration Roadmap (Estublier,

2000) reports several problems that need to be

addressed when developing Configuration

Management tools. SCCS-XP fully addresses some

of the proposed issues since:

• It provides a flexible data model that can be

used to represent complex data as well as data

involving any user-defined relationship.

• It guarantees the interoperability with SE tools

by supporting XML based data exchange.

Scalability and efficiency are provided to the

extent supported by the underlying database.

• It supports the definition of any relevant

attribute as an XML tag; then appropriate

queries can be used to extract and combine data

according to the attributes’ values.

• It provides mechanisms to extract the data and

put them in the required format, place, etc.

Actually this is done by means of the plug-in

mechanism mentioned in Section 2.4.

• It is an extensible platform that can be enhanced

in several respects. For instance, it is possible to

plug-in the definition of new data models, to

add support for impact analysis or for

exchanging data with external tools, or for

consistency check, and so on. SCCS-XP is

actually open to incremental customization.

Other research efforts comply, to some extent,

with the indications provided by the roadmap.

Among the many initiatives, UVM (Westfechtel,

Munch and Conradi, 2001) is probably one of the

most conceptually advanced. UVM features uniform

version model and support architecture for SCM.

UVM provides a base model that can be employed

to express specific version models. The underlying

layered architecture is completely orthogonal to the

data model used for representing software artifacts

and their relationships. In UVM, version rules are

placed at the bottom of the layered architecture and

can be used for expressing different version models.

With respect to UVM, our approach is more

lightweight. SCCS-XP is not perfectly orthogonal

with respect to the data model (which is XML),

nevertheless, it employs XML as a meta language to

define Specific data models. The result is that SCCS-

XP is largely independent from the data model used

for representing software artifacts.

Our approach shares some characteristics with

NUCM (van der Hoek et al., 2002): both provide a

quite generic repository, upon which several

different SCM policies can be built. This is

fundamental to free users form the responsibility of

managing issues that can be dealt with at the

platform level. MCCM (van der Lingen and van der

Hoek, 2004) is a platform featuring a repository to

which pluggable components can be added. MCCM,

like NUCM, manages data at the level of files or file

collections and features a distributed repository. On

the contrary, SCCS-XP manages data at finer

granularities, but does not manage distribution issues

at all. Another relevant difference is that MCCM and

NUCM feature a very powerful repository, so that a

concrete SCM tool is obtained essentially by

constraining the way data are managed by the

repository itself. SCCS-XP allows plug-ins to extend

the data model and the functionality provided by a

lightweight repository.

Other systems, like Coven (Chu-Carroll and

Sprenkle, 2000), address the granularity of artifacts.

However, these are specialized systems that exploit

document structuring for their very specific

objectives. Coven manages fragments of source code

corresponding to project elements in order to support

collaboration in an environment integrating SCM

and collaborative development.

EPOS (Conradi et al., 1995) is one of the best

known process support environment. In order to

effectively support the development process, EPOS

consistently manages the software artifacts, thus

featuring integrated process and product

FINE-GRAINED INTEGRATED MANAGEMENT OF SOFTWARE CONFIGURATIONS AND TRACEABILITY

RELATIONS

163

management. The EPOS repository supports

versioning and long transactions. The principles that

inspired the creation of the EPOS repository are

similar to the principle underlying SCCS-XP, in that

both approaches deal with the management of

complex structured artifacts, and tend to support a

smooth and effective integration with the

development environment. There are also important

differences: EPOS uses a different versioning model

(Change Oriented Versioning), and does not support

fine-grained versioning. SCCS-XP does not provide

native support for the software process, although in

principle it would be possible to exploit the event-

based architecture of SCCS-XP to build a process

support plug-in.

Finally, the COOP/Orm project developed a

collaborative SCM system integrated with a

programming environment. COOP/Orm features a

fine-grained versioning model (Magnusson and

Asklund, 1996) similar to the one featured by SCCS-

XP. COOP/Orm’s approach to SCM suffers by some

constraints: COOP/Orm comes with a built-in

optimistic check-out mechanism with synchronous

updates, it obliges the usage of the integrated editor,

and it does not exchange data easily with external

development tools.

5 CONCLUSIONS

SCCS-XP is a light-weight, XML-based platform

providing basic SCM functionalities. SCCS-XP

supports a data model which is actually a sort of

meta-model that can be used to build support for

several different types of software artifacts;

integration, at the data level, with external tools is

easy. A traditional, extensional versioning model is

provided, but SCCS-XP provides the possibility to

extend this model, as well as to introduce additional

functionality. SCCS-XP was employed to realize

prototypes of SCM tools ranging form a simple

CVS-like tool to a sophisticated tool that can

manage semantic relations, and perform different

types of impact analysis.

In conclusion, we believe that SCCS-XP can be

employed to build customized SCM environments

suitable to support modern software development

practices.

Future work will concern: 1) the development of

a plug-in for UML, supporting the XMI data model;

2) the implementation of a locking mechanism 3) the

implementation of a plug-in that allows the user to

define new specific relations, and to define rules that

can be triggered by specific events and invoke

suitable actions; 4) the development of a plug-in that

exploits the virtual files mechanism to supports

different views of a single project.

ACKNOWLEDGEMENTS

We would like to thank Luca Ridolfi and Riccardo

Serafin for their contribution in the design and

implementation of the tool.

REFERENCES

Boag, S., Chamberlin, D., Fernández, M. F., Florescu, D.,

Robie, J., Siméon, J., 2007. XQuery 1.0: An XML

Query Language. W3C Recommendation.

Chu-Carroll M.C. and Sprenkle S., 2002. Coven: Brewing

Better Collaboration through Software Configuration

Management. In FSE 2000, San Diego.

Clark, J., DeRose, S., 1999. XML Path Language (XPath)

Version 1.0. W3C Recommendation.

Conradi R., Westfechtel B., 1998. Version Models for

Software Configuration Management. In ACM

Computing Surveys, Vol. 30, N. 2, pp. 232-282.

Conradi, R., Larsen, J., Nguyen, M.N., Munch, B.P.,

Westby, P.H., 1995. Integrated Product and Process

Management in EPOS. Journal of Integrated CAE.

Estublier, J., 2000. Software configuration management: a

roadmap. In ICSE - Future of SE Track.

Leblang, D. B., 1994. The CM challenge: Configuration

management that works. In Configuration

Management, Vol. 2 of Trends in Software, Wiley,

pp. 1-37.

Magnusson, B., Asklund, U., 1996. Fine grained version

control of configurations in COOP/Orm. In ICSE

1996, SCM-6 Workshop.

Mouat, A., 2002. XML Diff and Patch Utilities. CS4

Dissertation, Heriot-Watt University,.

Tichy, W. F., 1988. Tools for software configuration

management. In Proc. of the Int. Workshop on

Software Version and Configuration Control,

Grassau, Germany, Teubner Verlag.

van der Hoek, A., Carzaniga, A., Heimbigner, D., Wolf,

A. L., 2002. A Testbed for Configuration

Management Policy Programming. IEEE TSE,

Volume 28, Issue 1, pp. 79 - 99.

van der Lingen, R., van der Hoek, A., 2004. An

Experimental, Pluggable Infrastructure for Modular

Configuration Management Policy Composition. In

ICSE 2004, Edinburgh.

Westfechtel B., Munch B. P., Conradi R., 2001. A

Layered Architecture for Uniform Version

Management. IEEE TSE. Volume 27, Issue 12.

ICSOFT 2008 - International Conference on Software and Data Technologies

164
