MODELLING KNOWLEDGE FOR DYNAMIC

SERVICE DEPLOYMENT

Autonomic Networks Modelling

Gladys Diaz

L2TI, Institut Galilée, Université Paris 13, 99 Avenue J-B Clément, 93430 Villetaneuse, France

Keywords: Information systems, Object-oriented Modelling, Autonomic Networks, Networks Management.

Abstract: This paper presents an overview of the modelling aspects in autonomic networks, especially concerning the

knowledge level. We treat the specification and modelling of different notions in the context the dynamic

deployment of services. We propose a new and extensible object-oriented information model to represent

the various concepts involved in this context. Our information model enables us to represent the notions of

service, resource and profile and also to deal with the management of networks resources. UML is used to

represent our model. We also present an initial view of the knowledge that is needed to manage the resource

allocations and distribution of services.

1 INTRODUCTION

Autonomic networks are currently an emergent field

of research. The term “autonomic network” refers to

the networks that have the capacity to be configured,

and to self-manage according with the perception of

their environment's evolution. Such a system

requires a minimal administration, generally

implying a management at the political level. To

implement this configuration in an automatic way, it

is necessary to have an absolute and permanent

knowledge of the network environment, in order to

apply the functions necessary to make it move

dynamically. Thus, autonomic network involves a

new level of management: the knowledge level. The

knowledge in services deployment involves services

and resource information, but also the events to be

considered in the environment of deployment.

Management activities need to be tried with

information defined at the knowledge level. In the

context of network management, several services

can be automated: equipment configuration, services

deployment, QoS management, etc. To automate and

reduce the complexity of information to be treated, it

is essential to model the network environment by

defining the different components implied and their

interdependence. Modelling constitutes a first step to

represent the level of knowledge about network

environments.

In the context of information modelling, several

standards have proposed information models for

network management. OSI, ITU-TS and IETF have

provided parts of the solutions to standardize the

network information model. Currently, very

important efforts in this area have been made by

TMF, DMTF and 3GPP. These groups propose

different models (CIM, SID) to represent

management elements in different domains

(applications, networks, devices, systems) (DMTF

and TMF).

We will go into more detail about the knowledge

modelling needed to allow for the dynamic

deployment of services. This first section presents

the problems encountered in our study and the

organization of our proposal.

1.1 Problems to Study

The automation and the “dynamic” deployment of

services constitute one of the final objectives of the

suppliers of the services (Hass, 03). This dynamicity

in the deployment requires an absolute knowledge of

the deployment environment, that is to say, the

network. To determine the optimal deployment

strategies it is necessary to analyse the effectiveness

of service placement decision in the network.

Dynamic deployment involves the capability of

network to assure an automatic process to install the

services requested by clients. This process involves

154

Diaz G. (2008).

MODELLING KNOWLEDGE FOR DYNAMIC SERVICE DEPLOYMENT - Autonomic Networks Modelling.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 154-159

DOI: 10.5220/0001885601540159

 SciTePress

the knowledge about the semantic of services,

network elements, services components and the

other necessary resources. Thus, to make a service

deployment it is necessary make a configuration of

each element involved in the deployment. This

configuration involves the decision about what

network nodes must be selected, in function of the

knowledge about the available resources of these

elements. The dynamic deployment is involved with

two contexts of work:

 Components software deployment. In this

context the problemn treated is the

representation of service semantics and

verification of service composition (Pistore,

04) (OMG, 03).

 Dynamic deployment of networked services.

The major problem here is how to distribute

the service requested and where we must place

the dynamic service, to guarantee its correct

functioning (Simoni, 99). We are, for the most

part, interested in this second aspect.

1.2 Paper Organization

We propose an object-oriented model to represent

the different notions in dynamic deployment. Our

model enables us to represent the notion of service,

and to also treat the management and control of

dynamic deployment. The information model is

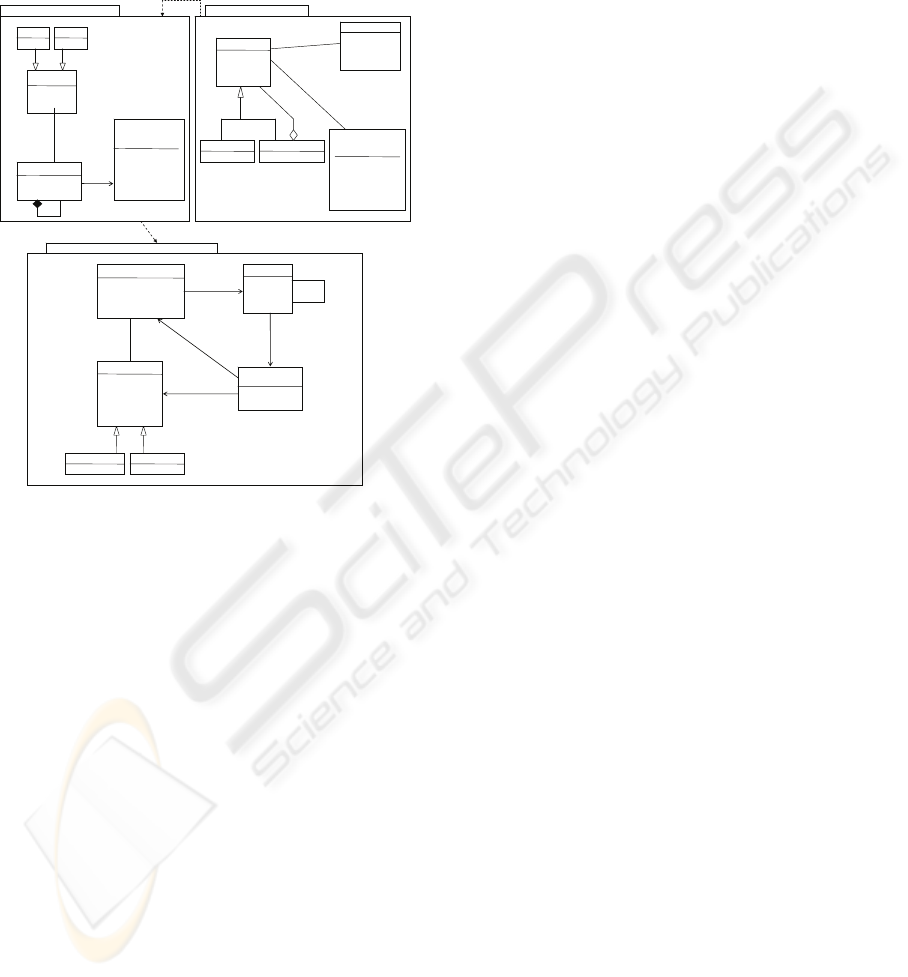

represented by using UML diagrams. First we have

given our own terminology. Then, we have given a

description of the information model.

This paper is organized as follows. Section 2

presents the context of our work. We present in this

section our motivation, and an overview of research

in-progress on this subject. Section 3 presents our

model to the service deployment. In this section we

give the definitions of concepts introduced by our

model, and also the different steps in the deployment

of services according to our approach. Section 4

presents our conclusions and perspectives.

2 KNOWLEDGE LEVEL FOR

AUTONOMIC NETWORKS

The knowledge of a complex system such as a

network needs the representation of data and its

context. Context is an important concept in the

treatment and dissemination of knowledge

information (Akhtar, 05). The context represents the

set of events which must be evaluated in the cycle of

life of any system to be able to make relevant

decisions. Thus, data generated in a local component

must be evaluated in order to provide for an

appropriate global behaviour of that system.

Autonomic, or self*-, management of such a

complex system will depend on a bottom-up process

of knowledge formation, emerging from individual

nodes in the system. Each component of the network

represents an active element involved in the

generation of relevant data (Gaïti, 05). This data

must be evaluated in a global and coherent proposal

to provide information which is complete and

relevant for decision-making. In general, the

knowledge information to be represented has to be:

 Dynamically generated and represented.

 Global-to-local, global objectives (high level

goals) must be defined at upper levels.

 Global coherence, the coherence of decisions

taken in accordance with global objectives,

must be made in function of the evaluation of

local ones. Low-level decisions are related to

the high level goal which has been defined.

Service architectures are defined in the context

of autonomic networks, especially in the context of

Web Services. In these, the service level is the

principal component of management and monitoring

services execution in an automatic fashion

(Papazoglou, 06).

Knowledge level in autonomic networks is a

current subject of study (Clark, 03) (Lewis, 05)

(Mulvenna, 05) (Seleznyov, 04) (Stojanovic, 04).

The recent propositions present different viewpoints

about this notion. The major challenge is composed

of two questions: How do we provide a high level

view that defines the purpose of network? and How

does we do the automatic acquisition and processing

of knowledge?

Several researchers have tried to answer these

questions, and most of them agree on the fact that

high level goals must be defined for network

designers, and must be used to control the behaviour

of applications running and user’s purposes. Specific

information (knowledge domain-specific data) could

be used to represent these goals and be evaluated to

take decisions, to recognize and mediate conflicts, to

perform optimizations in the environment and to

automate network functions.

Some works are interesting in the representation

of knowledge information. (Wawrzoniak, 03)

presents specific languages to represent information

(model system knowledge) in a distributed approach

like the grid-computer. (Stojanovic, 04) presents the

notion and role of ontologies in autonomic computer

systems. This work presents the results of IBM

research in this context. Ontology represents an

expressive conceptual modelling approach for

describing the knowledge. (Lewis, 05) proposes an

MODELLING KNOWLEDGE FOR DYNAMIC SERVICE DEPLOYMENT - Autonomic Networks Modelling

155

infrastructural service that enables the efficient

delivery of network operations knowledge to nodes.

The knowledge is represented here by using

ontologies that enable one to service and to provide

a level of semantic interoperability that will be

transparent to the nodes providing and consuming

knowledge. (Quirolgico1, 04) describes the current

status of research in the modelling of ontologies.

Other researchers work with the representation of

a knowledge plane, high level model to represent

what the network is suppose to do, in order to provide

services and advice to other elements of the network.

In this case researchers are interested in the use of

artificial intelligent (AI) tools and cognitive systems

(Clark, 03). To treat the problem of distribution of

knowledge, some approaches are using AI tools with

autonomous agents to distribute knowledge

management (Seleznyov, 04). (Eymann, 03) presents

the utilization of software architectures (application-

layers) to coordinate the provisioning of services and

resources in distributed environments like the ones in

Grids computers and Peer-to-peer (Chao, 04).

In general, agents and policy-based approaches

are combined to give a complete infrastructure

capable of treating the definition of goals and the

distribution of operations. Ontology is used to

organize the information and to structure its

relationships.

In our context, we define dynamic deployment

as the high-level goal. Each network component

must work and take decisions, generating and

manipulating information in order to enable the

dynamic installation of a new service. To best

understand the process of dynamic deployment we

will detail the set of operations and data involved in

the dynamic deployment of services, and how our

model can represent this in the following sections.

2.1 Knowledge Representation for

Dynamic Deployment

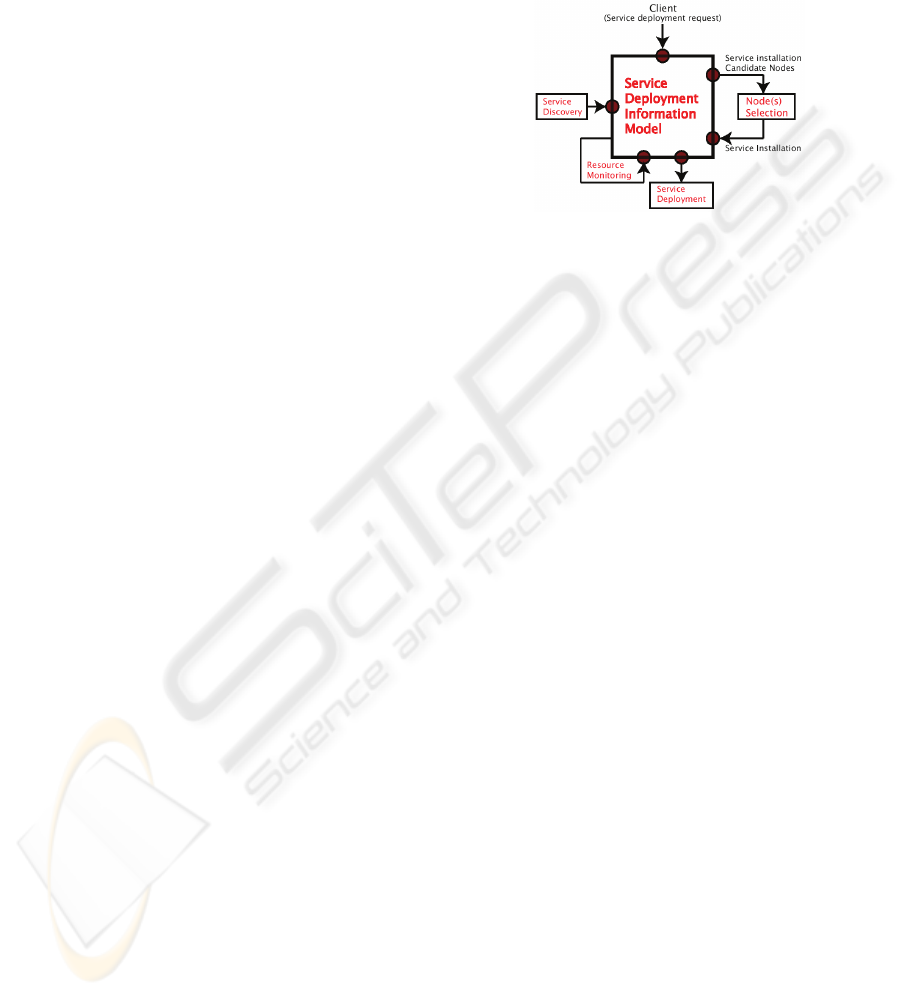

Different tasks must be performed in order to deploy

a service: Service Discovery, Resource Monitoring,

Node Selection, Resource Allocation, Code

Download & Deployment. We have situated our

information model in the centre of all these tasks

(see figure 1).

2.2 Objectives of our Work

The aim of our work is to provide a first step to

model knowledge in the context of services

deployment. To be able to express the information

necessary for services and equipment configurations

to deploy networked services with a general model,

it is important to have only one set of defining

vocabulary and one correct representation of the

notions treated.

Firstly, we suggested the general definition of the

terminology that was to be used. Then we present the

object-oriented information model. Modelling enables

us to have a formalized representation of the problem.

Figure 1: Service deployment model position.

Our information model (called “Profiles Model”)

permits us to characterize the whole network and its

hardware and software components (Diaz, 06). Our

model is articulated around the concepts of “service

profile”, “equipment profile” and “deployment

profile” in order to take into account all of the

resources available and their evolution at the time of

the activation of distributed services.

In the context of deployment the major notion to

be treated is service. Several definitions of service

exist in the literature. We have proposed a general

definition: “a service provides functionality”. This

definition is independent of the composition model

or implementation questions. The question of how

the service will be deployed is treated with the

notion of “profile” (Diaz, 05). Our proposal enables

us to:

 Represent the actual state of network.

 Model the constraints of a service to be

deployed.

 Take into account the notion of composition

of services (via the concepts of heritage and

elementary services).

 Count all the equipment hosts potentially to

the deployment of a service.

 Characterize the network and its hardware and

software components.

 Combine information of localization with

information resources.

3 INFORMATION MODEL

DESCRIPTION

We present the Profiles Model in this section. Two

important notions of “Service” and “Profile” are the

central points in our model. Profiles Model allows us

ICSOFT 2008 - International Conference on Software and Data Technologies

156

to represent two points of view: the first is the

current state of the network environment (that is the

existing services and resources consumed or

available), and the second is the necessary

information needed for the installation of new

services or the new profiles for already existing ones.

3.1 Notions Proposed

Service. a service is defined as a functionality.

Several elements characterize this notion:

 a code and the interfaces, which define the

algorithms of implementation and how to call

the service;

 a behaviour, which shows the way, such as the

entry, and are then transformed into exits;

 a state — a service can found in different

states throughout its life (running, stopped,

sleeping, cancelled, etc.);

 the composition relationships with services

components.

These properties can be regrouped into two

categories: static part and dynamic part (alternatives

according to their instantiation):

 Static part: is related with the identifier,

interfaces definition, organization, version…

 Dynamic Part: is related to the environment

where the service in question evolves or

moves. We define it through the concept of

“service profile”.

The general description of a service involves several

aspects:

 the semantic of this service itself;

 the requirements about nodes capabilities;

 the cost of instantiation of this service and the

other characteristics such as QoS minimum.

2) Profile. enables us to represent the configuration

of each element involved in the deployment, and

also obtain the knowledge of the capabilities of

network nodes. A profile defines a model adapted to

a certain type of need. We apply this concept to

define:

(1) Configuration of a material entity

(equipment) with respect to the consumed/available

resources (equipment profile)

(2) Particular configuration for the execution of a

service with respect to the constraints and needs for

this service (service profile)

(3) Precise configuration required by a user to

deploy a new service (deployment profile).

2.1) Service Profile. allows us to define a

particular configuration for the execution of a

service. Each configuration specifies the constraints

and needs related to its service execution. These

constraints represent the use of the resources

necessary to make the expected functionalities

possible. The same service will be capable of several

profiles, according to the specified constraints, and

consumed resources. A profile of service will be

characterized by:

 the whole of the resources requested for the

execution of the service;

 a localization (physical and logical);

 QoS associated;

 constraints on unquestionable parameters: the

supplier of the service, geographic coverage,

price of the service, availability or length of

the service…

2.2) Equipment Profile. represents the

configuration of a material entity (equipment). This

configuration includes several aspects:

 physical components: CPU, Storage, Battery,

etc.;



software components: which are seen through

the list of profile services offered in this

equipment;

 "physical+logic" components: example a chip

with a software of integrated encoding. The

idea is to be able to represent an evolutionary

view of the equipment by defining its

configuration with respect to the resources

(physical and/or logical) currently available.

2.3) Deployment Profile. permits us to capture

the services deployment requests in terms of

resources and services required. If the service is a

composed service, a deployment profile is made for

each one of its services components.

3.2 Organization of Information

Modelled

Profiles Model is based on the major notions defined

in the last section. These notions enable us to

represent the knowledge of the service’s execution

environment. To deploy services in an automatic

fashion it is necessary to control this knowledge

about the environment (services, resources and

equipments). The knowledge refers to information

describing: the service's requests, service definitions

and service deployments. Three major packages are

defined to represent it. These packages permit us to

define the lifecycle of services and to organize the

classes by according the phases of deployment of

services (see figure 2).

RequestDeployment Package. regroups a class to

represent the request of service to be deployed. We

define the actors involved in the deployment and the

deployment profile class in order to represent the

constraints in the service request.

MODELLING KNOWLEDGE FOR DYNAMIC SERVICE DEPLOYMENT - Autonomic Networks Modelling

157

ServiceDefinition Package. groups a class to define

the semantic of service types known by the system

(type of service: simple or composed, and data of

each service), and the relationship with current

information about the services deployed (represented

by the service profiles class).

1..*

DeploymentProfile

IdDeploymentProfile

IdService

ResourceType (from

ProfileDeployment

Package)

IdReso urceType

NameReso urceType

ValConsomedRequested

Actor

IdAc tor

NameAc tor

AddressActor

Client

Ser ve

requests

1..*

RequestDeployment Package ServiceDefiniton Package

ProfileDeployment Package

1..*

Service

IdServi ce

NameService

Organization

Ve rs io n

ServiceInterface

IdSevInterface

DataInput

DataOutput

ServiceSimple

ServiceCompose

ServiceProfile (from

ProfileDeployment

Package)

IdServiceProfile

NameServiceProfile

QoSServiceProfile

StatusServiceProfile

DisponibilityServiceProfile

1..*

has

is_instanciate

1..*

ServiceProfile

IdServiceProfile

NameServiceProfile

QoSServiceProfile

StatusServiceProfile

DisponibilityServiceProfile

Localization

IdLocalization

NameLocalizati

TypeLocalizatio

Equ

mentProfile

IdEquipmentProfile

IPAddress

ResourceType

IdReso urceType

NameResourceType

Va lM a x

Va lM in

Va lCo ns o med

ValAvailable

SystemResource

NetResource

is_locate

disposes

corresponds

co ntai ns

consumes

1..* 1..*

1..*

is neighbor o

Figure 2: Packages for the definition of classes.

ProfileDeployment Package. groups a class to

represent the service installed, and also the

localizations and equipment used. In this package

we show the relationships with the resource type

class. Resource class is used to define the resources

available (in the equipment profile), the resources

consumed by a service profile, and the resources

requested by a deployment profile.

3.3 Class Description

In this section we will describe the principal classes

and their relationships offered by Profiles Model.

Service Class. allows for the defining of the various

types of services known and handled by the system.

We define here all the common characteristics of

every service: name of service, API and version.

This class is an abstract class; the instances are the

classes ServiceComposed or ServiceSimple. When

the service is composed it is necessary to define its

relationships with other services. The code

associated with each service, and the description of

the data flows in entry and exit, are defined in the

ServiceInterface class.

As an example, a high level service (Voice over

IP) can be carried out in various manners, by several

components and protocols. By modelling the needs

for such a service in the form of elementary services

and according to the availability of the resources, the

activation of the service could be carried out in very

heterogeneous contexts, for example by selecting the

option best adapted for the resources and the

context, by inter-connecting services meeting the

same needs, or by activating footbridges.

ServiceProfile Class. makes it possible to define a

particular configuration for the instantiation of a

service. An example of service is a Video on

Demand. Several other services are necessary for it

instantiation: type of coder-decoder (TV-MPEG-2 or

TV-MPEG-4), service of adaptation which definite

which protocol(s) can be used for the transfer of the

video, and service multicast. These different services

can have different profiles. Each profile refers to the

whole of the consumed resources, by example the

power of the processor, the memory size, the size of

storage in disc, etc.

Equipment Profile Class. refers to one view on

localization. This class defines the configuration of a

material entity. This configuration refers to

characteristics of physical and also software

components, in particular defining the list of service

profiles offered by this equipment. The equipment

profile gives a view of the resources available in one

localization. Information about the equipment

profile is updated (in terms of resource and service

profile available) each time that one new service

profile is installed.

Deployment Profile Class. defines the resources

and also others services requested for a new service

installation request. This profile, provided by the

customer, is given to the system manager of the

network. The deployment profile can be composed

of some other deployment profiles, for example in

the case of modelling the request of a composed

service. In this situation, we express the

relationships between the different services requests,

such as in a composite relationship (black rhombus),

because requests of services components refer only

to the composed service in that relation.

3.4 Management Approach to Service

Deployment

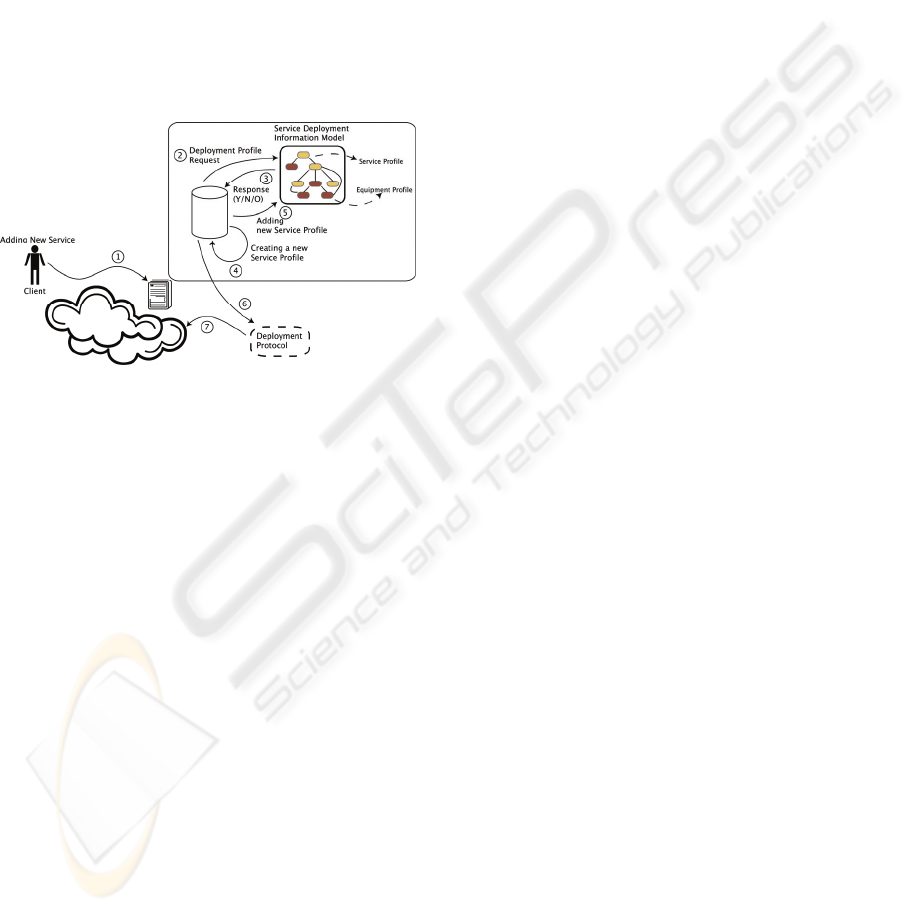

Deployment process implied different steps (See

figure 3). We have presented in (Diaz, 08) a

distributed approach in applying our model.

ICSOFT 2008 - International Conference on Software and Data Technologies

158

The first step to deployment is the request for

service sent by userc. This request represents the

entry into our system and is represented by the

Deployment Profile Requestd. The deployment

profile enables us to verify the resources needed by

the service request, and give a positive response (in

the case where the system can find one or more

nodes that satisfies this request) or a negative one (in

the other cases)e. If the system can satisfy the

service request, a new service profile is createdf,

and this information is added to the systemg. At

this time the system can update the information

about available resources in the equipment profile,

and the installation of services is then run by the

deployment protocolh i.

Figure 3: Service deployment process.

4 CONCLUSIONS

In this paper we have presented a discussion of

knowledge modelling and our proposition to

represent information needed in deployment tasks.

Modelling information is the first step to

representing knowledge. Our principal goal is to be

able to dynamically facilitate the deployment of the

services networks. This dynamic deployment of

service is based on the characterization of the needs

of service and the current state of the network.

Profiles Model proposes the notions of profiles of

service, equipment and deployment.

A first implementation of our information model

is made to represent the different interfaces of our

system. For any service request our tool makes it

possible to establish all of the components necessary

along with their state (localization, availability of

resources, etc), including their relationship of

interdependence. This cartography will make it

possible for a manager to make effective decisions

of deployment. Currently, we are working on the

modelling of environment events to be manipulated,

in order to complete the representation of knowledge

in the service deployment domain.

REFERENCES

Akhtar N.and al. Context Dissemination for Autonomic

Communication Systems. WAC 2005, Athens, Greece,

October 2-5, 2005.

Chao I., and al. Design, Implementation, and Evaluation

of a Resource Management Multiagent System for a

Multimedia Processing Grid. OTM Workshops 2004.

Clark D. and al. A Knowledge Plane for the Internet.

SIGCOMM’03, August 25–29, 2003, Germany.

Diaz G., and al. Déploiement contrôlé des services de

réseau, Livrable L1.1 projet RNRT/Amarillo, 2005.

Diaz G., and al. Modeling Data to Management Dynamic

Services Deployment in Autonomic Networks,

IEEE/ICTTA 2006, 24-28 april, Syria, 2006.

Diaz G., and al. Distributed Management to Services

Deployment in Autonomic Networks, IEEE/ICTTA

2008, 7-11 april, Syria, 2008.

DMTF,Common Information Model (CIM) Standards.

http://www.dmtf.org/standards/cim/

Eymann T., and al. Self-Organizing Resource Allocation

for Autonomic Networks. DEXA'03, September 1-5,

2003, Prague, Czech Republic.

Gaïti D., and al. Autonomous Network Equipments. WAC

2005, Athens, Greece, October 2-5, 2005. P. 177-185.

Hass, R., and al. Autonomic Service Deployment in

Networks. IBM Systems Journal, Volume 42, Issue 1

(January 2003) pp 150 – 164, ISSN:0018-8670.

Lewis D.,and al. Semantic Interoperability for an

Autonomic Knowledge Delivery Service. WAC 2005,

Athens, Greece, October 2-5, 2005.

Mulvenna M., and al. Knowledge Networks. WAC 2005,

Athens, Greece, October 2-5, 2005. 99-114

OMG: Deployment & Configuration of Component-based

Distributed Applications Specification, ptc/03-07-08.

Papazoglou and al. Service oriented computing: a research

roadmap, SOC, 15.-18. Nov. 2005.

Pistore, M., and al. Planning and Monitoring Web Service

Composition. ICAPS'04, Canada, June 3-7, 2004.

Quirolgico1 S., and al. Toward a Formal Common

Information Model Ontology. WISE 2004, LNCS

3307, pp. 11–21, 2004.

Seleznyov A., and al. Distributed Knowledge

Management for Autonomous Access Control in

Computer Networks. ITCC'04, Volume 2 p. 433.

Simoni N., and al. Distributed Service Management for

Intelligent Network. ICCC'99, 14-16 september,

Tokio-Japon.1999.

Stojanovic L., and al. The role of ontologies in autonomic

computing systems. IBM SYSTEMS JOURNAL, VOL

43, NO 3, 2004.

TMF, http://www.tmforum.org/browse.aspx?catID=2008.

NGOSS-SID.

Wawrzoniak M., and al. Sophia: An Information Plane for

Networked Systems. HotNets-II, Cambridge, MA,

USA, November 2003.

MODELLING KNOWLEDGE FOR DYNAMIC SERVICE DEPLOYMENT - Autonomic Networks Modelling

159
