ORACLE SECUREILES

A Filesystem Architecture in Oracle Database Server

Niloy Mukherjee, Amit Ganesh, Krishna Kuchithapadam and Sujatha Muthulingam

Oracle SecureFiles Team, Oracle Corporation, 500 Oracle Parkway, Redwood Shores, CA 94065, U.S.A.

Keywords: Oracle SecureFiles, Filesystems, Database Management Systems, Performance, Storage Utilization,

Consistency, and Durability.

Abstract: Over the last decade, the nature of content stored on computer storage systems has evolved from being

relational to being semi-structured, i.e., unstructured data accompanied by relational metadata. Average data

volumes have increased from a few hundred megabytes to hundreds of terabytes. Simultaneously, data feed

rates have also increased with increase in processor, storage and network bandwidths. Data growth trends

seem to be following Moore's law and thereby imply an exponential explosion in content volumes and rates

in the years to come. We introduce Oracle SecureFiles System, a storage architecture designed to provide

highly scalable storage and access execution of unstructured and structured content as first-class objects

within the Oracle relational database management system. Oracle SecureFiles breaks the performance

barrier that has been keeping unstructured content out of databases. The architecture provides capability to

maximize utilization of storage usage through compression and deduplication and preserves data

management robustness through Oracle database server features such as transactional atomicity, durability,

availability, read-consistent query-ability and security of the database management system.

1 INTRODUCTION

Traditionally, database management systems have

been designed to provide maximum throughput of

storage and access to relational data in transaction

processing and data warehouse environments.

However, the rapid growth of Internet has caused a

huge increase in the amount of semi-structured

information generated and shared by organizations

in almost every industry and sector. As data volumes

and ingestion rates step up, a number of challenges

have risen in the area of database management

(Blumberg, 2003) include provision for maximum

throughput of storage and access operations,

scalability, utilization of storage usage, highest

degree of availability and security of critical data,

and information lifecycle management (Hobbs,

2007) data volumes.

Filesystems have been preferred over database

management systems for providing storage solutions

for unstructured data while databases have been

preferred to manage accompanying relational data

for indexing and querying purposes. While

filesystems provide better throughput of storage and

access operations, they lack secure data management

features such as atomicity, consistency, durability,

manageability and availability (Vijayan, 2006)

We present Oracle SecureFiles System, a

consolidated data storage architecture within Oracle

11g database server (Oracle, 2008) that bridges the

gap between unstructured and relation data

management by providing a clustered filesystem-like

or better throughput and scalability for unstructured

content while preserving the same for relational

content. Consolidated content management as first-

class database objects within the Oracle database

kernel provides the advantages of rich database

features such as transaction consistency, durability,

metadata indexing, and query-ability using SQL

standards. Besides providing support for advanced

database features, Oracle SecureFiles provides

advanced filesystem features such as compression

and deduplication (Biggar, 2007) for optimising

storage usage as well as encryption for maximum

content security.

The rest of the paper is organized as follows. The

design of the SecureFiles architecture and

components is detailed in section 2. The following

section details the set of database features associated

with SecureFiles. A section on conclusion follows

Mukherjee N., Ganesh A., Kuchithapadam K. and Muthulingam S. (2008).

ORACLE SECUREILES - A Filesystem Architecture in Oracle Database Server.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 60-63

DOI: 10.5220/0001885700600063

 SciTePress

Section 4, which presents description of in-house

throughput experiments conducted on SecureFiles

and their evaluations.

2 DESIGN

The design of SecureFiles consists of two major

components, namely, the schema or the structural

component and the architectural component. The

rest of the section will describe each of these

components in details.

2.1 Schema

The structural design of SecureFiles is similar to that

of filesystems.

Unstructured data associated with semi-

structured content is stored as SecureFile objects. A

SecureFile object is a collection of variable sized

pages or chunks allocated from and stored in the

Oracle database using the Oracle SecureFiles. Each

chunk is a set of contiguous database blocks. The

base table is an Oracle table that stores relational

metadata associated with SecureFile objects. Besides

the columns containing relational metadata, the table

consists of one or more columns that hold locators

providing reference pointers to the associated

SecureFile objects. Each row-column intersection

provides a distinct pointer to the very first block of

an individual SecureFile object. Users can create

unique and secondary indexes on the relational

columns in the base table.

2.2 Architecture

SecureFiles architecture is layered into six major

components, namely, Write Gather Cache,

Transformation Management, Inode Management,

Space Management and the I/O Management.

2.2.1 Write Gather Cache

SecureFiles uses a new cache that buffers data up to

64MB during write operations before flushing or

committing to the underlying storage layer. This

buffering of in-flight data allows for large

contiguous space allocation and large disk I/O.

Write performance is greatly improved due to

reduced disk seek costs. The write gather cache is

allocated from the database buffer cache and

maintained on a per-transaction basis.

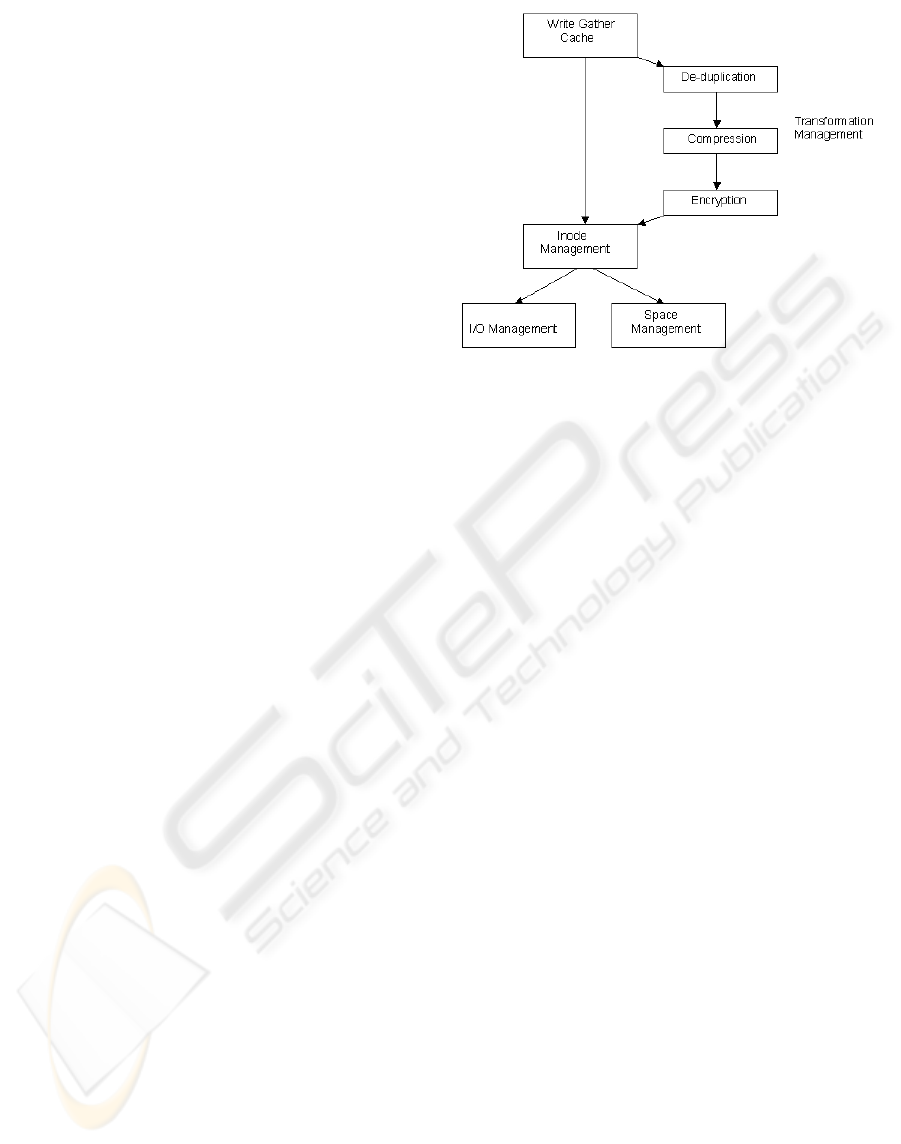

Figure 1: Architecture of SecureFiles.

2.2.2 Transformation Management

The advanced data transformation management

comprises of three subcomponents, compression,

encryption and de-duplication. Oracle SecureFiles

provide the option to enable/disable all possible

combinations of these features.

De-duplication: For every SecureFile object that

has de-duplication enabled, a secure hash is

generated for a subset of the object (prefix hash) and

also for the whole object (full hash). During

streaming writes, once generated, the prefix hash is

compared to a set of prefix hashes stored in an

index. If there is a prefix match, then the SecureFile

object associated with the original prefix hash

(master version) is read and byte-by-byte

comparison is performed across the buffered data

and the master version

Compression: Compression is performed on

write gather cache buffers when sufficient amount of

data is buffered. SecureFiles compression allows for

random reads and writes to SecureFile data. Oracle

SecureFiles architecture provides varying degrees of

compression that represent a trade-off between

storage savings and CPU costs.

Encryption: Oracle SecureFiles uses Transparent

Data Encryption (TDE) syntax for encryption of

SecureFile objects along with the accompanying

relational metadata.

2.2.3 Inode Management

The inode management layer is responsible for

initiating on-disk storage and access operations on

SecureFile object buffers being communicated by

the upper layers in the SecureFiles architecture. As a

client of the space management layer, the inode

ORACLE SECUREILES - A Filesystem Architecture in Oracle Database Server

manager requests on-disk free space to store the

amount of data being flushed by the write gather

cache. Based on the array of chunks returned by the

space management layer, the inode manager stores

the metadata either in the row-column intersection of

the base table associated with the object, or in the

most current header block of the SecureFile object.

The metadata information includes start block

address and length of a chunk as well as the start and

end offsets of the object being mapped to mana the

chunk. The metadata structures are transactional

managed similar to relational data and are

recoverable after process, session and instance

failures.

2.2.4 Space Management

The space management layer supports allocation of

sets of variable sized contiguous data blocks or

chunks up to 64M for on-disk storage of SecureFile

objects. With SecureFile objects being cached in the

Write Gather Cache, the space management layer is

able to meet larger space requests from the inode

manager through more contiguous layout on disk,

therefore providing more efficient read and write

access. Although space metadata is managed in-

memory, the metadata changes are consistent across

transactions, instance failures as well as media

failiures

Operations such as full overwrites / rewrites,

updates and deletes in SecureFiles follow ‘copy-on-

write’ semantics resulting in de-allocation of space

previously occupied by the offsets affected by the

operation. Space freed during the de-allocation

operations is not reused until it is retained for a

certain period of time to achieve read consistency

correctness for qureies.

2.2.5 I/O Management

During writes, the Inode Manager communicates the

set of chunks obtained from the space layer as well

as the write gather cache buffers to the I/O Manager.

Based on a user parameter, the I/O Manager either

copies the write gather cache buffers to database

cache buffers or schedules asynchronous disk writes

for the set of chunks.

The I/O Manager supports read-ahead or pre-

fetching data from disk. It keeps track of access

patterns of SecureFile objects and issues intelligent

pre-fetching of chunks before the request is actually

made. Read latency is reduced by overlapping the

network and storage throughput.

3 FEATURES

Being stored as first-class objects within the

database, Oracle SecureFiles has been designed to

inherit most of the data management features such as

transaction support, read consistency and data

durability provided by the Oracle database server

that are not provided by traditional filesystems.

3.1 Transactions and Read Consistency

Oracle SecureFiles is a transactional data store.

Operations of Oracle SecureFiles generate undo

records for relational data as well as metadata

operations in the delta update, inode and space

management components. SecureFile objects

undergo 'copy on write' semantics on data

manipulation operations and hence alleviate the

requirement to store previous images for rollback

purposes. Oracle SecureFiles achieves read

consistency through 'copy-on-write' semantics thus

enabling SecureFile segments to retain previous

versions of SecureFile objects up to a certain period.

A query on a SecureFile object issued at a point in

time within the retention period is guaranteed to

return the most consistent version of the object as of

that point in time.

3.2 Data Durability

Oracle SecureFiles System design supports a range

of data durability options. The design provides

choice to the users to either use the database buffer

cache to stage writes on SecureFile object buffers or

to use the underlying storage for direct writes of

SecureFile object buffers. Direct writes prevent

pollution of buffer cache for large I/Os. Direct write

operations can also be logged for media recovery

purposes. The accompanying relational data, inode

metadata and on-disk space metadata changes

modify Oracle data blocks in the buffer cache itself

and are logged in Oracle Redo logs.

4 PERFORMANCE EVALUATION

The evaluation experiment simulates a real world

DICOM application consisting of digital diagnostic

images accompanied by patient metadata. We

compare read and write throughput of SecureFiles to

that of NFSv3 filesystem. In both cases patient

metadata is stored in the Oracle database. In the case

of filesystem, the images are stored on Ext3 FS file

servers that are accessed using NFSv3. In case of

ICSOFT 2008 - International Conference on Software and Data Technologies

SecureFiles, images are stored as SecureFile objects

within the database.

4.1 Dataset and Hardware Set-up

The dataset consists of images ranging from 10 KB

to 100 MB. The experiment consists of tests

individually run on sizes averaging 10 KB, 100 KB,

1 MB, 10 MB and 100 MB. For tests on sizes 100

MB, 10MB and 1 MB, the total amount of

unstructured data inserted as files as well as

SecureFile objects is 100 GB.

A Dell 2650 consisting of 2 hyper threaded Intel

Xeon 2.8 Ghz processors with 0.5 MB processor

cache each, 6GB of RAM and using Red Hat

Enterprise Linux 4.0 was used as the client. A Dell

2850 consisting of 2 hyper threaded Intel Xeon 3.2

GHz processors with 2 MB processor cache each,

6GB of RAM, Red Hat Enterprise Linux 4.0 and

2Gbit Fibre Channel SAN Host Adapter was used as

the server.

Storage drives are allocated as two identically

configured 2TB Raid 5 arrays. One of the units was

allocated to Oracle and was managed using Oracle

Automatic Storage Management. The other was

configured as Ext3 FS made available to the client

using NFSv3.

Table 1: Throughput Comparison of NFSv3 and Oracle

SecureFiles in MB/sec on read and write operations.

File Sizes (MB) .01 .1 1 10 100

NFS Performance for

Reads

3 8 22 61 75

SecureFiles

Performance for Reads

3 12 40 79 88

NFS Performance for

Writes

2 13 40 79 74

SecureFiles

Performance for

Writes

18 61 81 80 80

4.2 Experiment and Results

Table 1 demonstrates the throughput comparison

between SecureFiles and NFSv3 on the dataset on

single stream reads and writes.

SecureFiles outperforms the NFSv3 access for

all sizes with respect to read and write performance.

Gains for the smaller file sizes are also due to

reduced roundtrips where metadata and data is

accessed in one roundtrip unlike the NFSv3 case

where metadata and file is accessed in separate

roundtrips. Read performance for larger file sizes is

contributed by intelligent pre-fetching, larger I/O

sizes due to better contiguous space allocations and

network optimisations.

5 CONCLUSIONS

Current content management applications use

filesystems to store unstructured data due to

provision of better throughput of data and access

operations across all sizes and types and use

database systems to manage accompanying

relational metadata for indexing and querying

purposes. This dichotomy in storage creates a need

for compromises in one or more of high availability,

scalability, performance or functionality. With

Oracle 11g Database Server's SecureFiles

capabilities we now have a next generation unified

data management platform without compromises.

Performance evaluations demonstrate that Oracle

SecureFiles unstructured and relation data

management provides optimal execution throughput

and scalability for unstructured content while

preserving the same for relational content

REFERENCES

Blumberg, R., Atre, S. The Problem with Unstructured

Data. DM Review Magazine, Feb. 2003.

Hobbs, L. Information Lifecycle Management with Oracle

database 11g. An Oracle White Paper, June 2007

Vijayan, P. Iron File Systems. Thesis Submitted for

Doctor of Philosophy in Computer Sciences,

University of Wisconsin-Madison, 2006.

Oracle Database 11g Product Family. An Oracle White

Paper, January 2008.

Biggar, H. Experiencing Data De-Duplication: Improving

Efficiency and Reducing Capacity Requirements. A

SearchStorage.com White Paper, Feb 2007.

ORACLE SECUREILES - A Filesystem Architecture in Oracle Database Server
