DEVELOPING AND DEPLOYING DYNAMIC APPLICATIONS

An Architectural Prototype

Georgios Voulalas and Georgios Evangelidis

Department of Applied Informatics, University of Macedonia, 156 Egnatia St., Thessaloniki, Greece

Keywords: Model-driven Development, Dynamic Applications, Reflection, Runtime Compilation, Java Platform.

Abstract: In our previous research we have presented a framework for the development and deployment of web-based

applications. This paper elaborates on the core components (functional and data) that implement the generic,

reusable functionality. Code segments of the components are presented, along with a short sample

application. In addition, we introduce some changes that are mainly driven by usability and performance

improvements, and are in adherence with the principal rules of the framework’s operation. Those changes

enable us to extend the applicability of the framework to other families of applications, apart from web-

based business applications.

1 INTRODUCTION

In (Voulalas & Evangelidis, 2007 and Voulalas &

Evangelidis, 2008) we introduced an extension of

the Model Driven Architecture (Kleppe, Warmer &

Bast, 2003) that additionally to coping with the

problems of productivity, documentation,

maintenance, portability and interoperability, aims to

manage efficiently the continuously evolving

requirements (Miller & Mukerji, 2001) of web-

based business applications and to ensure

consistency between the produced code and the

preceding design models.

The framework is structured on the basis of a

universal database schema (meta-model).

Development is supported by modelling tools that

elicit functional specifications from users and

transform them into formal definitions, and by data

structures that are utilized for the storage of the

definitions. Deployment is supported by generic

components that are dynamically configured at

run-time according to the functional specifications

provided during development, and by application-

independent data structures (part of the meta-model)

that hold all application-specific data. No code

(SQL, Java, C++, JSP, etc.) is generated. We can

deal with business logic changes at deployment

time without recompiling and redeploying the

application, since changes are translated in

modifications to the underlying data instances.

Consistency between the final application and the

modelled specifications is ensured.

The framework supports the operation of

different applications and application versions

within a single installation. Thus, we can anytime

refer to a previous version of an application and

examine old data in its real context by retrieving the

corresponding data instances, without the need of

maintaining multiple installations.

During our research, performance and usability

issues motivated us to differentiate the way some of

the goals are achieved. In particular, instead of

utilizing exclusively generic components for the

provision of the functional behaviour of an

application, we decided to use a mix of generic

modules and application-specific modules.

Application-specific modules will be retrieved from

the database and compiled at run-time (Biesack,

2007) in order for the application to be dynamically

created. This change improves the performance of

the generated application since the extensive

utilization of reflection requires increased

computational resources (Sun Microsystems, 2008).

Additionally, the developer has more means to

implement sophisticated mechanisms that could not

be incorporated into a pre-built generic component.

Last but not least, this shift enables us to easily

extend the applicability of the framework to other

families of applications, apart from web-based

business applications.

288

Voulalas G. and Evangelidis G. (2008).

DEVELOPING AND DEPLOYING DYNAMIC APPLICATIONS - An Architectural Prototype.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 288-291

DOI: 10.5220/0001886902880291

 SciTePress

This paper aims to present an application

scenario (Section 2) that will indicate the way the

developer interacts with the development

environment, and verify the feasibility of the

proposed solution though an architectural prototype

(Sections 3 and 4). The last section concludes the

paper and identifies our future steps.

2 APPLICATION SCENARIO

Suppose that we have to develop a real estate portal,

through which agents will be able to post property

ads and potential buyers / renters to search for

properties. Three types of properties ads are

identified: residencies, business properties, and

development land. A property can be available for

sale or rent, or for both sale and rent.

In order to verify the feasibility of our proposal,

we have developed two versions of the portal. In

both versions, Java Platform™ Standard Edition 6 is

the underlying platform. The first version was

developed as a typical application with its own

database schema (residing in MySQL) and

functional components that were developed from

scratch through an Integrated Development

Environment (IntelliJ IDEA). For the development

of the second version, we followed the steps that are

described below. No database schema was created,

since that version utilizes the generic database

schema that is presented in Section 3 (and which

also resides in our MySQL Server). Application-

specific code was written through IntelliJ IDEA.

 Identify the business entities that participate in the

domain model, e.g. Property, Residency, Business

Property, Development Land and Realtor. Create a

new Class for each one. Look-up structures should

be also modelled as Classes (e.g. Transaction

Type: sale or rent).

 Identify the properties of each business entity, e.g.

size of Property, construction year of Residency.

Create a new Attribute for each property and

associate it with the proper Class. Properties that

refer to other Classes should be also modelled as

Attributes.

 Identify many-to-many relationships between

Classes, e.g. Property – Transaction Type and

create a new Association for each one.

 Model properties that are carried by the

Associations, e.g. sale cost. Create a new Attribute

for each property and associate it with the proper

Association.

 Identify the operations that are implemented by

each class, e.g. insert operation that creates a new

property. For each method create a Method and

link it to the proper Class.

 Identify the parameters that should be passed in

order for an operation to be invoked, e.g. size,

construction year. For each parameter create an

Argument and link to the proper Method.

In the final prototype those steps could be

supported by a forms-based wizard.

The system stores the information provided by

the user in the predefined database structures (see

Figure 1, Region A). Note that no new structures are

created and no existing structures are modified.

Interaction with the database is limited to data

insertion. Then, the system generates code skeletons

for each Class. In Java SE the code skeletons

include attributes, setters and getters for each

attribute, default constructor, signatures for the

methods and static declarations that link the Class to

the database records created in the previous step.

Now, it is the user’s turn to implement the

methods. The coding process is strictly restricted to

implementing the methods that have been already

defined, or defining new private methods that are

visible only within the scope of the specific class.

The code that is written is stored in the database (see

Figure 1, Region A, column body of the Methods

table). In the final prototype, the user instead of

writing code, he will provide functional

specifications in an upper level (e.g. with the use of

a designer) that will be transformed to code. Both

functional specifications and generated code will be

stored in the database, along with the definition of

Classes, Attributes, Methods, etc. Consistency

between the functional specifications and the

generated code will be ensured by preventing the

user from writing directly to the database.

Until now, we have covered the implementation

of the Application tier. The Database tier is generic

for all applications. The user does not write SQL

code. Instead, he uses generic methods that

materialize and dematerialize the objects. For the

User Interface, we propose that the developer should

be able to freely and creatively implement it.

3 DATABASE MODEL

In Figure 1, we present the database model upon

which the development and deployment platform is

built. The model is abstractly divided into two parts:

 The first part (Region A) holds the functional

specifications of the modelled application. It

includes the following entities: Classes, Attributes,

DEVELOPING AND DEPLOYING DYNAMIC APPLICATIONS - An Architectural Prototype

289

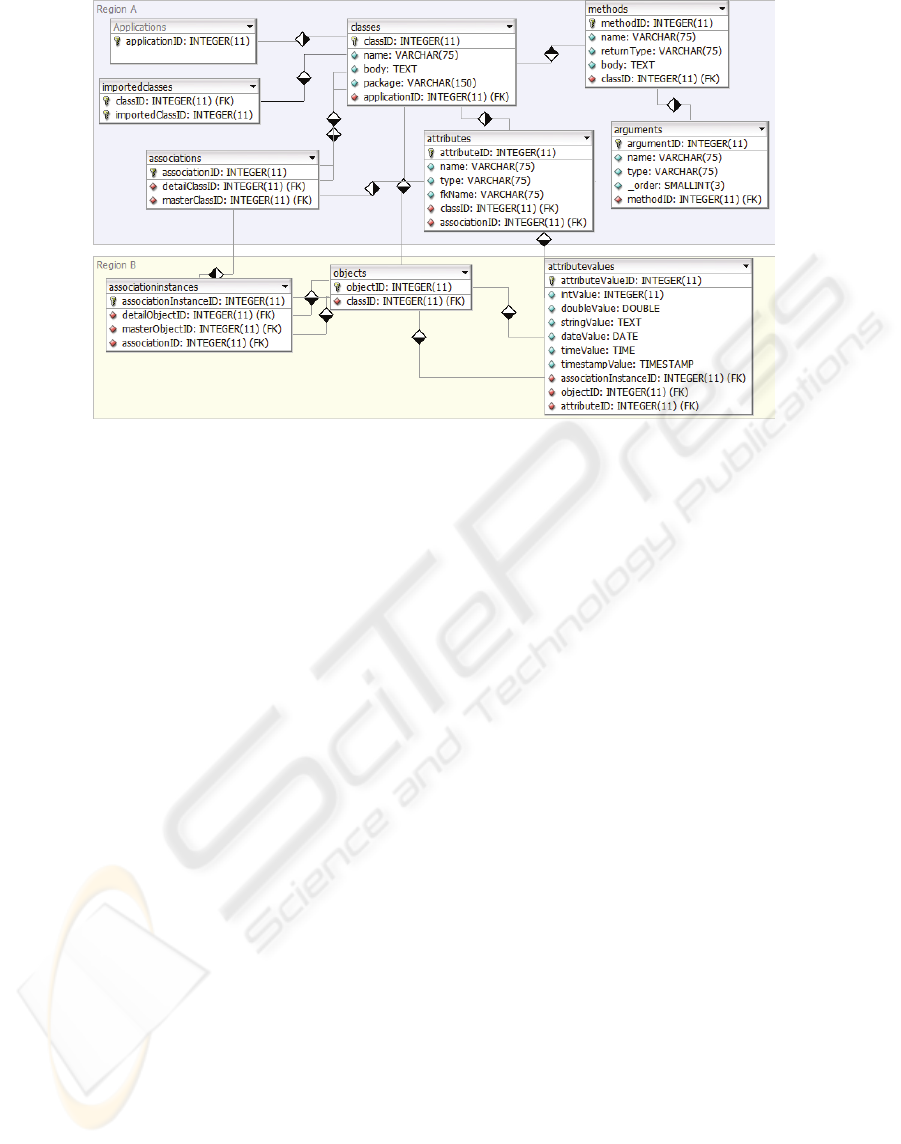

Figure 1: The Database Model.

Methods, Arguments, Associations and Imported

Classes. The Applications table enables the

operation of multiples applications within a single

installation.

 The second part (Region B) holds the application

data that are generated during application

execution and includes the following entities:

Objects, AssocitionInstances and AttributeValues.

4 ARCHITECTURAL

PROTOTYPE

In order to verify the feasibility of the framework we

have implemented a method that posts a new

property ad. The method is implemented by the

Property class and has the following signature:

public int insert(Integer realtorID, …,

Hashtable transactionTypes);

In the following sub-sections we present

segments of code derived from the two versions of

the real estate portal. For space saving and simplicity

reasons, we omit error handling and code details that

are not important for the reader.

4.1 Invoking a Method from the User

Interface

In the first version of the real estate portal the insert

method is invoked as follows:

Property p = new Property();

// tt is a hash table with supported

// transaction types (sale, rent)

p.insert(new Integer(2), …, tt);

In this second version, method invocation includes:

 Specifying the method that is to be executed

by providing its name, the name of the class it

implements it and the package of the class.

 Creating an array of objects that includes the

arguments that will be used.

 Invoking the execute method of the _Method

class (generic class).

String cls = "Property";

String pckg = "application.entities";

String mthd = = "insert";

Object[] args = {new Integer(2), …, tt};

_Method.execute(cls, pckg, mthd, args);

4.2 Executing the Method

The signature of the execute method that controls

the execution of a method is the following:

public static void execute (String

className, String packageName, String

methodName, Object[] arguments)

Using the first two arguments the class is

identified and retrieved from the database. As a

second step, the classes that are imported by the

class are fetched (Region A of the database model,

table ImportedClasses). Then, the method and its

arguments (name and type for each one) are

ICSOFT 2008 - International Conference on Software and Data Technologies

290

retrieved. The next step is to compile all involved

classes. Finally, the method is invoked:

// load the class that implements the

// method that should be invoked

File classesMap = new File("c:/classes");

URL[] urls = new URL[]

{classesMap.toURI().toURL()};

URLClassLoader ucl;

ucl = new URLClassLoader(urls);

Class _class;

_class = ucl.loadClass(pckg + "."+ cls);

// create an array of Class objects that

// identify the method's formal parameter

// types (based on the types retrieved

// from the db)

Class[] paramTypes;

paramTypes = new Class[argms.size()];

for (int i = 0; i < argms.size(); i++) {

arg = (_Argument)argms.elementAt(i);

paramTypes[i] = Class.forName

(arg.getType());

} // end of for statement

// invoke the method

_class.getDeclaredMethod(mthd, paramTypes)

.invoke (_class.newInstance(), argms);

4.3 Inside the Method

The code of the method that inserts a new property

ad is mainly the same for both versions of the real

estate portal. Differences are found in the interaction

with the database. In the second version, for each

Class two private methods are automatically

generated. Those methods cover the materialization

and the dematerialization of the objects using the

database structures that belong to Region B of the

Database Model.

5 CONCLUSIONS & FURTHER

RESEARCH

Our approach enables the dynamic configuration of

every aspect of the application in the business-logic

tier, in contrast to other efforts (e.g. Pinto, Jimenez,

& Fuentes, 2005) that are restricted to common

services (e.g. authentication, message filtering).

Additionally, having a single database meta-model

that supports the operation of all applications and

their versions, we are able to dynamically handle

any change in the database tier. Similar efforts (e.g.

Dmitriev, 2001) enable only simple changes such as

field renaming.

Future research efforts will focus on:

 Implementing a policy that deals with active

classes (i.e. classes that are used by active threads)

that need to be dynamically recompiled in order to

reflect changes.

 Implementing a forms-based wizard that will

support the first steps of the application scenario

presented in Section 2.

 Extending Region A of the Database Model in

order to hold functional specifications that can be

forward-engineered to code and develop a code

generation tool.

 Applying data versioning techniques in the

Database Model in order to be able to dynamically

(i.e. on runtime) recall past data and previous

versions of the applications.

REFERENCES

Biesack, D., 2007. Create dynamic applications with

javax.tools, http://www.ibm.com/developerworks/

java/library/j-jcomp/index.html

Dmitriev, M., 2001. Towards Flexible and Safe

Technology for Runtime Evolution of Java Language

Applications. In Workshop on Engineering Complex

ObjectOriented Systems for Evolution, October 2001.

Kleppe, A., Warmer, S., Bast, W., 2003. MDA Explained.

The Model Driven Architecture: Practice and

Promise, ch. 1. Addison-Wesley, Reading.

Miller, J., Mukerji, J., 2001. Model Driven Architecture –

A Technical Perspective, http://www.omg.org/ cgi-

bin/doc?ormsc/2001-07-01

Pinto, M., Jimenez, D., Fuentes, L., 2005. A Dynamic

Component and Aspect Oriented Platform, The

Computer Journal.

Pinto, M., Jimenez, D., Fuentes, L., 2005. Developing

Dynamic and Adaptable Applications with CAM /

DAOP: A Virtual Office Application, In GPCE 2005.

Springer-Verlag, LNCS 3676, pp. 438–441, 2005.

Sun Microsystems, 2008. The Reflection API,

http://java.sun.com/docs/books/tutorial/reflect/index.ht

Voulalas, G., Evangelidis, G., 2007. A framework for the

development and deployment of evolving applications:

The Domain Model, ICSOFT 2007

Voulalas, G., Evangelidis, G., 2008. Introducing a

Change-Resistant Framework for the Development

and Deployment of Evolving Applications, ICSOFT

2006, CCIS 10, pp. 293–306, 2008

DEVELOPING AND DEPLOYING DYNAMIC APPLICATIONS - An Architectural Prototype

291
