PREDICTING DEFECTS IN A LARGE TELECOMMUNICATION

SYSTEM

Gözde Koçak, Burak Turhan and Ayşe Bener

Department of Computer Engineering, Boğaziçi University, 34342 Bebek, Istanbul, Turkey

Keywords: Software testing, Defect Prediction, Call Graph, Empirical Analysis.

Abstract: In a large software system knowing which files are most likely to be fault-prone is valuable information for

project managers. However, our experience shows that it is difficult to collect and analyze fine-grained test

defects in a large and complex software system. On the other hand, previous research has shown that

companies can safely use cross company data with nearest neighbor sampling to predict their defects in case

they are unable to collect local data. In this study we analyzed 25 projects of a large telecommunication

system. To predict defect proneness of modules we learned from NASA MDP data. We used static call

graph based ranking (CGBR) as well as nearest neighbor sampling for constructing method level defect

predictors. Our results suggest that, for the analyzed projects, at least 70% of the defects can be detected by

inspecting only i) 6% of the code using a Naïve Bayes model, ii) 3% of the code using CGBR framework.

1 INTRODUCTION

Software testing is one of the most critical and costly

phases in software development. Project managers

need to know “when to stop testing?” and “which

parts of the code to test?”. The answers to these

questions would directly affect defect rates and

product quality as well as resource allocation and the

cost.

As the size and complexity of software increases,

manual inspection of software becomes a harder

task. In this context, defect predictors have been

effective secondary tools to help test teams locate

potential defects accurately (Menzies et.al., 2007a).

In this paper, we share our experience for

building defect predictors in a large

telecommunication system and present our initial

results. We have been working with the largest GSM

operator (~70% market share) in Turkey, Turkcell,

to improve code quality and to predict defects before

the testing phase. Turkcell is a global company

whose stocks are traded in NYSE and operates in

Turkey, Azerbaijan, Kazakhstan, Georgia, Northern

Cyprus and Ukraine with a customer base of 53,4

million. The underlying system is standard 3-tier

architecture, with presentation, application and data

layers. Our analysis focuses on the presentation and

application layers. However, the content in these

layers cannot be separated as distinct projects. We

were able to identify 25 critical components, which

we will refer to as project throughout this paper.

We used a defect prediction model that is based

on static code attributes. Some researchers have

argued that the information content of the static code

attributes is very limited (Fenton, 1999). However,

static code attributes are easy to collect, interpret and

many recent research have successfully used them to

build defect predictors (Menzies et.al., 2007a,

2007b; Turhan and Bener 2007, 2008). Furthermore,

the information content of these attributes can be

increased i.e. using call graphs (Kocak et.al. 2008).

Kocak et.al shows that integrating call graph

information in defect predictors decreases their false

positive rates while preserving their detection rates.

The collection of static code metrics and call

graphs can be easily carried out using automated

tools (Menzies et.al. 2007; Turhan and Bener 2008).

However, matching these measurements to software

components is the most critical factor for building

defect predictors. Unfortunately, in our case, it was

not possible to match past defects with the software

components in the desired granularity, module level,

where we mean the smallest unit of functionality

(i.e. java methods, c functions). Previous research in

such large systems use either component or file level

code churn metrics to predict defects (Nagappan and

Ball, 2006; Zimmermann and Nagappan, 2006;

Ostrand and Weyuker, 2002; Ostrand et al. 2004;

284

Koçak G., Turhan B. and Bener A. (2008).

PREDICTING DEFECTS IN A LARGE TELECOMMUNICATION SYSTEM.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 284-288

DOI: 10.5220/0001887502840288

 SciTePress

Ostrand et al. 2005; Bell et al. 2006; Ostrand et al.

2007). The reason is that file level is the smallest

granularity level that can be achieved. However,

defect predictors become more precise as the

measurements are gathered from smaller units

(Ostrand et al. 2007).

Therefore, we decided to use module level cross

company data to predict defects for Turkcell projects

(Menzies et al. 2007b). Specifically, we have used

module level defect information from NASA MDP

projects to train defect predictors and then obtained

predictions for Turkcell projects. Previous research

have shown that cross company data gives stable

results and using nearest neighbor sampling

techniques further improves the prediction

performance when cross company data is used

(Menzies et al. 2007; Turhan and Bener, 2008). Our

experiment results with cross-company data on

Turkcell projects, estimate that we can detect 70% of

the defects with a 6% LOC investigation effort.

In order to decrease false alarm rates, we

included the CGBR framework in our analysis based

on our previous research (Kocak et al. 2008). Using

CGBR framework improved our estimated results

such that the LOC investigation effort decreased

from 6% to 3%.

The rest of the paper is organized as follows: In

section 2 we briefly review the related literature, in

section 3 we explain the project data. Section 4

explains our rule-based analysis. Learning based

model analysis is discussed in section 5. The last

section gives conclusion and future direction.

2 RELATED WORK

Ostrand and Weyuker have been performing similar

research for AT&T and they also report that it is

hard to conduct an empirical study in large systems

due to difficulty in finding the relevant personnel

and the high cost of collecting and analyzing data

(Ostrand and Weyuker, 2002).

Fenton and Ohlsson presented results of an

empirical study on two versions of a large-scale

industrial software, which showed that the

distribution of the faults and failures in a software

system can be modeled by Pareto principle (Fenton

and Ohlsson, 2000). They claimed that neither size

nor complexity explain the number of faults in a

software system. Other researchers found interesting

results showing that small modules are more fault -

prone than larger ones (Koru and Liu, 2005; Koru

and Liu, Dec. 2005; Malaiya and Denton, 2000;

Zhang 2008). Our results will also show evidence in

favor of this fact.

As mentioned, Ostrand, Weyuker and Bell

predicted fault-prone files of the large software

system in AT&T by using a negative binominal

regression model (Ostrand and Weyuker, 2002;

Ostrand et al. 2004; Ostrand et al. 2005; Bell et al.

2006; Ostrand et al. 2007). They report that their

model can detect 20% of the files that contain 80%

of all faults. Similarly, Nagappan, Ball and

Zimmermann analyzed several Microsoft software

components using static code and code churn

metrics to predict post-release defects. They

observed that different systems could be best

characterized by different sets of metrics (Nagappan

and Ball, 2006: Zimmermann and Nagappan, 2006).

Our work differs at a large extent from previous

work. Ostrand, Weyuker and Bell carried out the

most similar work to this research, where they used

file level measurements as a basic component.

However, we prefer using modules, since modules

provide finer granularity. They have collected data

from various releases of projects and predict post-

release defects, whereas we have data from single

release of 25 projects and we try to predict pre-

release defects.

3 DATA

In this research we analyzed 25 ‘Trcll’ projects. All

projects are implemented in Java and we have

gathered 29 static code metrics from each. In total,

there are approximately 48,000 modules spanning

763,000 lines of code.

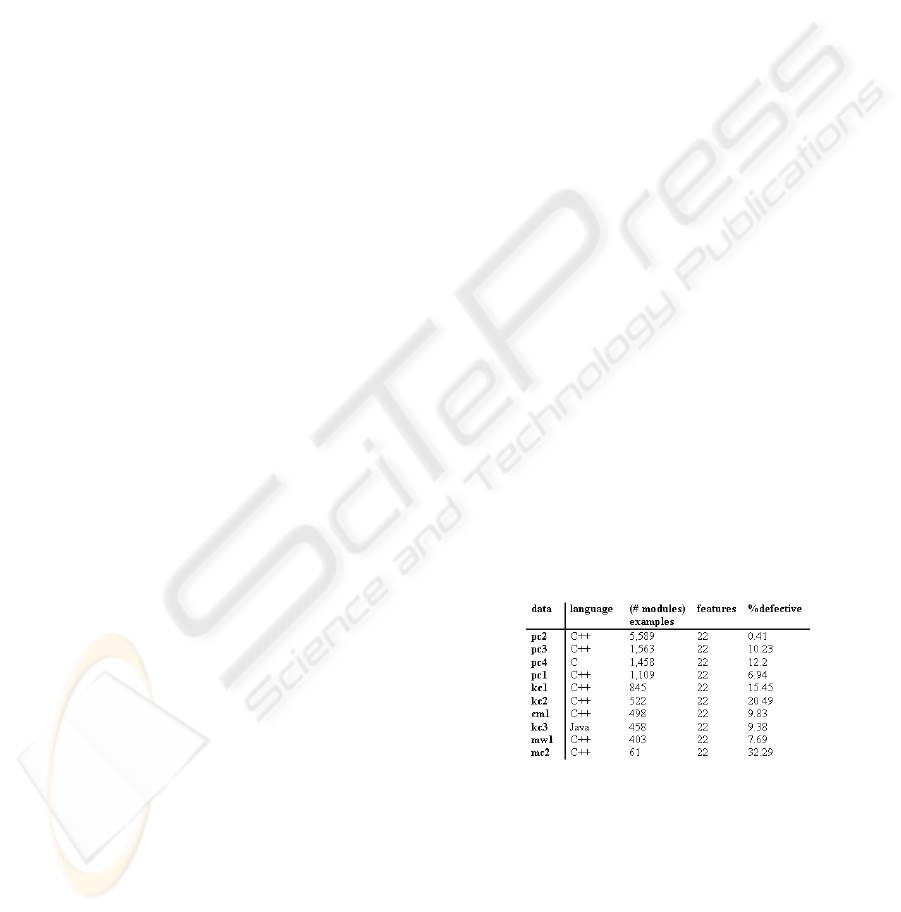

Figure 1: NASA datasets used in this study.

We used cross company data from NASA MDP

that are available online in the PROMISE repository

(Boetticher et al. 2007; NASA). Figure 1 shows the

characteristics of NASA projects. Each NASA

dataset has 22 static code attributes. In our analysis,

we have used only the common attributes (there are

17 of them) that are available in both data sources.

PREDICTING DEFECTS IN A LARGE TELECOMMUNICATION SYSTEM

285

4 DATA ANALYSIS

4.1 Average-case Analysis

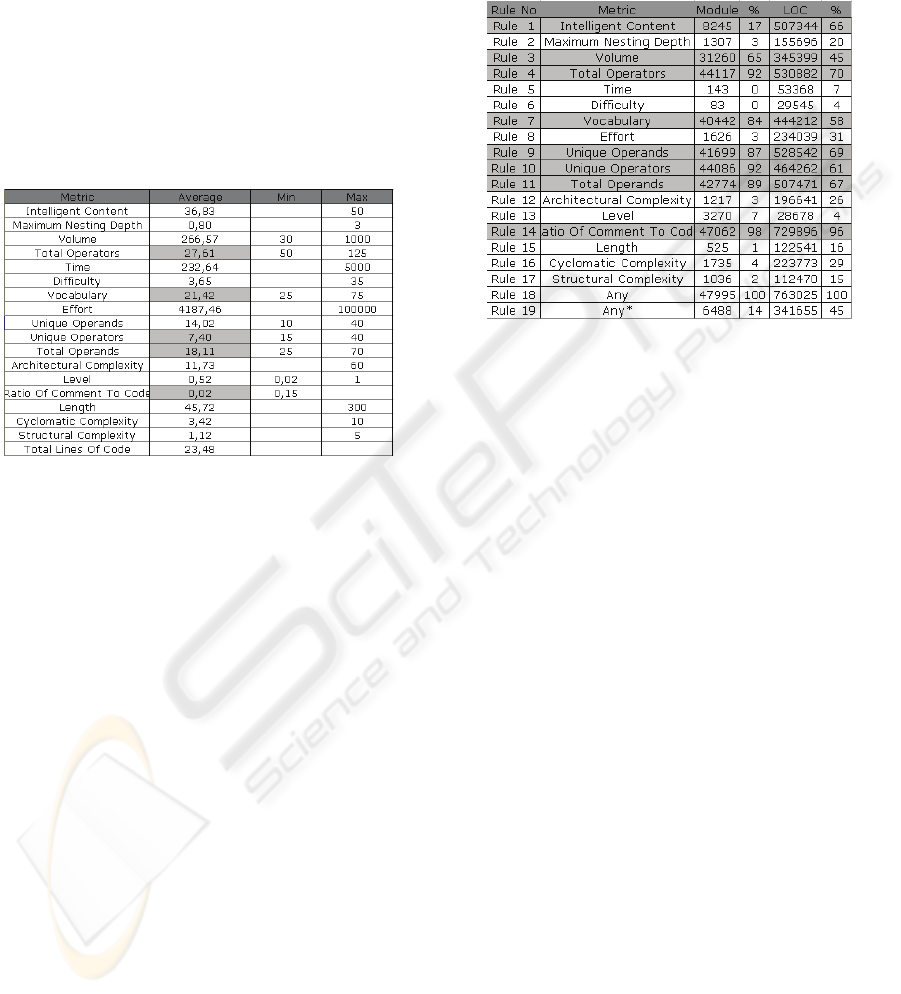

Figure 2 shows the average values of 17 static code

metrics collected from the 25 telecom datasets. It

also shows the recommended intervals based on

statistics from NASA MDP projects, when

applicable. Cells marked with gray color correspond

to metrics that are out of the recommended intervals.

There are two clear observations in Figure 2.

Developers do not write comments throughout the

source code and low number of operands and

operators indicate small, modular methods.

Figure 2: Average-case analysis about Turkcell datasets.

4.2 Rule-based Analysis

Based on the recommended intervals in Figure 2, we

have defined simple rules for each metric. These

rules fire, if a module’s metric is not in the specified

interval, indicating the manual inspection of the

module. Figure 3 shows the 17 basic rules and

corresponding metrics, along with 2 derived rules.

The first derived rule, Rule 18, define a disjunction

among 17 basic rules. That is Rule 18 fires if any

basic rule fires. Note that, the gray colored rules in

Figure 3 fire too frequently that cause rule 18 to fire

all the time. The reason is that the corresponding

comment and Halstead metrics’ related intervals do

not fit Turkcell’s code characteristics.

In order to overcome this problem we have

defined Rule 19 that fires if all basic rules, but the

Halstead fire. This reduces the firing frequency of

the disjunction rule. However, Rule 19 states that

6484 modules (14%) corresponding to 341,655 LOC

(45%) should be inspected in order to detect

potential defects.

Inspection of 45% of total LOC is impractical.

On the other hand, learning based model will be

shown to be far more effective. We have designed

two types of analysis using the learning based

model. Analysis #1 uses the cross-company

predictor with k-Nearest Neighbor sampling for

predicting fault-prone modules. Analysis #2

incorporates CGBR framework into static code

attributes and than apply the model of Analysis #1.

Figure 3: Rule-based analysis.

5 ANALYSIS

5.1 Analysis #1

In this analysis we used the Naïve Bayes data miner

that achieves significantly better results than many

other mining algorithms for defect prediction

(Menzies et.al., 2007a). We selected a random 90%

subset of cross-company NASA data to train the

model. From this subset, we have selected similar

projects that are similar to Trcll in terms of

Euclidean distance in the 17 dimensional metric

spaces. The nearest neighbors in the random subset

are used to train a predictor, which then made

predictions on the Trcll data. We repeated this

procedure 20 times and raised a flag for modules

that are estimated as defective at least in 10 trials.

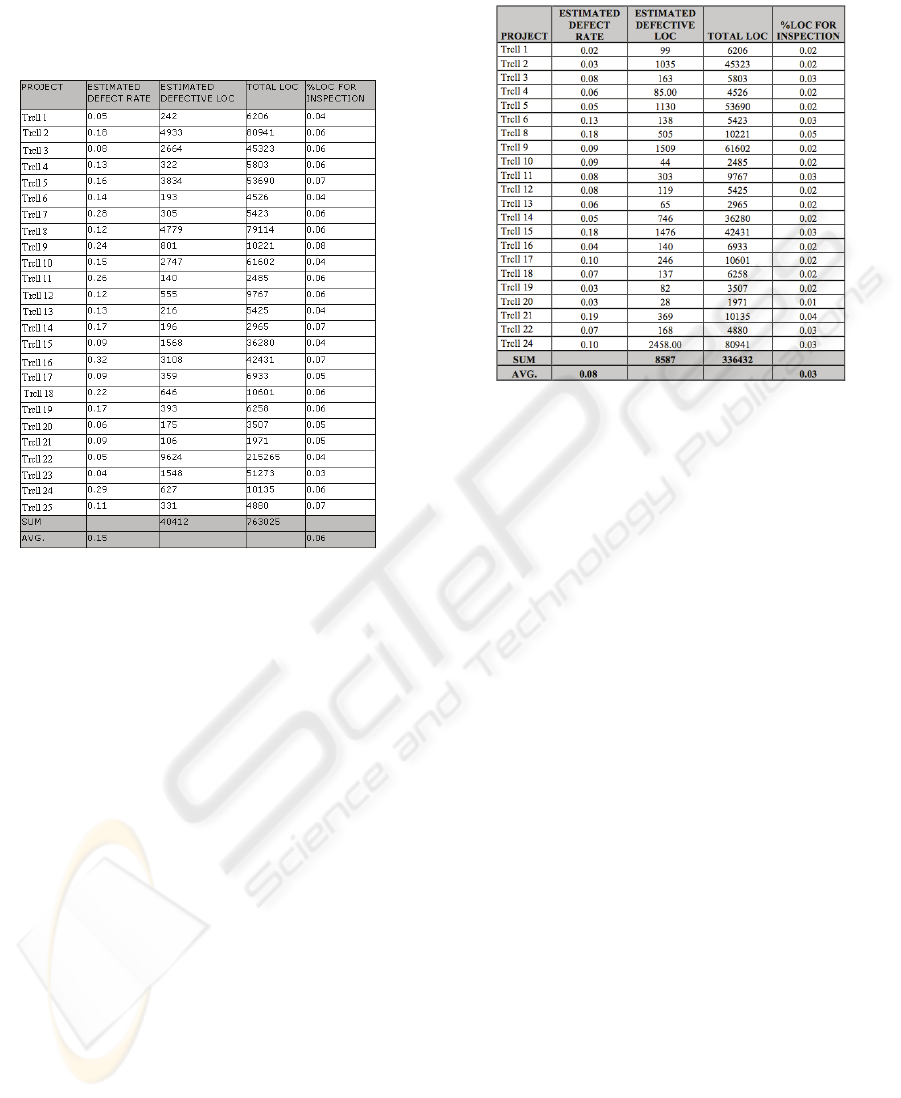

Figure 4 shows the results from the first analysis.

The estimated defect rate is %15 that is consistent

with the rule-based model’s estimation. However,

there is a major difference between the two models

in terms of their practical implications. For the rule-

based model, estimated defective LOC corresponds

to 45% of the whole code, while module level defect

rate is 14% on the other hand; for the learning-based

model, estimated defective LOC corresponds to only

6% of the code, where module level defect rate is

still estimated as 15%.

This significant difference is occurred because

rule base model makes decisions based on individual

ICSOFT 2008 - International Conference on Software and Data Technologies

286

metrics and it has a bias towards more complex and

larger modules. On the other hand learning based

model combines all ‘signals’ from each metric and

estimates that defects are located in smaller

modules.

Figure 4: Analysis #1 results.

5.2 Analysis #2

We argue that module interactions play an important

role in determining the complexity of the overall

system rather than assessing modules individually.

Therefore in a previous research (Kocak et.al. 2008)

a model is proposed to investigate the module

interactions with static call graphs. Kocak et.al.

proposed the call graph based ranking (CGBR)

framework that is applicable to any static code

metrics based defect prediction model.

To implement CGBR framework we created

NxN matrix for building the call graphs where N is

the number of modules. In this matrix, rows contain

the information whether a module calls the others or

not. Columns contain how many times a module is

called by other modules. Inspired from the web page

ranking methods, we treated each caller-to-callee

relation in the call graph as hyperlinks from a web

page to another. We then assigned equal initial ranks

(i.e. 1) to all modules and iteratively calculated

module ranks using PageRank algorithm.

In this study we analyzed the static call graph

matrices for only 22 projects, since the other 3

projects were so large that their call graph analysis

were not completed at the time of writing this paper,

due to high memory requirements.

Figure 5: Analysis #2 results.

In analysis #2, we have calculated CGBR values,

quantized them into 10 bins and assigned each bin, a

weight value from 0.1 to 1 considering their

complexity levels. Then, we have adjusted the static

code attributes by multiplying each raw in the data

table with corresponding weights, before we trained

our model as in Analysis #1.

Figure 5 shows the results of analysis #2. In

order to catch 70% of the defects, the second model

proposes to investigate only 3% proportion of the all

code.

6 CONCLUSIONS

In this study we investigate how to predict fault-

prone modules in a large software system. We have

performed an average case analysis for the 25

projects. This analysis shows that the software

modules were written using relatively low number of

operands and operators to increase modularity and to

decrease maintenance effort. However, we have also

observed that the code base was purely commented,

which makes maintenance a difficult task.

Our initial data analysis revealed that a simple

rule-based model based on recommended standards

on static code attributes estimates a defect rate of

15% and requires 45% of the code to be inspected.

This is an impractical outcome considering the scope

of the system. Thus, we have constructed learning

based defect predictors and performed further

analysis. We have used a cross-company NASA data

PREDICTING DEFECTS IN A LARGE TELECOMMUNICATION SYSTEM

287

to learn defect predictors, due to lack of local

module level defect data.

The first analysis confirms that the average

defect rate of all projects was 15%. While the simple

rule based module requires inspection of 45% of the

code, the learning based model suggested that we

needed to inspect only 6% of the code. This is from

the fact that rule based model has a bias towards

more complex and larger modules, whereas learning

based model predicts that smaller modules contain

most of the defects.

Our second analysis results employed data

adjusted with CGBR framework and improved the

estimations further and suggested that 70% of the

defects could be detected by inspecting only 3% of

the code.

Our future work consists of collecting local

module level defects to be able to build within-

company predictors for this large telecommunication

system. We also plan to use file level code churn

metrics in order to predict production defects

between successive versions of the software.

ACKNOWLEDGEMENTS

This research is supported by Boğaziçi University

research fund under grant number BAP 06HA104,

the Turkish Scientific Research Council

(TUBITAK) under grant number EEEAG 108E014

and Turkcell A.Ş.

REFERENCES

Bell, R.M., Ostrand, T.J., Weyuker, E.J., July 2006.

Looking for Bugs in All the Right Places. Proc.

ACM/International Symposium on Software Testing

and Analysis (ISSTA2006), Portland, Maine, pp. 61-

71.

Boetticher, G., Menzies, T., Ostrand, T., 2007. PROMISE

Repository of empirical software engineering data

http://promisedata.org/repository, West Virginia

University, Department of Computer Science.

Fenton N.E. and Neil M., A critique of software defect

prediction models. IEEE Transactions On Software

Engineering (1999) vol. 25 pp. 675-689

Fenton, N.E., Ohlsson, N., Aug 2000. Quantitative

Analysis of Faults and Failures in a Complex Software

System. IEEE Trans. on Software Engineering, Vol

26, No 8, pp.797-814.

Kocak, G., Turhan, B., Bener, A., 2008. Software Defect

Prediction Using Call Graph Based Ranking (CGBR)

Framework, to appear in Proceedings of

EUROMICRO SPPI (2008), Parma, Italy.

Koru, A. G., Liu, H., 2005. An Investigation of the Effect

of Module Size on Defect Prediction Using Static

Measures. Proceeding of PROMISE 2005, St. Louis,

Missouri, pp. 1-6.

Koru, A. G., Liu, H., Nov.-Dec. 2005. Building effective

defect-prediction models in practice Software, IEEE,

vol. 22, Issue 6, pp. 23 – 29.

Malaiya, Y. K., Denton, J., 2000. Module Size

Distribution and Defect Density, ISSRE 2000, pp. 62-

71.

Menzies, T., Greenwald, J., Frank, A., 2007. Data Mining

Static Code Attributes to Learn Defect Predictors,

IEEE Transactions on Software Engineering, 33, no.1,

2-13.

Menzies, T., Turhan, B., Bener, A., Distefano, J., 2007.

“Cross- vs within-company defect prediction studies”,

Technical report, Computer Science, West Virginia

University.

NASA, “WVU IV&V facility metrics data program.”

[Online]. Available: http://mdp.ivv.nasa.gov

Ostrand, T.J., Weyuker., E.J., July 2002. The Distribution

of Faults in a Large Industrial Software System. Proc.

ACM/International Symposium on Software Testing

and Analysis (ISSTA2002), Rome, Italy, pp. 55-64.

Ostrand, T.J., Weyuker, E.J., Bell, R.M., July 2004.

Where the Bugs Are. Proc. ACM/International

Symposium on Software Testing and Analysis

(ISSTA2004), Boston, MA.

Ostrand, T.J., Weyuker, E.J., Bell, R.M., April 2005.

Predicting the Location and Number of Faults in Large

Software Systems. IEEE Trans. on Software

Engineering, Vol 31, No 4.

Ostrand, T.J., Weyuker, E.J., Bell, R.M., July 2007.

Automating Algorithms for the Identification of Fault-

Prone Files. Proc. ACM/International Symposium on

Software Testing and Analysis (ISSTA07), London,

England.

Turhan, B., Bener, A., 2008. Data Sampling for Cross

Company Defect Predictors, Technical Report,

Computer Engineering, Bogazici University.

Turhan , B., Bener, A., A Multivariate Analysis of Static

Code Attributes for Defect Prediction. Quality

Software, 2007. QSIC '07. Seventh International

Conference on (2007) pp. 231 - 237

Nagappan, N. and Ball T., Explaining failures using

software dependences and churn metrics. Technical

Report, Microsoft Research (2006)

Zhang, H., On the Distribution of Software Faults.

Software Engineering, IEEE Transactions on (2008)

vol. 34 (2) pp. 301-302

Zimmermann, T., Nagappan, N. Predicting Subsystem

Failures using Dependency Graph Complexities.

Technical Report, Microsoft Research (2006).

ICSOFT 2008 - International Conference on Software and Data Technologies

288
