ONTOLOGY FOR SOFTWARE CONFIGURATION

MANAGEMENT

A Knowledge Management Framework for Software Configuration Management

Nikiforos Ploskas

TELETEL SA, 124, Kifissias Avenue, 115 26 Athens, Greece

Michael Berger, Jiang Zhang, Lars Dittmann

COM·DTU, Technical University of Denmark, Oersteds Plads Bldg 343, DK-2800, Lyngby, Denmark

Gert-Joachim Wintterle

Alcatel-Lucent AG, Lorenzstr. 10, 70435 Stuttgart, Germany

Keywords: Knowledge Management, SCM, Ontology, OWL, Reasoner.

Abstract: This paper describes a Knowledge Management Framework for Software Configuration Management,

which will enable efficient engineering, deployment, and run-time management of reconfigurable ambient

intelligent services. Software Configuration Management (SCM) procedures are commonly initiated by

device agents located in the users gateways. The Knowledge Management Framework makes use of

Ontologies to represent knowledge required to perform SCM and to perform knowledge inference based on

Description Logic reasoning. The work has been carried out within the European project COMANCHE that

will utilize ontology models to support SCM. The COMANCHE ontology has been developed to provide a

standard data model for the information that relates to SCM, and determine (infer) which SW Services need

to be installed on the devices of users.

1 INTRODUCTION

The main objective of COMANCHE (COMANCHE,

2008) is to develop and validate a generic

framework for Software Configuration Management

(SCM), which will pave the way to the realization of

technically and commercially viable private spaces

incorporating ambient intelligence features. For this

purpose the project will specify and develop the

COMANCHE modular and scalable architecture

targeting the provision of consistent, secure, low-

cost (low-effort) SCM services across today’s

heterogeneous, and multi-vendor environments. The

realization of the COMANCHE SCM services

framework will be built on an adequate software

engineering and knowledge management

infrastructure that the project will deliver. The main

components of this infrastructure will be the

following:

i) The COMANCHE Knowledge Management

Framework, which will provide the means for

effectively conceptualising, organizing, discovering,

and exploiting the tremendous amounts of (currently

unorganised and scattered) attribute information,

pertaining to software configuration management.

ii) A modular component-based software

architecture and an adequate design methodology

and tool, which will effectively address the

engineering and run-time management of

reconfigurable software for ambient intelligent

networked services environments.

iii) A formal modelling methodology and a

consistency validation framework for capturing and

analysing the structure and run-time behaviour of

distributed software systems. This approach will aim

to preserve the integrity of the target networked

services environments in terms of allowing

software-configuration error detection and recovery

257

Ploskas N., Berger M., Zhang J., Dittmann L. and Wintterle G. (2008).

ONTOLOGY FOR SOFTWARE CONFIGURATION MANAGEMENT - A Knowledge Management Framework for Software Conﬁguration Management.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 257-264

DOI: 10.5220/0001887802570264

 SciTePress

across present complex, and multi-vendor private

spaces.

This paper will mainly focus on i) The

COMANCHE Knowledge Management Framework

and furthermore it will present an innovative,

concrete methodology for performing SCM by

means of logical inference in the developed

COMANCHE ontology. The idea of using

ontologies for SCM is not new (Arantes, 2007),

(Asikainen, 2004), (Shahri, 2007), but this paper

proposes a novel procedure for SW configuration

using available of-the-shelf ontology inference

engines (reasoners).

The organization of the paper is as follows: In

the following section 2, a small example is provided

to illustrate the principles of knowledge inference

for software configuration management. The simple

examples provided in this section illustrate some of

the principles of the COMANCHE ontology

presented later. Following this, section 3 presents the

SCM provider Infrastructure that is responsible for

the coordination of SCM procedures and derivation

of SCM decisions. Section 4 describes the

Knowledge management framework which is

responsible for maintaining the COMANCE

ontology described in section 5. Finally, section 6 is

the conclusion.

2 KNOWLEDGE INFERENCE

A small example is provided here to illustrate the

principles of knowledge inference for software

configuration management. It is assumed that a VCR

device is going to be installed in a home

environment already equipped with a TV set and Set

Top Box (STB). The objective of the SCM

procedure is then to determine an appropriate

software configuration for the new VCR device. The

first step is to determine candidate SW services that

fulfil the needs of the new device. Available SW

services are described by a service Ontology.

Figure

1 shows an example Ontology for a SW service

denoted VCR_Service_1.

The behaviour of the service is described by the

VCR_Service1_profile class. This class basically

defines the properties of the service in terms of

functionality, e.g. inputs and results. Furthermore,

the ontology specifies dependencies by the

dependsOn property and the supportsDevices

property indicates the hardware platforms

compatible with the service. The typeOfService

property specifies that VCR_Service_1 is a

VCRService and the property isDeliveredBy gives

the vendor of the SW service.

VCR_Service_1

VCR_Service1_

profile

TVServices

STBServices

VCR_vendor_1

VCR_vendor_2

VCRServices

Vendor

dependsOn

supportsDevices

typeOfService

isDeliveredBy

Parameters

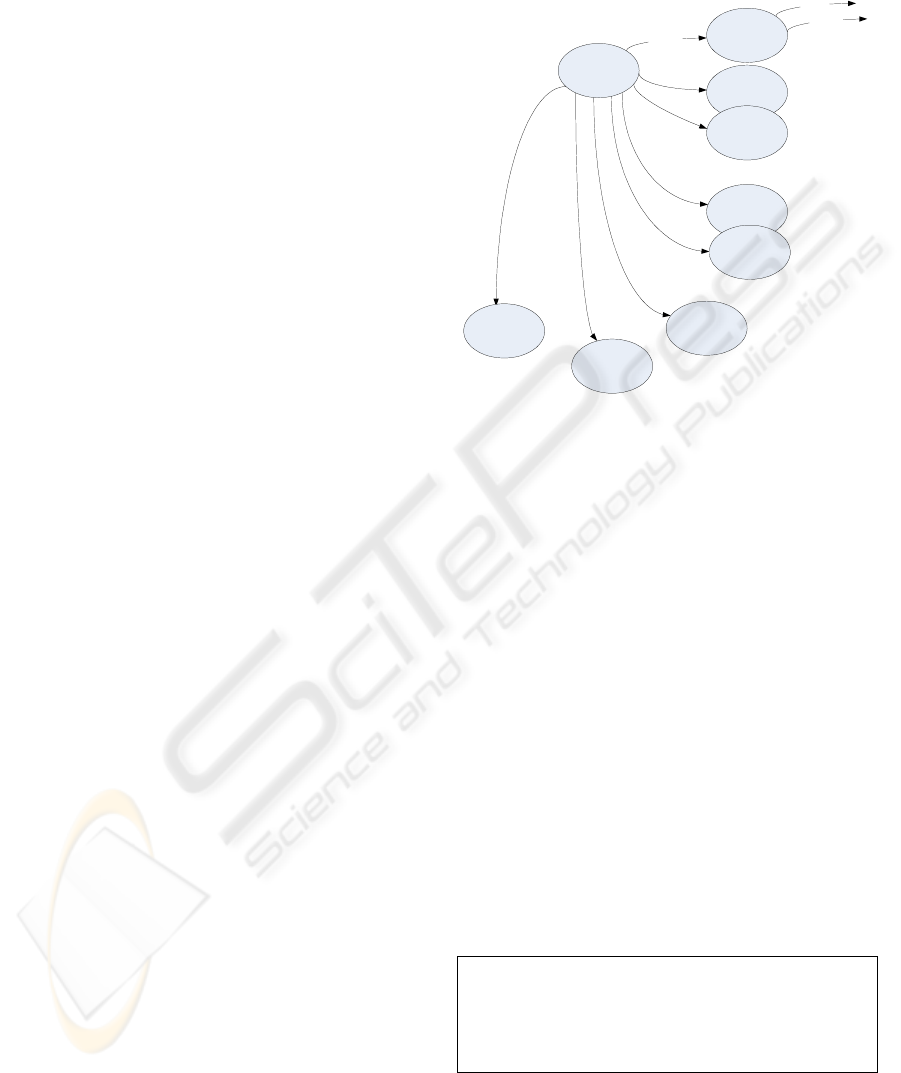

Figure 1: Ontology for a specific VCR service:

VCR_service_1.

The behaviour of the service is described by the

VCR_Service1_profile class. This class basically

defines the properties of the service in terms of

functionality, e.g. inputs and results. Furthermore,

the ontology specifies dependencies by the

dependsOn property and the supportsDevices

property indicates the hardware platforms

compatible with the service. The typeOfService

property specifies that VCR_Service_1 is a

VCRService and the property isDeliveredBy gives

the vendor of the SW service.

In this example the Protégé OWL [5] Ontology

editor is used to manage the ontologies. It is

assumed that a new VCR SW service is going to be

installed. The VCR is delivered by Company_X and

it is a requirement that the service supports pause of

live TV transmissions. To obtain a list of available

candidate services, a new class

VCRAvailableServices is defined with an equivalent

class in Protégé syntax as shown in

Figure 2.

Service

and supportsDevices some VCR_COMPANY_X

and behaviour some (ServiceProfile

and hasResults some Pause_live_TV)

and typeOfService some VCRServices

Figure 2: Equivalent class definition for

VCRAvaliableServices.

ICSOFT 2008 - International Conference on Software and Data Technologies

258

The goal is to determine available candidate

services that fulfil the equivalent class definition

above. This is obtained by inference performed by a

Reasoner, in this case FaCT++ [6]. The reasoner

derives an inferred class hierarchy for the Ontology,

and in this case, the reasoner infers that

VCR_Service_1 and VCR_Service_2 are subclasses

of VCRAvaliable services, see

Figure 3.

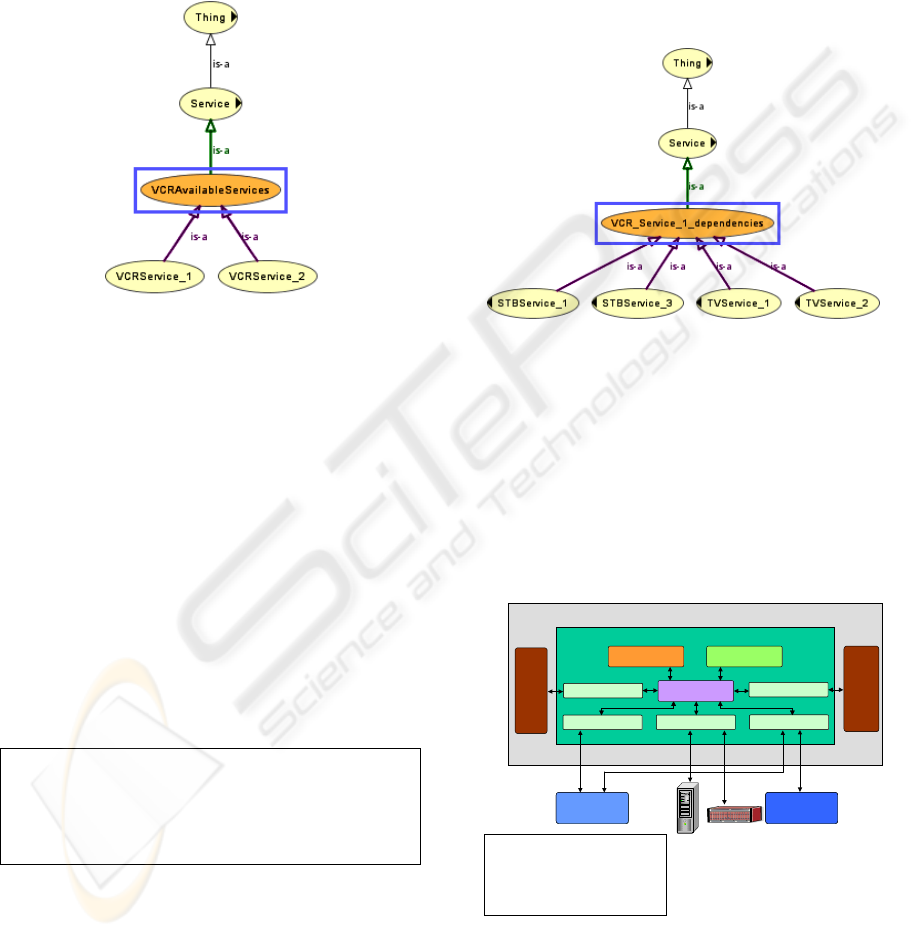

Figure 3: Inferred class hierarchy.

Based on the inferred class hierarchy it is

concluded that the two SW services VCR_Service_1

and VCR_Service_2 fulfils the requirements to be

installed on the actual VCR device.

Assuming that VCR_service_1 is selected, the

next step is to determine any services that need to be

installed on dependent devices i.e. the TV and STB.

In this example it is assumed that the STB is

provided by Company_Y and the TV is provided by

Company_Z. In order to determine dependent

services for the STB and TV, a new class is defined

in the Ontology. The class name is

VCR_Service_1_dependencies and the equivalent

class definition is shown in

Figure 4. Note that an

invDependsOn property has been defined as the

inverse of the DependsOn property.

Service and

(supportsDevices some STB_COMPANY_Y) or

(supportsDevices some TV_COMPANY_Z)

and typeOfService some (ServiceType

and invDependsOn some VCRService_1)

Figure 4: Equivalent class definition for

VCR_Service_1_dependencies.

Again, the reasoner is activated to infer classes

representing services that must be installed on the

dependent devices. The inferred class hierarchy that

the reasoner calculates is shown in Figure 5. Based

on the inferred class hierarchy it is concluded that

the SW services STBService_1, STBService_3,

TVService_1 and TVService_2 should be installed

on STB_COMPANY_Y and TV_COMPANY_Z

respectively. These inferred services may have been

installed already or they may have further

dependencies that have to be resolved by similar

procedures. The following section will provide

details on the framework in which the inference

takes place.

Figure 5: Inferred Class hierarchy.

3 SCM PROVIDER

INFRASTRUCTURE

The SCM Engine is the heart of the COMANCHE

architecture. The SCM Engine is responsible for the

coordination of SCM procedures and the derivation

of SCM decisions.

Service Selector

SCV InterfaceSCV Interface

SCMC InterfaceSCMC Interface EC InterfaceEC Interface

KMF InterfaceKMF Interface

UIC InterfaceUIC Interface

SCM Engine

SCM Flow Manager

Service Composer

Service Consistency

Validator

Knowledge

Management

Framework

SCM Provider Infrastructure

Home Service

Provider

Home Service

Provider

SCM GWSCM GW

Web Server

Home GW

SCV: Service Consistency Validator

KMF: Knowledge Management Framework

EC: Event Collection

UIC: User Input Collection

SCMC: SCM Coordination

Figure 6: Functional architecture and interfaces of SCM

Engine.

An SCM procedure is treated as what is commonly

known as a service composition procedure. The

ONTOLOGY FOR SOFTWARE CONFIGURATION MANAGEMENT - A Knowledge Management Framework for

Software Configuration Management

259

intelligence of the SCM Engine will largely depend

on the use of the COMANCHE ontology. In this

context, the SCM Engine will select service

components (i.e. SW Services and Internet Services)

and will synthesise Composite Service Descriptions

(CSDs). A Composite Service Description (CSD) is

the specification of the software configuration of a

Home Environment. It specifies which SW Services

(SW Components) will need to be installed on which

devices of the Home Environment, and how these

services will need to be configured on each device.

SCM procedures are typically triggered by device

agents on the SCM GW. Configuration is done

through the Device Agent entity that realises a web

service based interface towards the SCM engine.

The main functional purpose of the Service

Selector is the matching of SCM needs to Service

Profiles. SCM requirements will be represented by

the instantiations of the Home Environment and

Context Ontology (integrated in the COMANCHE

ontology). Service Profiles will be represented by

the instantiations of the Service Profile Ontology

(also integrated in the COMANCHE ontology).

The main functional purpose of the Service

Composer is the synthesis of Composite Service

Descriptions (CSDs). A successful, executable

composition correctly combines and configures a set

of compatible components to achieve the

composition’s overall goal. Full automation of

composition is still the object of ongoing, highly

speculative research with little short-term hope

(Kim, 2004). However, partial automation of

composition, with a human controller as the most

significant decision mechanism, seems a feasible

goal. The Service Composer will adopt a user

interactive approach for service composition and

configuration. Relatively simple, fully automated

SCM cases will only be considered for a limited set

of remote diagnostics and repair applications. The

Service Composer functionality will be primarily

based on the use of the Service Process Model. User

input as well as instantiations of the Home

Environment and Context Ontology and User and

Business Domain Ontology will be queried and

exploited for this purpose.

The SCV (Service Consistency Validator)

Interface will be used for interacting with the

Service Consistency Validator of the SCM Provider

Infrastructure. The SCV Interface will be internal to

the SCM Provider infrastructure. The SCM Engine

will make use of this interface in order to request the

execution of off-line consistency validation tests

with regard to a formulated CSD. The output of

these tests will be communicated by the Consistency

Validator to the SCM Engine.

The UIC (User Input Collection) Interface will

serve interactions with users. The UIC Interface will

be external to the SCM Provider infrastructure. It

will be based on the use of Web Services (WSDL,

SOAP). The UIC Interface will allow the interaction

of the SCM Engine with the back-end of a Web

Server or a Home Gateway or any other network

element exposing a user interface.

The EC (Event Collection) Interface will allow

the collection of SCM-related events. These events

will be collected from Home Service Providers (e.g.

a device fault event reported by a remote diagnostics

service provider, a request for a service upgrade,

etc), home gateways (e.g. a malfunction detection

event), and SCM Gateways (Service Execution

Errors). Apart from the interface with the SCM

Gateways allowing the notification of Service

Execution Errors, all other interfaces with Home

Service Providers, and Home Gateways will be

considered as proprietary and out of the scope of the

present specification.

The KMF Interface is the Knowledge

Management Framework interface. All requests that

need to be done to the KMF will be carried out by

this interface. This includes fetching ontology

instantiations and the update of the Knowledge Base

according to events received by the SCM Engine’s

EC Interface.

The SCM Flow Manager is responsible for the

coordination of the operations performed by the

SCM Engine. All messages and flows are controlled

by this component, so that the procedures the SCM

Engine is responsible for can be carried out

successfully.

4 KNOWLEDGE MANAGEMENT

FRAMEWORK

The Knowledge Management Framework (KMF) is

responsible for formulating and maintaining valid

and consistent instantiations of the COMANCHE

ontology. These instantiations are created through

discovering and collecting/importing knowledge

from Attribute Providers and Context Providers as

depicted in

Figure 7. The KMF is composed of a

number of components that are described in detail

bellow:

Attribute Providers. The Attribute Providers

publish and supply persistent knowledge

instantiations relating to services, user profiles, and

ICSOFT 2008 - International Conference on Software and Data Technologies

260

business domain relations. This knowledge

instantiations are structured (by the Attribute

Providers) using the Service Ontology and User

Profile and Business Domain Ontology. Attribute

Providers can be SW Providers publishing

knowledge about their SW, Service Providers

publishing knowledge about their Services, Device

Manufacturers publishing knowledge about their

Devices, etc

Knowledge

Manager

Knowledge

Manager

Attribute

Providers

Attribute

Providers

SCM Provider Infrastructure

Knowledge

Registry

Knowledge Publishing

Attribute

Knowledge

Base

Attribute

Knowledge

Base

Context

Knowledge

Base

Context

Knowledge

Base

SCM Engine

Requests for knowledge

instantiations

Conflict-free

knowledge delivery

Context

Providers

Context

Providers

Events

SCM Knowledge Repository

Knowledge

Discovery

Downloading

of Ontology

instantiations

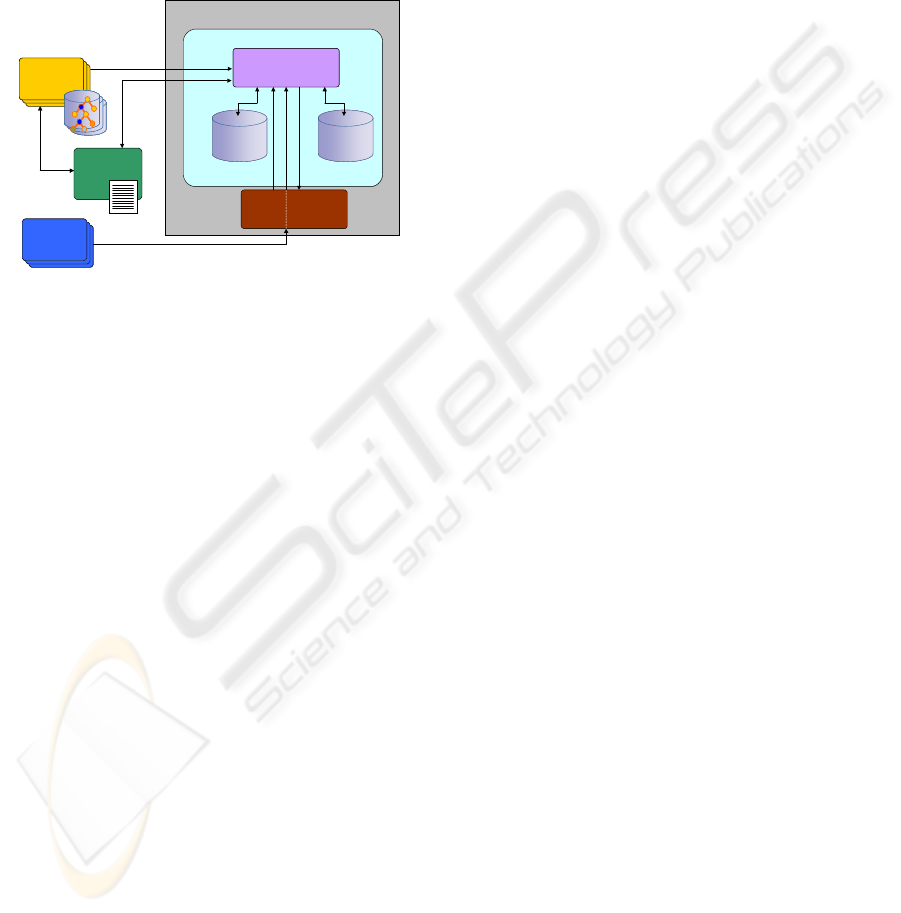

Figure 7: Functional architecture of the COMANCHE

Knowledge Management Framework.

Context Providers. The Context Providers supply

dynamic context information regarding Home

Environments. This information is communicated in

the form of appropriately structured event messages

and mapped on the Home Environment and Context

Ontology. Within the COMANCHE framework,

Context Providers are the SCM Gateways, home

gateways, and Service Providers (e.g. a Remote

Diagnostics & Maintenance Provider may report the

event of a device fault).

Knowledge Manager. The Knowledge Manager is

a key component to the implementation of the SCM

Knowledge Repository. It is responsible for the

following main tasks:

• Receive (by the SCM Engine) and process

requests for the delivery of conflict-free

knowledge instantiations.

• Discovery of knowledge instantiations across

different Attribute Providers based on the

aforementioned requests. For this purpose, the

Knowledge Manager will need to formulate

appropriate queries to the Knowledge Registry.

• Mapping of the information contained in event

messages received by Context Providers onto

the Home Environment and Context Ontology.

• Resolving of potential conflicts identified in the

knowledge instantiations discovered across

different Attribute Providers and Resolving of

potential conflicts identified in the information

received by Context Providers. The

trustworthiness of the different Attribute

Providers will be the key criterion for achieving

this. In addition, the Knowledge Manager will

need to be capable of inference. An off-the-self

inference engine (reasoner) will be used for this

purpose (e.g. FaCT++ Reasoner).

• Importing of conflict-free knowledge

instantiations in the Attribute and Context

Knowledge Bases.

• Delivery of consistent knowledge instantiations

to the SCM Engine in order to be exploited for

SCM.

Attribute and Context Knowledge Base. The

Attribute Knowledge Base consists of the Service

Ontology, User Profile and Business Domain

Ontology, the parts of the Home Environment and

Context ontology that contain static information on

software and devices, as well as their conflict-free

instantiations.

The Context Knowledge Base consists of the

dynamic part of the Home Environment and Context

Ontology, as well as its conflict-free instantiations.

Knowledge Registry. This component enables the

discovery of the different Attribute Providers by the

SCM Services Providers. Attribute providers use the

registry interface for publishing attribute knowledge.

Semantically enhanced UDDI (Universal

Description, Discovery, and Integration) services are

employed for this purpose as it is detailed in the

following section:

5 THE COMANCHE ONTOLOGY

The purpose of the ontology is to provide a standard

data model for the information that relates to SCM,

and determine (infer) which SW Services need to be

installed on the devices of users. The inference is

based on a number of selection principles as

described in the following:

Selection of a SW Service depending on a Desired

Device Function. The actual device in question is

defined as an individual, e.g. the individual

Bob_Washing_Machine belongs to the class

Bob_devices. The desired device functions are

described by the needsToSupport property as object

properties of the device, e.g needsToSupport

Washing_Of_Silk_Clothes and needsToSupport

Washing_Of_Colored_Clothes, where

Washing_Of_Silk_Clothes and

ONTOLOGY FOR SOFTWARE CONFIGURATION MANAGEMENT - A Knowledge Management Framework for

Software Configuration Management

261

Washing_Of_Colored_Clothes are also defined as

individuals in the ontology.

Selection of a SW Service depending on

Compatibility with a Device SW Platform. The

SW service configuration will depend on the device

vendor, i.e. the vendor of Bob_Washing_Machine.

The actual device model is described by the

hasDeviceModel property as object properties of the

device, e.g. hasDeviceModel

CompanyX_Washing_Machine_0001. Changing the

device model would lead to new SW services to be

installed on the device.

Selection of a SW Service depending on the

Subscriptions of the Device Owner. The owner

Bob of Bob_Washing_Machine is defined as an

individual in the Ontology. A property

holdsUserSubscription is used to describe which SW

services that the user Bob is subscribed to. SW

services that the user does not subscribe to would

not be installed on the device.

Selection of a SW Service depending on whether

the Software Provider is Trusted by the Device

Manufacturer. As in the example above it is

assumed that the device model of

Bob_washing_Machine is

CompanyX_Washing_Machine_0001. This is also

an individual that will connect to the vendor, in this

case CompanyX, through a hasManufactorer

property. Trusted SW providers for CompanyX is

declared by a hasTrustedThirdParty property.

Selection of SW Services for Gateway Devices.

The target device of a SW_Service is the device that

will make use of its functionality. The previous

examples referred to SW Services that are installed

on the target device (i.e. Bob_Washing_Machine). It

may be the case that a SW Service is not installed on

the target device but on a different device (e.g. a

Home Gateway or a Control Point) that connects to

it. This type of devices that host SW Services to be

used by other devices are termed as Gateways in the

ontology.

Selection of SW Services in Accordance with

known Dependencies between SW Services.

Dependencies between software services are

described by the dependsOn property, e.g.

SW_service_7 dependsOn SW_service_5.

Dependencies could be organised in a dependency

tree but due to the transitiveness of the dependsOn

property, the tree can be automatically flattened by

the inference procedure.

5.1 Equivalent Class Definition

Based on the SW service selection principles above,

the main achievement has been the equivalent class

definition in the Ontology that allows the reasoner to

infer SW service configuration, see

Figure 8.

(toBeInstalledOnDeviceType some

(inverse_of_isOfDeviceType value

Bob_Washing_Machine))

or (inverse_of_dependsOn some

(toBeInstalledOnDeviceType some

(inverse_of_isOfDeviceType value

Bob_Washing_Machine)))

and (inverse_of_dependsOn some

(inverse_of_containsService some

(inverse_of_holdsUserSubscription some (owns value

Bob_Washing_Machine))))

or (inverse_of_containsService some

(inverse_of_holdsUserSubscription some (owns value

Bob_Washing_Machine)))

and (inverse_of_dependsOn some (compatibleWith

some (inverse_of_hasSWPlatform some
