QUALITY AND VALUE ANALYSIS OF

SOFTWARE PRODUCT LINE ARCHITECTURES

Liliana Dobrica

Faculty of Automation and Computers, University Politehnica of Bucharest

Spl. Independentei 313, Bucharest, Romania

Eila Niemela

VTT Technical Research Centre of Finland, Oulu, Finland

Keywords: Software architecture, analysis methods, quality attributes, product line.

Abstract: The concern of a software product line architecture systematic analysis is how to take better advantage of

views and analyze value and quality attributes in an organized and repetitive way. In this approach

architecture descriptions evolve from the conceptual level to a more concrete level. Architecture analysis at

the conceptual level provides a knowledge base of the domain architecture so as to perform a more

comprehensive analysis of quality attributes at the concrete level description. Concrete architecture

descriptions permit more relevant and accurate scenario-based analysis results for the development of

quality attributes such as portability and adaptability.

1 INTRODUCTION

A product line (PL) is a set of products that together

address a particular market segment or fulfil a

particular mission. Once a PL is established, new

products that belong to the PL can be developed

quickly and to a high quality. Although the concept

of PL is well known in industrial manufacturing

(

Tharumarajah et al, 1996), it is a complex and

growing research field in software engineering that

raises a lot of significant technical and

organizational problems. Some of the issues about

PL are related to the process of initiation. Software

PL does not appear accidentally, but requires a

purposeful and definite effort from the organization

interested in using a PL approach. The revolutionary

initiation into a new PL means that product-line

architecture and components are developed to match

the requirements of all expected PL members, before

developing the first product in a new domain.

Product line architecture (PLA) is an adaptable

architecture that is applied to a set of products on a

PL and from which the software architecture of each

product can be derived. PLA includes commonality

and variability, indicating what can respectively be

common and different among members of a set of

PL products. PLA is the first step that shows results

of the earliest design decisions about a family of

software products. Taking good decisions could lead

to reduce costs and risks. In the case of software

architecture (SA) for single products analysis

methods are mature enough and several have been

presented and compared in a survey (Dobrica et al

2002). When considering software PLA analysis

methods a strategy for analyzing PLA is introduced

in (Dobrica et al 2000). The open problem of a PLA

analysis method is how to take better advantage of

architectural concepts and analyze quality attributes

in software PL in a systematic way. It is also very

important to identify potential risks and to verify

that the quality requirements of the PL domain have

been addressed in the PLA design. The PLA must

not only conform to the quality requirements for

each PL member, but it must also be generic and

adaptable to the whole PL domain. It is important to

know how reusable and flexible to anticipated

changes PLA is so as to maximize reusability and to

minimize possible changes in functionality required

by various product members.

Dobrica L. and Niemela E. (2008).

QUALITY AND VALUE ANALYSIS OF SOFTWARE PRODUCT LINE ARCHITECTURES.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 64-71

DOI: 10.5220/0001888700640071

 SciTePress

2 BACKGROUND

2.1 PLA Representation

There are several architectural development

approaches that can be adopted in PLA

representation. The Model-driven Architecture

(Miller J and Mukerji J, 2003) is an approach that

guides the specification of information systems. The

idea is to separate descriptions of functionality from

the implementation specifications. Implementation

independent descriptions of functionality last longer

than implementation specifications that change as

soon as a better technology is available. In MDA, a

model means a formal specification of part of the

function, structure and/or behavior of a system. A

formal specification expects either textual or

graphical language with strictly defined syntax and

semantics. Other design approaches concentrates on

multiple views of an architecture. An architectural

view is a representation of a whole system from a

perspective of a related set of concerns (ISO/IEC

42010, 2007). View-oriented design approaches start

with 4+1 approach (Krutchen, 1995), after which

other news have been introduced (Jaaksi A et al,

1999) (Hofmeister et al, 2000). Among these

approaches there is no agreement on a common set

of views or on the way to describe SA. The need for

different architectural views depends on three issues:

the size, the domain and the number of different

stakeholders. Although a multiple view approach

helps in developing software products, it is easy to

introduce errors and inconsistencies in a multiple

view model. It is therefore necessary to provide

support for consistency checking among the multiple

views.

Figure 1: Product line architecture views.

The goal of the design of a PLA is to address

every stakeholder’s concerns and to satisfy the win

conditions of all of the stakeholders. Stakeholders

determine the necessary views of architecture. So,

the most significant challenge for PLA

representations is to support useful and consistent

views of the architecture from multiple perspectives.

Works has been done on software architectural

views and the way to relate to them (Krutchen

1995), (IEEE 2000), and (Purhonen et al 2004). In

our method architecture views evolve from the

conceptual level description to a more concrete level

during design (Figure 1). Conceptual means abstract,

i.e. delayed design decisions concerning, e.g.

technologies to be selected or details in

functionality, whereas the concrete abstraction level

illustrates the realization of conceptual architecture.

Architecture design produces descriptions at both

abstraction levels from four viewpoints: structural,

behaviour, deployment and development. The

structural view is concerned with the composition of

software components, whereas the behaviour view

takes the dynamics into consideration. The

deployment view refers to the allocation of software

components to various computing environments.

Variation in space is an integral part of the first three

views, contrary to the development view that

represents the categorization and management of

domains, technologies and work allocation.

2.2 PLA Analysis

In (IEEE 1061,1998) software quality is defined as a

degree of software to process a desired combination

of quality attributes. The software quality model

(ISO/IEC 9126) defines six categories of

characteristics (functionality, reliability, usability,

efficiency, maintainability, and portability) that are

divided into subcharacteristics, which are externally

or internally observable properties of systems.

Scenario-based assessment is appropriate for

qualities related to software development, which are

specific to PLAs. Software qualities such as,

adaptability and portability can be expressed very

naturally through change scenarios. Portability is the

ease with which a system can be adapted to changes

in the technical environment and adaptability is the

ease with which a system can be adapted to changes

in the technical requirements. At first sight,

portability and adaptability very much look alike,

but they are not the same. The use of scenarios for

evaluating architectures is recommended as one of

the best industrial practices. By formulating a

number of scenarios, we can make each quality

attribute tangible, because a scenario capture what

we actually want to achieve with that quality

attribute. However, the evaluation depends on the

objectivity and creativity of the analyst who defines

and executes them.

The systematic quality analysis for both

conceptual and concrete architecture descriptions

takes into account scenarios The analysis may

Concrete

Structural

View

Concrete

Behavior

View

Co nc r ete

De ployment

Vie w

Concrete

De vel op m ent

View

Conceptual

Structural

View

Conceptual

Behavior

View

Conceptual

De ployment

Vie w

Conce pt ual

De vel op m ent

View

QUALITY AND VALUE ANALYSIS OF SOFTWARE PRODUCT LINE ARCHITECTURES

involve multiple views. Utilizing the architectural

constructs mentioned above, the method provides an

explicit and quality-driven link between software

requirements and architecture. The functionality that

the products need to support is decomposed in a

structural view. At a conceptual level, this view is

useful for understanding the interactions between

entities in the problem space, planning functionality

and understanding the domain variability, and hence

thereafter, the possibilities of initiating a PL. At a

concrete level the elements from which the system is

built could be essential for understanding the

maintainability, modifiability, reusability and

portability of a system. Behaviour view is important

to understand not only performance but also

reliability and security. Deployment view consists of

central processing units, memory, buses, networks or

input/output devices. Quality attributes relevant to

this view are availability, capacity and bandwidth.

Utilizing the architectural constructs mentioned

above, the method provides an explicit and quality-

driven link between requirements and architecture.

3 PLA SYSTEMATIC ANALYSIS

Before starting the development of a PL, a company

has to consider various issues in order to gain an

understanding of whether a PL is appropriate for

different technologies and businesses (Niemela et al

2001). In order to help make decisions about PL

scope, an evaluation that considers an appropriate

value metric is needed. The analysis is driven by

scenarios, but it identifies which changes are most

valuable reported to a market and it quantifies the

expected return on making that change. Since it is

developing a common architecture for a family of

products, the goal is to design an architecture that

encompasses all the PL members’ common features,

but which can be easily adapted to produce any

member of the family. This means that addressing

the variations among members should require no

change, or very little change to the common

architecture.

3.1 Value Analysis

The idea is to provide a common framework and

metric for making decisions which bring together

business issues and product issues. To do so, a value

metric that makes sense in all these assumptions is

required, to help make decisions about PL scope.

The focus could be on including or excluding

capabilities from PL scope and measuring a relative

benefit, adopting PL solutions based on cost/benefit

decisions or considering technologies applicable

only due to PL (e.g. realizing a specific software tool

needed for a PL). An important element in PL

domain definition is the market, represented by

customers as stakeholders. Value analysis is similar

to quality function deployment (QFD) (Hauser et al

1988) in searching for to harmonize market (i.e.

customer) needs with product design. It differs in

that it seeks to measure the customer’s perception of

total delivered value more directly and accurately,

i.e. what the customer will actually consider

important for the product. Second, it directly

measures the difference between an organization’s

internal understanding of customer value and the

customer’s actual recognition. This provides a basis

for aligning a company internal view of delivered

value with market realities. Activities related to

value analysis are clustered in domain definition and

commonalty analysis (Figure 2).

Domain definition consists of scope, economic

analysis and value analysis (VA). Scope considers

the creation of a preliminary definition of the PL in

terms of commonalties and variabilities. Economic

analysis is concerned with the building of an

economic model of the product’s cost/return using

the company’s current software products and then

PL; these models may be used to determine the

expected return from adopting a PL approach. VA

is performed to help establish the relative value of

the possible variations in the potential scope of the

PL. In this context, change scenarios are created

based on how the product is expected to evolve to

meet market (i.e. customer) needs. The results are

used both to identify which changes are most

valuable and to predict the expected return on

making the change. The change scenarios are used

against the current architecture to determine the

expected cost of evolving a product without using a

PL. Then VA evaluates the costs and benefits of

each approach based on the value of the product

changes the market wants and the costs of making

such changes under each development paradigm.

Commonality analysis. This activity has the goal

of identifying and documenting the commonalties

and variabilities characterizing the software PL.

Also, the VA is refined by developing value metrics

based on the more detailed definition of expected

variations. This new iteration on VA aligns market

value data with the PL requirements. The

architecture quality analysis (AQA) is correlated

with the design activities that have the result PLA

model (Figure 2).

ICSOFT 2008 - International Conference on Software and Data Technologies

Figure 2: Using value in architectural analysis.

Here, a compositional approach to domain

architecture is considered, in which a common,

reusable architecture for the PL is developed. In

order to generate various members of the PL,

adaptable, parameterized components can be used

(e.g. as in CelsiusTech architectural case study (Bass

et al 1995)). As part of the modeling activity, the

architecture must be evaluated against its quality

requirements. In particular, a detailed, quantitative

evaluation of how well the architecture instantiates

the commonalties and accommodates the

variabilities that characterize the PL is desirable.

The purpose is both to assess the quality of a

conceptual or concrete architectural design relative

to the requirements and to quantify that measure of

quality so it can meaningfully compare different

designs. This considers the results of domain

definition and commonalty analysis (Figure 2).

3.2 PLA Quality Analysis at the

Conceptual Level

This phase focuses on becoming aware of the

available and required information to carry out the

analysis, and then to collect and assemble it. The PL

requirements define not only the PL scope, but also

represent the input used to create a knowledge base

of requirement taxonomy (Figure 3). Syntactic

architectural notations should be well understood by

the parties involved in the analysis. The result of an

evaluation process depends on how well the

description is made. This phase focuses on specific

SA analysis and the generation of artifacts to make

the analysis. Examples of artifacts include: domain

models (which help in comparing competing

architectures within the same functional area);

relevant architectural views; architectural styles;

environmental assumptions and constraints; and

trade-off rationale.

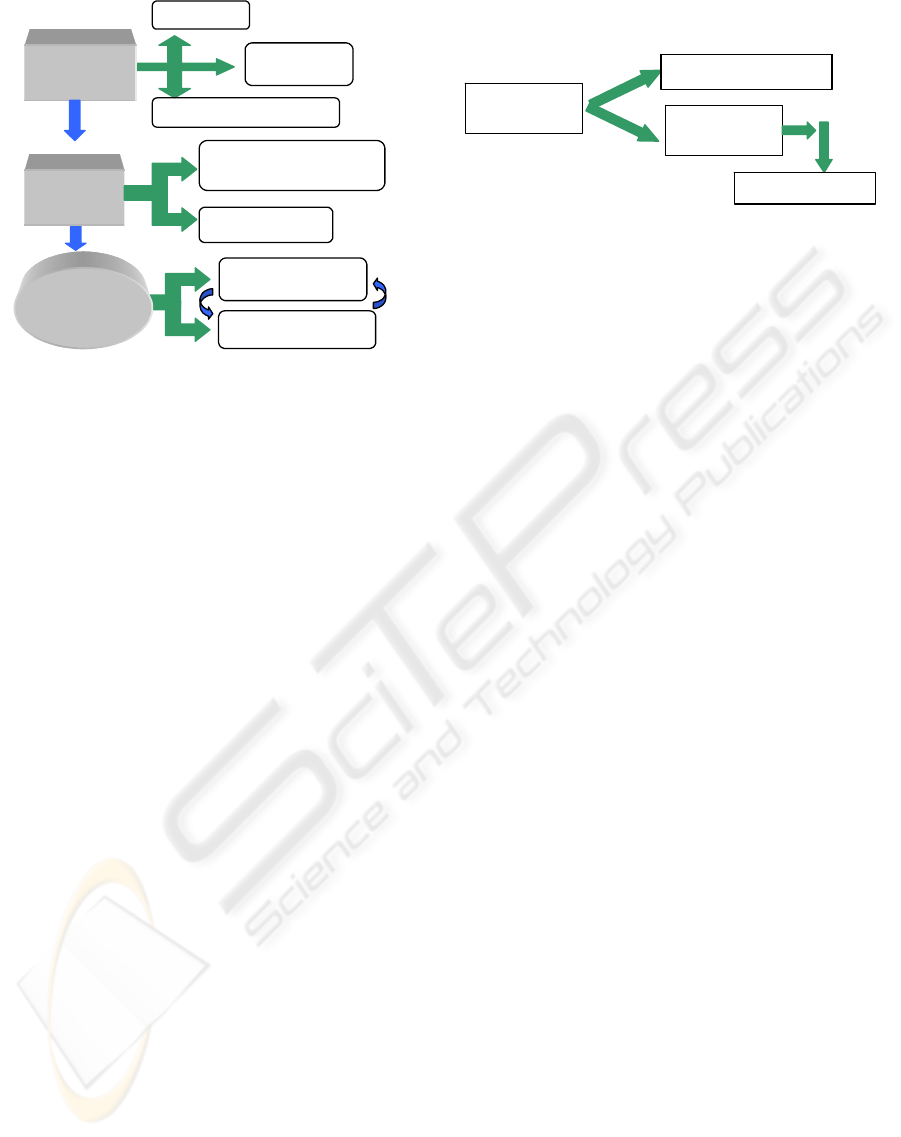

Figure 3: Conceptual software PLA analysis.

The role of a knowledge base is to allow

collections of architecture styles and patterns to be

evaluated in terms of both quality factors and

concerns, and anticipations of their use (Niemela et

al 2005). A ”pre-scored” of architectural patterns is

feasible in order to get a sense of their relative

suitability to meet particular quality requirements of

a system. In addition to evaluating individual

patterns, it is necessary to evaluate compositions of

patterns that might be used in architecture.

Identifying patterns that do not compose well (the

result is difficult to analyze, or the quality factors of

the result are in conflict with each other) should

steer a designer away from “difficult” architectures

towards those made of well-behaving compositions

of patterns. The knowledge base built in this way

helps to move from the notion of architectural styles

toward the ability to reason (whether quantitatively

or qualitatively) based on quality attribute-specific

models. The purpose of having a knowledge base is

to make architectural design more routine-like and

more predictable, to have a standard set of attribute-

based analysis questions, and to tighten the link

between design and analysis by means that can be

used to provide context-dependent measures. After

this phase, the activities of the concrete architecture

design and the second phase of architecture analysis

are performed.

3.3 PLA Quality Analysis at the

Concrete Level

In this phase recommendations are made, “hot

spots” in the architecture (areas of high predicted

complexity, large numbers of changes, performance

bottlenecks, etc.) are located and strategies for their

mitigation are enumerated, and common reference

models are identified. A detailed and quantitative

analysis, AQA, is developed by creating scenarios

based on the results of commonality analysis and

evaluating them based on the results of VA and an

analysis of the cost and benefits associated with

potential variations in the scope of the family.

1. Domain

Definition

3.Product-line

Architecture

1.1. Scoping

2.1. Commonalties and

variabilities identification

2.2. VA refinement

3.1. Design product

line architecture

3.2. Architectural quality

analysis (AQA)

Commonalty

Analysis

1.2. Economic

analysis

1.3. Value Analysis (VA)

creates

Taxonomy of

requirements

defines

analyzes

Product line

requirements

Product line Scope

Knowledge base

QUALITY AND VALUE ANALYSIS OF SOFTWARE PRODUCT LINE ARCHITECTURES

The knowledge base is attached to the PL scope in a

form of requirements’ taxonomy. This is used with

the aim to establish how adaptable the PLA is to the

expected changes related to this taxonomy. The

analysis considers PL specific techniques such as

commonality analysis, which systematically models

the required similarities and differences among PL

members. It is also considered that PLA contains the

common components of the architectures of the

product members and takes variabilities as possible

changes to this. The main inputs of the method are

the PL scope and PLA.

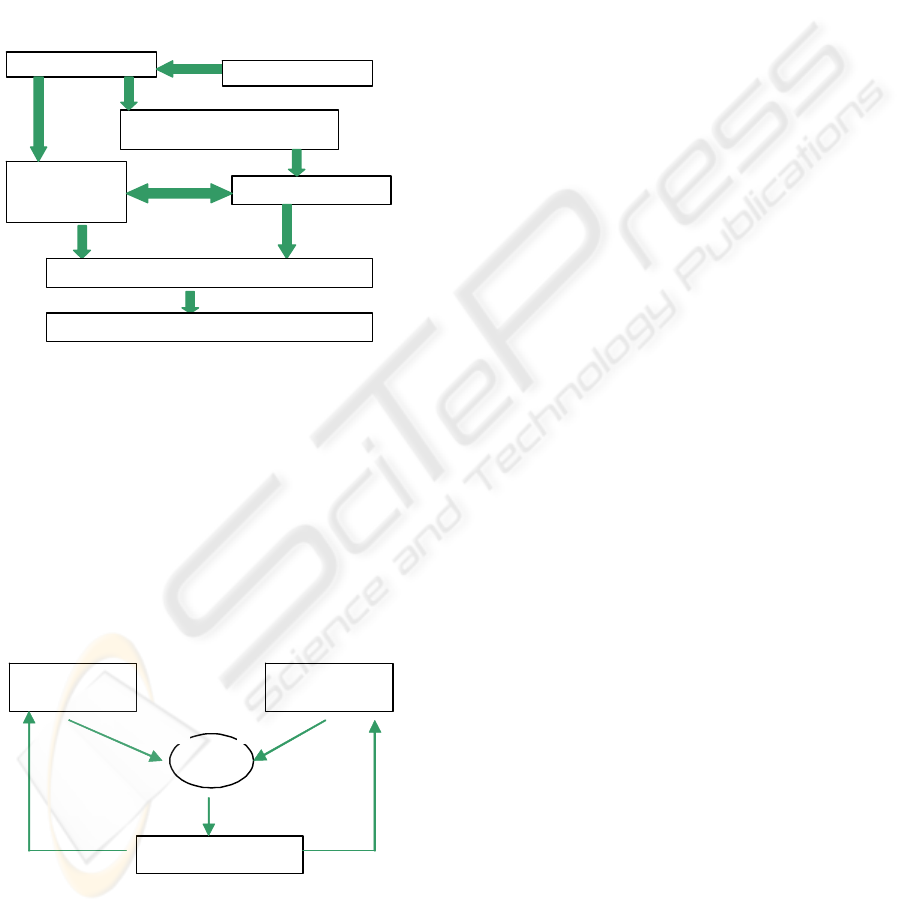

Figure 4: Inputs and activities of AQA.

The method consists of five important steps (Figure

4). The fist step is to derive change categories based

on PL scope (Figure 5). A category could contain

scenarios that are related to the technical

requirements. In this case scenarios explore the

applicability of the PLA in situations with various

technical requirements, so they represent PLA

adaptability. Another scenarios category may

concentrate on context identification and may

simulate changes in the technical environment, so

they represent PLA portability.

Figure 5: Derived change categories.

Then, the description of the PLA and the scenarios

identification are performed in parallel. The

simultaneity of these steps enables a decision to be

made as to what view should be considered for an

elicited scenario. Scenario effects evaluation and

interaction are the last steps performed sequentially.

An overall evaluation of the architecture may be

performed using customer value data to assign

weights to scenarios and scenario interactions. This

weighting can be used to evaluate one candidate

architectural design against another. When we

evaluate the effect of scenarios on the architecture,

we classify the effect of a scenario into four discrete

levels. At the first level, no changes are necessary,

which means that the scenario is already supported

by the architecture. At the second level, just one

component of the architecture needs to be changed.

At this level, we have true locality of change. At the

third level more than one component is affected, but

no new components are added or existing ones are

deleted. This means that the structure of the

architecture remains intact. At the fourth level,

architectural changes are inevitable, because new

components are necessary or existing ones become

obsolete. It is clear that one should seek to keep the

level of effect as low as possible.

4 CASE STUDY

4.1 PL Scope and PLA Description

Distributed services operate in different units that

are executed in devices and are organized to operate

in the form of a network. The units operate in a

collaborative way in order to provide the platform

system services. The system services are further

utilized through certain interfaces by application

servers and users. The purpose of the system

services of the platform is to enable application

services to distribute themselves smoothly and

comfortably. Figure 6 describes DiSeP context

diagram illustrating external actors that interface

with our platform. The new external actors,

TransactionManager and TransactionParticipant

are not mandatory. The context of the DiSeP PLA is

as important as the other PLA views because it

reveals other new, external actors that can interact

with a new potential PL member (Figure 4).

Distributed parts of the application services may

locate and utilize each other in a dynamic manner

reaching the following technical properties: 1)

platform implementation independence, 2)

distribution transparency and 3) mobility of system

services. The first technical property means

independence of implementation languages and a

universal communication manner between units. The

second property refers to the ability to resist

Technical

requirements

Technical

environment

scope

defines

Identified in

determines

Identified in

Change categories

defines

Product line scope

Knowledge base

Product line

architecture

description

Derive change categories from

the product line scope

Scenario identification

Evaluate the effect of scenarios

Scenarios interaction

ICSOFT 2008 - International Conference on Software and Data Technologies

dynamic changes in configuration of network of

interconnected units or in the physical

communication links between different devices. The

third considers that system services are not

centralized into one location, but any one of the

units can act as a system service provider. DiSeP is

the first model of PL in the domain.

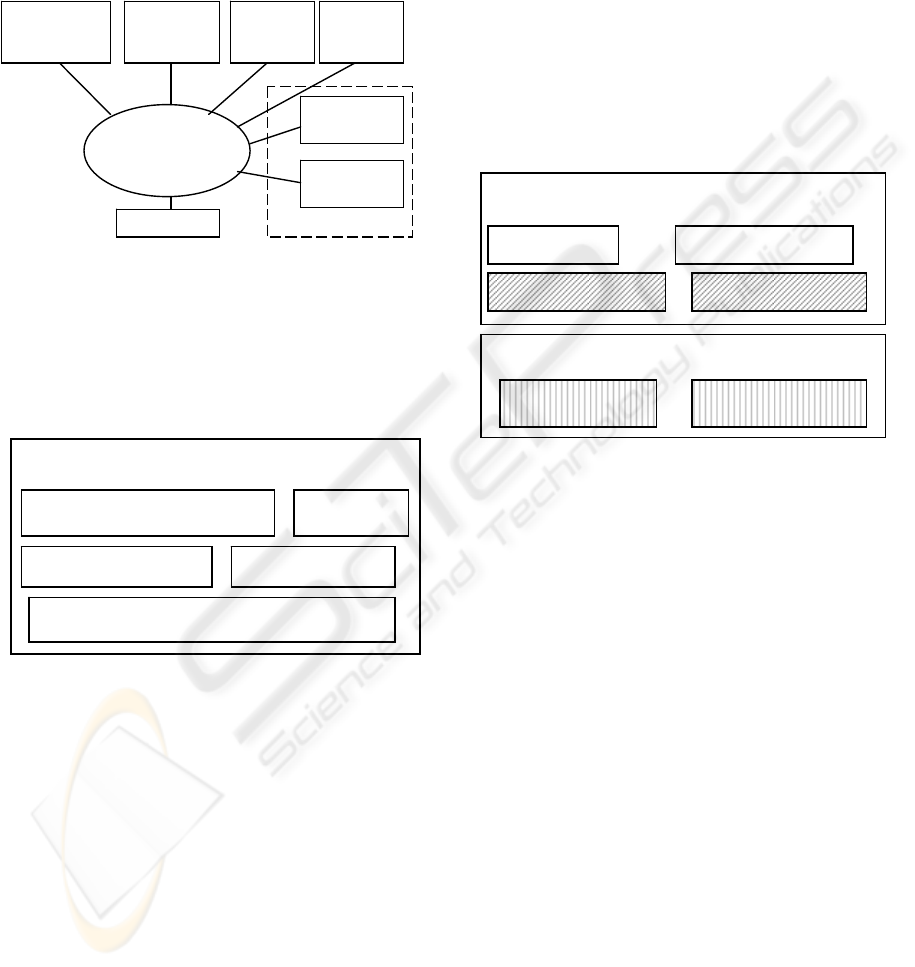

Figure 6: DiSeP Context.

PLA has been documented around multiple views

describing conceptual and concrete levels, for each

view a static and dynamic perspective being offered.

The views were illustrated with diagrams expressed

in a real-time extension of UML.

Figure 7: DiSeP domain conceptual view.

The conceptual level considered a functional

decomposition of the architecture into domains. The

relationships between architectural elements are

based on pass control and pass data or uses. The

concrete level considered a more detailed functional

description, where the main architectural elements

are packages, capsules, ports, protocols. The

relationships are association, specialization,

generalization, etc. The dynamic aspect includes

statecharts and message-sequence charts. Layer

architecture style is considered for the conceptual

structural view. PLA concrete structural view

includes abstract components (Figure 8). All the

architectural elements are subsystems <<service>>

that are common to all product members. The

provided services, contained in the

SystemServiceProvider subsystem, are activated by a

Control subsystem. These services communicate

with the other subsystems, such as DataDistribution,

LocationServices and CommunicationServices.

Two variability points are identified in DiSeP

PLA, but others are implicit or unspecified. The

services inside the SystemServicesProvider represent

one of the variable points. In some of the products

there are two services: LeaseService and

DirectoryService that always come together. In other

products there also might be SecurityService,

TransactionService, etc. A second point of

variability is inside the CommunicationServices

domain. The communication could be performed

using SynchMessService or AsynchMessService.

Figure 8: Variability in service components.

4.2 DiSeP PLA Quality Analysis

To assess the quality of the DiSeP architecture, we

only use the software architecture analysis (AQA).

Due to the revolutionary initiation approach, we are

not able to perform VA (that can be done when the

first version of the new concept is ready).

As stated above, this is a scenario-based method

that consists of formulating a number of scenarios

and evaluating the effect of each of them on the

architecture. AQA is used to assess the quality at

architectural level, namely PLA, that represents the

commonalties and encapsulates the variabilites of

PL members. The first step in the evaluation is to

derive a number of scenarios from the requirements

of the architecture included in the PL scope. For

example, from the quality requirement portability we

can derive the following scenario: What happens

when another network protocol is to be used? By

formulating this scenario, we can make portability

tangible, because it captures what we actually want

to achieve with portability. The next step is to

evaluate the effect of these scenarios on the

architecture as described in the previous section. We

see that our example scenario demands a change in

New external actors

Distributed

Services

Platform (DiSeP)

Application

Service

Provider

Application

Service User

Lease

Grantor

Lease

User

Transaction

Manager

Transaction

Participant

Network

<<Domain>>

SystemServicesProvider

<<service>>

LeaseService

<<service>>

DirectoryService

<<service>>

TransactionService

<<service>>

SecurityService

<<service>>

SynchMessService

<<service>>

AsynchMessService

<<Domain>>

CommunicationServices

<<Domain>>

DiSeP

<<Domain>>

SystemServicesProvider

<<Domain>>

DataDistribution

<<Domain>>

LocationServices

<<Domain>>

CommunicationServices

<<Domain>>

Control

QUALITY AND VALUE ANALYSIS OF SOFTWARE PRODUCT LINE ARCHITECTURES

the CommunicationService component. Thus, this

scenario has a level two effect. It means that we

have locality of change for this scenario and that the

architecture is portable with respect to the network

protocol used.

We have created two categories of change

associated to adaptability and portability. Portability

is a quality requirement placed in the technical

environment category and adaptability represents the

flexibility of DiSeP to incorporate changes to its

technical requirements.

Adaptability. The scenarios simulate the use of

the DiSeP architecture in situations with diverse

technical requirements. The architecture is usable in

a situation when the scenario has an impact of level

three or lower.

Scenario 1. Which changes are needed when the

architecture is to be used in secure systems?

We assume that for secure systems a number of

things are necessary. First, each service

user/provider/grantor action should be authenticated

and it should be possible to grant different levels of

access to users (no access, read-only, full control,

etc.). This is already supported by the distributed

service platform architecture, so it is unaffected.

Second, the communication between components

should be encrypted. Encrypted communication is

not yet present in the architecture, but it could be

added by changing one component – communication

service. Finally, access to services should be

prohibited for unsecured units. This means that the

location service manager should be changed so that

it inspects the network addresses of clients. The

conclusion is that using the architecture for secure

systems demands changes to a number of existing

components and, therefore, this scenario has a level

three impact. Other scenarios could be:

2. Which changes are needed when the

architecture is to be used in real-time systems?

3. Which changes are needed when the

architecture is to be used in ultra-reliable systems?

4. Which changes are needed when another type

of interface is considered for a service user?

5. Which changes are needed when the

architecture is used in a system that uses workflow

management?

6. Which changes are needed in a system that

uses mobile computing?

The results are summarized in Table 1. As

expected, we see that the architecture is not directly

usable in every situation. Using it for real-time or

ultra-reliable systems requires major changes to the

architecture. In the other situations, the architecture

is usable, but some changes are needed. When the

DiSeP architecture is used in an actual situation,

more scenarios are probably required to evaluate

whether the right services are identified in order to

encapsulate the expected changes to the technical

requirements. Initiating the PL is a highly iterative

process. This analysis leads us to the conclusion that

first, a concrete functionality should be designed and

then attention to this quality attribute should be paid.

Table 1: Summary of the scenarios adaptability. (- =

unaffected, + = needs to be changed, O = one comp

affected, M = more comp affected).

DiSeP Scenario

Architecture Components

Impact

level

Portability. We exemplify with scenarios that

explore the effect of changes in the technical

environment.:

1. Which changes are needed when another end

point device is used?

2. Which changes are needed when another

network protocol is used?

Table 2: Summary of the scenarios for portability( - =

unaffected, + = needs to be changed, O = one component

affected).

DiSeP Scenario

Architecture Components

Impact

level

In Table 2, we observe that changes in the

technical environment affect very few of the DiSeP

architecture components. We notice that the

platform actually encapsulates access to the

environment. However, there may be potential

changes in the technical environment, not mentioned

here, that have an impact above level two.

5 CONCLUSIONS

In this paper we have introduced an analysis method

of a PLA that has been described in multiple views

on two abstraction levels. Our main and original

contribution is that we consider both economic and

quality aspects in this systematic analysis. The work

has been motivated by increasing realization in the

software engineering community of the importance

ICSOFT 2008 - International Conference on Software and Data Technologies

of PL from economic viewpoint and SA for

fulfilling quality requirements. Quality analysis at

the conceptual level examines the relationship

between architectural views and architectural styles,

as an architectural style is also considered to have an

impact on quality attributes of the system. In this

way, the result of the examination responds to

questions such as: (1) upon what architectural view

does the architectural style focus, (2) what specific

quality attributes the style is considered to support,

and (3) what kind of assumptions are made about

context or environment. Assuming that there are

already known benefits and drawbacks of each style

in relation to quality attributes, the analysis of

conceptual descriptions has the aim of checking

styles and violations to the standard patterns. Also,

the role of analysis at the conceptual level is to

provide a knowledge base of the PLA so as to

perform a more comprehensive analysis at the

concrete level description. Thus, the experts’

knowledge could be better structured and used in a

more systematic way to generate scenarios

associated with the most important quality attribute

of the domain. Towards an architectural knowledge

base for wireless service engineering some progress

has been made and described in (Niemela et al,

2005). The quality analysis of the concrete

architecture makes it possible to obtain better results

that improve the design. Concrete architecture

permits more relevant and accurate results.

The PLA of the DiSeP is the first stage of a

software development cycle and we have tried to

model it by means of applying an approach for PL

initiation from PL requirements. The development of

the DiSeP PLA is an iterative process, so the

analysis is as well. One of the goals of analyzing the

conceptual design of PLA is its relevancy for

uncovered PL features. On the concrete architecture

we analyzed adaptability and portability as

development quality attributes, using a scenario-

based method. We mention that is very important to

consider the economic aspects of the analysis. We

could not exemplify the value analysis, due to the

lack of an economic data model. However a value

metric of an economic model is required to make

decisions about PL scope and in commonality

analysis, too. (Clements, 2007) described SA

decisions based on an economic model.

In future research we want to validate this

systematic approach in various software application

domains where a product line is initiated. More work

is needed to develop systematic ways of bridging

other quality and economic requirements to a PLA.

However this paper presented the main concepts and

justified why this concepts are required.

ACKNOWLEDGEMENTS

We wish to thank the anonymous referees for their

valuable suggestions and comments.

REFERENCES

Bass L., P. Clement and R. Kazman, (2003) Software

Architecture in Practice, Addison Wesley, Reading.

Dobrica L., E. Niemelä, (2002) A Survey on Software

Architecture Analysis Methods, IEEE Trans

Software. Eng., Vol.28 (7), 638-653.

Dobrica L., E. Niemelä, (2000), A Strategy for Analyzing

Product Line Software Architecture, VTT

Publications 427, Espoo, Finland, 124 p.

Hauser J.R. and Don Clausing (1988), The House of

Quality, Harvard Business Review, May-June.

IEEE Std 1471-2000 (2000), IEEE Recommended

Practice for Architectural Description of Software-

Intensive Systems.

ISO/IEC WD1 42010 (2007), Systems and Software

Engineering – Architectural Description.

IEEE 1061 (1998), IEEE Standard. for Software. Quality

Metrics Methodology, IEEE Std 1061-1998.

Krutchen P. B., (1995), The 4+1 View Model of

Architecture, IEEE Software, Nov.,pp. 42-50.

Matinlassi, M., E. Niemelä and L. Dobrica, (2002),

Quality-driven architecture design and quality

analysis method - A revolutionary initiation approach

to product line architecture, VTT Publications 456,

Espoo, Finland, 139p.

Niemelä E. and T. Ihme, (2001), Product Line Software

Engineering of Embedded Systems, Procs of SSR'01,

Symposium on Software Reusability, pp. 118 – 125.

Niemelä E., Kalaoja J., P. Lago, (2005) Toward an

Architectural Knowledge Base for Wireless Service

Engineering, IEEE Trans. Software Eng., Vol 31 (5),

p. 361 – 379.

Purhonen A. , E. Niemelä , M. Matinlassi, (2004)

Viewpoints of DSP software and service architectures,

Journal of Systems and Software, Vol.69(1-2), p.57-

73.

Tharumarajah A, A.J. Wells, L. Nemes, (1996) A

Comparison of the bionic, fractal and holonic

manufacturing concepts, International Journal of

Computer Integrated Manufacturing 9 (3) 217-226.

Clements P. (2007), An economic model for software

architecture decisions, Procs. ICSEW’07 International

Conference on Software Engineering Workshops.

Miller J and Mukerji J, 2003, MDA Guide Version 1.0.1.,

Object Management Group, 2003.

Jaaksi A et al, 1999, Tried & True Object Development:

Industry-Proven Approaches with UML. Cambridge

Univ. Press, 1999.

Hofmeister C et al., 2000, Applied Software Architecture.

Addison-Wesley, 2000.

QUALITY AND VALUE ANALYSIS OF SOFTWARE PRODUCT LINE ARCHITECTURES
