DATABASE VERSION CONTROL

A Software Conﬁguration Management Approach to Database Version Control

Stephen Mc Kearney

Datatrust Software, Bournemouth, U.K.

Konstantina Lepinioti

School of Design, Engineering and Computing, Bournemouth University, Talbot Campus, Bournemouth, U.K.

Keywords:

Databases, database schema, version control, source code control, change management.

Abstract:

This paper introduces a database conﬁguration management tool, called DBVersion, that provides database

developers with many of the beneﬁts of source code control systems and integrates with software conﬁgura-

tion tools such as Subversion. While there has been a lot of research in software conﬁguration management

and source code control, little of the work has investigated database conﬁguration issues. DBVersion’s main

contribution is to allow database developers to use working practices such as version control, branching and

concurrent working that have proved successful in traditional software development.

1 INTRODUCTION

Database refactoring has been proposed as one ap-

proach to making database design more agile (Ambler

and Sadalage, 2006). An important part of software

refactoring is tracking changes and being able to undo

actions easily. However, while there has been a lot of

research in software conﬁguration management and

source code control (Conradi and Westfechtel, 1998),

little of the work has investigated database conﬁgura-

tion issues. This paper introduces a database conﬁg-

uration management tool, called DBVersion, that pro-

vides database developers with many of the beneﬁts

of source code control systems and integrates with

software conﬁguration tools such as Subversion (Pi-

lato et al., 2004).

1.1 Current Approaches

Two approaches to database conﬁguration manage-

ment are common. In the ﬁrst approach, database

comparison software, such as DBGhost (Innovartis,

2008) or Oracle Change Management (Oracle, 2007),

compares two database instances and generates a list

of differences as an update script that can be applied

to the older database. This approach has been used

to introduce version control into database-centric ap-

plication development (Ploski et al., 2007). How-

ever, not all changes can be identiﬁed by compar-

ing schemas, for example, moving an attribute may

be recorded as more than one change rather than as a

single logical change. In the second approach, the de-

veloper writes change scripts to update the database

and may keep different change scripts for each mod-

iﬁcation made. This is a popular but more informal

approach that is simple to implement and can be in-

tegrated with existing software conﬁguration tools.

However, when working with the database, develop-

ers do not beneﬁt from many aspects of version con-

trol such as reverting changes or concurrent work-

ing. Also, change scripts tend to be database speciﬁc,

which limits their use to one database management

system (DBMS).

There are a small number of software tools that

take a more structured approach to the problem.

LiquiBase (LiquiBase, 2008), for example, manages

change scripts as XML ﬁles. Each change is imple-

mented using a database independent language and

so can be applied to different DBMSs. This is im-

portant as there are many different database systems

and developers can often be working on one system

but targeting another. LiquiBase supports basic ver-

sion control processes such as reverting changes and,

because it uses text ﬁles, it can be easily integrated

into existing source control systems. We believe our

approach is more closely integrated with standard de-

Mc Kearney S. and Lepinioti K. (2008).

DATABASE VERSION CONTROL - A Software Conﬁguration Management Approach to Database Version Control.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 81-87

DOI: 10.5220/0001889000810087

 SciTePress

velopment approaches as a DBVersion repository is

not only stored in the source code repository but DB-

Version uses the source code system to help manage

versioning, branching and conﬂicts. We have also im-

plemented a sandbox style of development that allows

the developer to checkout and manage a version of

the database in a similar manner to traditional source

code sandboxes (Vesperman, 2006).

1.2 Beneﬁts of Conﬁguration

Management

Software conﬁguration management has been part

of software development best practice for many

years. Version control tools such as CVS (Vesper-

man, 2006), Subversion (Pilato et al., 2004) and Per-

force (Wingerd, 2005) provide sophisticated support

for managing changes, versions and branches. These

tools support concurrent working and conﬂict reso-

lution using sandboxed workspaces and automated

merging. Version control systems store a complete

history of the software which is invaluable for change

control and bug tracking. In addition, they are well

integrated with issue tracking and requirements col-

lection systems.

In application development, changes to the source

code can have correspondingchanges that must be ap-

plied to the database schema. When a new software

version is released, it is important to apply the correct

sequence of changes to the live database. This can

often involve writing complex data scripts that must

update the schema and the data. A database conﬁgu-

ration management system would automatically gen-

erate upgrade and downgrade scripts from the history

of changes recorded during the development process.

1.3 Software Conﬁguration

Management Concepts

In the following sections, we shall review the com-

ponents of a standard software conﬁguration model

upon which DBVersion is designed (Conradi and

Westfechtel, 1998).

1.3.1 Repository and Workspace

The repository is a complete history of all objects un-

der version control (for example, source code ﬁles).

When a developer wishes to make changes to the soft-

ware, they check-out a version of the source code into

a local workspace containing all version controlled

objects. Workspaces allow developers to work inde-

pendently of each other. When the developer has ﬁn-

ished a set of changes, they commit the workspace

back to the repository.

Conﬂicts occur when an object that is modiﬁed in

the workspace has also been modiﬁed and committed

by another developer. In this case, the version control

system tries to merge the second developer’s changes

into the workspace. When the workspace contains

conﬂicts, it is the responsibility of the developer to

resolve the problems before trying to commit their

changes to the repository. The repository should con-

tain an unconﬂicted version of the system and the de-

veloper can revert to a clean version of the software at

any time.

1.3.2 Versions, Revisions and Change Sets

How a version control system manages changes be-

tween versions depends on the version control model

used. Subversion assigns a single revision number

to each set of changes committed to the repository.

At each commit point the system calculates the set

of changes that have occurred since the last commit.

Each revision consists of a set of changes that can be

applied to the previous revision to produce the current

revision. For source code that is stored in text ﬁles a

set of changes is represented as a series of additions

and deletions to the previous version of the ﬁle. For

efﬁciency reasons, the latest version of a ﬁle is stored

in the repository with previous versions stored as re-

verse deltas (Tichy, 1985).

1.3.3 Branching and Merging

An important feature of version control systems is the

ability to create separate development branches. For

example, developers are often called upon to ﬁx prob-

lems with a previous version of the software and to

do so without changing the current version. Projects

start with a single line of development called the trunk

but the developer can create a branch of the trunk

that sits alongside the main development (see ﬁgure

1). Changes can be made to a branch without affect-

ing the trunk. This model allows different versions of

the software to be developed without interfering with

each other.

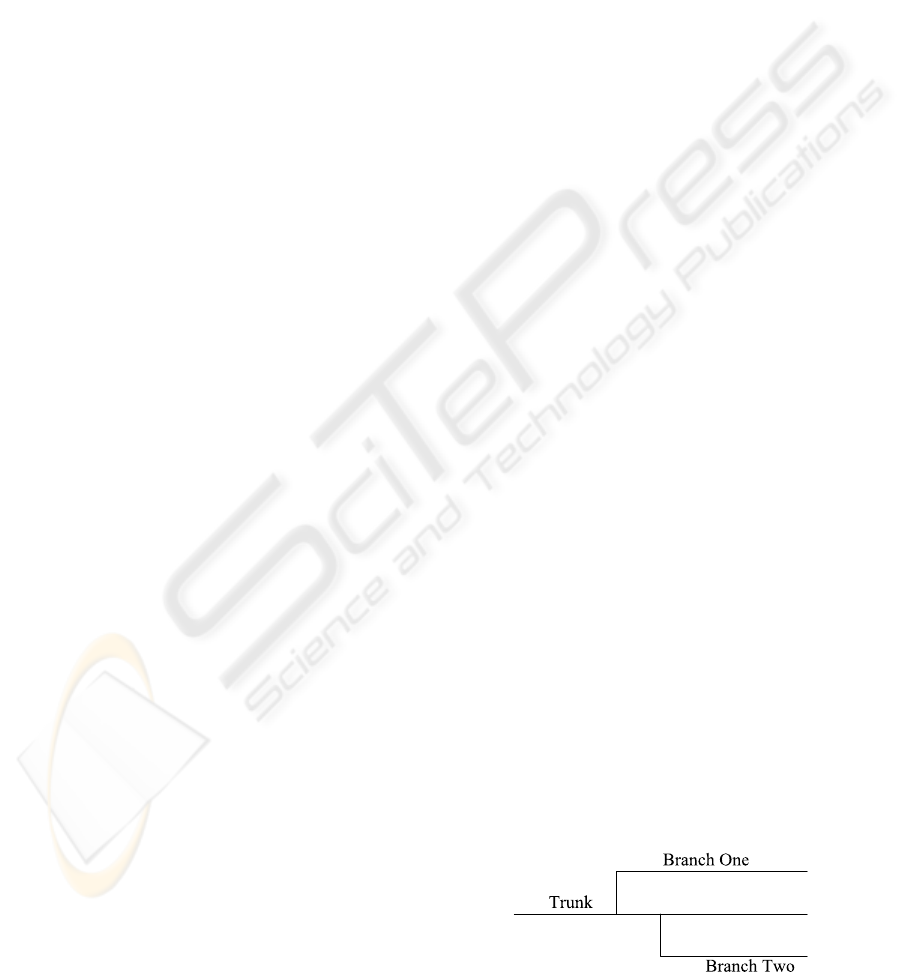

Figure 1: Trunk and Branches.

ICSOFT 2008 - International Conference on Software and Data Technologies

An important part of branching is the ability to

merge changes from one branch into another (see ﬁg-

ure 2). For example, after ﬁxing a bug in version 1

of an application it may be necessary to merge the ﬁx

into version 2. Ideally, this process should be per-

formed automatically or with the minimum of user

intervention. Merging is an important part of concur-

rent development processes and is particularly impor-

tant for large teams.

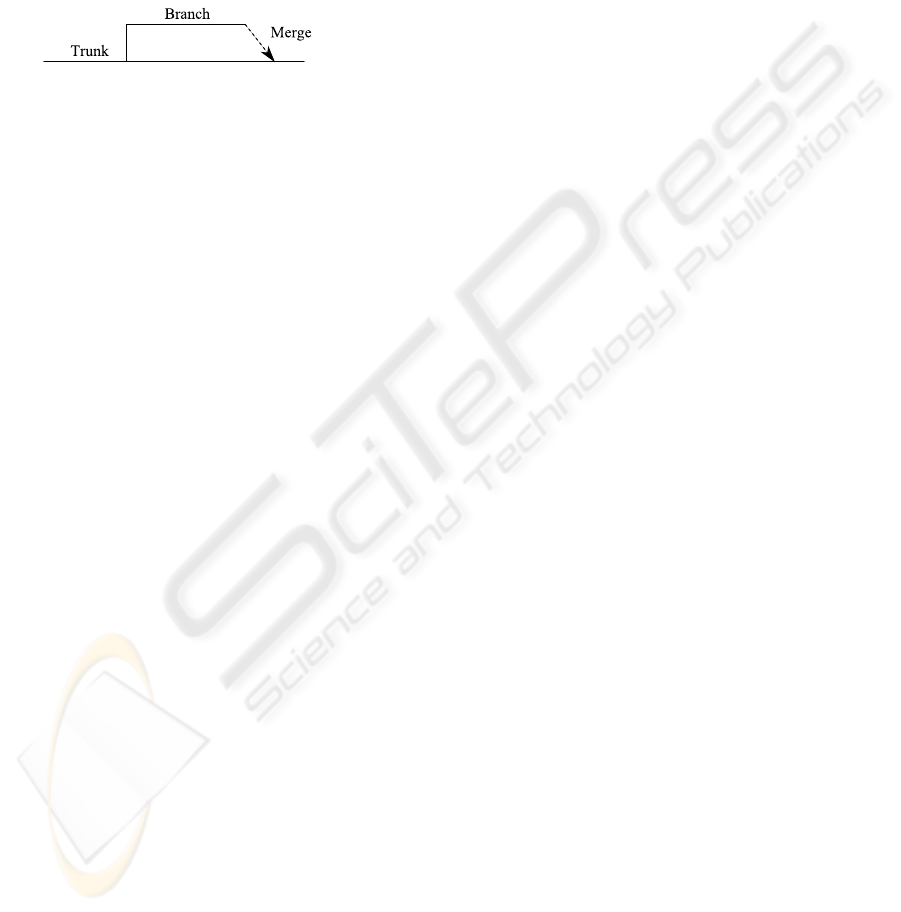

Figure 2: Merging Branches.

2 DBVERSION

In this section, we explain how we applied soft-

ware conﬁguration concepts to database conﬁgura-

tion management in the tool DBVersion. The bene-

ﬁts of this approach include better concurrent work-

ing, improved history tracking and the ability to use

advanced development techniques such as branching

and merging. The current implementation uses Sub-

version but the approach can be applied to similar sys-

tems.

2.1 Tracking Changes

There are two approaches to tracking change in a

database schema. The ﬁrst approach is to track

changes between versions by comparing a previous

version of the schema with a later version. This

is a state-based approach (Conradi and Westfechtel,

1998) that builds a list of differences and can be

used to generate a script which converts one database

schema to another. The state-based approach is used

by systems such as DBGhost (Innovartis, 2008) and

Oracle Change Management (Oracle, 2007). How-

ever, although differences can be identiﬁed, it is not

always possible to correctly describe the exact change

that occurred. For instance, renaming a table attribute

will not necessarily be tracked as a

rename

operation

but as two operations:

drop

and

create

Instead of comparing schema versions, DBVersion

tracks individual schema modiﬁcation commands.

Changes to the current version are written in a script

ﬁle and applied to the database using the

apply

com-

mand. This approach is similar to the

alter

com-

mand in standard SQL and has been used in Ruby

on Rails Database Migrations (Thomas et al., 2005).

Tracking individual changes has the advantage that

dbv = DBVersion.new(’test.dbv’)

DBI.connect(’test’, ’u’, ’p’) do | dbh |

dbv.apply(dbh) do

create_table :t4, :a1, ’varchar’, 10

add_attribute :t4, :a2, ’integer’

add_attribute :t4, :a3, ’varchar’, 20

end

Figure 3: Database Change Script.

more complex database refactorings can be imple-

mented. For example, the

move-attribute

com-

mand moves an attribute from one table to another

based on matching primary/foreign key values.

The

apply

command reverts any changes made to

the database by a previous

apply

so that the change

script is always run on a clean version of the database.

Figure 3 shows a simple database change script.

2.2 Database Workspace

A database workspace is contained in the Subversion

workspace and provides a sandbox environment

for making schema changes. It consists of three

components:

Schema Descriptor File. A schema descriptor

ﬁle contains the commands to create one version

or branch of the database schema from an empty

database instance. The schema descriptor contains

a sequence of change sets each of which contains

a sequence of schema modiﬁcation (or refactoring)

commands.

Database Instance. The database instance contains

the current version of the database schema and is used

to test the database. The DBVersion

synchronize

command modiﬁes the database instance to match

the version of the database contained in the schema

descriptor ﬁle. If necessary, the

synchronize

command will (i) rollback a newer version of the

database, (ii) rollforward an older version of the

database, or (iii) switch one schema branch to

another.

Change Script. The change script is the set of

schema modiﬁcation commands to be applied to

the current database version as described in section

2.1. The database instance is modiﬁed using the

DBVersion

apply

command that also updates the

workspace schema descriptor ﬁle if the changes are

successful (see section 2.1).

Changes to the database schema can be commit-

ted to the Subversion repository using the standard

Subversion

commit

command or reverted using the

DATABASE VERSION CONTROL - A Software Configuration Management Approach to Database Version Control

revert

command.

2.3 Database Repository

The database repository consists of one or more

schema descriptor ﬁles with each descriptor repre-

senting one branch of the database. The database

repository is stored in a version control system

such as Subversion where schema descriptors can be

branched and merged alongside the source code. DB-

Version understands the Subversion command inter-

face and manages the database repository as part of

the Subversion repository. DBVersion uses the Sub-

version

status

and

info

commands to track the sta-

tus of the database repository. When DBVersion is

asked to perform any actions on the repository, it

can identify whether the repository is unchanged, has

been modiﬁed or is in conﬂict.

2.4 Concurrent Changes

An important function of a version control system is

the ability to merge other users’ changes into the cur-

rent workspace and resolve any conﬂicts that might

occur. In DBVersion, we have adopted a simple

method of merging that outputs the set of changes that

have to be merged and allows the developer to resolve

any conﬂicts the merge may cause.

There are two circumstances under which differ-

ent development paths have to be combined: (i) merg-

ing changes on the current workspace branch that

have been made by another developer, called updat-

ing and (ii) merging changes on another branch into

the current workspace branch, called merging.

2.4.1 Updating a Branch

DBVersion uses Subversion to identify merges. The

DBVersion repository is stored as a single binary ﬁle

in the Subversion repository. When the developer

tries to commit a set of changes to the repository, a

check is made to see if the ﬁle has been changed. The

alternatives are:

No Changes in the Source Code Repository. If no-

one has committed changes in the current branch then

the DBVersion repository can be committed without

conﬂict.

Changes in the Source Code Repository. If some-

one has committed changes in the current branch

then the Subversion will produce a conﬂict. Because

the DBVersion repository is a binary ﬁle, Subver-

sion will not attempt to resolve the conﬂict but will

generate two additional ﬁles for the conﬂicted ﬁle

test.dbv

labeled

test.dbv.merge-left.rXXX

and

test.dbv.merge-right.rYYY

where XXX is the re-

vision of the database before the latest changes and

YYY is the revision of the database after the latest

changes.

The next step depends on the developer but the

normal process would be:

1. Execute the DBVersion

resolve

command on the

conﬂicted DBVersion repository. This will roll-

back the developer’s current changes and rollfor-

ward the database so that it matches the latest

database revision.

2. Apply the developer’s change script to the newly

updated version of the database instance and ﬁx

any problems or issues that occur. For example,

the update may have deleted an attribute that the

developerassumes still exists. This process can be

done by editing the change script and reapplying

it.

3. Commit the current workspace as a new revision.

2.4.2 Merging From a Different Branch

In this scenario, the main development branch, b

, has

been branched at some stage in the past and another

developer has been making changes on the alternative

branch, b

. At some point the changes on branch b

must be pulled into the branch b

and merged into the

ﬁnal version of the database.

Merging changes made on branch b

into another

branch b

requires taking each of the change sets from

branch b

and adding them to branch b

. DBVersion

does not attempt to identify conﬂicts that might oc-

cur when changes from b

are added to b

. Instead,

the DBMS itself is used to identify problems when

the merged changes are applied to the database in-

stance. DBVersion writes a change script for branch

that contains all the changes from b

. This new

change script can be applied to the database instance

and any errors identiﬁed and ﬁxed. When the devel-

oper is happy that the new change script is valid, they

commit the changes to branch b

As with updating, merging uses the source

code system to process the merge. The de-

veloper requests Subversion to merge a differ-

ent branch into the current one and, because

the DBVersion repository is a binary ﬁle, two

ﬁles are created,

test.dbv.merge-left

and

test.dbv.merge-right

representing the original

version of the database and the version of the

database that is to be merged into the current version.

The merge process is as follows:

1. Execute the Subversion merge command to merge

one Subversion branch into another. In the case

ICSOFT 2008 - International Conference on Software and Data Technologies

of a DBVersion repository, this will produce two

additional ﬁles. The ﬁles represent the two sides

of the merge process, the right hand side and the

left hand side (Pilato et al., 2004).

2. Execute the DBVersion

merge

command. This

takes the right-hand side of the merge and com-

pares it to the base and then compares the left-

hand side to the base. It extracts the set of changes

that are in either the right-hand side of the merge

or the left-hand side of the merge. These changes

are applied to the current branch to bring it up-to-

date with the merged branch. DBVersion writes

out a merge script that describes the sequence of

changes to be applied to the target branch.

3. Execute the DBVersion

apply

command to ap-

ply the new merged change script to the current

database instance. This rolls back the current set

of changes and applies the merged set of changes.

4. Fix any conﬂicts that occurred trying to run the

merged script. As with the update, the merge may

conﬂict with the developer’s script. For example,

the developer may have changed an attribute that

the merged branch deleted.

5. Commit the new database workspace to the DB-

Version repository and then commit the Subver-

sion repository.

Note that, as with source code versioning, the

merge happens in the database workspace and the

DBVersion schema descriptor is only updated if the

apply

command is successful. This means that the

repository cannot contain an invalid version of the

database.

3 DATA MIGRATION

One of the issues raised by applying version control

principles to database schema conﬁguration is how

to migrate the data between versions. This section

discusses some of these issues and introduces the ap-

proach used in DBVersion.

3.1 Migration Problems

For development and test databases, data migration

is a convenience that can make working with the

database easier. For production databases data mi-

gration is a necessary component of any schema ver-

sion control solution. The most common method of

data migration is to write dedicated software to per-

form the upgrade. These programs often use a form

of “dump and load” between versions. For exam-

ple, each version of the Subversion software can read

dump ﬁles produced by any previous version of the

software (Pilato et al., 2004). This is an interesting

example of a source control system trying to manage

a data versioning problem.

A recent developmentis the Ruby on Rails Frame-

work’s Database Migrations that formalise the pro-

cess of migrating one version of a database to another

(Thomas et al., 2005). Ruby on Rails Database Mi-

grations is a simple but powerful form of schema ver-

sion control and, because it allows almost any algo-

rithm to be executed during the up and down migra-

tion phases, it can support data instance migration as

well.

The approach used in DBVersion is based on

database refactoring (Ambler and Sadalage, 2006).

Database refactorings describe speciﬁc database

changes and provide developers with a library of

changes they can perform. The main advantage of

refactoring is that the results are well known and can

be easily tested. The LiquiBase (LiquiBase, 2008)

database version control system uses simple refactor-

ings to describe schema changes. It is our proposal to

use refactoring to control changes to both the schema

and data.

3.2 Schema Modiﬁcations and

Refactorings

Schema modiﬁcation refers to the process of adding,

changing or removing elements in the database

schema. Simple modiﬁcations include:

• Create relation

• Drop relation

• Add attribute

• Delete attribute

These modiﬁcations have a direct correspondence to

standard relational database modiﬁcation commands

such as the SQL ALTER commands.

During the software development process, a sin-

gle change in the software may require a number of

modiﬁcations to be made to the database, for exam-

ple, moving an attribute from one entity to another

requires creating a new attribute in a relation, moving

the data from the original attribute to the new attribute

and, ﬁnally, dropping the original attribute. Many of

these changes can be expressed as higher level refac-

torings.

Refactoring is the process of changing the struc-

ture of a program while maintaining the same result

from the algorithm. In database refactoring, the struc-

ture of the data is changed to improve the database

design. Refactorings can be expressed as sequences

DATABASE VERSION CONTROL - A Software Configuration Management Approach to Database Version Control

of schema modiﬁcation commands and in many cases

the data can be migrated appropriately. However,

more complex schema modiﬁcations can cause data

migration problems.

In the current work, we have limited our interest

to the set of refactorings necessary to normalise a re-

lational database. For example, some of the refactor-

ings that we currently offer include:

• Convert an attribute to a table

• Convert a table to an attribute

• Extract dependent attributes to a new table

• Move attributes to an existing table

• Merge two tables

• Split a table

Each refactoring is deﬁned in terms of two opera-

tions: (i) rollforward, which applies the refactoring to

an existing version, and (ii) rollback, which reverses

the refactoring process. Of course, some refactorings

lose data when they are applied and reversing them

does not reconstruct the data.

DBVersion is implemented in Ruby and refactor-

ing operations are simple Ruby plugins, which makes

it easy to add new refactorings. A refactoring can use

any sequence of SQL statements but it is important

that each rollforward operation has a corresponding

rollback operation. As ﬁgure 3 shows, the change

scripts are also written in Ruby which isolates the de-

veloper from database-speciﬁc SQL code embedded

in the plugins.

Database researchers have investigated similar

problems while studying how to map a given database

to an alternative schema, called Schema Mapping

(Yan et al., 2001). We are currently investigating the

best combination of schema modiﬁcations and refac-

torings for different development scenarios.

3.3 Database Releases

The ﬁnal part of DBVersion is the release management

process. Unlike source control systems, in which ex-

tracting and compiling a version of the source code

produces a version of the software, database version-

ing is more akin to patching source code. A database

version control system must generate a patch to an

existing database.

Our current solution to this problem is to distribute

DBVersion with an application upgrade. When the

synchronise

command is executed, DBVersion will

identify the current version of the database instance

and generate the correct database script to upgrade the

database to the current version.

4 RELATED WORK

As discussed, there are a small number of software

products that help to manage database changes, for

example, LiquiBase (LiquiBase, 2008) and DBGhost

(Innovartis, 2008). None of these systems is widely

used. Compared to these systems, DBVersion’s main

contribution is to provide a closer integration with

source control systems and to support database devel-

opment practices that are similar to traditional soft-

ware development good practice.

There are three database research areas that deal

with database conﬁguration issues (Roddick, 1995):

(i) schema modiﬁcation, which allows changes to

existing database instances, (ii) schema evolution,

which supports changes the schema without losing

any data, and (iii) schema versioning, which allows

access to previous versions of the database schema

and data.

Although these techniques deal with changing the

database schema, they focus on managing change

within live databases rather than tracking change dur-

ing the development process. For example, the Mi-

crosoft Repository supports versioning in an SQL

Server database (Bergstraesser et al., 1999) with some

performance and storage costs. Similar approaches

have been applied in object database systems that

must persist data objects and also manage different

versions of those objects as the code changes (Sciore,

1994; db4objects Inc., 2008). However, most object

databases do not provide the developer with a history

of changes.

Temporal databases record a time dimension with

data and track (i) the real world time of an event and

(ii) the transaction time in the database (Conradi and

Westfechtel, 1998). Temporal databases do not han-

dle schema versioning or evolution and so do not pro-

vide support for database developers.

5 CONCLUSIONS

In this paper, we have described the problem of

database version control. We have distinguished

database version control from other database-oriented

methods such as schema modiﬁcation, schema evolu-

tion and schema versioning by focusing on develop-

ing a method that integrates well with standard soft-

ware development processes and tools. The system

we have described, DBVersion, is an experimental

prototype that integrates with the Subversion source

control system. Close integration with existing source

control systems is one of the characteristics of DBVer-

sion.

ICSOFT 2008 - International Conference on Software and Data Technologies

We plan to implement a wider range of database

refactorings and formalise the refactoring process.

We are currently testing the software in a small soft-

ware development team.

REFERENCES

Ambler, S. W. and Sadalage, P. J. (2006). Refactorings

Databases: Evolutionary Database Design. The

Addison-Wesley Signature Series. Addison-Wesley.

Bergstraesser, T., Bernstein, P., Pal, S., and Shutt, D. (1999).

Versions and workspaces in microsoft repository. In

Proceedings of the ACM SIGMOD, pages 532–533,

Philadelphia. Microsoft Corporation.

Conradi, R. and Westfechtel, B. (1998). Version models for

software conﬁguration management. ACM Computing

Surveys, 30(2):232–282.

db4objects Inc. (2008). db4o. db4objects Inc.

Innovartis (2008). DB Ghost. Innovartis.

LiquiBase (2008). LiquiBase. LiquiBase.

Oracle (2007). Oracle Change Management Pack for Ora-

cle Database 11g. Oracle.

Pilato, C. M., Collins-Sussman, B., and Fitzpatrick, B. W.

(2004). Version Control with Subversion. O’Reilly

Media, Inc.

Ploski, J., Hasselbring, W., Rehwinkel, J., and Schwierz,

S. (2007). Introducing version control to database-

centric applications in a small enterprise. IEEE Soft-

ware, 24(1):38–44.

Roddick, J. F. (1995). A survey of schema versioning is-

sues for database systems. Information and Software

Technology, 37(7):383–393.

Sciore, E. (1994). Versioning and conﬁguration manage-

ment in an object-oriented data model. VLDB J.,

3(1):77–106.

Thomas, D., Heinemeier, D., and Breedt, L. (2005). Ag-

ile Web Development with Rails: A Pragmatic Guide.

Pragmatic Bookshelf.

Tichy, W. F. (1985). RCS — a system for version control.

Software Practice and Experience, 15(7):637–654.

Vesperman, J. (2006). Essential CVS. O’Reilly Media, Inc.

Wingerd, L. (2005). Practical Perforce. O’Reilly Media,

Inc.

Yan, L. L., Miller, R. J., Haas, L. M., and Fagin, R. (2001).

Data-driven understanding and reﬁnement of schema

mappings. In SIGMOD ’01: Proceedings of the 2001

ACM SIGMOD international conference on Manage-

ment of data, pages 485–496, New York, NY, USA.

ACM.

DATABASE VERSION CONTROL - A Software Configuration Management Approach to Database Version Control
