DYNAMISM IN REFACTORING CONSTRUCTION AND

EVOLUTION

A Solution based on XML and Reﬂection

Ra´ul Marticorena

University of Burgos, EPS C/Francisco Vitoria, Burgos, Spain

Yania Crespo

Department of Computing Science, University of Valladolid, Campus Miguel Delibes, Valladolid, Spain

Keywords:

Refactoring, evolution, frameworks, refactoring tools, XML, reﬂection, refactoring dynamic building.

Abstract:

Current available refactoring tools, even stand-alone or integrated in development environments, offer a static

set of refactoring operations. Users (developers) can run these refactorings on their source codes, but they can

not adjust, enhance, evolve them or even increase the refactoring set in a smooth way. Refactoring operations

are hand coded using some support libraries. The problem of maintaining or enriching the refactoring tools

and their libraries are the same of any kind of software, introducing complexity dealing with refactoring,

managing and transforming software elements, etc. On the other hand, available refactoring tools are mainly

language dependent, thus the effort to reusing refactoring implementations is enormous, when we change

the source code programming language. This paper describes our work on aided refactoring construction

and evolution based on declarative deﬁnition of refactoring operations. The solution is based on frameworks,

XML and reﬂective programming. Certain language independence is also achieved, easing migration from one

programming language to another, and bringing rational support for multilanguage development environments.

1 INTRODUCTION

Refactoring is becoming a natural step in current soft-

ware development as “a change made to the internal

structure of software to make it easier to understand

and cheaper to modify without changing its observ-

able behavior” (Fowler, 2000). Refactoring features

are included as options in IDEs or assembled as plug-

ins. Agile development processes include refactoring

as a good practice, and nowadays, it is common to

teach these concepts in software engineering courses.

Nevertheless, different implementations and so-

lutions are provided for each environment, language

and platform. Our work takes a different approach to

refactoring development, focusing on a reuse based

solution. Refactorings are deﬁned as compound el-

ements that can be assembled and reused to obtain

new refactorings from already implemented elements.

Some elements are common to different languages

and others are particular of each concrete program-

ming language.

In the remainder of this paper, in Section 2 and

3 we give a brief overview about the code manag-

ing support using a solution based on metamodels and

framewoks, Section 4 describes the refactoring engine

that allows refactorings to run and deﬁnes refactoring

items: queries and transformations. Section 5 pro-

poses a solution using XML and reﬂection allowing a

declarative refactoring deﬁnition and dynamic build-

ing. Some related works are detailed in Section 6 and

conclusions and future work are shown in Section 7.

2 LANGUAGE

REPRESENTATION

Refactoring tools need to manage source code infor-

mation. The main problem is to choose the most

suitable representation. Currently, most solutions are

based on abstract syntax trees (AST) and well known

design patterns as Visitor (Gamma et al., 1995). The

main problem is that an AST is bound to one language

(more concretely to its grammar). This is a big obsta-

cle that hinders reuse in refactoring implementations.

Other trends outline to manage source code in-

214

Marticorena R. and Crespo Y. (2008).

DYNAMISM IN REFACTORING CONSTRUCTION AND EVOLUTION - A Solution based on XML and Reﬂection.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 214-219

DOI: 10.5220/0001890002140219

 SciTePress

formation through relational databases but additional

problems appear recovering original or modiﬁed

code. Queries are deﬁned with structured query lan-

guages (SQL). Although simple, this allows defect

detection but does not support refactoring. Similar

problems arise when logical predicates are used to

manage the information.

Our proposal uses metamodels as language sup-

port. On one hand, metamodels provide with the in-

formation as well as previous proposals do. On the

other hand, it is also possible to change the current

model instance, and obtain the refactored code. Fi-

nally, reuse possibilities are enabled from the beneﬁts

of a framework based solution, managing commonal-

ities and variations from different languages.

3 USING MOON AS

METAMODEL

A minimal object-oriented notation (MOON) (Cre-

spo, 2000) is used as starting point to develop lan-

guage support and refactoring execution. Source in-

formation is stored as instances of graph nodes. The

graph can be traversed to check current state (con-

ditions) and run transformations. Once the graph is

transformed, can be traversed and refactored code

is regenerated. Refactoring process gains in lan-

guage independence. MOON represents the neces-

sary abstract constructions in refactorings deﬁnition

and analysis. They are common to a family of pro-

gramming languages: object-oriented programming

languages (OOPL), statically typed with or without

genericity. This model language deals with classes,

relationships, type system variants, a set of correct-

ness rules to govern inheritance, etc.

Although a model language can represent com-

mon points and general variants, it does not include

all features of the programming language family. It is

necessary to support common abstractions, variability

and extension points for peculiarities and exceptions

for particular features. With this aim, frameworks

(Fayad et al., 1999) emerge as a suitable solution.

Language particular features are extended and hooked

in their concrete framework extensions. For example,

a Java extension framework is developed to store con-

cepts as exceptions, interfaces, try-catch blocks, etc,

not included in MOON. In this sense, a taxonomy of

concepts is established on the model elements:

1. General: are elements contained in most of stat-

ically typed languages. For example, Class,

Method or Attribute are common concepts in-

cluded in languages as Eiffel, C++, Java, C#, etc.

Common features can be represented as MOON

core features and reused on several languages.

2. Extensible: are present in most of the languages in

the family but each one of them gives a different

semantic value. For example, access modiﬁers,

inheritance rules, etc. MOON concepts with vari-

ations are abstracted in the metamodel core and

redeﬁned for each language.

3. Particular: language concepts that are not in-

cluded in MOON core. Language extension

framework includes these concepts to support the

whole set of language features.

4 RUNNING REFACTORINGS

An overviewof refactoring deﬁnitions, formal as well

as semi-formal deﬁnitions as in (Roberts, 1999) and

(Opdyke, 1992), or textual deﬁnitions using “recipes”

(Fowler, 2000), etc. leads to a clear separation of

refactoring elements: queries for checking precondi-

tions or postconditions and transformational actions.

A refactoring tool must include all these elements

and put refactorings in motion on extracted code.

Next we describe the basics of our refactoring engine

and its concrete elements.

4.1 Refactoring Engine

A language independent framework has been deﬁned

and used to allow a simple reuse schema, as can be

seen in Fig. 1. The refactoring engine runs refactor-

ing deﬁnitions and obtains a new model state. The

running algorithm is common to all refactorings, with

hook methods to engage concrete elements. Template

Method (Gamma et al., 1995) is taken as basis on

the

Refactoring

class.

Run

method plays the role

of template method running the interaction between

elements.

With this schema, a refactoring can be seen as

pieces implemented with classes from repositories:

predicates, functions and actions. Command role

(Gamma et al., 1995) is played by action classes. An

action can be undone and logged when any exception

is thrown in the refactoring process. Each refactoring

is implemented as an extension of the

Refactoring

class.

Predicate

Function

and

Action

abstract

classes must be extended by concrete classes in the

repositories. Refactoring constructors take inputs and

assemble preconditions, actions and postconditions in

the correct order.

DYNAMISM IN REFACTORING CONSTRUCTION AND EVOLUTION - A Solution based on XML and Reflection

215

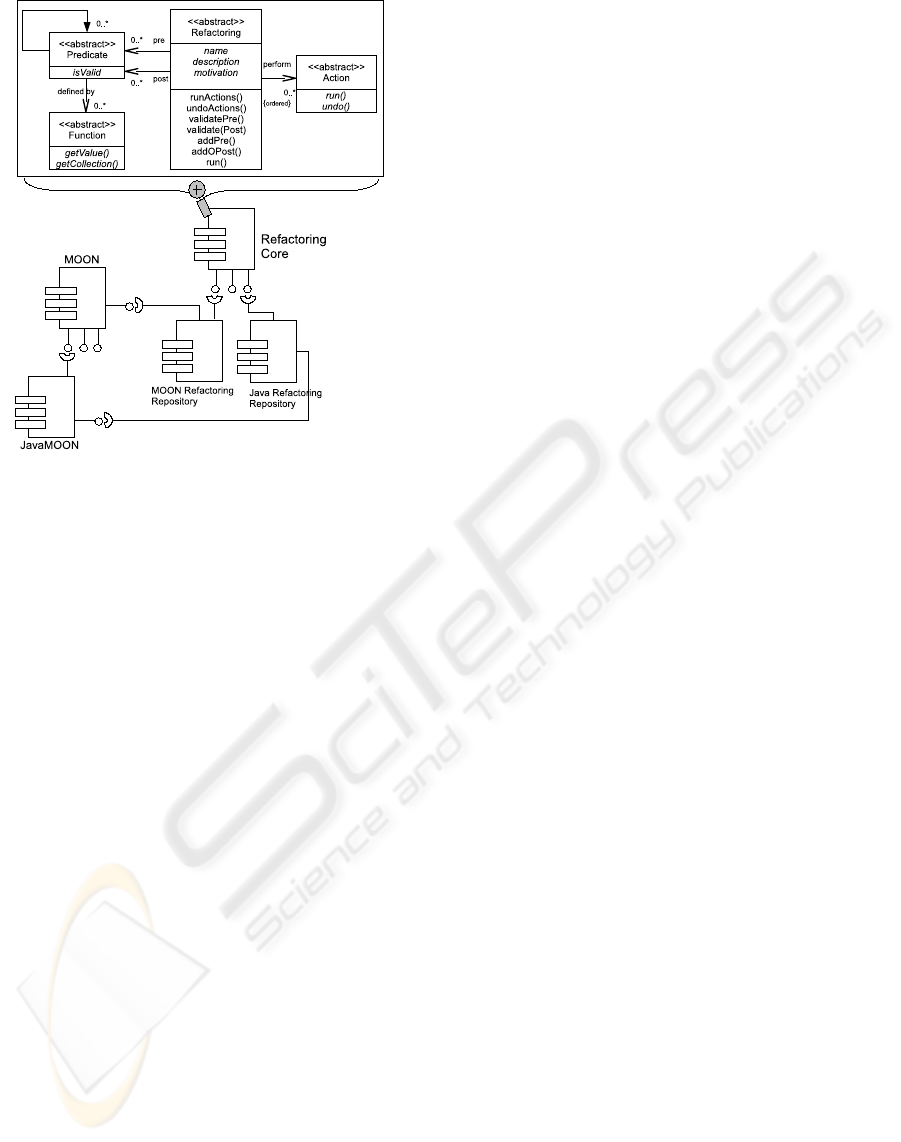

Figure 1: Refactoring engine framework.

4.2 Queries and Transformations

Refactoring elements, queries and transformations,

are usually implemented as concrete classes collected

in repositories. Although model extensions contain

information of real code, most classes work with the

MOON core metamodel abstractions. Queries are

usually predicates based on functions and other pred-

icates. Actions change the graph state, from previous

state to the refactored state. Both of them are classi-

ﬁed following the taxonomy described in Section 3.

Same queries or actions are reused when im-

plementing refactoring operations for different lan-

guages if they can be seen as language independent.

For example, the precondition

ExistParameter-

WithSameName

or the action

MoveAttributeAction

are reusable for several languages.

The main advantage of this approach appears

when same refactorings are implemented for differ-

ent object-oriented programming languages. In an

ideal case, a refactoring operation can be reused as a

whole, but in most cases, the refactoring elements are

reused and properly composed introducing variations

and language dependent parts.

5 REFACTORING

CONSTRUCTION AND

EVOLUTION

Most available refactoring tools implement their

refactoring operations as a ﬁxed composition of parts

which are hand coded in source ﬁles with a particular

programming language. Although better design so-

lutions have emerged last years (Frenzel, 2006) (Jet-

Brains, 2006), refactorings are difﬁcult to change,

maintain and reuse. A simpliﬁed view of refactor-

ing as the composition of queries and transformations

leads to think about it in a declarative way using or-

dered elements and additional information.

If we are able to manage refactoring pieces as iso-

lated parts, they can be assembled at execution time

using advanced programming mechanisms. With this

aim, we migrate our initial proposal, of building and

running refactorings in hand coded modules, towards

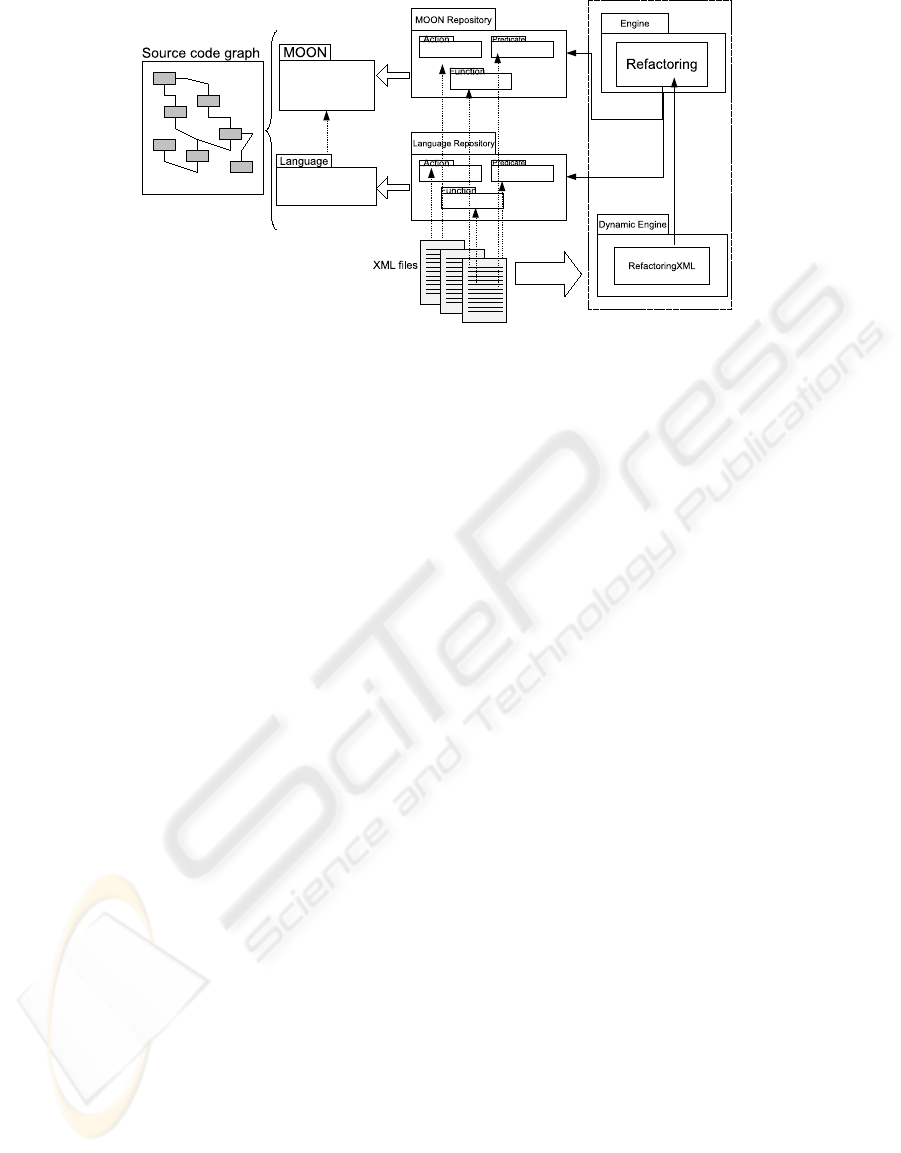

a dynamic assembly, as can be seen in Fig. 2. Refac-

torings elements are not directly referenced in the

code, but are declared in XML ﬁles. For example,

a refactoring as Rename Class, has its counterpart as

RenameClass.xml

(see Appendix).

Refactoring engine has been modiﬁed to load the

ﬁle on demand. Graphical user interfaces can be gen-

erated, asking the user to introduce refactoring input

parameters. In our previous experience, each refactor-

ing needed a customized window (hand coded GUI),

whereas dynamic solution solves the problem in one

step. Preconditions, actions and postconditions are

also parsed from the XML deﬁnition. These parts are

extracted and assembled from their repositories. The

refactoring is build at runtime, reusing the engine pre-

sented in Section 4.

5.1 Refactoring Building Process

In order to include a new refactoring in our tool ac-

cording to this new approach, contributors must:

1. Deﬁne refactoring parts.

2. Review parts contained in the refactoring reposi-

tories.

3. Build refactoring XML ﬁle:

• include general information

• select inputs

• select preconditions (optional)

• select actions

• select postconditions (optional)

• include code examples (optional)

ICSOFT 2008 - International Conference on Software and Data Technologies

216

Figure 2: Dynamic refactoring building.

Next we detail some part of this process, as well

as the process for building and executing the refac-

toring operation, once the refactoring deﬁnition data

have been correctly uploaded.

5.2 XML Elements

Refactoring elements, previously described, have

their counterpart in the XML ﬁle (see Fig. 2). The

refactoring inputs are identiﬁed as elements of the

MOON or extension model, using a type mark. A

qualiﬁed name is also given that allows the input item

to reference other elements (pre/postconditions and

actions). Special inputs as root elements are used as a

guide to the graphical interface. When refactorings

need inputs derived from other inputs, an attribute

from

is included.

Preconditions and postconditions reference pred-

icates to be evaluated. These items are looked up in

current repositories (MOON and language reposito-

ries). If they do not exist, a deﬁnition and implemen-

tation subprocess must be completed before following

the refactoring construction. Parameters are added us-

ing previous input names. It is mandatory that all pa-

rameters come from inputs, or their values can be de-

rived from inputs. Actions use the same strategy, in-

cluding target elements to be transformed. Optionally,

postconditions are included to check the correct exe-

cution. We always consider the model (current graph)

as default input. Finally, the XML ﬁle is validated

with a DTD to check its correctness.

5.3 Assistant Tool and Reﬂection

Since XML manual construction is prone to failures,

a graphical interface is provided to build the XML

ﬁle. The assistant or wizard helps the user to build

correct refactorings, through ﬁve steps: enter general

refactoring information, select inputs, add pre/post

and actions, include some code examples and conﬁrm

changes.

Referenced elements from repositories are vali-

dated using a reﬂection mechanism. If the classes

cannot be loaded, they are not shown in the wizard

screens. Thus, ﬁnal deﬁnition exclusively contains

runnable pieces of code. Once the XML refactor-

ing ﬁle is completed, it is saved in one speciﬁc di-

rectory where dynamic refactoring engine can ﬁnd it

and parse it (see Fig. 2).

Our tool dynamically detects available refactor-

ings, reading suitable XML ﬁles stored in the direc-

tory, and shows the applicable set of refactorings de-

pending on current selected elements in the model

(i.e. packages, classes, methods, etc). When the user

wants to use these refactorings, he/she must select

the refactoring and a dynamic window is created on

the ﬂy. Inputs, types and names, are obtained deﬁn-

ing the screen layout. The user must enter new val-

ues for each one of these ﬁelds. From these entry

points, preconditions, actions and postconditions are

extracted from XML ﬁles, recovered from reposito-

ries, parameterized with previous inputs, and used to

feed the refactoring engine framework (see Fig. 1 and

2). Lately, refactored code is regenerated from the

new model state.

5.4 Current Development

We have developed a prototype as concept proof of

our proposal with a set of eight refactorings. The

refactoring set was previously implemented using li-

braries, where each refactoring is codiﬁed and imple-

mented on the basis of them. Changes to these refac-

torings implied a new development process, editing

source codes and rebuilding refactoring libraries.

Our current development migrate from closed

DYNAMISM IN REFACTORING CONSTRUCTION AND EVOLUTION - A Solution based on XML and Reflection

217

support deﬁnition to new XML ﬁle deﬁnition. Refac-

torings are not hand coded, but they are assembled

from elements of the refactoring repository. It is al-

ways necessary a complete set of queries and trans-

formations, but if this requirement is fulﬁlled, refac-

toring deﬁnition is completed.

The tool guides the construction process, showing

current elements in the refactoring repository and al-

lowing their selection and coupling, using a wizard. A

second phase appears when the user needs to run the

refactoring on real code. Now, previous pieces work

together to put the refactoring in motion. Although

there are not different results between the solutions

(hand coded or generated), maintenance problem is

solved in a smooth way. Future changes are applied

using the assistant again, in few seconds.

Some features are difﬁcult to remove. The person

who assembles refactorings needs to know language

particular features and the repositories. Nevertheless

this problem was also present in previous solutions.

On the other hand, both of them, static vs. dynamic

methods, can be simultaneously included in the same

tool without problems.

6 RELATED WORKS

Some approaches to the language independence prob-

lem in refactoring are based on metamodel solutions

as FAMIX (Tichelaar, 2001) and its refactoring en-

vironment named Moose (Nierstrasz et al., 2005).

This tool includes a refactoring framework that al-

lows some kind of source analysis. Nevertheless,

code changes remain language speciﬁc using Refac-

toring Browser (Roberts, 1999) for Smalltalk and a

text-based approach for Java.

In the same line, (Van Gorp et al., 2003) develop a

new solution based on metamodels. Authors propose

eight additive and language-independent extensions

to the UML 1.4 metamodel, which form the founda-

tion of a new metamodel named GrammyUML, very

similar to the Fujaba metamodel (Burmester et al.,

2003), since they use the visual language named

SDM (Story Driven Modelling) to describe refactor-

ing preconditions. Some problems about representa-

tion completeness which force to add new features to

the SDM language appear. Refactoring operations are

run as graph rewriting in Fujaba. Neither reuse of

refactoring elements, nor declarative refactoring were

faced in this work.

In (Kniesel, 2006), author works in refactoring

composition with the aim to simplify a sequence of

refactorings. The main goal is to ensure atomic ex-

ecution of a refactoring chain by creating a single

equivalent conditional transformation. The proposal,

named ConTraCT, was applied to the Java language,

since language independence was not faced. There is

no XML support, although conclusions of that work

could be considered valid for our proposal.

The aim of independence of source core model,

target programming language and code manipulation

language, using XML as unique tool is described in

(Mendoc¸a et al., 2004). Although XML use gives a

great independence, queries and updates are rewritten

for each new schema (language programming), and

refactoring construction requires to work with XML

and other derived technologies, without aided sup-

port.

Refactoring tools available today as Refactoring

Browser (Roberts, 1999), Refactor-Pro (Inc., 2007),

Eclipse (Frenzel, 2006), etc, also include a refactor-

ing engine, but it is not available a smooth way to

deﬁne, reuse, construct and evolve refactorings. Lan-

guage independent support is weak or completely ab-

sent, some steps are given by Eclipse offering a lan-

guage independent part mainly at refactoring scheme

and GUIs construction.

7 CONCLUSIONS

The framework and solution described in this paper

reduce the need to build refactorings from scratch,

and evolve previous refactorings with a relative low

effort, as long as repository items are available. Our

proposal allows developers to enrich the refactoring

offer as long as to tune, enhance, or upgrade the al-

ready offered refactoring operations. The approach

provides certain kind of dynamism in refactoring con-

struction and evolution. Furthermore, if refactorings

can be seen as compound actions, our solution sup-

ports the use of refactorings as high level actions lead-

ing to more complex refactoring operations.

We developed the framework with the refactor-

ing engine and the language independent treatment,

based on the metamodel core with extensions points

as hooks and the particular extensions for each lan-

guage (Java delivered, C# and Eiffel in process). The

proposal presented in this paper on dynamic construc-

tion and evolution based in XML and reﬂection is

available as a prototype.

Starting from our previous experiences develop-

ing this prototype, we are currently developing a plug-

in for Eclipse with Java, with the same functionalities.

In the same line, .NET platform is being included in

the tool. Models and frameworks should be extended

through hook methods, to include .NET features.

Furthermore, new possibilities emerge. Develop-

ICSOFT 2008 - International Conference on Software and Data Technologies

218

ers can build complex transformations required for

evolution process, not including “preconditions” and

building their own non preserving program behavior

transformations. This can aid in evolution process,

automating complex transformations.

REFERENCES

Burmester, S., Giese, H., Niere, J., Tichy, M., Wadsack,

J. P., Wagner, R., Wendehals, L., and Z¨undorf, A.

(2003). Tool Integration at the Meta-Model Level

within the FUJABA Tool Suite. In Proc. of the

Workshop on Tool-Integration in System Development

(TIS), Helsinki, Finland, Satellite Event of the joint

Conferences ESEC/FSE 2003, pages 51–56.

Crespo, Y. (2000). Incremento del potencial de re-

utilizaci´on del software mediante refactorizaciones.

PhD thesis, Universidad de Valladolid. Available at

http://giro.infor.uva.es/docpub/crespo-phd.ps.

Fayad, M., Schmidt, G., and Johnson, R. (1999). Build-

ing Applications Frameworks: Object-oriented Foun-

dations of Framework Design. Wiley Computer Pub-

lishing.

Fowler, M. (2000). Refactoring. Improving the Design of

Existing Code. Addison-Wesley.

Frenzel, L. (2006). The Language Toolkit: An API for Au-

tomated Refactorings in Eclipse-based IDEs. Eclipse

Magazine.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns. Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Inc., D. E. (2007). Refactor Pro for Visual Studio .NET.

JetBrains (2006). IntelliJ IDEA :: The Most Intelligent Java

IDE. http://www.jetbrains.com/idea/. Java IDE.

Kniesel, G. (2006). A Logic Foundation for Conditional

Program Transformations. Technical Report IAI-TR-

2006-1, Computer Science Department III, University

of Bonn.

Mendoc¸a, N. C., Maia, P. H. M., Fonseca, L. A., and

Andrade, R. M. C. (2004). RefaX: A Refactor-

ing Framework Based on XML. In 20th IEEE

International Conference on Software Maintenance

(ICSM’04), pages 147 – 156.

Nierstrasz, O., Ducasse, S., and Gˆırba, T. (2005). The

Story of Moose: An Agile Reengineering Environ-

ment. In Wermelinger, M. and Gall, H., editors,

ESEC/SIGSOFT FSE, pages 1–10. ACM.

Opdyke, W. F. (1992). Refactoring Object-Oriented Frame-

works. PhD thesis, University of Illinois at Urbana-

Champaign, IL, USA.

Roberts, D. B. (1999). Practical Analysis for Refactor-

ing. PhD thesis, University of Illinois at Urbana-

Champaign, IL, USA.

Tichelaar, S. (2001). Modeling Object-Oriented Software

for Reverse Engineering and Refactoring. PhD thesis,

University of Bern.

Van Gorp, P., Van Eetvelde, N., and Janssens, D. (2003).

Implementing Refactorings as Graph Rewrite Rules

on a Platform Independent Meta model. In Proceed-

ings of 1st Fujaba Days.

APPENDIX

Refactoring example with its suitable XML deﬁni-

tion: Rename class, included in (Opdyke, 1992).

<?xml version="1.0" encoding="ISO-8859-1"?>

<!DOCTYPE refactoring

SYSTEM "refactoringDTD.dtd">

<description>Change name class.

</description>

</information>

<input type="moon.core.ClassDef"

name="Class" root="true"/>

<input type="moon.core.Name"

name="OldName" from="Class"/>

<input type="moon.core.Name"

name="NewName" />

</inputs>

<precondition

name="NotExistsClassWithSameName">

</precondition>

</preconditions>

</action>

</action>

</action>

</actions>

<postcondition

name="NotExistsClassWithSameName">

</postcondition>

</postconditions>

</mechanism>

</refactoring>

DYNAMISM IN REFACTORING CONSTRUCTION AND EVOLUTION - A Solution based on XML and Reflection

219
