MATHS VS (META)MODELLING

Are we Reinventing the Wheel?

D. H. Akehurst, W. G. J. Howells

Department of Electronics, University of Kent, Canterbury, U.K.

B. Bordbar

School of Computer Science, University of Birmingham, Birmingham, U.K.

K. D. McDonald-Maier

Department of Computing and Electronic Systems, University of Essex, Colchester, U.K.

Keywords: Theory of metamodelling, formal mathematical analysis.

Abstract: In the past, specification of languages and data structures has traditionally been formally achieved using

mathematical notations. This is very precise and unambiguous, however it does not map easily to modern

programming languages and many engineers are put off by mathematical notation. Recent developments in

graphical specification of structures, drawing from Object-Oriented programming languages, has lead to the

development of Class Diagrams as a well-used means to define data structures. We show in this paper that

there are strong parallels between the two techniques, but that also there are some surprising differences!

1 INTRODUCTION

Science originally evolved as a branch of

mathematics. It could well be argued that maybe it

should always have stayed a branch of mathematics

because then our programs would be ‘proved’ to

work before being executed. However, the set of

programs for which we can ‘prove’ things is much

smaller than the set of programs that we actually

want to write, and more importantly, smaller than

the set we want to use.

If mathematics were the language of

programming, either there would be a much larger

number of mathematicians in the world or computers

and software would simply not have permeated our

culture as much as they have. The traditional

mathematical approach to writing algorithms is

declarative, whereas the typical programming

approach is imperative. This, in our opinion, is one

of the most significant differences between

mathematics and programming. A consequence of

this difference is an increase in the semantic

complexity in traditional programming languages

compared to the semantic simplicity of declarative

languages.

The complexity of the programs we write

naturally leads us to the need for modelling.

Modelling is an old discipline, possibly as old as

engineering in general. The actual age of modelling

is dependent on what one takes as the definition of

modelling. Physical sculpture as modelling is pre-

historic, mankind has be fashioning models of things

in the real world for as far back in his history as he

can look.

Modelling as an engineering discipline is also a

significantly old discipline; any engineering project

involves construction of a model, for small projects

this may only be a ‘mental model’ but for any

project of significant size or complexity, especially

if it involves multiple engineers, a more concrete,

real world, model is created in order to aid

communication and exploration of the problems and

specification of the final product. Models strive to

efficiently communicate the important abstract

properties of the problem being modelled.

Mathematics has traditionally been used as a tool

for constructing such models. Mathematical models

313

H. Akehurst D., G. J. Howells W., Bordbar B. and D. McDonald-Maier K. (2008).

MATHS VS (META)MODELLING - Are we Reinventing the Wheel?.

In Proceedings of the Third International Conference on Software and Data Technologies, pages 313-322

DOI: 10.5220/0001897403130322

 SciTePress

of the stock market, of the weather system, of the

forces involved in sending a rocket to the moon,

they are all essential to mankind’s understanding and

ability to interact with, build, or predict things about,

the environment in which he lives. Programming, on

the other hand, is simply a tool. It is, at the simplest

level, a set of instructions for a machine to execute

in order that the machine performs some useful task

(though in some cases the actual usefulness is

dubious). The complexity and the variety of the

tasks to which we want to put our machines are

increasing astonishingly quickly, thus it becomes

more and more essential for us to be able to

understand, predict and communicate about the

programs that are written; hence the use of models.

Models, in the sense of the Unified Modelling

Language (UML) (OMG, 2003), have evolved as the

non-mathematician, software engineer’s tool for

facilitating communication and analysis of the

complex programs that they build. A huge part of

the modelling languages developed for this purpose

focus on the structural elements of the program

rather than the behaviour, which after all is the main

purpose of the program. This split between structure

and behaviour, is in itself a very interesting topic for

discussion, however, although we may touch on it in

this paper it is not the primary focus.

Techniques and languages for modelling

software have changed over the years to reflect the

programming languages in common use. Early

modelling approaches of flow charts, structure

diagrams, data flow modelling, have been replaced

with the current favoured approach of Object-

Oriented modelling. Although the UML consists of

multiple different modelling languages with

different modelling features for example: state based

modelling, component based modelling, and activity

flow based modelling. The core and most widely

accepted and used part of the UML is the humble

Class Diagram. This diagram type is fundamentally

based on the notions of object-orientation:

composition, abstraction, inheritance, modularity,

polymorphism and encapsulation.

The UML Class Diagram language arose towards

the end of the 1990’s, as a result of the coming

together of (initially) three different languages that

had been separately developed for a very similar

purpose. Booch’s development focussed approach

(Booch method) closely related to OO

programming; Rumbaugh’s Object Modelling

Technique (OMT) coming from the Relational

Database world; and Jacobson’s Use Case based

approach, OOSE.

The primary case study carried out and published

as part of the definition of the “new” Unified

Modelling Language was the definition of itself!

Thus right from the very start, the UML

(predominantly class diagrams) has been used as a

language to model languages. Such a model of a

language has come to be known as a metamodel (a

model of a model).

The use of UML as a means to model languages

has been part of the fuel for the recent advances in

the OO modelling community, and in particular

Model Driven Development (MDD (Atkinson, 2003,

Kleppe, 2003, Selic 2003)) research, which has

inspired a new interest in language specification.

This new interest comes under the title of Domain

Specific Languages (DSL (Chen, 2005, Greenfield,

2003, van Deursen, 2000, Vokac, 2003, Wile,

2001.)). As a result, numerous languages are being

defined, and in particular, numerous metamodels for

those languages.

Prior to UML alternative (traditional) modelling

techniques were employed to significant effect in

order to define languages. Set theory, logic, and

other branches of mathematics were used to give

precise and formal definitions of languages

including their semantics. These languages were

predominantly text based and Backaus-Naur-Form

(BNF) is used to define the language syntax. It is

useful at this point to note a significant difference, to

a language specification reader, between a BNF

grammar and a UML class diagram. In BNF, the

syntax is presented in an entirely text based format

and although complete and theoretically fit for

purpose, it presents a possible conceptual barrier to

the ease of understanding for a typical human reader.

Further, BNF is overly specific regarding the nature

of the syntax whereas the graphical based format of

UML primarily introduces the abstract concepts in

an easily accessible and pictorial manner. Recent

works such as (Alanen, 2004, Wimmer, 2005)

explore the relationships between BNF based

definitions of syntax and metamodels.

Mathematical modelling of algorithms has

evolved to a very high degree. Denotational

semantics (Stoltenberg-Hansen, 1994, Stoy, 1977)

allows a detailed analysis of algorithms to be made

and conclusions to be drawn regarding their

behaviour and efficiency. However, the very

mathematical nature of Denotational Semantics

makes it highly inaccessible to traditional

programmers and therefore its practical uptake has

been limited. Alternatively, many practical logics

have been developed for specific problem domains

and theorem proving tools designed (Hanna, 1992,

Hanna, 1990) to help verify and validate software

systems. Again however problems associated with

the complexity of such systems has limited their

ICSOFT 2008 - International Conference on Software and Data Technologies

314

practical employment and in some cases has actively

hindered the verification process due to errors

introduced by human operators within the program

validation stage (Cohn, 1989).

The primary aim of the paper is to investigate the

use of the graphical Object-Oriented approach of

metamodelling in contrast to traditional approaches

for the specification of languages. It seeks to

compare the practical issues related to clear and

precise modelling offered by the mathematical

techniques with the human accessibility and, by

implication, practical utility, offered by the graphical

approach. To achieve this aim, three contrasting

examples are discussed in the following sections.

Section 2 introduces the simplistic nation of a

Directed Graph. Subsequently section 3 enhances

the discussion to Petri-Nets and Section 4 addresses

a significantly different example in the form of the

Lambda Calculus. The paper then draws conclusions

based on the relative merits of the proposals in

Section 5.

2 MODELLING DIRECTED

GRAPHS

One of the most common structures used in both

mathematics and computing is that of a directed

graph. A graph G=(N,E) is a pair of sets; N is a

finite set of nodes or vertices and E is a set of pairs

of elements of N. In depiction of graphs, nodes are

points in some space and edges form connections

from one node to another.

Table 1: Mathematical Model of a Directed Graph.

G = (N, E)

N ⊆ { n | n ∈ Ζ } // where N is finite

E ⊆ { (n1,n2) | n1,n2 ∈ N }

A very simple mathematical model of such a

graph is shown in Table 1. This specifies the concept

of a directed graph as a pair of sets. One set being a

set of nodes, which for simplicity are represented by

integers. The other set, representing the edges in the

graph, is a set of pairs (tuples); each of the pairs

containing two integers representing the nodes

which are connected by the edge.

To model the same kind of structure using OO

modelling, Class Diagrams, we would typically

define classes DirectedGraph, Node and Edge, and

then define associations between the classes that

indicate the relationships between nodes and edges

and the graph as a whole. This is illustrated in the

simplest form by Figure 1.

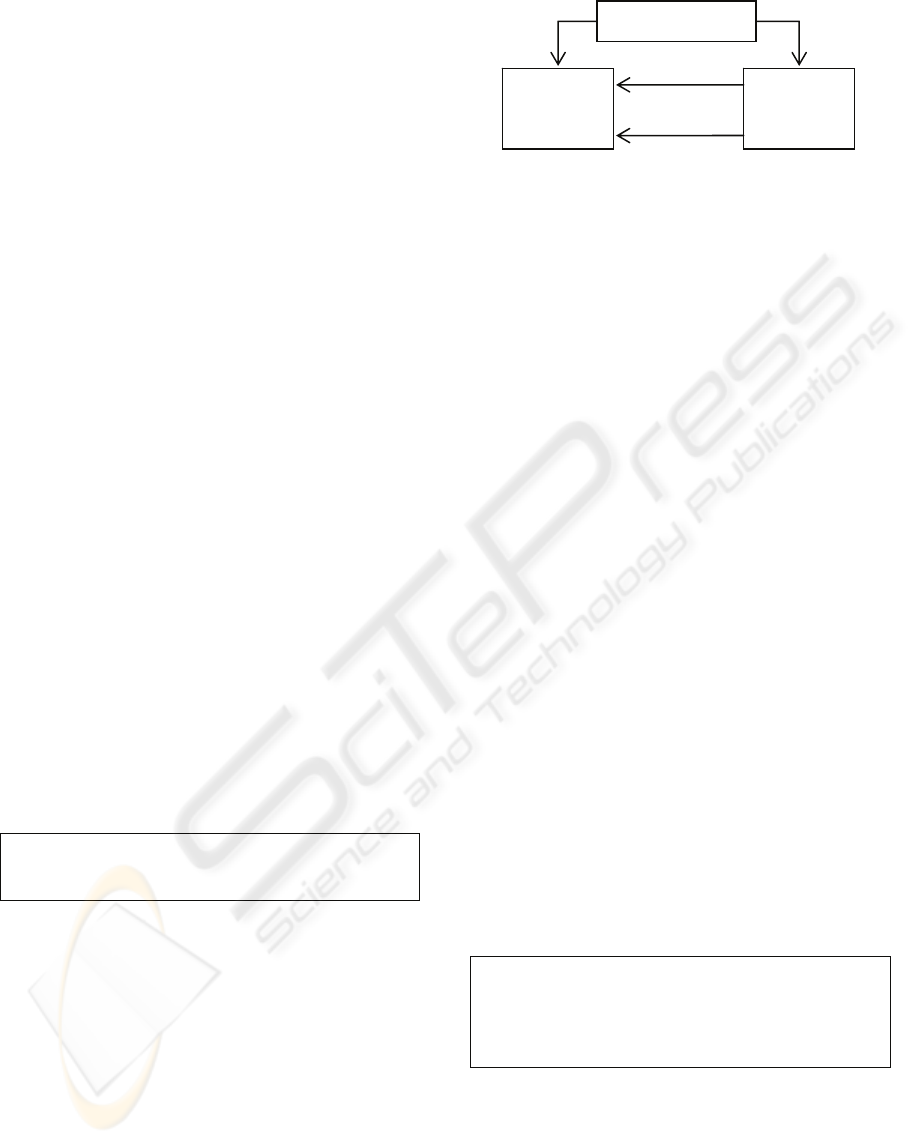

Figure 1: Typical OO Model of a Directed Graph.

Interestingly, even with this simple graph

structure, there are significant differences between

the mathematical and OO forms of model. If we

interpret each class in the typical OO programming

context, then there is an implicit property of each

class/object (equitable to the memory location of the

object representation) that defines the objects

identity. In the case of the Node class, a ‘label’

property has been given, but there is nothing in the

model that specifies that this property defines the

identity of Node objects.

In the mathematics, the identity of the nodes (N)

are made explicit by defining a node as an integer;

however, neither graph (G) nor edge (E) have an

explicit identity other than the implicit identity of

the tuple and set on which they are defined.

With respect to the OO model the question arises

as to whether two edge objects that refer to the same

two nodes are a single edge or two separate edges. In

the mathematics, the definitions of identity for tuples

clearly indicates that, not only are two pairs of the

same two nodes, the same edge, but that a graph

cannot have two edges between the same two nodes

(something can only appear once in a set.)

Another difference is that the mathematical

model specifies that the two ends of an edge are

members of the set of nodes. The OO model does

not make this restriction; the edges in this model

may be node objects that do not appear in the set of

nodes for the graph.

Table 2: Mathematical version of OO Model of a Directed

Graph.

Graph = (id, nodes, edges )

id ∈ Ζ

nodes ⊆ { (id, label) | id, label ∈ Ζ }

edges ⊆ { (id, n1, n2) | id ∈ Ζ, n1 ∈ Node, n2

∈ Node }

So is our mathematical model wrong, or is it the

OO model that is incorrect? Neither, they just

happen to model two different structures. A

mathematical model of the same structure as defined

by the OO model of Figure 1 is shown in Table 2.

In this structure we have explicit modelled the

‘memory location’ identity as an Integer, and we

start

[1]

DirectedGraph

Integer

[*] nodes

Edge

[*] edges

finish

[1]

MATHS VS (META)MODELLING - Are we Reinventing the Wheel?

315

define edges to reference two elements of the set of

all Node objects as opposed to two elements from

the set of nodes in the graph.

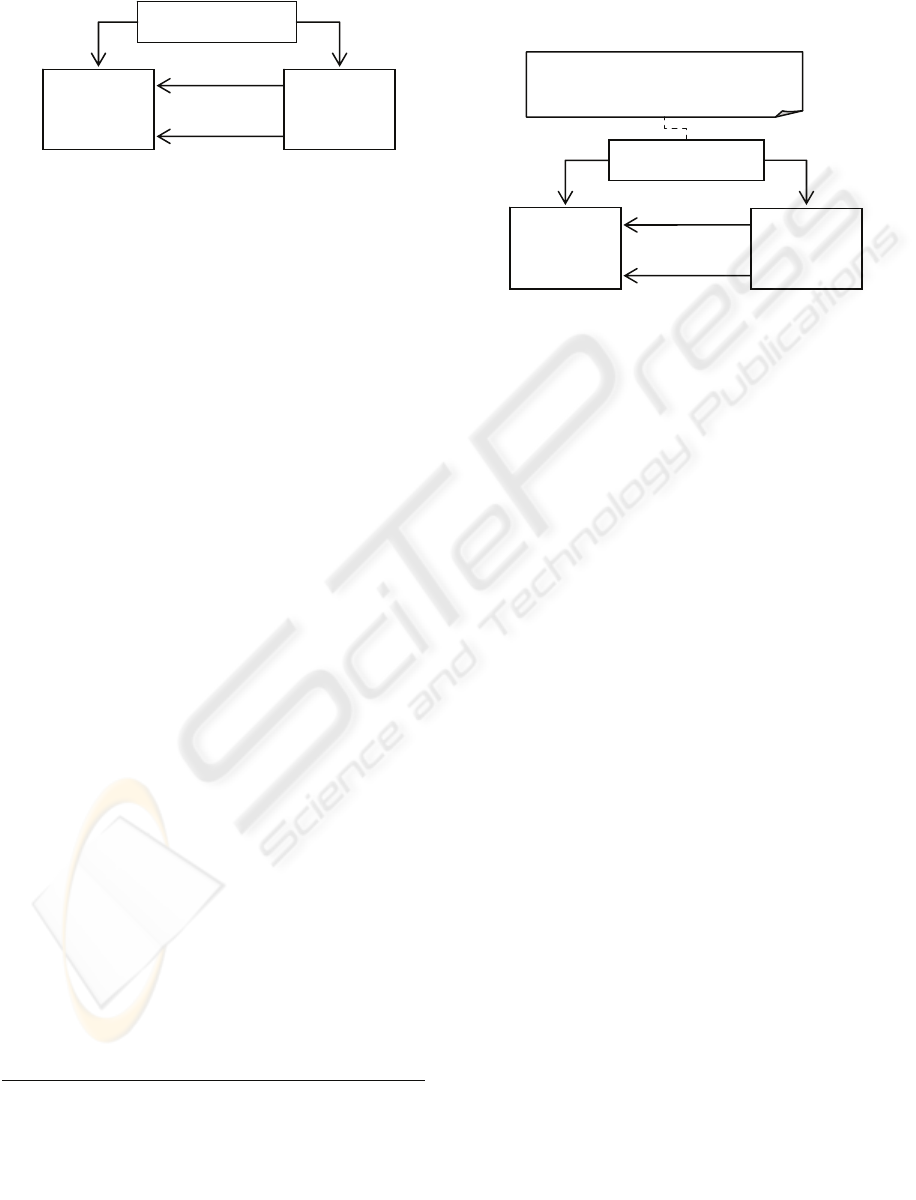

Figure 2: Another OO Model of a Directed Graph.

An OO model that provides a slightly better

match to the original mathematical definition from

Table 1 is illustrated in Figure 2.

This second OO model directly models the nodes

of a graph as a set of integers. However, using this

simple class diagram language, there is no way to

provide a completely equivalent model:

1. We have no means to define the identity of

classes/objects. In the case of an Integer, one

has to assume that its value is its identity, but

for the Graph and Edge classes, there is the

implicit notion of ‘memory location’ identity

which we have no means to override. Ideally we

would define the identity of an edge as being

equivalent to the set of its ends.

2. We also have no way to define that the ends of

an edge must be a subset of the nodes in the

graph.

To enable the precision of specification easily

achieved with the mathematical approach, we must

add a means for defining/overriding the identity of

objects and a way to add constraints.

Both of these things have been addressed (to an

extent) by the designers of the UML. Additional

constraints can be added to a model using the OCL,

and there is a basic mechanism for defining that

certain properties of a class define its identity

Using this extended language of class diagrams we

can now give an equivalent structural specification

of our original mathematical definition of a graph,

shown in Figure 3.

This OO model of a directed graph is a much

more precise specification. However, even though it

does match the mathematical definition, it seems

somewhat clumsy with the need for the additional

constraint. Also the use of the Integer class directly

for modelling nodes does not seem quite like the OO

approach to modelling.

If we make use of bi-directional associations and

extend the use the UML 2.0 notion of subsetting

can construct a new model as illustrated in Figure 4.

Figure 3: OO version of Mathematical model of a Directed

Graph.

In this model:

• Node objects are identified by their label – the

label property is marked as an identifying

property.

• Edges are identified by the nodes they connect –

the start and finish properties are marked as

identifying

• The ends of an edge are constrained to be nodes

in the same graph – the start and finish properties

are constrained to be subsets of the nodes in the

graph.

In addition the model provides bi-directional

navigation between Node objects and the edges that

connect them, which although non-essential is likely

to be very useful.

This final OO model of directed graphs is, in our

opinion, by far the most effective model. The initial

OO model, although simple and intuitive, was not

precisely correct. By looking at the traditional

mathematical model it becomes apparent that the

notion if identity is important, as is a mechanism for

constraining the ends of edge objects to be part of

the same graph as the edge itself.

There are mechanisms designed into the UML

language of class diagrams that nearly enable us to

model as precisely as the traditional maths, however

these notions are not quite sufficient, and more

importantly are seen as ‘additions’ to an OO model

rather than primary things to consider aspects of the

semantic behaviour implied by those structures.

This example has looked solely at models of

structure (a graph has no behaviour). In the next two

sections we look at modelling more complex

structures (languages) and at specifying some.

start

[1]

DirectedGraph

Intege

[

]

nodes

Edge

finish

[1]

[

]

DirectedGraph

Intege

[*] nodes

nodes->includesAll(

edges.start.union(edges.finish) )

start {id}

[1]

Edge

finish {id}

[1]

[*] edges

We extend the official UML facility slightly, allowing us to

mark multiple properties as jointly defining an object’s identity

and allowing those properties to be association ends as well as

attributes.

Officially, association ends should only subset othe

associations ends with the same source object.

ICSOFT 2008 - International Conference on Software and Data Technologies

316

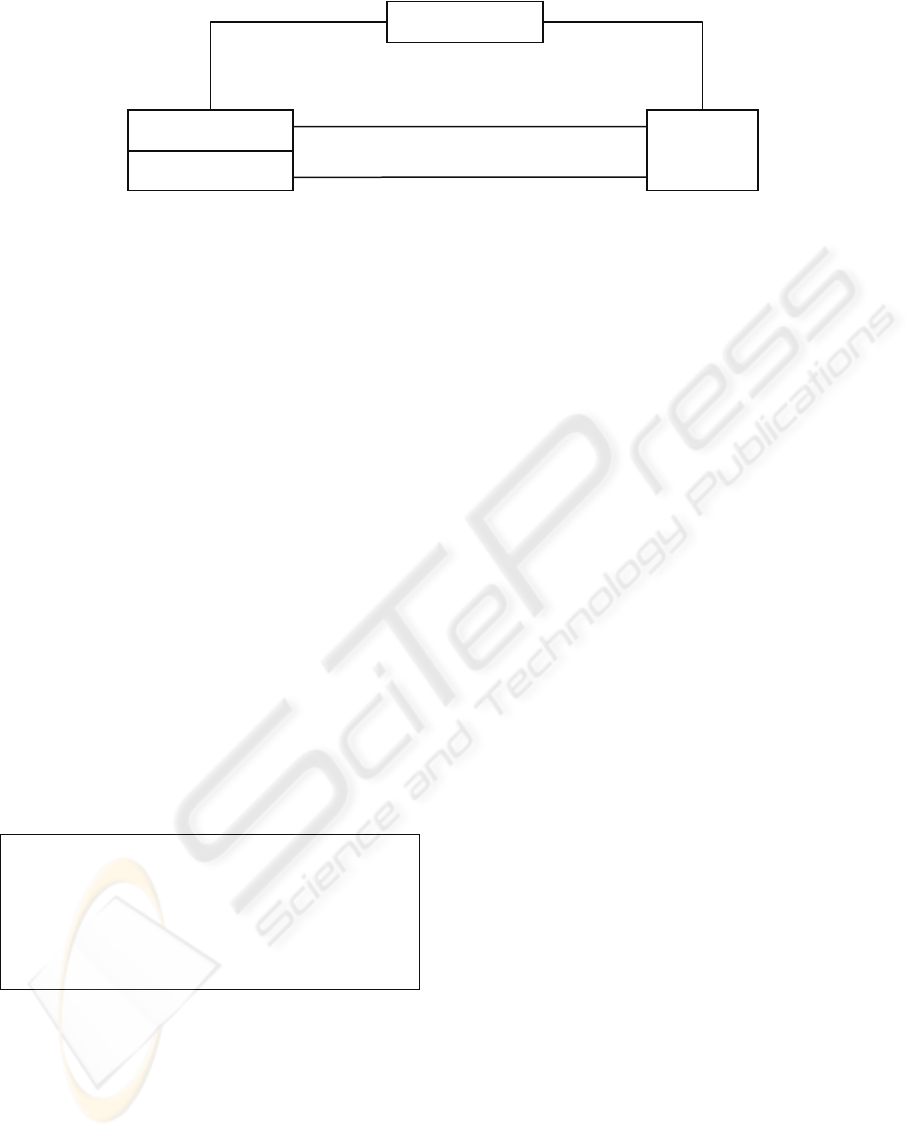

Figure 4: Better OO model of Directed Graph.

3 PETRI-NETS

A more interesting example than simple graphs is

that of Petri-nets (Murata, 1989). A Petri-net is

directed, weighted, bipartite graph, together with an

initial state called the initial marking, M

. Petri-net

graphs consist of two types of nodes, called places

and transitions, whereas edges are either from places

to transitions or from transitions to places. If there is

an arc from a place p to a transition t, we say p is an

input place of t, and t is an output transition of p.

Places are depicted as circles and transitions as

rectangles. Arcs are labelled with positive integers,

called weight. A marking of a Petri-net assigns a

non-negative number, known as the number of

tokens, to each place. A marking M is in effect an

integer valued vector of dimension m, where m is

the number of places. Hence, each coordinate of M

denotes the number of the number of tokens in the

corresponding place. Table 3 presents a formal

definition of a Petri-net, taken from (Murata, 1989).

Table 3: Mathematical definition of a Petrinet.

PN = (P, T, F, W, M

)

P = {p

…p

} is finite set of Places

T = {t

,…t

} is a finite set of transitions

F ⊆ (P×T) ∪ (T×P) is a set of arcs

W: F → {1,2,3,…} is a weighting function

M: P → {0,1,2, …} is a marking.

is the initial marking.

An OO model would be more likely to define

Petri-nets as illustrated in Figure 5. A Petri-net being

a containing class for Place, Transition and Arc

objects. There being two kinds of Arc, Place-

>Transition Arcs and Transition->Place Arcs. The

additional definition of Markings is as

shown in

Figure 6.

As with the directed graph definition, it is

necessary to augment the class diagram with

additional constraints, which in the mathematical

model are unnecessary. In this case the constraints

ensure that the ends of the arcs are members of the

sets of places and transitions in the petri-net.

The other major difference between these two

specifications is the explicit definition of types for

Arcs in the OO model, which in the maths

specification are defined jointly as the union of

tuples (place,transition) and (transition,place).

3.1 Semantics

With the definition of a language, in this case Petri-

nets, we can go a step further than we did with the

graph model. The runtime semantics of Petri nets are

defined using the traditional mathematical

specification approach. In the OO modelling world

this is less often defined; however, it is perfectly

feasible to do so, using the standard UML/OCL

language facilities.

Semantics of a Petri net can be interpreted as a

labelled transition system, in which each state of the

Petri is a marking of the Petri net. Change of one

state of a Petri net to another state is governed by the

firing rules:

1) A transition t is called enabled if for each of its

input places p has at least w(p,t) tokens, where

w(p,t) is the weight of the arc from p to t.

2) An enabled transition t may fire, in which case

w(p , t) tokens are removed from each input

place p of the transition t and w(t , p’) tokens

are added to the each output place p’ of t.

Firing of an enabled transition t under a marking

M resulting in new marking M’ is denoted by M [t>

M’. A Reachable marking (state) of a Petri net is a

marking M

such that there are marking M

, M

, …,

K+1

and transition t

, t

, …, t

satisfying the

following

> M

> … [t

K+1

> M

K+1

> M

In this case the sequence of transitions t

…t

called a run.

start {subsets graph.nodes }

[1]

DirectedGraph

Node Edge

[*] nodes

label : Integer {id}

[*] edges

finish {subsets graph.nodes }

[1]

graph

[1]

Graph

[1]

Outgoing

[*]

Incoming

[*]

MATHS VS (META)MODELLING - Are we Reinventing the Wheel?

317

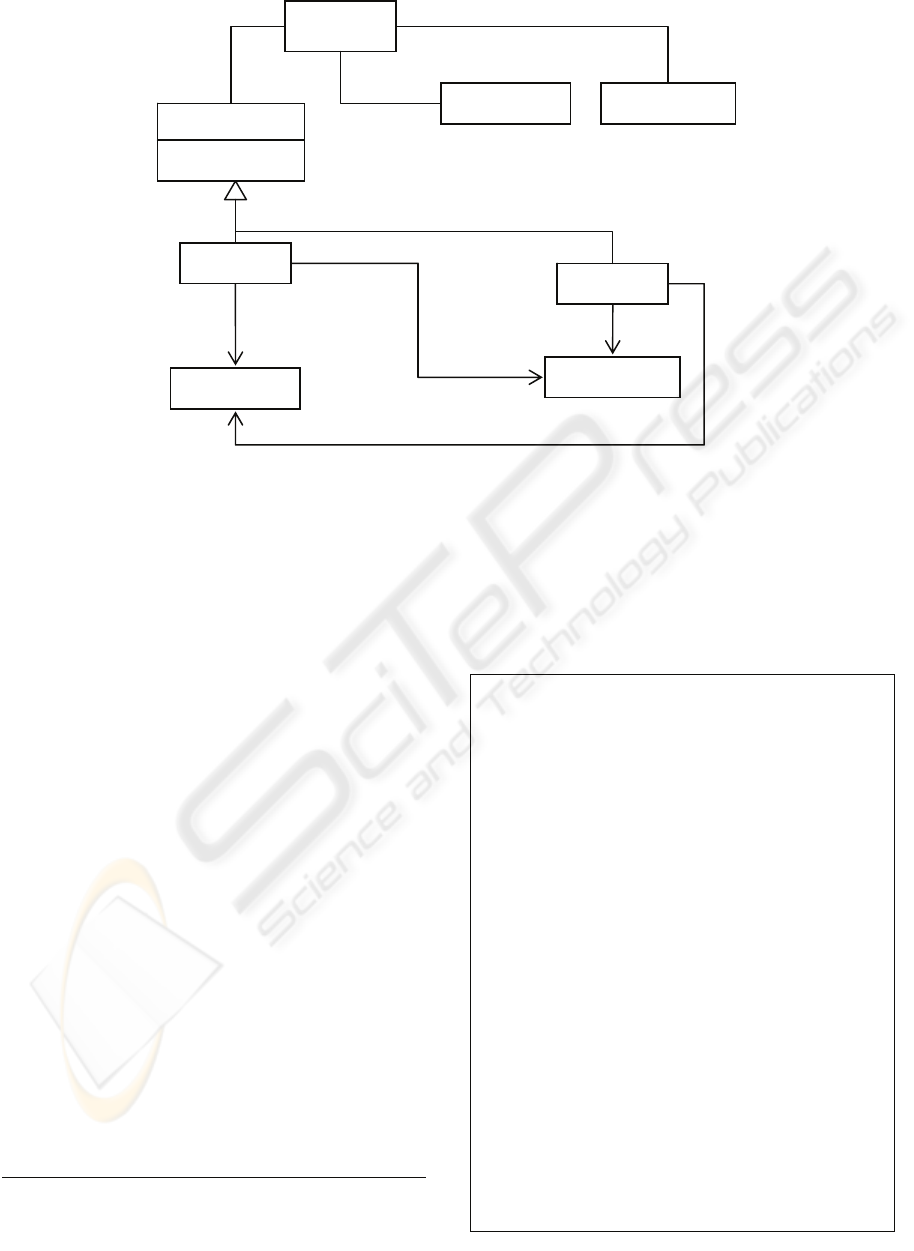

Figure 5: OO (Meta) Model of Petri-Nets.

To add this semantics to the OO model of Petri-

nets we can define operations on the classes that

provide the firing behaviour, the body of the

operations can be given using OCL expressions

To facilitate more concise OCL expressions, we

would also adapt the OO model making more use of

bi-directional associations.

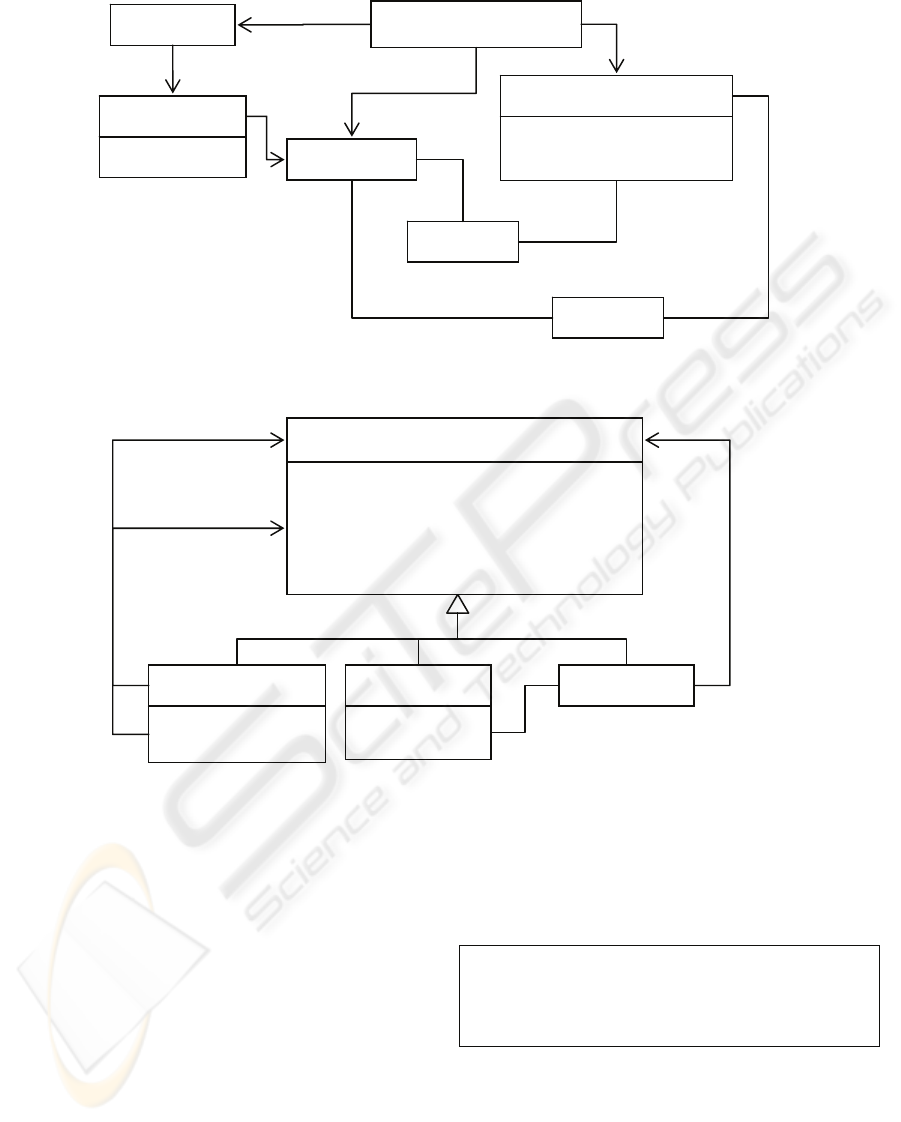

Figure 6: OO (Meta) Model of PetrNets.

shows an evolved specification of the model

from Figure 5, including the specification of

Markings and use of bi-directional associations.

(The constraints have been left out for clarity.)

Given this specification of the model of a Petri-

net, we can define the behaviour of the operations as

shown in Table 4.

Using these definitions we could define further

operations that would simulate execution of the

Petri-net, or search the reachable Markings. One

could even go so far as to build various model-

checking operations.

It can be seen from these specifications that a

graphical OO definition of the language can be as

precise as the more traditional definition. It is also

possible, using the OO approach, to define

operations that aid the semantic interpretation of the

language.

One distinct advantage of the OO definition, over

the traditional, is that the MDD and code generation

techniques (Akehurst, 2007, Budinsky, 2003) enable

this definition of the language to be used to

automatically produce an executable version of the

model that can be used as a first cut evaluator for the

language.

Table 4: Definitions for Petri-net behaviour.

context

Transition::isEnabled(current:Marking) :

Boolean

body: incoming->forAll( arc |

let mark = current.mark-

>any(m|m.place=arc.src) in

mark.tokens >= arc.weight

)

context Transition::fire(current:Marking)

: Marking

body: let

unaffected = current.mark->reject( m |

incoming.src-

>union(outgoing.dst)->includes(m.place) ),

lost = incoming.src->collect( arc |

let mark = current.mark-

>any(m|m.place=arc.src) in

Mark { place = arc.src,

tokens =

mark.tokens-arc.weight } ),

gained = outgoing.dst->collect( arc |

let mark = current.mark-

>any(m|m.place=arc.src) in

Mark { place = arc.dst,

tokens =

mark.tokens+arc.weight } ),

Marking {

mark =

unaffected.union(lost).union(gained)

}

PetriNe

Place Transition

src [1] {subsets net.places}

[*]

places

[

]

transitions

PTArc

TPArc

dst [1]

{subsets net.transitions}

[

]

arcs

Transition

Place

{subsets net.transitions} [1] src

dst [1] {subsets net.places}

weight : Integer

[1]

net [1]

We find it necessary to use an extension of OCL that allows us

to create instances of user model objects. Creation of such objects

is similar to the creation of tuples in standard OCL.

ICSOFT 2008 - International Conference on Software and Data Technologies

318

Figure 6: OO (Meta) Model of PetrNets.

Figure 7: OO (Meta) Model of Lambda Calculus.

Another, more subjective, observation is that the

graphical specification of the concepts of Place,

Transition and Arcs conveys more information to the

reader about the structure of expressions in the

language than does the text based more traditional

specification.

4 UNTYPED LAMBDA

CALCULUS

The third example we will look at is one of the

fundamental languages of computer science -

lambda calculus. The definition of this language

(taken from (Thompson, 1991)) is given as a

grammar shown in Table 5. The definition of this

language differs from the previous two examples, in

that the language definition is given using its syntax,

in BNF, rather than being a set theory based

definition.

Table 5: Grammar for Lambda Calculus.

expr = ID

| 'λ' ID '.' expr

| expr expr

;

Further definition of the language is then given

using text definitions and illustrated by examples.

The semantic of the language are given by defining

the notions of substitution (α-conversion) and β-

reduction. These definitions are shown in Table 6.

Using OO modelling techniques we can provide

equivalent definitions, but using a metamodel of the

Mark

tokens : Integer

PetriNet

Place

Transition

incoming

[*]

[*] places

[*] transitions

PTArc

TPArc

dst

src

Marking

initialMarking

[*]

outgoi

[*] outgoing

incoming

[*]

src

fire(c:Marking):Marking

isEnabled(c:Marking):Boolean

name : String{id}

Expr

Variable Abstraction

expr [1]

param [1]

Application

hasFree(v:Variable) : Boolean

substitute(v:Variable,w:Expr) : Expr

reduce() : Expr

createVariable() : Variable

[0..1]

arg [1]

func [1]

MATHS VS (META)MODELLING - Are we Reinventing the Wheel?

319

lambda calculus concepts, and OCL to define the

substitution and reduction functions. A mapping can

be given from a concrete syntax to the metamodel,

but the details of this are not in the scope of this

paper. A metamodel for the Lambda calculus is

given in Figure 7. It shows an abstract Expr type

which is realised by the three kinds of expression

that can be formed, a function Application, a

Variable, and a function Abstraction.

Table 6: Definitions of substitution and reduction.

The substitution of f for the free occurrences of

x in e, written e[f/x] is defined thus.

• x[f/x] ↑

f and for a variable y ⎣ x, y[f/x] ↑

• For applications, we substitute the two parts:

(e1 e2)[t/x] ↑

(e1[t/x] e2[t/x])

• If e ↑ λx.g then e[f/x] ↑

e. If y is a variable

distinct from x, and e ↑ λy.g then

- if y does not appear free in f,

e[f/x] ↑

λy.g[f/x].

- if y does appear free in f, e[f/x]

↑

λz.(g[z/y][f/x])

• In general, it is easy to see that if x is not

free in e then e[f/x] is e.

The rule of β-reduction states that, for all x, e

and f, we can reduce a function application by

substituting the argument for the bound variable

• (λx.e) f φ

e[f/x]

And if e φ

e' then

• (f e) φ

(f e')

• (e g) φ

(e' g)

• λy.e φ

λy.e'

Based on this metamodel, the notion of

substitution can be defined as an operation that

returns a new Expr. The behaviour of such an

operation needs to be defined on each kind of

expression and these definitions are given in Table

Reduction is the expansion of a function

application, substituting the argument for the

function parameter. This also can be defined by

operations on the Expr sub-classes, as shown in

Table 8.Further concepts such as equivalence,

normalization or η-reduction can be defined as

additional operations that make use of the reduction

and substitution functions. It is interesting to note

that the addition of a transitive closure operation

within OCL would ease the definition of some of

these additional operations.

It is of course a very subjective issue as to

whether the traditional BNF based specification of

this language is better or worse than the OO version.

Your preference as a reader of the definition

probably depends largely on your background and

previous experience of specifications. However, as

is the case with the Petri-net example, this definition

can be used to generate an executable model of the

language. It is also interesting to see the difference

between basing the language definition on the syntax

or the concepts. The traditional approach defines the

syntax of the language and uses this on which to

base the definition of the semantic functions. In

contrast the metamodel defines only the concepts of

the language (potentially enabling multiple

syntaxes), but still provides precise definition of the

semantic substitute and reduction functions.

Table 7: OCL Definitions for substitution (α-conversion).

context Variable::hasFree(v:Variable) :

Boolean

body: self==v

context Application::hasFree(v:Variable)

: Boolean

body: func.hasFree(v) and arg.hasFree(v)

context Abstraction::hasFree(v:Variable)

: Boolean

body: param <> v and expr.isFree(v)

context Variable::substitute(v:Variable,

w:Expr) : Expr

body: if self==v then w else self endif

context

Application::substitute(v:Variable,

w:Expr) : Expr

body: Application { func =

func.substitute(v,w),

arg =

arg.substitute(v,w) }

context

Abstraction::substitute(v:Variable,

w:Expr) : Expr

body: if w.hasFree(param) then

let z = createVariable() in

Abstraction { param = z,

expr =

expr.substitute(param,z).substitute(v,w)

}

else

Abstraction { param = param,

expr =

expr.substitute(v,w) }

endif

5 CONCLUSIONS

The paper has employed Object-Oriented graphical

specification techniques to model three separate

well-known languages or data structures. These

ICSOFT 2008 - International Conference on Software and Data Technologies

320

Table 8: OCL Definition for β-reduction.

. context Variable::reduce() : Expr

body: self

context Abstraction::reduce() : Expr

body: self

context Application::reduce() : Expr

body: if func.oclIsKindOf(Abstraction) then

func.substitute(func.oclAsType(Abstraction).param,arg)

else

self

endif

examples are initially specified using traditional

mathematical techniques and it has been shown that

these may equally well be expressed using the O-O

graphical methods. Further, the paper has sought to

demonstrate the increased ease of comprehension of

the O-O graphical techniques by contrasting the two

alternative specification techniques.

The major observations may be summarised as

follows:-.

• It is surprising that OO modelling seems to have

forgotten the importance of identity. Notions of

identity, naturally assumed in mathematical

specifications are not the same as the default

notions in OO models. Relational modelling,

itself an ancestor of UML, in contrast, makes this

importance clear via primary keys.

• An important advantage of the OO graphical

approach may be deduced by the assumption that

mental pictures will be created by a reader when

digesting a specification. When reading

mathematical or text based specifications, the

mental picture is constructed by the reader. In

contrast, by explicitly giving the picture as part

of the specification (class diagram) this helps the

specification writer ensure that his own mental

picture is better communicated to the reader.

This significantly improves the ability to

mentally communicate and/or interpret the

abstract concepts involved.

• By modelling languages using class diagrams we

gain the added advantage of being able to

automatically generate tool support for the newly

created language. The Model Driven

Development (MDD) and code generation

techniques developed for aiding rapid

development of general software systems can be

readily employed as part of the Domain Specific

Languages (DSL) or grammarware engineering

(Klint, 2003) discipline supporting the rapid

development of tools to support new or new

versions of a language. Such support is not

generally available if given a specification in a

traditional mathematical formalism, other than

perhaps that given by compiler compilers.

• OO Modelling gives a more complex set of basic

concepts for producing models, whereas

mathematics uses a much simpler set. For

example, notions of extensibility in OO

techniques are not generally primitive concepts

in traditional specification techniques. Due to the

simplicity of the primitives used within the

mathematical models, the expressions tend to be

more precise and unambiguous.

• Ironically, the ease of comprehension possessed

by OO graphical techniques means that a human

reader is likely to infer fewer ambiguities in this

presentational style than would be the case for

the mathematical techniques, even though the

mathematical techniques will actually contain

fewer ambiguities.

Metamodelling is a practical engineering

approach to modelling a language whose primary

goal is to aid the designer in producing a working

solution to a problem. In contrast, the mathematical

approach is primarily driven by the need for

precision and accuracy rather than practical utility.

Although metamodelling can be as precise as a

mathematical approach, some of the underlying

concepts do not encourage this precision.

So, is metamodelling reinventing the wheel?

Yes, but the wheel is a different colour! Specifically,

many of the same concepts are available but their

utility is improved by the improved accessibility of

the concepts concerned. I.e. this colour of wheel is

easier on the eye!

MATHS VS (META)MODELLING - Are we Reinventing the Wheel?

321

ACKNOWLEDGEMENTS

This research is supported at the Department of

Electronics at University of Kent and at

LIFL/INRIA Futurs at the University of Lille though

the European Union ERDF Interreg IIIA initiative

under the MODEASY grant.

REFERENCES

OMG, "UML 2.0 Infrastructure Specification," Object

Management Group ptc/03-09-15, September 2003

2003.

OMG, "UML 2.0 Superstructure Specification," Object

Management Group ptc/03-08-02, August 2003 2003.

C. Atkinson and T. Kuhne, "Model-driven development: a

metamodeling foundation," Software, IEEE, vol. 20,

pp. 36-41, 2003.

A. G. Kleppe, J. B. Warmer, W. Bast, and A. Watson,

MDA Explained: The Model Driven Architecture:

Practice and Promise: Addison-Wesley Professional,

2003.

B. Selic, "The pragmatics of model-driven development,"

Software, IEEE, vol. 20, pp. 19-25, 2003.

K. Chen, J. Sztipanovits, and S. Neema, "Toward a

semantic anchoring infrastructure for domain-specific

modeling languages," Proceedings of the 5th ACM

international conference on Embedded software, pp.

35-43, 2005.

J. Greenfield and K. Short, Software factories: assembling

applications with patterns, models, frameworks and

tools: ACM Press New York, NY, USA, 2003.

A. van Deursen, P. Klint, and J. Visser, "Domain-specific

languages: an annotated bibliography," ACM

SIGPLAN Notices, vol. 35, pp. 26-36, 2000.

M. Vokac and J. M. Glattetre, "Using a domain-specific

language and custom tools to model a multi-tier

service-oriented application-: Experiences and

challenges," Lecture notes in computer science, pp.

492-506.

D. Wile, "Supporting the DSL Spectrum," Journal of

Computing and Information Technology, vol. 9, pp.

263-287, 2001.

M. Alanen and I. Porres, A Relation Between Context-free

Grammars and Meta Object Facility Metamodels:

Turku Centre for Computer Science, 2004.

M. Wimmer and G. Kramler, "Bridging grammarware and

modelware," Satellite Events at the MoDELS 2005

Conference: MoDELS, pp. 159–168, 2005.

V. Stoltenberg-Hansen, I. Lindström, and E. R. Griffor,

Mathematical theory of domains: Cambridge

University Press New York, NY, USA, 1994.

J. E. Stoy, Denotational Semantics: The Scott-Strachey

Approach to Programming Language Theory: MIT

Press Cambridge, MA, USA, 1977.

F. K. Hanna and N. Daeche, "Dependent Types and

Formal Synthesis," Philosophical Transactions:

Physical Sciences and Engineering, vol. 339, pp. 121-

135, 1992.

F. K. Hanna, N. Daeche, and G. Howells, "Implementation

of the Veritas Design Logic," Proc. of the

International Conference on Theorem Provers in

Circuit Design: Theory, Practice and Experience, pp.

77-94, 1992.

F. K. Hanna, N. Daeche, and M. Longley, "Specification

and verification using dependent types," IEEE

Transactions on Software Engineering, vol. 16, pp.

949-964, 1990.

A. Cohn, "The notion of proof in hardware verification,"

Journal of Automated Reasoning, vol. 5, pp. 127-139,

1989.

T. Murata, "Petri Nets: P

roperties, Analysis and

Applications," Proceedings of the IEEE, vol. 77, pp.

541-580, 1989.

D. Akehurst, G. Howells, and K. McDonald-Maier,

"Implementing associations: UML 2.0 to Java 5,"

Software and Systems Modeling, vol. 6, pp. 3-35,

2007.

F. Budinsky, Eclipse Modeling Framework: A Developer's

Guide: Addison-Wesley, 2003.

S. Thompson, Type theory and functional programming:

Addison-Wesley Wokingham, England, 1991.

P. Klint, R. Lämmel, and C. Verhoef, "Toward an

engineering discipline for grammarware," ACM

Transactions on Software Engineering and

Methodology (TOSEM), vol. 14, pp. 331-380, 2005.

ICSOFT 2008 - International Conference on Software and Data Technologies

322
