Towards a Norm-Driven Design of Context-Aware

e-Health Applications

Boris Shishkov

, Hailiang Mei

, Marten van Sinderen

and Thijs Tonis

Delft University of Technology, Department of Systems Engineering, Delft, The Netherlands

University of Twente, Department of Computer Science, Enschede, The Netherlands

Roessingh Research and Development, Enschede, The Netherlands

Abstract. In this paper, we explore the usefulness of elaborating process

models with norms, especially focusing on the Norm Analysis Method (NAM)

as an elaboration tool that can be combined with a process modeling tool, such

as Petri Net (PN). The PN-NAM combination has been particularly considered

in the paper in relation to a challenge that concerns the design of context-aware

applications, namely the challenge of specifying and elaborating complex

behaviors that may include alternative (context-driven) processes (we assume

that a user context space can be defined and that each context state within this

space corresponds to an alternative application service behavior). Hence, the

main contribution of our paper comprises an adaptability-driven methodological

and modeling support to the design of context-aware applications; modeling

guidelines are proposed, considered together with corresponding modeling tools

(in particular PN and NAM), and partially illustrated by means of an e-Health-

related example. Given the multi-disciplinary nature of the e-Health domain, it

is expected that the current research will be useful for it. In particular, e-Health

system developers might benefit from the relevant methodological and

modeling support, proposed in the paper.

1 Introduction

Context-Aware (CA) applications are characterized by adaptability which is the

capability of adequate derivation of user context states (this involves sensing the user

environment and transforming the sensed raw data into context information) and

appropriate reaction to user context state changes [11]. Such a reaction should include

‘switching’ from one desirable behavior to another. Even though the application

would be supposed to realize such a ‘switching’ at real time, it must be foreseen at

design time. CA features are of relevance to the e-Health domain since they can

enhance the dependability and user-friendliness of healthcare services [6].

The designer of CA applications should not only specify each desirable behavior

but also determine the rule patterns governing the ‘switchings’ between behaviors.

Thus, the issues to be addressed in this work are: (i) how to define each alternative

behavior not only at high level of abstraction but possibly also at lower levels; (ii)

how to relate these alternative behaviors in an overall behavior (including the

Shishkov B., Mei H., van Sinderen M. and Tonis T. (2008).

Towards a Norm-Driven Design of Context-Aware e-Health Applications.

In Proceedings of the 2nd International Workshop on e-Health Services and Technologies, pages 36-50

DOI: 10.5220/0001898200360050

 SciTePress

‘switching’ between alternative behaviors); (iii) how to analyze these behaviors and

apply appropriate (rule-driven) ‘switching’ patterns (where correctness is determined

by the fact that exhibited behavior matches the desirable behavior for a given context

situation). We nevertheless claim that these challenges are interrelated since we

consider the ‘switching’ rule patterns as naturally complementing the corresponding

behavior flow patterns.

Hence, our particular focus is the flow-rule combination and we approach this

issue, taking as a basis previous results on designing CA applications, driven by

corresponding business modeling [9,11]. We take as a starting point in this paper a

behavior model (that is to be derived based on corresponding static model) of a CA

application and we consider the model’s normative (rule) elaboration.

Realizing this, it is not only studied how to conduct conceptually and

methodologically such an elaboration but this is also complemented by suggestions

that concern a possible realization in terms of modeling tools/techniques. These

suggestions are not trivial however. It might be that one modeling formalism is

suitable for defining each of the alternative behaviors and for relating these alternative

behaviors in an overall behavior, while another modeling formalism is suitable for

analyzing these behaviors, and still another formalism is suitable for defining the

‘switching’, and so on. Maybe a language which is close to the architectural domain

would be suitable for high level behavior specification, whereas for the aim of

analysis, a language that allows automated evaluation of the properties of concern

should be chosen. Hence, the design process would comprise transformations between

design models and analysis models, in addition to transformations between levels of

abstraction. In such complex modeling, it is essential to know which exactly are the

challenges and which techniques are suitable for approaching them. We take in this

work only the perspective of norm (rule) elaboration to high-level behavior models

including such ones that reflect context-driven behavior (characterized by alternative

processes).

With respect to this, and inspired by previous research results [8], we turn

particularly to P

etri Net (PN) and the Norm Analysis Method (NAM), as a possible

combination of techniques that is relevant and suitable to the above-mentioned

challenge. PN is a well-established and widely popular modeling technique that

depicts the structure of a distributed system as a directed bipartite graph [18]. As

such, PN has place nodes, transition nodes, and directed arcs connecting places with

transitions, with whose support, the modeling technique can be useful to the modeling

and analysis of (business) processes. Using PN, one could: (i) represent a process in a

straightforward way; (ii) conduct process analysis; (iii) make adequate pre-simulation

models - helpful with regard to discrete-event simulation [16]. Addressing such

challenges with PN, one usually takes a PN as a triple (P,T,F) that consists of two

node types called ‘places’ and ‘transitions’, and a flow relation between them. Places

are used to model milestones reached within a business process and transitions - as

the individual tasks within the business process to execute. Having the possibility to

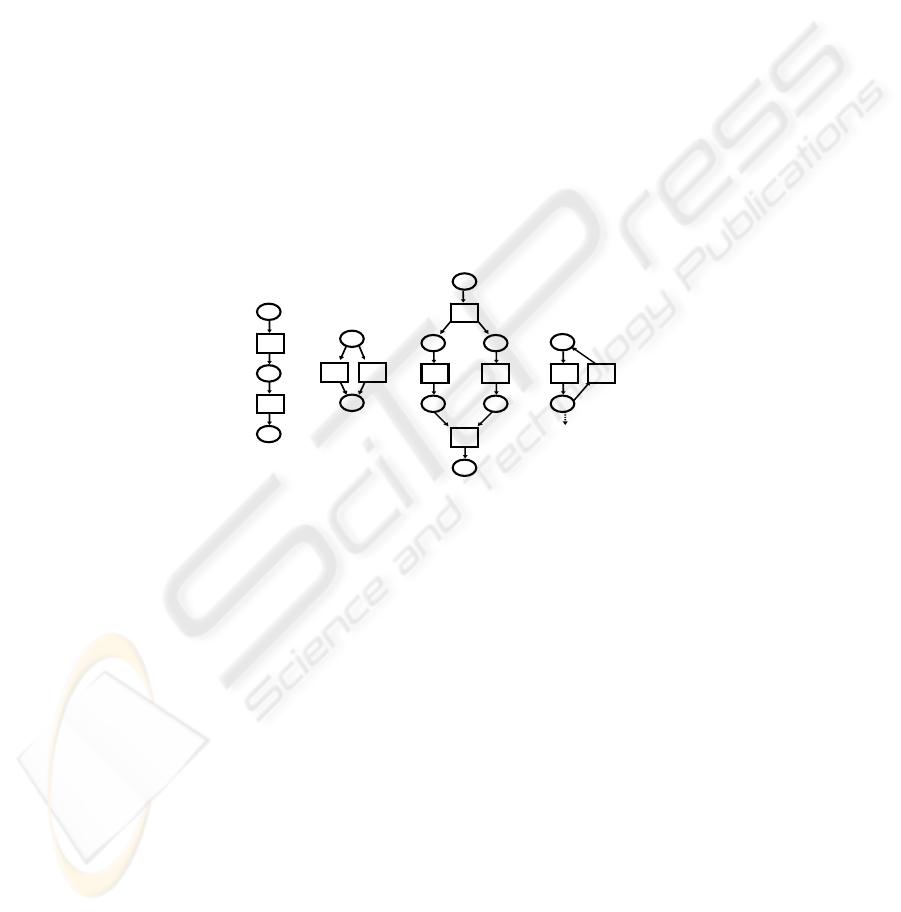

model (using these modeling primitives) all widely used process patterns, we expect

that PN would be adequate, suitable and useful with regard to the challenge of

modeling alternative behaviors and relating them in an overall behavior. As for

analyzing these behaviors, PN could also be useful (as it has been mentioned already);

however, this goes beyond the scope of the current paper. Further, concerning the

related ‘switching’ specification, we would consider NAM as a possible complement

to PN [15]. NAM is a semiotic method to identify norms in an explicit and articulate

manner [5]. Norms, which include formal and informal rules and regulations, define

the dynamic conditions of the pattern of behavior existing in a community and govern

how its members (agents) behave, think, make judgements and perceive the world.

Their presence enables agents to exhibit normative patterns to be more or less

‘predictable’ [3]. Therefore, NAM is useful for studying an organisation from the

perspective of agents’ behavior which is governed by norms [17]. There are four

types of norms existing. In business process modeling, most rules and regulations fall

into the category of behavioral norms. These norms prescribe what agents must, may,

and must not do, which are equivalent to three deontic operators: ‘is-obliged’, ‘is-

permitted’ and ‘is-prohibited’. With the introduction of the deontic operators, norms

are broader than the normally recognised business rules and therefore provide more

expressiveness. For those actions that are ‘permitted’, whether the agent will take an

action or not is seldom deterministic. This elasticity characterises the business

processes, and therefore is of particularly value to understand the organizations [3].

Moreover, a complete NAM can be performed in precise steps and results of the

NAM can be written in a natural language and further in a programming language for

automatic execution [5].

Thus, main contribution of the current paper comprises an adaptability-driven

methodological and modeling support to the design of CA applications; modeling

guidelines are proposed, considered together with corresponding modeling tools (in

particular PN and NAM), and partially illustrated by means of an e-Health-related

example. Given the multi-disciplinary nature of the e-Health domain, it is expected

that the reported research will be useful for it. In particular, e-Health system

developers might benefit from the relevant methodological and modeling support,

proposed in this paper.

The paper’s outline is as follows. Section 2 motivates further our proposed design

views, by introducing CA applications and presenting a vision on their design,

relating this to PN and NAM. Section 3 introduces briefly PN and NAM, discussing

their strengths (and the adequacy of combining them), especially related to the

challenge of realizing the proposed design vision. Section 4 presents a small example

which is used in Section 5 to partially illustrate some of the proposed design steps.

Section 6 contains the conclusions.

2 Context-Aware Applications

Taking into consideration the social/economical, methodological, and technical

concerns related to the design, implementation, deployment, and operation of CA

applications (as already introduced in previous (related) work [9]), and focusing

particularly on part of the methodological concerns (especially those concerns that are

relevant to the design of CA applications), we find it fundamental that CA

applications acquire knowledge/information on the situation of the user (referred to as

‘user context information’) and exploit this knowledge to provide the best possible

service [11]. Hence, this concerns the user context (this is, for example, the location

of the user, the user’s activity, the user’s access to particular devices, and so on) and

the assumption that the user is in different context over time, and as a consequence –

(s)he has changing preferences or needs with respect to services. A schematic set-up

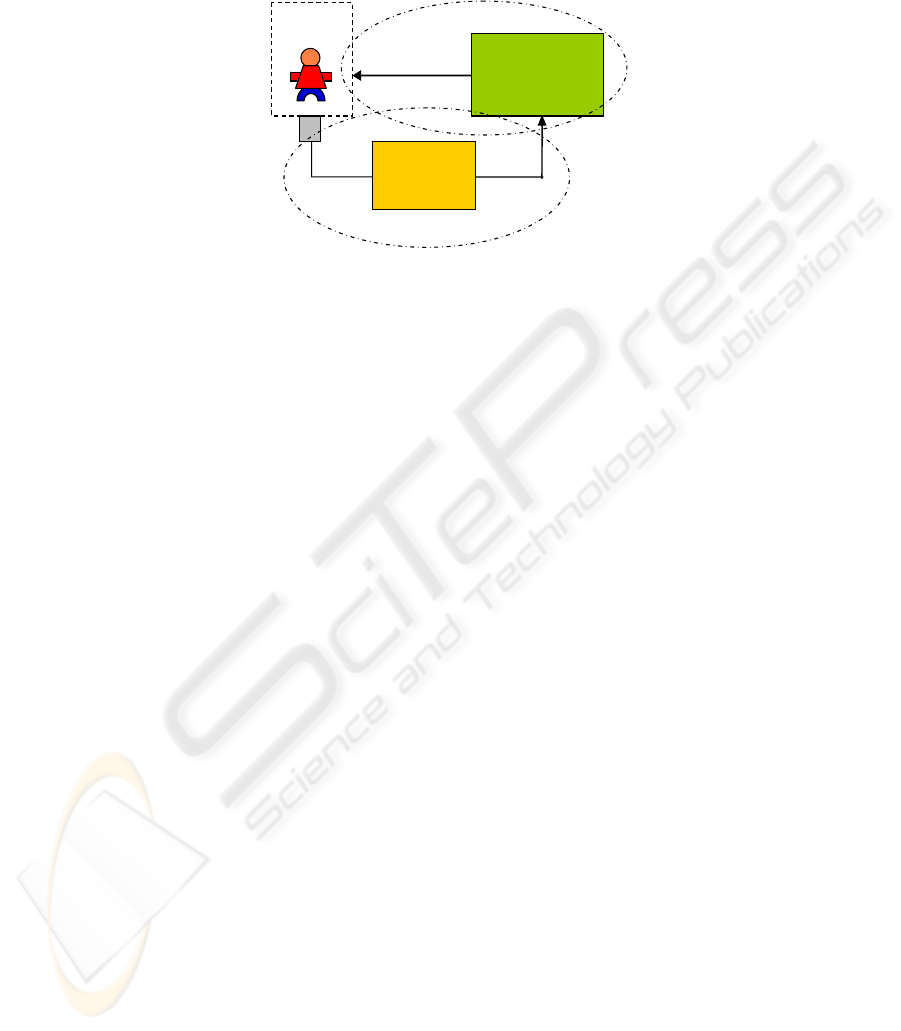

for a CA application is depicted in Figure 1.

context delivery

user within

context

sensor

service delivery

context-

aware

application

context

provider

Fig. 1. Schematic representation of a context-aware application.

As seen from the figure, in considering the design of a CA application, one should

not only address the service delivery, from the application to the user, but also the

delivery of context information that is needed by the application for adaptation of its

service delivery. Sensors sample the user's environment and produce (primitive)

context information, which is an approximation of the actual context, suitable for

computer interpretation and processing. Higher level context information may be

derived through a process of inference and aggregation (using input from multiple

sensors) before it is presented to the application, which in turn can decide on the

current context of the user and the corresponding service that must be delivered.

Furthermore, we follow an application design lifecycle inspired by previous work

[9] and extending the design process of an existing approach [13]. Hence, our design

lifecycle comprises a number of phases, the most important among which are:

 Business Modeling: during this phase, the end-user is considered in relation

to processes that either support him/her directly or the goal(s) of related

business(es). These processes have to be identified, modeled and analyzed with

respect to their ability to (collectively) achieve the stated goals. A model of these

processes and their relationships is called a business model.

 Application Modeling: during this phase, the attention is shifted from the

business to the IT domain. The purpose is to derive a model of the application,

which can be used as a blueprint for the software implementation based on a target

technological platform. A model of the application, whether as an integrated whole

or as a composition of application components, is called an application model.

Business models and application models should certainly be aligned, in order to

achieve that the application properly contributes to the realization of the

business/user goals. As a starting point for achieving proper alignment, one could

delineate in the final business model which (parts of) processes are subject to

automation (i.e., are considered for replacement by software applications). The

most abstract representation of the delineated behavior would be a service

specification of the application (as an integrated whole), which can be considered

as the initial application model.

 Requirements Elicitation: both the business model and the application

model have to meet certain requirements, which are captured and made explicit

during the phase called requirements elicitation. Application requirements can be

seen as a refinement of part of the business requirements, as a consequence of the

proposition that the initial application model can be derived considering (parts of)

the business processes (within the final business model), especially those processes

selected for automation.

 Context Elicitation: an important part of the design of a context-aware

application is the process of finding out the relevant end-user context from the

application point of view; we will refer to this phase as context elicitation. End-

user context is relevant to the application if a context change would also change the

preferences or needs of the end-user, regarding the service of the application.

Context elicitation can therefore be seen also as the process of determining an end-

user context state space, where each context state corresponds to an alternative

desirable service behavior. Since relevant end-user context potentially has many

attributes (location, activity, availability, and so on), a context state can relate to a

complex end-user situation, composed of (statements on) several context attributes.

Moreover, context elicitation relates to requirements elicitation in the sense that

each context state is associated with requirements (i.e., preferences and needs of

the end-user) on desirable user behavior. Context elicitation can best be done in the

final phase of business modeling and the initial phase of application modeling,

when the role and responsibility of the end-user and the role and responsibility of

the application in their respective environments are considered.

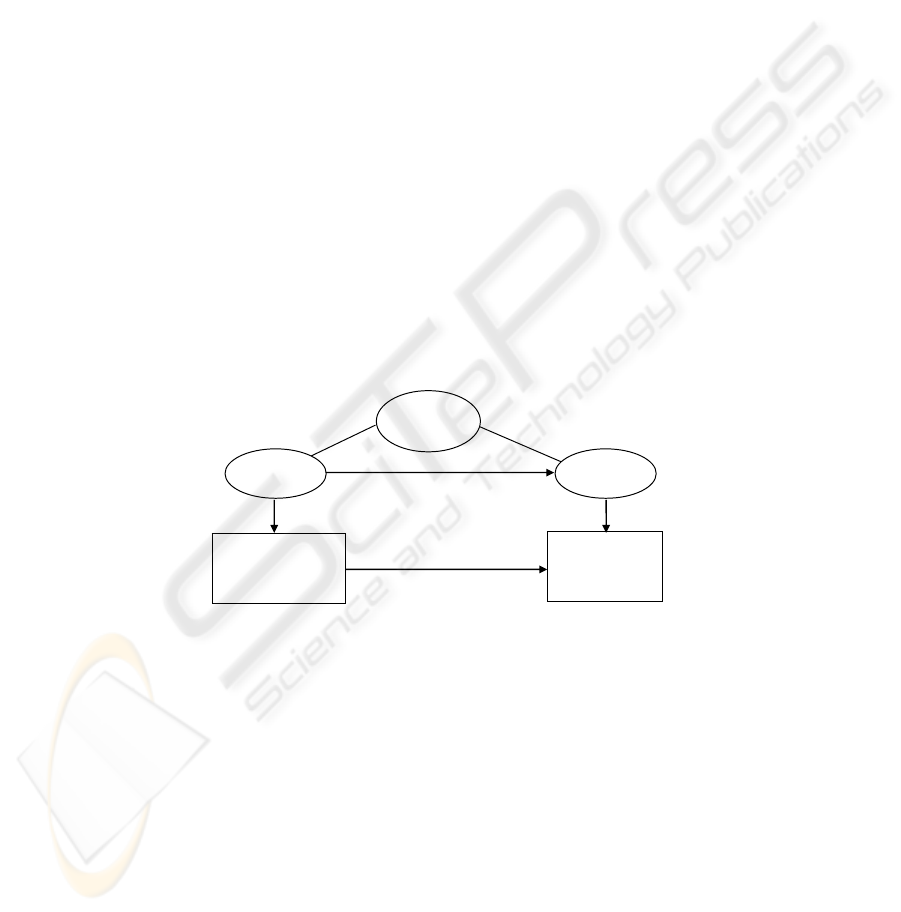

Fig. 2 depicts these different phases and activities.

Business

modeling

Application

modeling

refine

Business

requirements

Application

requirements

refine

Context

requirements

constrain constrain

Fig. 2. Application design life cycle [9].

Following [11], we assume that a user context space can be defined and that each

context state within this space corresponds to an alternative application service

behavior. In other words, the application service consists of several sub-behaviors or

variations of some basic behavior, each corresponding to a different context state.

Any service behavior model would have to express the context state dependent

transitions from one sub-behavior (or behavior variation) to another one.

Focusing especially on the context-driven application behavior adaptation, and

inspired by the related background information considered above, we propose design

guidelines according to which: (i) it is assumed that there are several main states in

which the user might be (we take into account that for example, hundreds of states

might be possible, only several of which are of high probability to occur, however)

and that each of these states requires a particular application behavior; (ii) design

preparations are necessary in order to specify each of these behaviors as well as the

way in which their related context states are to be ‘sensed’ by the application; (iii)

each change in the state of the user is to trigger a change in the application behavior.

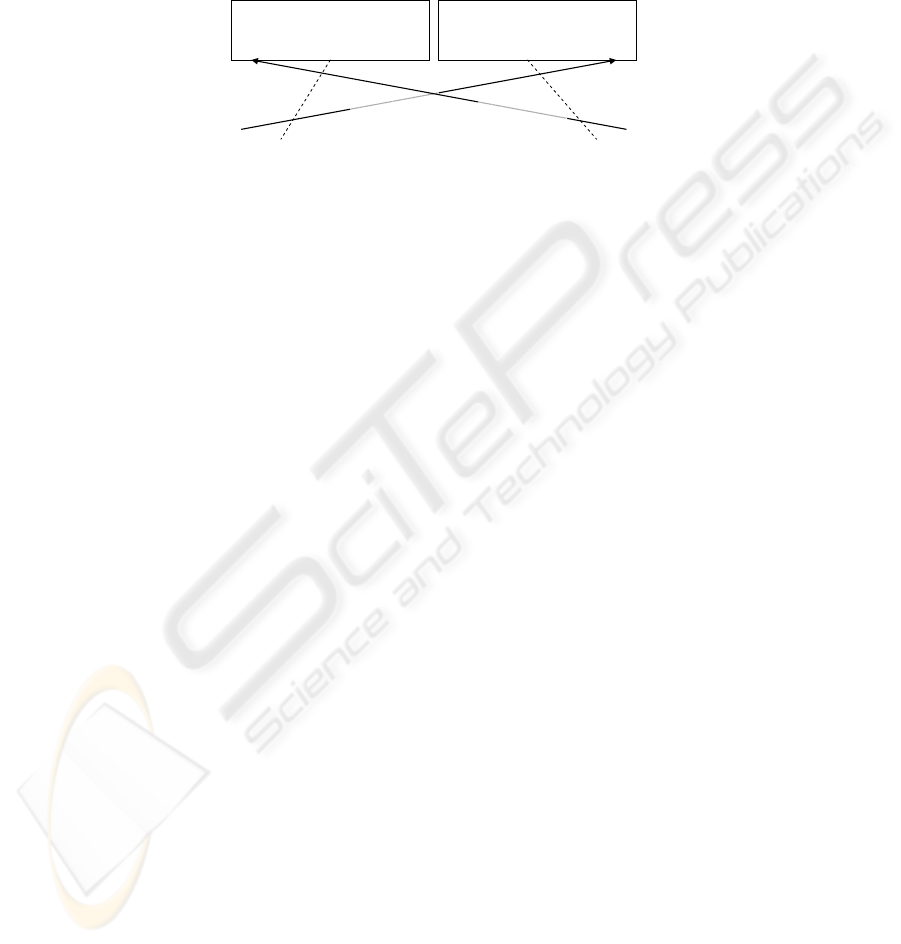

This is depicted on Figure 3:

u s e r

a p p l i c a t i o n

State

Behavior

sensed by

delivered to

Fig. 3. Towards a context-driven application behaviour adaptation.

As it is seen from the figure, we assume that the context state relates to the user of

the application (as indicated by a dashed line), taking nevertheless into account that

other (non-user) entities and their situations could also (indirectly) affect the desirable

application behavior; we as well assume that, in delivering a service to its user, the

application performs a particular behavior (indicated by a dashed line). Moreover, it is

essential that the user context states are sensed by the application and that the (user-

context-driven) application behavior is delivered to the user.

Inspired by previous relevant work concerning PN and NAM [13,15,16], we claim

that by applying these tools in combination, it is possible to realize the design vision

introduced above. We thus especially focus on the combined use of NAM and PN,

where PN is used to specify and analyze the dynamic aspects of the services, and

NAM to specify and analyze the constraints that govern the enabling of transitions.

By introducing and briefly discussing these tools in the following section, and by

offering exemplification of their combined use directed towards the design of CA

applications, we will further justify the above-stated claim.

3 Design and Analysis Tools

Considering the CA application design vision presented in Section 2, we briefly

introduce PN and NAM, especially discussing their related strengths and the

usefulness of combining them. We show further how by combining these tools, one

could acquire benefits especially relevant to the design of CA applications.

3.1 Petri Net

To allow adequate dynamic business/application modeling that corresponds to the

above-mentioned design vision, we claim important that some modeling-related

aspects are incorporated, especially aspects that corresponds to the following

requirements, as formulated by Van Hee and Reijers [18]:

 possibility to adequately grasp business process structures (sets of tasks that

have to be completed in some kind of order);

 possibility to apply choice, parallel, cycle, and other constructions typical for

most current business processes;

 possibility to apply qualitative/quantitative simulation to the (dynamic)

models, as an appropriate way of achieving validation.

Being a well-known and widely used formalism and a graphical language for the

design, specification, and verification of systems, PN has been used in a number of

cases demonstrating strengths related not only to process structures and typical

constructions (such as choice and parallelism) but also to the derivation of simulation

models [16]. We hence claim that PN is a suitable modeling tool for realizing some of

the demands concerning the design vision presented in Section 2.

PN has been introduced already in Section 1, as a triple (P,T,F) that consists of

two node types (places and transitions), and a flow relation between them. Places are

to model milestones reached within a business process and transitions should

correspond to the individual tasks to execute; places are represented by circles,

transitions are represented by rectangles. The process constructions which are applied

to build a business process, are called blocks. The blocks that express some typical

constructs (sequence, choice, parallelism, iteration) are depicted as PN in Figure 4.

a 1-a

b) d) c) a)

Fig. 4. Typical process constructs expressed with PN.

Sequence block (a)) considers tasks that are in sequential order (the first task has to

be completed before the second task can be started). The Choice block (b)) represents

a construction in which exactly one of two alternatives is carried out. The Parallelism

block (c)) shows how two tasks can be modeled such that they can be executed

simultaneously. Finally, the Iteration block (d)) represents a construction in which the

execution of a task can be repeated.

Arc labels occur in the Choice and Iteration blocks, representing the values of a

Bernoulli-distributed random variable that is associated with these blocks; an

independent draw from such a random variable determines the route of the flow

[16,18]. Each new application of such a block is accompanied by the introduction of a

new, independent random variable.

PN is hence not only a proper formalism with regard to the demands formulated in

the previous section but it is also capable of representing most typical process

constructs, having at the same time sound theoretical background. For this reason, we

consider realizing via PN the dynamic modeling activities concerning the design

vision introduced in Section 2.

Moreover, the strengths of PN concerning the modeling of decision points and

parallel processes is especially relevant to the challenge of modeling alternative

behaviors. Using the same notations for modeling this all gives the precious

possibility to grasp the big picture and go consistently in details, and also to map to

other notations and simulate. These are all strengths that concern in particular the

design of CA applications.

A further challenge nevertheless that concerns not only PN but also other process

modeling formalisms is the insufficient elaboration facilities with regard to ‘decision’

points (whether it should be decided which arc to follow, for example). Inspired by

our earlier experience, we claim that combining PN and NAM could be a good

solution [15]. We hence introduce NAM in the following sub-section, putting stress

not only on its relevance to the problems outlined in Section 2 but also on its

suitability as a combination with PN is concerned.

3.2 Norm Analysis Method

Norms, which include formal and informal rules and regulations, define the dynamic

conditions of the pattern of behavior existing in a community and govern how its

members (agents) behave, think, make judgments and perceive the world [3]. As Von

Wright explains: “‘norm’ has several partial synonyms which are good English,

‘pattern’, ‘standard’, ‘type’ are such words. So are ‘regulation’, ‘rule’, ‘law’” [19].

Norms are developed through practical experiences of agents in a community, and

in turn have functions of directing, coordinating and controlling their actions within

the community. When modeling agents and their actions, which may reveal the

repertoire of available behaviors of agents, norms will supply rationale for actions.

Norms will also provide guidance for members to determine whether certain patterns

of behavior are legal or acceptable within a given context. An individual member in

the community, having learned the norms, will be able to use the knowledge to guide

his or her actions, though he or she may decide to take either a norm-conforming or a

norm-breaking action. When the norms of an organization are learned, it will be

possible for one to expect and predict behavior and to collaborate with others in

performing coordinated actions. Once the norms are understood, captured and

represented in, for example, the form of deontic logic, it will serve as a basis for

programming intelligent agents to perform many regular activities [5,13].

The long established classification of norms is probably that drawn from social

psychology, partitioning them into perceptual, evaluative, cognitive and behavioral

norms; each governing human behavior from different aspects. However, in business

process modeling, most rules and regulations fall into the category of behavioral

norms. These norms prescribe what people must, may, and must not do, which are

equivalent to three deontic operators “of obligation”, “of permission”, and “of

prohibition”. Hence, the following format is considered suitable for specification of

behavioral norms.

whenever <condition>

if <state>

then <agent>

is <deontic operator>

to <action>

The condition describes a matching situation where the norm is to be applied, and

sometimes further specified with a state-clause (this clause is optional). The actor-

clause specifies the responsible actor for the action. The actor can be a staff member,

or a customer, or a computer system if the right of decision-making is delegated to it.

As for the next clause, it quantifies a deontic state and usually expresses in one of the

three operators - permitted, forbidden and obliged. For the next clause, it defines the

consequence of the norm. The consequence possibly leads to an action or to the

generation of information for others to act [5].

With the introduction of deontic operators, norms are broader than the normally

recognised business rules; therefore provide more expressiveness. For those actions

that are “permitted”, whether the agent will take an action or not is seldom

deterministic. This elasticity characterises the business processes, and therefore is of

particularly value to understand the organisations [3].

NAM, as a semiotics method, can be carried out to identify norms in an explicit

and articulate manner and a complete norm analysis can be performed in four steps,

which are responsibility analysis, proto-norm analysis, trigger analysis and detailed

norm specification [5].

The responsibility analysis enables one to identify and assign responsible agents to

each action. The analysis focuses on the types of agents and types of actions. In other

words, it would answer the question as to which agent is responsible for what type of

actions.

The proto-norm analysis helps one to identify relevant types of information for

making decisions concerning a certain type of behavior. After the relevant types of

information are identified, they can be used as a checklist by the responsible agent to

take necessary factors into account when a decision is to be made. The objective of

this analysis is to facilitate the human decisions without overlooking any necessary

factors or types of information.

The trigger analysis is to consider the actions to be taken in relation to the absolute

and relative time. The absolute time means the calendar time, while the relative time

makes use of references to other events. The results of trigger analysis are

specifications of the schedule of the actions. All the actions can be organised in

dynamic sequences. By setting up and managing triggers for the actions, the

automated system can prompt human agents to respond to the situation in time.

In the detailed norm specification step, the contents of norms will be fully

specified in both a natural language and a formal language. The purposes for this are

(1) to capture the norms as references for human decision, and (2) to perform actions

in the automated system by executing the norms in the formal language. For example,

adopting the format given above for specification of behavioral norms, a credit card

company may state norms governing interest charges as follows [4].

whenever an amount of outstanding credit

if more than 25 days after posting

then the card holder

is obliged

to pay the interest.

As long as the norms are specified, computing technologies such as active

databases, object technology and artificial intelligence will have different approaches

towards software realisation.

Therefore, the combination of PN and NAM is of essential value for the design of

CA applications, in which design we do not only need to properly model the

alternative behaviors but also to exhaustively elaborate on the corresponding

‘decision’ points.

4 Example

We provide an e-Health application example in this section in order to explain the

modeling support in Section 5; the example has been considered in [1, 2].

John is an epileptic patient who has suffered seizure for several years. He enrolled

in a remote monitoring system which monitors his health state and can give him a few

seconds’ advance warning of an upcoming seizure. He wears a B

ody Area Network

(BAN) consisting of a set of body-worn sensors and a Smartphone. The BAN can

collect bio-signals of the patient or other data like location or activity and sends the

data to the healthcare centre via GPRS or UMTS network. An automatic seizure

detection program running at the Smartphone can keep monitoring and analyzing

John’s bio-signals.

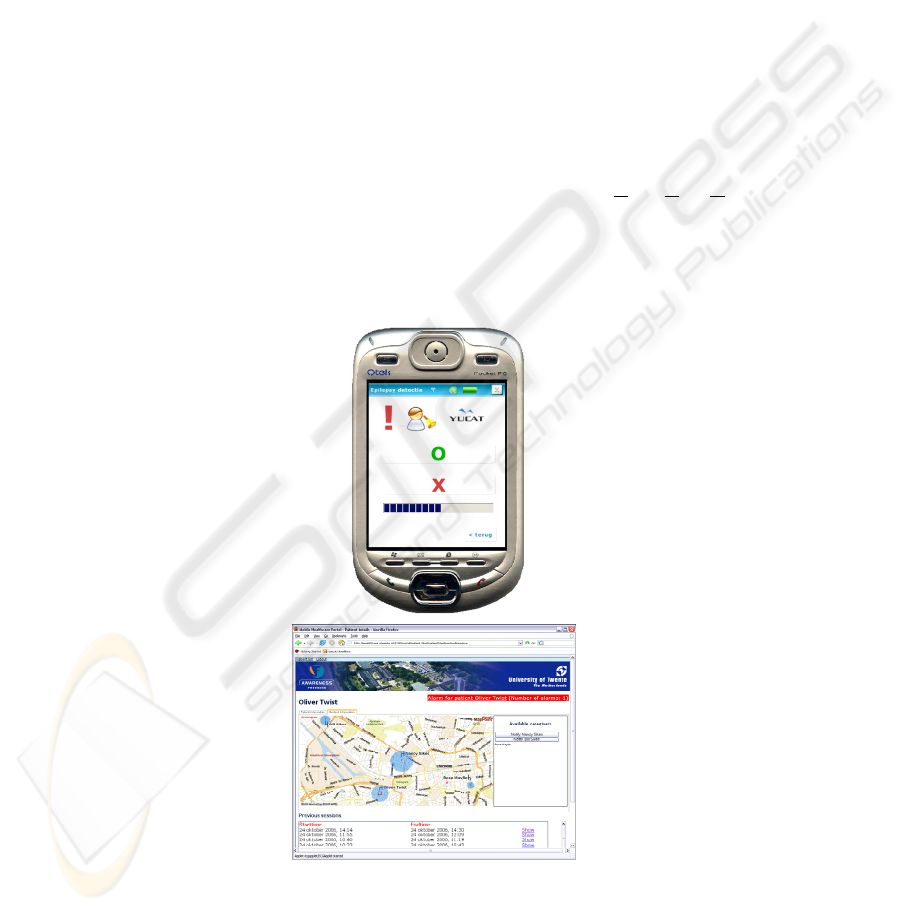

Fig. 5. The screenshots of a seizure attack warning message and the application for healthcare

centre to locate a nearby care-giver [2].

If an upcoming seizure is detected by the local detection program, an alarm on

John’s Smartphone will be triggered and a warning message will be displayed with a

“cancel” button on the screen (Figure 5). Once receives the alarm, John should stop

his current activities and sit down. After a short period, if nothing has happened to

John, then it was a “false alarm”. In this case, John should cancel this alarm by

pressing the “cancel” button and he can resume his activities.

However, in case John does not cancel the alarm within the given period, it could

be because that John is already attacked by a seizure and lost his control. This timeout

will trigger an alarm at the healthcare centre and doctor should examine the received

bio-signals of John. If the doctor sees it is indeed a seizure attack based on the

received signal, he should locate a care-giver who is nearby John and send a

notification to this care-giver with John’s location. The notified care-giver should

then go to John’s location and provide John the help.

5 Combining PN and NAM

In this section, we illustrate by means of the example (see Section 4) the combined

application of PN and NAM, sticking to the design vision formulated in Section 2.

We firstly build the PN model (Figure 6), and for brevity we omit all early

analysis steps that start from the analysis of the case briefing and end up with the PN

model – information on that can be found in [11].

6 8

labels of transitions

s: start

1: sample data

2: analyze data

3: send alarm

4: receive alarm

5: react to alarm

6: cancel alarm

7: resume activities

8: notify Med. Doctor

9: analyze condition

10: locate caregiver

11: notify caregiver

12: deliver help

e: end

false alaram

all normal

risk indication

seizure

117

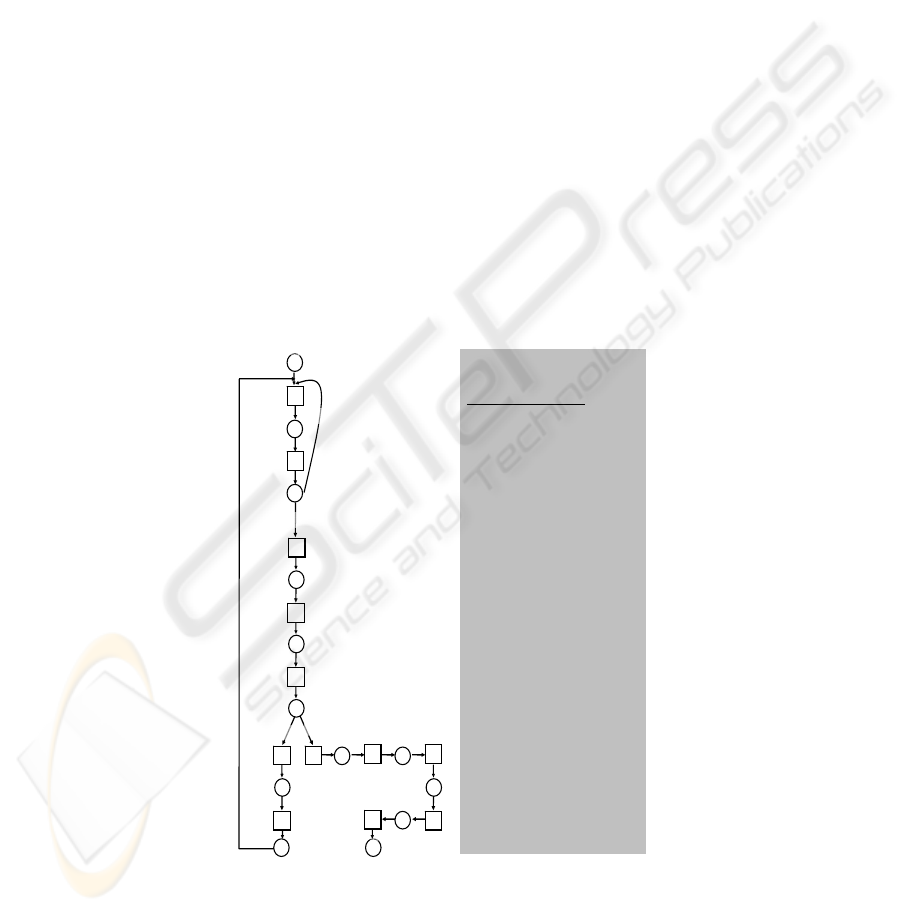

Fig. 6. The Health-care process expressed with PN.

On Fig. 6, there are 13 places (including the ‘start’ and ‘end’) and 12 transitions.

There is a choice construct (concerning transitions labelled with 2, 3, and 1) which

indicates that essentially there are two user context states – the situation of the patient

is either ‘normal’ or suggesting ‘risk’ (this cases triggering some system actions).

There is another choice construct (concerning transitions labelled with 5, 6, and 8)

which is about the ‘choice’ between ‘false alarm’ (when no seizure appears) and the

case of a seizure appearing.

As depicted on the figure, vital signs are ‘captured’ (by sensors) and sampled (by

the device) - Transition 1. The data is analyzed by the device (Transition 2), which

continues on and on if all seems normal. In case of risk indication nevertheless, alarm

is triggered (Transition 3) and after it is perceived by the user (Transition 4), the user

has to react, by stopping his or her current activities (Transition 5). If this actually

appears to be a ‘false alarm’ (as it was discussed in the previous section), the user

should firstly cancel the alarm (Transition 6) and secondly – resume the interrupted

activities (Transition 7), in which the user is back to the monitoring. If seizure

appears (that is ‘indirectly’ indicated by not receiving of alarm cancellation), then the

system notifies the Medical Doctor (Transition 8) who should in turn analyze the

condition of the patient on the basis of the information received (Transition 9), locate

a caregiver (in the area of the user) and notify the caregiver (Transition 10 and

Transition 11, respectively). The caregiver then would go for delivering help

(Transition 12), which is marking the end of the process considered.

Furthermore, NAM can provide useful elaboration to the PN model depicted in

Figure 6. According to the four steps of NAM introduced in Section 3, two norms

corresponding to the second choice construct in the figure has been identified and

specified in detail, to only illustrate partially the usefulness of a norm elaboration to a

PN model.

Concerning Transition 5, both norms below are associated.

whenever no seizure has occurred

then the user

is obliged

to send ‘cancel alarm’ signal.

whenever a seizure indication has occurred

then the system

is obliged

to notify the Medical Doctor (MD)

Going down the ‘hierarchy’ of norms, concerning Transition 8, the norm below is

associated:

whenever seizure notification has been sent to MD

then the MD (Medical Doctor)

is obliged

to analyze the condition of the user.

This is only a partial illustration, with many norm-elaboration steps omitted for

brevity. These steps mainly concern the overall norm structuring – the hierarchy in

which all norms relate to each other. Such a hierarchy can be seen as a tree with a

‘constitutional norm’ on top [13], the general norm that ‘governs’ the whole behavior;

all norms should be consistent with this norm, in the same way in which the overall

behavior must be consistent with the general requirement towards the (desirable)

functionality. Those norms which are immediately ‘below’ the constitutional norm

not only obey it but also govern in turn other norms which are below them. All these

levels of refinement should be approached both in the process model and in the

hierarchy of norms.

The process model and the norms give thus two interrelated and complementing

perspectives on the modelled behavior – for example:

- the PN model depicts the process patterns;

- the norms define the dynamic conditions concerning these patterns; these

dynamic conditions are essentially driven by (changes in) the user context states.

This is how, combining a process modeling tool with norms, by possibly applying

together PN and NAM, could usefully support the design of CA applications.

6 Conclusions

This paper proposes improvements with respect to the business-process modeling

concerning the design of context-aware applications. A model-driven considered that

has been enriched with relevant guidelines and demands. Moreover, their fulfilment

has been approached through a combination of modeling tools, namely PN (Petri Net)

and NAM (Norm Analysis Method), whose selection was motivated. Hence,

combining PN and NAM, we have shown how a complex behavior (concerned with

context-driven alternative processes) could be adequately specified, analyzed, and

norm-elaborated. A NAM-driven elaboration especially applied to complex process

constructs (such as choice, parallelism, and iteration) helps not only to define with

precision these process chunks but also to relate the behavior choices to

corresponding context information (a norm defines not only a rule but also the context

in which this rule appears to operate). This all however does not concern the

‘switching’ between desirable behaviors at real time; the focus is put instead to useful

design preparations in cases of desired adaptability of the application to possible

context changes. A further step in the design would be a consideration of particular

technology platforms, such as Web services, CORBA or J2EE, which is left

nevertheless beyond the scope of this work.

However hence claim that this paper makes useful contributions concerning (i) the

possibility to consider user context in support of the (application’s) design; (ii) the

proposed extension to a (modeling) approach, expressed as guidelines+demands; (iii)

the achievement of an appropriate fulfilment of the (mentioned) guidelines+demands,

by the combined application of Petri Net and Norm Analysis. To justify our claim, we

have studied related work. On the basis of the study, we have identified several

approaches/methods which usefully address the modeling of (business) processes,

notably SDBC [12,13], UML Activity Diagram [7], ISDL [12].

SDBC supports the PN-NAM combination, making however no connection to user

context states and corresponding alternative (desirable) behaviors. The UML Activity

Diagram does not support rule-driven elaboration. ISDL’s notations appear to be too

complex to allow a straightforward normative elaboration.

To further this research, we plan to work on bridging the current behavior-

modeling-related results to previous results on identifying entities and relationships,

especially in the context of SOA [10,14], so that we capture the challenge of context-

aware applications design from both static and dynamic perspectives. We also intend

to project this to NAM-related aspects, tracing them back to semantic aspects, in tune

with the theory of Organizational Semiotics [5], which would allow us to achieve a

more sound and coherent overall application architecture.

Acknowledgements

This work has been supported by the Systems Engineering Department of Delft

University of Technology and the Freeband A-MUSE project (http://a-

muse.freeband.nl) sponsored by the Dutch government under contract BSIK 03025.

References

1. A-MUSE Project, 2008: http://a-muse.freeband.nl.

2. AWARENESS Project, 2007, http://awareness.freeband.nl.

3. Liu, K., 2005. Requirements Reengineering from Legacy Information Systems Using

Semiotic Techniques, Systems, Signs and Actions. Int. Journal on Communication

Information Technology & Work, 1(1): 36-61.

4. Liu, K., Sun, L., Dix, A., Narasipuram, M., 2001. Norm Based Agency for Designing

Collaborative Information Systems, Information Systems Journal, 11: 229-247.

5. Liu, K., 2000. Semiotics in information systems engineering, Cambridge University Press.

Cambridge.

6. Mei, H., Widya, I.A., Broens, T. H. F., Pawar, P., Van Halteren, A.T., Shishkov, B., Van

Sinderen, M.J., 2007. A Framework for Smart Distribution of Bio-signal Processing Units

in m-Health. In ICSOFT’07, 2

International Conference on Software and Data

Technologies. INSTICC Press.

7. Rational/ OMG UML, 2007. Unified Modeling Language, Object Management Group,

http://www.omg.org/uml.

8. Shishkov, B., Van Sinderen, M.J., Liu, K., Du, H., 2008. Norm Analysis Supporting the

Design of Context-Aware Applications. In ICEIS’08, 10

International Conference on

Enterprise Information Systems. INSTICC Press.

9. Shishkov, B. and Van Sinderen, M.J., 2008. On the Design of Context-Aware Applications.

In I-WEST’08, 2

International Workshop on Enterprise Systems and Technology.

INSTICC Press.

10. Shishkov,.B., Van Sinderen, M.J., Tekinerdogan, B., 2007. Model-Driven Specification of

Software Services. In: IEEE International Conference on e-Business Engineering, ICEBE

2007, 24-26 Oct 2007, Hong kong, China. pp. 13-21. IEEE Computer Society Press.

11. Shishkov, B. and Van Sinderen, M.J., 2007. Model-Driven Design of Context-Aware

Applications. In ICEIS’07, 9

International Conference on Enterprise Information Systems.

INSTICC Press.

12. Shishkov, B. and Quartel, D., 2006. Refinement of SDBC Business Process Models Using

ISDL. In ICEIS’06, 8

International Conference on Enterprise Information Systems.

INSTICC Press.

13. Shishkov, B., Dietz, J.L.G., Liu, K., 2006. Bridging the Language-Action Perspective and

Organizational Semiotics in SDBC. In ICEIS’06, 8

International Conference on Enterprise

Information Systems. INSTICC Press.

14. Shishkov, B., Van Sinderen, M.J., Quartel, D., 2006. SOA-Driven Business-Software

Alignment. In ICEBE’06, IEEE International Conference on e-Business Engineering. IEEE

Press.

15. Shishkov, B. and Dietz, J.L.G., 2004. Deriving Use Cases from Business Processes, The

Advantages of DEMO In: Enterprise Information Systems V Publisher: Kluwer Academic

Publishers Edited by: Camp, O.; Filipe, J.B.; Hammoudi, S.; Piattini, M.G.

16. Shishkov, B. and Barjis, J., 2002. Modeling of e-Business Brokerage Systems Using UML

and Petri Net In: Information Systems: The e-Business Challenge Publisher: Kluwer

Academic Publishers Edited by: Traunmuller, R.

17. Stamper, R. K., 1992. Language and Computer in Organised Behaviour. In R. P. v. d.Riet

(Ed.), Linguistic instruments in knowledge engineering. North-Holland: Elsevier Science.

18. Van Hee, K. and Reijers, H.A., 2000. Using Formal Analysis Techniques in Business

Process Re-Design. W. van der Aalst et al. (Eds.): Business Proc. Management, LNCS

1806.

19. Von Wright, G. H., 1963. Norms and Action - a Logical Enquiry. Routledge and Kegan

Paul, New York.
