Towards a Generic Framework for Deploying

Applications as Grid Services

Simona Arustei, Mitica Craus and Alexandru Archip

Department of Computer Science and Engineering, “Gh. Asachi” Technical University

Bd. D. Mangeron, Iasi, Romania

Abstract. Exploiting the power of the grid very often involves transforming ex-

isting or new applications into grid services. In this paper we present a generic

framework based on a service oriented architecture developed in order to sim-

plify the task of deploying applications as grid services. Our work consists of a

configurable grid service that provides application developers with a high level

programming model, hiding the complexity of dealing with web services and

grid technologies. The architectural design of the framework allows custom

functionality to be plugged into an adaptive grid service in a simple manner,

thus attracting more non-expert users to the grid. A prototype implementation

of the framework has been built and a case study has been developed to illus-

trate the concept.

1 Introduction and Related Work

Functional grids across many universities represent the proof that grid technologies

are making great advances and present a wide-spread acceptance since many initial

installation and configuration issues have been resolved. Still, the difficulty to de-

velop and/or use already existing applications causes an evident lack of users on those

grids as most scientists do not concentrate their research effort on gaining a special-

ized insight on grid technologies although their access to grid computing should be

facilitated as it not only provides maximum available data/computing resources, but

also shows powerful ability on some critical issues, such as security, load balancing

and fault tolerance. Grid services provide several key features such as statefull ser-

vices, notifications, and uniform authentication and authorization across different

administrative domains. The focus of this paper is to describe the development, as

well as possible uses and extensions, of a generic framework based on a service ori-

ented architecture that can be used to provide grid access at a higher level, abstracting

the details of the grid middleware from the end user. The proposed framework is

based on a configurable grid service and has an architectural design that allows cus-

tom functionality to be plugged into this adaptable grid service in a simple manner.

There has been done work trying to provide the scientists with more attractive al-

ternatives to grid interaction. For example, [1] presents a generic job submission

service that provides a standardized, high-level set of functions allowing for easy job

submissions and access to grid resources, but the user is still communicating directly

Arustei S., Craus M. and Archip A. (2008).

Towards a Generic Framework for Deploying Applications as Grid Services.

In Proceedings of the 2nd International Workshop on Architectures, Concepts and Technologies for Ser vice Oriented Computing, pages 17-26

DOI: 10.5220/0001898800170026

 SciTePress

with individual resources. Other efforts concentrated in migrating different technolo-

gies to the grid, but in the spectrum of specific narrow applicative domains. In [4], for

example, the problem of automatic deployment of CCM (CORBA Component Mod-

el) and MPI (Message Passing Interface) applications is addressed, while the authors

in [6] describe the migration of Web Services to a core grid middleware by convert-

ing them to OGSI (Open Grid Services Infrastructure) compliant grid services.

Other considerable efforts [2], [3] were concentrated on abstracting the grid mid-

dleware from the user/developer. The Grid Application Toolkit[2], for example, de-

fines a platform-independent API to grid resources and services, focusing on resource

management (job submission and migration), data management (access to files and

pipes), event management (application monitoring and control), and information

management (application-specific meta data). The GEMSS project [3] provided an

interoperable grid middleware for medical services applications built on common

Grid standards. For this, a generic grid service provision framework was developed

trying to hide the complexity of transforming existing medical applications into grid

services.

The remainder of the paper is organized as follows: section 3 presents the architec-

ture of the proposed framework and gives a detailed description of its components,

section 4 describes a case study developed as proof of concept, followed in section 5

by conclusions and issues that we will address in future development of the frame-

work.

2 Architecture of the Generic Grid Service Framework

The architecture of our framework is based on three components: the client compo-

nent, the service component and the work execution unit (Fig. 1). Each component is

a configurable one such that the user is able to customize the functionality of the

framework. The whole grid execution process is driven through the client component.

This module allows the user to interact with the framework in two ways: first, by

specifying or providing the components of the application needed to be deployed and

the input data for it and second, by driving a set of dynamic parameters for the appli-

cation through the interaction with a result visualization area. The generic service

component controls the execution of the provided application components on the

working units and can also be responsible with executing some pre- and post-

processing of the work.

The collaboration between the three components is notification-based allowing the

communication of input and output data in a service-oriented fashion. If needed it can

also be achieved through the use of file staging.

The application to be deployed as a grid service is specified in a modular fashion

and can be composed of up to three modules: the data partitioning module, the job

execution module and the result composition module. For the development of each

module we provide an easy to use Java interface and each module can extend a built-

in class that hides the internal workings and details of the grid.

The input for the data partitioning module is represented by the number of units

that will execute the actual work and should provide the input data for these compo-

nents.

The job execution module is responsible for launching the execution of the actual

work on the working nodes. The working nodes can all execute the same code or can

each have a different functionality. There can be one or more such work execution

units and the hosts on which they run can be specified through the client component

or can be determined by the service component.

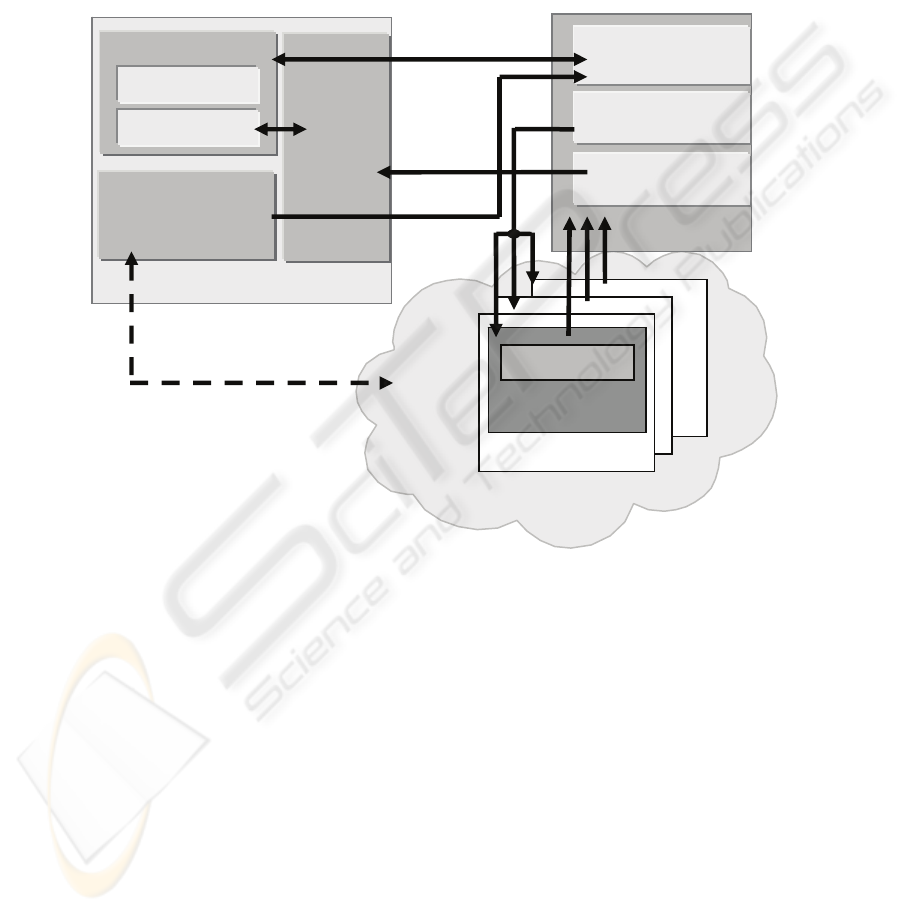

Fig. 1. Architecture of the generic framework.

If the partial results produced by the work execution units need a final stage of re-

finement or composition, this can be done through the means of the result composi-

tion module.

In the following we will discuss in more detail the three components of the frame-

work, their interaction and customization.

2.1 The Client Component

This component is a Java application that allows the user to interact with the frame-

work and to explore the results of the specified processing. The interaction between

the client component and the service is described by two types of parameters:

 parameters that drive the execution of the framework on the grid

Client Component (1..n)

Application Parameters

Result

Visualization

Area

Grid Execution

Parameters

Fixed Params

Dynamic Params

Service

Com

onent

Parameters Setting

Work Dispatch

Compose Final

Result

Virtual

Organization

Worker Components

(1..n)

Globus Container

Worker

set application

parameters

set execution

parameters

query GRAM

for nodes list

send partial results

display

final result

do work

 application specific parameters

The former parameters express the information related to the grid execution of the

requested processing and consist in:

- input data set that needs to be processed - the user specifies the location of the

data set that needs to be transferred to the host executing the partitioning module;

- the data partitioning module - represents a custom Java module that divides the

input data set between work execution units, employing either a static or a dynamic

load balancing scheme;

- the job execution module(s) - custom Java module(s) that will be executed by the

workers. This module represents the actual functionality of the custom grid service

and states the processing that each execution unit must perform on the allocated sub-

set of data.

- the result composition module - custom Java modules that builds a final result of

the parallel processing based on the partial results produced by the work execution

units.

- number and type of work execution units - this is where the user can request the

number of working nodes and can specify whether the working nodes will all execute

the same job or will each have distinct functionality.

- work execution units hosts - optionally it can be specified through the client

component the exact hosts that will execute the custom job modules.

There are two types of application specific parameters: fixed input parameters

(these are set only once at first use of the service instance) and dynamic parameters

(used to drive a loop in the jobs execution on the working nodes - any change in the

values of these parameters triggers a new grid execution of the customized framework

with the new values).

The results of the processing on the input data can be visualized in a result visuali-

zation area which can also be used to trigger new executions by changing the values

of dynamic application parameters.

2.2 The Service Component

The generic service component is developed using Globus Toolkit 4 (GT4) [7] and

runs inside a secured grid service container. In the grid system there can be only one

such component but there might be a need for multiple client components to access it

at the same time and either use the same or different customized functionalities. In

order to solve this situation, the generic service component was designed using the

factory-instance pattern. Using this pattern, a client can either create a new custom-

ized instance of the service or connect to an already running one. When the client

needs the creation of a new instance, it will contact a fabric service that will manage

the instantiation and initialization of a new resource. Because multiple resources need

to be managed at the same time they are assigned a unique key needed for their iden-

tification. Thus, the fabric service will return an endpoint reference information

(EPR) associated to a WS-resource (Web Services resource). The EPR will contain

the URI (Uniform Resource Identifier) of the service as well as the resource key so

that the client can invoke the service operations through the means of a customized

instance service.

Resource Properties and Operations. Because the main requirement of the service

is that it is reconfigurable and adaptive, the application related resource properties

published generically express all the settings that need to be done in order to custom-

ize the functionality of the service:

Table 1. Application related resource properties exposed by the generic service component.

inputDataSet

An array of strings representing the location(s) of the

input data set in the form of host:pathToFile

partitionModule

A string representing the location of the .jar file contain-

ing the classes that implement the partitioning module

jobExecutionModule

A string representing the location of the .jar file contain-

ing the classes that implement the job execution mod-

ule(s)

compositionModule

A string representing the location of the .jar file contain-

ing the classes that implement the result composition

module

jobInputParameters

An array of input parameters for the job execution mod-

ule expressed generically in the form of <paramName,

paramType, paramValue, paramLength>.

These parameters need to comply with the input parame-

ters specified in the classes implementing the job execu-

tion module.

jobOutputParameters

An array of output parameters filled in by the job execu-

tion module with the results of the processing. The pa-

rameters are specified in the same manner as above an

each work execution unit produces a set of such parame-

ters. They will be used to create the final output parame-

ters of the service.

serviceOutputParameters

A set of output parameters specified in the same manne

as above. These represent the final result sent to the

client and are filled by the composition module based on

the sets of jobOutputParameters produced by each

worker.

In order to ensure the generality of the service the input and output parameters for

the application to be deployed as a grid service need to be specified by the client

component and can be of any type depending on the functionality of the application.

Thus, our generic grid service allows the parameters to be specified in the form of

parameter name (string) - parameter type (string) - parameter value (array of bytes) -

parameter length (integer). All manipulated types of data are streamed to a byte array

and vice versa.

The generic service component provides two types of operations:

- parameter related operations (setJobInputParameter, setJobOutput-

Parameter, getServiceOutputParameter ) and

- workflow related operations (partitionData, launchJobs, composeRe-

sult).

Launching Execution of Workers. The latter type of operations provided by our

service use GRAM (Globus Resource Allocation Manager) [8] to launch jobs that

actually trigger the execution of the provided modules for partitioning, job execution

and result composition. The work is sent to the processing nodes via asynchronous

threads. For this we have developed a Dispatcher class that implements the

GramJobListener interface in order for the launcher to be notified about the

status of the Gram job.

The job execution hosts can be specified by the client or can be chosen by the ser-

vice component based on some minimal criteria requested by the client. Either way,

the discovery of the nodes that can execute the jobs is done through the means of a

GramLocator class that finds the Globus nodes defined for a specified virtual or-

ganization.

Transferring Results. The linking between the client, service and worker compo-

nents is implemented as subscriptions and notifications. The partial results of the

processing can either be written to files and pushed on the node performing the com-

position step or can be transferred by calling a service operation. In the first case the

files are transferred to the composition node as part of the job launched on the work

execution units. In the second case, the results of the processing are written by the

worker by accessing an operation exposed by the generic service (setJobOutput-

Parameter). Either way a notification is produced when the partial results have

reached destination.

When there is a composition step performed by the service component, the final-

ization of this stage needs to be notified to the client component and this is imple-

mented by publishing a resource property as a notification topic. The final result can

then be transferred to the client either as a file or by accessing the getOutput-

Parameter operation published by the generic service.

Security Issues. The framework is built to exploit the security mechanisms available

in Globus Toolkit 4. These mechanisms allow restricted access to the generic service,

including both authentication and authorization. The Grid Security Infrastructure

(GSI) [9] was used to enable message-level security (GSI Secure Conversation) and

full delegation was transferred to the service in order to allow it to act on the user's

behalf. Also a proxy was transferred to the workers such that they are able to contact

the service in order to transfer back the results of the processing.

2.3 The Worker Component

This component represents the application launched on a working node by the render-

ing service through GT4 GRAM. It was developed as a Java application as it acts as

a client for the grid service. The generic service pushes the files needed for the host

machines to act as clients for the grid service and prepares the environment by exe-

cuting a script on the host. Once launched, the worker application processes its corre-

sponding subset of the input data and either writes the results to a file which it trans-

fers back to the service component or directly to the client (if there is no need for

post-processing or it was chosen to be done by the client) or sends the result to the

service by accessing the generic operations available.

3 Case Study: Sort-Last Parallel Rendering

A case study has been taken from the visualization domain, specifically Object Space

Parallel Rendering, and has been used to demonstrate and test the framework. The

need for real-time visualization of large data sets leads the way towards developing a

Grid implementation of a parallel rendering pipeline.

Within Object Space parallel visualization, each node (individual unit of the paral-

lel system, typically a single machine or processor) is responsible for the rendering of

its block of data, irrespective of whether it may actually be visible at that precise

moment. Object Space parallelization is also known as Sort-Last [5], reflecting the

late stage in the graphics pipeline at which the graphics primitives are sorted from

object-space into the resultant image-space (Fig. 2). Each node computes the values

of the pixels for its associated sub-set and sends them to the compositing node which

solves for the visibility of the pixels received from all processing nodes.

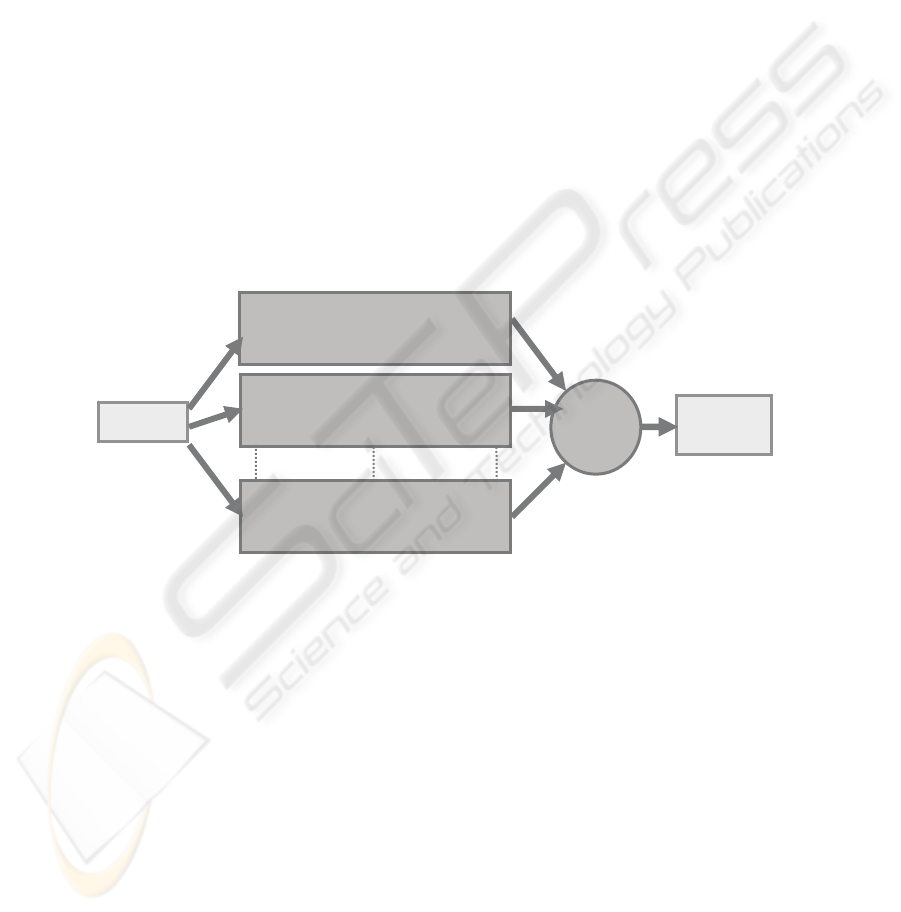

Fig. 2. Sort-Last parallel rendering pipeline [5].

We developed our visualization service by customizing the generic framework

previously presented and we depict the architecture of the customized framework in

Fig. 3. The rendering process is driven and displayed through the client component.

This module allows the user to interact with the visualization system in two ways:

first, by specifying or providing the input data to be rendered and second, by driving

the visualization parameters through the interaction with an OpenGL visualization

area. The grid execution parameters and the visualization parameters are provided to

the Render Service which controls the execution of the Render Workers that produce

the images of the associated sub-sets of graphics data. The Render Service is also

responsible with compositing the final image to be sent to the client, based on the

partial results received from the rendering units. Both the client and the worker com-

Application

Graphics Pipeline

Geometry-Rasterization-Frame Buffer

Graphics Pipeline

Geometry-Rasterization-Frame Buffer

Graphics Pipeline

Geometry-Rasterization-Frame Buffer

Depth

Sort

Frame

Buffer

ponents act like clients for the Render Service. The three components of the visualiza-

tion service will be discussed in more detail in the following.

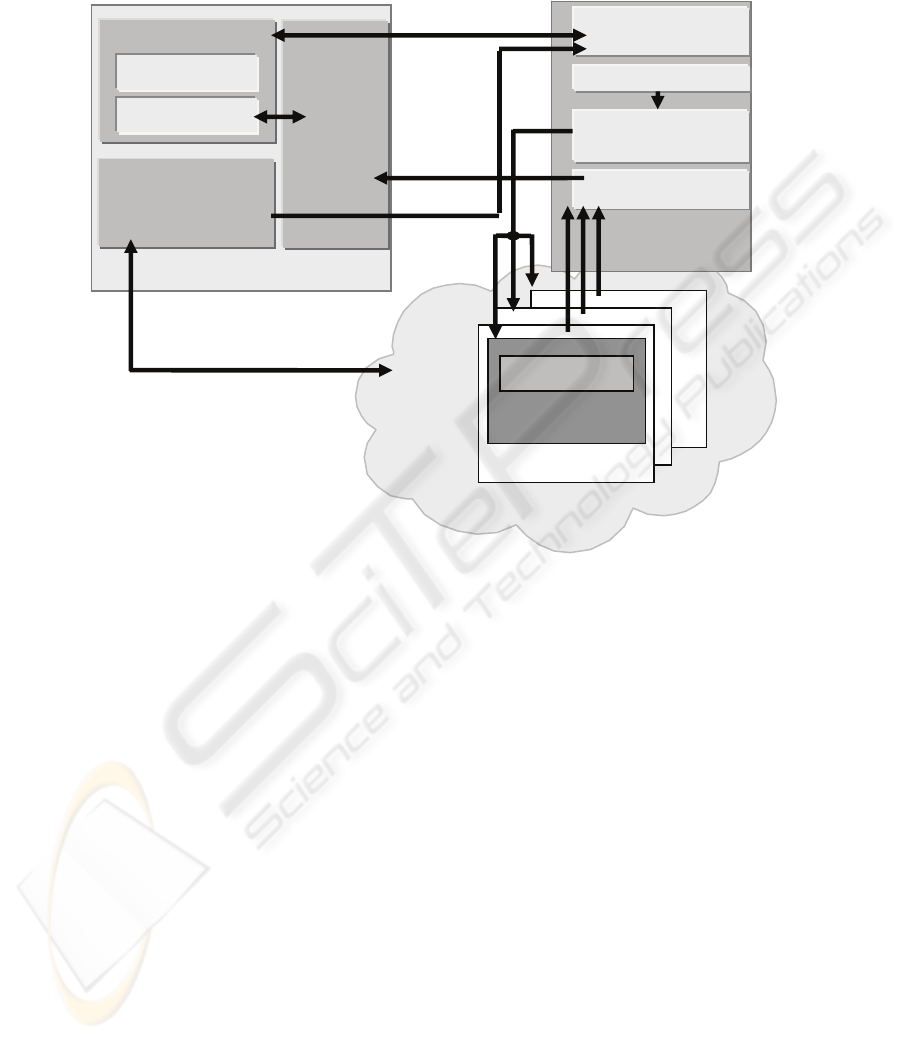

Fig. 3. Custom Visualization Service Architecture.

The three modules used to configure the generic service into a visualization service

express the work that needs to be done to implement the Sort-Last parallel rendering

scheme:

Data partitioning module - the input for this module is the path to the graphics primi-

tives data set and it outputs a set of files with the primitives equally allocated to each

working node.

Job execution module - this component effectuates an off-screen rendering of its

allocated geometry and reads back the pixels along with depth information. The pixel

and depth information are sent to the Render Service for compositing the final image.

Result composition module - this module is executed by the service component and

sorts the pixels received from each worker based on the depth information, thus creat-

ing the image to be sent to the client.

The client component includes a Java application that uses OpenGL through the

means of a wrapper library - JOGL (Java Binding for the OpenGL API) [10] - and

allows the user to interact with the visualization system and to explore the results of

the rendering. The interaction between the client component and the Render Service

is described by the two types of parameters presented in section 3.1.

OpenGL Client (1..n)

Render Parameters

OpenGL

Area

Grid Execution

Parameters

Fixed Params

Dynamic Params

GRAI Render

Service

Rendering

Parameters Setting

Render

Work Dis

atch

Compose Final


GRAI Virtual

Organization

GRAI Worker

(1..n)

Globus Container

Render Worker

set rendering

parameters

set execution

parameters

query GRAM

for nodes list

send partial results

display

final image

do work

Partition Data

The grid execution parameters express the information related to the input data

(location of the files containing the graphics primitives to be rendered), to the resolu-

tion and aspect of the resulting image and to the configuration of the parallel render-

ing pipeline (the user can specify the number of rendering nodes needed and can

specify or choose the exact nodes that will execute the rendering).

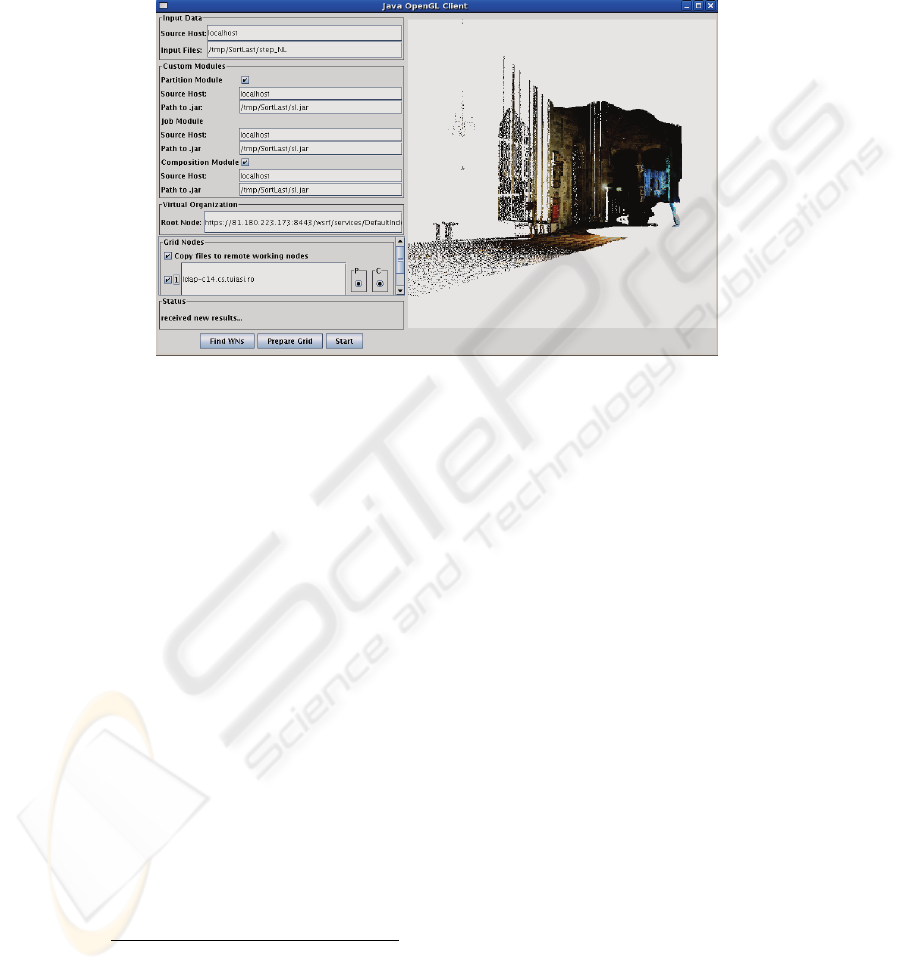

Fig. 4. Visualizing the St. Stephan's Cathedral point cloud using Sort-Last parallel rendering

executed on the customized framework.

The application specific parameters are needed to drive the rendering process by

specifying modeling and visualization (rotation, translation, scaling etc) and projec-

tion transformations to be applied to the input data. These are dynamic parameters

determined by the client application based on the user interaction with the OpenGL

area. Any update on the rendering parameters triggers a new execution of the render-

ing pipeline on the working nodes.

The initialization of the visualization framework is triggered by the client applica-

tion which causes the service component to partition the data set according to the

number of working nodes specified through the client application and using the pro-

vided partitioning module. The Render Service sends the rendering jobs to the work-

ing nodes through the worker dispatcher. When the working nodes finish their render-

ing tasks, the Render Service begins the compositing stage of the final image by

depth sorting the resulting pixels.

We tested our visualization service by rendering a point cloud acquired with a

range scanning device (Fig. 4). The range scanners are capable of producing highly

detailed point clouds, so, even though point primitives can be rendered simply and

relatively fast, problems arise due to the often huge size of the datasets. Our test data

is represented by a 3 million points scan (with color information) from the interior of

St. Stephen's Cathedral in Vienna

Data provided by the Institute for Computer Graphics and Algorithms, TU Vienna, Austria.

4 Conclusions and Future Work

We have presented the vision, design and prototype implementation of a generic

framework for deploying applications as grid services. Our approach simplifies the

task of developing a grid service based on an existing or a new application, providing

application developers with a high level programming model, hiding the complexity

of dealing with web services and grid technologies. To test the proposed framework

we developed a simple visualization service by customizing the generic components

and we illustrated how an existing parallel rendering application can be deployed as a

grid service. Whilst the current implementation of the framework has demonstrated

the basic principles behind the architectural design, it represents a work in progress.

Future research and development will address issues concerning resource monitoring

and (re)scheduling, deployment of MPI applications, enabling inter-process commu-

nication during processing and providing Quality of Service support. Further devel-

opment will also include adding built-in functionality to our service and creating an

extension dedicated to grid visualization.

Acknowledgements

The research for this paper was supported by the Grant 74 CEEX-II03/31.07.2006.

References

1. Afgan, E., Jones, W. T.: Design, development and usage of a generic job submission grid

service. In: Proc. of the 44th Annual Southeast Regional Conference, (Melbourne, Florida,

March 10 - 12, 2006) 738-739 .

2. Allen G., Davis K., Goodale T., et. al.: The Grid Application Toolkit: Towards generic and

easy application programming interfaces for the grid. In: Proc. of the IEEE, vol. 93, no. 3

(2005) 534-550.

3. Benkner, S., Berti, G., Engelbrecht, G., Fingberg, J., Kohring, G., Middleton, S. E.,

Schmidt, R.: GEMSS: Grid-infrastructure for Medical Service Provision. In: Methods of

Information in Medicine, vol. 44, part 2 (2005) 177-181.

4. Lacour, S., Perez, C., Priol, T.: Generic Application Description Model: Toward Automatic

Deployment of Applications on Computational Grids. In: Proc. of the 6th IEEE/ACM Int.

Workshop on Grid Computing (Nov. 13 - 14, 2005). Int. Conf. on Grid Computing, IEEE

Computer Society, Washington, DC, 284-287.

5. Molnar S., Cox M., Ellsworth D., Fuchs H.: A Sorting Classification of Parallel Rendering.

In: IEEE Computer Graphics & Applications, vol. 14, no. 4 (1994) 23-32.

6. Parastatidis S., Watson P.: Experiences with Migrating myGrid Web Services to Grid

Services, Global Grid Forum Workshop on Designing and Building Grid Services, (Chi-

cago, Illinois, Oct. 8, 2003).

7. http://www.globus.org/toolkit/

8. http://www.globus.org/toolkit/docs/3.2/gram/ws/

9. http://www.globus.org/toolkit/docs/4.0/security/

10. https://jogl.dev.java.net/
