Context Handling in a SOA Infrastructure

for Mobile Applications

Laura Daniele, Luís Ferreira Pires and Marten van Sinderen

Centre for Telematics and Information Technology

University of Twente, Enschede, The Netherlands

Abstract. Context-aware mobile applications can dynamically adapt their

behaviour to changes in the user context and provide their users with relevant

services anywhere and at anytime. In order to develop such applications, a

flexible infrastructure is necessary that supports several tasks, such as context

information gathering and services provisioning according to this information.

This paper presents a SOA-based infrastructure that divides these tasks among

several components. These components interoperate by making use of each

other’s services. In order to allow components interoperability, we propose the

use of context models, which represent the relevant concepts of our application

domain independently of specific design and technological choices. Moreover,

we present a generic component, the context expression evaluator, which has

been defined to facilitate the handling of context conditions, and we illustrate

how this component has been integrated with other components of our

infrastructure by using context models.

1 Introduction

Context-aware mobile applications are capable to satisfy their users’ current needs by

dynamically adapting their behaviour to their users’ context without explicit user

intervention. These applications can sense and explore their users’ context, reason

about that, and, based on context changes, provide relevant services to their users

anywhere and at anytime. In order to develop context-aware mobile applications, an

infrastructure is necessary that consists of generic components and supports general

purpose functions used by such applications. Because of stringent time-to-market

requirements, it is not desirable that each individual application captures and

processes context information for its own use, since application development in this

case would be time consuming and costly. In contrast, with a proper infrastructure,

generic functions can be made available and reused in various context-aware mobile

applications without developing them from scratch.

This paper presents an infrastructure that has been developed within the A-MUSE

project [1]. This infrastructure is based on the Service-Oriented Architecture (SOA)

approach, which aims at facilitating distributed systems design through the disciplined

use of the service concept. As defined in [2], services can be described, published,

discovered and dynamically assembled for developing massively distributed,

interoperable and evolvable systems. Our SOA-based infrastructure supports common

Daniele L., Ferreira Pires L. and van Sinderen M. (2008).

Context Handling in a SOA Infrastructure for Mobile Applications.

In Proceedings of the 2nd International Workshop on Architectures, Concepts and Technologies for Service Oriented Computing, pages 27-37

DOI: 10.5220/0001899300270037

 SciTePress

functions of context-aware mobile applications by assigning them to dedicated

components. Particularly, user components provide the application with user events

through a user interface, context sources sense the user context and provide the

application with context events, action providers execute actions in response to

events, a service trader can be used to register the services offered by context sources

and action providers to make them dynamically available according to SOA, and,

finally, a coordinator orchestrates the components mentioned above. User

components, coordinator, context sources, action providers and service trader support

the goals of the application by interoperating with each others.

The main contribution of this work consists of introducing context models to allow

interoperability among components of the A-MUSE infrastructure. Context models

represent the relevant concepts in the application’s universe of discourse and

components that realize application parts may use these models as a reference to

interoperate with other components. In order to show how it is possible to make

additional components interoperable with our infrastructure as long as they comply

with our context models, we present a context expression evaluator, which is a

generic component dedicated to context processing that has been developed in the A-

MUSE project to facilitate the handling of context conditions, and we discuss how the

context expression evaluator has been integrated in the infrastructure by using context

models.

The structure of the paper is the following: Section 2 presents the A-MUSE

infrastructure, Section 3 discusses the importance of context models and shows an

example to illustrate them, Section 4 presents the context expression evaluator

component and discusses how it has been integrated in the infrastructure by using our

context model, Section 5 discusses some related work, and Section 6 presents our

conclusions and identifies topics for future work.

2 Infrastructure

The A-MUSE infrastructure supports general purpose functions that are commonly

used by context-aware mobile applications. For example, all context-aware mobile

applications are capable to retrieve context information from the user context and,

based on this information, provide relevant services to their user. Therefore, our

infrastructure is general enough to be used by various context-aware mobile

applications. However, it may be configured based on the specific application to be

developed by simply implementing functions that are not worth generalizing, since

they are too specific and, therefore, not used by other applications. These specific

functions should be offered by application-specific components.

Fig. 1 shows the A-MUSE infrastructure. Although it has been especially

developed in the A-MUSE project for a case study called Live Contacts [3], the same

infrastructure can be used by other context-aware mobile applications. Live Contacts

consists of a context-aware mobile application running on Pocket PC phones,

Smartphones, desktop PCs that allows its users to contact the right person, at the right

time, at the right place, via the right communication channel. Further information

about the functionality that Live Contacts offers to its user can be found in [4].

The core of the infrastructure consists of a service coordinator, which receives

events and as a consequence triggers actions. Events may be either user input events,

which consist of explicit user requests to the application, or context events, which

consist of relevant changes in the user context. For example, a user input event may

be a request for the user’s list of buddies, and a context event may be the proximity

event whenever a buddy is nearby the user. Actions represent application reactions to

user input and context events, and may be an invocation of any internal or external

service, such as the generation of a signal, the delivery of a notification or a web

service request.

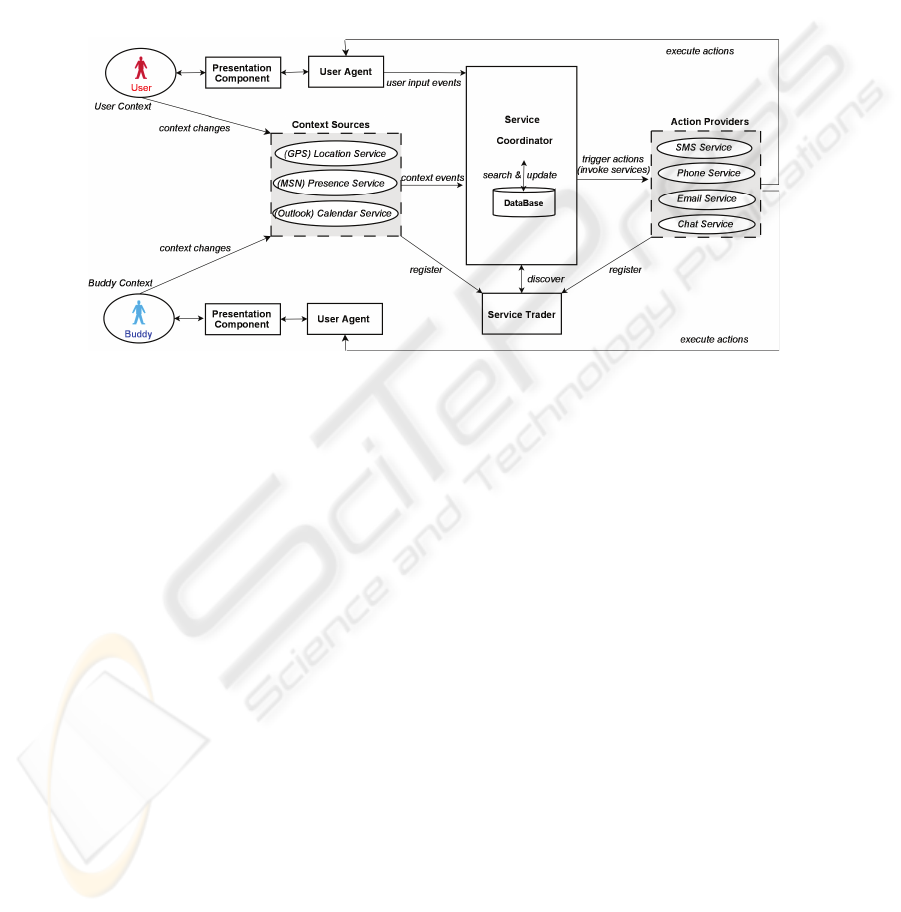

Fig. 1. A-MUSE infrastructure for context-aware mobile applications.

Fig. 1 depicts a user and his/her buddy (another user of the application) with their

context. They interact with the application through a presentation component that

provides the user interface to introduce inputs and receive outputs to/from the

application. Since context-aware mobile applications should be able to provide

relevant services to their users anywhere and at anytime, the presentation component

is integrated in the user device, which may be either a desktop PC, in case of users

with fixed location, or a Smartphone or Pocket PC phone in case of users on the

move. There is one presentation component for each user.

The user agent acts on behalf of the user. Particularly, the user agent interacts with

the presentation component to obtain user inputs and present user outputs, and

provides the service coordinator with user input events. The user agent is located in

the user device. There is one user agent for each user.

The service coordinator orchestrates all the components of the application,

including a database that contains status information about users (e.g., name,

password, preferred contacts means, list of buddies), and login information. In

principle we assume that there is one service coordinator and one database. The

service coordinator can manage multiple user instances in order to allow several users

to use the same application, and multiple application instances in order to allow

several context-aware mobile applications to share the A-MUSE infrastructure. The

service coordinator also interacts with context sources and action providers.

Context sources sense changes in the user context and provides the service

coordinator with context events. Fig. 1 shows a (GPS) location service that provides

information about users’ current location, a (MSN) presence service that provides

indications whether users registered in the application are available online in the

network, and a (Outlook) calendar service that provides information about users’

appointments and activities. We assume that there is one (GPS) location service, one

(MSN) presence service and one (Outlook) calendar service for each user agent in this

particular configuration. These services are registered in the service trader.

The action providers are responsible for performing actions triggered by the service

coordinator. Fig. 1 shows an SMS service, phone service, e-mail service and chat

service, which enable users to communicate with each other through, respectively,

sending messages, making a phone call, sending e-mails or chatting. There is one

SMS service, phone service, e-mail service and chat service for each user agent.

These services are also registered in the service trader.

The service trader registers all the available services offered by context sources and

action providers. This allows the coordinator to dynamically discover available

services based on the interface that is published in the service trader. After

discovering the proper service, the coordinator can invoke it by using the endpoint

location contained in the service description. This use of a service trader is a well

established pattern of service discovery in service-oriented architectures. Examples of

service traders in middleware platforms are the OMG CORBA trader [5] and the

UDDI registry [6].

The interactions among components of our infrastructure are based on the service-

oriented architecture (SOA) approach, which consider components only from the

point of view of the service that they provide or use without any mentioning of the

internal details of how the service itself is implemented. According to SOA,

components make use of each other’s services to cooperate in order to support the

goals of the application. Therefore, the coordinator uses the service offered by context

sources, which provide the coordinator with context events. However, the coordinator

is not aware of the details on how context sources obtain context information from the

user environment and how they process this information in order to generate context

events.

3 Context Model

In this work we start from the definition of context given in [7], which is the

following:

“Context is a collection of interrelated conditions in which something exists or

occurs”.

This definition implies that we always consider context as a set of conditions

associated with a subject, which is something that “exists or occurs” in our definition.

In our models, a subject of context is called an entity. Although the concepts of entity

and context are strongly tied, these concepts are fundamentally different. Actually,

context is what can be said about an entity in its environment, which implies that

context does not exist by itself [8]. The context of an entity is characterized by several

and possibly interrelated conditions. Considering the context of a person, examples of

these conditions are the person’s geographical location, environmental conditions of

the person’s physical environment, such as temperature, humidity, light, etc., or the

person’s vital signs, like heart beat and blood pressure. Together, these context

conditions form the person’s context.

In order to develop context-aware mobile applications we need to identify the

context conditions that are relevant for the application or family of applications that

we want to develop. In order to achieve this we define a context model, which

represents the relevant context conditions of entities in the application’s universe of

discourse [8]. Particularly, we define a context model as a conceptual model of

context. Conceptual models are, in the sense of [9,10], abstract representations of a

“given subject domain, independent of specific design and technological choices”.

Therefore, when we define a conceptual model of context, we abstract from any

design and technological detail, such as the way context is sensed, provided, learned,

produced, and/or used.

Context models provide us with a conceptual foundation for the development

process of context-aware mobile applications. Particularly, context models allow us to

provide interoperability among components of the A-MUSE infrastructure depicted in

Fig. 1. In this infrastructure, each component realizes specific parts of the application

logic and, in order to support the goals of the application, it has to interoperate with

other components. Since our context model should represent all the concepts (entities

and context) used in the application, components that realize application parts use

concepts that should be represented in this model, and, therefore, are known and

understandable for other components. In other words, a context model is fundamental

since it provides the common vocabulary to “make our components understand the

same language”. We propose context models that are based on [8], which provides

foundational ontologies to support conceptual modelling and situation reasoning. Fig.

2 shows an example of context model.

Fig. 2 represents the

Entity and Context classes, which are foundational concepts in

our context models. Any entity may be related to several different contexts and a

specific context may be referred to one or more entities. In Fig. 2,

SpatialEntity

represents tangible objects, such as a person or a device and IntangibleEntity represents

intangible objects, such as an application or a network.

IntrinsicContext represents a

context type that belongs to the essential nature of a single entity and does not depend

on the relationship with other entities. An example of intrinsic context is the location

of a person or a device. In contrast,

RelationalContext represents a context type that

depends on the relation between distinct entities, such as the

BuddyList in Fig. 2 that

belongs to a

User entity and contains several Buddy entities. The User and Buddy

classes, which represent person types or roles in the Live Contacts application, are

overlapping since we assume that a user has several buddies and at the same time this

user is a buddy of other users. Therefore, a user is also a buddy and vice-versa.

Moreover, Fig. 2 depicts the

ContextSituation class, which consists of contexts and

entities. We consider context situations since they enable the representation of

particular state-of-affairs of the applications’ universe of discourse. Example of

context situations are

Proximity and ChangeMSNStatus, which describe, respectively,

when a certain buddy of a user is nearby this user, and when a certain buddy changes

his/her status on Messenger. Fig. 2 shows the specification of these context situations.

For the

ChangeMSNStatus context situation, we assume that a user, whose status is

online, is interested to know when a buddy changes his/her status from busy to online.

Context

-hasContext

1..*

-isContextOf

1..*

ContextSituation

-entities1..*

-contexts1..*

SpatialEntity IntangibleEntity RelationalContext IntrinsicContext

Entity

Person GPSDevice

MSNApplicationBuddy

User

MSNStatus

GPSLocation

BuddyList

ChangeMSNStatus

Proximity

-hasDevice1..* -isDeviceOf0..*

-isUserOf

1..*

-hasUser

0..*

-hasLocation

-providesUserWith

-user11

-user21

-MSNStatus2

-MSNStatus1

-user21

-user11

-GPSLocation1

-GPSLocation2

-hasBuddyList1

-isInBuddyListOf1..*

{disjoint, complete}

{disjoint, incomplete}

{disjoint, complete}

{disjoint, incomplete}

{overlapping, incomplete}

Proximity:

user1 = user

user2 = buddy

gpsLocation1 = user1.gpsDevice.gpsLocation

gpsLocation2 = user2.gpsDevice.gpsLocation

distance (x1, x2) = (x2 - x1)

proximity (user1, user2, threshold) = EVAL {distance (gpsLocation1, gpsLocation2) < threshold}

ChangeMSNStatus:

user1 = user

user2 = buddy

msnStatus1 = user1.msnApplication.msnStatus

msnStatus2 = user2.msnApplication.msnStatus

msnStatus2 == "busy"

changeMSNStatus (msnStatus1, msnStatus2) = EVAL {if msnStatus1 == "online" AND msnStatus2 == "online"}

Fig. 2. Context model example for the Live Contacts application.

4 Case Study: Integration of a Context Expression Evaluator

The context expression evaluator is a generic component developed in the A-MUSE

project that can be introduced in our infrastructure and facilitate the development

process of our applications. Actually, the context expression evaluator is dedicated to

context processing, namely, to gather context information from context sources and

reason about this information in order to provide notification of relevant events in the

user context. Since in the infrastructure depicted in Fig. 1 these tasks are realized by

the coordinator, which is also responsible of orchestrating all the internal interactions

within the infrastructure, the introduction of the context expression evaluator can

relieve the coordinator from the responsibility of managing context sources.

Moreover, the context expression evaluator may provide a mean to reduce the

network load that is caused by the SOA-based mechanism of registering and

discovering services in the service trader of our infrastructure. The use of the context

expression evaluator component is an architectural choice to facilitate context

processing in our applications. However, this component is not an essential part of our

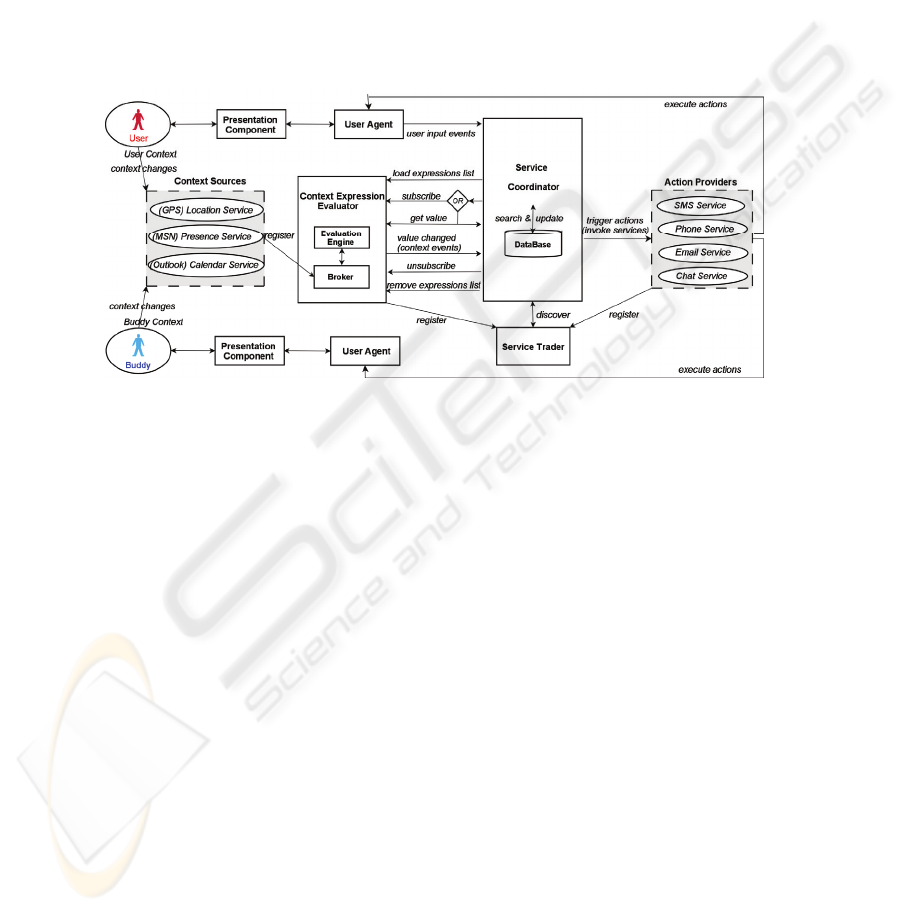

infrastructure. Fig. 3 depicts the A-MUSE infrastructure with the addition of the

context expression evaluator.

Fig. 3. A-MUSE infrastructure with the context expression evaluator component.

Fig. 3 shows the context expression evaluator, which consists of an evaluation

engine and a broker. Context sources, such as GPS devices that provide users

location, register themselves in the broker in order to allow the evaluator component

to discover and invoke their services. The evaluation engine interacts with the broker

and evaluates context expressions provided by registered context sources. We are not

interested in the internal construction details of the context expression evaluator,

since, according to the SOA principles, it should be possible to introduce this

additional component in our infrastructure by only providing a description of the

service that this component offers. As depicted in Fig. 3, the description of the context

expression evaluation service may be registered in the service trader. In this way, the

coordinator, as well as any other component, can discover the context expression

evaluation service and invoke the proper operations in order to get notifications of

context events. Fig. 3 shows these operations.

In the infrastructure we have presented in Fig. 1, context sources register

themselves in the service trader in order to be dynamically available to the application

components and, particularly, to the coordinator. In this way, the coordinator can

subscribe to context sources of interest and get notifications of context events. In

contrast, in the configuration depicted in Fig. 3, context sources register their services

in the broker of the evaluator in order to be available to the evaluation engine.

Therefore, individual context sources are available only to the evaluator and not to

other application components. Since we consider it as a context source, the evaluator

is the only context source available to the application components and, particularly, to

the coordinator. In this way, if the context sources are not widely spread and are

placed in the proximity of the evaluator, it is in principle possible to reduce the

network load on the coordinator caused by the mechanism of registering and

discovering individual context sources in the service trader of the infrastructure.

However, a well-founded evaluation on the reduction of the network load can be

made only after implementing a prototype of our infrastructure.

The context expression evaluator works as follows. First, the coordinator has to

load the evaluator with a list of context expressions that are relevant to the application

(loadExpressionList operation). These expressions may concern either context events,

such as

Proximity or ChangeMSNStatus described in Section 3, or specific values of

context information, such as the GPSLocation or MSNStatus of certain users. After

loading an expressions list, the coordinator can subscribe to specific expressions of

this list (subscribe operation) in order to get asynchronous notifications of context

events from the evaluator when changes occur in these expressions (valueChanged

operation). Alternatively, the coordinator can request the current value of some

context information and get a synchronous response from the evaluator (getValue

operation). Finally, the coordinator can unsubscribe to context expressions

(unsubscribe operation) and remove expression lists previously loaded in the

evaluator (removeExpressionList operation).

Concerning the interactions at the context sources side, context sources register

themselves in the broker as soon as they are available. For example, the GPS device

of a user registers its service to the evaluator whenever the user switches on the

device. Once the services are registered in the broker, the evaluation engine supports

both a subscription-based context information retrieval, analogously to the subscribe

operation of the coordinator, and a query-based context information retrieval,

analogously to the getValue operation of the coordinator. The evaluation engine

optimizes the communication with context sources by evaluating only essential

information. For example, when the engine is monitoring a boolean AND context

expression consisting of two sub-expressions and one of these sub-expression returns

false, the engine does not retrieve the value of the other expression until the first one

turns true. Moreover, when monitoring context expressions used in several user

instances, the engine retrieves only once the value of that expression from the

corresponding context source.

Considering the

Proximity and ChangeMSNStatus context situations described in

Section 3, the coordinator first loads in the evaluator the following expressions list:

user1_gpsLocation = user1.gpsDevice.gpsLocation

user2_gpsLocation = user2.gpsDevice.gpsLocation

user1_user_2_proximity = proximity(user1,user2,threshold)

user1_msnStatus = user1.msnApplication.msnStatus

user2_msnStatus = user2.msnApplication.msnStatus

user2_changeMsnStatus =

changeMSNStatus(user1_msnStatus,user2_msnStatus)

The list above uses the language understood by the evaluator. In this language:

−

user1_gpsLocation is an example of expression name, which is used by the

evaluator to identify a context expression unambiguously;

− user1.gpsDevice.gpsLocation is an example of context expression

concerning a specific value of context information. This expression refers to types

of entity (

user1), context source (gpsDevice) and context (gpsLocation) that

are represented in our context model;

−

proximity(user1,user2,threshold) is an example of context expression

concerning context events. This expression refers to the specification presented in

Fig. 2, in which

proximity(user1,user2,threshold) has been defined as a

function that evaluates whether the distance between the GPS locations of a user

and one of his/her buddies is smaller than a certain threshold.

After loading the expressions list, the coordinator can subscribe to context events by

passing the name of the corresponding expression, e.g.,

user1_user_2_proximity,

as argument of the subscribe operation. Analogously, the coordinator can ask for a

specific value of context information by passing the name of the corresponding

expression, e.g.,

user1_gpsLocation, as argument of the getValue operation.

5 Related Work

The benefits of using Service-Oriented Architecture to support the development of

context-aware applications have been extensively discussed in the literature. In [15],

the convergence of context-awareness and Service-Orientation in ubiquitous

computing is discussed by comparing context-awareness principles, such as

adaptation and extension, to SOA principles, such as abstraction and loosely

coupling. Particularly, it is shown how abstraction and loosely coupling principles in

SOA support, respectively, adaptation and extension principles in context-awareness.

Much effort has been done to develop SOA-based middleware solutions for context-

aware applications [11, 12, 13, 14] in order to provide these applications with flexible

infrastructures that can be extended with little effort. Some of these solutions propose

context models to provide semantic interoperability among infrastructure parts. These

context models have been realized by using OWL [17], which is a web ontology

markup language proposed by W3C’s Web Ontology Working Group. Although these

context models are ontology-based, they do not consider ontologically well-founded

theories to support their modeling choices. For example, the concepts of context and

entity are frequently used interchangeably, which does not reflect the fundamental

characteristics of these concepts. Moreover, although related work address situation

modelling, often a required level of expressiveness, especially with respect to

temporal aspects, is not provided. In contrast, we have proposed context models that

are based on [8], which provides support to conceptual modelling with foundational

ontologies and a well-founded situation theory for situation reasoning, also with

respect to the definition of temporal relationships among situations.

6 Conclusions and Future Work

We have presented a SOA-based infrastructure for the development of context-aware

mobile applications that has been defined in the scope of the A-MUSE project. In

[16], we have defined this infrastructure as part of a design process based on the

Model-Driven Architecture (MDA) approach [18]. This design process first specifies

the behaviour of the application to be developed and gradually refines this behaviour

in sequences of interactions, called interaction patterns, among the infrastructure

components. Therefore, the use of our infrastructure for context-aware mobile

applications is tightly connected to the use of models that describe behavioural

aspects of such applications. These behavioural models are based on context models,

which provide a conceptual foundation to handle context conditions used by our

applications. We have discussed the importance of context models, which allow us to

provide interoperability among components of the A-MUSE infrastructure, and we

have presented examples of these models.

We have discussed how it is possible to integrate in our infrastructure additional

components that are dedicated to specific parts of the application logic, such as, e.g.,

context processing, as long as they comply with our context models. Particularly, we

have introduced a component, the context expression evaluator, which has been

developed in the A-MUSE project to facilitate the handling of context conditions. The

context expression evaluator has been defined to relieve the coordinator component

from managing context sources in order to get notifications of context events, so that

it can concentrate on the orchestration of the interactions between other components

in the infrastructure. Moreover, the evaluator may help in reducing the network load

caused by SOA interactions in our infrastructure. Particularly, we have shown how to

make the evaluator and coordinator components interoperable by using a context

model that represents relevant entities and context in the universe of discourse of

context-aware mobile applications.

Since this work is part of an ongoing project and the A-MUSE infrastructure has

not been implemented yet, we have not provided technical details, such as which

protocols and technologies are used to realize the service-oriented architecture, which

limits we have experienced in these technologies, and how we have integrated in the

infrastructure different services like the GPS, MSN and Outlook services. These

issues have to be considered in further investigation. The natural evolution of this

work consists of implementing a prototype of our infrastructure that uses the context

expression evaluator component for handling context conditions. In order to achieve

this, current work is being done within the A-MUSE project in order to realize a

running context-aware mobile application, based on the Live Contacts case study

presented in Section 2, which concretely demonstrates the interoperation of the A-

MUSE infrastructure components at runtime.

Acknowledgements

This work is part of the Freeband A-MUSE Project (http://a-muse.freeband.nl).

Freeband is sponsored by the Dutch government under contract BSIK 03025. We

would like to thank Mathieu Hutschemaekers and Hugo Zwaal (Ericsson

Telecommunicatie B.V.) for their contribution to this work on the design and

implementation of the context expression evaluator component.

References

1. Freeband A-MUSE Project; http://a-muse.freeband.nl

2. Papazoglou, M.P., Traverso, P., Dustdar, S., Leymann, F.: Service-Oriented Computing: A

Research Roadmap. In: Procedings of Dagstuhl Seminar on Service Oriented Computing

(2005). Internationales Begegnungs und Forschungszentrum fuer Informatik (IBFI),

Schloss Dagstuhl, Germany (2007)

3. Live Contacts home; http://livecontacts.telin.nl

4. Ter Hofte, G.H., Otte, R.A.A., Kruse, H.C.J., Snijders, M.: Context-Aware Communication

with Live Contacts. In: Conference Supplement of Computer Supported Cooperative Work

(CSCW2004). November 2004, Chicago, USA

5. Object Management Group: Trading Object Service Specification, Version 1.0, formal/00-

06-27 (2000)

6. OASIS: OASIS-Committes- OASIS UDDI Specifications TC;

http://oasis-open.org/commitees/uddi-spec/doc/tcspecs.htm

7. Merriam-Webster Online Dictionary page; http://www.m-w.com/dictionary/context

8. Dockhorn Costa, P.: Architectural Support for Context-Aware Applications: from Context

Models to Services Platforms. Ph.D. thesis, University of Twente, Enschede, The

Netherlands (2007)

9. Guizzardi, G.: Ontological Foundations for Structural Conceptual Models. Ph.D. thesis,

University of Twente, Enschede, The Netherlands (2005)

10. Mylopoulos, J.: Conceptual Modeling and Telos. In: Conceptual Modeling, Databases, and

CASE, Whiley 49-68

11. Kim, E., Choi, J.: A Context-Awareness Middleware Based on Service-Oriented

Architecture. In: Procedings of the 4

International Conference on Ubiquitous Intelligence

and Computing (UIC 2007). Lecture Notes in Computer Science, Vol. 4611. Springer

(2007) 953-962

12. Bai, Y., Ji, H., Han, Q., Huang, J., Qian, D.: MidCASE: A Service Oriented Middleware

Enabling Context Awareness for Smart Environment. In: International Conference on

Multimedia and Ubiquitous Engineering (MUE 2007). IEEE Computer Society Press

(2007) 946-951

13. Kiani, S.L., Riaz, M., Sungyoung, L., Young-Koo, L.: Context Awareness in Large Scale

Ubiquitous Environments with a Service-Oriented Distributed Middleware Approach. In:

Annual ACIS International Conference on Computer and Information Science (ICIS

2005). IEEE Computer Society Press (2005) 513-518

14. Gu, T., Pung, H.K., Zhang, D.Q.: A Service-Oriented Middleware for Building Context-

Aware Services. In: Journal of Network and Computer Applications (JNCA), Vol.28, No.1.

Academic Press Ltd, London, UK (2005) 1-18

15. Yoon, H.: A Convergence of Context-Awareness and Service-Orientation in Ubiquitous

Computing. In: International Journal of Computer Science and Network Security (IJCSNS),

Vol.7, No.3 (2007) 253-257

16. Daniele, L., Ferreira Pires. L., van Sinderen, M.: Interaction Patterns for Refining

Behaviour Specifications of Context-Aware Mobile Services. In: Proceedings of the 4th

International Workshop on Model-Driven Enterprise Information Systems (MDEIS 2008),

12 July 2007, Barcelona, Spain. INSTICC Press, to appear

17. OWL home; http://www.w3.org/TR/owl-features

18. Object Management Group: MDA-Guide, Version 1.0.1, omg/03-06-01 (2003)
