A HW/SW CO-REUSE METHODOLOGY BASED ON DESIGN

REFINEMENT TEMPLATES IN UML DIAGRAMS

Masahiro Fujita, Takeshi Matsumoto and Hiroaki Yoshida

VLSI Design and Education Center, University of Tokyo, 2-11-16 Yayoi, Bunkyo, Tokyo, Japan

Keywords:

HW/SW reuse, System-on-a-Chip, HW/SW co-design, UML, architecture template, design template.

Abstract:

In general, a design reﬁnement process of an electronic system including both hardware and software traces a

similar process of other systems in requirements analysis and system-level design. It is more true especially

when they belong to the same product domains. Therefore, we can reuse various documents easily by making

templates of the design reﬁnement. In thispaper, we propose a methodology that generates those templates and

illustrate that the template made from the design reﬁnement process of Compact-Flash (CF) memory interface

controller can actually be used in that of ATM switch. Both of them are typical HW/SW co-designs where

most of the control is performed by software. The generated templates can be applied to various designs which

have the structure of “IO + intelligent buffers”. We use UML to describe the design templates and prove the

efﬁciency of the use of the templates by showing the similarity of UML diagrams.

1 MOTIVATION

Due to the increased complexity of electronic systems

such as SoC, it is essential to have a design method-

ology where various HW/SW IPs can be easily and

precisely reused. Reuse of existing HW/SW designs

in all design levels is the key to improve design pro-

ductivity. A lot of studies have been made on reuse of

intellectual property (IP), but most of those deal with

the problems involved in RTL or lower design levels,

that is, they are discussing about only hardware im-

plementation reuse. Little attention has been given to

reuse of designs in requirements analysis and system-

level design where both hardware and software com-

ponents can be reused.

In this paper, we propose a reuse methodology

based on design reﬁnement templates by which we

can reuse various documents on design decisions eas-

ily in higher-level design. In general, a design re-

ﬁnement process of an electronic system traces sim-

ilar process of other HW/SW combined systems in

requirements analysis and system-level design phase.

The tendency is more true especially when they be-

long to the same product domains. Therefore, in or-

der to improve productivity, it is important to create

templates of the design reﬁnement processes which

contain many essential decisions on system design in-

cluding decisions on HW/SW partitioning. We use

UML (Uniﬁed Modeling Language (Booch, 1998)) to

describe the design templates since, with UML, we

can easily describe the design templates in require-

ments analysis and system-level design.

2 RELATED WORK

An SoC has one or more microprocessors inside

where some parts of the system can be executed as

software. Therefore, both hardware and software

parts of SoC should be seamlessly designed. As we

mentioned in Section 1, a lot of design reuse is being

done in SoC design, such as IP reuse. However, at the

beginning of the SoC designs, design decisions are

made in ad-hoc ways. To decrease the extra tasks of

reﬁning designs and shorten the design period, much

more systematic design ﬂows are needed. One of the

methodologies to realize the requirement is reusing

existing designs in earlier design stages. In the ﬁeld

of software design, there is a methodology called de-

sign pattern, which categorizes existing designs, gen-

erates templates from them, and applies the templates

to other similar designs. Some researchers are try-

ing to apply the design pattern to software/hardware

co-design. Fernando Rinc´on et al proposed the de-

sign methodology in which data storages and data

computing algorithms are handled separately(Rinc´on

et al., 2005). Their design methodology is similar to

STL (Standard Template Library) in C++. In the de-

scription of algorithms, iterators are used to access

240

Fujita M., Matsumoto T. and Yoshida H. (2008).

A HW/SW CO-REUSE METHODOLOGY BASED ON DESIGN REFINEMENT TEMPLATES IN UML DIAGRAMS.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 240-245

DOI: 10.5220/0001900102400245

 SciTePress

data storages, so that any kind of data storages can be

adopted. When the sufﬁciently various types of stor-

ages and algorithms are provided, the templates can

be easily applied to a new system. To apply the de-

sign methodology, however, designers have to come

up with the combination of the components in the li-

brary in ad-hoc ways. Also, it is difﬁcult to design

a new system which signiﬁcantly differs from the ex-

isting designs. To avoid these problems, design reuse

should be done in earlier stages and in larger scale.

3 OUR BASIC APPROACH

3.1 Speciﬁcations of UML

We use UML diagrams to represent our analysis and

design. UML is a standardized language that includes

nine types of diagrams to realize object-oriented anal-

ysis and design. By combining the use of (subset of)

these nine diagrams, object-oriented analysis and de-

sign methods can be realized, as presented in (Rum-

baugh et al., 1990; Booch, 1993; Jacobson, 2000).

UML, however, just provides a standardized way to

describe various diagrams related to object-oriented

analysis and design methodologies, and does not have

any particular ways to utilize the diagrams. There-

fore, there are many ways to use UML diagrams in

analysis and design, although the differences may not

be so large.

In our study, we use four types of the diagrams:

use-case diagram, class diagram, sequence diagram,

and state chart diagram. A use-case diagram is used

to analyze how the target system reacts and functions

to the environments (Fig. 2 and 6). A class diagram is

used to statically describe and analyze the target de-

signs by deﬁning classes and their relationships(Fig.

3, 4, 7, and 8). A sequence diagram gives a snap-

shot of behaviors of the target system by deﬁning se-

quences of messages among the objects inside the tar-

get system and the environments.

3.2 Basic Approach for Reuse

Our methodology appears in Fig. 1. It consists of two

phases as follows:

The First Design Phase. Requirements analysis, de-

cisions about functional structures and how to im-

plement them are performed manually. Some de-

sign templates are created based on the design of this

phase.

Reused Design Phase. The design reﬁnement tem-

plates of the ﬁrst phase are reused in this phase, and

The first design

Requirements analysis

System-level design

Processors

Memories

Buses

IPs

UML (Phase 1)

UML (Phase 2)

UML (Phase n)

Reused design

UML (Phase 1)

UML (Phase 2)

UML (Phase n)

Mapping

Existing design or

one in libraries

New UML

diagrams for new

design

1 2

Automate

with our tool

Refinement

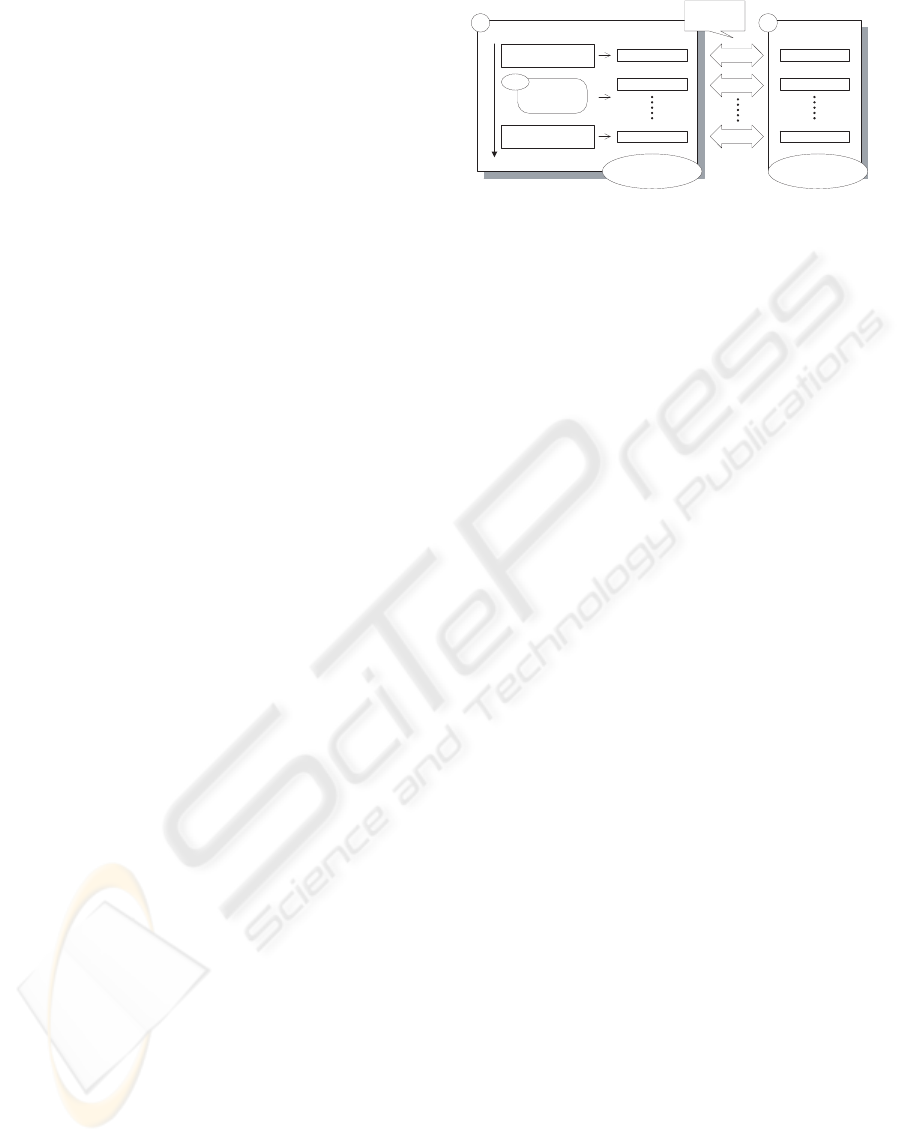

Figure 1: Our basic approach for reuse.

new designs are performed semi-automatically. We

try to ﬁnd similar designs by referring to existing de-

signs (including ones stored in libraries). Once some

similar designs are found, we try to apply the same

reﬁnement steps for more detailed designs.

An important point to emphasize is the fact that

a design reﬁnement process of an electronic system

usually traces a similar process of other systems in re-

quirements analysis and system-level design. There-

fore, one template is applicable to a lot of designs,

which results in the improvement of design produc-

tivity.

3.3 Design Flow for First Design

In the ﬁrst design phase, designers extract require-

ments of the design target by use-case analysis, then,

describe class diagrams which realize the required be-

havior. At the beginning of the ﬂow, designers start

with simple and abstracted diagrams. Along with the

reﬁnement steps explained in the following, design-

ers make them into detailed ones taking characteris-

tic of the design target into account. UML diagrams

and associated notes about design decisions in each

reﬁnement step are stored into the database and used

as templates for other designs later. Note that the dia-

grams/documents that are not ﬁnally adopted are also

stored into the database, since these alternatives can

be used for other designs in future. The detailed ex-

planation of the design ﬂow for the ﬁrst design is ex-

plained in Section 4.

3.4 Design Flow for Designs with Reuse

When there are existing designs available as design

template, designers search for designs which are sim-

ilar to a new design, and design it by reusing the re-

ﬁnement process of existing designs. Existing designs

are used in two ways in general. The ﬁrst way is ap-

plied when the new design and the existing design are

similar to each other. In this case, the new design is

designed quickly by tracing the reﬁnement process of

the existing design. In the second way, the existing

A HW/SW CO-REUSE METHODOLOGY BASED ON DESIGN REFINEMENT TEMPLATES IN UML DIAGRAMS

241

design is used in part. The existing design is used to

ﬁnd classes and use-cases which can be used in the

current design. For example, from documents of ex-

isting designs, designers can ﬁnd that classes of in-

terfaces most likely use a class of serial/parallel con-

version, a class of error collection, and so on. To de-

tect similarity or ﬁnd typically used elements effec-

tively, existing UML diagrams have to be stored in

the format which is easy to handle with computers. In

this paper, we use XMI (XML Metadata Interchange)

(Keienburg and Rausch, 2001) as a format to handle

UML diagrams, because most of the UML drawing

tools are able to use XMI format. The detailed ex-

planation of the design ﬂow for reused design is ex-

plained in Section 5.

4 CASE STUDY OF A NEW

DESIGN

Object-oriented design methodologies (OODMs)

have been widely adopted for better IP reuse and

also easier changes of speciﬁcations. With this in

mind, we try to apply object-oriented analysis and

design methodology for HW/SW co-design process.

Our OODM can generate these behavioral descrip-

tions from the start of the analysis of the target de-

sign. We applied our OODM for HW/SW co-designs

to the design of a Compact-Flash (CF) memory in-

terface controller, a typical example of HW/SW co-

design.

4.1 Use-Case Analysis and Scenario

Generation

So far, requirementanalysis for the target system have

been made by designers in rather ad-hoc ways espe-

cially for hardware part. In our design methodology,

we apply object-oriented analysis to this requirement

identiﬁcation. We use use-case diagrams to list up

the required functionalities paying enough attentions

to interactions between inside and outside of the tar-

get designs. The goal is to clarify what functionalities

should be realized by the target designs.

In our OODM, the following two points must be

well taken care of for proper use of use-case diagrams.

The ﬁrst point is that appropriate system boundaries

and actors should be identiﬁed. What are inside the

target designs and what are not must be clariﬁed. Ac-

tors are basically either users of the target designs or

the things that can directly be manipulated by users.

The other point is that use-cases must be extracted

considering only functionality of the target designs.

Design target

PCMCIA

Check

ecc

Add eccSerialize

Deserialize

Convert address

space

Load data

Save data

Flash memory

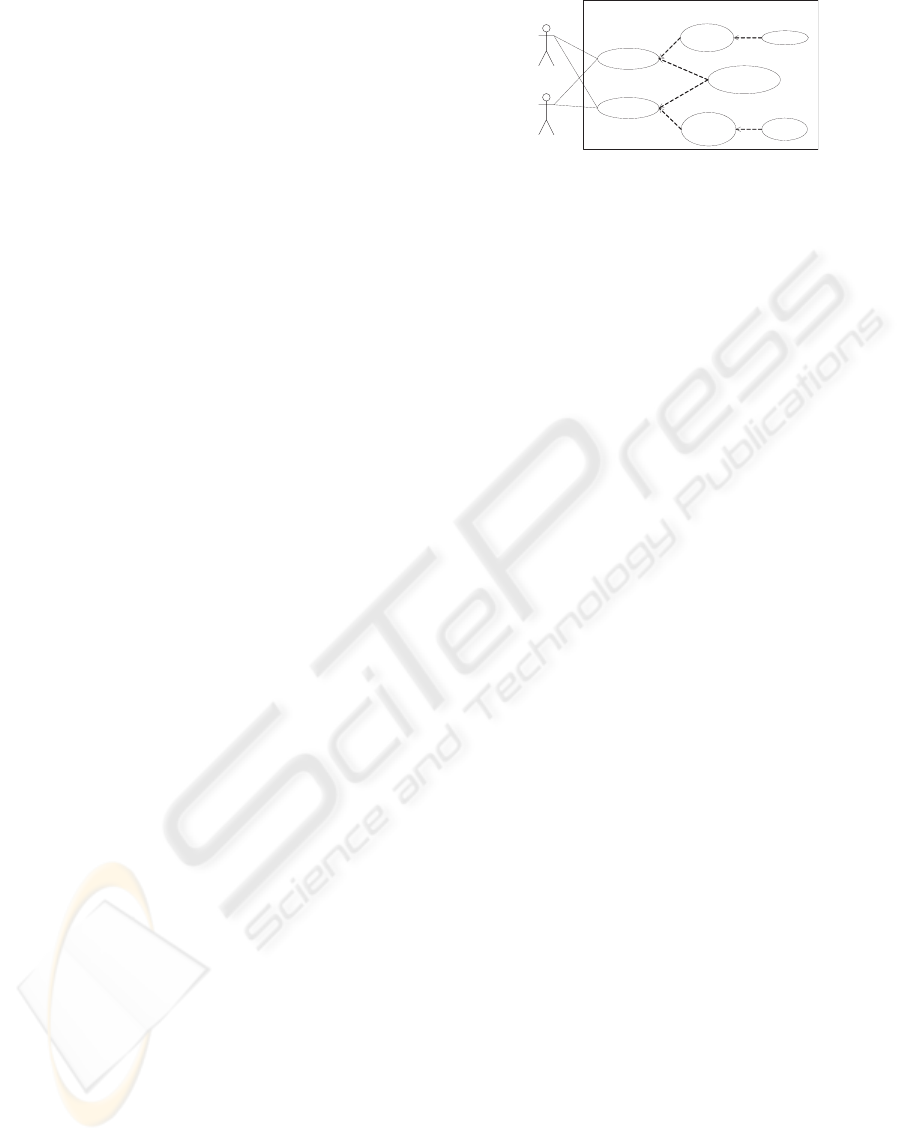

Figure 2: Use-case diagram of CF-memory interface.

The required performance for the target designs is not

included in the use-cases.

The next step is to describe scenarios for the use-

cases identiﬁed. The required behaviors to realize

each use-case should be analyzed. With the use-

cases and their related scenarios, rough speciﬁcations

of the target designs can be made. Use-case scenar-

ios should be generated with the following points in

mind.

• The words available for use-case scenario, the

contents to describe should be deﬁned as rules be-

forehand. Use-case scenario should be written by

the rules. It is required to generate use-case sce-

narios and make them understoodby other design-

ers easily.

• When generating behaviors, alternative behaviors

should also be listed up and well considered. This

is good for reuses and redesigns as well.

• The results must be reviewed enough by other de-

signers as well.

In the case of CF-memory interface controller, one of

the generated use-case diagrams is shown in Figure 2.

4.2 Class Diagram in Requirements

Analysis

In order to realize the functionality deﬁned in use-

case diagrams, we need to group together them and

identify a good set of problem domains. This is done

by using class diagrams. One way to do this is to

extract common “nouns” and “verbs” from the use-

case diagrams and scenarios, and assigning classes

to “nouns” and methods for classes to “verbs”. This

method is very effective especially in early phases of

analysis phases, although the quality of the extracted

class diagram pretty much depends on the quality of

the use-case scenarios.

With this class diagram for analysis, design reuses

as IPs and also changes of speciﬁcations can be rela-

tively much easier to be accommodated. Class dia-

grams for analysis phases should be generated with

the followings in mind:

ICSOFT 2008 - International Conference on Software and Data Technologies

242

Byte transfer

conversion

P/S conversionInternal Buffer

PCMCIA

Read()

write()

Flash memory

Read()

write()

data

request

address

data

PCMCIA IF Flash IF

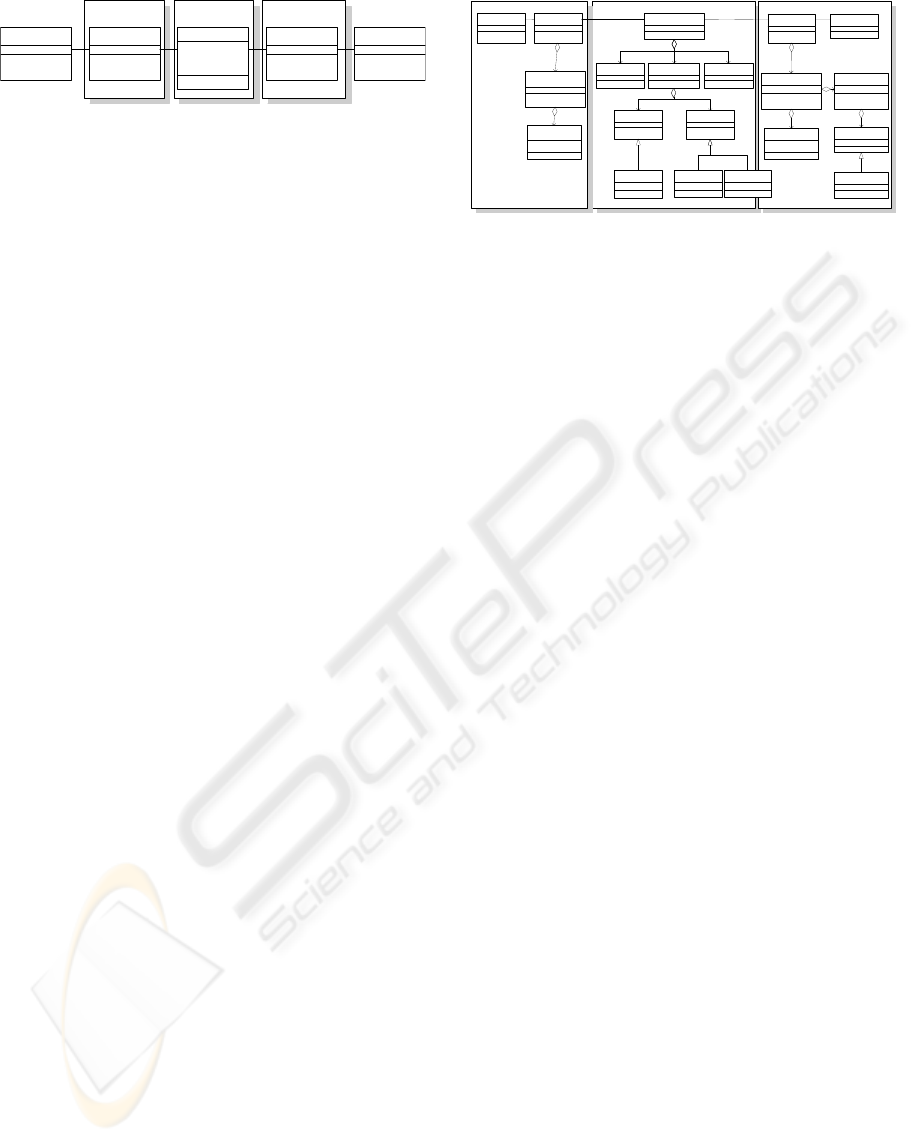

Figure 3: Class diagram of CF-memory interface in the ﬁrst

analysis phase.

• When generating candidates of classes, similar

words/concepts to the one shown in use-case sce-

narios should also be included.

• Each class should have clear responsibility in

terms of the functionality of the target designs. It

should also be considered whether each class gen-

erated can be reused easily or not.

• It is not good at all to directly map each use-case

scenario to a ﬂow in class diagrams. If we do this

way, there will be too many relationships among

classes, and the resulting class diagrams will not

be easy to understand. Instead it is essential to cat-

egorize the functionality shown in the scenarios.

4.3 Class Diagram in System-Level

Design

Following the analysis phase, our OODM has the

second phase for system-level design considerations.

In this phase, based on the results of the analysis,

classes that should be implemented in hardware are

recognized and reﬁned to have clear interfaces. Af-

ter this phase, each class in class diagrams can be

mapped into a function in SpecC (Gajski et al., 2000)

or SystemC (Accellera Organization, 2004) descrip-

tions, and they can be further processed for imple-

mentations.

When generating class diagrams for system-level

design, the following points must be considered:

• Sufﬁcient sets of methods for each class to realize

the required functionality must be extracted.

• Things to be stored after each method should

be clariﬁed. In the case of hardware implemen-

tations, they will be actual hardware facilities.

Since how they can be used and also shared are

critical for hardware implementation costs, life-

time analysis of the stored data is applied.

• Mainly for hardware realization, instances of

classes should also be generated, if multiple in-

stances of the classes are necessary. This is based

on hardware resource / performance trade-offs.

• For each class or instance of class, interfaces

must be clearly deﬁned including what are ac-

tually transferred: pointers or actual data them-

Internal Buffer P/S conversionByte transfer conversion

Internal Buffer

addressManager

storageAddress

storageNumber

hostAddress

PCMCIA IO

receive()

send()

converte r

convert()

table

address

PCMCIA IO

Manager

sendByteData()

receiveByteData()

Byte transfer

converter

PCMCIAProtocol

dataManager

Flash IO Manager

sendSerialData()

receiveSerialData()

P/S converter

FlashProtocol

Flash IO

receive()

send()

eccManager

result

errorCheck()

addChecker()

error Checker

parity

FlashMemory

PCMCIA

requestManager

Figure 4: Class diagram for ﬁnal design (CF memory IF).

selves. These interfaces are decried as newclasses

in class diagrams for system-level design. This

is essential for hardware implementation of the

classes and should be well considered.

Note that from this class diagram it is fairly easy

to generate system-level design descriptions.

4.4 Design Period and Design

Reﬁnement Template

From the real and previous design experience on sim-

ilar hardware designs, we know that it needs about 12

man-months from behavior or RTL codings to the im-

plementation for this design. Also, the time spent for

analysis phase in the previous designs is about a cou-

ple of man-months although that was a very informal

process. Our proposed analysis and design method

took 3 man-months, and so we could say the time

spent is pretty much similar to the traditional informal

ones. Our method, however, generates lots of docu-

ments on design information including design deci-

sions. The documents can be utilized in other design

processes following our design methodology.

Figure 5 shows the design reﬁnement process of

CF-memory interface controller using the simpliﬁed

class diagrams. In the phase 1, most primitive dia-

gram of the design is shown. In the phase 2, essential

factors of interface protocols for interfaces on each

side are reﬂected on the design. Then in phase 3,

the classes which represent address conversion and

required operation for using the ﬂash memory are

added. Finally in phase 4, the classes to realize ad-

dress conversion are added into the diagram.

From these four diagrams, we can see that the se-

ries of works represent a generic design reﬁnement

process of “IO + intelligent buffers” system. There-

fore, we can expect that some of the interface cir-

cuits are designed quickly by tracing this design re-

ﬁnement process. In the next section, we proof this

notion by applying the design reﬁnement process of

CF-memory interface controller into the design re-

ﬁnement process of ATM switch.

A HW/SW CO-REUSE METHODOLOGY BASED ON DESIGN REFINEMENT TEMPLATES IN UML DIAGRAMS

243

Phase1

Phase2

Phase3

Phase4

PCMCIA

Internal

Buffer

Flash

Byte transfer

conversion

Internal

Buffer

P/S

conversion

Byte transfer

conversion

P/S

conversion

Address

Used

Address

Empty

Byte transfer

conversion

P/S

conversion

Address Used

Address Empty

R/W cont Counter

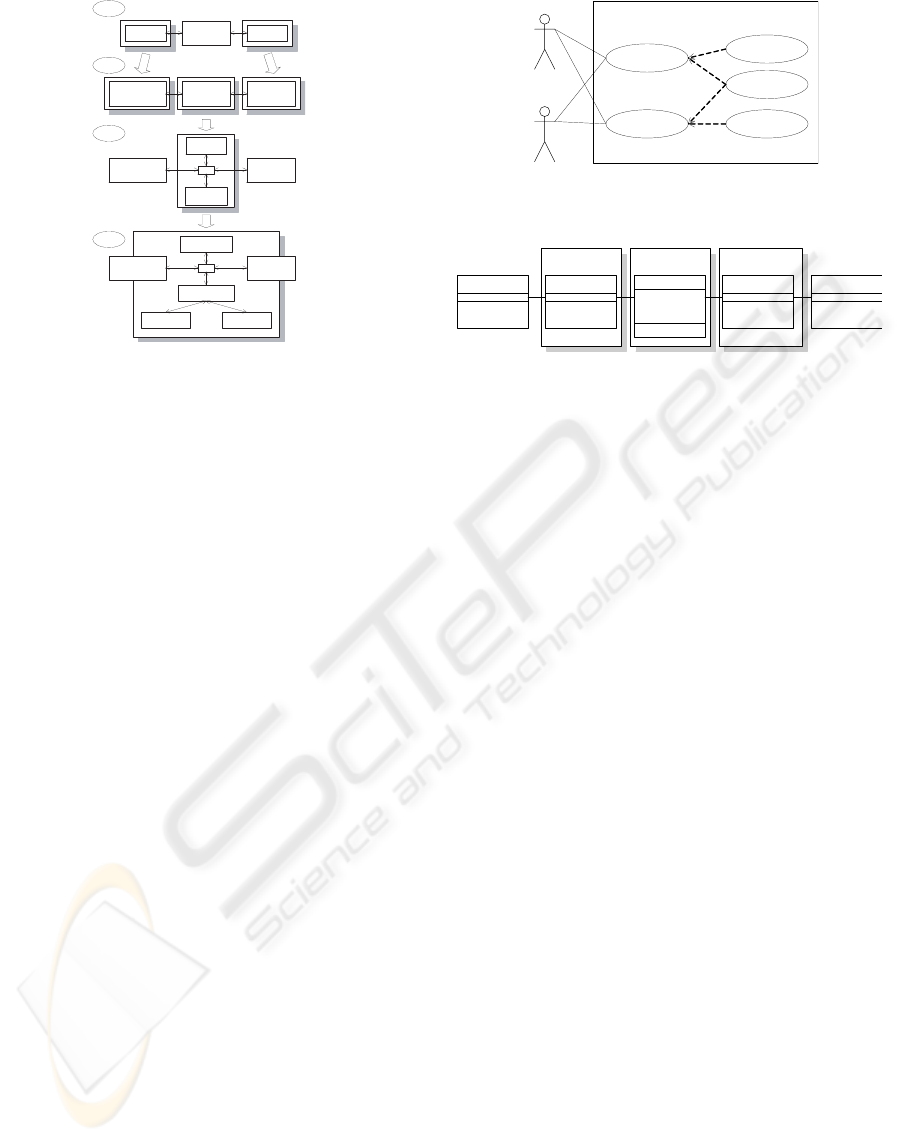

Figure 5: The design reﬁnement template in interface cir-

cuits domain.

5 CASE STUDY OF DESIGN

WITH REUSE

5.1 Design Reﬁnement Process of ATM

Switch

ATM switch has two inputs and two outputs of data

packets with control signals, and some functionalities

for routing the packets. The result of the requirement

analyses is shown in Fig. 6.

Comparing Fig. 7 with Fig. 3, we can say the two

diagrams are alike in the four points below.

• Both designs receive the data from a certain port

and send them to other ports without modifying.

• In both designs, the addresses are modiﬁed: ad-

dress conversion in CF-memory interface con-

troller and packet routing in ATM switch.

• A command is sent via particular port along with

data: via PCMCIA interface in CF-memory inter-

face controller and in the header attached to an

ACM packet in ATM switch.

• Input/output operations include serial/parallel

conversion.

From these four points, we apply the design re-

ﬁnement process of CF-memory interface controller

to that of ATM switch. First, we related Fig. 6 to the

phase 1 in Fig. 5. Then, we reﬁned the design of ATM

switch referring to the process from the phase 1 to the

phase 2 in Fig. 5, and lead to Fig. 7. Fig. 3 and Fig. 7

look similar to each other, although some classes have

different name, attributes and methods, reﬂecting the

differences between requirements of the two design

targets.

Design target

Input1,2

Send out

data

Receive data

Output1,2

Routing

Serialize

Deserialize

Figure 6: Use-case diagram of ATM switch.

S/P conversion P/S conversionInternal Buffer

input

Send()

output

data

header

address

data

input IF output IF

Figure 7: Class diagram of ATM switch in the ﬁrst analysis

phase.

We reﬁned the design further in the same way. The

reﬁnement processes correspond to the phase 2, 3, 4

in Fig. 5. We decided an abstract functional structure,

concrete implementation, and function modules in the

processes. Not only class diagrams but also sequence

diagrams are created at the same time to check the

behavior of the system in each design reﬁnement step.

Figure 8 shows the most reﬁned version of the

class diagram for ATM switch. This diagram is used

as input for C-based design.

5.2 Evaluation of Reuse Methodology

We evaluated the performance of the reuse and the

amount of works spent to design ATM switch. We

evaluated how much amount of the design of CF-

memory interface controller is reused by comparing

Fig. 4 with Fig. 8. Comparing the two class dia-

grams, the classes in the two diagrams can be catego-

rized into three categories.

Classes whose Name, Attributes, Methods are not

Modiﬁed. They are the ones that are not modiﬁed in

the design reﬁnement process of ATM switch.

Classes whose Name, Attributes or Methods are

Modiﬁed. In this category, classes that have the cor-

responding classes in the other class diagram are in-

cluded, according to their functions or their place-

ments in the diagram. They are the same classes as

the counterparts in abstract diagrams, and get apart in

the design reﬁnement process.

Classes Deleted or Newly Created. These classes

are speciﬁc to each target design. In designing ATM

switch, some classes are newly generated and reﬁned

in the process explained as the ﬁrst design phase.

ICSOFT 2008 - International Conference on Software and Data Technologies

244

Internal Buffer S/P conversionP/S conversion

internalBuffer

routingDecision

outputPort

portNumber

inputPort

inputIF

receive()

selector

select()

fifo

address

inputManager

P/S conversion()

P/S converter

dataManager

outputManager

S/P conversion()

S/P converter

outputIF

send()

output1

output2

input1

input2

headerAnalyzer

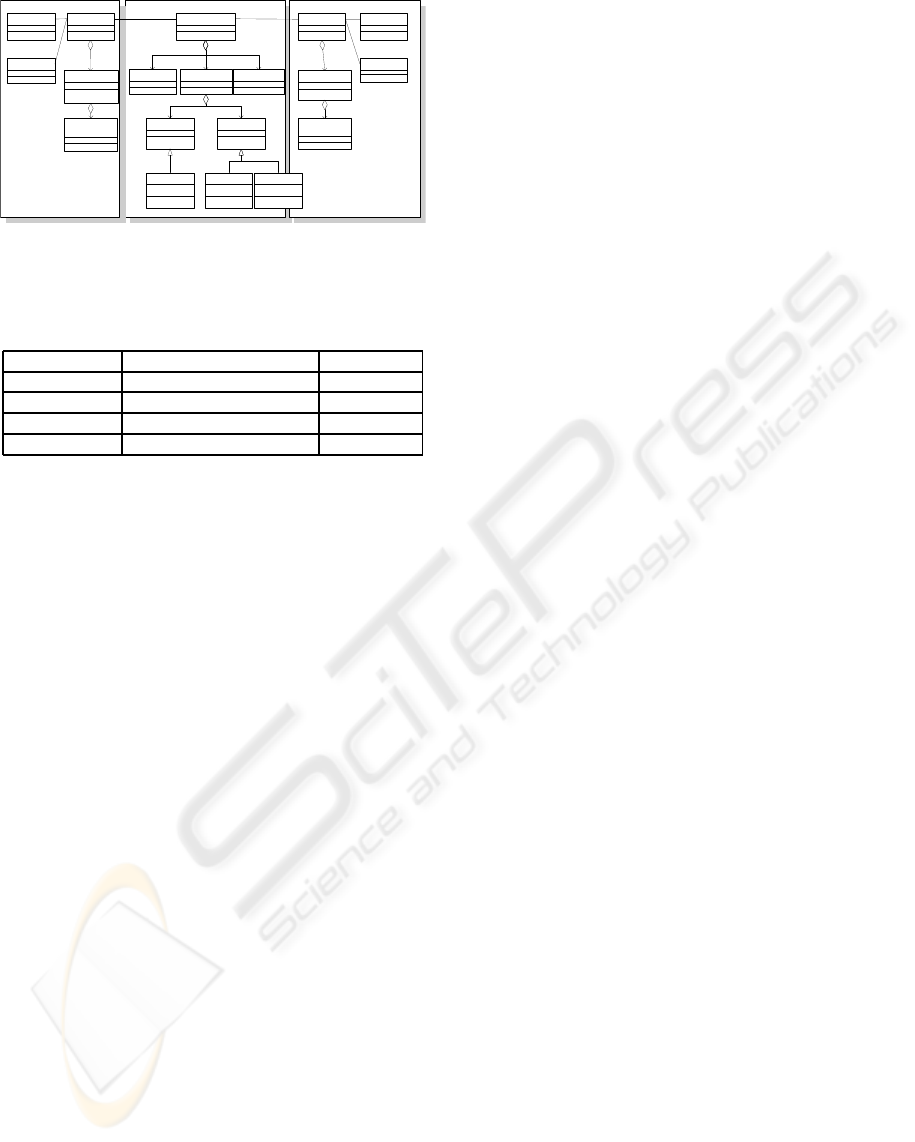

Figure 8: Class diagram for ﬁnal design (ATM switch).

Table 1: The number of reused class in class diagrams for

ﬁnal design.

CF memory IF → ATM switch

5 Reused without changing 5

11 Reused with a few changes 13

4 Added manually 1

20 Total 19

Table 1 shows how many classes correspond to

each category. If we deﬁne the reused classes as the

classes which categorized into the ﬁrst and the sec-

ond categories, we can say that 80 % of the classes

in CF-memory interface controller are reused in ATM

switch. Therefore, it seems reasonable to conclude

that our proposed methodologycan shorten the period

for requirements analysis and system-level design. In

fact, the analysis and design of the ATM switch was

completed in only two man-weeks.

In addition, we strongly believe that reusing IPs

and changing speciﬁcations can be much easier to

be accommodated in our methodology, since we ﬁ-

nally have various documents in UML diagrams for

not only ﬁnal designs but also alternative designs.

6 CONCLUSIONS

In this paper, we proposed a design methodology

which reuses the process of requirement analysis and

system-level design reﬁnement both for hardware and

software designs. We used UML to describe each

step of design reﬁnement process, which resulted in

that designers could easily describe design decisions

and communicate to other designers. Also, applying

the object oriented analysis, we can pick up require-

ments thoroughly, accommodate to changes of speci-

ﬁcations, and carry out IP reuse easily.

In our design methodology, documents such as

UML diagrams and notes in natural languages are

reused as design templates in later designs. At the

ﬁrst design, our design methodology requires almost

the same amount of works as conventional design

ﬂows. From the next similar design, we can signif-

icantly decrease design period by reusing the design

process of the previousdesigns. In the experiment, we

designed CF-memory interface controller and found

that the design process can be categorized into “IO +

intelligent buffer”. Then, based on this observation,

we designed ATM switch tracing the design process

of CF-memory interface. The design of ATM switch

took only 2 man-weeks, and reused 80 % of the de-

sign from CF-memory interface controller design.

As our future work, we will implement and auto-

mate our methodology such as detecting similarity be-

tween diagrams and searching for the related classes.

Also, we should consider to deﬁne how to describe

notes on design decisions in some formal way.

REFERENCES

Accellera Organization, I. (2004). SystemC 3.1a

Language Reference Manual. available from

http://www.systemc.org/.

Booch, G. (1993). Object-Oriented Analysis and Design

with Applications (2nd Edition). Benjamin Cummings

Publishing Company.

Booch, G. (1998). The Uniﬁed Modeling Language User

Guide. Addison-Wesley Publishing.

Gajski, D., Zhu, J., D´omer, R., Gerstlauer, A., and Zhao, S.

(2000). SpecC: Speciﬁcation Language and Method-

ology. Kluwer Academic Publishers.

Jacobson, I. (2000). Object-Oriented Software Engineering.

Addison-Wesley Publishing Company.

Keienburg, F. and Rausch, A. (2001). Using xml/xmi for

tool supported evolution of uml models. In Proc. of

34th Annual Hawaii International Conference on Sys-

tem Sciences. IEEE.

Rinc´on, F., Moya, F., Barba, J., Carlos, J., and L´opezR

(2005). Model reuse through hardware design patterns

templates. In Proc. of Dsign Automation and Test in

Europe.

Rumbaugh, J. R., Blaha, M. R., Lorensen, W., Eddy, F.,

and Premerlani, W. (1990). Object-Oriented Modeling

and Design. Printice Hall.

A HW/SW CO-REUSE METHODOLOGY BASED ON DESIGN REFINEMENT TEMPLATES IN UML DIAGRAMS

245
