A FEATURE EXTRACTING METHOD FOR TAMPER

DETECTION IN PRINTED DOCUMENTS

Yoshiyasu Takahashi, Takaaki Yamada and Seiichi Susaki

Systems Development Laboratory, Hitachi ltd., Totsuka-ku Yoshida-cho 292, Yokohama, Kanagawa, Japan

Keywords: Feature Extracting Method, Dot-Pattern Code, Digital Watermarking, Electronic Delivery, e-Government.

Abstract: In this paper, we propose our feature extracting method for tamper detection in printed documents. To

detect the tamper of the printed document, a feature extracting method is needed. In this paper, we describe

our feature extracting method. Our feature extracting method is based on the location of the mean point of

each dot. We have estimated our feature extracting method’s probability of the collision, its uniformity of

the distribution, its invariability during D/A and A/D transform and its invariability during the ordinal

change of paper. We have found that our feature extracting method can extract desirable feature value.

1 INTRODUCTION

Since 2000, the Japanese Government has promoted

the IT strategy along with the implementation of

various structural reforms. (IT Strategic

Headquarters, 2007).

However, several issues still remain to solve.

One of the issues is the lower utilization rate of e-

government.

We consider the reasons of the lower utilization

rate are three; complicated preparation for online

application, security worry and the lack of the means

of the online delivery.

To resolve the third reason, we can envisage a

system that the government delivers certificates

online and the user also receives them online, and

the user prints them with their home printers and use

or submit them to the destination in paper format.

To bring the scenario to fruition, the two means

are needed; a means to prove that the paper is

original print and not copy, and a means to prove

that the content of the paper is correct and not

tampered.

To detect the copy, the “copy indicator”

technique is widely known.

To detect the tamper of the paper, the extracting

method of the paper’s feature is needed. With that

method, we can extract the feature of the printing

document and print it within the paper. After the

paper is distributed, the verifier can extract both the

feature of the paper and the feature embedded, and

compare them. However, the extracting method of

the paper’s feature is not well known.

In this paper, we describe the requirements for

the feature extracting method and introduce our

innovative method to extract the paper’s feature. We

also make estimation of our method and compare

with another extracting method.

2 REQUIREMENTS FOR THE

FEATURE EXTRACTING

METHOD

For the feature extracting, the requirements are

following five.

1) The feature values calculated from two

different documents should not be equal

2) The distribution of the feature values should

be uniform.

3) The document should not be calculated from

its feature value.

4) The feature values should not vary during the

D/A and A/D transform.

5) The feature values should not vary if the paper

document is folded or got wrinkles or tainted.

For the feature extracting, the problem is more

difficult than the hash values because of the

requirement 4 and 5. Because the D/A and A/D

transform is inevitable, the feature value should not

vary during them. Moreover, because paper is used,

folding, wrinkles or taint easily occur, the feature

value should keep the same value during the ordinal

alteration of the document. At the same time, if the

significant change occurs in the document, even if

429

Takahashi Y., Yamada T. and Susaki S. (2008).

A FEATURE EXTRACTING METHOD FOR TAMPER DETECTION IN PRINTED DOCUMENTS.

In Proceedings of the International Conference on e-Business, pages 429-432

DOI: 10.5220/0001905804290432

 SciTePress

median points data

embed and print

(1.2, 3.4)

(5.6, 7.8)

・・・

Tax

123,456 yen

Tax

123,456 yen

Tax

654,321 yen

scan

calculate

median points data of the paper

(2.5, 6.3)

(4.8, 7.1)

・・・

embedded median points data

(1.2, 3.4)

(5.6, 7.8)

・・・

automatic verification

image correction

and calculate

read

the embedded code

tampered?

tampered!

dot-pattern code

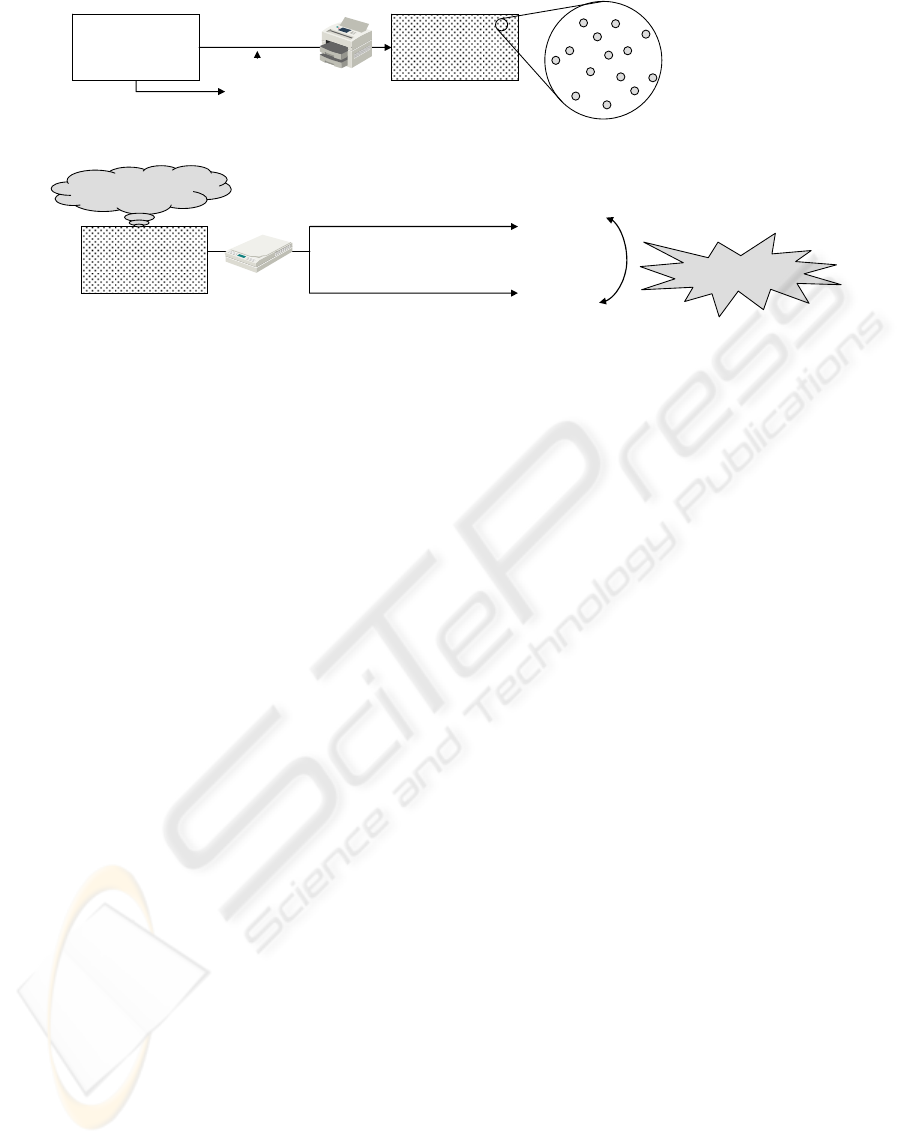

Figure 1: Overview of the verification.

the change is minute, the feature value should

change the other values to represent the change of

the document.

3 RELATED WORKS

The ideal feature value has not been found yet.

However, several techniques that meet a part of the

requirements are studied to extract the paper’s

feature to detect the tampering.

There are three types of the paper’s feature

below.

1) using the document itself

2) using the semi-fragile watermarking

3) using the feature of the paper

First, there are methods to use (a part of) the

original document, such as the text data or the image

data. To embed them, 2D-code is usually used. To

check the document’s tamper, usually a man power

is needed; a verifier scans the code and extract the

document’s text data or image data, and compare

them, watching side-by-side. Its cons are its easiness

to implement and its robustness for the paper’s

conditions, and its pros are that it needs a verifier’s

help and time to verify.

Second, the use of semi-fragile watermark

method has been proposed. The semi-fragile

watermark is a watermark which is robust to some

degradation such as compression, while it is at the

same time destroyed if the embedded image is

tampered with. However, the semi-fragile watermark

which is robust to the paper’s folding or wrinkles or

tainting is not well-known. Therefore, workable

proposal of this type of method has not been yet.

Third, using the feature of the paper has been

proposed. Suzaki and et al. has proposed the

watermarking technique for printed documents by

superposing dot pattern blocks on backgrounds of

the document image (Suzaki, 2003).

4 PROPOSING THE FEATURE

EXTRACTING METHOD

4.1 Brief Overview

Figure 1 shows the overview of our document

verification system.

To print the certificate, the following procedures

are performed.

1) The issuer makes the certificate.

2) The system calculates the feature value from

the certificate, and embeds it into the certificate

itself. The concrete means of extracting and

embedding of the feature value are described later.

3) The system prints the feature value embedded

certificate with printers. In the electronic delivery,

this process can be performed at the user’s home.

After the issue, because the certificate circulates

among many people, there is a risk of tampering the

certificate. Therefore, the submitted certificate needs

to be verified. With the following procedures, the

verifier can verify the certificate.

1) The verifier scans the certificate and detect the

embedded feature value.

2) The verifier also calculates the feature value

from the submitted certificate.

3) The verifier compares the two feature values.

When the significant difference is detected, the

verifier judges the certificate as tampered. The

concrete means of extracting and embedding the

feature value are described below.

ICE-B 2008 - International Conference on e-Business

430

4.2 Extracting the Feature Value

In our method, we use the median point as the

feature value of the document, as shown in Figure 2.

In the Figure 2, the plus sign illustrates the median

point of the character “4”.

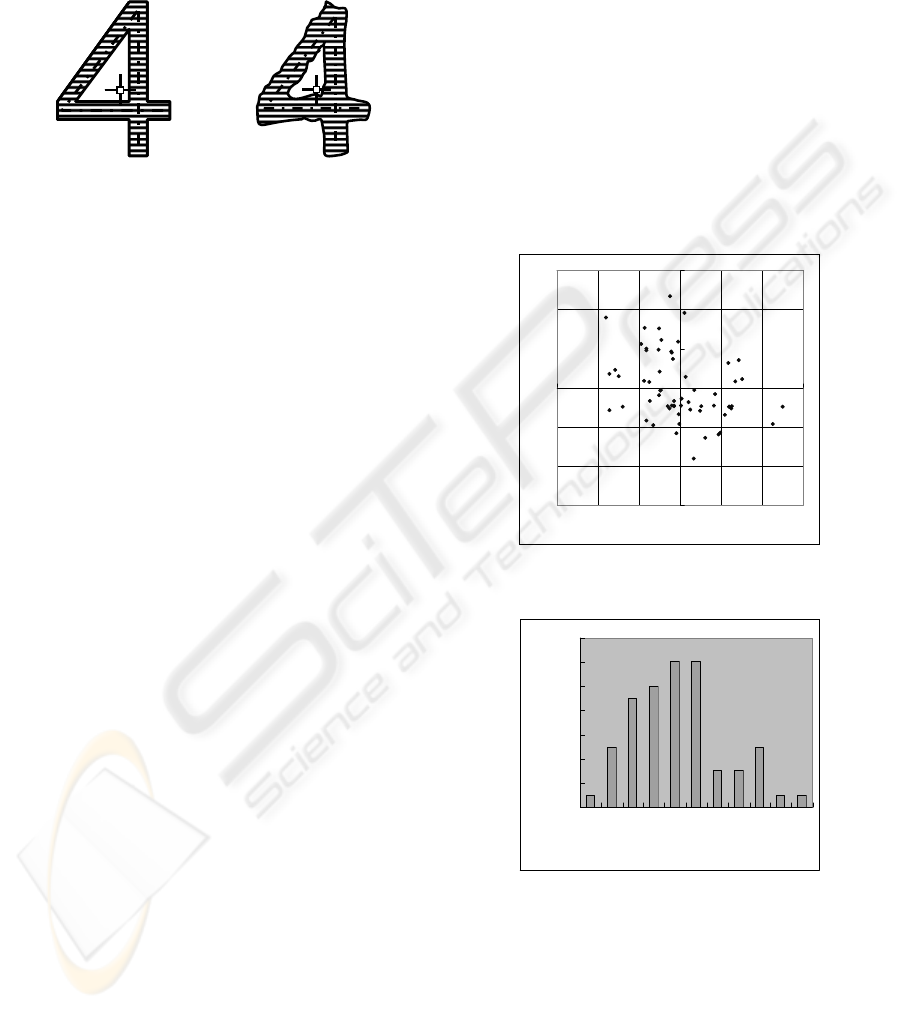

Figure 2: Sample of the feature value.

The benefits of the median point as the feature

value are the robustness against the blur because of

the scattering of the tonner or ink of printers and of

the focus error of scanners. Figure 2 also illustrates

this merit. In Figure 2 left, the character “4” is not

blurred. This illustrates the character “4” to calculate

the feature value in issuer’s computer. After the

printing, circulating, and scanning, the character

may blur. The Figure 2 right illustrates this situation.

Although the blur, the median point of the

character “4” of the Figure 2 right does not vary

very much. That is because the width of the line of

the character is almost the same.

To embed the feature value into the Document,

we use the dot-pattern code (Takahashi 2007, 2008),

which the authors have developed before. The dot-

pattern code is the information embedding method

onto the paper with minute dots.

5 ESTIMATION

5.1 Assessment Viewpoints of the

Feature Value

The viewpoints of the assessment are following five.

(A) probability of the collision

(B) uniformity of distribution

(D) invariability during D/A and A/D transform

(E) invariability during the ordinal change of

paper

5.2 Probability of the Collision and

Uniformity of Distribution

To estimate the probability of the collision and the

uniformity of distribution, we calculated the median

points of characters. The characters are alphabet and

number of Times New Roman font. We drew a

character one by one on the white image and

calculated its median point.

The result is shown in Figure 3. In Figure 3, the

median points of each character are plotted with dots.

From the Figure 3, though there is some bias, we can

find that the median points are distributed almost

uniformly. Moreover, there are no dots which collide

against another dot.

To compare, we also calculated the area of each

alphabet and number. In Figure 4, the histogram of

the result is shown. The x-axis is the area and the y-

axis is occurrence. From Figure 4, we can find the

area is distributed not uniformly. Indeed, nine

characters collided; i.e. they have the same area.

Therefore we can conclude that our feature value is

better than the area.

-15

-10

-5

-15 -10 -5 0 5 10 15

Figure 3: Median points of a character.

186

307.8

429.6

551.4

673.2

795

occurrence

Figure 4: Area of a character.

5.3 Invariability during D/A and A/D

Transform

To estimate the invariability during D/A and A/D

transform, we viewed the difference of the median

point’s change between before and after printing the

document.

A FEATURE EXTRACTING METHOD FOR TAMPER DETECTION IN PRINTED DOCUMENTS

431

We calculate the median point and area of a

character “a” in digital format. Then, we print it and

scanned and calculated the median point and area

again from the scanned image. Before calculating

the median point and area, we converted the scanned

image to binary image with various thresholds.

Table 1: Invariability during D/A and A/D transform.

thrs

median point

diff area diff

192

(149.12, 146.86)

2.33 260 128

128

(150.28, 148.44)

0.58 186 54

(150.02, 148.22)

0.76 152 20

(150.49, 148.31)

0.78 116 16

(150.41, 148.89)

0.34 108 24

(150.46, 148.75)

0.44 104 28

orig (150.08, 148.98) --- 132 ---

The result is shown in Table 1. From Table 1, we

can find that though the threshold varies (thrs), the

median point does not vary very much. On the other

hand, the area varies very much and the difference

of the area of the original image. There are twelve

characters whose area’s difference is less than 54.

Therefore we cannot distinguish these twelve

characters with area.

5.4 Invariability during the Ordinal

Change of Paper

To estimate the invariability during the ordinal

change of paper, we viewed the difference of the

median points’ change between before and after

folding of the paper. The experiment is done as 5.3.

Table 2: Invariability during the ordinal change of paper.

thrs median point diff area diff

192 (146.03, 144.40) 6.11 296 164

128 (150.59, 148.79) 0.53 164 32

64 (150.51, 148.59) 0.57 59 73

orig (150.08, 148.98) --- 132 ---

The result is shown in Table 2. In this

experiment, our median point shows near to original

median point. Therefore we can conclude that our

proposed method has good invariability during the

folding of the paper.

6 CONCLUSIONS

In this paper, we have introduced our feature

extracting method of paper document. Our feature

extracting method is based on the location of the

mean point of each dot, and is expected to be

applicable to home printers such as inkjets.

We have estimated the probability of the

collision and the uniformity of the distribution of our

feature extracting method. We have found that the

feature value extracted from one character is

distributed uniformly and do not collide each other.

We have also checked invariability during D/A

and A/D transform and we have found that almost

every character can be distinguished with our feature

extracting method even after D/A and A/D transform.

We have also found that our feature extracting

method is better than the area.

We have also checked the invariability during

the ordinal change of paper and found that our

method has enough and better invariability than the

area.

Therefore, we can conclude our proposed

method can extract desirable feature value.

REFERENCES

IT Strategic Headquarters, 2007. Priority Policy Program

2007. The Japan Government. Japan.

Ching-Yung Lin, Shih-Fu Chang, 2000. Semi-Fragile

Watermarking for Authenticating JPEG Visual

Content. In SPIE Security and Watermarking of

Multimedia Content II, pp.140-151.

Ke DING, Chen HE, Ling-ge JIANG, Hong-xia WANG,

2005. Wavelet-Based Semi-Fragile Watermarking

with Tamper Detection. In IEICE Trans. on

Fundamentals of Electronics, Communications and

Computer Sciences, Vol.E88-A, No.3, pp.787-790.

Suzaki M., Mitsui Y., Suto M., 2003. New Alteration

Detecting Technique for Printed Documents using Dot

Pattern Watermarking. In SPIE, Volume 5020, pp.

665-676.

Takahashi Y., Yamada T., Ebisawa R., Fujii Y., Tezuka S.,

2007. Research and Development of Dot Pattern

Technology for Commodity Printers. In Proc. of FIT

2007, the Forum on Information Technology, pp. 325-

326.

Takahashi Y., Yamada T., Ebisawa R., Fujii Y., Tezuka S.,

2008. Information Embedding Method for Home

Printing of Certifications. In Proc. of ICACT2008, the

10th International Conference on Advanced

Communication Technologies, pp.2116-2120.

Echizen I., 2007. Digital Watermarking Technique and its

Application. In IPSJ Magazine Vol.47 No.11, pp.1243-

1249.

ICE-B 2008 - International Conference on e-Business

432
