REPLICATION OF WEB SERVICES FOR QOS GUARANTEES IN

WEB SERVICE COMPOSITION

Dirk Thissen and Thomas Brambring

Department of Computer Science, RWTH Aachen University, Ahornstr. 55, 52074 Aachen, Germany

Keywords: Web services, replication, quality of service, proxy.

Abstract: The concept of web services defines a middleware for implementing distributed applications independent of

used platforms and programming languages. When developing new software systems, re-use of function-

nality of existing services can be done to reduce development time and costs. This process of re-use is called

web service composition. But, current web service standards are not equipped to consider non-functional

requirements, i.e. quality of service (QoS) aspects of a user to a composed service. Thus, capabilities of

composed services cannot be guaranteed. This paper presents an approach to integrate QoS aspects into the

composition of web services by using service replication. At composition time, service instances are chosen

depending on the QoS requirements of a user to the whole service, and it is decided which services in the

composition have to be replicated and which replication strategy to use. Replication ensures that the QoS

requirements are not only considered at service selection time, but also can be granted at service runtime.

1 INTRODUCTION

A web service is some software which is seen as a

service it offers, aiming at automatic machine-to-

machine communication independent of the imple-

mentation of the software. A software architecture is

defined to give standards for service definition

(WSDL) and interaction (SOAP). Web services are

loosely coupled; the search for services to communi-

cate with is done dynamically at runtime using a

service registry (UDDI). The interaction across plat-

forms and programming languages enables easy and

fast deployment of new software: complex software

systems can be plugged together from existing

services to a collaborating group. This is called web

service composition. One vision is to achieve an

automatic composition and interaction of services.

But, the standards are not equipped to consider non-

functional demands to a composition, i.e., QoS

requirements like performance, reliability, or cost.

For acceptance by customers, a business should

provide good quality of its composed services. This

paper focuses on handling QoS aspects in web

service composition. The service registry UDDI was

enhanced to select web services for a composition

with respect to the QoS requested by a user. A QoS

broker was added to UDDI to manage the services’

QoS information and to calculate the best combina-

tion of services in the composition due to a user’s

requirements. But, QoS aspects can be dynamic, so a

QoS-oriented selection is only considering a kind of

system snapshot. Depending on the time between

service selection and the execution of a selected

service in the composition (basing on the composit-

ion pattern and the interaction between the services),

QoS information used at selection time can be

outdated at service usage time. Thus, the architecture

is enhanced by service replication to guarantee the

QoS from selection time also at runtime. A flexible

replication framework was developed to allow for as

well performance-related as fault tolerance- and

availability-related replication of services.

The paper is structured as follows. Chapter 2

presents a short overview about related work in the

area of QoS and replication in web service compo-

sition. In chapter 3, the principle of the QoS broker

is explained. Chapter 4 describes the replication

architecture and gives an overview about the current

implementation status. Finally, chapter 5 concludes

the paper and gives an outlook on the ongoing work.

2 WEB SERVICES AND QOS

Several approaches for the composition of web

services exist. A prominent example is the Business

155

Thissen D. and Brambring T. (2008).

REPLICATION OF WEB SERVICES FOR QOS GUARANTEES IN WEB SERVICE COMPOSITION.

In Proceedings of the International Conference on e-Business, pages 155-160

DOI: 10.5220/0001906301550160

 SciTePress

Process Execution Language (BPEL) for Web

Services (OASIS, 2007). But these approaches are

not considering quality of service in the composition

process. Though there is a lot of research in web

services and composition, not much is related to

QoS. The existing work mostly refers only to a part

of the whole problem. (Liu et al, 2004) for example

present a framework to publish up-to-date QoS

information for web services, but the success of this

mechanism depends on feedback of users about the

quality of the services they consume. (Zeng et al,

2004) present a method to select services that fit to a

user’s interest (expressed as QoS parameters). Local

optimization and global planning are combined to

find the best set of services for a composition. But,

in case of highly dynamic QoS parameters, the

global planning approach might take more time for

re-calculation than the execution of the service

would need. Thus the approach itself can violate the

QoS. (Jaeger et al, 2004) propose a mechanism

which could be more efficient by using an aggrega-

tion scheme for QoS aspects. The approach sounds

well but was not implemented nor tested by the

authors. We used this approach as basis for the

implementation of an own solution to consider QoS

aspects in composition (Thißen and Wesnarat, 2006)

which is explained more detailed in chapter 3.

All these approaches have the same weakness:

services for the composition are chosen some time

before execution. If QoS parameters change, during

service execution the QoS demands of a user never-

theless can be violated. Replication is a possible

solution to deal with dynamic QoS parameters on

performance, high availability, and fault tolerance/

reliability. Instead of running a single instance of a

service, several copies are used. Replication defines

methods for keeping consistent all copies (called

replicas). The complexity is hidden from the user of

a service by a frontend which acts as the service

from the user’s view. A lot of replication algorithms

are given. In active replication, all replicas act in the

same way. The frontend uses group communication

to distribute a request to all replicas. It decides how

to deal with responses of the replicas, depending on

the QoS aspect which should be considered. To

ensure service available or to decrease the response

time of a service (performance), the frontend returns

the first response to the user. To improve fault

tolerance, it compares and combines all responses. A

different approach is passive replication. One replica

is a primary, and the frontend only communicates

with this replica. The primary forwards the requests

to all other replicas (backups) to keep them consis-

tent. If the primary fails, a backup can take over its

role, which improves fault tolerance and availability.

There are lot of other replication algorithms, and

also approaches exist to implement them within a

web service architecture. E.g., (Ye and Shen, 2005)

discuss active replication for web services. But, the

focus is only on reliability of web services, and only

active replication is implemented. The same holds

for (Chan et al, 2007): it is focussed on reliability.

WS-Replication (Salas et al, 2006) also uses active

replication to achieve high availability, and WS-

multicast is used for communication between the

replicas. WS-multicast is SOAP-based and maybe

causes a high overhead. (Osrael et al, 2007) is a

more flexible approach, implementing passive

replication and designing an open system for later

addition of other replication strategies. Consistency

can be weakened in this approach to reduce the

performance overhead caused by update propaga-

tion. But, till now only a variant of passive replica-

tion is realized, and the focus is on fault tolerance.

Concluding, the replication approaches either

focus on only one replication strategy, use multicast

on SOAP level which decreases performance, or

only consider a certain QoS aspect, e.g. availability.

Thus we designed an own replication framework for

integration with composition, which offers more

flexibility, see chapter 4.

3 QOS IN SERVICE SELECTION

For composing web services under QoS constraints,

we followed the approach presented in (Jaeger et al,

2004): a workflow pattern is given, showing the

relations between services. Aggregation rules are

used to combine quality measures assigned with

single services to come to an overall rating of sets of

services. We identified relevant QoS information

and basic composition patterns (SEQUENCE, AND,

OR, XOR, and LOOP) from which the whole

workflow pattern can be formed. Next, we defined

corresponding aggregation rules and a selection

mechanism to choose the best service candidates.

Given the workflow pattern for a composed service,

aggregation of QoS parameters is done by collapsing

the whole composition graph step-wisely into a

single node, starting with the innermost composition

pattern. By aggregating the properties recursively,

only one node is left in the final state. A set of

formulas was defined to model the aggregation of

the QoS parameters performance, cost, reliability,

and availability. This mechanism enables us to

check the resulting QoS of a set of services. Because

ICE-B 2008 - International Conference on e-Business

156

A. Publish Services

9. Receive

Service

UDDI

Service

Provider

Service

Provider

Service

Orchestrator

Service

Requestor

QoS

Broker

QoS and BPEL

Registry

Service

Provider

1. Request a

composite Service

2. Request WSDL of

sub-services

3. Receive WSDL of

sub-services

4. Select the most

suitable sub-services

5. Receive

information of

composite service

with the selected

sub-services

6. Request

for service

7. Request service from

selected sub-services

8. Receive

service from

selected sub-

services

B. Publish QoS

information

C. Publish

BPEL file

Monitor

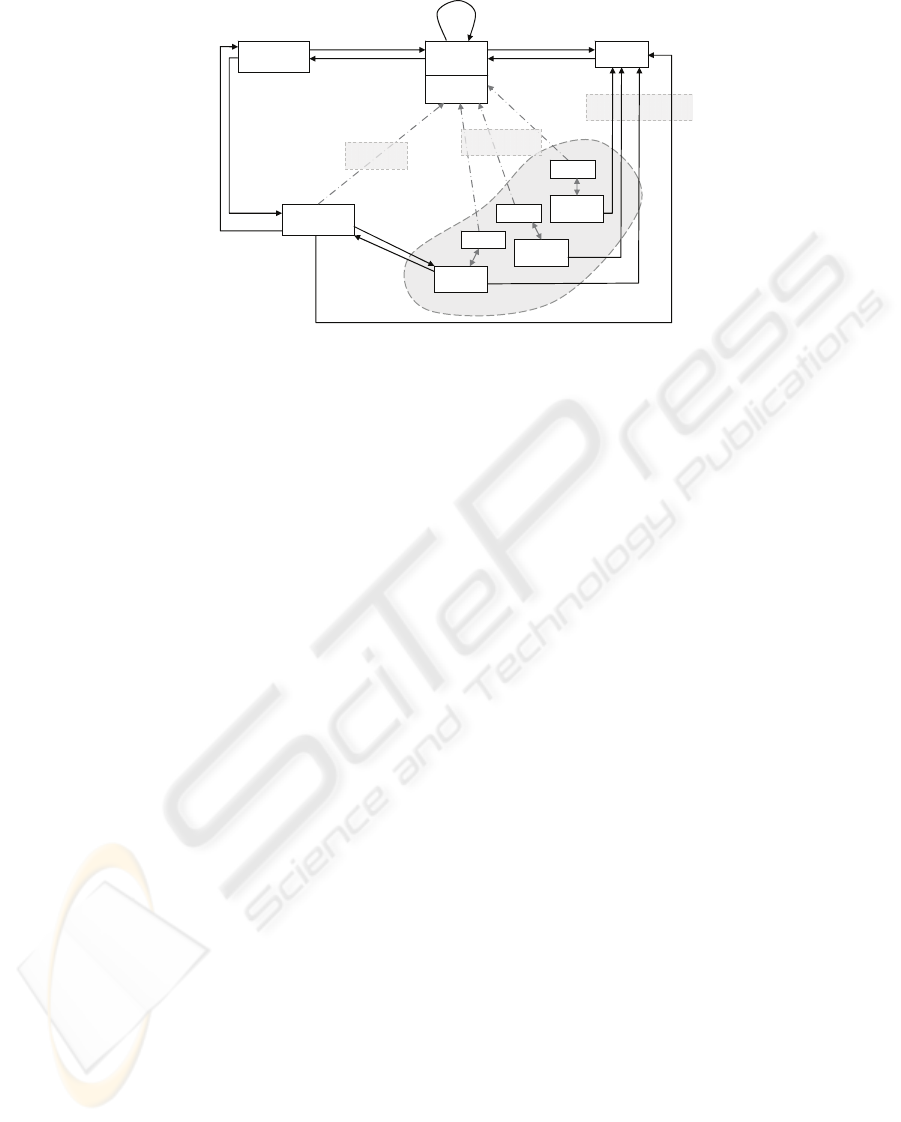

Figure 1: Enhancement of the web service architecture.

we need to find a set of services to be executed, each

possible combination of service candidates for the

current composition pattern is evaluated, and the

best ones regarding the user’s demands are selected.

Multiple criteria decision making and weighting are

used to combine a service set’s aggregations for

different QoS parameters into one value, a quality

scores. For a composition pattern, the set of service

candidates with highest quality score is selected, and

it is done aggregation of the next innermost

composition pattern till a single node (the composed

service) remains with assigned QoS values.

For implementation of this approach we have

designed a prototype which enhances the general

web services architecture. Apache tomcat was used

as web container for the provided web services,

Apache Axis services as SOAP implementation.

jUDDI was chosen as UDDI registry, for executing

composed services the Oracle BPEL Process

Manager was used. It provides a service orchestrator

which can be assigned a workflow pattern and a set

of basic services; it then manages the execution of

the services due to the pattern. For integrating QoS

consideration as described before, we have imple-

mented some more components, see figure 1.

The central component is the QoS broker which

implements the QoS aggregation rules. It involves a

BPEL registry and a QoS registry. Service providers

as usual register their services with UDDI (step A in

figure 1). To publish QoS information, a monitor is

assigned each service, registering with the QoS

registry when a service is put into UDDI (step B).

When a composed service is deployed, the workflow

pattern is stored in the BPEL registry (step C).

When a service requestor searches for a web

service, it contacts the QoS broker (step 1). It does

not need to know if a service is a composed one or

not; the broker uses the BPEL registry to search for

a composition pattern. If one is found, the broker

asks UDDI for available candidates to all services in

the pattern (step 2). Having retrieved a list of all

available candidates (step 3), the broker connects to

the QoS registry to get the QoS values for these

services. By stepwise aggregation of the values

according to the pattern from the BPEL registry and

by selection of the best fitting candidates, a set of

basic services is chosen (step 4). The requestor gets

back a reference to an orchestrator for using the

service (step 6/9). The orchestrator manages the

service execution (step 7/8). After execution, it gives

feedback to the broker. In other requests to the same

composed service, the broker can make use of it.

Not included in figure 1 is the use of the QoS

monitors. Getting the QoS information for aspects

like cost is no problem: the values are constant for a

longer period of time and can be filled in by the

service provider at service setup. But most aspects,

are dynamic, e.g. like performance. Thus a monitor

is assigned each service to record its behaviour, to

compute floating averages, and to forward this infor-

mation to the QoS registry. To avoid that service

providers have to modify their services, the monitors

are independent components. They get the needed

information from so called valves placed on Tomcat

engine level. Here, e.g. timestamps can be used to

get statistics about the queuing time of a request.

Nevertheless, the QoS broker cannot guarantee

the QoS from selection time to be constant at

runtime, thus we had to enhance this architecture by

a mechanism which allows for some control at

execution time of the services.

REPLICATION OF WEB SERVICES FOR QOS GUARANTEES IN WEB SERVICE COMPOSITION

157

4 REPLICATION FOR QOS

GUARANTEES AT RUNTIME

The architecture presented in chapter 3 is only able

to consider user demands at selection time. Our next

step was to enhance the architecture by capabilities

of replication, to control the selected QoS at run-

time. Because of the disadvantages of existing

approaches, we designed an own replication

architecture considering the following goals:

 Allow for flexible choice of replication algorithm

at runtime. We want to use replication for

guarantees on several QoS aspects, thus we need

different replication strategies supporting perfor-

mance, availability, and fault tolerance in one

approach.

 Open architecture which can easily be enhanced

with new replication algorithms. For the begin-

ning, we only considered the most prominent

algorithms: active and passive replication.

 Decide at composition time which services have

to be replicated to fulfil a requestor’s demands.

E.g., the use of several replicas may improve the

reliability, but may contradict the cost of service

usage if one has to pay for each extra replica.

Thus, in the selection process a tradeoff is

necessary between gain and costs of using repli-

cation, including the number of replicas to use.

 Transparently use group communication and

avoid communication overhead by using SOAP.

Otherwise, replication could contradict the QoS.

 Automatically generate request and result

classes for web services from WSDL files.

Reduce the costs and time for integrating the

mechanisms into each application newly.

We designed our replication architecture

oriented at these goals and allowing for easy inte-

gration with our QoS-based selection of service

candidates in a composed service (chapter 3). In the

following, the components of the architecture and

their interaction are described in more detail.

The QoS broker remains the central component

of the architecture. It is enhanced by enabling the

selection of a replication strategy as well as a set of

suitable replicas for a service. For simplicity, we

started with the consideration of simple services

within the replication process, but oriented at the

composition architecture for easy integration.

The interaction of the QoS broker with service

requestor and the replicas of a single service is

shown in figure 2. The replicas are all registering

with UDDI as usual (step (a) in figure 2). The

replicas additionally register with the QoS broker

resp. the assigned QoS registry via their monitors (b)

as described in chapter 3. The services’ monitors do

not need to know if they are belonging to a

replicated service or to a simple one, they have to

submit the same information as before. The monitors

regularly measure the QoS values of their replicas,

calculate advanced information like floating

averages, and deliver the resulting values to the QoS

broker.

Replicated service

Service

requestor

QoS

Broker

Service

Directory

Service

Provider

Service

Provider

Service

Provider

1 2

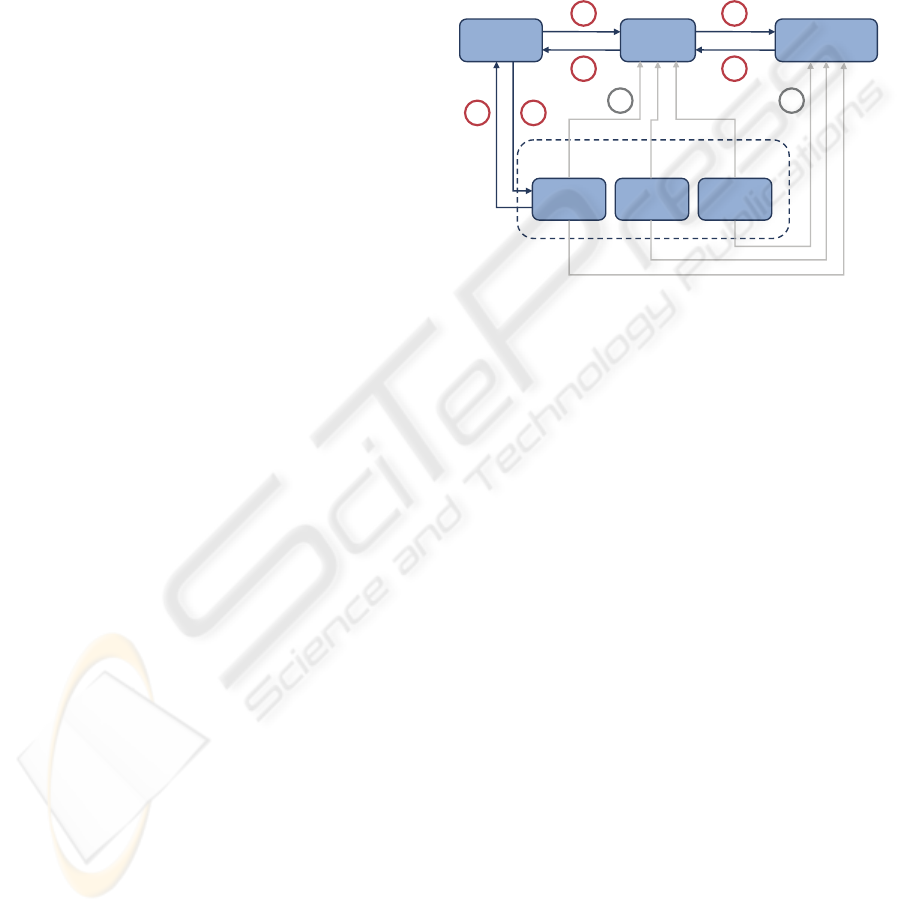

Figure 2: Replication enhancement.

If a service requestor contacts the QoS broker to

ask for a service (1), the broker interacts with UDDI

to find all replicas to the requested service (2 + 3).

Based on the requested QoS, the broker now can

select a subset of fitting replicas which seems to be

sufficient to fulfil the requestor’s demands.

Simultaneously, it can decide on the best replication

strategy regarding the requested QoS. If e.g. high

performance is needed primarily, active replication

is chosen to reduce response times. If availability

has priority, passive replication is more appropriate

to reduce the communication overhead. Based on the

known availability probability of the service, also

the number of replicas could be determined.

Currently, active and passive replication are imple-

mented in our prototype, and only a few rules are

implemented, which strategy to use in which cases.

The service requestor gets back a reference for

its service (4) and can use it (5 + 6). The detailed

information transmitted in these steps depend on the

replication strategy chosen by the QoS broker since

the service requestor maybe has to contact a single

service or maybe a service group.

If the broker chooses passive replication, the

requestor only communicates with a single replica.

In contrast to common passive replication there is no

fixed primary replica which all the time is contacted.

Instead, the QoS broker chooses the actually best

replica due to the requestor’s demands and returns a

reference to this replica to the requestor. The other

ICE-B 2008 - International Conference on e-Business

158

replicas only serve as backups and are invisible to

the requestor. The dynamic primary selection allows

for a better average QoS level in terms of perfor-

mance because it enables a kind of load balancing

between all available replicas. But, one has to keep

in mind that using different primaries for different

requests can cause consistency violations. Thus it

depends on the service itself if the weakening of the

consistency is useful.

On the other hand, in active replication the

requestor has to communicate with all replicas

simultaneously. Thus he has to communicate with a

group of services instead with a single service.

To hide the different usage for the replication

schemas, proxies are used. They encapsulate the

functionality of communication with replicated

services. Only a single interface is offered to the

requestor. Independent if passive or active replicat-

ion is used, the requestor gets back a reference to the

used proxy instead of a reference to a concrete

service (in step 4 of figure 2) – the proxy itself

seems to be the service for the requestor. This

schema intentionally is designed similar to the usage

of composed services via an orchestrator as descry-

bed in chapter 3, to merge the functionalities of

orchestrator and proxy. The only difference for the

requestor is that the QoS broker not only sends back

a reference to a service (the proxy), but also some

additional configuration parameters the requestor

has to use in its request to enforce a certain replicat-

ion process (which was chosen by the broker).

GroupCom-

munication

Message

Handler

ClientProxy

Client

Callback

functions

4 3

Service

request

Requestor

interface

GroupCom-

munication

Message

Handler

ClientProxy

Client

Callback

functions

4 3

Service

request

Requestor

interface

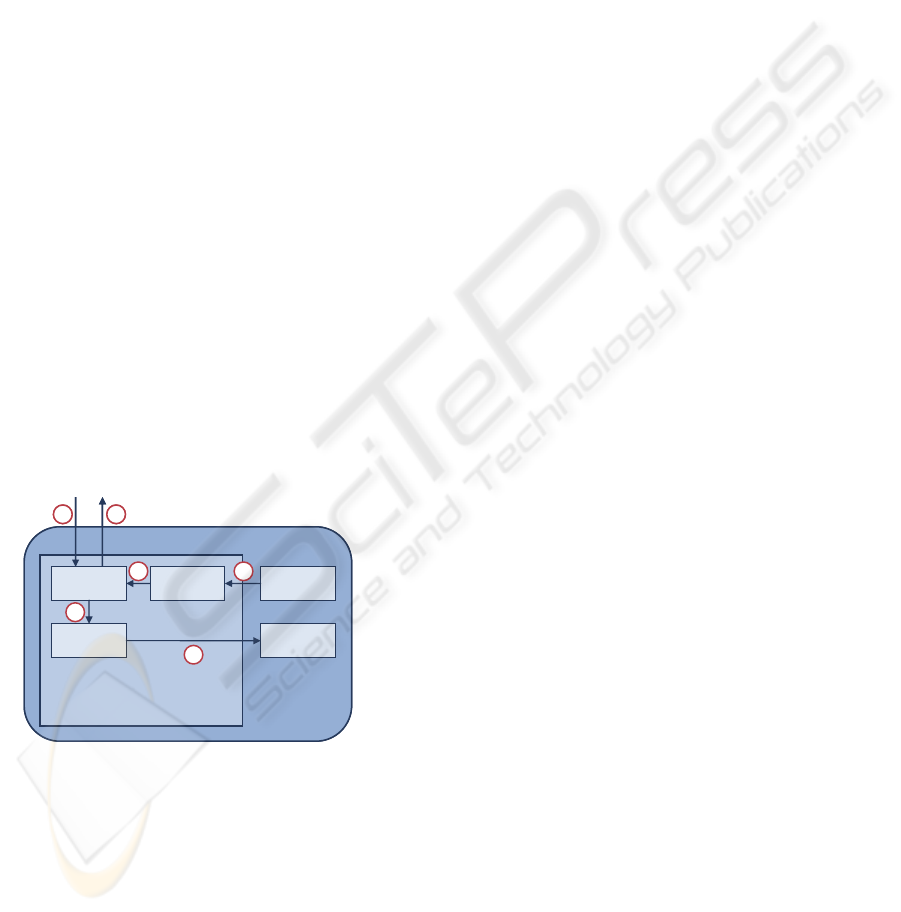

Figure 3: Client proxy.

Figure 3 shows the structure of such a proxy.

The client only holds a reference to its proxy, which

is capable of performing all replication strategies for

any kind of request. The proxy is informed by the

QoS broker about the set of replicas to use for a

request. To inform the proxy how to handle a certain

request, the requestor now has to include the

configuration parameters chosen by the QoS broker

in its request (step 1 in figure 3). Such a request may

look as follows:

Proxy.requestActively(request,

READ_ONLY, GET_FIRST, 2000);

The original request of the user is passed to the

proxy only as one parameter request. The proxy

is able to process this request by using the corres-

pondingly assigned replicas. In which way to use the

replicas, is defined by the other parameters of the

user’s call. The proxy implements functions

requestActively and requestPassively.

Depending on which replication mechanism is

chosen the client has to call the corresponding

function. The client gets this information from the

QoS broker as part of the configuration information.

The second parameter of the request tells the proxy

if the request is read-only or not. In case of read-

only, consistency is relaxed, which can improve the

performance of a request. This parameter is followed

by an information if the first response has to be

forwarded to the client (e.g. for performance or

availability aspects), or if the proxy has to wait for

all responses and to combines them in some way to

achieve fault tolerance. The last parameter is a

timeout. It defines how long the proxy has to wait

for responses before combining the received results

(or before sending an error message back to the

requestor).

The proxy now can inform the group

communication component about the needed

communication mechanism (2) and the request

correspondingly is passed only to a single service or

to a group of services (3). The results which are

coming back from the replicas (4) are passed on to a

message handler (5) which can treat the responses in

different ways as described above. If passive

replication was used, the proxy immediately uses a

callback function to deliver the result to the

requestor (6). In case of active replication, it can

forward the first response to the client, or collect all

requests coming in before a timeout and form a

consensus out of them before passing only a single

response to the requestor.

Also on server side a proxy is needed to

coordinate all replicas corresponding to the chosen

replication strategy, see figure 4. The request comes

in over the group communication mechanism (step 1

in figure 4) and is forwarded to the message handler

(2). The message handler in the background interacts

with the QoS monitor (a) to allow for statistics about

the number of requests per second, response times,

etc which is part of the QoS parameters collected by

the monitor. Because in active replication

consistency requires a sorted execution of requests

REPLICATION OF WEB SERVICES FOR QOS GUARANTEES IN WEB SERVICE COMPOSITION

159

from different clients on all replicas, the holdback

queue (3) delays all requests till they can be

executed without violating consistency to other

replicas. To do so, requests have to be sorted the

same way for all replicas. For this purpose Lamport

Timestamps are used. The requests are sorted into a

delivery queue (4) which simply implements a FIFO

strategy and executes one request to the service after

the other. The requests can be passed on to the web

service by using a callback function (5 + 6). The

delivery queue also gets back the response (7 + 8)

and initiates the transmission of this response back

to the requestor (9). Again, the group communicat-

ion mechanism takes over the transmission of the

result to the requestor (and to the backups, in case of

passive replication).

GroupCom-

munication

Message

Handler

Monitor

Holdback

Queue

ServerProxy

Replica server

Callback

function

Delivery

Queue

Web

Service

3 4

5 6

8 7

GroupCom-

munication

Message

Handler

Monitor

Holdback

Queue

ServerProxy

Replica server

Callback

function

Delivery

Queue

Web

Service

3 4

5 6

8 7

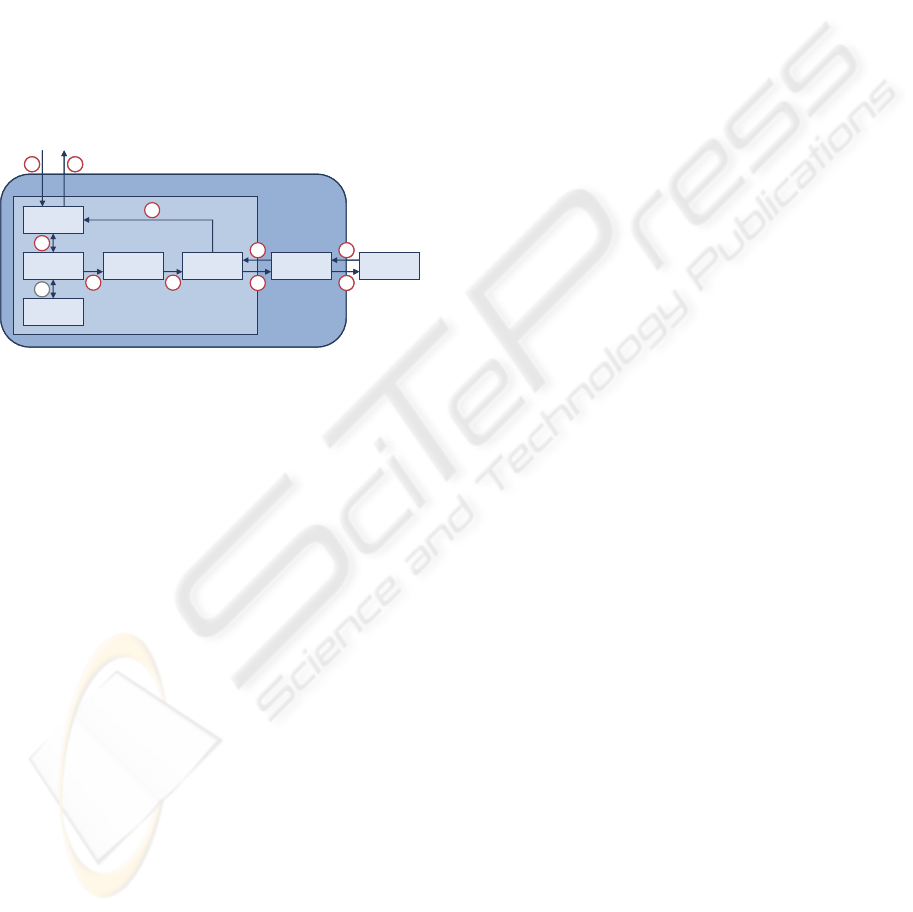

Figure 4: Server proxy.

Using client and server proxy, the whole

replication is transparent for users and services.

When new replication strategies are implemented,

only the proxies have to be enhanced.

5 CONCLUSIONS

Currently, the architecture as described in chapter 4

is finished, and experiments are performed to

evaluate the behaviour of the replication framework.

On one hand the experiments should validate the

correctness of the implementation. On the other

hand (and more important for the ongoing work) the

evaluations also should help in comparing gains and

costs of the replication strategies. These

comparisons are necessary for fine tuning of the

decision rules inside the QoS broker: for which

combination of requested parameters which strategy

should by used, and with how many replicas. In

parallel, implementation has started to integrate the

replication enhancement into composed services.

This task is easy because the architecture of the

replication system was oriented at the existing

composition architecture (integration of orchestrator

with client proxy, implementation of server proxy as

valves like the monitors). Afterwards, the gain of

using replication in the composition again has to be

evaluated by a number of experiments.

Replication only is one way to improve the

quality of a service. After finishing our current

work, beside integrating more replication strategies

we want to examine if instead executing the same

service several times, also equivalent services of

different providers could be used. Also, we plan to

enhance the functionality of the proxies by other

strategies, e.g. load balancing as a mechanism with

weaker guarantees as replication, but on the other

hand cheaper if services – and quality guarantees –

have to be paid for.

REFERENCES

Chan, P.P.W., Lyu, M.R., Malek, M., 2007. Reliable Web

Services: Methodology, Experiment and Modeling.

Proc. IEEE International Conference on Web Services

(ICWS 2007), Salt Lake City, USA.

Jaeger, M.C., Rojec-Goldmann, G., Mühl, G., 2004. QoS

Aggregation for Web Service Composition using

Workflow Patterns. Proc. 8

IEEE International

Enterprise Distributed Object Computing Conference

(EDOC'04), Monterey, USA.

Liu, Y., Ngu, A.H.H., Zeng, L, 2004. QoS Computation

and Policing in Dynamic Web Service Selection. Proc.

International World Wide Web Conference, New

York City, USA.

OASIS, 2007. Web Services Business Process Execution

Language Version 2.0. OASIS Standard,

http://docs.oasis-open.org/wsbpel/2.0/OS/wsbpel-

v2.0-OS.pdf

Osrael, J., Froihofer, L., Weghofer, M., Goeschka, K.M.,

2007. Axis2-based Replication Middleware for Web

Services. Proc. IEEE International Conference on Web

Services (ICWS 2007), Salt Lake City, USA.

Salas, J., Pérez-Sorrosal, F., Patino-Martínez, M.,

Jiménez-Peris, R., 2006. WS-Replication: A

Framework for Highly Available Web Services. Proc.

International World Wide Web Conference

(WWW 2006), Edinburgh, Scotland.

Thißen, D., Wesnarat, P., 2006. Considering QoS Aspects

in Web Service Composition. Proc. 11

IEEE

Symposium on Computers and Communications

(ISCC’06), Cagliari, Sardinia, Italy.

Ye, X., Shen, Y., 2005. A Middleware for Replicated Web

Services. Proc. IEEE International Conference on Web

Services (ICWS’05), Orlando, USA.

Zeng, L., Benatallah, B., Ngu, A.H.H., Dumas, M.,

Kalagnanam, J., Chang, H, 2004. QoS-Aware

Middleware for Web Services Composition. In: IEEE

Trans. Software Eng., Vol.30, No.5.

ICE-B 2008 - International Conference on e-Business

160
