A PLATFORM FOR INVESTIGATING EFFECTIVENESS FOR

STATIC, ADAPTABLE, ADAPTIVE, AND MIXED-INITIATIVE

ENVIRONMENTS IN E-COMMERCE

Khalid Al-Omar and Dimitris Rigas

Department of Computing, University of Bradford, Bradford BD7 1DP, U.K.

Keywords: Adaptive, Adaptable, Mixed-Initiative, Static, Usability, Effectiveness, Interactive.

Abstract: This paper introduces an empirical study to investigate the use of four interaction conditions: Static,

Adaptable, Adaptive, and Mixed-initiative. The aim of this study is to compare the effectiveness of these

four conditions with regard to the number of tasks completed by all users and the number of users who

completed all tasks. In order to carry out this comparative investigation, four experimental interfaces were

built separately. These environments were tested independently by four separate groups of users, each group

consisting of 15 users. The results demonstrated that in the searching tasks the most effective condition was

the Mixed-Initiative. In the learnable tasks the most effective condition was the Adaptable condition. In

addition, the Static approach was found to be less effective than all other approaches.

1 INTRODUCTION

Today, software application and e-commerce web-

based application (Alotaibi and Alzahrani, 2004) is

crowded with functions, icons, menus, and toolbars

(McGrenere et al., 2007). In addition, the web-based

e-commerce application is crowded in both the

Graphical User Interface and content. This is a

phenomenon called ‘Bloatware’ or ‘featurism

creeping’ (McGrenere et al., 2007). This

phenomenon makes searching for information and

products within e-commerce web-based application

very complex (Findlater and McGrenere, 2004)

(Te’eni and Feldman, 2001). Therefore,

personalising the application to users need and

preferences is essential and becomes very important

(Findlater and McGrenere, 2004), (Fink et al., 1998).

Personalisation is a topic of debate between two

communities, the Intelligent User Interface

community favouring adaptability (Shneiderman, B.

and P. Maes, 1997) at the expense of user freedom

and Human Computer Interaction community

favoured adaptability (Shneiderman, B. and P. Maes,

1997) at the expense of system help. According to

McGrenere et al. (2002) there are three potential

ways to personalisation: 1) by users and this is called

an adaptable approach. 2) by system and this is

called An adaptive approach. 3) by both the users

and system and this is called Mixed-initiative

approach which is a combination of adaptable and

adaptive approach.

Despite the disagreement in the research

community, there are multiple direct comparisons

between Static, Adaptable, and Adaptive approaches

have shown different results. In 1985, the first study

of adaptation was reported by Greenberg and

Witten. They demonstrated an adaptive interface for

a menu-driven application. In their study users were

novices on the task and the interface (Greenberg and

Witten, 1985). In addition, Greenberg and Witten

(1985) built a directory of telephone numbers that

users can access through a hierarchy of menus. Their

goal is to reduce the number of key-presses buttons.

Their approach is to present items at a level in the

hierarchy according to the number of selection.

Greenberg and Witten tested their system against a

static system in a 26-participant experiment. Their

results showed that subjects performed faster with

the adaptive system, and 69% of subjects prefer the

adaptive system. In addition, they found that the

adaptive system reduces the search paths for

repeated names, reduce 35% in time per selection,

and reduce 40% in errors per menu. Trevellyan and

Browne (1987) replicated the Greenberg and

Witten’s experiment with a larger number of trails

because they believe after a large of trails subjects

191

Al-Omar K. and Rigas D. (2008).

A PLATFORM FOR INVESTIGATING EFFECTIVENESS FOR STATIC, ADAPTABLE, ADAPTIVE, AND MIXED-INITIATIVE ENVIRONMENTS IN

E-COMMERCE.

In Proceedings of the International Conference on e-Business, pages 191-196

DOI: 10.5220/0001911901910196

 SciTePress

will be familiar with the static and they can

memorised the sequence of key-presses. This would

reduce the mean time per menu. However, they

found that the adaptive system is effective and after

using the system for long period of time users did

begin to perform better with the static interface. This

study did not provide a firm conclusion since the

total number of subjects in each interface is 4

subjects.

In 1989, Jeffrey Mitchell and Ben Shneiderman

(1989) conducted an experiment to compare an

adaptive menu that items positions change

dynamically according to frequently clicked item,

with a static menu. Sixty-three subjects assigned

randomly tried both menus and carried out the same

12 tasks in each menu. Their results showed that

static menu faster than the adaptive menu at first

group of tasks, and no difference in the second

group of tasks. That because, subjects in both groups

were able to increase their performance

significantly. However, Eighty one percent of the

subjects preferred the static menu. Another study

introduces a system to provide environment for

adapting Excel’s interface to particular users

(Thomas and Krogsæter, 1993). The result showed

that an adaptive component which suggests

potentially beneficial adaptations to the user could

motivate users to adapt their interface. Jameson and

Shwarzkopf (2000) conducted a laboratory

experiment with 18 participants a direct comparison

between automatic recommendations, controlled

updating of recommendations, and no

recommendations available. Their comparison

concerned about the content rather than the

Graphical User Interface. Their results showed that

there was no difference on performance score

between the three conditions.

In 2002 McGerenere et al. conducted a six-week

with a 20 participant field study to evaluate their two

interfaces combined together with the adaptive

menus in the commercial word processor Microsoft

Word 2000. The two interfaces are a personalised

interface containing desired features only and a

default interface with all the features only. The first

four weeks of the study participants used the

adaptable interface, then the remaining for the

adaptive interface. 65% of participants prefer the

adaptable interface and 15% favouring the adaptive

interface. The remaining 20% favouring the

MsWord 2000 interface. This work extends by

Findlater and McGrenere (2004) and they compared

between the static, adaptable, and adaptive menus.

Their result concludes that the static menu was faster

than the adaptive menu and the adaptable menu was

not slower than the static menu. In addition, it shows

that the adaptable menu was preferable than the

static menu and the static was not preferable to

adaptive menu. Another study examined how

characteristics of the users’ tasks and customisation

behaviour affect their performance on those tasks

(Bunt et al., 2004). The results confirm that users

may not always be able to customise efficiently. The

results indicate that customisation is beneficial to

reduce tasks time if it done right. Also, indicate that

the potential for adaptive support to help users to

overcome their difficulties.

In 2005, Tsandilas and Shraefel conducted an

empirical study that examined the performance of

two adaptation techniques that suggest items in

adaptive lists. They compared between the baseline

where suggested menu items were highlighted and

shrinking interface which reduced the font size of

non-suggested elements. The results indicate that

the Shrinking information was shown to delay the

searching of items that had not been suggested by

the system. In addition, the accuracy affected the

ability of participants to locate items that were

correctly suggested by the system. Gajos et al.(2005)

comparing two adaptive interfaces: 1) their Split

interface, which is most of the calculator’s

functionality was placed in a two-level menu. 2)

Altered Prominence interface, all functionality was

available at the top level of the interface. The study

showed user preference for the split interface over

the non-adaptive baseline. Another experiment

compared the learning performance of static versus

dynamic media among a 129 students. Their result

showed that the dynamic media (animation lessons)

has a high learning performance than the static

media (textbook lessons) (Holzinger, 2008).

Despite the debate between the two

communities, there has been very little work directly

comparing to either an adaptive or adaptable

approach with the Mixed-Initiative approach through

empirical studies. On example of a such a

comparison conducted by Debevc et al. (1996). They

compared between their adaptive bars with the built-

in toolbar present in MSWord. Their results showed

that the mixed-initiative system improved

significantly the performance in one of two

experimental tasks. Bunt et al. (2007) designed and

implemented the MICA (Mixed-Initiative

Customisation Assistance) system. Their system

provides users with an ability to customise their

interfaces according to their needs, but also provides

them with system-controlled adaptive support. Their

results showed that users prefer the mixed-initiative

support. Also, it shows that the MICA’s

ICE-B 2008 - International Conference on e-Business

192

recommendations improve time on task and decrease

customisation time.

2 THE EXPERIMENTAL

PLATFORM

An experimental e-commerce web-based platform

was developed to be used as a basis for this

empirical study. The platform provided four types of

interaction conditions: Static, Adaptable, Adaptive,

and Mixed-initiative. The structure of the platform is

similar to many e-commerce web-based platforms.

The difference between the four conditions applied

to the contents, layout, and item position on the list.

2.1 The Static Platform

The layout, content, and item position on the list

does not change during the course of usage. Our

goal was to design the ideal platform to do the

required tasks as efficiently as possible.

2.2 The Adaptive Platform

The layout, content and item position on the list does

change by system during the course of usage.

Adaptation helped users to find items by changing

content to their preferences. Our goal was to design

the most predictable personalised approach as

possible.

Figure 1: Adaptive list.

Therefore, the adaptive approach algorithm

dynamically determines item position on the list

based on the most frequently and recently used

items. The two algorithms are used by Microsoft

(Findlater and McGrenere, 2004) and suggested by

the literature (Findlater and McGrenere, 2004). For

our experiment, once the user clicks the items they

will move up to the top of the list (See Figure 1).

2.3 The Adaptable Platform

The layout, content and item position on the list is

changed by the user during the course of usage. Our

goal was to make the customisation process as easy

as possible. Therefore, the Coarse-grained and Fine-

grained (Findlater and McGrenere, 2004)

customisation techniques were utilised by allowing

the user to move items to a specific location (See

Figure 2). However, the main page provides two

choices for the user to choose from. The first choice

is an empty page that is left to the user’s decision as

to which content to add in. The second choice is full

content that has already been suggested. This is

because some of the early studies suggested a need

to examine full-featured interfaces versus reduced

interfaces. However, when the participant started,

four items were displayed as a default in each web

part of the home page. Subjects can increase the

number of displayed items as many items as they

like and reduce the number of displayed items not

less than one item. In addition, subjects can sort the

web contents by item name, id and price and the user

can also search in different sub-categories. Subjects

can add new content to the home page, delete, and

move an existing content to different positions.

Figure 2: Customisable list.

Move items up

or down to a

specific position

Once clicked item moved

up to top of the list.

Lock and Unlock list

A PLATFORM FOR INVESTIGATING EFFECTIVENESS FOR STATIC, ADAPTABLE, ADAPTIVE, AND

MIXED-INITIATIVE ENVIRONMENTS IN E-COMMERCE

193

2.4 The Mixed-Initiative Platform

In the Mixed-Initiative condition the control is

shared. Therefore, our goal was to make sure the

control is shared as fairly as possible. The Mixed-

Initiative condition algorithm is dynamically

determined based on the most frequently and

recently used items. However, to allow users to take

control, a new function was implemented to lock and

unlock item movement (See Figure 2). Items will be

moved up to the top of the list when clicked three

times, even if the list locked. Initially, when the

website is loaded the default content of the home

page is personalised. However, organising the list is

the user’s responsibility along with locking the lists.

3 EXPERIMENTAL DESIGN

The experimental platform was tested empirically by

four independent groups, consisting of 15 users. All

the groups of users were asked to accomplish the

same 12 tasks. These tasks were designed with three

complexity levels: easy, medium, and difficult. In

order to avoid the learning effect, the order of the

task complexity was varied between subjects. The

number of available items, item position (location)

in the list, number of requirements and guidance was

considered when designing the tasks, i.e. more than

three items available within a list that consists of a

maximum of 20 items. The items are positioned at

the top, middle and at the end of the list. Thus users

can find the item even if the list changes. The

number of requirements is less than four. The users

are guided to the list by providing the name of the

list and the subcategory.

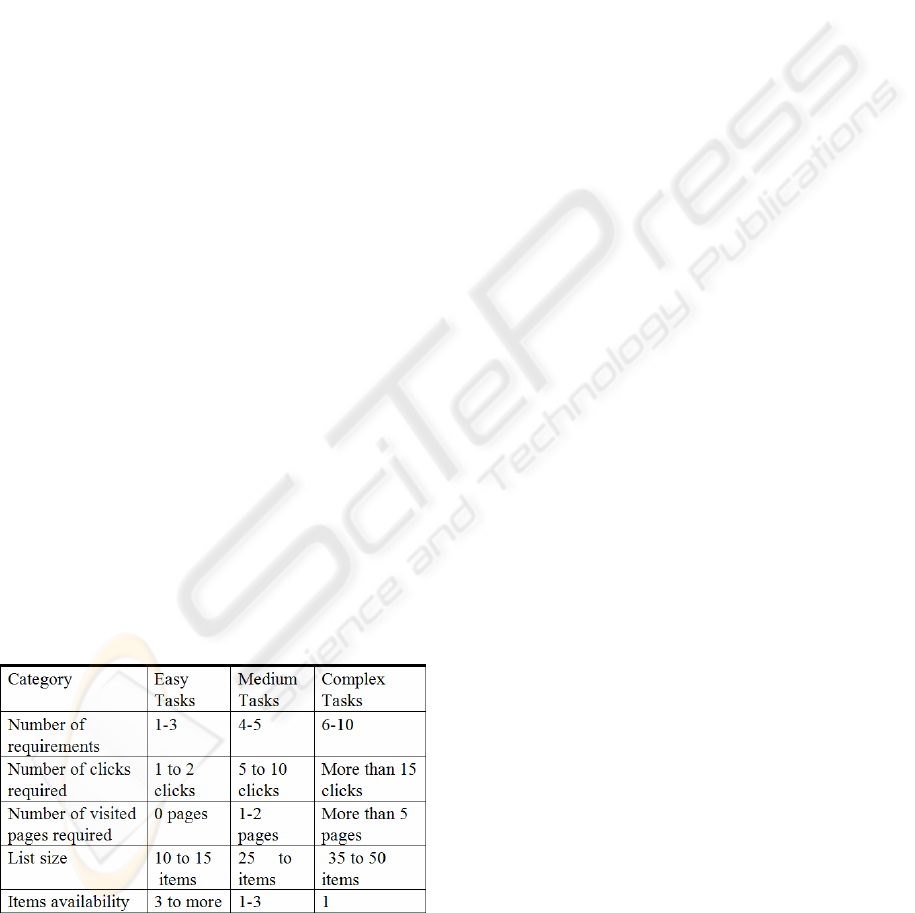

Table 1: Tasks design.

For the medium tasks, the number of available

items is reduced to two items within a list that

consists of more than 30 items. The items are

positioned at the middle of the list. The number of

requirements is more than four and up to six

requirements. The users are guided to the list but not

the subcategory, so it is the user’s responsibility to

search for items in the subcategory.

For the difficult tasks the number of available

items is one item within a list that consists of more

than 40 items. The items are positioned at the middle

of the list, to make sure that users can find the item

even if the list changed. The number of requirements

is more than seven. In the difficult tasks there is no

guidance to items, so it is the user’s responsibility to

search for items in all lists and all subcategories.

4 SUBJECTS

These environments were tested empirically by four

independent groups, each group consisting of 15

users. All the groups were asked to accomplish the

same group of tasks (three easy tasks, three medium

tasks, and three difficult tasks) and a one learnable

task before starting each group. Each user attended

a five minute training session about their

environment before doing the requested tasks. A

pre-questionnaire conducted before the experiments

to obtain users personal information. All users were

between the ages of 18 and 40. 44 of them were

male, while the remaining 16 were female. 70% of

them were postgraduate students. Most of the

participants used the internet for 10 hours or more a

week. 85% stated that they do not customise new

software unless they have to; the remaining 15 stated

that they do so. Also, 32% never used any

customisable web pages, where 17% used it once,

and just four participants used it every time they

went online.

5 RESULTS AND DISCUSSION

Effectiveness was measured by calculating the

percentage of users who completed (learning and

completion) tasks along with the percentage of

(learning and completion) tasks completed by all

users. To compare the effectiveness between the

four conditions, three critical time limits for task

completion was derived for each level of tasks (easy,

medium, and complex). Therefore, a task would be

regarded as successfully completed if users

completed the task within the level critical

completion time.

However, it was noticed that during the

experiment users who participated in the evaluation

ICE-B 2008 - International Conference on e-Business

194

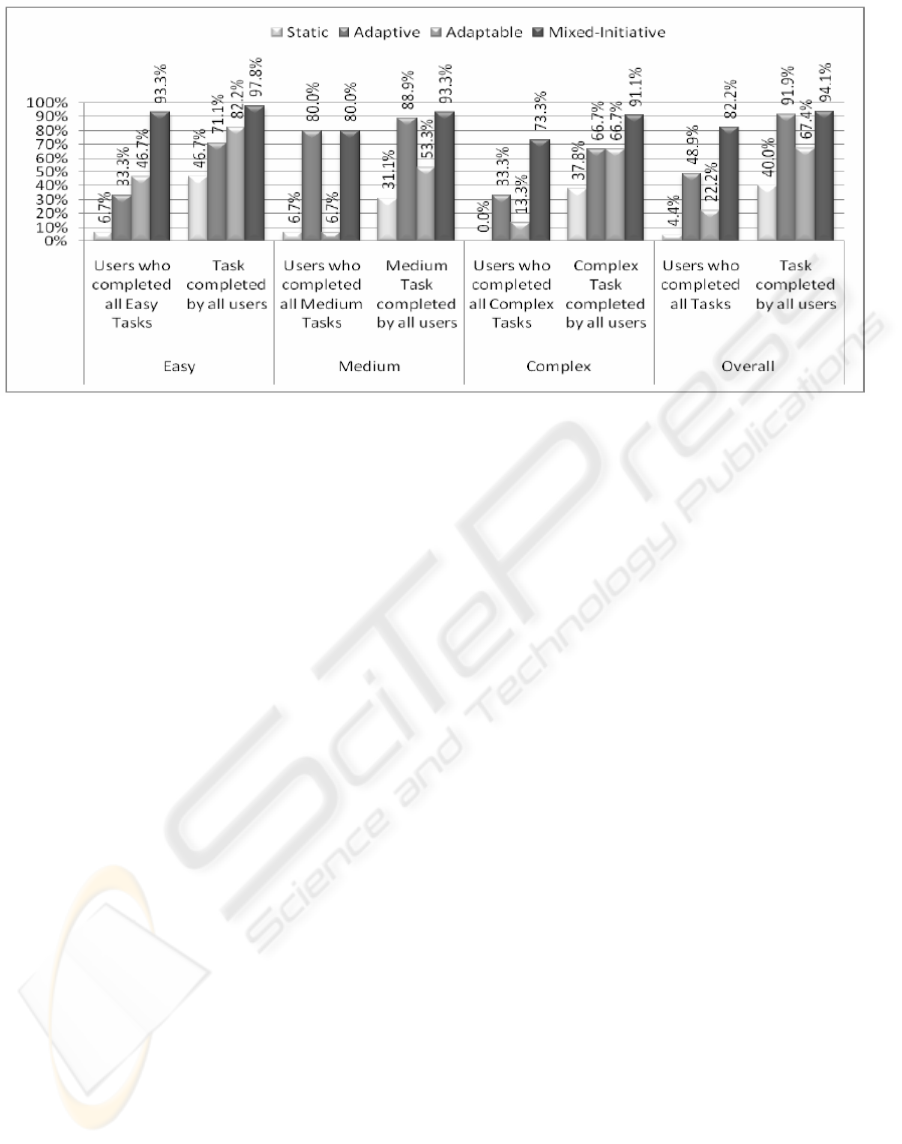

Figure 3: Searching Tasks.

of the adaptable and mixed-initiatives were more

confident than the static and adaptive. Also, users

got confused while participating in the evaluation of

the adaptive and static conditions. This confusion

made them spend time on understanding what is

happening around them. Overall, just 8 users did not

complete all tasks using the Mixed-Initiative

whereas 23 users did not complete all tasks using the

adaptive condition. In the adaptable condition, 24

users did not complete the all tasks whereas only 2

users did complete all tasks using the Static

condition. This shows that the overall number of

users who completed all tasks in the Mixed-Initiative

is higher than the other conditions. An ANOVA

result showed a significant difference in the number

of users who completed the tasks at 0.05 (F = (3,

11), p <0.004). The users who completed the easy,

medium and complex tasks using the Mixed-

initiative condition is higher than the other

conditions (Static, Adaptive, and Adaptable),

excluding the users who completed the medium

tasks using the Adaptive condition.

Overall, t-test was used to find out the difference

between the four conditions. t-Test results showed

that there was a significant difference of 0.05

between the number of users who completed all

tasks using the Mixed-initiative condition compared

to the adaptable (t(3)=4.38, cv=3.1) and static

(t(3)=11.3, cv=3.1) conditions, but nothing

significant was found when compared to adaptive

(t(3)=2.04, cv=3.1). The users who completed the

tasks using the adaptable and adaptive conditions are

higher than the static condition. Also, it was found

that the adaptable are higher than the adaptive in

easy tasks and lower in medium tasks. Furthermore,

there was a significant difference between the

numbers of users who completed all tasks between

the adaptable and static conditions (t (3) = 3.04,

cv=3.1) and between the adaptive and static

conditions (t (4) = 4.5, cv=2.7). Figure 1 shows the

percentage of tasks completed by all users in each of

the four conditions. However, the number of the

tasks completed by all users was calculated to obtain

an overall percentage. The result showed that the

number of tasks not completed by all users was 8

tasks by using the Mixed-Initiative, 33 tasks by

using the Adaptive, 44 tasks by using the Adaptable,

and 83 tasks were not completed by using the Static.

In the learnable tasks, there was a difference

between the four conditions (See Figure 4). This

difference was found to be statistically significant at

0.05 by using the ANOVA test. T-Test results

showed that there was a significant difference at

0.05 between the number of tasks completed by all

users using the Mixed-initiative condition, compared

to the Static condition (t(3)=11.3, cv=3.1) but not to

the adaptive (t(2) = 2.6, cv = 4.3) and adaptable

conditions (t(2)=3.1, cv=4.3). In addition, there was

a significant difference between the Adaptive and

Static conditions (t(4) = 4.5, cv=2.7). However, the

number of users who completed all learnable tasks

by using the adaptable condition was 11, which was

higher than the other conditions. Following this was

the mixed-initiative where 9 users completed their

all learnable tasks, and the Static condition (3 users).

The users who completed all tasks using the

adaptive condition were lower (2 users) than all

other conditions. The percentage of users who

completed all tasks using the mixed-initiative

condition was higher than the adaptive and static

A PLATFORM FOR INVESTIGATING EFFECTIVENESS FOR STATIC, ADAPTABLE, ADAPTIVE, AND

MIXED-INITIATIVE ENVIRONMENTS IN E-COMMERCE

195

conditions but not higher than the adaptable

condition. The main reason behind this is that

sometimes items’ positions in the lists changed

without users’ noticing which caused them

confusion.

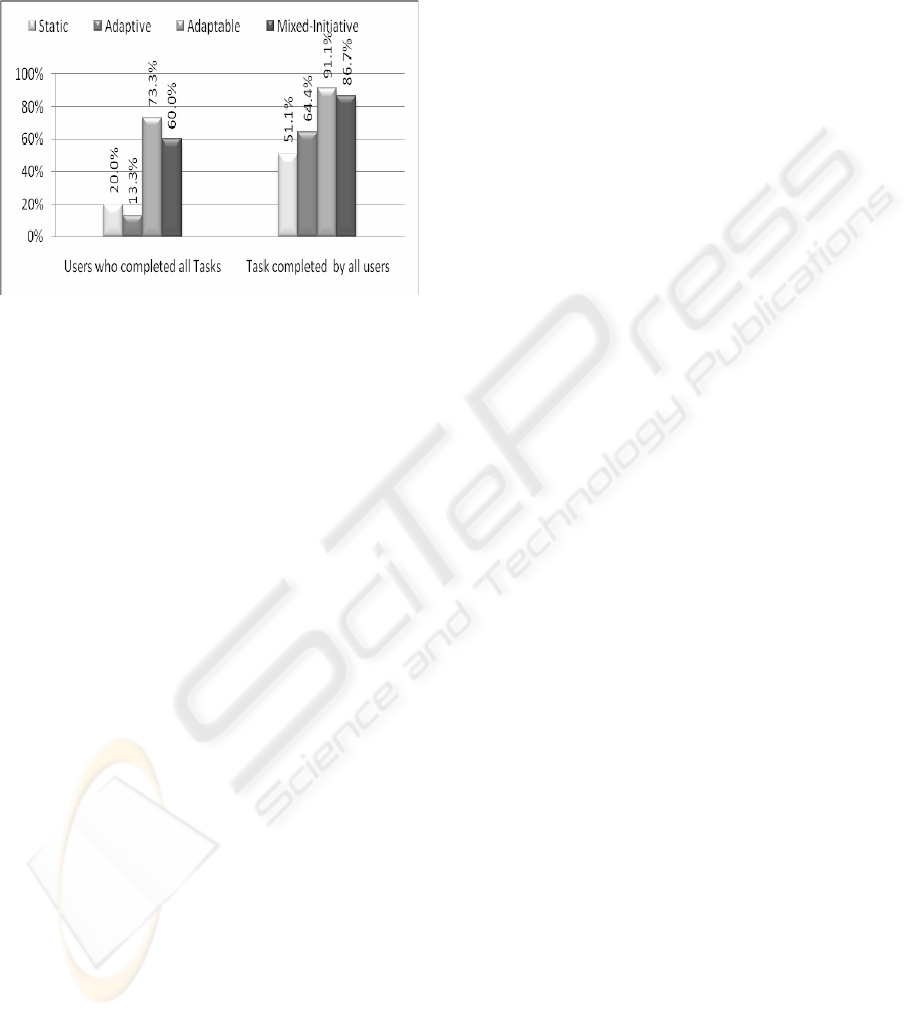

Figure 4: Learnable Tasks.

6 CONCLUSIONS

This paper described an empirical study that was

performed to investigate the effectiveness of the

Adaptive, Static, Adaptable and Mixed-initiative

conditions. In this investigation, the aim was to

assess the effectiveness of these four conditions.

One of the more significant findings to emerge from

this study is that Mixed-Initiative approach was the

best in terms of effectiveness in the searching tasks

but not with the learnable tasks. In the learnable

tasks the adaptable was better than all other

approaches. In addition, the Static and adaptive

conditions were found to be less effective than the

other conditions in terms of number of tasks

completed by all users and number of users who

completed all tasks. Further work needs to be done

to establish whether the presence and absence of

multimodal metaphors on the mixed-initiative

approach will help to make the most of the adaptive

and adaptable advantages, at the same time as

reducing their disadvantages.

REFERENCES

Alotabibi, M. & Alzahrani, R. (2004) Evaluating e-

Business Adoption: Opportunities and Threats. Journal

of King Saud University, 17, 29-41.

Bunt, A., Conati, C. & Mcgrenere, J. (2004) What role can

adaptive support play in an adaptable system?

Proceedings of the 9th international conference on

Intelligent user interfaces, 117-124.

Bunt, A., Conati, C. & Mcgrenere, J. (2007) Supporting

interface customization using a mixed-initiative

approach. Proceedings of the 12th international

conference on Intelligent user interfaces, 92-101.

Debevc, M., Meyer, B., Donlagic, D. & Svecko, R. (1996)

Design and evaluation of an adaptive icon toolbar.

User Modeling and User-Adapted Interaction, 6, 1-21.

Findlater, L. & Mcgrenere, J. (2004) A comparison of

static, adaptive, and adaptable menus. Proceedings of

the 2004 conference on Human factors in computing

systems, 89-96.

Fink, J., Kobsa, A. & Nill, A. (1998) Adaptable and

adaptive information provision for all users, including

disabled and elderly people. The New Review of

Hypermedia and Multimedia, 4, 163-188.

Gajos, K., Christianson, D., Hoffmann, R., Shaked, T.,

Henning, K., Long, J. J. & Weld, D. S. (2005) Fast

and robust interface generation for ubiquitous

applications. Proc. of Ubicomp, 37-55.

Greenberg, S. & Witten, I. H. (1985) Adaptive

personalized interfaces—A question of viability.

Behaviour & Information Technology, 4, 31-45.

Holzinger, A., Kickmeier-rust, M., & Albert, D. (2008)

Dynamic Media in Computer Science Education;

Content Complexity and Learning Performance: Is

Less More? Educational Technology & Society,, 11,

279-290.

Mcgrenere, J., Baecker, R. M. & Booth, K. S. (2002) An

evaluation of a multiple interface design solution for

bloated software. Proceedings of the SIGCHI

conference on Human factors in computing systems:

Changing our world, changing ourselves, 164-170.

Mcgrenere, J., Baecker, R. M. & Booth, K. S. (2007) A

field evaluation of an adaptable two-interface design

for feature-rich software.

Mitchell, J. & Shneiderman, B. (1989) Dynamic versus

static menus: an exploratory comparison. ACM

SIGCHI Bulletin, 20, 33-37.

Robert, T. & Dermot, P. B. (1987) A self-regulating

adaptive system. SIGCHI Bull., 18, 103-107.

TE’ENI, D. & FELDMAN, R. (2001) Performance and

satisfaction in adaptive websites: An experiment on

searches within a task-adapted website. Journal of the

Association for Information Systems, 2, 1-30.

Thomas, C. G. & Krogsaeter, M. (1993) An adaptive

environment for the user interface of Excel.

Proceedings of the 1st international conference on

Intelligent user interfaces, 123-130.

ICE-B 2008 - International Conference on e-Business

196
