SECURE IT/TELCO ENVIRONMENT PLANNING MADE EASY
A Concept of a Tool for Planning Secure IT/Telco Infrastructure and Applications
Wolfgang Haidegger
SECUDE Global Consulting GmbH, Lassallestrasse 7b, 1021 Wien, Austria
Keywords: e-Business, ISMS, ISO/IEC 27001, ISO/IEC 17799, ISO/IEC 15408, Risk Analysis, Information Security
Policies, Security Guidelines and Procedures, Evaluation Assurance Level.
Abstract: This paper first motivates the necessity of a planning tool for IT infrastructure and applications, which
allows the inclusion of security measures in an automated way. Then the author summarizes the
requirements coming from legal and technical standards, which serve as a framework to assure the
compliance of the results of planning activities with the respective applicable regulations. Next, a rough
concept for realizing the planning tool is presented and finally conclusions are presented.
1 INTRODUCTION
The IT/Telco industry supports e-commerce with a
selection of electronic business applications aimed at
commercial transactions. The following list
enumerates some of the better known business
applications, but is by no means exclusive:
 electronic funds transfer,
 supply chain management,
 e-marketing,
 online marketing,
 online transaction processing,
 electronic data interchange (EDI),
 automated inventory management systems, and
 automated data collection systems.
From a technical point of view this paper
distinguishes between the network services (also
called “infrastructure”) and the application services,
which are necessary to implement business
applications as listed above. This distinction is
important, as it mandates different technical and
procedural security measures.
In addition to distinguishing the type of service
necessary (infrastructure or application) to put
together a business application, one is very often
faced with a converged IT/Telco landscape
concerning both types of services. This means one
has to accommodate for the security needs of both
circuit switched and packed oriented networks with
their different transport and control planes,
management protocols and application service
philosophies.
The last two paragraphs show that security issues
pertaining to information stored of transferred within
networks for the purpose of doing electronic
business can get arbitrarily complex both on a
technical and a procedural level. At the same time
the need for security grows as more and more
personal (and sometimes very private) data is
involved in e-commerce transactions. This is also
reflected by the fact that compliance requirements to
national and international regulations concerning
confidentiality, availability and integrity of
information become stricter.
Taking the complex surroundings just described into
account, then in order to carry out a proper analysis
of security requirements and planing of the
according security measures a comprehensive tool
(or tool chain) needs to be developed, which
guarantees
 technical correctness,
 compliance to all relevant regulations and
 proper tailoring to the business needs
for the solution found.
A final remark: The author of this paper does not
distinguish between Greenfield analysis and analysis
of existing infrastructure and applications
concerning the capabilities of the planning tool, as
this does not seem to be relevant for a preliminary
treatment of the topic.
107
Haidegger W. (2008).
SECURE IT/TELCO ENVIRONMENT PLANNING MADE EASY - A Concept of a Tool for Planning Secure IT/Telco Infrastructure and Applications.
In Proceedings of the International Conference on e-Business, pages 107-110
DOI: 10.5220/0001913501070110
Copyright
c
 SciTePress

2 THE NORMATIVE
FRAMEWORK
The following paragraphs show the steps necessary
for risk analysis and mitigation. These have been
described in different level of detail but with the
same general intention in ISO/IEC FDIS 27001,
ISO/IEC 15408 and ASIS.
Figure 1 gives an overview over the procedure
the steps are embedded in.

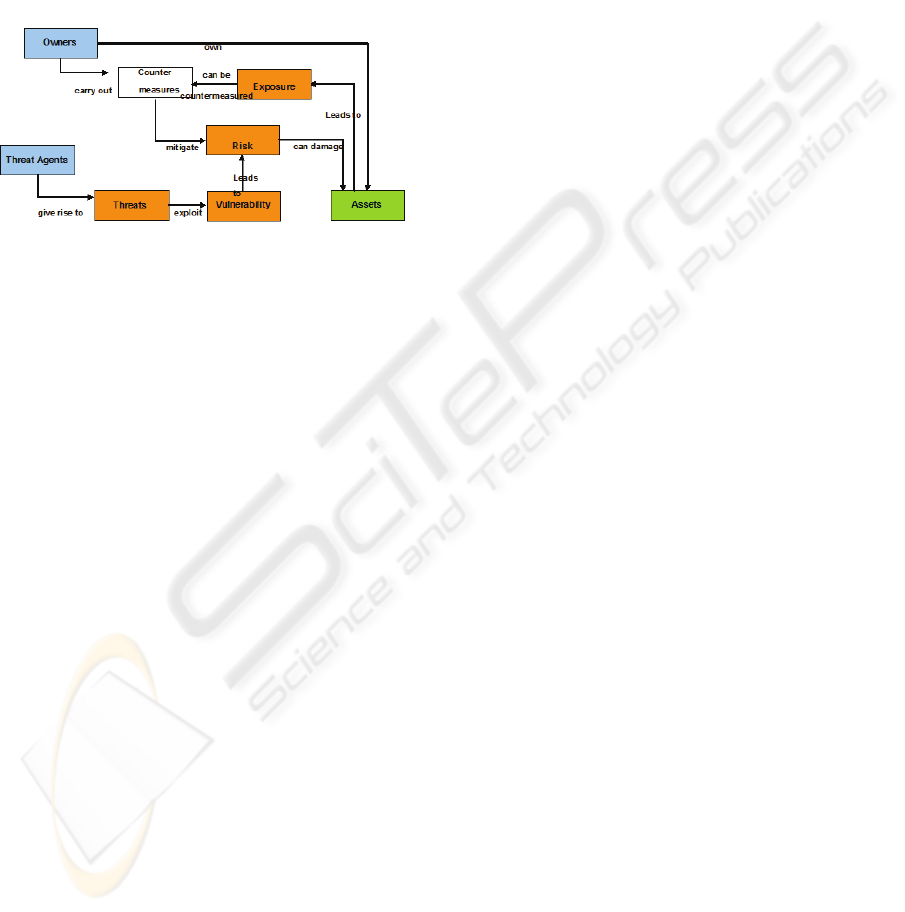

Figure 1: Process, which the tool has to support.
Step 1: Risk Analysis
 Assets, their value and their owners are
identified.
 Vulnerabilities of the assets as well as threat
agents, which might exploit the
vulnerabilities, are identified.
 For the resulting risks possible countermeasures
are identified and the appropriate ones are
selected.
Step 2: Definition of Mitigation Measures
 Development of security policies
 Analysis of relevant international, national and
corporate legal and technical standards
relevant for the situation.
 Development of procedures and guidelines,
designing the way the security policies shall
actually be realized.
Step 3: Integration into Service/Infrastructure
architecture (not shown in figure 1)
 Design of infrastructure with selected security
measures
 Design of applications according to selected
security measures
Step 4: Verification (not shown in figure 1)
 Selection of appropriate Assurance Level
 Development of Evaluation Assurance Level
Criteria corresponding to the Assurance Level
selected
The following subsections give an idea about the
legal and technical recommendations the tool (or
tool-set) will have to be able to abide to. They
represent additional, project external constraints.
2.1 International Legal, Procedural
and Technical Standards
There are many international legal standards, which
have to be considered as important when treating
IT/Telco security. Some examples are:
 Treaties of the European Union,
 European Convention for the Protection of
Human Rights and Fundamental Freedoms,
 European Directives
To show one important European standard in the
area of Identity Management:
The European Directive 95/46/CE: deals with
data protection, is aimed at giving to the data subject
(owner of data) the most control possible on its own
identity and personal data, posing a series of
requirements on recipients, controllers, processors
and even third parties. Art. 2, letter a), giving a
definition of "personal data", says: "identifiable
person is one who can be identified, directly or
indirectly, in particular by reference to an
identification number or to one or more factors
specific to his physical, physiological, mental,
economic, cultural or social identity".
There are also quite some procedural (non-
technical) international standards, which will play a
role when planning security measures. Two
examples are:
 ISO/IEC FDIS 27001: This International
Standard specifies the requirements for
establishing, implementing, operating,
monitoring, reviewing, maintaining and
improving an IT security management plan
focussing on the overall business risks of the
organization the plan is made for.
 COBIT: The Control Objectives for
Information and related Technology (COBIT)
provides a set of generally accepted measures,
indicators, processes and best practices to
assist
o in maximizing the benefits
derived through the use of
information technology and
o developing appropriate IT
governance and control in a
company
ICE-B 2008 - International Conference on e-Business
108

International technical standards will come from
ISO, IETF, ITU-T, OMA, TMF, W3C and other
international standardization bodies or industry
forums.
2.2 National Legal Standards
Every nation will have a set of national legal
standards, which have to be considered as important
in addition when treating IT/Telco security. This
time the examples are selected from the USA, again
with the focus on relevance to Identity Management:
 Privacy Act of 1974: all government agencies -
federal, state and local - which request social
security numbers are required to provide a
disclosure statement on the form;
 Family Educational Rights and Privacy Act
(FERPA, also known as the "Buckley
Amendment," enacted in 1974, 20 USC
1232g): social security numbers fall within the
scope of personally identifiable information
that is restricted from disclosure by schools
that receive federal funding under the Family
Educational Rights and Privacy Act;
 Children's Online Privacy Protection Act
(COPPA) - 15 U.S. Code 6501 et seq.: The
act's goal is to place parents in control over
what information is collected from their
children online;
 Financial Services Modernization Act, Gramm-
Leach-Bliley (GLB), Privacy Rule - 15 USC
6801-6827: The 1999 federal law permits the
consolidation of financial services companies
and requires financial institutions to issue
privacy notices to their customers, giving
them the opportunity to opt-out of some
sharing of personally identifiable financial
information with outside companies;
2.3 Corporate Standards
Finally, organizations whose security needs to be
planned or evaluated and updated will probably have
additional regulations, which need to be taken into
account. For example it might be necessary for every
employee to wear a badge with her or his photo id
on it to guarantee an additional possibility to identify
her or him.
3 CONCEPT FOR THE
REALIZATION OF THE
PLANNING TOOL
The threat analysis will be based on a database that
holds information about known threats to the
specific system components, their architecture,
protocols. This database will also be filled with the
results of the tasks dealing with risk assessment.
There are tools today, which do this on a very
general level (e.g. COBRA). The main challenge
will be to drill down to implementation level if
possible and/or necessary.
Furthermore a network/application planning tool
will be developed based on the threat database
above, which is capable of identifying threats to a
planned network, suggesting methods to mitigate the
threats according to a specific Evaluation Assurance
Level and including the results into the network
plan, a threat model document and a test
specification. Here two issues will be of main
concern:
 Developing solution variants, which really fit
the topic and providing guidance for the
selection of the “right” solution.
 Using the selected Evaluation Assurance Level
as the driving parameter for the automated
solution development
The tool will be capable of tracking the changes
to the planned network, the according changes in the
threat model, and the changes in the security
measures to be taken and finally, track the changes
in the documentation (network plan, test
specification).

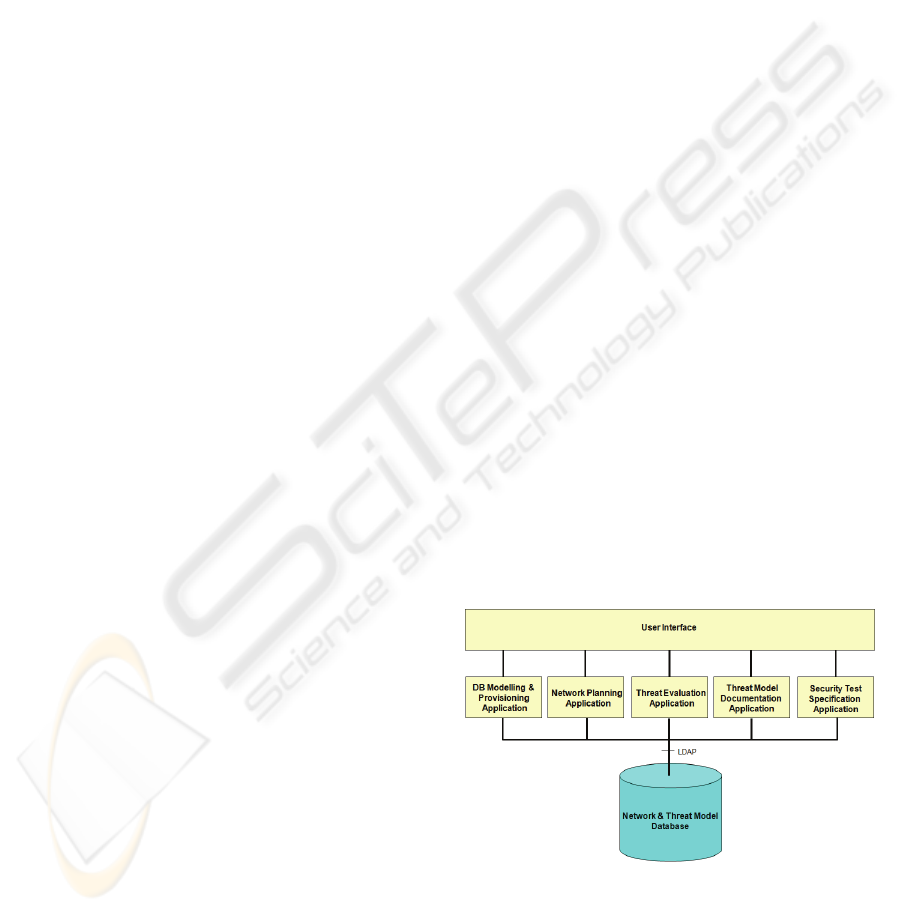

Figure 2: General architecture of the tool (tool chain).
Figure 2 give a first impression of how the tool
chain shall be designed. The main part will be an
intelligent central data base, which will serve all
planning applications likewise.
SECURE IT/TELCO ENVIRONMENT PLANNING MADE EASY - A Concept of a Tool for Planning Secure IT/Telco
Infrastructure and Applications
109

4 CONCLUSIONS
The paper shows the necessity of a general IT/Telco
security planning tool (or tool chain) as a
consequence of heightened complexity concerning
the infrastructure and the applications as well as
tightened security and compliance regulations.
The regulatory framework, which such a tool
chain has to accommodate, is dealt with
conclusively concerning the types of regulations, but
only exemplary concerning the actual
recommendations.
Finally a first idea of a possible realization is
given together with the crucial points to solve.
Next steps will be the collection of the technical
ingredients of the database (protocols, HW
architectures, SW architectures, SW frameworks, ...)
and a first design of the database itself. This will
have to happen in the light of the applications, which
will use the database.
REFERENCES
ISO/IEC FDIS 27001: “Information technology —
Security techniques —Information security
management systems — Requirements” Final Draft
2007
ISO/IEC 17799: “Information technology — Security
techniques — Code of practice for information
security management” 2005
ISO/IEC 15408: Common Criteria for Information
Technology Security Evaluation Version 3.1, Revision
1, September 2006 (Part 1 – Part 3)
ASIS: The General Risk Assessment Guidline, ASIS
International, November 13-th 2002, ASIS GLCO 01
012003, Sean Ahrens et al
ICE-B 2008 - International Conference on e-Business
110
