AN EVENT-DRIVEN, INCLUSIONARY AND SECURE

APPROACH TO KERNEL INTEGRITY

Satyajit Grover, Divya Naidu Kolar Sunder, Samuel O. Moffatt and Michael E. Kounavis

Corporate Technology Group, Intel Corporation

Keywords: Rootkits, Kernel, Security, Virtualization, Hypervisor.

Abstract: In this paper we address the problem of protecting computer systems against stealth malware. The problem

is important because the number of known types of stealth malware increases exponentially. Existing

approaches have some advantages for ensuring system integrity but sophisticated techniques utilized by

stealthy malware can thwart them. We propose Runtime Kernel Rootkit Detection (RKRD), a hardware-

based, event-driven, secure and inclusionary approach to kernel integrity that addresses some of the

limitations of the state of the art. Our solution is based on the principles of using virtualization hardware for

isolation, verifying signatures coming from trusted code as opposed to malware for scalability and

performing system checks driven by events. Our RKRD implementation is guided by our goals of strong

isolation, no modifications to target guest OS kernels, easy deployment, minimal infrastructure impact, and

minimal performance overhead. We developed a system prototype and conducted a number of experiments

which show that the performance impact of our solution is negligible.

1 INTRODUCTION

In this paper we address the problem of protecting

computer systems against stealth malware. By the

term ‘stealth malware’ we mean malicious code that

uses rootkit mechanisms to install and actively hide

itself on OS kernels. The problem is important

because the number of known types of stealth

malware has been increasing exponentially. There

were less than 500 types of stealth malware known

before the end of 2005, whereas this number

increased to 5500 by the end of 2006. The problem

is also important because applications running on

computer systems rely on services provided by OS

kernels. Applications assume that the kernel services

are uncompromised, an assumption which is not

always true. Among the many types of attacks

performed by stealth malware, prevalent attacks are

based on modifying code and static data, import

tables, system call tables, interrupt tables and

exception handlers.

Several system integrity mechanisms have been

proposed in the past (e.g., [3, 6, 7, 9]). To some

extent, prior art is not completely adequate for

addressing several types of stealth malware threats.

In what follows we justify our claim. Some detection

mechanisms examine kernel data structures to find

malicious activity (e.g., data structures accessed by

the process explorer, netstat etc.). Such solutions do

not always protect against static code and data

modifications. They also do not address transient

attacks. Other solutions perform heuristic-based

analysis for identifying known malware signatures

in memory. These approaches have some advantages

over the former for ensuring system integrity.

However, sophisticated techniques utilized by

stealthy malware can thwart them. The main

disadvantage of these approaches is that they are

reactive as opposed to proactive solutions to

malware detection. Other approaches check the

correctness of signatures coming from trusted code

as opposed to malware and are thus more scalable

but their security depends on the OS they are trying

to protect.

We propose Runtime Kernel Rootkit Detection

(RKRD) (pronounced ‘record’), a hardware-based,

event-driven, secure and inclusionary approach to

kernel integrity that addresses some of the

limitations of earlier approaches. RKRD is designed

to ensure the integrity of kernel code as well as

critical kernel data structures and the flow of

execution of kernel modules. By ‘event-driven’ we

mean that RKRD detects the introduction/activity of

rootkits and other malicious kernel code at runtime,

411

Grover S., Naidu Kolar Sunder D., O. Moffatt S. and E. Kounavis M. (2008).

AN EVENT-DRIVEN, INCLUSIONARY AND SECURE APPROACH TO KERNEL INTEGRITY.

In Proceedings of the International Conference on Security and Cryptography, pages 411-420

DOI: 10.5220/0001916004110420

 SciTePress

specifically at the moment when measured code and

data structures are altered. By ‘secure’ we mean that

RKRD defends itself against attacks using

virtualization technology. Virtualization technology

provides isolation between virtual machines and is

used to protect the RKRD components that measure

the integrity of guest OS kernels. By ‘inclusionary’

we mean that RKRD checks that the signatures

coming from known and trusted code have the

values they should have. It does not scan code

looking for signatures of malicious code, as typical

anti-virus tools do. An inclusionary approach is

therefore proactive and scalable.

We implemented a RKRD prototype based on the

afore-mentioned design principles. Our system

development was guided by the goals of strong

isolation, no modifications to the target guest OS

kernels, easy deployment, minimal infrastructure

impact, and minimal performance overhead. We

conducted experiments with real implementations of

stealthy malware and were able to detect attempts to

compromise system integrity. The experiments

showed that the performance impact of our solution

is negligible.

The paper is structured as follows: In Section 2

we discuss principles that underpin the RKRD

design. Section 3 discusses the RKRD threat model

along with design assumptions. The system

architecture is described in Section 4, followed by

details of our prototype in Section 5. We discuss the

performance impact of the prototype in Section 6.

Section 7 discusses how RKRD addresses the threat

model. Following this, in Section 8 we discuss

related work in the area. Finally, we present

concluding remarks in section 9.

2 DESIGN PRINCIPLES

In what follows we elaborate on the three principles

that guide the design of RKRD:

1. Isolation using Virtualization Hardware.

Integrity detection mechanisms are vulnerable if

a circular dependency exists between these

mechanisms and the OS. Stealthy malware

utilizes that dependency to hide itself from the

integrity checking mechanisms. RKRD

leverages virtualization hardware to create an

isolated and trusted partition in an untrusted

environment. This partition is used for running

the RKRD service that measures guest OS

kernel integrity. The isolation provided by

virtualization breaks that dependency. This is

essential since malware affecting the kernel

cannot get access to the integrity checking

solution, thereby mitigating its ability to hide

itself.

2. Verifying the Signature of Trusted Code. The

RKRD approach is based on verifying the

signatures of known and trusted code in the OS.

This inclusionary approach is unlike many prior

approaches to system integrity that scan for

malicious code signatures. The trusted code

base on a system presents a limited (and thus

scalable) footprint for the integrity checking

solution. It can be effectively monitored to

drastically narrow the opportunities for

compromise due to malicious code.

3. System Checks based on Events. Our

approach continuously monitors kernel integrity

through event-driven checking. This mechanism

can detect a change in the measured code and

data structures at the moment when they are

altered. This addresses transient attacks that

compromise the system briefly and then revert it

to a known good state. Such attacks can prevent

existing integrity checkers from discovering

their activity by compromise kernel.

3 ASSUMPTIONS AND THREAT

MODEL

RKRD assumes immutability of the preboot

environment. A preboot environment can be

protected by technologies that perform basic checks

that ensure the integrity of the boot code. RKRD

does not assume that the kernel is immutable, just

that its construction can be verified. We believe that

this is a fair assumption since the integrity of any

piece of code or data can be asserted with

appropriate hash value checks regardless of where

and when the checks take place. However,

protecting the preboot environment represents

substantial engineering effort which is out of the

scope of this work. Further assumptions made in the

system design are stated in Section 4.

We consider a threat model in which the

adversary gains complete access to the kernel by

utilizing a documented method, or an exploit based

on a known bug or vulnerability. This gives the

adversary the ability to execute code at kernel

privilege, to modify existing code and data, and to

insert new code into the control flow. Protecting a

system from such an adversary poses various

challenges on operating systems. Operating systems

typically provide simplicity and performance

through the use of a single address space for all

SECRYPT 2008 - International Conference on Security and Cryptography

412

kernel code. In such case, the adversary can modify

any crucial system tables, drivers, and also change

CPU state by modifying general purpose registers.

In addition, an attack can be waged in a transient

manner, reverting back to the original state to leave

no trace for a detection system. RKRD includes such

transient attacks in its threat model

Following are the classes of attacks we considered

when designing RKRD. An analysis on how these

threats are addressed is presented in Section 7.

• Import Table Hooking. Applications utilize

functions exported by libraries and other

applications. These external calls are maintained

in an import table. Rootkits can overwrite the

entries in these tables to alter the control flow

into malicious code.

• Code & Static Data Modifications. In this

method, the actual code of a targeted function is

overwritten with malicious code. This task is

accomplished using documented APIs defined

on modern operating systems. For instance,

Microsoft has provided APIs such as

OpenProcess, ReadProcessMemory and

WriteProcessMemory for writing to and reading

from another process’s memory. These well-

documented APIs serve as a toolkit for rootkit

installers.

• IDT/Exception Handler Hooking. On x86

processors, an Interrupt Descriptor Table (IDT)

is used to handle hardware and software

interrupts. A malicious user can insert a rootkit

by modifying an IDT entry to point to a

malicious function instead of the default

interrupt handler. This method of hooking will

cause the hooked code to be called before the

default interrupt handler function. Shadow

Walker is a well known rootkit that utilizes this

method.

• System call Table Hooking. All native system

service addresses are listed in a data structure

called the system call table. To call a specific

system function, the system service dispatcher

looks up the address of the function in this table.

With complete access to the kernel, an

adversary can change the entries in this table to

point to malicious code instead.

• Dynamic Kernel Object Manipulation. This is

a method of altering the dynamic state-keeping

structures in the kernel. An example is the

system process table that maintains a list of

executing processes. By altering such structure,

the adversary can hide the existence of

malicious code from auditing software that

monitors the system.

It is important to note that there are several

classes of attacks that RKRD does not address. First,

RKRD assumes that the user is not the adversary. If

the user was the adversary, the user could perform

more aggressive attacks which are beyond the scope

of this work. Second, RKRD does not address

buffer/integer overflow/underflow attacks that can

support control flow changes, data modifications,

and other malicious activities. There are auxiliary

methods for handling these attacks like execute

disable methods, use of canary values etc. Third,

RKRD does not address attacks resulting from

conversions to/from canonical formats, input

verification errors and string formatting. In addition

it does not defend against race conditions used for

privilege escalation within the guest OS kernel or

privilege escalation into the VMM. Another group

of attacks not addressed by RKRD are DMA device-

based attacks. Virtualization mechanisms can protect

a kernel from DMA-based attacks by removing the

kernel and its key data structures from access by

devices. Another issue not addressed in the threat

model is attacks against manifests. These attacks

occur when the software is transported from the

manufacturer but before it is delivered to the user.

One big problem that needs to be addressed is the

management of a potentially large number of

manifest signing keys.

4 SYSTEM ARCHITECTURE

4.1 Virtualization-based Environment

RKRD is designed to monitor the integrity of the

kernel to assure that there is no malware inserted

into any of the OS execution paths. It provides

continuous integrity verification without interfering

with the legitimate operations of system patching

and module installation The RKRD design does not

require any modification of the guest OS. An

overview of the system is provided in Figure 1. The

system control flow is monitored using the

hypervisor and the integrity verification is done by a

software component executing in a trusted

environment that is isolated from the OS as

described in section 4.3. Integrity verification is

performed whenever the control flow monitor

detects a change in the system and in a measured

component.

AN EVENT-DRIVEN, INCLUSIONARY AND SECURE APPROACH TO KERNEL INTEGRITY

413

Hypervisor

Integrity

Manifests

Kernel Directory Services

User Operating System

Isolated VM

Shared

Memory

Kernel data structures

OS Memory Manager

Integrity Measurement Module (IMM)

Monitor events

Hardware

Hypercall Interface

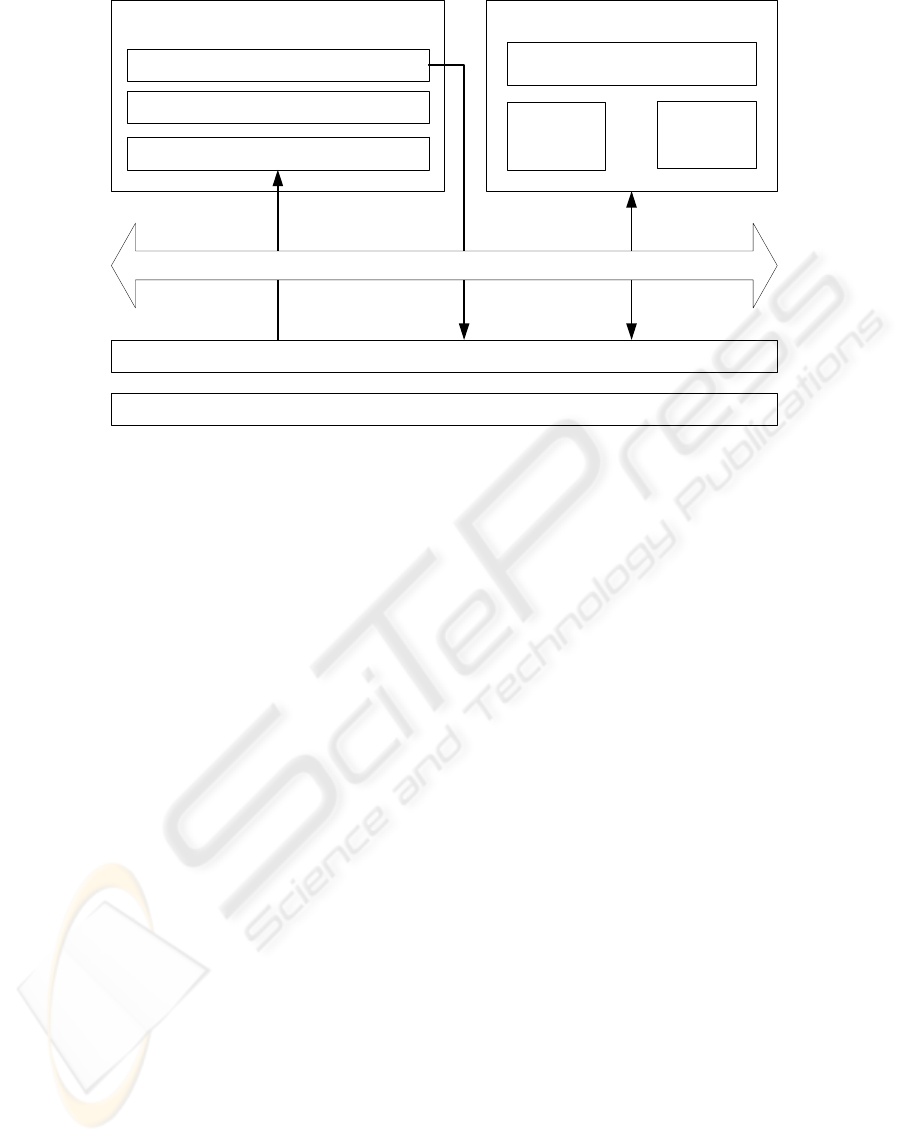

Figure 1: System Architecture.

In order to describe our architecture we present a

brief overview of a virtualization-based system that

leverages hardware virtualization. On our platform

we utilized the Intel® Virtualization Technology or

VT-x; similar mechanism can provide virtualization

on other processors. Virtualization refers to the

technique of partitioning the physical resources of a

processor or a chipset into Virtual Machines (VMs)

and inserting a higher privilege executive under the

OS. This executive is known as a hypervisor and the

privilege level is known as VMX-root mode in VT-

A control transfer into the hypervisor is called a

VMExit and transfer of control to a VM is called a

VMEntry. A VM can explicitly force a VMExit by

using a VMCALL instruction. Such instruction is

also called ‘hypercall’. A guest OS runs in VMX-

non-root mode which ensures that critical OS

operations cause a VMExit. This allows the

hypervisor to enforce isolation policies. The

hypervisor manages the launching/shutdown of

VMs, accesses to memory, and accesses to

microprocessor registers. It also manages interrupts

and instruction virtualization and can protect against

DMA-based attacks.

In what follows we describe the three main

components of the RKRD architecture: the Kernel

Directory Service, the Integrity Measurement

Module, and the Hypervisor. Details regarding their

implementation in our prototype are described in

Section 5.

4.2 Kernel Directory Service (KDS)

The KDS is designed to execute as a service on the

guest OS every time a new module is loaded. It

provides the hypervisor with the names and

locations (virtual addresses) of modules loaded in

the kernel through a hypercall. The hypervisor

passes this information to the Integrity Measurement

Module (IMM). A compromised KDS will not affect

the security of RKRD. If a rootkit is installed

through compromising the KDS, the presence of this

rootkit can be detected by checks on other critical

data structures (i.e., import and export tables, SSDT

and IDT tables) as described in the next section.

KDS exists to improve the performance of the

system by identifying the location of the kernel

components that are verified in memory by the IMM

4.3 Integrity Measurement Module

(IMM)

The Integrity Measurement Module (IMM) is

responsible for checking the integrity of kernel

modules and data structures. It executes on a VM

isolated by the hypervisor from the guest OS. This

isolation satisfies the first design principle as stated

in Section 2.

The IMM checks the integrity of kernel modules by

comparing their pages in memory against their

corresponding integrity manifest (Hardjono and

Smith, 2006). These manifests are accessible to the

IMM on its file system in the isolated partition. We

SECRYPT 2008 - International Conference on Security and Cryptography

414

assume that the integrity of the manifest database

can be guaranteed. However, the security of that

approach is beyond the scope of this paper. RKRD

assumes that only legitimate kernel code has an

associated manifest and that the code is not self-

modifying in a non-deterministic way. A manifest

contains cryptographic hashes for each page of the

code and static data sections of the module. It also

contains the structures that are required to revert

relocations done by the loader, and the module's

import and export tables. Each manifest is created

simply by extracting this information from the

compiled binary file of a module, e.g. an ELF file on

Linux® and a Portable Executable (PE) file for the

Windows® XP Operating System. The information

in a manifest allows the IMM to reconstruct a

module’s relevant data structures from a runtime

snapshot of the module’s memory. This is essential

to RKRD because it provides us with a means of

determining that a module’s runtime memory

matches its compile time state. An uncompromised

system should exhibit no discrepancies between its

runtime and compile time images.

The IMM checks system integrity by executing a

three phase ‘IMM integrity’ algorithm:

• Phase 1. For each module, the IMM verifies

each page of the code and static data sections by

comparing its cryptographic hash against the

original stored in the manifest. Also, it extracts

the memory location of all the exported and

imported symbols. This information is utilized

in the following phases and also for future

checks.

• Phase 2. For each module, the IMM finds all

the imported entries and verifies that they are

being exported by a module that passed Phase 1.

• Phase 3. The IMM extracts data structures that

point to essential services, such as system calls

and interrupt handlers, and verifies that these

services lie within modules that have passed

phases 1 and 2. This phase can be extended to

other guest OS data structures.

This algorithm satisfies the second design

principle as stated in Section 2. A detailed

description of our implementation of this algorithm

is provided in Section 5. By running this algorithm

on all system modules we can verify that they are in

accordance with the original intent of the module

author as recorded in the manifest. The IMM then

marks each module as passed or failed and notifies

the hypervisor. All modules that pass are marked as

measured and included in the trust boundary. On an

uncompromised system, all modules should pass the

integrity check since the IMM has their manifests

and they should only be interacting with other

measured code. If any module fails the test then that

event is interpreted as the detection of malware. The

hypervisor can then take preventive action, e.g. log

the activity and halt the guest OS.

4.4 Hypervisor

The hypervisor serves as a trusted entity in our

system, extending the ‘root of trust’ provided by the

hardware platform. The hypervisor has three main

functions in the RKRD architecture. First, it

maintains system integrity state that includes a list of

all modules that are executing as part of the kernel.

This list is initiated by the KDS and is reinforced by

constant monitoring of the guest OS. Second, it

monitors events that may alter system state and

triggers integrity verification if necessary. This

mechanism satisfies the third design principle as

stated in Section 2. The hypervisor monitors the

guest OS for the following events and initiates

integrity checks as needed:

• Addition or Removal of Modules. Each time a

module is loaded into or removed from the

kernel, the hypervisor performs an integrity

check by executing the IMM integrity

algorithm.

• Change in a Measured Data Structure.

Checks are also required when a measured data

structure is altered. The hypervisor continuously

monitors such structures by marking their

shadow pages as read-only and intercepting any

changes made to them. Any attempt to alter

their content is routed through the hypervisor’s

page fault handler, which initiates a check to

verify it.

• Paging-in of Measured Pages. Malware can

overwrite a page of a system module when it is

written out to the page file on disk. When that

page is loaded back in response to a page fault,

the module can be infected by the corrupted

code on it. In order to prevent such an attack,

the hypervisor intercepts all page faults that

read a page into memory from the disk. It then

checks the integrity of that page as described in

phase 1 of the IMM integrity algorithm.

The hypervisor also satisfies requests made by the

IMM for copies of pages of guest OS memory that

are to be verified.

AN EVENT-DRIVEN, INCLUSIONARY AND SECURE APPROACH TO KERNEL INTEGRITY

415

5 PROTOTYPE

We implemented RKRD as a proof of concept and

system prototype. In this section we describe our

implementation with respect to the system

architecture.

5.1 Software

We implemented a light-weight hypervisor for our

prototype. Our hypervisor provides us with the

capabilities to monitor system events as required and

to create shadow page tables needed to intercept

paging events and modifications to data structures.

We extended it to provide interfaces for

communication with KDS and the IMM and to

monitor guest OS events for initiating integrity

checks. The guest OS in our prototype is Windows®

XP with Service Pack 2. We used this OS to

demonstrate that our technology works on a

proprietary environment for which we do not have

access to the source code (and thus did not modify

for the sake of providing kernel integrity). Our

architecture works just as well with any other OS,

provided we can generate the appropriate manifests.

The KDS is implemented as an OS service and

leverages the standard EnumDeviceDrivers API

(Microsoft Corporation, 2008) for its task of

collecting information about system modules.

In addition to the basic software platform

described above, our design requires host OS

specific manifests. We wrote a tool in Visual C++

for the generation of manifests of OS system

modules. The tool requires only a compiled binary

file as input. On the Windows® XP operating

system the system modules are implemented in the

PE file format (Microsoft Corporation, 2006). These

modules include executables (including the kernel),

DLLs and device drivers. These manifests contain

cryptographic hashes based on the SHA-1 algorithm.

The security provided by a hash algorithm typically

depends on the assumptions made on the computing

capability of the attacker. We are aware of recent

cryptanalytic work (Wang et al., 2005) which

substantially reduced the complexity of finding

collisions in SHA-1. If SHA-1 is considered

insecure under some attacker assumptions it can be

replaced by any other hash function which

demonstrates better collision and pre-image

resistance. Manifests also contain the relocation fix-

ups, Import Address Table (IAT), Export Table

(ET), Import Lookup Table (ILT) and other PE file

tables.

5.2 System Operation

At boot time, the hypervisor launches the guest OS

and the IMM in separate virtual machines. The IMM

registers with the hypervisor using a hypercall. This

process of registration establishes a shared memory

area between the two that is protected by the

hypervisor. After launching the IMM VM, the KDS

is started on the guest OS. It sends the list of

executing system modules to the hypervisor,

including the name and virtual address of each. The

hypervisor initiates a system integrity check by

sending this information to the IMM. The IMM then

executes the IMM integrity algorithm for integrity

verification as shown in Figure 2.

In phase 1 the IMM executes the following steps

for each module:

• accesses the corresponding manifest and utilizes

it to request the module’s memory image from

the hypervisor. The hypervisor copies the

requested memory pages from the guest OS into

the memory shared with the IMM.

• reconstructs the compile time image of the

module using these pages along with the

information from the manifest.

• verifies the integrity of each page of the code

and static data sections of the module based on

the SHA-1 cryptographic hash values in the

manifest.

• stores the necessary PE file tables for the

module.

In phase 2 the IMM executes the following steps for

each module:

• verifies the links (function pointers) between

the module and its dependencies using the ILT

information from the manifest along with the

ET and IAT entries collected in phase 1.

• iterates through all ILT entries and finds the

corresponding ET entries.

• verifies if the IAT entries match the virtual

addresses determined in the previous step for

ILT entries

In phase 3 the IMM:

• requests the hypervisor to retrieve the System

Services Descriptor Table (SSDT) and verifies

that all entries in it point to measured code; and

• requests the hypervisor to retrieve the Interrupt

Descriptor Table (IDT) entries from memory

(first 32) and verifies that the they point to

measured code.

SECRYPT 2008 - International Conference on Security and Cryptography

416

For each module and each data structure that passes

verification, the IMM notifies the hypervisor.

During system operation, the hypervisor

monitors events as described in Section 4 and

initiates integrity checks as needed. If at any time

the IMM detects an unknown modification to the

system, it marks it as an unexpected change and

notifies the hypervisor. The hypervisor can then take

corrective action based on system policy, including

halting the host OS to prevent damage from

malware. We note that a shadow page is marked as

‘read-only’ before or after checks.

IMM_INTEGRITY_ALGO(kernel_module_list l,

int list_size)

{

int i;

for(i = 0; i < list_size; i++)

{

kernel_module m = get_module(l, i);

manifest f = open_manifest(m);

image g = get_memory_image(m);

if((section(f) == CODE) ||

(section(f) == STATIC_DATA))

{

page_list p = get_pages(g);

int j;

for (j=0; j < psize(g); j++)

{

if(hash_from_manifest(f,j)

!= hash_from_memory(p, j))

{

error(BAD_MODULE, j);

}

store_tables_for_next_phases(f, g);

}

//end of phase 1

for(i = 0; i < list_size; i++)

{

kernel_module m = get_module(l, i);

imported_entries_list il =

get_imported_entries(m);

exported_entries_list el =

get_exported_entries(il, m);

int j;

for (j=0; j < lsize(il); j++)

{

if(il[j] != el[j])

{

error(BAD_IT_ENTRY, m, j);

}

add_module_into_pass_list(m);

}

//end of phase 2

table ssdt = get_SSDT_table();

table idt = get_IDT_table();

for(i = 0; i < lsize(ssdt); i++)

{

if(!is_in_phase_2_pass_list(ssdt[i]))

{

error(BAD_SSDT_ENTRY, i);

}

for(i = 0; i < lsize(idt); i++)

{

if(!is_in_phase_2_pass_list(idt[i]))

{

error(BAD_IDT_ENTRY, i);

}

//end of phase 3

Figure 2: The IMM Integrity Algorithm.

6 PERFORMANCE

The primary goal of RKRD is to develop a system

that can verifiably detect many popular exploits of

system vulnerabilities. However, it is important that

its operation does not have a significant impact on

the performance of the measured system. This

section provides some analysis on the performance

impact of the prototype.

We measured the time taken to execute the three

phases of the IMM integrity algorithm. We collected

two sets of data. A first set was collected using the

prototype to verify four Windows® XP kernel

modules: ntoskrnl.exe, hal.dll, kdcom.dll, and

bootvid.dll. These modules were selected because

they are required for critical system functionality.

Another set was collected from all kernel modules.

All experiments were performed on an Intel®

Centrino platform with a 1.83 GHz Core™ Duo

processor and 2GB of DDR2 RAM.

Performance data for the verification of the four

critical modules, broken up by each phase of our

integrity check algorithm, can be found in Table 1.

Phase 1 completes in 71 ms. There were

approximately 490 pages worth of data verified and

structures extracted, at 0.14 ms/page. Each page is

4KB in size. Phase 2 averaged 6 ms and phase 3

averaged 1 ms. Table 2 provides performance data

on the time required to verify all kernel modules that

can be identified using standard user-level

Windows® APIs. The total number of modules

varied between 100 and 102 on our test system.

Phase 1 averaged 444 ms, phase 2 averaged 255 ms,

and phase 3 averaged 1 ms for all modules.

Table 1: Time taken for 4 critical modules on a

hypervisor.

Phase 1 Phase 2 Phase 3 Total

71 ms 6 ms 1 ms 78 ms

Table 2: Time taken for all modules on a hypervisor.

Phase 1 Phase 2 Phase 3 Total

444 ms 255 ms 1 ms 700 ms

We also created a version of the algorithm that ran

in a non-virtualized environment. It used a kernel

driver to service memory access requests of the

application. This was done to calculate the

performance overhead of using hypercalls for

memory access. The performance data for the four

critical modules and for all modules is provided in

Tables 3 and 4 respectively. The overhead

associated with virtualization is significant. The time

AN EVENT-DRIVEN, INCLUSIONARY AND SECURE APPROACH TO KERNEL INTEGRITY

417

it took to complete the algorithm for the four

modules increased by 28% between the virtualized

and non-virtualized case, and by 29% for the case of

all modules. The overhead of running the IMM on a

virtualized system comes from the overhead of using

hypercalls and the performance overhead of running

in a virtualized environment. The algorithm itself

performs well but future work is required to reduce

the overhead of virtualization and hypercalls.

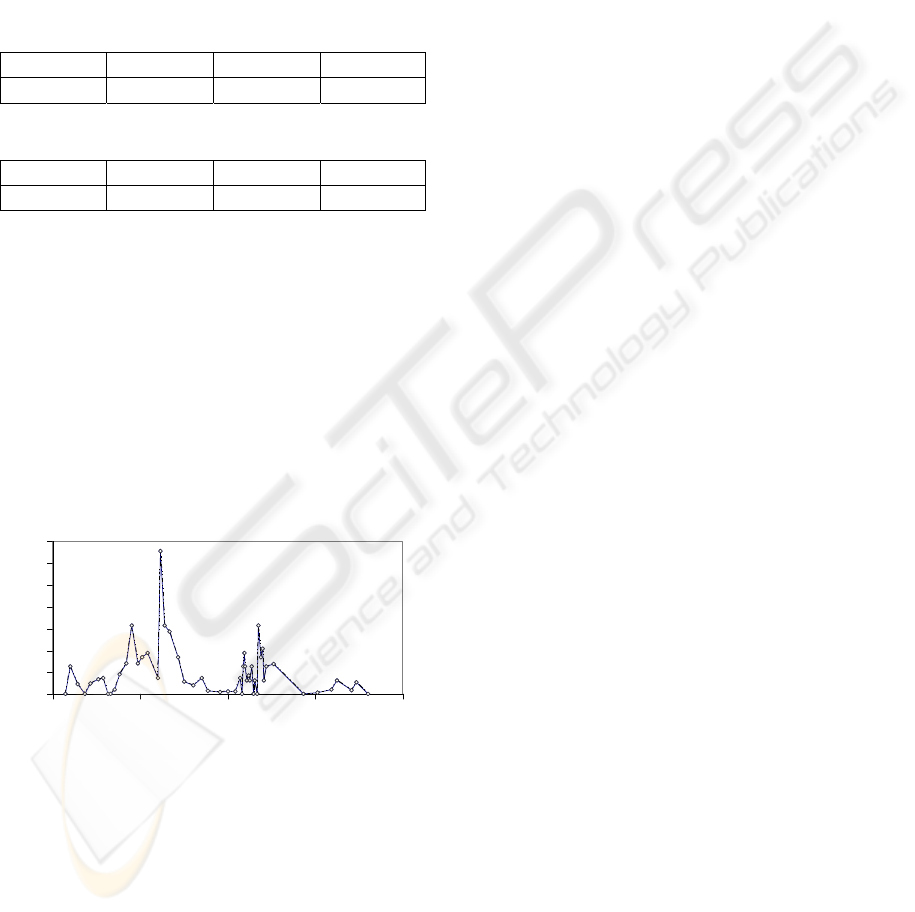

Table 3: Time taken for 4 critical modules without

hypervisor.

Phase 1 Phase 2 Phase 3 Total

55 ms 5 ms 1 ms 61 ms

Table 4: Time taken for all modules without hypervisor.

Phase 1 Phase 2 Phase 3 Total

300 ms 241 ms 1 ms 542 ms

There are several simple event-driven checks that

were highlighted previously. When pages holding

module code or static data sections are paged in

from disk they must be verified. We monitored the

number of page faults in the system to see how often

pages are paged in from disk. Figure 3 shows the

rate of paging of code section pages on the test

system under normal desktop use for the four critical

modules when the OS is running on top of the

hypervisor. The spikes in the figure happen when a

new application set is loaded.

page faults per second

0.2

0.4

0.6

0.8

1.2

1.4

0 500 1000 1500 2000

time (s)

Figure 3: Rate of Paging from Disk.

Another event-driven check involves verifying the

integrity of the SSDT and the IDT whenever they

are modified. These data structures and the pages

they reside on were not modified during normal

system operation on our test platform and this check

should only need to be performed rarely, such as

when a piece of software is loaded into the kernel.

With less than 2 page faults per second, the

performance impact of the integrity check is less

than 0.1%. A third event based check, which is also

rare, is to verify the integrity of a page in memory

that contains code or static data of a protected

module if an alteration is made.

The system only performs a full verification of all

the modules the first time or when a new module is

loaded. Otherwise the system performs event based

checks on occurrences as described above which are

rare on our test system. These have minimum impact

on the system performance.

7 THREAT ANALYSIS

In this section we revisit the threat model described

in Section 3 and show how RKRD addresses the

threats discussed there.

• Import Table Hooking. RKRD monitors the

entire control flow of code executing in the

kernel, from memory accesses to higher level

OS control structures, providing malware no

place to insert itself into the control flow.

Specifically, Phase 2 of the algorithm addresses

import and export table hooking. It ensures that

the links (function pointers) between a system

module and its dependencies are unmodified

and point to the exact address location provided

by the dependency in its export table.

• Code & Static Data Modifications. Phase 1 of

the algorithm described above ensures that the

code and static data sections remain unmodified

during the runtime execution of a module. It is

invoked whenever the hypervisor intercepts

events that may cause the memory image of a

module to change.

• IDT/Exception Handler and System call

Table Hooking. Phase 3 of the algorithm

addresses attacks to the system data structures.

As the hypervisor continuously monitors the

structures and intercepts any modification to

them, RKRD can ensure that they are not

altered by malicious code, without limiting

alterations to them by measured code. This

addresses the threat from system call table

hooking and interrupt table hooking.

• Dynamic Kernel Object Manipulation.

RKRD can monitor any structure specified by

the programmer and hence it can monitor

dynamic kernel objects in addition to the IDT

and SSDT data structures specified in the IMM

integrity algorithm.

SECRYPT 2008 - International Conference on Security and Cryptography

418

• Transient Attacks. The RKRD architecture

prevents transient attacks through the use of a

hypervisor which monitors events that may alter

previously measured code or structures. The

monitoring can intercept a modification at the

moment it occurs. On interception, control is

transferred to the higher privilege of the

hypervisor and returns to the guest OS if and

only if the modification is found to be valid.

8 RELATED WORK

Copilot (Petroni et al., 2004) is a kernel integrity

monitor that runs on a coprocessor system attached

to the PCI bus of the host being monitored. This

removes the dependence on the host kernel and can

thus independently monitor the kernel. Copilot

accesses the contents of the host’s main memory

over the PCI bus. However it has been shown that

memory access over the PCI bus can be spoofed to

limit or even alter the contents of the memory being

examined (Rutkowska, 2007). Such an attempt

thwarts the independent monitor. Our technology

does not rely on the PCI bus. Instead we utilize

hardware virtualization to run our monitor and

manager from the highest privilege of a hypervisor.

This provides us with direct access to the system

memory. Furthermore, Copilot cannot detect

transient attacks, those that change the kernel state

and then change it back before Copilot rescans the

system. In our design, the hypervisor can initiate a

system scan the moment measured code or data

structure changes from its last measured state.

PatchGuard (Microsoft Corporation, 2007) is a

Microsoft technology that monitors and measures

essential system data structures and modules in order

to detect tampering. The measuring is done by

performing a checksum. It is however still

dependent on the OS. A kernel rootkit can exploit

that dependency to its own advantage. Our

technology provides protection to the system data

structures and modules by measuring them using a

cryptographic hash from a higher privilege entity,

i.e. the hypervisor using hardware virtualization.

This also enables us to similarly measure any OS

without modifying its source code.

SecVisor (Seshadri et al., 2007) is a hypervisor

that is designed to ensure code integrity for

commodity kernels. It attempts to ensure that code

executing at the kernel privilege level has been

approved by the user. However, it makes no attempt

to ensure that code executing at the kernel privilege

does not tamper with system modules or structure. It

is well understood that such a scenario is possible

using standard driver loading procedures or

exploiting bugs in the kernel. With our approach we

can protect the trusted areas of the kernel from other

areas to detect such attacks. Also, unlike SecVisor,

our approach does not need any modification to the

OS kernel source.

System Virginity Verifier 2.3 (Rutkowska, 2005)

makes sure that a user program or any kernel module

does not modify the code sections in the kernel code.

It is done by verifying if the code sections of

important system DLLs and system drivers (kernel

modules) are the same in memory and in the

corresponding PE file on disk. Our technology is

capable of checking all system drivers loaded, not

just the important kernel modules as in SVV. SVV

uses a software based approach to compare the code

section in the memory and the PE file, unlike our

approach which is based on hardware virtualization.

9 CONCLUDING REMARKS

We presented a runtime rootkit detection system that

uses hardware virtualization technology to measure

and monitor the integrity of a kernel. It ensures

system integrity against an adversary with complete

access to the kernel. We believe that our work has

some importance because it addresses a number of

limitations of the state-of-the-art, as discussed in the

related work section. Our approach is independent of

the OS and does not require any modification to the

measured kernel or system modules. We have

demonstrated the feasibility of our approach via a

prototype implementation that has minimum impact

on the performance on the system.

There are several classes of attacks that RKRD

does not address. RKRD does not address

buffer/integer overflow/underflow attacks. RKRD

also does not address attacks resulting from

conversions to/from canonical formats, input

verification errors and string formatting. In addition

it does not defend against race conditions used for

privilege escalation and DMA device-based attacks.

Another issue not addressed is the management of

signed manifest keys and in the threat model, the

attacks against manifests. In future work, we

propose to enhance the threat model to include some

of these attacks as well as more sophisticated

malware. We would also like to address the main

source of performance impact i.e. the copying of

memory pages from the guest OS to the IMM VM.

AN EVENT-DRIVEN, INCLUSIONARY AND SECURE APPROACH TO KERNEL INTEGRITY

419

ACKNOWLEDGEMENTS

The authors would like to thank David M. Durham

and Hormuzd Khosravi for their contributions to

many of the concepts discussed in this paper as well

as spearheading the RKRD project in the lab. They

would also like to thank Gaya Nagabhushan for

helping with building the RKRD prototype and Jesse

Walker, Prashant Dewan and Travis Schluessler for

their useful suggestions on how to improve the

quality of the paper.

REFERENCES

X. Wang, Y. L. Yin and H. Yu, “Finding Collisions in the

Full SHA-1”, Lecture Notes in Computer Science,

Vol. 3621 (November 2005), pp. 17-36

Microsoft Corporation. “Microsoft portable executable

and common object file format specification”.

Available at: http://www.microsoft.com/whdc/system/

platform/firm-ware/PECOFF.mspx, 2006.

Microsoft Corporation. “Kernel enhancements for

windows vista and windows server 2008”. Available at:

http://www.microsoft.com/whdc/system/vista/kernel-

en. mspx, 2007.

Microsoft Corporation. “Enumdevicedrivers function

(windows)”. http://msdn2.microsoft.com/en-us/library/

ms682617(VS.85).aspx, 2008.

T. Hardjono and N. Smith. “TCG infrastructure working

group architecture part ii – integrity management.

Specification”, Trusted Computing Group, 2006.

https://www.trustedcomputinggroup.org/specs/IWG/I

WG ArchitecturePartII v1.0.pdf.

N. L. Petroni Jr., T. Fraser, J. Molina, and W. A. Arbaugh,

“Copilot - a coprocessor-based kernel runtime

integrity monitor”, In USENIX Security Symposium,

pages 179–194. USENIX, 2004.

J. Rutkowska. “System virginity verifier, defining the

roadmap for malware detection on windows system”.

Kuala Lumpur, Malaysia, September 2005.

J. Rutkowska. “Beyond the CPU: Defeating hardware

based RAM acquisition Tools”, BlackHat DC 2007,

February 2007.

A. Seshadri, M. Luk, N. Qu, and A. Perrig. “Secvisor: a

tiny hypervisor to provide lifetime kernel code

integrity for commodity OSs”. In Thomas C. Bressoud

and M. Frans Kaashoek, editors, SOSP, pages 335–

350. ACM, 2007.

SECRYPT 2008 - International Conference on Security and Cryptography

420
