THE SUBSTITUTION CIPHER CHAINING MODE

Mohamed Abo El-Fotouh and Klaus Diepold

Institute for Data Processing (LDV), Technische Universit

at M

unchen (TUM), 80333 Munich, Germany

Keywords:

Modes of operation, SCC, disk encryption, AES.

Abstract:

In this paper, we present a new tweakable narrow-block mode of operation, the Substitution Cipher Chaining

mode (SCC), that can be efﬁciently deployed in disk encryption applications. SCC is characterized by its

high throughout compared to the current solutions and it can be parallelized. We used this mode to modify

Windows Vista’s disk encryption algorithm, to offer some parallelism in its original implementation and to

improve its diffusion properties.

1 INTRODUCTION

In todays computing environment, there are many

threats to the conﬁdentiality of information stored on

end user devices, such as personal computers, con-

sumer devices (e.g. PDA), and removable storage me-

dia like (e.g., USB or external hard drive). A common

threat against end user devices is device loss or theft,

that can lead to identity theft and other frauds. Some-

one with physical access to a device has many op-

tions for attempting to view or copy the information

stored on that device. Another concern is insider at-

tacks, such as an employee attempting to access sensi-

tive information stored on another employees device.

Malware, another common threat, can give attackers

unauthorized access to a device, transfer information

from the device to an attackers system, and perform

other actions that jeopardize the conﬁdentiality of the

information on a device (NIST, 2007).

Usually the data stored on the PC asset is often

signiﬁcantly more valuable to a corporation than the

asset itself (Ferguson, 2006). To prevent the disclo-

sure of sensitive data, the data needs to be secured.

Disk encryption applications are usually used to pro-

tect the data on the disk by encrypting it, where all the

data is encrypted with a single/multiple key(s) and en-

cryption/decryption are done on the ﬂy, without user

interference.

Disk encryption usually encrypts/decrypts a

whole sector at a time. There exist dedicated block

ciphers to encrypt the whole sector at a time like Bear,

Lion, Beast and Mercy (Anderson and Biham, 1996;

Anderson and Biham, 1996; Lucks, 1996; Crowley,

2001). Bear, Lion and Beast are considered to be

slow, as they process the data through multiple passes.

And Mercy was broken in (Fluhrer, 2002). The other

method is to let a block cipher like the Advanced en-

cryption standard AES (Daemen and Rijmen, 1998)

(with 16-bytes as a block size) to process the data

within a mode of operation. These modes of operation

can be divided into two main classes the narrow-block

and wide-block modes. The narrow-block modes op-

erate on relatively small portions of data (typically

16-bytes when AES is used), while the wide-block

modes encrypt or decrypt a whole sector (typically

512-bytes) at a time (IEEE P1619 homepage, 2007).

The current narrow-block modes of operations

are either slow and do not offer error propagation

(like XTS (Rogaway, 2003) and LRW (Liskov et al.,

2002)) or are subjected to some attacks like (CBC and

CFB (Menezes et al., 1996)). A need for a new secure

and fast mode of operation, that offer error propaga-

tion, has aroused.

In this paper, we propose a novel narrow-block

disk encryption mode of operation. We named this

mode Substitution Cipher Chaining mode (SCC). The

SCC mode is a tweakable block cipher mode of oper-

ation, that is base on Cipher Block Chaining mode

(CBC) (Menezes et al., 1996) and the Static Substi-

tution Model (SSM) (El-Fotouh and Diepold, 2008a).

The SSM model can provide a block cipher with a

secondary key. The secondary key is used to replace

some bits of the cipher’s expanded key. In SCC, each

sector has its unique tweak, this tweak and the pre-

vious ciphertext block will replace some bits of the

expanded key (with the exception to the ﬁrst block).

421

Abo El-Fotouh M. and Diepold K. (2008).

THE SUBSTITUTION CIPHER CHAINING MODE.

In Proceedings of the International Conference on Security and Cryptography, pages 421-429

DOI: 10.5220/0001917904210429

 SciTePress

In section 2, we will present the constraints fac-

ing the disk encryption applications. In section 3, we

will describe the current narrow-block modes of op-

erations used in disk encryption. In section 4, we pre-

sented our proposed mode of operation. In section 5,

we present a performance analysis and a benchmark

among the narrow-block modes of operations. In sec-

tion 7, we present out proposed modiﬁcation to Win-

dows Vista’s disk encryption algorithm. Finally, we

present our conclusions in section 8.

2 DISK ENCRYPTION

Disk encryption is usually used to encrypt all the

data on the hard disk, where all the hard disk is

encrypted with a single/multiple key(s) and encryp-

tion/decryption are done on the ﬂy, without user in-

terference (El-Fotouh and Diepold, 2007). The en-

cryption is on the sector level, that means each sector

should be encrypted separately. In the following sub

section, we will deﬁne the existing constrains.

2.1 Disk Encryption Constraints

The main constraints:

Data Size. The ciphertext length should be the same

as the plaintext length. In this paper, we will use

the current standard (512-bytes) for the plaintext.

Performance. The used mode of operation should be

fast enough, as to be transparent to the users (If

using the mode of operation results in a signif-

icant and noticeable slowdown of the computer

there will be great user resistance to its deploy-

ment (Ferguson, 2006)).

2.2 General Scheme

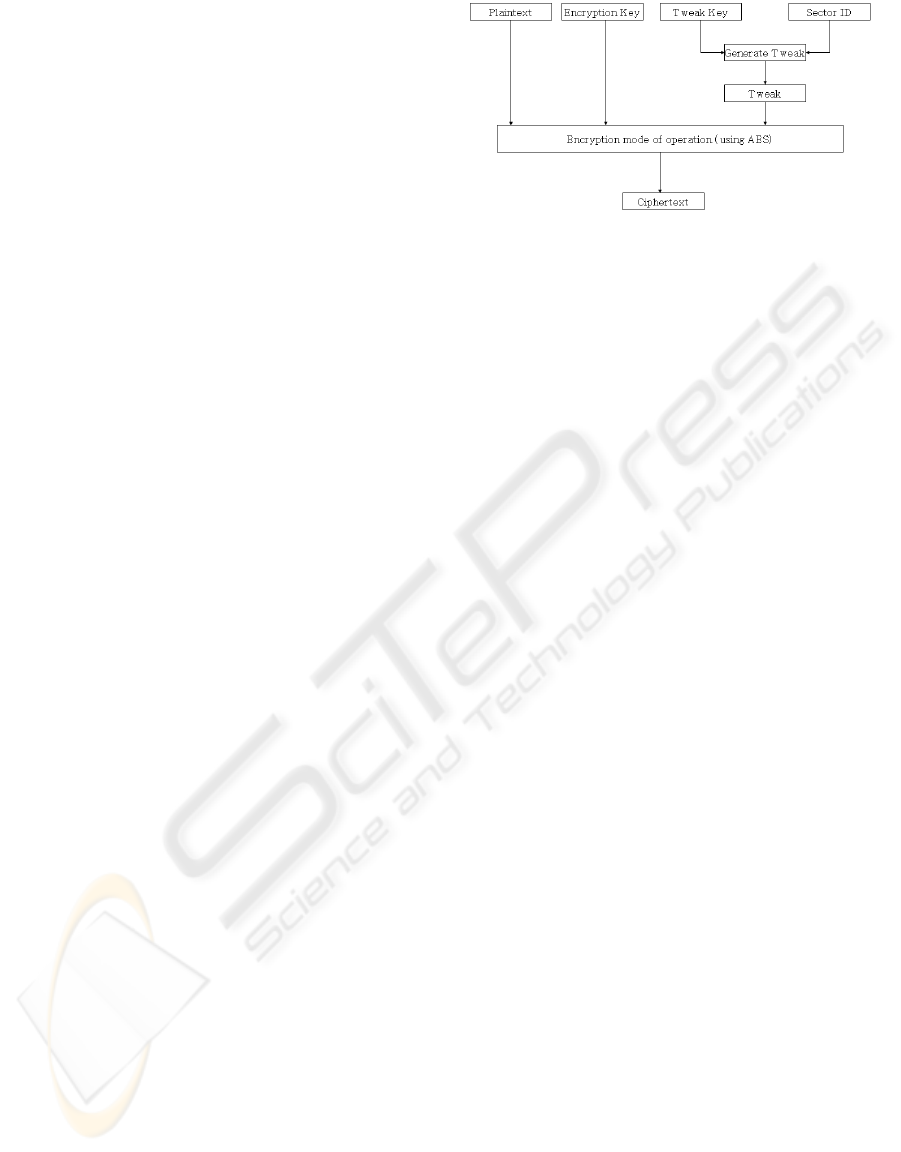

In Figure 1, we present our general scheme for en-

crypting a sector, where the mode of operation takes

four inputs to calculate the ciphertext (4096-bits).

These inputs are:

1. The plaintext of size 4096-bits.

2. Encryption key of size 128 or 256-bits.

3. Tweak Key of size 128 or 256-bits.

4. Sector ID of size 64-bits.

2.3 Tweak

Usually a block cipher accepts the plaintext and the

encryption key to produce the ciphertext. Modes

Figure 1: Disk encryption general scheme for encrypting a

sector.

of operations have introduced other inputs. Some

of these mode use initial vectors like in CBC, CFB

and OFB modes (Menezes et al., 1996), counters

like in CTR (McGrew, 2002) or nonces like in OCB

mode (Rogaway et al., 2001). The idea of using a

tweak was suggested in HPC (Schroeppel, 1998) and

used in Mercy (Crowley, 2001). In (Liskov et al.,

2002), the formal deﬁnition of tweakable block ci-

phers has been introduced. In this paper, the term

tweak is associated with any other inputs to the mode

of operation with the exception of the encryption key

and the plaintext.

2.4 Tweak Calculation

There are different methods to calculate the tweak

from the sector ID like ESSIV (Fruhwirth, 2005) and

encrypted sector ID (Ferguson, 2006). We are going

to use the encrypted sector ID approach, where the

sector ID (after being padded with zeros) is encrypted

by the tweak key to produce the tweak.

3 NARROW-BLOCK MODES OF

OPERATIONS

3.1 Terminologies

The following terminologies are used to describe the

modes of operations in this paper.

IN. The input plaintext of size 4096-bits.

EK. The encryption key of size 128 or 256-bits.

TK. The tweak key of size 128 or 256-bits.

BK. The block key of size 128 or 256-bits.

SID. The sector ID encoded as 64-bits unsigned inte-

ger.

GetTweak(TK,SID). Encrypts (using AES) SID af-

ter padding with zeros with TK and returns the

result.

SECRYPT 2008 - International Conference on Security and Cryptography

422

Table 1: CBC listing for disk encryption.

Encrypt-CBC(IN,EK,TK,SID)

T=GetTweak(TK,SID)

ExKey=Expand-Key(EK)

= IN

AES-Encrypt(ExKey,IN

,OUT

)

for i=1 to 31

= IN

OUT

i−1

AES-Encrypt(ExKey,IN

,OUT

)

end for

return OUT

T. The tweak.

ExKey. The expanded AES key.

Expand-Key(EK). Expands the EK with the AES

key setup routine and returns the result.

. The i

block of text X, where a block is 128-bits.

. Bitwise xor operation.

AES-Encrypt(ExKey,IN,OUT). Encrypts IN, using

the AES encryption routine with ExKey as the ex-

panded key, and returns OUT.

. Multiplication operation in ﬁnite ﬁeld.

+. Integer addition operation modulo 2

Substitute(T,ExKey,i). Replaces the i

round sub-

keys in ExKey with T (Note that: the ﬁrst round of

the AES is round zero and it is the pre-whitening

process).

len(X). Returns the length of the string X in bits.

3.2 CBC: Cipher Block Chaining

CBC is the most used cipher mode of operation for

hard disk encryption (Fruhwirth, 2005), where usu-

ally each sector is encrypted with a different initial

vector (IV). The listing of CBC is in table 1. Where

for the ﬁrst block the plaintext is xored with the tweak

before it is encrypted, and for the other blocks the

plaintext is xored with the last ciphertext block be-

fore it is encrypted. This recursive structure does not

allow parallelization.

For CBC, an attacker with read/write access to the

encrypted disk can copy a ciphertext sector from one

position to another, and an application reading the

sector of the new location will still get the same plain-

text sector (except perhaps the ﬁrst 128-bits) (IEEE

P1619 homepage, 2007). In CBC, the attacker can ﬂip

arbitrary bits in one block at the cost of randomizing

the previous block (Ferguson, 2006). Other attacks

like Watermarking attack is also applicable (Fruh-

wirth, 2005). Due these weaknesses we do not rec-

ommend using CBC in disk encryption applications.

Table 2: CFB listing for disk encryption.

Encrypt-CFB(IN,EK,TK,SID)

T=GetTweak(TK,SID)

ExKey=Expand-Key(EK)

AES-Encrypt(ExKey,T,OUT

)

OUT

= OUT

for i=1 to 31

AES-Encrypt(ExKey,OUT

i−1

,OUT

)

OUT

= OUT

end for

return OUT

Table 3: LRW listing for disk encryption.

Encrypt-LRW(IN,EK,TK,SID)

ExKey=Expand-Key(EK)

for i=0 to 31

TK = TK

SID

= IN

AES-Encrypt(ExKey,IN

,OUT

)

OUT

= OUT

SID=SID +1

end for

return OUT

3.3 CFB: Cipher Feedback

CFB turns a block cipher into a self-synchronizing

stream cipher. The listing of CFB is in table 2. Where

the ﬁrst ciphertext block is the result of the xor pro-

cess between the ﬁrst plaintext block and the tweak

after encryption, and for the other blocks the plain-

text is xored with the encryption of the last ciphertext

block to produce the next ciphertext block. This re-

cursive structure does not allow parallelization.

Using CFB without message authentication code

(MAC) (Menezes et al., 1996) is trivially malleable,

and an attacker with write access to the encrypted me-

dia can ﬂip any bit of the plaintext simply by ﬂipping

the corresponding ciphertext bit (IEEE P1619 home-

page, 2007). Due this weakness we do not recom-

mend using CFB in disk encryption applications.

3.4 LRW

LRW is a tweakable mode of operation that can be

easily parallelized. The listing of LRW is in table 3.

It xors the plaintext before and after encryption with

the tweak key (Note that the tweak key is multiplied

”in the ﬁnite ﬁeld of AES” in each loop with a counter

”initialized by the sector ID”).

The IEEE Security in Storage work group

(SISWG) used it in its early draft as a standard for

narrow-block encryption mode (when AES is the un-

derlying cipher). Then it was replaced by XTS due

to the following security issue. An attacker can de-

THE SUBSTITUTION CIPHER CHAINING MODE

423

Table 4: XTS listing for disk encryption.

Encrypt-XTS(IN,EK,TK,SID)

T=GetTweak(TK,SID)

ExKey=Expand-Key(EK)

for i=0 to 31

X = T

= IN

AES-Encrypt(ExKey,IN

,OUT

)

OUT

= OUT

end for

return OUT

rive the LRW tweak key TK from the ciphertext, if

the plaintext contains TK||0

or 0

||TK. Here || is the

concatenation operator and 0

is a zero block. This

may be an issue for software that encrypts the parti-

tion of an operating system under which this encryp-

tion software is running (at the same time). The op-

erating system could write the LRW tweak key to en-

crypted swap/hibernation ﬁle. If the tweak key TK is

known, LRW does not offer indistinguishability un-

der chosen plaintext attack anymore, and the same in-

put block permutation attacks of ECB mode are pos-

sible (IEEE P1619 Email Archive, 2007). Due these

weaknesses we do not recommend using LRW in disk

encryption applications.

3.5 XTS

XTS is a tweakable mode of operation that can be eas-

ily parallelized. The listing of XTS is in table 4. It

xors the plaintext before and after encryption with the

tweak value (Note that the tweak value is multiplied

in the ﬁnite ﬁeld GF(2

128

) in each loop with the i

power of α ”a primitive element of GF(2

128

)”).

XTS is now the current narrow-block standard of

SISWG, it is slower than LRW. XTS is an instantia-

tion of XEX (Rogaway, 2003) mode of operation and

this mode of operation has a problem when a lot of

data is encrypted with the same key, because a colli-

sion will appear. In case of a collision between block

i and block j, the attacker can use his ability to cre-

ate legally encrypted data for position i and his ability

to modify ciphertext in position j to modify the ci-

phertext at j so it will decrypt to an arbitrary attacker-

controlled value. This security leak appears, when the

same key is used to encrypt more than a terabyte of

data (IEEE P1619 homepage, 2007).

4 PROPOSED MODE

4.1 Goals

The goals of designing the SCC mode are:

Security. The constraints for disk encryption imply

that the best achievable security is essentially

what can be obtained by using ECB mode with

a different key per block (IEEE P1619 homepage,

2007). This is our aim.

Performance. SCC should be at least as fast as the

current solutions.

Error Propagation. SCC should propagate error to

further blocks (this may be useful in some appli-

cations).

4.2 Keys

The secret key in SCC is divided into three different

keys (each of them can be either 128- or 256-bits):

1. EKey. which is used to generate the expanded

key, used in encrypting the blocks .

2. TK. which is used to encrypt the sector ID to pro-

duce the tweak.

3. BK. which is used to generate the BT array, where

BT is an array of sixty four 128-bits words.

• BT is constructed once at the initialization of

SCC mode.

• BT is constructed using the AES in the counter

mode, where the counter is initialized with zero

and BK is the encryption key for the counter

mode.

4.3 Design

We decided to build the SCC mode using the SSM

model (El-Fotouh and Diepold, 2008a) to inherit from

its security and high performance and use CBC like

operations to gain the error propagation property. The

listing of SCC is in table 5 and it works as follows:

• The tweak T is calculated by encrypting the sector

ID with the tweak key TK, due to this step the

value of the tweak is neither known nor controlled

by the attacker.

• The expanded key ExKey is calculated.

• the values of x, y and z are determined by the en-

cryption key size.

• For the ﬁrst block:

– The secret tweak T replaces the subkeys of the

round.

SECRYPT 2008 - International Conference on Security and Cryptography

424

Table 5: SCC listing for disk encryption.

Encrypt-SCC(IN,EK,Keylen,TK,SID)

T=GetTweak(TK,SID)

ExKey=Expand-Key(EK)

KL=len(EK)

if(KL==128)

x=4 y=5 z=6

else

x=5 y=7 z=10

end if

Substitute(T,ExKey,y)

Substitute(BT

,ExKey,x)

Substitute(BT

,ExKey,z)

AES-Encrypt(ExKey,IN

,OUT

)

for i=1 to 31

Substitute(BT

2×i

,ExKey,x)

Substitute(BT

2×(i+1)

,ExKey,z)

TT=OUT

i−1

⊕ T

Substitute(TT,ExKey,y)

AES-Encrypt(ExKey,IN

,OUT

)

end for

return OUT

– The secret 128-bits BT

replace the subkeys of

the x

round.

– The secret 128-bits BT

replace the subkeys of

the z

round.

– The ﬁrst block is encrypted by the new ex-

panded key.

• A loop that runs 31 times (where i takes the values

from 1 to 31):

– The secret 128-bits BT

2×i

replace the subkeys

of the x

round.

– The secret 128-bits BT

(2×i)+1

replace the sub-

keys of the z

round.

– A variable TT is calculated by xoring cipher-

text of the previous block with T.

– TT acts as the active tweak and replaces the

subkeys of the y

round in the expanded key.

– The i

block is encrypted by the new expanded

key.

4.4 Discussion of SCC Mode

The goal of SCC is to encrypt each block on the hard

drive in a different way. This was achieved by using

the SSM model, where:

• The active tweak TT is placed in the middle of

the expanded key, to offer full diffusion and full

confusion properties in both the encryption and

decryption directions (i.e any difference between

two active tweaks, will be associated with full

confusion and full diffusion in both the encryp-

tion and decryption directions, eliminating the bit-

ﬂipping attack of the CBC mode). Note that AES

requires only four rounds to obtain full bit con-

fusion (or mixing) and diffusion (each input bit

affecting each output bit) properties (May et al.,

2002).

• Note that the active tweak TT is the result of xor-

ing:

1. The tweak T (which is unique, secret and not

controlled by the attacker).

2. The ciphertext of the previous block (which is

known and controlled by the attacker).

3. From the above two notes, the attacker does not

know the value of TT, but can ﬂip its bits. But

as TT replaces the subkeys of the y

round

(which is in the middle of the cipher), any

change in TT will be associated with full con-

fusion and full diffusion in both the encryption

and decryption directions.

• Replacing the subkeys of the x

and z

rounds of-

fers full diffusion and full confusion in the encryp-

tion and decryption directions among the blocks

of the same sector. Note that all the values of BT

are unique and key dependent.

Notes:

1. By introducing the tweak, the attacker can not

perform the mix-and-match attack (IEEE P1619

homepage, 2007) among blocks of different sec-

tors, as each sector has a unique secret tweak. The

tweak replaces the subkeys of the middle round

of the AES to assure that any difference between

two tweaks, will be associated with full confusion

and full diffusion in both the encryption and de-

cryption directions. Thus, encrypting two equal

blocks in different sectors will produce two differ-

ent ciphertexts and decrypting two equal blocks in

different sectors will produce different plaintexts.

2. By introducing the BT array values (that replaces

certain words in the expanded key) the attacker

can not perform the mix-and-match attack among

the blocks within the same sector. As each sec-

tor has two distinct 128-bits in the expanded key.

This requirement is achieved in both the encryp-

tion and decryption directions. As equal plain-

text blocks (within the same sector), will have the

same state until the x

encryption round then the

state will change. And equal ciphertext blocks

(within the same sector), will have the same state

until the z

decryption round then the state will

change.

4.5 Pros of SCC

Security. Each sector is encrypted in a different way,

so replacing ciphertext between different sectors

THE SUBSTITUTION CIPHER CHAINING MODE

425

Table 6: Theoretical operational time for each mode of op-

eration.

Encryption calls Multiplication calls

CBC 33 0

CFB 33 0

LRW 32 32

XTS 33 32

SCC 33 0

will not help the attacker, as they are encrypted

with a different expanded keys and each block

within the sector is encrypted in a different way,

due to the use of BT (so the attacker will not ben-

eﬁt from changing the positions of the blocks).

Performance. SCC possesses high performance as it

uses only simple and fast operations.

Parallelization. SCC can be parallelized, actually it

favors the dual core processors, it can be paral-

lelized as following (using two processor cores):

• The second processor will compute till the y

round for all the plaintext blocks (except the

ﬁrst block), to produce intermediate ciphertext

blocks.

• The ﬁrst processor will compute the ﬁrst ci-

phertext block form the ﬁrst plaintext block.

• The ﬁrst processor will compute the other ci-

phertext blocks form intermediate ciphertext

blocks processed by the second processor.

In this way the ciphertext will be produced after

16.5 encryptions.

Error Propagation. As each sector depends on its

previous sector, error propagation is met.

5 PERFORMANCE ANALYSIS

5.1 Operational Time

5.1.1 Theoretical

Usually the theoretical time is calculated with how

many encryption calls are needed by each mode of

operation, as the other operations like the xor or addi-

tion is considered negligible. But LRW and XTS uses

ﬁnite ﬁeld multiplication, which requires about half

the time needed by the AES encryption (128-bits ver-

sion) (McGrew, 2004). Table 6 summarizes the num-

ber of AES and ﬁnite ﬁeld multiplication calls needed

by each mode.

Table 7: Number of clock cycles reported by each mode of

operation.

Key length 128-bits Key length 256-bits

CBC 12630 16898

CFB 12585 16935

LRW 19778 24015

XTS 24420 28846

SCC 12660 16867

5.1.2 Practical Operational Time

The Speed presented in table 7, are obtained form the

optimized Gladman’s C implementation (Gladman,

2006), Running on a PIV 3 GHz (Note that the val-

ues reported are in processor clock cycles). Note that

the reported values are the minimum of 1000 mea-

surements, to eliminate any initial overheads or cache

misses factors.

5.1.3 Parallel Implementation

With the wide spread of multi-core processors, speed-

ing up encryption using parallelization is made possi-

ble and parallelization is not a luxury anymore and

can increase the performance signiﬁcantly. Encryp-

tion mode of operation should support parallelization.

CBC and CFB can not be parallelized, while LRW,

XTS and SCC can be parallelized.

5.2 Benchmark

To summarize our results, we present a benchmark.

The results of the benchmark is presented in table 8,

where under column:

Speed. we reported the speed ranking of each mode

of operation (note: CBC, CFB and SCC possess

the same rank as they require almost the same

number of clock cycles).

Parallelization. we reported the number of encryp-

tion calls required for each mode on a dual-core

processor (after the tweak is calculated).

Error Propagation. we reported if the mode pos-

sesses the error propagation property or not.

From the results in table 8, it is clear that SCC mode is

superior than all the other modes in all the benchmark

metrics and we recommend its use in disk encryption

applications.

6 ELEPHANT

Windows Vista Enterprise and Ultimate editions use

Bitlocker Drive Encryption as its disk encryption al-

SECRYPT 2008 - International Conference on Security and Cryptography

426

Table 8: Benchmark of the modes of operations.

Speed Parallelization (dual core) Error propagation

CBC 1 32

√

CFB 1 32

√

LRW 4 16 X

XTS 5 16 X

SCC 1 16.5

√

gorithm, and at its heart is the AES-CBC + Ele-

phant diffuser encryption algorithm (ELEPHANT).

Bitlocker uses existing technologies like the AES in

the CBC mode and TPM (Trusted Computing Group,

2008), together with two new diffusers. Figure 2

shows an overview of ELEPHANT (Ferguson, 2006).

There are four steps to encrypt a sector:

1. The plaintext is xored with a sector key K

(1).

2. The result of the previous step run through dif-

fuser A.

3. The result of the previous step run through dif-

fuser B.

4. The result of the previous step is encrypted with

AES in CBC mode using IV

(2), as the initial

vector.

= E(K

sec

, e(s)) k E(K

sec

, e

(s)) (1)

= E(K

AES

, e(s)) (2)

Where E() is the AES encryption function, K

sec

is a

key used to generate K

, K

AES

is the key used to gen-

erate the sector IV

and used in the AES-CBC pro-

cess, e() is an encoding function that maps each sector

number s into a unique 16-byte value. The ﬁrst 8 bytes

of the result are the byte offset of the sector on the vol-

ume. This integer is encoded in least-signiﬁcant-byte

ﬁrst encoding. The last 8 bytes of the result are al-

ways zero and e

(s) is the same as e(s) except that the

last byte of the result has the value 128.

Note that the plaintext and key are parameterized. In

our study we used the following parameters:

1. Plaintext of size 4096-bits (the current standard

sector size).

2. We examined the 256-bits key version of the AES

(that supports maximum security), that means

both K

sec

and K

AES

of size 256-bits.

6.1 The Diffusers

Diffuser A and diffuser B are very similar. The fol-

lowing notations are used to deﬁne the diffusers:

1. d

is the i

32-bits word in the sector, if i falls

outside the range then d

i mod n

, where n is the

number of the 32-bits in the sector.

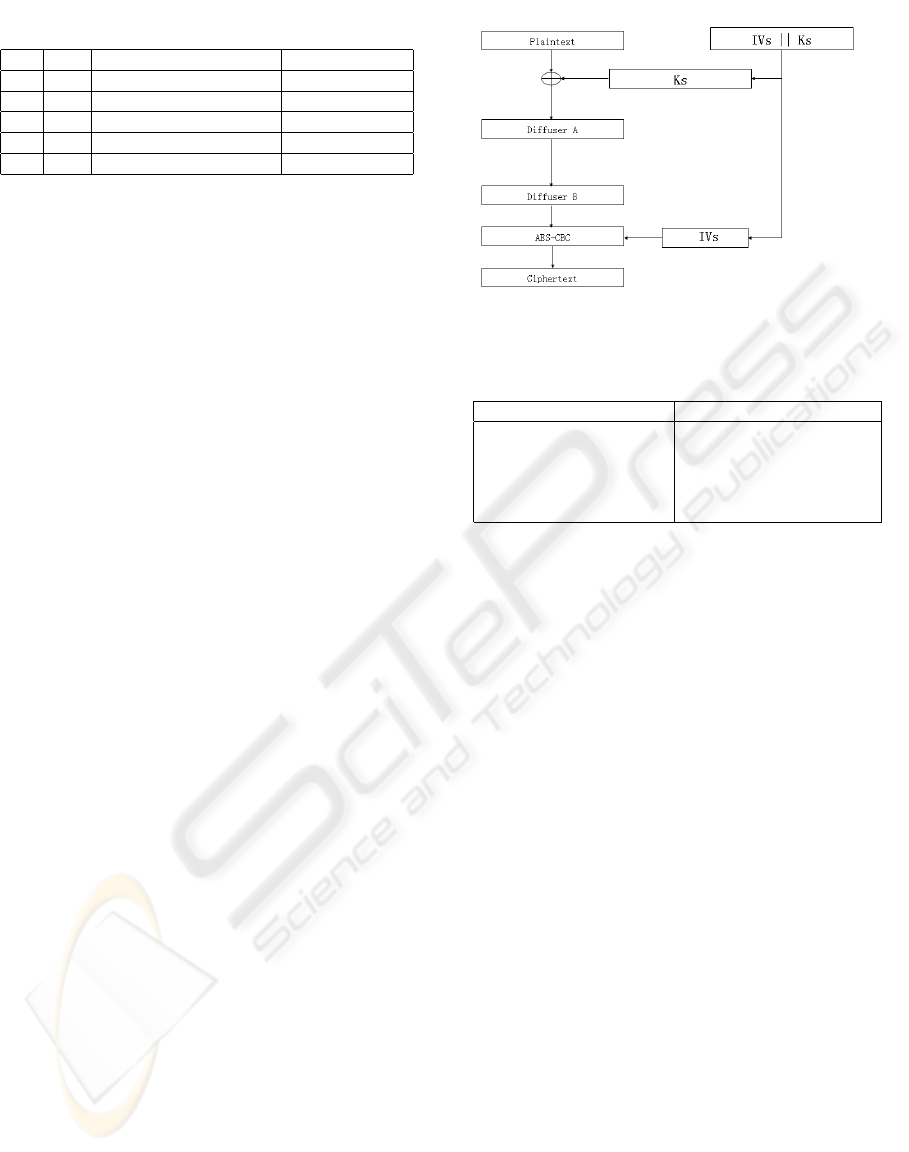

Figure 2: Overview of AES-CBC with Elephant Diffuser.

Table 9: Diffuser A and diffuser B.

Diffuser A: Diffuser B:

for j=1 to AC for j=1 to BC

for i=n-1,...,2,1,0 for i= n-1,...,2,1,0

t=(d

i−5

<< RA

i mod 4

) t=(d

i+5

<< RB

i mod 4

)

t=t ⊕ d

i−2

t=t ⊕ d

i+2

= d

- t d

= d

- t

2. AC and BC are the number of cycles of diffuser A

and B, they are deﬁned to be 5 and 3 respectively.

3. RA = [9, 0, 13, 0] and RB = [0, 10, 0, 25] hold

the rotation constants of diffuser A and B respec-

tively.

4. ⊕ is the bitwise xor operation.

5. << is the integer 32-bits left rotation operation,

where the rotation value is written on its right size.

6. - is integer subtraction modulo 2

Table 9 presents the description of diffuser A and dif-

fuser B.

6.2 Proposed Modiﬁcation

We propose to replace the CBC layer in ELEPHANT

with a SCC layer. Pros of this modiﬁcation over the

original design:

• The SCC can be parallelized on a dual core ma-

chine, which can increase the performance.

• SCC has a better error propagation effect than

CBC in decryption direction, as more bits of

plaintext will be affected by a single bit change

(typically 256-bits for the SCC and 129-bits for

CBC).

• We named our variants ELEPHANT

(when

AC=5 and BC=3) and ELEPHANT

∗

(when

AC=BC=3).

THE SUBSTITUTION CIPHER CHAINING MODE

427

6.3 Bit Dependency Tests

• BD-Encryption() (El-Fotouh and Diepold,

2008b): is passed, when each bit in the ciphertext

depends on every bit in the plaintext. It tries to

answer: does each bit in ciphertext depend on all

the bits in the plaintext?

• BD-Decryption() (El-Fotouh and Diepold,

2008b): is passed, when each bit in the plaintext

depends on every bit in the ciphertext. It tries to

answer: does each bit in plaintext depend on all

the bits in the ciphertext?

The Bit-dependency functions are measured as fol-

lowing:

1. A dependency matrix M is constructed of size B

× B (where B is the number of bits in the plain-

text/ciphertext, here B = 4096).

2. The diagonal is initialized by 1 and all other bits

are set to zero, as initially each bit depends only

on itself.

3. Depending on the applied operation the matrix M

is updated, BD-Encryption applies the operation

in the encryption direction and BD-Decryption

applies them in the decryption direction.

4. If an output bit is dependent on an input bit(s), the

column of the output bit is ORed with that (those)

of the input bit(s). For example:

(a) Xor operation: each output bit is dependent on

the corresponding input bit.

(b) Addition and subtraction modulo 2

opera-

tions are approximated to xor operation for sim-

plicity and generality.

128-bit is dependent on the other 127-bits.

(d) AES operation in SCC: each bit in the previous

block (with the exception of the ﬁst block) af-

fects all the bits of the encrypted block (as full

confusion and full diffusion properties are met).

(e) 32-bits rotation: the columns change there or-

der depending on the rotation amount and di-

rection.

5. All the operation of the tested ciphers are applied

and the matrix M is updated.

6. At the end the sum of all ones in the matrix is

added and is divided by B

7. If the returned value in the previous step is 1, this

means that each bit of the output bits depends on

all the bits of the input and the function is passed,

it fails otherwise.

Table 10: BD-Encryption and BD-Decryption results.

Pass AC

AC BC SF Speed

ELEPHANT true 2 1 5 3 2.7 22147

ELEPHANT

true 0 2 5 3 4 22098

ELEPHANT

∗

true 0 2 3 3 3 21635

The results of applying BD-Encryption and BD-

Decryption functions are found in table 10, where

we reported the minimum values of AC and BC each

algorithm needs to pass these tests (under columns

and BC

), together with the used values. The

results show that ELEPHANT needs at least AC=2

and BC=1 to pass BD-Encryption and BD-Decryption

functions, while ELEPHANT

∗

and ELEPHANT

need only BC=2 to pass them and the SCC layer does

the rest of the diffusion.

7 PERFORMANCE

We studied the performance of the optimized C ver-

sions of the ciphers. For the diffusers we used loop

unrolling mechanism (Davidson and Jinturkar, 1995)

and for the AES we used optimized Gladmann’s im-

plementation (Gladman, 2006). The results are listed

in table 10 under column speed, note that the reported

measurements are done on a PIV 3 GHz processor

running on Windows Vista, where the programming

environment was Microsoft VC++ 6. Here we report

the number of clock cycles needed by each cipher,

which is the minimum of 1000 iteration to remove any

initial overheads or cache misses. The results show

that ELEPHANT and ELEPHANT

possess the same

speed, while ELEPHANT

∗

is about 23% faster than

them.

We deﬁne the Safety Factor (SF) in (3), which

is the ratio between the total number of used dif-

fusers’ cycles over the minimum required. SF rep-

resents how safe is the current number of diffusers’

cycles, under any circumstances this ratio should not

be less than one. The values of SF are reported in

table 10. These values show that ELEPHANT

and

ELEPHANT

∗

possess a higher SF than ELEPHANT.

SF = (AC +BC ) ÷(AC

+ BC

) (3)

From (Ferguson, 2006), suppose an attacker is at-

tacking two identical hard drives, one encrypted with

ELEPHANT and the other one encrypted with CBC.

We are going to give the attacker the tweak key (K

sec

this means the attacker can now perform the diffusion

layer for any plaintext. In other words, the diffuser

layer becomes transparent to the attacker. All what is

left now for the attacker is to attack the CBC layer,

SECRYPT 2008 - International Conference on Security and Cryptography

428

which is the same problem that he has when attacking

the other hard drive (encrypted only using CBC). Al-

though we helped the attacker signiﬁcantly by provid-

ing him with the tweak key, he still have to attack the

CBC layer. This shows that attacking ELEPHANT is

not easier than attacking just CBC, and ELEPHANT

is at least as secure as CBC.

By applying the same methodology,

ELEPHANT

and ELEPHANT

∗

are at least se-

cure as SCC, however they possess a higher SF than

ELEPHANT.

8 CONCLUSIONS

In this paper, we proposed a novel mode of operation

for disk encryption applications. We analyzed this

mode with the state of the art modes. Our proposed

mode is superior than the other modes, as it possesses

a high throughput. Although, it was designed based

on the CBC mode, it can be parallelized and does not

suffer from the bit-ﬂipping attack. We used this mode

to modify Windows Vista’s encryption algorithm, to

enhance some of its diffusion properties together with

the ability to be partially parallelized.

REFERENCES

Anderson, R. and Biham, E. (1996). Two practical and

provable secure block ciphers: BEAR and LION. In

Dieter Gollmann, editor, Fast Software Encryption:

Third International Workshop (FSE’96).

Crowley, P. (2001). Mercy: a fast large block cipher for disk

sector encryption. In Bruce Schneier, editor, Fast Soft-

ware Encryption: 7th International Workshop, FSE

2000.

Daemen, J. and Rijmen, V. (1998). AES Proposal: Rijndael.

http://citeseer.ist.psu.edu/daemen98aes.html.

Davidson, J. and Jinturkar, S. (1995). An Aggressive Ap-

proach to Loop Unrolling. Technical report, Depart-

ment of Computer Science. University of Virginia.

Charlottesville.

El-Fotouh, M. and Diepold, K. (2007). Statistical Testing

for Disk Encryption Modes of Operations. Cryptology

ePrint Archive, Report 2007/362.

El-Fotouh, M. and Diepold, K. (2008a). Dynamic Substitu-

tion Model. In 22nd Annual IFIP WG 11.3 Working

Conference on Data and Applications Security (DB-

SEC’08), Naples, Italy.

El-Fotouh, M. and Diepold, K. (2008b). The Analysis of

Windows Vista Disk Encryption Algorithm. In The

Fourth International Conference on Information As-

surance and Security (IAS’08), London, UK.

Ferguson, N. (2006). AES-CBC + Elephant diffuser :

A Disk Encryption Algorithm for Windows Vista.

http://download.microsoft.com/download/0/2/3/

0238acaf-d3bf-4a6d-b3d6-

0a0be4bbb36e/BitLockerCipher200608.pdf.

Fluhrer, S. (2002). Cryptanalysis of the Mercy block cipher.

In Mitsuru Matsui, editor, Fast Software Encryption,

8th International Workshop, FSE 2001.

Fruhwirth, C. (2005). New Methods in Hard Disk Encryp-

tion. http://clemens.endorphin.org/nmihde/nmihde-

A4-ds.pdf.

Gladman, B. (2006). AES optimized C/C++ code. http: //

fp.gladman.plus.com/ AES /index.htm.

IEEE P1619 Email Archive (2007). http:// grouper.ieee.org/

groups/ 1619/ email/ thread.html.

IEEE P1619 homepage (2007). Draft 18 for P1619:

Standard Architecture for Encrypted Shared Stor-

age Media. http://attachments.wetpaintserv.us/

Wbr7V2GY67Sxaxbw6ZFBeQ %3D%3D262488.

Liskov, M., Rivest, R., and Wagner, D. (2002). Tweakable

Block Ciphers. In CRYPTO ’02: Proceedings of the

22nd Annual International Cryptology Conference on

Advances in Cryptology.

Lucks, S. (1996). BEAST: A fast block cipher for arbitrary

blocksizes. In Patrick Horster, editor, Communica-

tions and Multimedia Security II, Proceedings of the

IFIP TC6/TC11 International Conference on Commu-

nications and Multimedia Security.

May, L., Henricksen, M., Millan, W., Carter, G., and Daw-

son, E. (2002). Strengthening the Key Schedule of

the AES. In ACISP ’02: Proceedings of the 7th Aus-

tralian Conference on Information Security and Pri-

vacy, pages 226–240, London, UK. Springer-Verlag.

McGrew, D. (2002). Counter Mode Secu-

rity: Analysis and Recommendations.

http://citeseer.ist.psu.edu/mcgrew02counter.html.

McGrew, D. (2004). PRP Modes Compari-

son IEEE P1619.2. http://grouper.ieee.org/

groups/1619/email/pdf00050.pdf.

Menezes, A., Oorschot., P. V., and Vanstone, S. (1996).

Handbook of Applied Cryptography. CRC Press.

NIST (2007). Guide to Storage Encryp-

tion Technologies for End User Devices.

http://csrc.nist.gov/publications/nistpubs/800-

111/SP800-111.pdf.

Rogaway, P. (2003). Efﬁcient Instantiations of Tweak-

able Block ciphers and Reﬁnements to Modes

OCB and PMAC. http://citeseer.ist.psu.edu/ rog-

away03efﬁcient.html.

Rogaway, P., Bellare, M., Black, J., and Krovetz, T. (2001).

OCB: a block-cipher mode of operation for efﬁcient

authenticated encryption. In ACM Conference on

Computer and Communications Security, pages 196–

205.

Schroeppel, R. (1998). The Hasty Pudding cipher. The ﬁrst

AES conference, NIST.

Trusted Computing Group (2008). TCG TPM Speciﬁcation

Version 1.2. www. trustedcomputinggroup.org.

THE SUBSTITUTION CIPHER CHAINING MODE

429
