CSTEG: TALKING IN C CODE

Steganography of C Source Code in Text

Jorge Blasco Al

ıs, Julio Cesar Hernandez-Castro, Juan M. E. Tapiador

and Arturo Ribagorda Garnacho

Computer Science Department, University Carlos III of Madrid, Av. Universidad 30, 28911, Legan

es, Spain

Keywords:

Export restrictions, Steganography, Information Hiding.

Abstract:

Cryptographic software has suffered in many ocassions from export restrictions. Governments might claim

that cryptographic algorithms are equivalent to military equipment to justify and maintain these restrictions.

Sometimes, these laws are approved under dictatorial rules or even by democratric goverments which exploit

and overstimate a terrorist menace to restrict civil rights. Citizens have evaded these restrictions in many ways:

handwriting the program’s source code and then typing it again, printing the source code in a t-shirt, using

some kind of steganographic technique, etc. In this paper, we present a system called CSteg that hides source

code into plain text by using context-free grammars. This presents the additional advantage that under some

laws plain text is protected (and its exportation allowed) by free-speech and/or intellectual property legislation.

1 INTRODUCTION

Governments have frequently restricted the export

and even the use of cryptographic software and source

code by civilians. Use of cryptography in military en-

vironments has made it a weapon, instead of a tool

to protect conﬁdentiality. During the 90s these re-

strictions were applied when some civilians tried to

export source code of cryptographic tools outside the

United States (R.Karn, 1994; Bernstein, 1992). All

these people found that the United States government

denied the required free export application.

As a justiﬁcation, the government claimed that the

electronic version of the code was easy to compile

to produce a fully working program. After years of

trials, in 2000 the Sixth Circuit Court sentenced that

electronic source code was protected by freedom of

speech.

In 1995 a group of 40 countries, signed the Wasse-

naar Agreement

. This regulates the transfer of

weapons, and dual-use goods and technologies. Cryp-

tography was included as a dual-use technology.

Now, most of the cryptographic software can be

obtained without export license, but these laws could

be used in the future to restrict its free distribution.

With this work we try to offer a suitable method

to export source code evading any restriction further

those that applied to printed literature or speech. Ex-

http://www.wassenaar.com

port of some kinds of source code may be restricted

by law, so we will have to transform the source code

into an exportable object. It is obvious that we can-

not use cryptography to solve this problem. In this

scenario, steganography (not included in Wassenar’s

agreement or in most export laws) becomes the best

solution, as stego-objects have the property of going

unnoticed if properly created.

The remainder of this document is structured as

follows. Section 2 describes the basics of steganogra-

phy. Section 3 brieﬂy presents the solution proposed

to solve the problem. Section 4 describes the ex-

periments carried out to verify the proposed solution.

Section 5 shows and analyzes the results obtained in

the experiments. Section 6 discusses the conclusions

gathered in this work.

2 STEGANOGRAPHY

First well-documented usage of steganography was

made by the Greeks. On 480 B.C, Demaratus wanted

to warn the Spartans against an invasion by Xerxes,

the Persian leader. Demaratus sent a message written

on a wooden table covered by wax, so it could pass

all the guard controls and arrive to Sparta.

Since those days, steganography has developed as

a science, and many different approaches have been

used to cover contents of any kind. Image Steganog-

raphy (Neil F. Johnson, 1998) is one of the most used

399

Blasco Alís J., Cesar Hernandez-Castro J., M. E. Tapiador J. and Ribagorda Garnacho A. (2008).

CSTEG: TALKING IN C CODE - Steganography of C Source Code in Text.

In Proceedings of the International Conference on Security and Cryptography, pages 399-406

DOI: 10.5220/0001925403990406

 SciTePress

techniques. Most simple techniques hide information

on the least signiﬁcant bits (LSB) of each pixel. An-

other widely used cover are digital audio ﬁles. Au-

dio steganography also includes techniques such as

LSB (similar to image LSB steganography). Audio

steganography can be performed also in compressed

audio ﬁles like MP3s. Some tools like MP3Stego (Pe-

titcolas, 2006) can hide information during the inner

loop step, by modiﬁying the DCT values.

More steganographic techniques can be found in

the literature, including subliminal channels (Sim-

mons, 1996), SMS (Mohammad Shirali-Shahreza,

2007), TCP/IP packets (Murdoch and Lewis, 2005),

executable ﬁles (El-Khalil, 2003) and games (Castro

et al., 2006).

3 HIDING SOURCE CODE

We have developed a stego-system (Csteg) based on

context-free grammars. Our design allows transform-

ing a source code ﬁle into a plaintext ﬁle (stego-text).

A grammar describing the source code structure is

used to produce the stego-texts. The stego-text gen-

erated has no export restrictions

. Stego-text can be

recovered at its destiny applying the reverse grammar.

Recovered source code keeps all the functionality of

the original source code.

Other text steganography systems based on

context-free grammars have been developed in the

past: Spammimic

can convert a short text message

into an email Spam message. Another tool is C to En-

glish to C (Schwarz, 2001) which translates C source

code to the English explanation of it. In 2001, Mart-

tila (Marttila, 2001) conceived a system to hide source

code inside a text.

Martilla designed a tool called c2txt2c that, by using

context-free grammars, was able to produce an En-

glish text from the source code of the Blowﬁsh ci-

pher. Martilla’s c2txt2c is very limited as it was not

able to hide another cryptographic algorithm except

for Blowﬁsh. We have continued Marttilia’s research

and designed and implemented a tool that hides con-

sistently any source code into plain text. On the other

hand, using context-free grammars to produce stego-

text has its drawbacks. Producing meaningful texts is

difﬁcult and, additionally, the used grammar should

be able to parse any source code provided. Finally,

the use of the same grammar to hide all the input ﬁles

may generate similar stego-texts which might ease an

attack. To improve the security of the system it could

at least in the reviewed legislations

http://www.spammimic.com

be advantegeous to have the possibility of generating

very different stego-texts, even from the same source

ﬁle.

Our system uses a plain text ﬁle to produce

context-free grammars. The aim is to be able to pro-

duce different grammars just by changing the input

ﬁle. This will also help to build meaningful stego-

texts. These plaintext ﬁles should have special char-

acteristics.

• The content of the text ﬁle should have sense and

meaning.

• Text ﬁle should have the maximum possible

length. Our system will extract portions of the ﬁle

to generate the grammar.

• Files used by the system should not be restricted

by any copyright.

To perform the recovery process, our stego-system

will need the stego-text and the same input text ﬁle

that was used to hide the source code (Figure 1). In

this case a reverse grammar will be generated, pro-

ducing the original source code as output. The text ﬁle

used to hide and restore the source code can be con-

sidered as the key of the stego-system, as it is needed

to restore the source code and a different ﬁle will pro-

duce different stego-texts.

Figure 1: Stego-system scheme.

3.1 Grammar Generation

Grammar generation can be divided in two different

steps. First step builds the grammar to hide the source

code. Second step builds the grammar to restore the

source code (recovery grammar). Both grammars

must be generated with the same cover-text as input.

3.1.1 Creating the Hiding Grammar

The ﬁrst step in creating the hiding grammar is to

read the source code ﬁles. The resulting grammar

is closely related to the programming language to be

hidden. The cover-text ﬁle is used to generate the

output of the parsing process. Output for each rule

(P) of the grammar (G) is extracted from the cover-

text ﬁle (Figure 2). To avoid conﬂicts in the recovery

process, fragments ( f

) used to produce output cannot

be repeated. Each of the fragments can be attached

SECRYPT 2008 - International Conference on Security and Cryptography

400

to a terminal symbol (t

) so it will be its output in

the stego-text. Nevertheless, is not necessary to have

only one fragment per terminal symbol. A non termi-

nal (S, A, B) derivation with just one terminal symbol

may use more than one text fragment to produce the

output. In this case, the output for that derivation will

be the concatenation of these fragments.

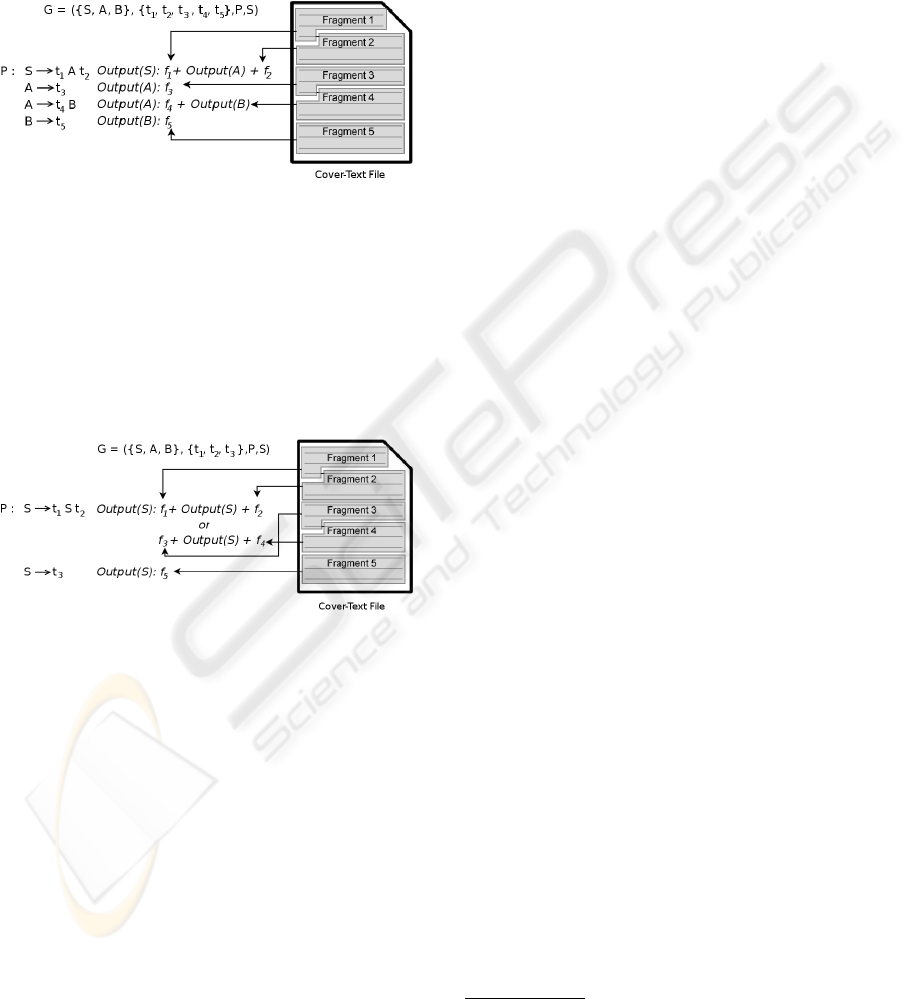

Figure 2: Hiding grammar construction.

Programming languages have a high redundancy.

This can be exploited to mount a steganographic at-

tack based on frequency analysis. To reduce the fea-

sibility of these attacks, some rules of the grammar

may have different number of outputs from the text

ﬁle. This output should be selected randomly between

the random fragments selected from the cover-text ﬁle

(Figure3).

Figure 3: Random fragments in hiding grammar.

Programming languages also have speciﬁc kinds

of tokens, like identiﬁers and literals. A speciﬁc hid-

ing strategy must be used for each. Strategies used in

Csteg are described in section 4.1.

3.1.2 Creating the Recovery Grammar

This grammar is able to parse stego-text ﬁles to pro-

duce source code ﬁles. In this case, fragments ex-

tracted from the plain text ﬁle are used as terminal

symbols of the grammar. The programming language

grammar is used as a template of the recovery gram-

mar. Terminal symbols in the programming language

grammar are substituted by fragments of the cover-

text ﬁle. The output produced by each of the grammar

rules includes the original programming language ter-

minal symbols.

One derivation can have more than one output.

This output is selected randomly between the group

of outputs for that derivation. In the case of the recov-

ery grammar, this translates to multiple derivations

producing the same output. Each of the derivations

parses one of the different outputs produced by the

stego-text grammar.

Hiding methods for special tokens (identiﬁers,

etc.) have their special recovery mechanism included

inside the description of the recovery grammar.

3.1.3 Speciﬁc Programming Languages Issues

A context-free grammar describing the programming

language is not enough to build stego-text ﬁles.

Source code is usually split into different ﬁles. Some

programming languages, like C and C++, may in-

clude preprocessor directives in their code. All these

must be processed before the parsing process starts.

Decisions taken to solve this issue in Csteg are de-

scribed in section 4.

3.2 Stego-text Generation and Recovery

Process

The stego-text is generated following a typical com-

piler/parser process. Source code is read and a deriva-

tion tree is built. Each of the activated derivations

generates its output which includes fragments of the

cover-text ﬁle. The output is concatenated using the

derivation tree. The ﬁle produced is the stego-text ﬁle.

The cover-text ﬁle works as the key of the stego-

system. This ﬁle is necessary to recover the original

source code. The recovery grammar parses the stego-

text ﬁle to produce the source code ﬁles. Generated

source code ﬁles have the same functionality of the

original source code.

4 EXPERIMENTS

The system previously described has been tested with

an implementation that hides ANSI C source code.

This implementation has been called Csteg. The

stego-system has been implemented using Ruby and

C. Parsers are produced through Flex

and Bison

parser generators. Cover-text ﬁles have been retrieved

from Project Gutenberg

. Both grammars share non-

terminal symbols. Terminal symbols are different in

each grammar. The C grammar includes the common

http://ﬂex.sourceforge.net

http://www.gnu.org/software/bison/

http://www.gutenberg.org

CSTEG: TALKING IN C CODE - Steganography of C Source Code in Text

401

Figure 4: Parser generation process.

terminal symbols from the C programming language

(if, else, identiﬁers, literals, etc.). Terminal sym-

bols for the stego-text grammar are extracted from

the Project Gutenberg’s book used as cover-text. In

Csteg, terminal symbols of the stego-text grammar

can be words, phrases or paragraphs of the cover-text.

Parser generation process is described in Figure 4.

4.1 Extraction of Stego-text Terminal

Symbols

This phase extracts terminal symbols from the cover-

text ﬁle provided. Terminals are extracted from

Project Gutenberg cover-texts and attached to the

stego-text grammar. The text ﬁle used to generate the

stego-text grammar should be able to produce at least

one terminal for each terminal in the grammar. As in

other programming languages, C has some structures

that may be more used than others. The frequency of

appearance of this structures may lead to a speciﬁc

frequency appearance of cover-text terminal symbols.

To complicate frequency-based steganalysis, we

have added random stego-text derivations for the most

used C structures. We have analyzed the mostly used

structures and tokens of a group of C source code

ﬁles with cryptographic purposes. Files have been

gathered from different sources including eStream

(ECRYPT, 2008), Applied Cryptography (Schneier,

1996) and an implementation of the Anubis cipher

(Vincent Rijmen, 2008).

Table 1: Frequency of C tokens in cryptographic software.

Token type Appearance in %

Punctuator 51.59

Identiﬁer 30.02

Numerical literal 11.63

Reserved word 4.77

String literal 1.29

Preprocessor directive 0.7

Measures have been made with tools taken from

(Jones, 2003). Comments have not been accounted.

Frequency distribution of C tokens gathered in our

tests is described in Table 1.

Table 2: Freq. of punctuator tokens in analyzed software.

Token Frequency Token Frequency

, 21.52 -> 2.05

; 13.21 . 1.82

( 12 * 1.73

) 12 | 1.34

= 5.41 # 1.19

] 4.8 v++ 1.11

[ 4.8 + 1

{ 2.21 *v 0.92

} 2.21 Other 11.68

Table 3: Freq. of reserved words in cryptographic software.

Word Frequency Word Frequency

if 14.84 static 2.93

int 13.79 register 2.84

unsigned 9.25 case 2.83

char 8.84 while 2.60

for 8.30 break 2.54

void 5.85 sizeof 1.54

else 5.09 extern 1.21

return 5.02 short 1.14

long 3.74 struct 0.98

const 3.49 Other 3.15

Most used punctuator tokens are described in Ta-

ble 2. Reserved words frequency is more homoge-

neous (Table 3).

We have found that inside each group of possi-

ble tokens (punctuators and reserved words) there are

only a few tokens which are commonly used. The rest

of the tokens are used rarely compared with the com-

mon tokens (Figure 5).

To reduce the difference in the redundancy of frag-

ments linked to most used programming language to-

kens, we have introduced random derivations. Each

time a symbol from this group is derived, his output

will be chosen randomly from a group of cover-text

fragments.

Table 4: Random derivations per punctuator.

# Additions Gap Tokens

1 20 100%-14% ,

2 14 14%-6% ; ()

3 4 6%-2% = [ ] { } ->

4 1 2%-0% Other

Most used tokens in each of the analyzed sets have

been grouped deﬁning boundaries on their frequency

(Tables 2 and 3). For each group, a number of random

cover-text derivations have been added. The number

of derivations added in a group is directly related with

SECRYPT 2008 - International Conference on Security and Cryptography

402

Figure 5: Most used tokens.

boundaries selected for that group. Four groups have

been created for each set (punctuator tokens and re-

served words). The highest appearance group will

correspond to the one with more random derivations.

The last group will not have any random derivation

on it. Groups deduced for punctuators are shown in

Table 4.

The same procedure has been used for reserved

words. The results are shown in Table 5.

Table 5: Random cover-text derivations per reserved word.

# Additions Gap Tokens

1 10 100%-9% if,int,unsigned

2 8 9%-5% char,for,void,

else,return

3 3 4%-1% long,const,case,short

static,register,extern

while,break,sizeof

4 1 1%-0% Other

There are elements inside the source code that can

not be hidden with substitutions from the cover-text.

These elements have been hidden by using special

techniques.

• Identiﬁers are replaced by names. Each time an

identiﬁer is found, a symbol table is looked up. If

the identiﬁer is not in the symbol table, it is stored

on it and associated with an English name. The

output in this case is the identiﬁer concatenated

with the associated name. If the identiﬁer is in the

symbol table, nothing is added to the table and the

output produced is just the English name associ-

ated with that identiﬁer.

• A String literal can use any kind of character. We

have implemented a simple Caesar cipher to hide

the content of this kind of literals. The ciphered

string will be imperceptible inside the stego-text.

• Numerical literals that appear in the code are

translated into “poems” with a substitution algo-

rithm. The digits of the literal are substituted by

poem words. Each of the different digits has ten

different words to choose randomly for its substi-

tution.

4.2 Parser Generation

Terminal symbols extracted from the cover-text must

be introduced into the grammar description ﬁle. We

have used Flex and Bison to produce our parsers.

Each time an operation is performed only one parser

is generated. A hide operation will generate a C parser

producing a stego-text as output. A recovery oper-

ation will generate a stego-text parser that produces

C source code as output. To produce the parsers the

source code generated by Flex and Bison is compiled.

4.3 Covering Process

The C parser is able to parse any kind of C source

code. The output of this parser is the stego-text. C

preprocessor directives have not been hidden. Source

code ﬁles that are going to be hidden have to pass

through a C preprocessor.

Our preprocessor treats the ﬁle inclusion direc-

tives differently than an usual C preprocessor. When

the preprocessor ﬁnds an #include directive it checks

if the ﬁle included is a system library (with <>) or

a user library (with “ ”). System libraries are not in-

cluded in the auxiliary ﬁle. If system libraries were

included the lines of code to be hidden would sig-

niﬁcantly increase. Reference to system libraries is

hidden like a string literal. On the other hand, user

libraries source code is included in the auxiliary ﬁle.

The use of a C preprocessor means that most of the

preprocessor directives included in the code are lost in

the recovery process. The hiding process will make

that the recovered source code will not be exactly the

same source code that was hidden, but it will have

exactly the same functionality.

4.4 Recovering Process

Stego-text parser reads the stego-text ﬁles and gener-

ates C source code ﬁles.

In order to regain the functionality of the original

source code, a post processing is needed. If the pre-

processed ﬁle was the result of some ﬁle inclusions,

the source code ﬁles which were included are created.

This restores the original source code ﬁle structure.

All experiments have been performed over cryp-

tographic C source code ﬁles. Twelve experiments

have been performed. Each consisted on the con-

cealment and the recovery of the source code of a

cryptographic algorithm. Four different algorithms

CSTEG: TALKING IN C CODE - Steganography of C Source Code in Text

403

have been chosen: Anubis, 3DES, IDEA and DECIM.

Each of the algorithms has been hidden using three

different types of terminal symbols from the cover-

text ﬁle (words, phrases and paragraphs). Differ-

ent books from Project Gutenberg’s repositories have

been used as cover-texts.

5 RESULTS

The size of stego-texts generated (Figure 6) strongly

depends on the kind of terminal symbol selected.

Stego-texts generated with words from the cover-text

are naturally smaller than stego-texts generated with

paragraphs. Obviously, the average size of the termi-

nal symbols in the second case is bigger. The hiding

process has removed all preprocessor directives ex-

cept ﬁle inclusions, which remain unchanged. Com-

ments have been lost.

Figure 6: File size chart.

We have computed the number of bytes of the

stego-object produced per byte of hidden information

(Table 6). This can be used as a redundancy estima-

tion. To perform this calculation we have divided the

size of the stego-object by the size of the recovered

source code. Our stego-system, as expected, has in-

troduced a lot of redundancy into the stego-object.

Table 6: Bytes of stego-text per byte of source code.

Anubis 3Des Idea Decim

Words 8.32 6.83 5.49 4.32

Phrases 31.42 36.95 66.64 32.72

Paragraphs 136.45 147.08 338.56 108.508

Stego-text compression ratio (using bzip2) com-

pared with original and recovered source code ﬁles

(Figure 7) indicates again, that stego-text ﬁles have a

considerable redundancy. Stego-text ﬁles generated

with words have much less redundancy than those

generated with phrases and paragraphs. Differences

on the compression ratio between phrases and para-

graphs are not signiﬁcant. A redundancy check by an

attacker of the stego-text would rise suspicions. This

security drawback could be reduced by adding more

random stego-text derivations. In the ideal situation

our stego-text would not have any repetition. In this

case, the compression ratio would not be the same as

the source code but it would be less suspicious.Word

generated stego-texts have the lower compression ra-

tio, but they only are a conjunction of generally mean-

ingless words. Due to the minimum differences be-

tween phrases and paragraphs stego-texts, it should

be a better choice the use of paragraphs to build the

stego-texts.

Figure 7: Compression ratio chart.

Stego-text generated should comply with the fre-

quency distribution of characters in English. We have

measured the frequency of appearance of characters

and digraphs in all stego-texts generated. Unfortu-

nately, distribution of letters in texts depends on the

length, language, and the text itself.

Figure 8: Comparison of character distribution.

Frequency of appearance of characters usually is

similar between text of the same language and length,

but it can be easily manipulated, as in the case of li-

pograms

. Aside from these rare cases we have build

A lipogram is a text which does not use a speciﬁc letter.

SECRYPT 2008 - International Conference on Security and Cryptography

404

frequency distributions for characters and digraphs

based on 235 different books from Project Gutenberg.

This frequency distribution will give a good approxi-

mation of the characteristic frequency distribution for

texts in English.

Frequency distribution of characters (Figure 8)

in stego-texts generated with words from a Project

Gutenberg book differs a lot from the reference distri-

bution. Stego-texts with paragraphs and phrases are

much closer to the reference distribution. Digraphs

frequency (Figure 9) is consistent with this observa-

tion. Stego-texts generated with phrases and para-

graphs ﬁt better the reference digraph distribution.

Figure 9: Comparison of digrams distribution.

Finally, we have compared the main propierties

of CSteg against other text steganography tools de-

scribed in this paper (Table 7).

Table 7: Text steganography tools comparision.

Input Variability Key

CSteg C source. Yes Yes

c2txt2c Blowﬁsh. No No

C to English to C C source No No

Spammimic Text No Yes

6 CONCLUSIONS AND FUTURE

WORK

Our system can hide any C ﬁles independently of its

length. As the size of the embedded data increases,

the redundancy of the stego-text also increases, re-

ducing the security of the system against redundancy-

based steganalysis. Our Stego-texts carry the same

functionality of the original source code ﬁles.

A notable example is “La Disparition” (Perec, 1969). None

of the 300 pages contained the letter “e”.

Stego-texts generated can avoid cryptographic ex-

port restrictions. Our system is able to produce mean-

ingful stego-texts. A human can ﬁnd common struc-

tures of the human language. This is an important

issue that will help the stego-text to pass unnoticed

by a passive attacker. On the other hand, grammar

parsers are very sensitive to changes. A change in the

stego-text by an active attacker will probably cause

the embedded data to be lost.

Future lines of work will try to improve the most

important weakness of the system. Robustness of the

system should be improved. This could be achieved

by means of a synonyms system. Redundancy may be

reduced adding random derivations. Others lines of

work may include the use of this kind of stego-system

to hide any kind of information, not only source code.

The software resulting from this research (Csteg)

has been uploaded to SourceForge.net

REFERENCES

Bernstein, D. (1992). Bernstein case web page. http://

cr.yp.to/export.html.

Castro, J. C. H., Lopez, I. B., Tapiador, J. M. E., and Gar-

nacho, A. R. (2006). Steganography in games. Com-

puters and Security, 25(1):64–71.

ECRYPT (2008). eSTREAM Project. http://

www.ecrypt.eu.org/stream/.

El-Khalil, R. (2003). Hydan. http://crazyboy.com/hydan/.

Jones, D. M. (2003). The New C Standard: A Cultural and

Economic Commentary.

Marttila, L. (2001). Accurate language to inaccu-

rate language (and back) translator, c2txt2c v0.2.1.

http://www.verkkotieto.ﬁ/∼lm/c2txt2c/.

Mohammad Shirali-Shahreza, M. H. S.-S. (2007). Text

steganography in sms. Int. Conference on Conver-

gence Information Technology, pages 2260–2265.

Murdoch, S. J. and Lewis, S. (2005). Embedding covert

channels into tcp/ip. Information Hiding, pages 247–

261.

Neil F. Johnson, S. J. (1998). Exploring steganography.

IEEE Computer, 31(2):26–34.

Perec, G. (1969). La Disparition. Gallimard, Paris.

Petitcolas, F. A. P. (2006). MP3Stego. http://

www.petitcolas.net/fabien/steganography.

R.Karn, P. (1994). Applied cryptography case

web page. Web. http://people.qualcomm.

com/karn/export/history.html.

Schneier, B. (1996). Applied Cryptography. John Wiley

and Sons, 2nd edition.

Schwarz, O. (2001). C to English to C. http://

www.mit.edu/∼ocschwar/.

http://www.sourceforge.net

CSTEG: TALKING IN C CODE - Steganography of C Source Code in Text

405

Simmons, G. J. (1996). The history of subliminal channels.

In Proceedings of the First International Workshop on

Information Hiding, pages 237–256.

Vincent Rijmen, P. S. L. M. B. (2008). The Anubis

Block Cipher. http://paginas.terra.com.br/ informat-

ica/paulobarreto.

SECRYPT 2008 - International Conference on Security and Cryptography

406
