CRYPTONET: SECURE E–MAIL SYSTEM

Sead Muftic and Gernot Schmölzer

Department of Computer and System Sciences, Royal Institute of Technology, Stockholm, Sweden

Keywords: Secure E-mail, cryptography, SMIME, security architecture, SAML, smart cards.

Abstract: The paper describes new, innovative and highly secure E–mail system. The system, first, provides both

standard security services for E-mail letters: signed and encrypted E–mail. In addition, address book is

encrypted, thus E-mail addresses can not be stolen for spamming. Each E–mail server is protected using

SAML authorization policy, so E–mails are received only from authorized senders. Finally, all E–mail

addresses are validated and certified by specially designed Secure E–mail Infrastructure (SEI) Authorities,

organized in a federated hierarchy. Thus CryptoNet Secure E–mail system completely eliminates spam,

distribution of viruses, worms, and malware, and eliminates the possibility to use fake E–mail addresses.

1 INTRODUCTION

E–mail is one of the most popular Internet

applications. Not only that it transfers E–mail letters,

but it is also used to transfer binary (multimedia)

attachments, various notifications, business

documents, etc. These aspects make E–mail system

even more important than its original purpose.

In terms of problems, they are numerous. E–mail

today is overloaded with spam, which is one of the

most serious problems today in the Internet. Another

problem is that E–mail is today the main mean to

distribute viruses, worms, malware, spyware and

other forms of troublesome software. Finally, E–

mail is also used to perform financial fraud, identity

theft, intellectual property theft, and other serious

Internet problems.

In terms of new opportunities, E–mail system

can be used as a secure and reliable application for

serious business transactions. For that, current E–

mail systems must provide reliable and verifiable

identities, secure and protected E–mail letters, and

new services, like notifications of receipts,

registered E–mail, authorizations, secure distribution

of E–mails in groups, etc.

Based on all of the above, it is of high

importance and high interest today to design,

standardize and put in experimental operation a new,

secure and reliable E–mail system. The system

should eliminate all problems and issues with

current E–mail implementations and at the same

time fulfill some or all of the advanced user

requirements. At the same time, the system should

be suitable for transparent incorporation into the

current E–mail components, infrastructure and

protocols, so that it can be easily installed, deployed,

activated and used on a large scale.

This paper describes the design, implementation

and use of such secure, trusted, authorized, and

reliable E–mail system, here called Secure E–Mail

(SEM) System.

2 PROBLEMS AND

REQUIREMENTS

New features of the SEM System can be structured

in two groups: those solving current problems and

the others, providing additional features and

satisfying additional requirements. This section lists

and briefly describes both of these categories and as

such, it servers as description of features and

properties of the new, SEM System, described in the

subsequent sections of this paper.

2.1 Problems with Current E-Mail

Today, authentication of users from Mail Clients to

Mail Servers is usually performed using username

and password. This is generally considered as very

weak authentication method and also as the source

of many system penetrations.

The second problem is protection of mailboxes

and E–mail letters on E–Mail Servers against illegal

Muftic S. and Schmölzer G. (2008).

CRYPTONET: SECURE E–MAIL SYSTEM.

In Proceedings of the International Conference on Security and Cryptography, pages 84-91

DOI: 10.5220/0001929800840091

 SciTePress

and unauthorized reading. Today it depends on

security features of native operating systems, which

is either inadequate or most of the time even not

enforced. The same is the case with client machines.

The third problem is protection of E–mail letters

against illegal reading and/or modifications while in

transfer. The interpretation of this aspect is that the

intended recipient of an E–mail letter cannot be

guaranteed to the sender and the original content of

E–mail letters cannot be guaranteed to the recipients.

The next problem is spam. The essence of this

problem is that mail today is delivered without

authorization – in principle every sender and mail

server may send an E–mail letter to any recipient.

Another problem is that content of the address

book at the mail client (user workstations) is kept in

clear. That is very often the source of stolen E–mail

addresses, collected by spyware or viruses installed

at client computers.

If users are using security features of the current

E–mail clients, i.e. encryption and digital signatures,

then corporate E–mails cannot be retrieved by

corporate authorities and law enforcement

authorities. This may cause problems in case of lost

mail, terminated employees, and/or law enforcement

procedures.

Finally, E–mail is used for distribution of

malicious and dangerous content, like viruses,

worms, spyware, bots, etc.

2.2 Requirements for New Services

In addition to the problems listed in the previous

section, in order to be used for serious business

transactions, E–mail system must support a number

of additional requirements and desirable properties.

Some of them are the following:

Handling of attachments is very inefficient.

Today, if an E–mail letter with a large attachment is

sent to a group of people, the large E–mail travels

through many mail servers and reaches all

recipients. Therefore, it overloads the network, mail

servers’ storage space and mail client’s disk space.

The attachments cannot be distributed selectively

and efficiently.

Confirmation of delivery and confirmation of

receipt are not supported today by most of mail

clients.

Handling of certificates is, first, optional and

second usually performed by the associated browser

(Internet Explorer for the Outlook and Firefox for

Thunderbird). Some E–mail clients cannot even

handle and use certificates. Verification of

certificates is also either optional or not available.

Usage of smart cards with current E–mail

systems is very complicated and therefore very

rarely used.

Authorization, for users to submit E–mail to the

mail server and to send E–mail to the designated

recipient and for mail servers to submit mail to the

designated mail server, is not enforced. This is the

main reason for spam, since any mail server can

send E–mail to any other mail server.

There are no cross–domain bilateral or

multilateral arrangements, synchronization of

policies, coordination of assurance levels,

negotiation of security and cryptographic protocols

and algorithms, etc., all features already

standardized for Web services and many other types

of network applications.

3 LAYERED ARCHITECTURE OF

THE SECURE E–MAIL

SYSTEM

SEM System is created through (a) new E–mail

client, (b) security extensions of E–mail servers, and

deployment is based on usage of current clients, then

only a limited set of security problems and

requirements from section 2 can be addressed.

The concept of the SEM System is a layered

architecture, comprising four layers. The layering

principle is that components at the higher layer

“sponsor” components at the lower layer. The

bottom layer is SEM Clients layer. The next layer is

SEM Servers layer. The layer above is Credentials

Servers layer. It contains CA Servers and SoA

Authorization Servers (usually called Policy

Decision Points – PDP). The components located in

these three layers are deployed inside an

organization i.e. inside an administrative or security

domain. The fourth layer is new, here introduced as

Secure Mail Infrastructure (SMI), comprising SMI

Servers. Their functions, topology and inter–

relationships are described in section 7 of this paper.

4 LAYER 1: SECURE E–MAIL

CLIENTS

SEM Client performs the following functions and

supports the following standard mailing and

additional security features:

CRYPTONET: SECURE E–MAIL SYSTEM

4.1 Standard Mailing Functions

SEM Client performs all standard mailing functions:

reading and sending E–mail letters, displaying and

deleting retrieved E–mail letters and attachments,

handling of local mailboxes, editing/using local

address book, simple configuration of the client,

spell–checking, etc.

4.2 Handling of Certificates

The first security extension of the SEM Client is

handling of certificates. It is performed in the

following way:

 Two self–signed certificates (digital signature

and key exchange certificates) are automatically

generated upon initial startup of the Client.

 If smart cards are installed, keys are generated

in the card and certificates are stored in the card.

The card is used to perform SEM Client’s

security functions.

 If CA Server is configured, two certificates are

requested and received from the CA Server.

 If PKI policy requires, key exchange key pair is

generated and escrowed by the CA Server.

4.3 Standard Security Services

With possession of the two certificates, SEM Client

performs standard security services for E–mail

letters: digital signing E–mail letters and

encryption/enveloping of E–mail letters. In order to

perform these two functions, SEM Client has the

following capabilities:

 It can inquire and obtain recipient’s certificate

by sending request to its own SEM Server (see

also section 5.1), which re–directs the request to

the recipient’s SEM Server, which returns the

certificate to the sender’s SEM Server, which

passes it back to the sender’s SEM Client.

 If the intended recipient does posses the

certificate (this is always the case of SEM

System users), all E–mail letters between two

users are encrypted and signed.

 If the certificate request does not return

recipient’s certificate, all E–mails to that

recipient are signed, but not encrypted.

 Certificate chain is included in an initial E–mail

to the SEM System user (recipient).

 All received certificates are verified before

stored in the local certificates database.

4.4 Usage of Smart Cards

If smart cards are available, SEM Client uses smart

cards. Smart cards are used in the following way:

 Key pairs are generated in the card and

certificates are stored in the card.

 All security functions (digital signatures and

enveloping of the E–mail letter encryption key)

are performed by the smart card.

 Smart card is also used to store encryption key

for the Address Book.

4.5 Protection of the Address Book

All entries in the Address Book are kept encrypted.

The entries are decrypted on the fly when listed on

the GUI panel of the SEM Client. Cryptographic

protection of the Address Book is performed in the

following way:

 Cryptographic key (symmetric) is generated at

the initial activation of the SEM Client.

 The SEM Client has the function to change

address book encryption key, in which case

address book must be re–encrypted.

 If smart cards are used, the key is generated and

kept in the card. In case that the card is lost, the

key is escrowed at the SEM Server.

 If the card is not used, the key is stored in the

SEM Client’s local file, encrypted with user’s

SEM Client is started, so address book key and

system during its operations.

 If the new entry in the Address Book is created

or an existing entry is updated, the SEM Client

decrypts the Address Book’s key, creates new

entry or updates the existing entry.

 The entries in the Address Book have sequence

numbers, so they are displayed in clear, but they

do not have to be decrypted on the disk if an

entry needs to be deleted.

 If the address book encryption key is stored in

smart card and the card is lost or if the local key

file is corrupted, then the Address Book can not

be recovered, so encryption key is

escrowed/enveloped at the SEM Server.

 SEM Client has the function to fetch Address

Book’s encryption key from the SEM Server, if

the recovery is needed.

4.6 Confirmations

SEM Client provides three confirmations to the

sender for each E–mail: confirmation of delivery,

SECRYPT 2008 - International Conference on Security and Cryptography

confirmation of receipt, and confirmation of

acceptance. SEM Client performs the following

functions with confirmations:

 Receive confirmation of delivery from the

recipient’s SEM Server.

 Receive confirmation of receipt from the

recipient’s SEM Server.

 Receive confirmation of acceptance from the

recipient’s SEM Server.

 Maintain the status of E–mail letters in the

Outbox, based on those confirmations, and

display that status when listing the Outbox.

4.7 Strong Authentication with the

SEM Server

Since both, SEM Client and SEM Server have their

key exchange certificates, these certificates are used

to perform strong authentication between the SEM

Client and SEM Server. The transfer protocol is

SSL, so that all transfers of E–mail letters between

SEM Client and SEM Server are strongly protected.

4.8 Management of Authorizations

Distribution of spam is eliminated by applying the

standard concept of authorizations adapted from the

service–oriented architecture (SoA) to the SEM

System. Sending of an E–mail letter is an action

performed by the sender’s E–Mail Server (in SoA

terminology – service consumer) using recipient’s

E–Mail Server (service provider). This action must

be authorized. Using the concept of role–based

access control and XACML policies, authorizations

are based on “white lists”, applied by SEM Servers

at both ends of the transmission – by senders’ SEM

Server and also by receivers’ SEM Server:

 At the receiving SEM Server the white list

includes all users and/or mail domains from

which the SEM Server accepts E–mails.

 At the sending SEM Server the white list

includes all users and/or mail domains to which

the SEM Server is authorized to send E–mail.

 White lists at the SEM Server are maintained

both, by security (mail) administrators and also

by users: administrators register mail domains,

while users register individual mail addresses.

 Since mail addresses in the incoming mail to the

SEM Server may be forged, they are digitally

signed by the SEM Authorities.

 This solution does not prevent spam from

reaching receiving SEM Servers, but such E–

mails will be rejected by those Servers, while

between members in the SEM System spam is

completely eliminated.

 The more standard mail servers are enhanced

with add–on SEM Servers, spam mail can be

eliminated already at the sending SEM Servers.

Thus, spam mail in the overall Internet can be

greatly reduced.

4.9 Synthesis of SEM Client Security

Functions

Security features of the new SEM Client, described

in this section are shown in Figure 1. E–mail letters

are protected (signed and enveloped), both in

transfer and in mailboxes. Address book entries are

encrypted. Attachments are signed and enveloped,

and efficiently distributed using pull method.

Not shown are security functions related to

Credentials Servers located at the Layer 3 of the

SEM System architecture and SMI Servers, located

at the Layer 4 of the SEM System architecture. They

are shown in Figure 2 (section 6) and in Figure 3

(section 7).

5 LAYER 2: SECURE E–MAIL

SERVERS

SEM Servers provide security extensions for

standard mail servers. They are implemented as an

add–on component to the standard mail servers

(Figure 1). It may be noticed that SEM Servers are

located between standard mail servers and the

Internet and in that sense they represent some form

of “E–mail gateways”.

Handling authorizations at SEM Servers by SEM

Clients is not shown. It is shown in combination

with Policy Servers, located at the Layer 3 of the

SMI architecture.

5.1 Handling of Certificates

Each SEM Server has its own two certificates:

digital signature and key exchange certificate.

Therefore, the Server performs the following

functions with certificates:

 At the initial start–up, generates two self–

signed certificates if CA Server is not

configured, otherwise requests two certificates

from the CA Server.

 Receives and stores client’s key encryption

certificate.

CRYPTONET: SECURE E–MAIL SYSTEM

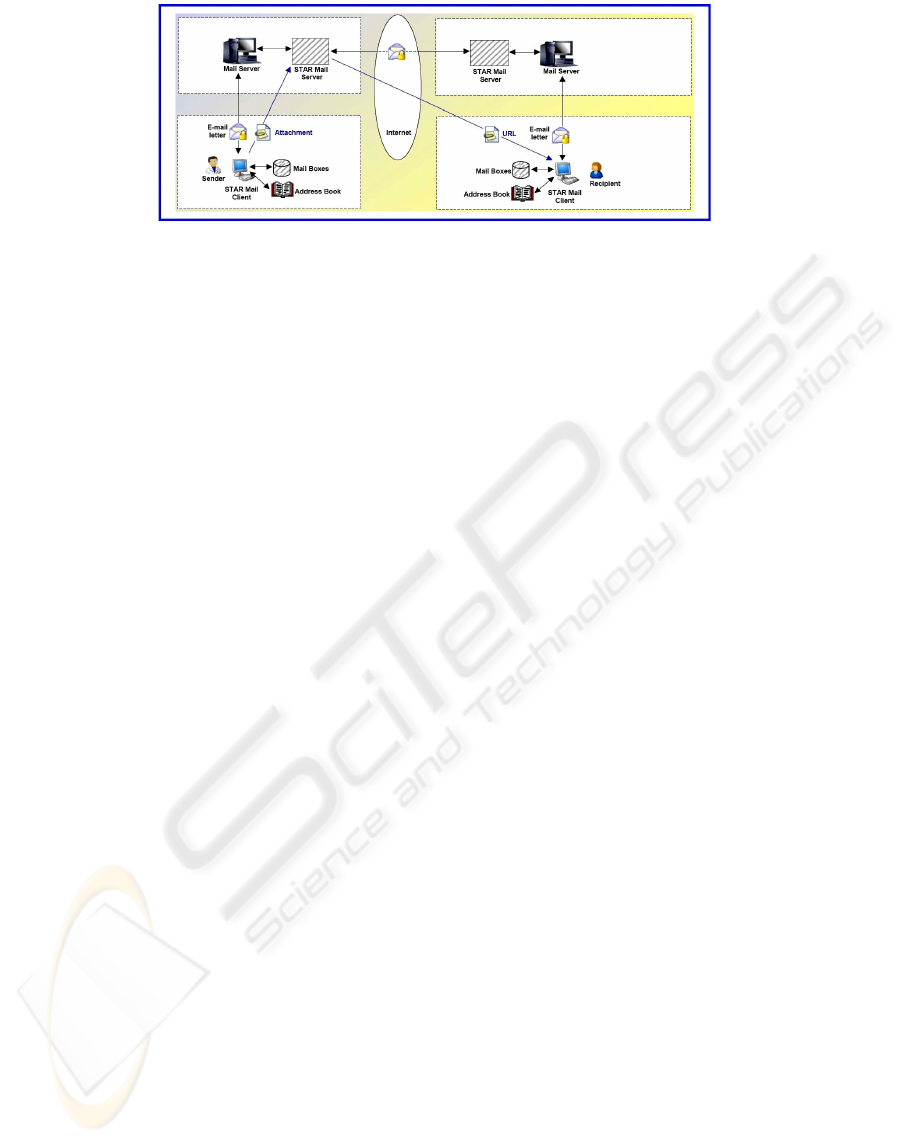

Figure 1: Security Features of SEM Clients and SEM Servers.

 Receives requests from local SEM Clients for

key exchange certificates of their partners (mail

recipients).

 Sends certificate requests to recipient’s SEM

Server, receives recipient’s key exchange

certificate, and returns it to the SEM Client.

 Receives certificate requests for key exchange

certificates of local SEM Clients from remote

SEM Servers, and returns those certificates.

 Requests and receives recipient’s SEM Server

URL from the SMI Server.

5.2 Address Book Encryption Keys

SEM Servers store enveloped encryption keys for

address books of local users. To assist users with

handling of address books keys, SEM Server

performs the following two functions:

 Receives and stores user’s address book

encryption key.

 Sends address book encryption key to the user.

5.3 Confirmations

SEM Server sends the following two types of

confirmations to the sender:

 Confirmation of delivery, when an E–mail letter

is received from the remote SEM Client.

 Confirmation of receipt, when an E–mail letter

is sent to the local SEM Client (receiver).

5.4 Handling of Attachments

SEM System uses pull method to handle distribution

of attachments. SEM Server performs the following

functions in order to handle the attachments:

 Receives attachments from local SEM Clients

and stores them locally.

 Distributes attachments, when requested by

recipient’s SEM Clients.

 Manages Attachments Table, as described in

section 5.8.

5.5 Enforcement of Authorizations

SEM Servers maintain white lists for both, incoming

and also outgoing E–mail addresses. These lists

have two types of entries: E–mail domain entries

and individual E–mail accounts entries. Domain

entries are specified in the Domains Policy

document, created by Security Managers at SAML

Policy Servers. Individual E–mail account entries

are specified by users in Accounts Policy files at

SEM Servers. In order to support enforcement of

policies for sending and receiving E–mails, SEM

Server performs the following functions:

 Receives Domain Policy file from SAML

Policy Server.

 Creates and updates Account Policy file by

local users.

 Enforces authorization policy for outgoing

mails by verifying E–mail addresses of outgoing

E–mails and making decisions to send them or

reject submission.

 Enforces authorization policy for incoming

mails by verifying E–mail addresses of

incoming E–mails and making decisions to

receive them or reject receipt.

5.6 Cooperation with SMI Servers

For cooperation between SEM Servers and SMI

Servers, see also section 7.2.2. SEM Servers can

request validation of their domain E–mail addresses,

receive, and also store their validated addresses.

6 LAYER 3: CREDENTIAL

SERVERS

At this layer there are two types of servers: PKI

Certificate Authority (CA) Issuing Server and

SAML Policy Server (Figure 2). In principle, there

should be one of each of those two servers per mail

domain, but multiple servers may also be used.

SECRYPT 2008 - International Conference on Security and Cryptography

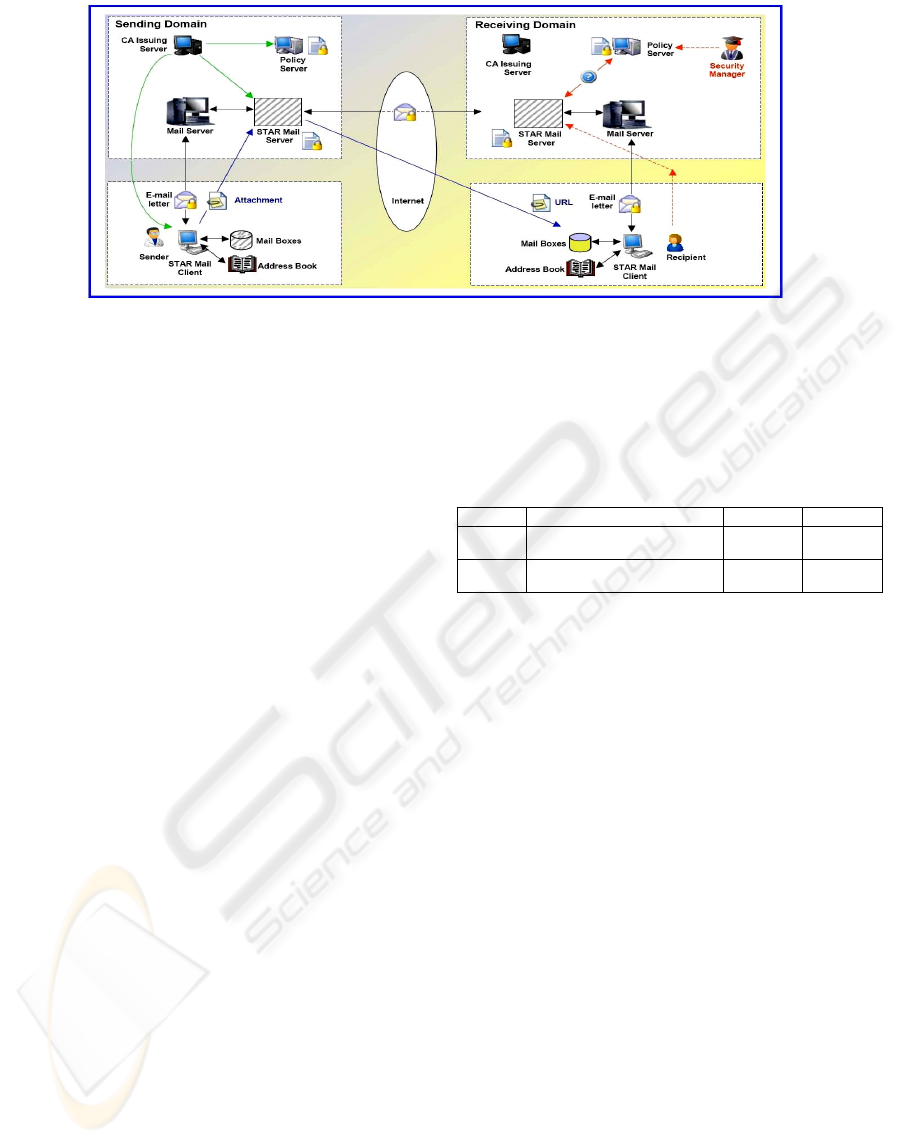

Figure 2: Credentials Servers: Issuing PKI Server and SAML Policy Server.

Both of these two servers are connected to their

corresponding servers in the PKI and SMI (Layer 4

of the security architecture). CA Issuing Server is

connected to the PKI Policy Server and through it to

the Top (Trusted, Root) Server. SAML Policy

Server is connected to the SMI Server.

6.1 CA Issuing Server

This is standard Certificate Authority Server, issuing

and distributing X.509 certificates. It issues

certificate to all entities in the SEM System: users,

SEM Servers, and local SAML Policy Server.

6.2 SAML Policy Server

This is standard SAML Policy Server, which

functions as Policy Decision Point (PDP). It

supports:

 creation of SAML policies and policy sets;

 distribution of policies to SEM Servers, which

are Policy Enforcement Points (PEP), so that

authorization decisions are made locally by the

SEM Server;

 making decisions based on

SAMLAuthorizationRequests received from

SEM Servers and returning

SAMLAuthorizationResponses.

Standard SAML policies are role–based. Users

and roles are registered and roles are assigned to all

active entities. Then authorization rules are created

as combination of roles, actions and decisions. In

case of the SEM System actions are send and receive

mail and SEM Servers are treated as users in the

policy enforcement system. In order to use standard

format of the XML policies, in the SEM System

there is only one role: mail server. Thus, particular

mail server (mail.localServer.com) is specified as

the user, the role is mail server, and actions are send

and receive E–mail letters. Decisions are standard

SAML PDP decisions: permit or deny.

In the SEM System applications are remote SEM

Servers to which E–mail letters are being sent or

from which E–mail letters are received. The

structure of the rule in the SEM System is:

Role Application Action Decision

mail

server

mal.remoteServer.com send permit

mail

server

mail.remoteServer.com receive permit

The interpretation of the first rule is that all

active entities that have the role mail server are

permitted to perform specified action (send E–mail

letters) with the specified application – remote SEM

Server. The second rule indicates that all active

entities that have the role mail server are permitted

to perform specified action (receive E–mail letters)

with the specified application – remote SEM Server.

These two rules indicate that the local SEM Server

may exchange E–mails with the remote SEM Server.

Since in the local policy there is only one active

entity – SEM Server with the role mail server, the

rules in the table above regulate exchange of E–mail

letters of the local SEM Server with the remote SEM

Server.

7 LAYER 4: PKI AND SMI

SERVERS

In order to connect and synchronize security policies

and functions across multiple domains, a security

infrastructure is needed. For use of certificates

across multiple domains, PKI is needed. In order to

synchronize secure E–mail functions across

domains, new infrastructure, in this paper called

Secure Mail Infrastructure (SMI) is needed.

CRYPTONET: SECURE E–MAIL SYSTEM

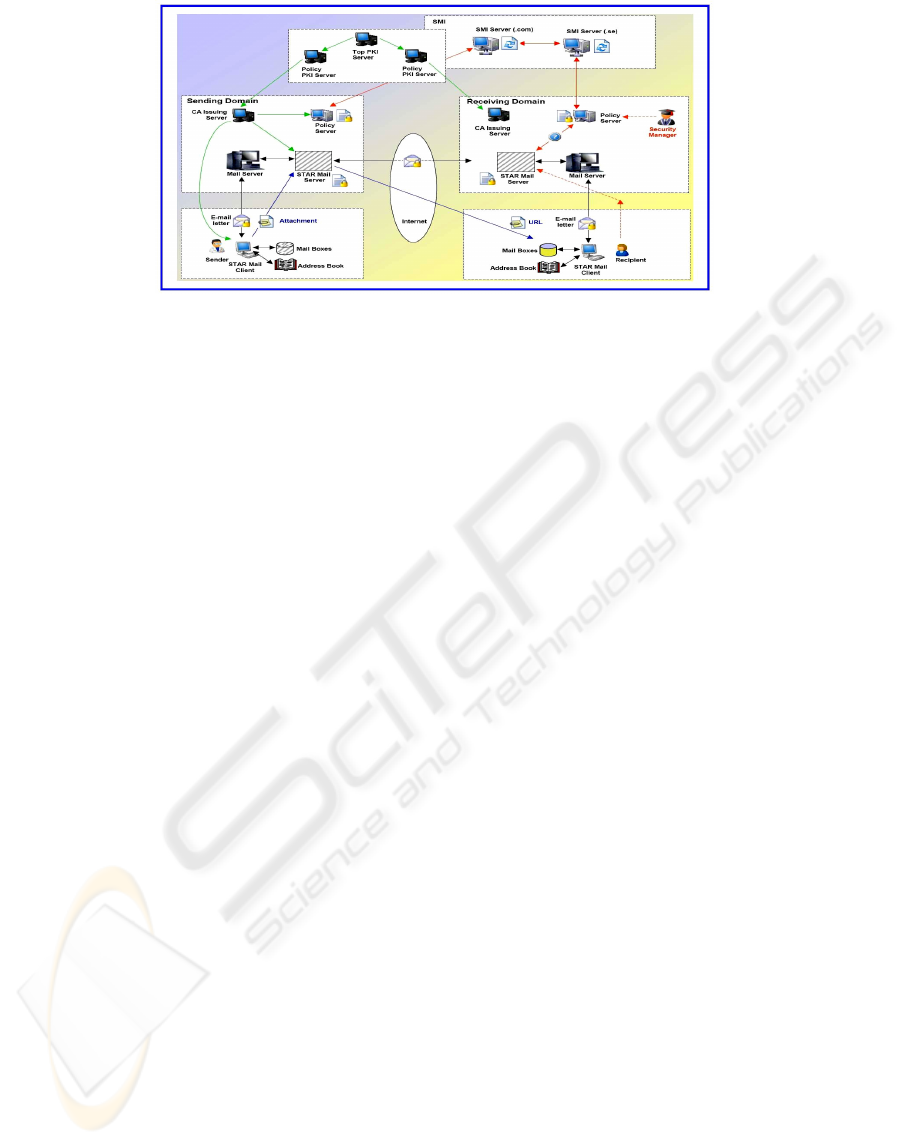

Figure 3: PKI and SMI – Servers and Protocols.

In order to provide their specific services to local

domains, both infrastructures comprise specialized

servers and protocols between them (Figure 3).

7.1 PKI Servers

PKI comprises two types of Servers. At the top of

the Infrastructure is the Top (Trusted) Server. Its

certificate is self–signed and requires special off-line

protocol in order to be transferred to the lower level

entities, verified and adopted by them.

Below the Top CA Server are Policy CA

Servers. They enforce different PKI policies and

impose those policies to the lower level servers –

CA Issuing Servers.

7.2 SMI Servers

SMI Servers are needed for two purposes: validation

of E–mail addresses and federation of SEM Servers

located in individual mail domains.

7.2.1 Validation of E–Mail Addresses

With all the components, functions and their security

features up to and including Layer 3, it is still

possible to send spam to remote SEM Servers. The

reason is that From: field in the E–mail letters may

easily be faked. Such E–mails would be accepted by

SEM Servers, since hackers would send spam E–

mails with From: addresses of legitimate E–mail

users, especially those in the white lists of the SEM

Servers. In order to prevent that, there must be a

mechanism to verify that all E–mail addresses used

in the SEM System are original. This means that the

E–mail address of each user must be certified

(signed) by an authority and E–mail address of the

domain must also be certified. The authority to

certify E–mail addresses of users is Security

Manager in the local domain. For the domain E–mail

address, external certification is needed. Otherwise,

all E–mail addresses in a domain would be self–

certified and therefore not trusted and verifiable.

One function of SMI Servers is to validate and

certify the E–mail addresses of the mail servers –

domains. This effectively represents registration of a

domain in the SMI. Such validated E–mail entries

are returned to the SEM Server and used for

construction of E–mail accounts for users.

7.2.2 Federation of SEM Servers

When an SMI Server validates the domain E–mail

address of one of the SEM Servers, as the result of

that process it also saves URL of the SEM Server.

When SEM Client inquires key exchange certificate

of one of its partners (recipients), it contacts its own

local SEM Server. In order to fetch the certificate

and deliver it to the local client, SEM Server must

know URL of the recipient’s SEM Server.

SEM Server will obtain that address from the

SMI Server. SEM Servers are capable to request E–

mail address validation from SMI Servers and obtain

validated E–mail address.

8 COMMENTS AND

CONCLUSIONS

8.1 Problems and Requirements

It may be easily verified that the proposed system, in

its full scope, with all its components and functions,

can eliminate all problems and fulfill all

requirements listed in section 2.

Users are authenticated using their certificates,

so user passwords are not needed at Mail Servers.

SECRYPT 2008 - International Conference on Security and Cryptography

E–mail letters are fully protected, both in transfer

and when stored in users’ or mail server’s

mailboxes. Spam is largely eliminated. Theft of E–

mail addresses from address books is eliminated.

Corporate and law enforcement authorities can

reliably use the System. Distribution of malicious

content is greatly eliminated. It can be received only

from trusted users, but this threat can be eliminated

by extending SEM Servers with virus detection

filters.

The system also provides all additional features

and properties listed in section 2.2. It handles

attachments very efficiently, since they do not float

to all recipients, whether they need them or not. The

system provides to senders three types of

confirmations, so it can be used for exchange of

serious business documents.

8.2 Gradual Deployment

The SEM System can be gradually deployed. As the

first step, users may use only SEM Clients, without

SEM Servers and Credentials Servers. In that case

they can perform all standard E–mail functions and

they can use security services available with existing

E–mail clients: signed and encrypted E–mail.

In the second step, SEM Servers are installed.

User security functions are now extended with

additional security services of the SEM System, like

exchange of certificates with their partners and

efficient distribution of attachments.

As the third step, Policy and PKI Servers are

installed. Now, users’ certificates may be validated

within the domain and authorizations are enforced.

Finally, if CA Issuing Server and SEM Server

are linked to the SMI Servers, then the full scaling of

SEM System across Internet is possible.

8.3 Applicability to Web–based E–mail

This paper describes E–mail system which is based

on the use of full E–mail clients (“thick client”). The

system is equally applicable to the Web–based mail

(“thin client”). All features of SEM Clients can be

made available using standard browsers. Since SEM

Servers are extensions of mail servers, they can

serve the same purpose with Web Servers acting as

mail servers.

8.4 Increasing Assurance Levels

The system also supports the approach with

increasing level of assurance. Lower assurance is the

case when all cryptographic and certificate functions

are performed in software and when certificates

cannot be globally validated. Increased levels of

assurance is use of PKI for the full validation of

certificates and use of smart cards for storage of

cryptographic parameters and execution of

cryptographic operations

The most important is that even at the lowest

level of assurance, all E–mail letters are strongly

protected, spam is greatly reduced and distribution

of malware is completely eliminated

CRYPTONET: SECURE E–MAIL SYSTEM
