CAPTURING THE HUMAN ACTION SEMANTICS

USING A QUERY-BY-EXAMPLE

Anna Montesanto, Paola Baldassarri, A. F. Dragoni, G. Vallesi and P. Puliti

DEIT, Università Politecnica delle Marche, Italy

Keywords: Query by example, human action semantics, artificial intelligent systems, neural networks.

Abstract: The paper describes a method for extracting human action semantics in video’s using queries-by-example.

Here we consider the indexing and the matching problems of content-based human motion data retrieval.

The query formulation is based on trajectories that may be easily built or extracted by following relevant

points on a video, by a novice user too. The so realized trajectories contain high value of action semantics.

The semantic schema is built by splitting a trajectory in time ordered sub-sequences that contain the features

of extracted points. This kind of semantic representation allows reducing the search space dimensionality

and, being human-oriented, allows a selective recognition of actions that are very similar among them. A

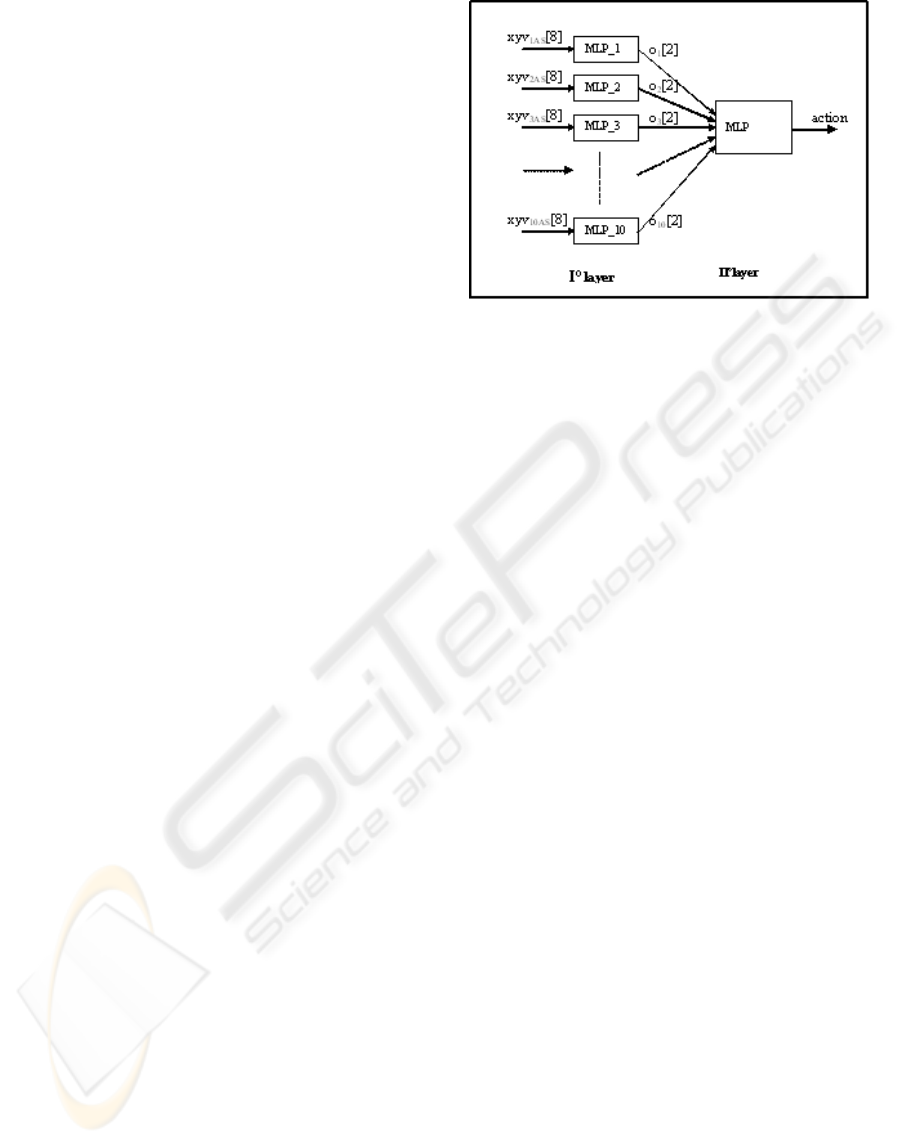

neural network system analyzes the video semantic similarity, using a two-layer architecture of multilayer

perceptrons, which is able to learn the semantic schema of the actions and to recognize them.

1 INTRODUCTION

In the literature several Content-Based Video

Retrieval (CBVR) papers have been published.

CVBR appears like a natural extension of Content-

Based Image Retrieval (CBIR) and Content-Based

Audio Retrieval systems (Marchand-Maillet, 2000).

However there are a number of factors which should

be dealt with when using video that are ignored

when dealing with images. These factors are related

to the temporal information available from a video

document. The temporal information induces the

concept of motion for the objects that are in the

video. This information allows us to encode within

the indexing of a video the behaviour of all objects

throughout the document.

An important aspect to evaluate is the complexity of

the query system because a video contains a greater

amount of information than a textual description. In

this study, we intend to supply a method of query

where a user can specify the features of interest

using a sketch pad or the whole video like example.

A partial solution could be represented by a query-

by-example: through the query a user can specify the

characteristic of the video that he searches. There

Behaviour understanding involves the analysis and

recognition of motion patterns, and the production of

high level description of actions and interactions (Hu

et al., 2004). We can suppose that the understanding

of the actions is related to the temporal classification

of particular features and to the matching with an

unknown sequence with previously learned

sequences representatives of typical behaviours.

Then a fundamental problem of behaviour

understanding is to learn the reference behaviour

sequences from training samples and to devise both

training and matching problems. Some efforts have

been made in this direction (Bobick & Davis, 2001;

Venkatesh Babu & Ramakrishnan, 2004; Kang et

al., 2004) and some methods of behaviour

understanding are outlined in the following. Other

authors (Bobick & Wilson, 1997) used Dynamic

Time Warping (DTW) to match a test sequence to a

deterministic sequence to recognize human gestures.

Hidden Markow Models (HMM) consisted of

training and classifications outperform DTW for

undivided time series data and so are used to

behaviour understanding (Brand & Kettnaker, 2000;

Oliver et al., 2000). Time Delay Neural Networks

(TDNN) has been used to hand gesture recognition

and lip reading (Meier et al, 2000). The self-

organising neural network can be applied for scenes

where the type of object in motion is not known

(Owens & Hunter, 2000; Sumpter & Bulpitt, 2000).

In this paper we focus the attention on the movement

of a single object. In particular we intend to realize a

system that is able to recognize a human movement.

The process of human movement recognition is

356

Montesanto A., Baldassarri P., F. Dragoni A., Vallesi G. and Puliti P. (2008).

CAPTURING THE HUMAN ACTION SEMANTICS USING A QUERY-BY-EXAMPLE.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 356-363

DOI: 10.5220/0001932703560363

 SciTePress

based on a schema in which the whole action is

organized in a kind of macrostructure. A schema is a

cognitive structure characterized by cases that are

arranged in a hierarchical way, but they are also

restructured on the base of the context (Rumelhart &

Ortony, 1964). Moreover the schema also organizes

the information that can be extracted in different

levels. Our schema consisted of a temporal sequence

subdivided in 10 steps. Three are the parameters

characterizing the trajectory of the action: the (x,y)

coordinates and the (v) instantaneous velocity. We

suppose that these three spatio-temporal parameters

constitute the minimal information representative of

the action semantics. The choice of these variables

reduces the dimensionality of the space of searching

and then respects a user-oriented representation.

Each schema of movement used to recognize an

action can represent a class of movement and

different movements can belong to the same class.

In order to recognize a human movement a visual

system has not to passively record local motion

since they are ambiguous (kinematics

indetermination), but the local signals have to be

integrated in a coherent local motion. In a classic

demonstration (Johansson, 1973) were created

displays of human movement by attaching lights to

the major joint of human models. The models were

recorded so that only the point lights were visible to

the observers. So the observers had vivid

impressions of the human figures, although the

images contained only few bright points. So, the

movement is enough to extract meaningful

information of 3D shapes.

In (Runeson, 1994) it is suggested that an

accurate appraisal of kinematics aspects of the

movement allows us understanding its dynamic

aspects. It is important to estimate the active forces

that cause the movement. A very important aspect is

the co-variation of kinematics and geometry that is

well exemplified from a lot of study about the hand

gestures. They satisfy some principles of invariance

that characterize and distinguish them from the

movements of mechanical type (Viviani &

Schneider, 1991).

So we can affirm that the semantics of the action

corresponds to the human perception of the co-

variation of kinematics and geometry. By departing

from this point of view, we have built a system that

concurs with the user to formulate its query using a

representation that implicitly corresponds to the

semantic-cognitive schema of the humans. Such

modality of query formulation goes behind the

problem of the query by example in the video, since

it is not necessary a particular training to use this

system. Moreover the same system can easily

succeed to extract the semantic aspects of the action.

Our recognition system has also to form a base

of knowledge for correctly classify, but above all it

must be sufficiently resistant to the noise. This last

could be the variation of the point of view from

which the action has been recorded. A particularly

suitable methodology uses the artificial neural nets

which are trained through a learning process on

known scenes.

2 SYSTEM OF

QUERY-BY-EXAMPLE IN

VIDEO

We realised 4 sub-systems, communicating between

them through an exchange of information

(memorisation and recovery) carried out using a

database.

2.1 Learning Phase

The proposed system has to recognize and to codify

the actions of the query. Therefore, in a preliminary

phase the videos are inserted in a database, and so

they represent the pattern of training. For that, the

manager of the system (an expert user) determines

the number n of videos for the training of the system

for the recognition of the actions and the number τ

of typologies of actions. From that it is created a

table in which the list of the actions encoded through

a binary code is represented. So, this table contains

the list of actions used for the learning. After carried

out the tracking of the point, its trajectory is inserted

in the database pointing to the video from which

come from. The video is identified by a series of

features: the code of the typology of the action and

the coordinates (x,y) of the points. At this point, it is

possible to supply a feedback for the user designing

the video trajectory superimposes to the first frame.

The coordinates of the point are sent to the “analysis

module” which it calculates the third feature

characterizing the trajectory is the instantaneous

velocity (v). All the information concerning the

video (the binary code of the action, the x,y

coordinates and the velocity v) are stored in a file.

The data of the file are the inputs of the

“recognition module”. In this module start the phase

of training of the neural architecture. At the end of

the learning the weights vectors of the neural

networks architecture are trained in order to allow

the system to recognize and to classify a particular

CAPTURING THE HUMAN ACTION SEMANTICS USING A QUERY-BY-EXAMPLE

357

action during the testing or the generalization phase.

These vectors are added to the characteristics of the

trajectory of the action in the database.

2.2 Generalization Phase

After the training of the system we can use as query

a video that the system has never seen before. Such

video is recalled from the system of tracking. The

novice user clicks on the frame evidencing the

interest point of which made the tracking and the

trajectory is inserted in the database with the pointer

to the file of the video. Specific features characterize

the trajectory of the action: the coordinates of the

points belonging (but it has not the typology of

action because the novice user has not to necessarily

express it inside the query). Now is supplied a

feedback for the user: it is draw the video trajectory

superimposes to the first frame.

The coordinates of the points of the trajectory

are sent to the analysis system which it calculates the

instantaneous velocity v. The parameters are the

inputs to the “recognition module” that classifies the

trajectory indicating the class of belonging of the

analysed action.

Moreover this information is sent to the system

of matching that collects all the trajectories that have

the same class vector of belonging to the database.

The results are shown to the user as the first

frame with over drawn the trajectory of the action;

such frame is clickable and let’s starts the video.

3 THE TRACKING ALGORITHM

Starting from a video, this algorithm made the

tracking of the points chosen by the user or of the

point that it retains optimal to be tracked. Then it

extract the coordinates x and y of such points.

The algorithm used to realize the tracking is

based on the pyramidal Lucas-Kanade technique

(Bouget, 1999) for its performances of robustness

and accuracy. Concerning the accuracy we need

small integration window for not smoothing the

details of the image. While the robustness concerns

the power of the algorithm related to the light

variations, the image dimensions and the motion. So

the robustness need large image.

In this method the pyramidal representation is

used because it is simpler to follow wide movements

of pixel, that they are wider than the window of

integration at the main image level, while they are

confined in the same window at the lower level.

Resuming it is important a pyramidal representation

of the image, in which in the high level we obtain a

small image that, allows precise comparison among

the pixels of two consecutive frames. While in the

lower level we obtain a large image that allows

maintaining the macroscopic differences of the

movements.

For each analysis level the Lucas-Kanade

algorithm halves the image resolution. The Lucas-

Kanade algorithm considers two frames at a time

and for each pixel of the first image it finds the

corresponding in the successive image. So,

considering different image resolution we intend to

minimize the “Residual Error” function є(·), that

derives from the summation of all the motion

vectors related to the iteration level:

(1)

where I and J represent two frames, while ω

indicates the dimensions of the window of

integration. These parameters have to be

appropriately chosen in order to guarantee the

performances of robustness and accuracy typical of

the algorithm.

Having the (x,y) point in a particular frame, we

can determine the corresponding point in the

successive frame. The (x,y,v) tern is stored in a

database (Yoon et al., 2001), where v is the

instantaneous velocity. The matrix contains the

spatio-temporal minimal information representing

the semantic of the action. The semantic is defined

by the way in which the motion in time develops.

In particular we can affirm that the dynamical

constraints render perceptively unique the action,

even if the geometry of its trajectory is very similar

among different actions. The (x,y,v) tern allows us

studying the motion considering the implicated

forces, but only if we extend the information on the

complete temporal sequence.

Such algorithm, moreover, has been optimised

through a procedure that allows the user choosing

the optimal points. They are those points that carry

with greater probability to good results. The

computation of the gradient of the brightness

function has been implemented in such way that the

user can choose between the best points that have a

gradient value upper to a fixed threshold. To such

purpose, during the recording of the movies the

subject wore a bracelet with a white marker. So in

correspondence of the wrist we have a strong

gradient of brightness and therefore a greater

precision in phase of tracking.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

358

4 ALGORITHM OF ANALYSIS

AND INDEXING

This algorithm read the trajectory coordinates and

draws the shape of it. Also using those coordinates it

computes all the necessary features. In particular it

extracts the instantaneous velocity of every point of

the trajectory. It uses the data store in the DB in

order to process them or to visualise them. The first

phase of the algorithm assigns to a vector the

coordinates of the points individualised from

tracking (abscissa and ordinate); while in the

successive phase the trajectory is represented. It is

applied, therefore the algorithm of chain-coding, that

it chases the points finds realising one chain

codified. In such phase we start from the first stored

point, centred in a matrix 3x3, and we look for

around to it, the successive point pertaining to the

trajectory. Once characterised the successive point,

moves the matrix and restart the search. In this way,

starting from the first point, the chain is

automatically generated and characterises the

dynamic of the movie. Once stored the trajectory, is

carried out the analysis and therefore the extraction

of its characteristic parameters.

The interface visualise an image that represents

the mosaic of the considered movie, used like

background and visual reference. On such image the

program draws the codified trajectory and on the

same window the extracted parameters are

described.

5 ARCHITECTURE OF PATTERN

RECOGNITION SYSTEM

We realized a system consisted of two layers

architecture. The first layer consists of 10

perceptrons, while the second layer consists of only

one perceptron. The system receives in input the

features extracted from the video sequences and

gives in output which is the kind of action that a

subject performed. The three actions (eating,

drinking and smoking) are codified as subsequently

explained.

We subdivided the trajectory of each action in 10

steps each consisted of 8 frames. This subdivision is

based on the hypothesis that an action is recognized

through an initially general scheme. The scheme is

defined during the development of the action itself.

Figure 1: The architecture of the neural system.

The figure 1 shows architecture consisted of two

neural networks levels. In the first level we have 10

Multilayer Perceptrons (MLP) (Rumelhart et al.,

1986) each of them has 24 nodes in the input layer.

Each node of the input layer receives the values xyv

for all the subjects and for each action. The vector

xyv

iAS

identifies the elements of the trajectory,

where the index i (that goes from 1 to 10) indicates

the number of steps in which the trajectory is

subdivided. The index A = E,D,S identifies the three

action, and the index S (that goes from 1 to N)

identifies a particular subject (N is the number of the

subjects). So the dimension of the input for each

network of the first layer is equals to 8×3×N.

The hidden layer consists of 12 nodes, while the

output layer consists of only 2 nodes. The vector

[2] identifies the output of this last layer, where k

goes from 1 to 10 (number of steps in which the

sequence is divided). The vector o

consists of two

elements, these identify a specific action according

to the following code: [0,1] for the eating action,

[1,0] for the drinking action and [1,1] for the

smoking action.

The second level consists of only one MLP

which receives as input the outputs of the previous

10 neural networks. So in the input layer it has 20

nodes, in the hidden layer it has 5 nodes and finally

in the output layer it has 2 nodes, which encode the

kind of action.

6 TEST ON HUMAN ACTION

RECOGNITION

We want to see how sensitive was the neural system

to recognize sequences of action very similar one

another, in particular from the geometrical point of

view. The experiment is made so to study the

CAPTURING THE HUMAN ACTION SEMANTICS USING A QUERY-BY-EXAMPLE

359

answers invariance changing the point of record of

the camera. We can observe events that are equal as

regard the trajectory and are different as regard the

semantics: these can hide in practice their actual

meaning in small differences.

6.1 Methodology

In order to try the effectiveness of the parameters in

an unambiguous recognition of the action, the

motion of the wrist of subjects while they are eating,

drinking and smoking was recorded. The movies

have been recorded always to the same distance,

using a fixed experimental setting. This has made so

that the trajectories were much similar between

them. The recorded sample consists of 25 subjects.

We have chosen simple actions to carry out and

to study: Eat, Drink and Smoke.

In each action, the movement is always of the

arm, always to leave from the bottom to the up, until

arriving and stopping themselves on the mouth, and

then from here, to return behind until stopping itself,

caught up the desk newly.

The technical apparatus consists of two

analogical television cameras: one of these was in a

frontal position, whilst the other was in a lateral

position respect to the subject. There are also one

desk, one chair, and finally cracker, water and

cigarettes. Above all were fixed the relevant

positions, so that the features unchanged. We

arranged the desk and the position of the chair

relatively to it.

Then it has been taken the centre of the desk and

in connection to this, one camera is blocked to 5

meters of distance and 53° approximately of angle-

shot as regards the lateral position, whilst the second

is blocked to 5 meters and concerns the frontal

position. It is moreover fixed on the table the start-

position of the objects (cracker, water, and

cigarettes), so the gesture had a precise fixed point

of reference.

Finally, in order to obtain a metric calibration of

the digital images, in order to have a correlation

between the real distances and the resolution in pixel

after the digitalisation, a graded bar has been placed

(it was 30 centimetres long).

During the recording, each subject wore a

bracelet with two white markers, obtaining a high

gradient of brightness in the point of the body that

mainly characterises the movement.

To extract the interesting data from the movies

we digitised them (card of acquisition ATI All in

Wonder 128), to 20 frame for second with a

resolution of 320x240 pixels and with a colour depth

of 24 bits. Then we transform them in grey-scale

levels. We compressed the video sequences through

the algorithm of Run Length Encoding: that replaces

the sequences of identical pixel with the indication

of the number of epochs in which the pixel is

repeated, followed from the value of the pixel itself.

Each of the 50 movies (25 for each camera) has

been decomposed in 3 shorter movies

(correspondent to a particular action), every one of

which has been then analysed singularly.

7 EXPERIMENTAL RESULTS

During the learning, in all the experiments in order

to achieve comparable results we fixed the same

number of iteration epochs and the same learning

rate. In particular the number of iterations was fixed

to 15000 epochs and the learning rate was η = 0.1.

Remembering that each of the three actions was

subdivided in a sequence of ten steps, we determined

the mean square error for each step after 15000

iterations, or rather in the end of the learning. The

figure 2 shows the trend of the mean square error

after 15000 iterations: the black line refers to the

learning by the three actions of 25 subjects of lateral

view, whilst the grey line refers to the learning by

the three actions of 25 subjects of frontal view.

Considering the training with the 25 subjects of

the lateral view, the average error calculates on all

the sequence is 0.04. If we divide the sequence in

two phases (going and return): the average error of

going is 0.006, whist the average error of the return

is 0.08.

Moreover training the networks with the 25

subjects of the frontal view the average error is 0.03.

Dividing the sequence in two phases the average

error for the going is 0.01, whilst the error is 0.05 for

the return phase. These values are understandable if

we consider the “kind” of action. In order to have

more possible similar actions, all the subjects started

the movement from a fixed point, caught up the

mouth and then returned in the fixed starting point.

Initially the action is loaded of meaning both for the

aim linked to the action and for the object grasped

by the end. The heaviness of a water glass is

certainly different from a cigarette. So, in the going

the actions are quite different, instead in the return

they show a conjunction of meaning: all the

movement have only to reach a fixed point. The

consequence is the increase of the average error, so

the not ambiguous recognition of a particular action

is closely related to the development of the

sequence.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

360

Figure 2: Trend of the mean square errors for each net of

the first layer after 15000 iterations (black line = training

with 25 subjects of lateral view; grey line = training with

25 subjects of frontal view).

7.1 Experiment 1: View Point

Invariance

In the first experiment we want to demonstrate the

invariance from the point of view. The aim is to

verify that a particular action (that is eating, drinking

and smoking) of a subject is recognizable apart from

the point of view. In fact, in this example we

considered both the frontal view and the lateral view

of the same subject in the act of doing one of three

actions previously described.

The system was trained using the lateral shots of

25 subjects during the development of the three

actions. During the testing we used only the frontal

shots of the same 25 subjects in the act of doing the

same three actions. We have to remember that the

two shots took place contemporaneously from two

cameras one in a lateral positions and the other in a

frontal position as regards the subjects.

The training using the parameters (x,y and v)

extracted by the lateral view and the successive

testing using the same parameters extracted by the

frontal view allows evaluating the independence

from the point of view.

This implies that the system is able to recognize

an action done by a subject independently from the

observation position.

Table 1: Confusion Matrix.

EAT DRINK SMOKE

EAT 19 0 6 25

DRINK 0 18 7 25

SMOKE 3 4 18 25

The table 1 shows the confusion matrix of the

test results. The first rows and the first column

indicate the three different actions done by the 25

subjects. The last column indicates the total number

of the subjects that they do a specific action. The

main diagonal shows the total number of actions

correctly recognized. For example as regards the

eating action (EAT), the system correctly recognizes

19 subjects out of 25 subjects during the execution

of the eating action. As we can see in confusion

matrix, both the eating action and the drinking action

are mistaken with the smoking action. In other

words, the system misses to recognize both some

eating actions and some drinking actions identifying

them with smoking. Finally, the last row of the table

1 shows that the smoking action was identified 3

times (12%) with the eating action and 4 times

(16%) with the drinking one.

The rates of recognition are comparable between

them. The rate of recognition is 76% for the eating

action, 72% for the drinking action and finally 72%

for the smoking action. For the first experiment we

obtained an average rate of recognition equals to

73.3%. The experimental results show that the

invariance from the point of view is rather well

respected.

7.2 Experiment 2: Subject Invariance

The second experiment intends to demonstrate the

performances of the system concerning the

invariance from the subject. In other words, we want

to demonstrate that the system is able to correctly

recognize an action independently from the subject,

who makes this. For this purpose, the system was

trained with 15 subject of the frontal view in act of

doing the three actions, while for the test we

considered the others 10 subjects of the same frontal

view. The correct recognition of a particular action

implies that the development of an action is not

determined by the particular subject involved, but

from the characteristics implied in the action itself.

Table 2: Confusion Matrix.

EAT DRINK SMOKE

EAT 10 0 0 10

DRINK 0 9 1 10

SMOKE 1 0 9 10

As for the first experiment, we introduced the

confusion matrix of the actions the system correctly

recognizes (table 2). Each of the 10 subjects carries

out the three actions (eating, drinking and smoking),

in total 30 actions.

The results in the table 2 put in evidence that the

system correctly recognizes the eating action carried

out by the 10 subjects of the testing phase: so the

eating action is recognized with a rate of 100%

(corresponding to 10 out of 10). The drinking and

CAPTURING THE HUMAN ACTION SEMANTICS USING A QUERY-BY-EXAMPLE

361

the smoking actions are also recognized with a

rather high rate: the system correctly recognizes both

the drinking action and the smoking 9 out of 10

times.

We obtained an average rate of recognition

equals to 93.3%. The three actions are correctly

recognized independently by the subject who makes

the action.

7.3 Experiment 3: View Point and

Subject Invariance

The last experiment intends to combine the two

previous experiments. In fact, in this part we want to

demonstrate that the system is able to recognize the

three actions (eating, drinking and smoking)

changing both the point of view and the subject who

makes the action. For this purpose, the system is

trained using the lateral view of the 15 subjects

during their movement. While the testing procedure

is executed using the frontal view of the other 10

subjects in act of doing the same actions. The

training using the parameters (x,y, and v) extracted

by the lateral view of 15 subjects and the successive

test using the same parameters extracted by the

frontal view of the other 10 subjects intend to

evaluate the independence of the system both from

the point of view and from the subject. This implies

the ability of the system to recognize an action

independently from the position of observation of

the subject and independently from the subject

himself.

Referring to the usual representation of the

results, we analyze the confusion matrix in the table

The confusion matrix put in evidence that the

three actions are rather well recognized. Observing

the main diagonal we can see that the eating action

is recognized 8 out of 10 times, the drinking action 9

out of 10 times and the smoking action 7 out of 10

times.

Table 3: Confusion Matrix.

EAT DRINK SMOKE

EAT 8 0 2 10

DRINK 0 9 1 10

SMOKE 1 2 7 10

As for the first experiment both the eating action

and the drinking action are confused with the

smoking action. The smoking action was identified

for a 10% with the eating action and for a 20% with

the drinking.

We can determine an average rate of recognition

equals to 80%. In the last experiment we also

obtained rather encouraging results, having a high

rate of recognition for all the three actions.

8 CONCLUSIONS

The implemented neural architecture learns to

recognise the kinematics and the dynamic aspects of

actions concerning the trajectories but also the

velocity variations. The experimental results showed

the real possibility of building a system that allows a

semantic recognition of an action, taking advantage

from the action recognition modalities of the human.

The lightness of information joined to the

generalisation abilities of the neural networks, make

the system extremely effective. The typology of

action is recognized also if we observe a subject

from two different points of view (lateral and frontal

view), and so the invariance of the system as regard

the point of view is rather well respected. Moreover

the results demonstrated that the system recognized

a specific movement performed by a different

subject from those one learning during the training

and observed from the same point of view (lateral

view). So we can conclude that our system catch

also the subject invariance. Finally we test the

system invariance changing both the point of view

and the subject who makes the action, obtaining high

value of recognition rate.

In all the experiments the recognition of each

action has enough high values, but they could be

better in the case in which every networks of the

first layer will be trained with a number of iterations

that fit with the minimum square error. In fact, in

this work we stopped the simulation after 15000

steps to achieve comparable results evaluating the

suitability of particular chosen knowledge

representation. The experimental evidences show

that the three spatio-temporal parameters (x, y, v)

constitute the minimal information representative of

the action semantics. The neural networks

architecture allows us to have a smart classification

of the part of sequence in which there is a great

amount of different semantics.

One of the possible future developments of the

work can be using the system as recogniser of the

behaviour of a given subject that may be used in

surveillance applications. The study realized in this

work could be applied in numerous and different

environments but with an only common feature: the

necessity of understanding not “what there is in a

scene?", but “what is happening?”. For instance we

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

362

could develop safety systems able to recognise

anomalous and dangerous situations by automatic

extraction of scene semantics. This represents an

evident advantage of efficiency.

REFERENCES

Bobick A. and Davis J., 2001 “The Recognition of Human

Movement Using Temporal Templates,” IEEE

Transactions on Pattern Recognition and Machine

Intelligent, vol.23, pp. 257–267.

Bobick A.F. and Wilson A.D., 1997 “A State-Based

Technique to the Representation and Recognition of

Gesture”, IEEE Transactions on Pattern Analysis and

Machine Intelligent, Vol.19, pp.1325-1337.

Bouget J.Y., 1999 “Pyramidal Implementation of the

Lucas Kanade Feature Tracker. Description of the

Algorithm”, Intel Corporation, internal report.

Brand M. and Kettnaker V., 2000 “Discovery and

Segmentation of Activities in Video,” IEEE

Transactions on Pattern Analysis and Machine

Intelligent, Vol.22, pp.844-851.

Hu W., Tan T.,, Wang L., and Maybank S., 2004 “A

Survey on Visual Surveillance of Object Motion and

Behaviors” IEEE Transactions on Systems, Man, and

Cybernetics-Part C: Applications and Reviews, Vol.

34, No. 3.

Johansson G., 1973 “Visual Perception of Biological

Motion and Model of its Analysis”, Perception and

Psychophysics, Vol.14, pp.201-211.

Kang H., Lee C.-W., and Jung K., 2004 “Recognition-

Based Gesture Spotting in Video Games”, Pattern

Recognition Letters, Vol.25, No. 15, pp. 1701-1714.

Marchand-Maillet S., 2000 “Content-based Video

Retrieval: An overview”, Technical Report Vision.

Meier U., Stiefelhagen R., Yang J., and Waibel A., 2000

“Toward unrestricted lip reading,” International

Journal on Pattern Recognition and Artificial

Intelligent, Vol.14, no.5, pp.571-585.

Oliver N. M., Rosario B., and Pentland A. P., 2000 “A

Bayesian Computer Vision System for Modeling

Human Interactions,” IEEE Transactions on Pattern

Analysis and Machine Intelligent, Vol.22, pp.831-843.

Owens J. and Hunter A., 2000 “Application of the Self-

Organizing Map to Trajectory Classification,”

Proceedings of IEEE International Workshop on

Visual Surveillance, pp.77–83.

Rumelhart D., Ortony A., 1964 “The Representation of

Knowledge in Memory” In R.C. Anderson, R.J. Spiro,

W.E. Montague (Eds.) Schooling and the acquisition

of knowledge pp.99-135. Hillsdale, NJ: Erlbaum.

Rumelhart D.E., Hinton G.E., and Williams R.J., 1986

“Learning Representations by Back-propagation of

Errors”, Nature, Vol.323, pp.533-536.

Runeson S., 1994 “Perception of Biological Motion: the

KSD-Principle and the Implications of a Distal Versus

Proximal Approach”. In G. Jansson, W. Epstein & S.

S. Bergström (Eds.), Perceiving events and objects,

pp.383-405.

Sumpter N. and Bulpitt A., 2000 “Learning Spatio-

Temporal Patterns for Predicting Object Behaviour,”

Image and Vision Computing, Vol.18, No.9, pp.697–

704.

Venkatesh Babu R. and Ramakrishnan K.R., 2004

“Recognition of Human Actions using Motion History

Information Extracted from the Compressed Video”,

Image and Vision Computing, Vol.22, No.8, pp.597-

607.

Viviani P. and Schneider R., 1991 “A Developmental

Study of the Relationship Between Geometry and

Kinematics in Drawing Movements” Journal of

Experimental Psychology: Human Perception and

Performance, Vol.17, pp.198-298.

Yoon H., Soh J., Bae Y. J., Yang H.S., 2001 “Hand

Gesture Recognition Using Combined Features of

Location, Angle, and Velocity”, Pattern Recognition,

Vol.34, pp.1491-1501.

CAPTURING THE HUMAN ACTION SEMANTICS USING A QUERY-BY-EXAMPLE

363
