ARTIFICIAL NEURAL NETWORKS BASED SYMBOLIC

GESTURE INTERFACE

C. Iacopino, Anna Montesanto, Paola Baldassarri, A. F. Dragoni and P. Puliti

DEIT, Università Politecnica delle Marche, Italy

Keywords: Gesture recognition, real time video tracking, neural networks, user interface.

Abstract: The purpose of the developed system is the realization of a gesture recognizer, applied to a user interface.

We tried to get fast and easy software for user, without leaving out reliability and using instruments

available to common user: a PC and a webcam. The gesture detection is based on well-known artificial

vision techniques, as the tracking algorithm by Lucas and Kanade. The paths, opportunely selected, are

recognized by a double layered architecture of multilayer perceptrons. The realized system is efficiency and

has a good robustness, paying attention to an adequate learning of gesture vocabulary both for the user and

for system.

1 INTRODUCTION

The event detection and, in particular, the human

action recognition gained in last years a great

interest in the computer vision e video processing

research.

Gesture recognition aims to understand human

gestures using mathematical algorithms; normally is

focused on hands and head gesture. This subject will

allow computers to understand human body

language filling the existent gap between humans

and machines. The uses move from virtual reality to

robot guide until sign language recognizers. The

purpose of the developed system is the realization of

a gesture recognizer, applied in the specific case to a

user interface. We tried to get fast and easy software

for user, without leaving out reliability and using

instruments available to common user: a PC and a

webcam. We can have different uses of this

technology; it can be helpful wherever there is need

of a richer and more expressive interface than the

existent one (textual or GUI). In this paper we aim

for the realization to a symbolic gesture interface

that uses a vocabulary of codified commands and

known by both the user and the system. We try to

make the learning and the use as simple as possible

like systems based on natural gestures. The

assessment of the noticed gesture at final is based

exclusively on the hand actions; the biological

organisms give meaning to space-time

configurations and recognize the scene thank to the

way the temporal movement is made.

The gesture detection is based on well-known

artificial vision techniques. We use a filter to

segment the regions with skin chromaticity. This

help to focus the next tracking phase and to reduce

the computational load. The algorithm used for the

tracking is based on the feature tracking method

proposed by Lucas and Kanade in 1981 (Lucas and

Kanade, 1981). We follow the approach of Tomasi

and Kanade (Tomasi and Kanade, 1991) that derived

the criterion of features selection from a tracking

performance optimization. The paths, opportunely

selected, are recognized by a double layered

architecture of multilayer perceptrons, a quick and

robust system, able to understand the cinematic

characteristics of these paths.

This paper is divided in two main parts: in the

first we give a clear description of the realized

system, telling about the three main components: the

vision system, the recognition system and the user

interface.

In the second part there is the description of real

working and of system using. We tell about the

codified gestures, the learning net procedure and at

last the testing phase with results and problems.

364

Iacopino C., Montesanto A., Baldassarri P., F. Dragoni A. and Puliti P. (2008).

ARTIFICIAL NEURAL NETWORKS BASED SYMBOLIC GESTURE INTERFACE.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 364-369

DOI: 10.5220/0001932803640369

 SciTePress

2 SYSTEM REALIZED

The built system is essentially a symbolic gesture

recognizer used for a user interface. It has to be

underlined that the main aim was the creation of the

recognizer; the interface is just a natural application

of this technology.

The development process can be divided in three

main elements:

 vision system

 artificial neural net architecture

 user interface

2.1 Vision System

The vision subsystem has to capture the frames and

to process them until obtaining a pattern: a set of

values understandable by the neural net. The whole

process starts with the capture.

We decided to separate by time the saving phase

of frames from the elaboration phase realized in the

following tasks. We acted in this way to guarantee a

constant and quick frame’s sample, considering that

the tracking process requires a changeable execution

time. Once the frames are saved, the webcam turns

into stand-by and the process moves to the skin color

filtering.

2.1.1 Skin Filter

The use of color information was introduced in these

last year to solve problems concerning the

localization of hands and face with great results. It

was shown the color represents very good

information to extract some parts: in particular, the

skin color can be used to find the hands and the face

of a person. The human skin has, indeed, a peculiar

distribution that significantly differs from the

background.

This is extremely important because it allows

you to focus the object to track in the following

tracking phase. Tracking is made with no marker or

referring point, so skin filter became the first way to

shrink the area that has to be analyzed. This allows

reducing the computational load to which the system

is submitted, considering that tracking procedure is

the most grave.

To realize a skin filter we decided to isolate in

some way the skin tone in the color range YCbCr,

this allows considering just the chroma component.

The most important problem is that light condition

has effect on how the color appears: let’s think, for

instance, to a warm color artificial lighting.

The approach we used in this paper uses a

rectangular mask on the bi-dimensional chromatic

level. This keeps the computational load low. About

the value of the thresholds we relied on results of

Chai (Chai, 1999), who took an experiment on a

various cluster finding a precise concentration range

Cr=[133,173] e Cb=[77,127], as you can see in the

following graph:

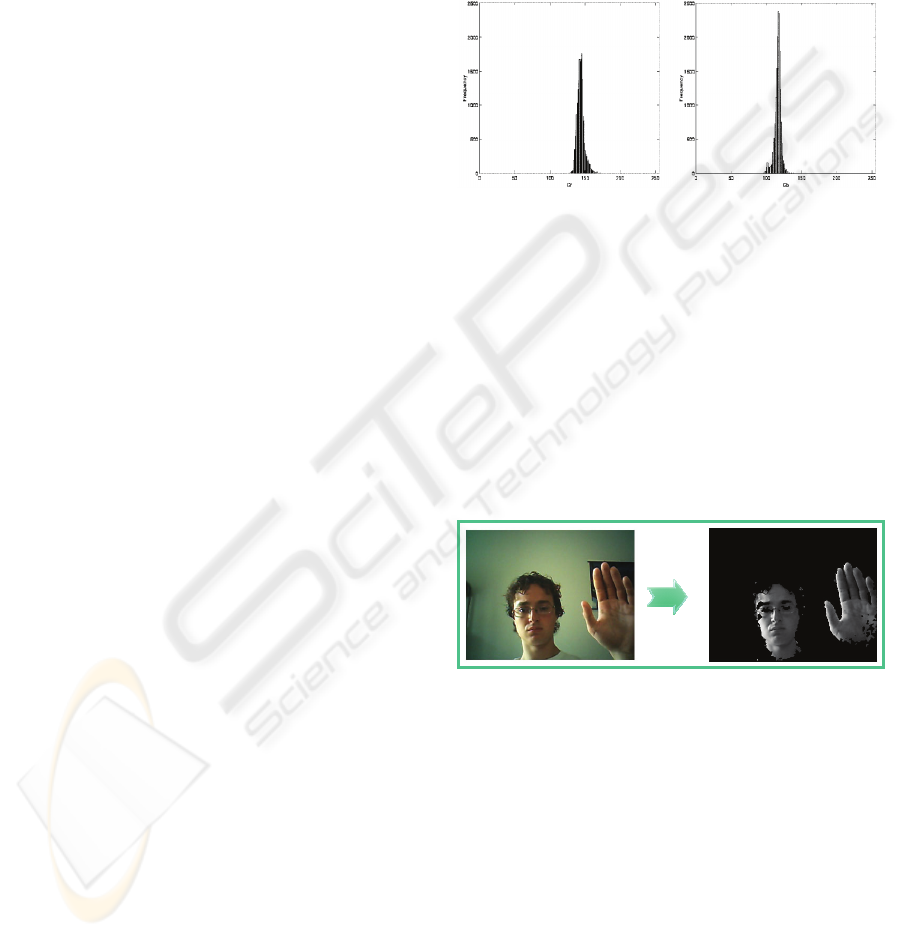

Figure 1: Component Cr e Cb of skin color.

To fix the illumination problem we choose to

give entirely to the user the possibility to correct the

chromatic correction that has to be applied, using a

very easy and intuitive set up phase. At the end the

so obtained mask is submitted to another filtering

process deleting the isolate pixels. This operation is

necessary to make the regions more continuous.

To increase the tracking efficiency we preferred

to filter all the frames, giving a constant reference to

the tracking process. The result of the elaboration is

shown by the following image.

Figure 2: Frame before and after skin filter.

2.1.2 Tracking

Because of the noise it is not possible to determine

the correct position of a single pixel that can be

confused with adjacent points. Due to this problem

we do not track single pixel but pixel window,

feature. We based our work on a feature tracking

method. The entire phase can be divided in three

main moments.

 feature selection

 tracking

 feature recovery

ARTIFICIAL NEURAL NETWORKS BASED SYMBOLIC GESTURE INTERFACE

365

The core of the algorithm is given by the

tracking method thought by Lucas and Kanade. The

main element of this technique is the definition of

the comparison measure between characteristic,

fixed dimension windows, in the two frames that

have to be compared, like the square of the

difference of the window intensity. Different points

in a window can have different behaviours. They can

have different intensity variation or, when the

window is on an edge, different speed or appear and

disappear. So, in the window, transformations from

an image to another happen very often. We have to

represent the situation using the affine motion field:

AX D con A

xxy

yx yy

⎡⎤

=+ =

⎢⎥

⎣⎦



(1)

where δ is in general the displacement, A is the

deformation matrix and D is the translation vector

(Shi and Tomasi, 1994).

To verify we are tracking always the same

window, we check the dissimilarity every steps; it is

defined in the following way:

[]

() ( )

IX JAX D wdX∈= − +

∫

(2)

where I(X) e J(X) are image functions of the two

frames in exam. If dissimilarity is too high the

window is discarded. We obtain as result the

displacement that optimizes this sum.

If we consider frames so temporally close to

make the shift very short, we will have a

deformation matrix very small. In this case, it can be

considered null. Mistakes on the displacement can

be due to the determination of these parameters in

these conditions. If the aim is the shift determining,

it is better to determine just the spatial components

of the movement. The result is even more simple

and fast to calculate.

The affine model is useful in features

monitoring. In the features selection mistakes can be

made; so monitoring is important to do not obtain

contradictory results.

In small shifts we consider a linearization

according to Taylor series of the image intensity; it

allows using Newton-Raphson method for

minimization.

The window feature can be rounded to the

simple translation of the same in the previous frame.

Besides, for the same reason, the intensity of the

translated window can be written as the original one

adding a dissimilarity term depending almost

linearly from the displacement vector. Starting from

the based solution, a few iterations are enough to

make the system converge.

The Lucas-Kanade‘s algorithm is well known to

be very accurate and robust. These two

characteristics are in contradiction: considering the

tracked window size we can assume that, to increase

accuracy, we should use a smaller as possible

window so that we do not loose too many details. On

the other hand if we want to maintain a particular

robustness during alterations of light and of the size

of displacement, in particular for wide movements

we have to use a bigger window.

In this paper, we use the pyramidal

representation (Bouguet, 2000). In this way it is

easier follow wide pixel movements that, at the level

of the main image, are larger than the integration

window while, in a lower level, can be confined in

it. The pyramidal representation halves image

resolution in each level. The algorithm starts the

analysis from higher level, small images and with

few details, to go down to the next level so that the

accuracy will increase. This technique gives the

advantage to follow wide movements; dissimilarity

of displacement vector remains very small not

breaking the hypothesis of Taylor series.

It is possible improve the convergence range,

doing a suppression of the high spatial frequency,

doing then the smoothing of the image. In this way

the details will be reduced and then the accuracy: if

the smoothing window is bigger than the size of the

subject that you want to track, this will be totally

erased. Smoothing will be applied to higher level

image, the one with low resolution, so that the

information will not be lost.

For feature selection, we noted not all parts of

image contain complete information about

movement.

This is the aperture problem: along a straight

border, we can determinate only the border

orthogonal component. This is typical problem of

Lucas-Kanade algorithm; it derives from lack of

constraints for the main equation of optical flow.

Generally strategy to overcome these problems is to

use only regions with enough rich texture. In this

paper we follow Tomasi and Kanade approach

(Tomasi and Kanade, 1991). They use a choice

criterion to optimized tracking performance. In other

words, a feature is defined “good” if it can track

“well”. So we considered only features with gradient

of eigenvalues enough big.

Tracking algorithm presented stop when a

feature is declared “lost”. This can happen because

the system can’t recognized it enough well. It is

necessary recovery of that feature. The idea is to

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

366

forecast where should be basing on shifts of nears

features. This forecasting must satisfied particular

conditions: minimum distance from other features,

value of gradient of eigenvalues and matching skin

filter mask.

2.1.3 Pre-Processing

To use a neural net for recognition is necessary to

manipulate the results of tracking phase to provide a

constant size input. We chose to extract exactly 5

features. We think this number is the minimum

necessary to feel same tinges between different

gestures. It is necessary to choose the 5 paths that

describe better the gesture.

Because typology of gestures used in this paper,

and because it is important only the hand movement,

we considered only the movement size to eliminate

external features from hand, for example face.

We also considered, as parameter of “goodness”,

the eigenvalue associated to feature. The following

image shows the result of this process.

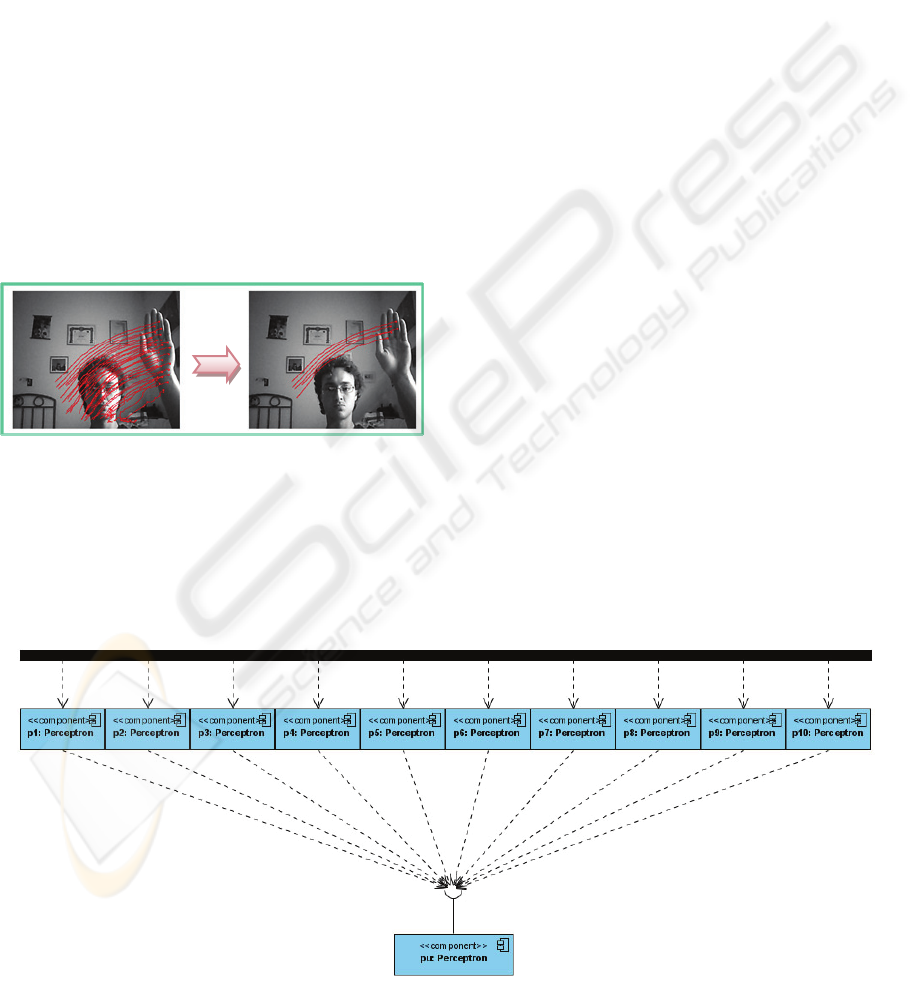

Figure 3: Pre-processing process.

2.2 Artificial Neural Net Architecture

During the building of recognition system, the

attention is focused on a single object movement. In

particular the intention is to detect the hand

movement.

The identification process is based on the

“schema” concept, a macrostructure in which the

whole action is organized (Rumelhart and Ortony,

1964).

The schema, used in this paper, is a temporal

sequent, divided into 10 steps. The parameters that

characterized the path of movement are spatial

coordinates x and y, derived form pre projection on

a bi-dimensional plane (unique point-of-view), and

the instant speed (average speed in a sample

interval). We suppose that these tree parameters

correspond to the minimum information of the

semantic of action. This choice reduces the

dimensionality of research space and reflects the

user oriented representation.

Action semantic correspond to the human

perception of covariance from cinematic and

geometry (Runeson, 1994).

2.2.1 The Architecture

Recognition system consists of a double layered

neural architecture. As you can see from figure 5,

the first layer receives inputs of extracted feature

from video sequence. Second layer provides, in

output, the gesture type.

The system is formed by multilayer perceptrons:

the first layer consist of 10 nets, one for each step of

sequence, the second layer is formed by a unique

perceptron, sufficient to synthesize all the outputs of

the first layer. Perceptron is a well-known

feedforward net, used in classification problems

(Rosenblatt, 1962; Rumelhart et al., 1986).

Input pattern consist of 5 paths, each one of them

30 frame long and described by 3 parameters for

each frame. In total we have 450 variables for 10

perceptrons; nets formed by 45 units of input.

Figure 4: Neural net architecture used.

ARTIFICIAL NEURAL NETWORKS BASED SYMBOLIC GESTURE INTERFACE

367

The following image shows the typical structure

of multilayer perceptron.

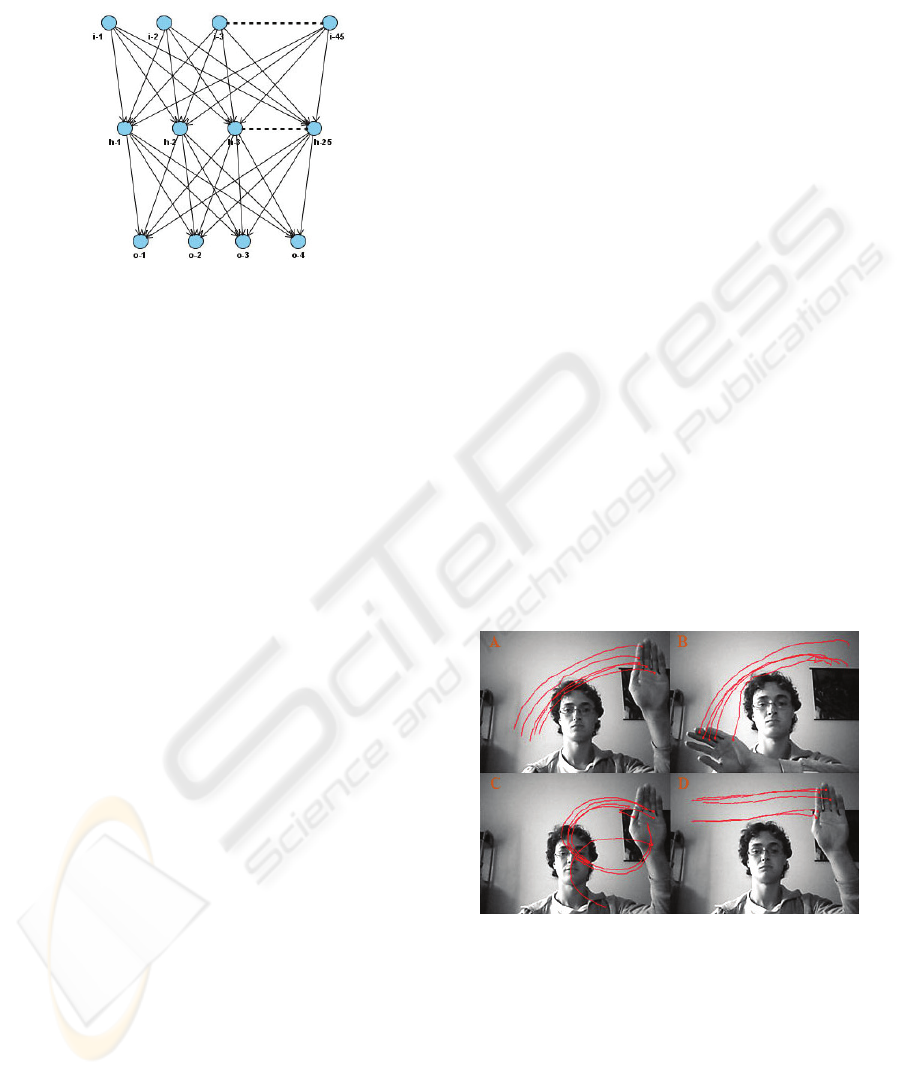

Figure 5: Multilayer perceptron structure used.

It has to be underlined there is a unique hidden

layer formed by about half of input units, 25. Output

is codified by 4 neurons; so we have the possibility

to learn 16 gestures.

Each first layer perceptron recognize 3 frame of

sequence. The second layer perceptron helps to

merge the information of all the sequence, providing

an output based on the global behaviour. Two

different movements could have very similar local

behaviours.

The dimensions of the second layer perceptron

are slightly different: input layer is of 40 units, 4 for

each first layer net, while hidden layer has 20 units.

Learning of all nets is supervised and is based on

the error-backpropagation algorithm. The pattern

that has to be learnt, is presented to net and is

calculated the global square error, feedforward

phase. After this, error signal is used to modify

values of connection coefficients between output

units and hidden units, then between hidden units

and input units, backpropagation phase.

2.3 User Interface

The term “user interface” refers to what there is

between user and machine, what permit to a user to

manage system functionalities.

The system communicates only to an external

entity, the typical user. The developed interface

implements only minimal functionalities required to

maintain maximum simplicity: set up, procedure to

adjust skin filter parameter, and the recognition,

process to recognize gestures.

It is clear how is necessary to associate, to the

tactile interface (gesture recognizer), a graphic

interface for the functionalities.

It is necessary a common channel, as a GUI, to

start these operations and to obtain feedbacks. This

assists to control the system but maintain a minimal

help from user.

3 TESTING

Testing process consists with a phase for gesture

codification, nets learning and at last a testing phase

to verify system accuracy and robustness.

Gesture definition is fundamental to finish

parameters set up of vision system. We decided to

use symbolic gestures because instrument property

of gesture recognizer (neural architecture). This

choice leads to the typical problems of these

systems: segmentation and learning. For the first, a

partial solution is the graphic interface. To reduce

problems derived from usability and from learning,

we kept gestures number to minimum hitting the

attention on recognition system efficiency. We gave

importance to cinematic nature of gesture e not to

static configuration; so we hit on globally hand

paths. We use sequence of about 1 minute long to

realize a system quite quick in output. These

elements surely reduce problems derived from

learning and usability; we chose 4 gestures, very

easy and not too similar, shown in the following

image.

Figure 6: Codified gesture set.

To realize the nets learning, it is necessary to

build a training set, a pattern set that mean codified

gestures.

For each of them we use 10 different samples

done by 5 different people to have a semantic richer

set. We noted how each person does each gesture in

a different way.

We used learning algorithm in the iterative

modality: for each period, connections weights are

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

368

modified, MSE is calculated and then process

restart. We used a learning rate of 0.1 e 10000

periods.

We noted a really speed of convergence; after

only 20000 period we reached a global error about

the decimal fifth-figure (~10

-5

3.1 Results

System testing in particular is based on robustness

test of recognition system, neural architecture. We

can do a specific test: generalization phase.

In this phase we produced a pattern set formed

by 80 elements, 20 sample for each gesture done by

5 people. We used people different from learning

ones. The following table is known as confusion

matrix and shows testing results.

Table 1: Confusion matrix.

A B

C D N. R.

18 0 0 0 2

0 20 0 0 0

1 0 13 0 6

3 0 0 15 2

Each row refers to a different gesture; columns

indicates how was recognized the particular gesture.

“N.R.” means “not recognized”: happens if nets

outputs are too low or if two outputs are quite equal.

This case indicates clear nets indecision.

It has to be underlined best result is for gesture B

that has the most different cinematic properties,

while movement C is most complex, so it is

mistaken easily.

4 CONCLUSIONS

System developed shows a quite low computational

time although this time is not unimportant; user

interface is straightforward and easy to use; finally

experiments completed verified about 85 %

reliability. In reality we noted the most factor is not

only system learning, training set, but it is client

learning. Common user needs a time amount to do

specific gestures with naturalness even if they are

very easy. For a user able to do codified gesture with

precision and naturalness, the system has an over

95% of reliability for all the movement typologies.

These results agree with conclusions of the others

works about symbolic gesture recognition. The main

detected problem from these researches is the user

learning time.

Work in this direction surely is not finished; there

are a lot of improvements that can be made to this

system. We could try to speed up the process to

create really real-time software; time of response is

reflected on user usability. We could increase

gestures vocabulary and verify learning capacities

limits. We could improve set up procedure of skin

filter to have a completely automatic process and

finally we could obtain a GUI-independent system

resolving problem derived from movement

segmentation. This is the way to have an

autonomous gesture interface.

REFERENCES

B. Lucas, T. Kanade, 1981. An Iterative Image

Registration Technique with an Application to Stereo

Vision. Proc 7th Intl Joint Conf on Artificial

Intelligence.

C. Tomasi, e T. Kanade, 1991. Detection and Tracking of

Point Feature. School Comput. Sci., Carnegie Mellon

Univ., Pittsburgh, PA.

D. Chai, 1999. Face Segmentation Using Skin-Color Map

in Videophone Applications. IEEE Transactions on

circuits and systems for video technology, 1999.

J. Shi e C. Tomasi, 1994. Good Feature to Track. IEEE

Conference on Computer Vision and Pattern

Recognition, Seattle.

J. Bouguet, 2000. Pyramidal Implementation of the Lucas

Kanade Feature Tracker Description of the algorithm.

Intel Corporation Microprocessor Research Labs.

D.E. Rumelhart and A. Ortony, 1964. The Representation

of Knowledge in Memory. In R.C. Anderson, R.J.

Spiro, W.E. Montague (Eds.) Schooling and the

acquisition of knowledge, Hillsdale, NJ: Erlbaum.

S. Runeson, 1994. Perception of Biological Motion: the

KSD-Principle and the Implications of a Distal Versus

Proximal Approach. In G. Jansson, W. Epstein & S. S.

Bergström (Eds.), Perceiving events and objects.

F. Rosenblatt, 1962. Principles of Neurodynamics:

Perceptrons and the Theory of Brain Mechanism.

Spartan Books, Washington D.C.

D. E. Rumelhart, G.E. Hinton, and R.J. Williams,

“Learning Representations by Back-propagation of

Errors”, Nature, Vol.323, pp.533-536, 1986.

ARTIFICIAL NEURAL NETWORKS BASED SYMBOLIC GESTURE INTERFACE

369
