A COMPARATIVE USABILITY EVALUATION OF TWO

AUGMENTED REALITY LEARNING SCENARIOS

Alexandru Balog and Costin Pribeanu

National Institute for Research in Informatics, Bd. Mareşal Averescu, Nr. 8-10, Bucharest, Romania

Keywords: Usability evaluation, formative evaluation, summative evaluation, augmented reality, e-Learning.

Abstract: Augmented Reality (AR) systems are featuring novel interaction techniques which are mainly driven by the

possibilities to manipulate specific real objects. The interaction components have to be tested with users as

early as possible in the development cycle in order to avoid usability problems. This paper reports on a

comparative analysis of the usability evaluation results for two AR-based learning scenarios. The purpose of

the evaluation was twofold: (a) getting an early feedback from users on the first version of the software, and

(b) comparing the usability of two learning scenarios developed onto the same AR platform. The

comparison has been performed between both quantitative and qualitative measures collected during a

summer school.

1 INTRODUCTION

Augmented Reality systems are featuring a new type

of human-computer interaction which is based on

the integration of real and virtual environments into

one interaction space (Azuma, 1997). Designing for

usability is not an easy task in the AR field since

there is a lack of both specific user-centered design

methods and usability data (Bowman et al., 2002;

Bach & Scapin, 2004; Swann & Gabbard, 2005).

Gabbard et al. (2004) proposed a user-centered

design approach based on 4 main activities: user task

analysis, expert-based formative evaluation, user-

centered formative evaluation and summative

usability evaluation. Formative evaluation is usually

performed in an iterative development cycle with the

purpose of improving the product while summative

evaluation is usually performed after a system or

component has been developed with the purpose of

supporting some decision (Scriven, 1991).

Nevertheless, in the same book, Scriven pointed out

that a useful kind of summative evaluation is “early-

warning summative” which means a summative

evaluation of an early version of a product.

This paper is reporting on a comparative

usability evaluation of two AR-based learning

scenarios developed in the framework of the ARiSE

(Augmented Reality for School Environments)

research project.

The main objective of the ARiSE project is to

test the pedagogical effectiveness of introducing AR

in schools and creating remote collaboration

between classes around AR display systems. ARiSE

is developing a new technology, the Augmented

Reality Teaching Platform (ARTP) in three stages

thus resulting three research prototypes. Each

prototype is featuring a new application scenario

based on a different interaction paradigm. An

important research question is to investigate the

extent to which each learning scenario is actually

answering the project goal.

In order to get a fast feedback from both teachers

and students, each prototype is tested with users

during the ARiSE Summer School which is held

yearly.

The first prototype implemented a Biology

learning scenario for secondary schools. The

interaction paradigm is “3D process visualization”

and is targeted at enhancing the students’

understanding and motivation to learn the human

digestive system. The second prototype

implemented a learning scenario for Chemistry. The

interaction paradigm is “building with guidance”

and is targeted at enhancing the students’

understanding and motivation to learn the periodic

table of Chemical elements as well as the structure

of atoms and molecules. Both scenarios have been

tested with users during the 2

ARiSE Summer

School which has been held in Bucharest, on 24-28

October 2007.

370

Balog A. and Pribeanu C. (2008).

A COMPARATIVE USABILITY EVALUATION OF TWO AUGMENTED REALITY LEARNING SCENARIOS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 370-375

DOI: 10.5220/0001934003700375

 SciTePress

The objective of this paper is to comparatively

present and analyze the evaluation results. In this

respect, the evaluation was both formative, since we

could provide developers with useful guidance on

how to improve each scenario, and early summative,

since we compared two learning scenarios in a

structured way by using a usability questionnaire

which is targeting several dimensions.

The rest of this paper is organized as follows. In

the next section we describe the evaluation set-up

and the usability questionnaire. In section 3 we

present and compare the evaluation results for each

scenario. The paper ends with conclusion and future

work in section 4.

2 EXPERIMENT

2.1 Participants

A total of 20 students from which 10 boys and 10

girls tested the ARTP. None of the students was

familiar with the AR technology. 12 students were

from 8

class (13-14 years old), 4 from 9

class (14-

15 years old) and 4 from 10

class (15-16 years old).

Students have different ages because of the

differences related to the Chemistry curricula in each

country.

Testing and debriefing with users has been done

in the morning while the afternoon has been

dedicated for discussion between research partners.

2.2 Equipment and Tasks

ARTP is a “seated” AR environment: users are

looking to a see-through screen where virtual images

are superimposed over the perceived image of real

objects placed on the table (Wind, Riege & Bogen,

2007). The platform has been registered by

Fraunhofer IAIS under the trade mark Spinnstube

The test has been conducted on the platform of

ICI Bucharest which is equipped with 4 Spinnstube

modules.

2.2.1 The Biology Scenario

The real object is a flat torso of the human digestive

system. As illustrated in Figure 1, in this setting (4

Spinnstube modules in a room) a torso is used by

two users staying face to face.

A pointing device having a colored ball on the

end of a stick and a remote controller Wii Nintendo

as handler has been used as interaction tool that

serves for three types of interaction: pointing on a

real object, selection of a virtual object and selection

of a menu item.

The user can select an organ with the pointing

device. When the colored ball is onto the organ its

augmentation is superimposed on the see-through

screen. The user is confirming the selection by

pressing the button B placed on the back of the

controller.

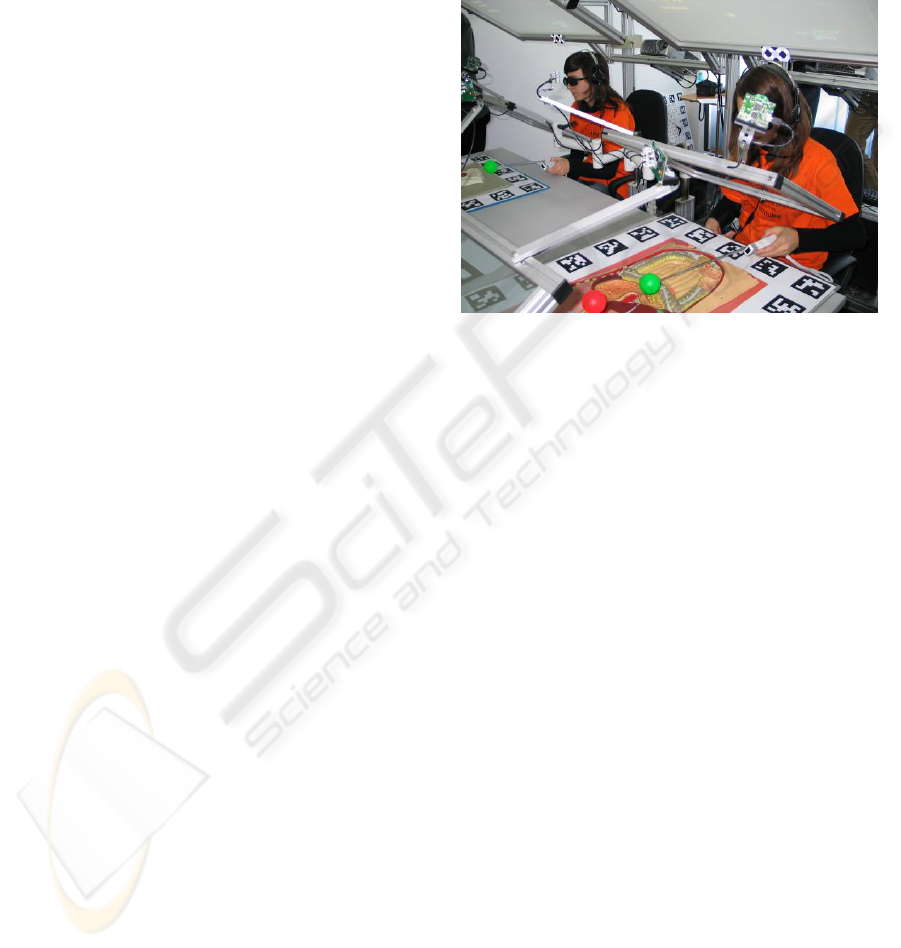

Figure 1: Students testing the Biology scenario.

The participants have been assigned 4 tasks: a

demo program explaining the absorption /

decomposition process of food and three exercises:

the 1

exercise asking to indicate the organs of the

digestive system and exercises 2 and 3, asking to

indicate the nutrients absorbed / decomposed in each

organ respectively the organs where a nutrient is

absorbed / decomposed.

2.2.2 The Chemistry Scenario

The real objects are a periodic table and a set of

colored balls symbolizing atoms. The periodic table

has two sides: part A with full notation of chemical

elements and part B with numbered groups and

periods. Part B is used to test how students

understand the internal structure of atoms. Each

workplace has its own periodic table.

The remote controller Wii Nintendo has only

been used as interaction tool for selecting a menu

item. Figure 2 illustrates how two students are

creating an atom by placing a colored ball onto the

element on the periodic table. The atom structure is

displayed as an augmentation on the see-through

screen, for all the balls of that color (until the color

is assigned to a new element).

The participants have been assigned 14 tasks: an

introduction and 13 exercises related to three

lessons. 1

lesson is about the chemical structure of

the atoms and has 2 exercises. 2

lesson is about

A COMPARATIVE USABILITY EVALUATION OF TWO AUGMENTED REALITY LEARNING SCENARIOS

371

forming molecules and has 8 simple exercises. 3

lesson is about chemical reactions and has 3

exercises.

Figure 2: Students testing the Chemistry scenario.

2.3 Method and Procedure

2.3.1 The Usability Questionnaire

The ISO standard 9126-1:2001 defines usability as

the capability of a software system to be understood,

learned, used, and liked by the user when used under

specified conditions. Within the ARiSE project we

took a broader view on the design and evaluation of

interactive systems by targeting usefulness and

attitude towards the system.

A well known model aiming to predict

technology acceptance once users have the

opportunity to test the system is TAM – Technology

Acceptance Model (Davis et al., 1989). TAM theory

holds that intention to use is influenced by user’s

attitude towards the technology, which in turn is

influenced by the perceived ease of use and

perceived usefulness. As Dillon & Morris (1998)

pointed out, TAM provides with early and useful

insights on whether users will or will not accept a

new technology. TAM is nowadays widely used as

an information technology acceptance model that

has been tested to explain or predict behavioral

intention on a variety of information technologies

and systems (Venkatesh et al., 2007).

A usability evaluation questionnaire has been

developed that has 28 closed items (quantitative

measures) and 2 open questions, asking users to

describe the most 3 positive and most 3 negative

aspects (qualitative measures).

As it could be observed in Table 1, the first 24

items are targeting various dimensions such as

ergonomics, usability, perceived utility, attitude and

intension to use. The remainder four items are to

assess how the students overall perceived the

platform as being easy to use, useful for learning,

enjoyable to learn with and exciting.

Table 1: The usability questionnaire.

Item

1 Adjusting the "see-through" screen is easy

2 Adjusting the stereo glasses is easy

3 Adjusting the headphones is easy

4 The work place is comfortable

5 Observing through the screen is clear

6 Understanding how to operate with ARTP is easy

7 The superposition between projection and the real

object is accurate

8 Learning to operate with ARTP is easy

9 Remembering how to operate with ARTP is easy

10 Understanding the vocal explanations is easy

11 Reading the information on the screen is easy

12 Selecting a menu item is easy

13 Correcting the mistakes is easy

14 Collaborating with colleagues is easy

15 Using ARTP helps to understand the lesson more

quickly

16 After using ARTP I will get better results at tests

17 After using ARTP I will know more on this topic

18 The system makes learning more interesting

19 Working in group with colleagues is stimulating

20 I like interacting with real objects

21 Performing the exercises is captivating

22 I would like to have this system in school

23 I intend to use this system for learning

24 I will recommend to other colleagues to use

ARTP

25 Overall, I find the system easy to use

26 Overall, I find the system useful for learning

27 Overall, I enjoy learning with the system

28 Overall, I find the system exciting

By addressing issues like perceived utility,

attitude and intention to use, usability evaluation

results could be easier integrated with pedagogical

evaluation results.

2.3.2 Procedure

Each group of students tested ARTP twice, once for

each interaction scenario. The Biology scenario has

been tested before the Chemistry scenario. Before

testing, a brief introduction to the AR technology

and ARiSE project has been done for all students.

During testing, effectiveness (binary task

completion and number of errors) and efficiency

(time on task) measures have been collected in a log

file.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

372

0.00

1.00

2.00

3.00

4.00

5.00

Biology

3.30 4.05 4.25 4.30 3.55 3.75 3.00 3.75 4.00 4.60 4.10 4.25 3.55 3.25 4.00 3.65 3.75 4.45 3.90 3.75 3.55 4.30 3.95 3.95 3.30 4.05 3.70 3.85

Chemistry

3.10 3.50 4.20 4.20 3.35 4.05 3.05 4.10 4.45 4.40 3.65 4.25 3.40 3.65 4.25 3.85 4.10 4.55 3.95 3.95 4.05 4.45 3.95 4.05 3.55 4.30 3.85 4.10

1 2 3 4 5 6 7 8 9 10111213141516171819202122232425262728

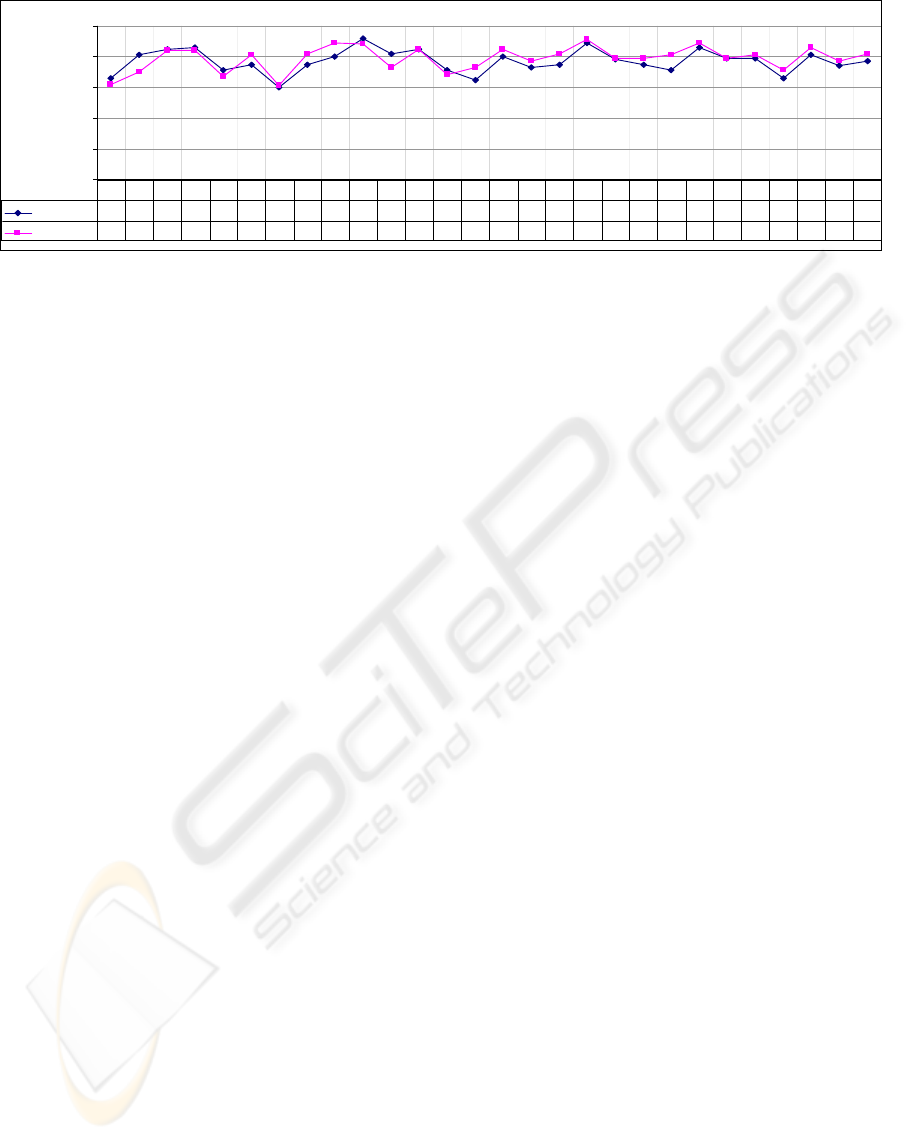

Figure 3: Comparison between the Biology and Chemistry scenarios (mean values).

After testing, the students were asked to answer

the new usability questionnaire by rating the items

on a 5-point Likert scale (1-strongly disagree, 2-

disagree, 3-neutral, 4-agree, and 5-strongly agree).

Prior to the summer school, the questionnaire has

been translated into the native language of students.

Reliability of the scale (Cronbach’s Alpha) was

0.931 for the Biology scenario and 0.929 for the

Chemistry scenario.

3 RESULTS

3.1 Quantitative Data Analysis

3.1.1 Comparison between Mean Values

A comparison between mean values (questionnaire

data) is presented in Figure 3. Items 1-5, 7, 10, 11

and 12 are mainly related to the general ergonomics

of the ARTP while items 6, 8, 9, 13 and 14 are

mainly related to the usability of the application

scenario.

A paired samples t-test revealed that the

differences are statistically significant (α=0.05,

df=19) only for 4 items: 2 (t=2.604, p=0.009), 9 (t=-

3.943, p<0.001), 11 (t=2.131, p=0.023), and 21 (t=-

2.364, p=0.014).

The general ergonomics of the AR platform has

been better rated for the Biology scenario. The rest

of dimensions have been better rated for the

Chemistry scenario.

On the one hand, this means that the ergonomics

of the platform created more problems to students

trying to solve the Chemistry exercises. The most

important differences are at the items 2 (-0.55), 5 (-

0.20) and 11 (-0.45) which are related to the quality

of visual perception since the students encountered

difficulties with the superposition between the ball

(real object) and the atom structure (augmentation).

On the other hand, the usability of the Chemistry

application was better and weighted more in the

general ease of use which has been better rated (3.55

vs. 3.30). The biggest differences are related to the

items 6, 8 and 9, i.e. the ease of understand (+0.30),

ease to learn (+0.35) and ease to remember how to

operate with the application (+0.45). The positive

difference at item 14 (+0.40) shows that the students

found it easier to collaborate with colleagues during

the Chemistry scenario.

The mean values for the item 25 shows that

overall, the students found the Chemistry application

easier to use than the Biology application (+0.20).

The perceived utility (items 15-17) of the

Chemistry scenario has been better rated. The most

important difference is at item 17 (+0.35), showing

that the students will know more on the topic after

using ARTP. These differences are also consistent

with the difference at the general item 26 (+0.25).

The attitude towards the Chemistry scenario has

been more positive than towards the Biology

scenario (items 18-21). Students preferred the AR

interaction during Chemistry exercises (+0.20) and

found them much more captivating (+0.50). The last

two general items have been also scored higher for

this scenario.

Items 10, 18 and 22 have been positively

evaluated for both scenarios, with a mean over 4.25,

showing that understanding the vocal explanation is

easy, the system makes learning more interesting,

and students would like to have this system in

school.

Items 1, 5, 7 and 25 have low mean values for

both scenarios, showing that there are problems with

the visual perception and overall, students found

ARTP difficult to use. Most of these usability

problems are related to the ergonomics of the AR

platform and they are described in more detail in the

open questions.

A COMPARATIVE USABILITY EVALUATION OF TWO AUGMENTED REALITY LEARNING SCENARIOS

373

3.1.2 Age Analysis

An independent-samples t-test was conducted to

compare the mean scores of items for the students in

the 8

class and the older students.

For the Biology scenario, the t-test results

revealed statistically significant differences (α=0.05,

df=18) for 3 items: 14, 19, and 21 (see Table 2).

This means that the younger students found the

collaboration easier and more stimulating than the

older students. Younger students found also the

exercises more captivating.

Table 2: Age analysis for items 14, 19, and 21.

Item Age N Mean t df p

14 12 3.83

15-16 8 2.38

-3.066 18 0.007

14 12 4.25

15-16 8 3.38

-2.556 18 0.020

14 12 4.08

15-16 8 2.75

-4.893 18 0.000

For the Chemistry scenario, the t-test analysis

revealed a significant difference (α=0.05, df=18)

only for the item 1 (t=-3.778, p=0.001), showing that

it was easier for the younger students (M=3.58,

SD=0.793) than for the older students (M=2.38,

SD=0.518) to adjust the see-through screen.

3.2 Qualitative Data Analysis

3.2.1 Most Mentioned Positive Aspects

The answers to the open questions have been

analyzed in order to extract key words (attributes).

Attributes have then been grouped into categories.

Some students only described one or two aspects

while others mentioned several aspects in one

sentence thus yielding a number of 82 positive

aspects for the Biology scenario and 70 positive

aspects for the Chemistry scenario.

A comparison of the main categories of most

mentioned positive aspects is presented in Table 3.

The system provides with an easier and better

understanding of the topic, better remembering of

the learned content, and faster learning. The students

also appreciated the usefulness of the exercises and

expressed the interest to have this system in schools.

ARTP is increasing the students’ motivation to

learn since they mentioned that the system makes

learning more interesting (especially Chemistry), is

attractive, novel, provocative and funny. They were

also attracted by the features of the AR technology,

including the multimodal user guidance. Two

students directly mentioned that they liked more the

Chemistry scenario.

Table 3: Main categories of positive aspects.

Category Total Bio. Chem.

Good for learning 33 27 6

Good for understanding 20 9 11

Good for testing 7 4 3

Interesting learning 14 4 10

Funny, novel, provocative 12 8 4

Attractive learning 9 5 4

Captivating, stimulating 4 2 2

AR interaction 10 5 5

3D visualization 19 8 11

User guidance (explanations) 13 7 6

Better scenario 2 - 2

Easy to use and other 9 3 6

Total 152 82 70

Students liked the idea of learning-by-doing and

found the simulation of chemical reactions very

attractive (“You see exactly what is happened into a

chemical reaction”, “The creation of molecules and

other chemical processes are visualized very nice

and demonstrative”). This corresponds to the higher

rating of the item 21 (Performing exercises is

captivating) in the Chemistry scenario.

3.2.2 Most Mentioned Negative Aspects

Most mentioned negative aspects are summarized in

Table 4 in a decreasing order of their frequency.

Table 4: Most mentioned negative aspects.

Category Total Bio. Chem.

Selection problems 39 25 14

Eye pains and glasses 26 13 13

Real object too big 24 14 10

Visualization &

superposition

22 3 19

Headphones and sound 12 6 6

Errors and other problems 11 8 3

Total 134 69 65

In both sessions the students accused eye pains

provoked by the shuttering of the wireless glasses.

(“It was something wrong with glasses. They were

blinking”). This is the second major category of

negative aspects after selection problems. Students

also complained about sound problems.

In the Biology scenario, students mainly

complained about selection problems which are

related to the big real object and a small selection

area. They also found it difficult to select small

organs such as duodenum or pancreas. Visualization,

including observing the real objects through the

screen created more problems in the Chemistry

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

374

scenario. Students complained about the difficulty to

distinguish the color of the real ball because of the

augmentation displayed on the screen.

The real object was too big in the first scenario

(torso) and difficult to manipulate (balls) in the

second scenario: “I didn't like the fact that torso has

to be moved“, “every student should have his own

torso“. This corresponds to the lower rating of the

items 14 (Collaborating with colleagues is easy) and

19 (I like interacting with real objects) in the

Biology scenario.

4 CONCLUSIONS AND FUTURE

WORK

The comparative evaluation of subjective measures

of user satisfactions based on quantitative and

qualitative data collected with the usability

questionnaire reveals several aspects both for the AR

platform and for each application scenario.

The analysis of quantitative and qualitative data

revealed the educational and motivational value of

the ARTP. The learning scenario is good for

learning, good for testing, and makes it easier to

understand and remember the lesson. ARTP makes

learning more interesting, is attractive, stimulating

and exciting. The students liked the interaction with

3D objects using AR techniques as well as the

multimodal user guidance. The students appreciated

the ARTP as useful for learning and expressed an

interest to use it in the future.

Participants to the summer school found the

Chemistry scenario more attractive. This scenario is

more complex and interesting since it is using two

kinds of real objects, gives more freedom to the

users (they could choose colored balls and build

different things with them) and is based on a more

interesting interaction paradigm (building with

guidance). Assigning semantics to a colored ball by

placing it onto the periodic table makes the task

more interesting.

Several usability problems exist that have been

identified by both questionnaire data and log file

analysis. The clarity of the visual perception should

be improved as well as the overall ease of use. Since

many students complained about eye pains provoked

by the shuttering of the wireless stereo glasses, it is

strongly recommended to replace them with wired

stereo glasses.

Overall, the comparative evaluation was a useful

aid for designers since it revealed strengths /

weaknesses of each scenario and helped to improve

the educational potential of the AR platform.

The usability questionnaire is intended to support

both formative and summative usability evaluation.

In this respect, the comparative usability evaluation

performed during the summer school is a first step to

a summative evaluation of the ARTP. In order to

gather enough data we restarted user testing in 2008,

on improved versions of both scenarios.

ACKNOWLEDGEMENTS

We gratefully acknowledge the support of the

ARiSE research project, funded under FP6-027039.

REFERENCES

Azuma, R., 1997. A Survey of Augmented Reality.

PRESENCE: Teleoperators and Virtual Environments,

Vol. 6, No. 4, pp. 355-385.

Bach, C., Scapin, D., 2004. Obstacles and perspectives for

Evaluating mixed Reality Eystems Usability. In. Mixer

workshop, Proceedings of IUI-CADUI Conference

2004, pp. 72-79. ACM Press.

Bowman, D., Gabbard, J., and Hix, D., 2002. A Survey of

Usability Evaluation in Virtual Environments:

Classification and Comparison of Methods. Presence:

Teleoperators and Virtual Environments, vol. 11, no.

4, pp. 404-424

Davis, F.D., Bagozzi, R.P., Warshaw, P.R., 1989. User

Acceptance of Computer Technology: A Comparison

of Two Theoretical Models, Management Science,

Vol. 35, No. 8, pp. 982-1003.

Dillon, A. and Morris, M., 1998. From "can they?" to "will

they?": extending usability evaluation to address

acceptance. AIS Conference, Baltimore, August 1998.

Gabbard, J., Hix, D., Swan, E., Livingston, M., Herer, T.,

Julier, S., Baillot, Y. & Brown, D., 2004. A Cost-

Effective Usability Evaluation Progression for Novel

Interactive Systems. In Proceedings of Hawaii

International Conference on Systems Sciences, Track

9, p. 90276c, IEEE.

ISO 9126-1:2001 Software Engineering - Software

product quality. Part 1: Quality model.

Scriven, M., 1991. Evaluation thesaurus. 4th ed. Newbury

Park, CA: Sage Publications.

Swann II, J., E., Gabbard, J., 2005. Survey of User-Based

Experimentation in Augmented Reality. In.

Proceedings of 1

International Conference on Virtual

Reality. July 22-27, Las Vegas, Nevada, 2005.

Venkatesh, V., Davis, F.D., Morris, M.G., 2007. Dead Or

Alive? The Development, Trajectory And Future Of

Technology Adoption Research. Journal of the AIS,

Vol. 8, Issue 4, pp. 267-286.

Wind, J., Riege, K., Bogen M., 2007. Spinnstube®: A

Seated Augmented Reality Display System, In Virtual

Environments, Proceedings of IPT-EGVE – EG/ACM

Symposium, pp. 17-23., Eurographics.

A COMPARATIVE USABILITY EVALUATION OF TWO AUGMENTED REALITY LEARNING SCENARIOS

375
