STATIC FEATURES IN ISOLATED VOWEL RECOGNITION AT

HIGH PITCH

An´ıbal Ferreira

Faculdade de Engenharia da Universidade do Porto, SEEGNAL Research, Portugal

Keywords:

Vowel perception, automatic vowel recognition.

Abstract:

Vowel recognition is frequently based on Linear Prediction (LP) analysis and formant estimation techniques.

However, the performance of these techniques decreases in the case of female or child speech because at high

pitch frequencies (F0) the magnitude spectrum is scarcely sampled making formant estimation unreliable.

In this paper we describe the implementation of a perceptually motivated concept of vowel recognition that is

based on Perceptual Spectral Clusters (PSC) of harmonic partials. PSC based features were evaluated in auto-

matic recognition tests using the Mahalanobis distance and using a data base of ﬁve natural Portuguese vowel

sounds uttered by 44 speakers, 27 of whom are child speakers. LP based features and Mel-Frequency Cepstral

Coefﬁcients (MFCC) were also included in the tests as a reference. Results show that while the recognition

performance of PSC features falls between that of LP based features and that of MFCC coefﬁcients, the nor-

malization of PSC features by F0 increases the performance and approaches that of MFCC coefﬁcients. PSC

features are not only amenable to a psychophysical interpretation (as LP based features are) but have also the

potential to compete with global shape features such as MFCCs.

1 INTRODUCTION

Real-time visual feedback of acoustic features ex-

tracted from vowel utterances is required in interac-

tive applications designed to assist in speech therapy

and language learning or rehabilitation programs. It is

also desirable that automatic vowel recognition is car-

ried out within a time delay that is commensurate with

human performance in recognizing isolated vowels.

Most approaches used to recognize short (voiced)

vowel utterances are based on formant estimation us-

ing Linear Prediction (LP) techniques (Zahorian and

Jagharghi, 1993). These techniques assume that the

production of voiced sounds by the human phonetic

system can be modeled as an all-pole ﬁlter that is ex-

cited by a periodic train of glottal pulses. The rep-

etition rate of these pulses corresponds to the funda-

mental frequency (F0), or pitch, and the poles of the

all-pole ﬁlter correspond to resonances of the vocal

tract, or formants. The fundamental frequency of the

speech uttered by a human speaker may vary over a

range of almost four octaves (50 Hz to 800 Hz) and

in singing may extend from 50 to 1800 Hz (Hess,

1983, page 64). The frequencies of the ﬁrst three for-

mants (F1, F2, F3) are usually considered as good

acoustic correlates of a given vowel (Fant, 1970).

Although formants are linked to source production

concepts and models, they also possess a very ap-

pealing psychophysical interpretation since they can

be associated with peaks in the magnitude spectrum,

which makes the correlation with vowel perception

very tempting. However, automatic vowelrecognition

based on formant estimation is only reliable when F0

is signiﬁcantly lower than the lowest formant (F1), a

problem that has been addressed by de Cheveign´e as a

problem of missing-data model of vowel identiﬁcation

(Cheveign´e and Kawahara, 1999). When F0 is com-

parable to or higher than F1, which typically happens

in female and child speech, or singing, LP techniques

are not reliable because the magnitude spectrum be-

comes undersampled (i.e., it is sampled only at in-

teger multiples of the pitch frequency). A frequent

observation is that the estimated formant frequencies

are ‘locked’ to harmonics in the magnitude spectrum

(Mollis, 2005).

In this paper we focus on static features and we

present research results using a new concept of vowel

perception(PerceptualSpectral Cluster) that builds on

the perception pitch and timbre, both being percep-

tual sensations. The PSC concept attempts to identify

clusters of harmonic partials whose features, namely

Ferreira A. (2008).

STATIC FEATURES IN ISOLATED VOWEL RECOGNITION AT HIGH PITCH.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 63-68

DOI: 10.5220/0001934500630068

 SciTePress

Center of Gravity (COG), left and right borders, and

average spectral power, give rise to relevant percep-

tual cues that we believe are used by the human au-

ditory system to recognize and discriminate among

vowels.

The rest of this paper is structured as follows. In

section 2 we describe the PSC concept and address

the estimation of PSC related features when pitch is

either seen as an additional feature, or when it is used

as an explicit normalization factor. In section 3 we

describe the classiﬁcation criterion used in the auto-

matic vowel recognition tests and present two sets of

known features that have been used as a reference in

those tests. In section 4 we characterize the training

and testing data base. In section 5 we discuss the main

results and conclusions of the vowel recognition tests.

Section 6 summarizes and concludes the paper.

2 THE PERCEPTUAL SPECTRAL

CLUSTER CONCEPT

The PSC concept has found inspiration on Klatt’s dis-

cussion regarding ‘prominent energy concentrations’

in the magnitude spectrum of a vowel sound (Klatt,

1982), and ﬁrst experimental results have been re-

ported in (Ferreira, 2005) and further investigated in

(Ferreira, 2007).

The PSC concept is strongly rooted on the idea

that the human recognition of a sustained voiced

vowel results from both the identiﬁcation of its pitch

and timbre, both being perceptual sensations. It is

known that the partials of a harmonic structure are

fused (or integrated)on a single pitch perception,even

if some of the partials are missing (Moore, 1989). On

the other hand, timbre is commonly seen as the ‘color’

of a sound and, in the case of a harmonic sound such

as a voiced vowel utterance, depends on the spectral

power of its partials. Thus, for a voiced vowel sound,

timbre analysis requires the identiﬁcation of the un-

derlying harmonic structure. The PSC concept builds

on this perceptual integration of partials pertaining

to the same harmonic structure, and tries to identify

clusters of harmonic partials and their attributes, that

explain the ability of the human auditory system to

discriminate among vowels. It is thus admitted that

a second level of perceptual integration involving the

harmonic partials within each PSC is carried out by

the human auditory system.

2.1 Estimation of PSCs

PSC features are extracted after PSC boundaries have

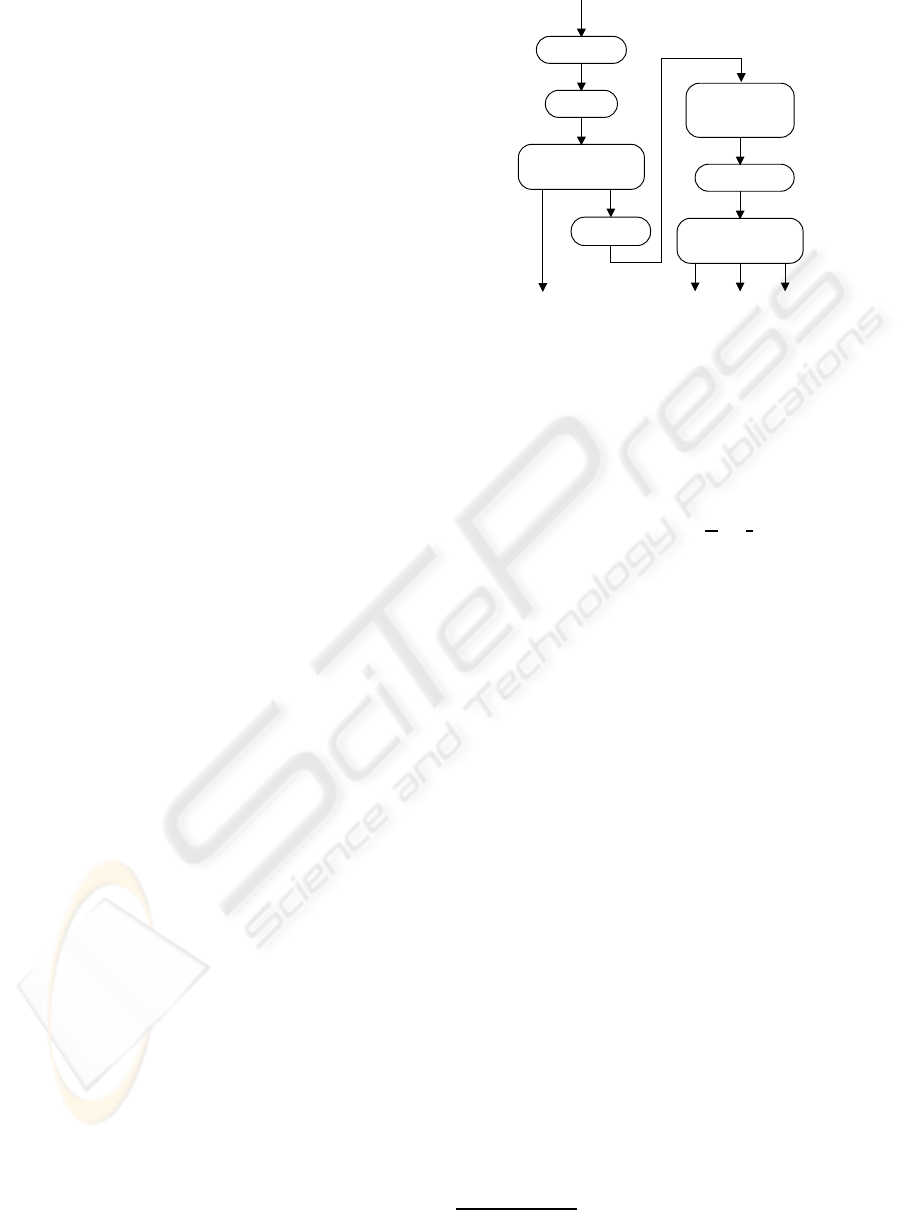

been estimated according to the algorithm illustrated

COG(1, 2) PSCR difdB

audioPCM

analysis

pitch & harmonic

| ODFT |

windowing

smoothing

PSC merge

PSC

feature extraction

PSC

pre-processing

Figure 1: Estimation of PSC boundaries and PSC features.

in Fig. 1. Each audio frame of audio samples,

x(n), is 32 ms long (1024 samples, 32 kHz sam-

pling frequency) and adjacent frames are 50% over-

lapped. A frame is ﬁrst multiplied by the square

root of a shifted Hanning window, h(n), before being

transformed to the Odd-DFT domain by computing

ODFT

(k) =

∑

N−1

n=0

h(n)x(n)e

− j

2π

(k+

. A pitch and

harmonic analysis is subsequently implemented using

a frequency domain pitch estimator (Hess, 1983) that

takes into account the speciﬁcity of the Odd-DFT and

analysis window (Ferreira, 2007).

The lower and upper borders and average spec-

tral power of each PSC are found as a result of a

PSC pre-processing and merge operations. First, a

new frequency domain is created that includes all

harmonic partials in the magnitude spectrum of the

voiced vowel, and then a magnitude smoothing in

the new frequency domain is implemented so as to

avoid small local peaks. All local peaks are subse-

quently identiﬁed as potential PSC candidates. Start-

ing from the center of each PSC candidate, left and

right borders are found by integrating into the PSC

neighboring partials whose magnitude is not below 8

the average magnitude of the PSC (this value is

updated every time one more partial is integrated into

the PSC). This PSC pre-processing does not merge

different PSCs, but may result in PSCs with abutting

borders corresponding to local minima. These PSC

are ﬁrst identiﬁed and, if their absolute magnitude

difference is below 8 dB, PSCs are merged. Finally,

adjacent but non-abutting PSCs are identiﬁed and, if

sufﬁciently close to each other, their magnitude dif-

ference is tested and eventually they are merged.

This algorithm is iterated for each frame till there

are no more PSCs to merge. Subsequently, a mapping

This value has been found experimentally (Ferreira,

2007).

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

to the original frequency domain is performed of the

boundaries and average magnitude of all PSCs found.

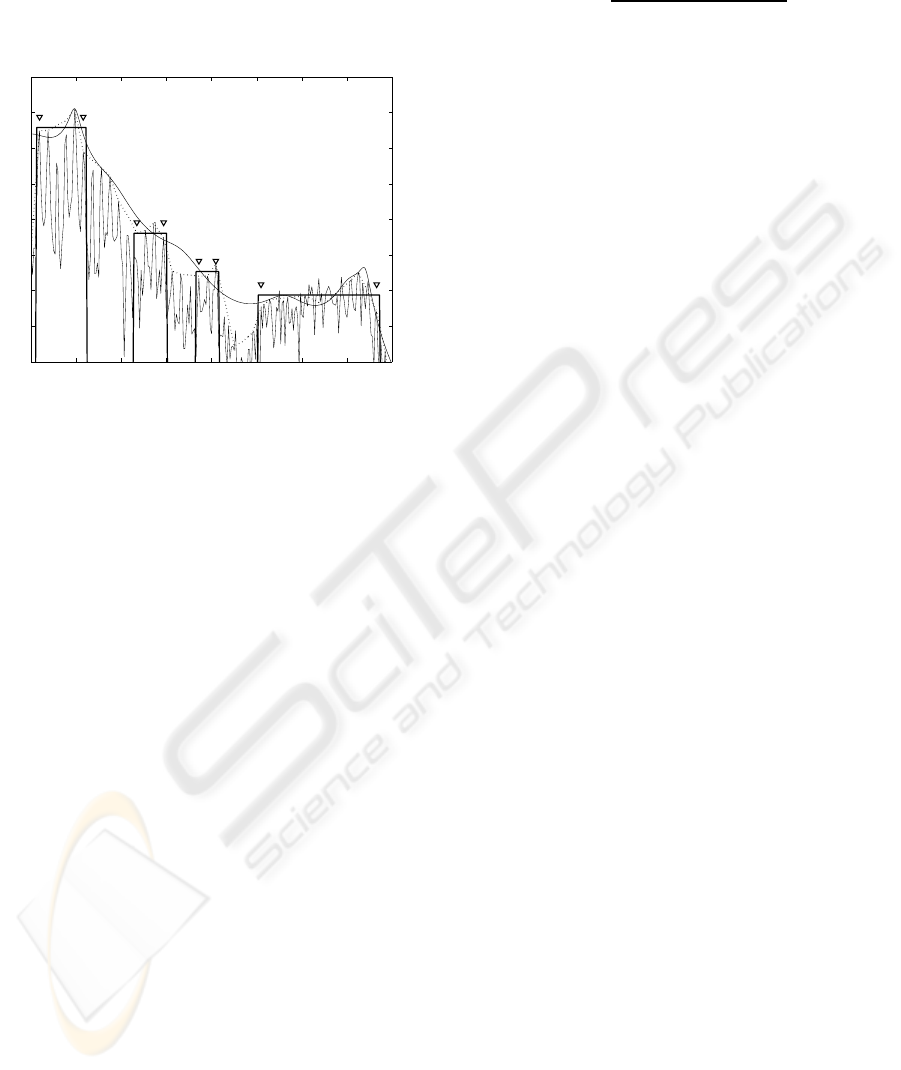

As one example, Fig. 2 depicts the result of the algo-

rithm for one frame of the sound corresponding to a

vowel /a/ uttered by a female speaker.

0 1 2 3 4 5 6 7 8

100

110

120

130

140

FREQUENCY (kHz)

MAGNITUDE (dB)

Figure 2: Short-time PSD of a sound frame corresponding

to the utterance of vowel /a/ by a female speaker (thin solid

line), spectral envelope derived from the magnitudes of the

harmonic partials and after smoothing (dotted line), spec-

tral envelope model derived from Linear Prediction analy-

sis with order 16 (smooth solid line), and identiﬁcation of

the borders (triangle symbols) and magnitude of the PSCs

found (thick solid line).

2.2 PSC Features

The preliminary results reported in (Ferreira, 2005),

and our experiments involving analysis, modiﬁcation

and re-synthesis of natural vowel utterances (Ferreira,

2007) suggest that after the automatic identiﬁcation of

the two PSCs with highest average magnitude (PSC1

and PSC2, PSC1 being on the left of PSC2), a feature

vector including as few as ﬁve features should be able

to provide good classiﬁcation results. The chosen fea-

tures are:

1. pitch frequency (F0),

2. center of gravity of PSC1 (COG1),

3. center of gravity of PSC2 (COG2),

4. right border of PSC1 (PSCR),

5. dB difference between the average magnitude of

PSC1 and that of PSC2 (difdB).

A PSC feature vector is therefore obtained as

PSC

]

= [F0, COG1, PSCR, COG2, difdB]. (1)

If ω

and ω

are respectively the frequencies of the

left and right borders of a PSC (on the harmonic do-

main), with L and R integers and L ≤ R, the COG

frequency is obtained as

COG =

∑

k=L

ODFT

(ω

∑

k=L

ODFT

(ω

. (2)

The deﬁnition of ‘center of gravity’ given here, dif-

fers signiﬁcantly from the deﬁnition given by other

authors (e.g., (Chistovich and Lublinskaja, 1979)) to

the same concept although there are some aspects in

common. In fact, other authors support that in the

case back vowels, for which typically the ﬁrst two

formants (F1 and F2) are very close together, the hu-

man auditory system does not perceive the two for-

mants separately, but performs instead a spectral inte-

gration spanning a frequency range of about 3,5 Bark

(or about 350 Hz at low frequencies). Thus, stim-

uli with formants closer than this limit are found to

be perceptually equivalent to one peak stimulus, with

the peak position determined by the center gravity of

the original two peaks. PSCs also share the spectral

integration assumption but are not constrained to be

3,5 Barks wide. In particular, some PSCs have been

found to be as narrow as a single harmonic partial.

2.3 F0-Normalized PSC Features

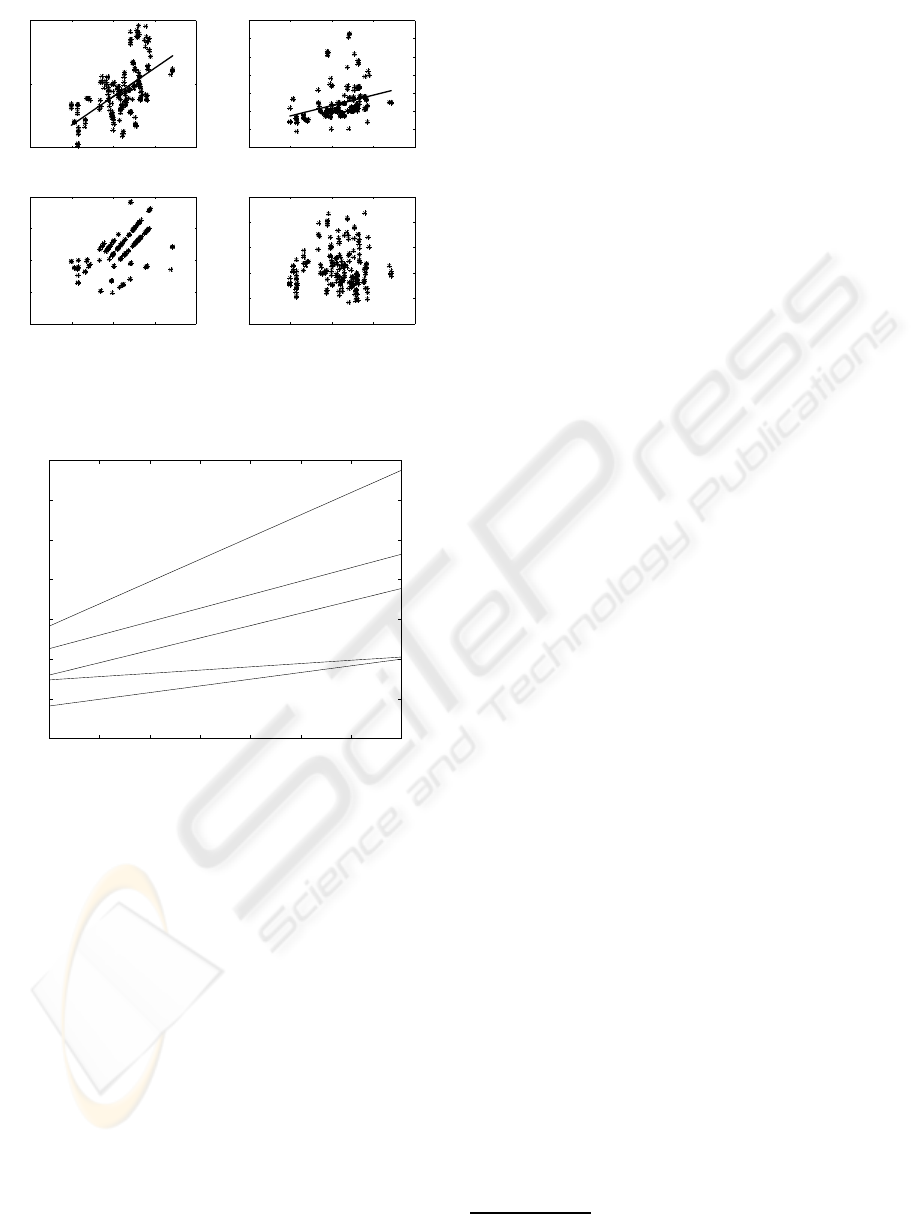

Fig. 3 illustrates the scattergrams of the selected

PSC features for vowel /a/, and reﬂects the analy-

sis of the complete data base (i.e., 44 speakers × 5

frames/vowel =220 tokens). Each scattergram is rep-

resented as a function of the pitch frequency. It can

be seen that features COG1 and COG2 exhibit a clear

dependency on F0, which is denoted by the slope of

the illustrated lines that best ﬁt the data in the least

squares sense. This is consistent with a known similar

effect regarding formants (Rabiner and Juang, 1993).

The dependency of PSCR on F0 is not as well evident

because of the peculiar representation of its scatter-

gram (Ferreira, 2007). The difdB feature does not ex-

hibit any statistically relevant dependency on F0 for

any vowel.

Fig. 4 represents the lines that best ﬁt COG1 data

for all tested vowels. This ﬁgure clearly shows that

there is common trend for all vowels: COG1 is pro-

portional to F0. As a consequence, more tuned sta-

tistical models are obtained if COG1 data is normal-

ized by the pitch frequency. The average slope of the

line that best ﬁts the proportionality trend has been

found to be 1.17 Hz/Hz. A similar evaluation regard-

ing COG2 led to the value of 4.37 Hz/Hz. Although a

value has also been found concerning PSCR, it did not

impact on the recognition results. An alternative PSC

feature vector can therefore be obtained after normal-

ization of COG1 and COG2 by the respective normal-

STATIC FEATURES IN ISOLATED VOWEL RECOGNITION AT HIGH PITCH

0 100 200 300 400

0.5

1.5

COG1

FREQUENCY (kHz)

0 100 200 300 400

COG2

FREQUENCY (kHz)

0 100 200 300 400

0.5

1.5

2.5

PSCR

PITCH FREQUENCY (Hz)

FREQUENCY (kHz)

0 100 200 300 400

difdB

PITCH FREQUENCY (Hz)

ATTENUATION (dB)

Figure 3: Scattergrams of the selected PSC features regard-

ing vowel /a/, as a function of the pitch frequency. The lines

in the COG1 and COG2 scattergrams represent the linear

models that best ﬁt the data in the least squares sense.

50 100 150 200 250 300 350 400

200

400

600

800

1000

1200

1400

/a/

/e/

/i/

/o/

/u/

F0 FREQUENCY (Hz)

COG1 FREQUENCY (Hz)

Figure 4: Spectrogram of vowels /a/, /e/, /i/, /o/, /u/ by

FEM2.

ization factors, and excluding pitch:

′

PSC

]

= [COG1

′

, PSCR, COG2

′

, difdB]. (3)

3 AUTOMATIC RECOGNITION

TESTS

In order to evaluate the relative performance of PSC

features in the automatic recognition of high pitched

vowel sounds, we have used two alternative feature

extraction techniques: plain LP analysis and polyno-

mial root analysis, and MFCC (Rabiner and Juang,

1993). The ﬁrst technique corresponds to the classic

technique of formant estimation by ﬁnding the angu-

lar position of the ﬁrst four poles (using polynomial

root analysis and excluding those over the real axis of

the Z plane) of the LP ﬁlter that models the vocal tract

resonances (Rabiner and Juang, 1993). After denor-

malization of the angular positions to the Hertz scale,

formant frequency estimates F1, F2, F3 and F4 are

obtained and an LP coefﬁcient (LPC) feature vector

is formed, including pitch:

LPC

]

= [F0, F1, F2, F3, F4] . (4)

The second technique is implemented using Slaney’s

Auditory Toolbox

after adjusting the Matlab code for

32 kHz sampling rate processing and 1024-samples

FFT analysis. The MFCC feature vector is formed

using the ﬁrst 16 MFCC coefﬁcients excluding the en-

ergy coefﬁcient (i.e., c

MFCC

]

= [c

, c

, . . . , c

]. (5)

Our classiﬁcation criterion is based on the Maha-

lanobis distance, deﬁned as

= (v− µ)

−1

(v− µ). (6)

In this equation v represents the multivariate feature

vector (test vector), and µ and C represent, respec-

tively, the mean vector and covariance matrix com-

puted from the training data for a speciﬁc vowel. By

forcing C to be diagonal, the correlation among fea-

tures in the feature vector are ignored, and the Maha-

lanobis distance reduces to the normalized Euclidean

distance. Classiﬁcation results have been obtained by

taking about 91% of the data for training (correspond-

ing to 40 speakers) and the remaining 9% for testing

(corresponding to 4 speakers), and by accumulating

results of 11 trials such that all data in the data base is

included once in the test data. Thus, training and test-

ing data are mutually exclusive. The classiﬁcation of

a test vector is decided after the evaluation of the Ma-

halanobis distance to all vowel templates, by chosing

the vowel that minimizes the distance.

4 TRAINING AND TESTING

DATA BASE

Given that our focus is on vowel recognition of nat-

ural utterances at high pitch, for our recordings we

recruited volunteer speakers (mainly child and female

speakers) from a kindergarten school, an elementary

school (in both cases after parental consent), and an

university school. In total, 27 child speakers (with

a predominance of 5 and 9 years old speakers), 11

adult female speakers and 6 adult male speakers have

participated in the recordings (Ferreira, 2007). Each

http://cobweb.ecn.purdue.edu/∼malcolm/interval/1998-

010/

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

speaker was asked to utter in sequence and in a sus-

tained way, the most common tonic Portuguese vow-

els: /a/, /e/, /i/, /o/, /u/. After the recordings, the vowel

sounds were edited and the most stationary 100 ms -

long region was manually segmented, labeled, and en-

tered into the data base. A total of 220 (=44 speakers

× 5 vowels) labeled sounds are included in the data

base

. It is safe to say that human performance in the

recognition of any vowel in the data base is 100%.

5 RESULTS AND DISCUSSION

Table 1 shows the overall recognition scores due to

the different feature sets and when the covariance ma-

trix is diagonalized in the Mahalanobis distance (ex-

cept when indicated). The lowest performance is ob-

Table 1: Correct recognition scores (in percent) for the dif-

ferent feature sets.

LPC

PSC

′

PSC

MFCC

(full C)

73.8 82.2 88.4 86.8 90.9

tained for the plain LPC features, in the order of 74%

correct identiﬁcation, which is reasonably in line with

results from other authors (for example, (Zahorian

and Jagharghi, 1993) report 75% correct identiﬁcation

when the feature vector includes 4 formant features

and F0). The highest performance is obtained for

MFCC features which conﬁrms that MFCCs are able

to capture discriminative static cues more effectively

than all other tested features. A clear advantage of

MFCCs results from the fact that both spectral peaks

and spectral valleys are equally well modeled, and not

only spectral peaks as in the case of LP analysis. PSC

features obtain intermediate scores and it is signiﬁcant

that when PSC features are normalized by the pitch

frequency, performance (about 87%) approaches the

case when full covariance matrix is used in the Maha-

lanobis distance and the features are not normalized

(about 88%). This is an indication that the normaliza-

tion is effectively able to capture the correlation be-

tween F0 and COG1 and COG2. Table 2 shows the

confusion matrix and helps to better explain how the

value of 86.8% is obtained. This table reveals that

while the best recognition scores are obtained in the

recognition of vowels /a/ and /u/, the poorest scores

are obtained in the recognition of vowels /i/ and /o/,

that most frequently were misclassiﬁed as /u/ and /a/

respectively. This problem may be explained due to

This data base is available from the author upon re-

quest.

Table 2: Confusion matrix for vowel recognition using the

′

PSC

feature set.

/a/ /e/ /i/ /o/ /u/

/a/ 91.8 - - 8.2 -

/e/ - 84.1 3.6 9.1 3.2

/i/ - 2.3 81.2 - 15.9

/o/ 15.5 0.5 - 81.8 2.2

/u/ - 1.8 0.5 3.2 94.5

the proximity in those cases of the means of the Gaus-

sian models related to COG1 feature. These results

are however signiﬁcantly better than those reported in

(Ferreira, 2007) (about 78%) where the normalization

of PSC features by F0 is implemented using the lines

that best ﬁt the data for each individual vowel, instead

of a single normalization line for all vowels, as con-

sidered in this paper.

Although PSC scores compare favorably to those

obtained with LPC features, which was the main goal

of our research given the reasonable psychophysical

interpretation that exists in both cases, it is also clear

that the performance of the chosen PSC features is

slighly inferior to that of MFCC features. MFCCs are

global shape features that ignore pitch information,

which makes the result a bit surprising. However, our

results and experimental tests (Ferreira, 2007) con-

ﬁrm conclusions by other authors that a perceptual

adaptation concerningpitch frequencyis likely to take

place in the recognition of vowels by humans. Thus,

it is likely that either new PSC features can be found

that approach MFCC scores, or that MFCC scores can

be further improved by using explicit pitch informa-

tion. These are topics for further research.

6 CONCLUSIONS

In this paper we have proposed an implementation

of the Perceptual Spectral Cluster concept that at-

tempts to model the perceptual processing of the hu-

man auditory system in recognizing vowel sounds at

high pitch. Automatic vowel recognition experiments

focusing on static features have shown that pitch-

normalized PSC features perform signiﬁcantly better

than LP-formant features but perform slightly worse

than MFCC features. However, these results are en-

couraging and recommend further research on alter-

native PSC features, or on a perceptually more appro-

priate utilization of the pitch information since it fa-

cilitates auditory object separation. This makes pos-

sible the recognition of different simultaneous vowel

sounds that are captured by a single microphone,

which is not possible using MFCCs.

STATIC FEATURES IN ISOLATED VOWEL RECOGNITION AT HIGH PITCH

REFERENCES

Cheveign´e, A. and Kawahara, H. (1999). Missing-data

model of vowel identiﬁcation. Journal of the Acousti-

cal Society of America, 105(6):3497–3508.

Chistovich, L. and Lublinskaja, V. (1979). The center of

gravity effect in vowel spectra and critical distance

between the formants: psychoacoustical study of per-

ception of vowel-like stimuli. In Hearing Research,

volume 1, pages 185–195.

Fant, G. (1970). Acoustic Theory of Speech Production. The

Hague.

Ferreira, A. J. S. (2005). New signal features for robust

identiﬁcation of isolated vowels. In 9th European

Conference on Speech Communication and Techology

(Interspeech-2005), pages 345–348.

Ferreira, A. J. S. (2007). Static features in real-time recog-

nition of isolated vowels at high pitch. Journal of the

Acoustical Society of America, 112(4):2389–2404.

Hess, W. (1983). Pitch Determination of Speech Signals

-algorithms and devices. Springer-Verlag.

Klatt, D. H. (1982). Prediction of perceived phonetic dis-

tance from critical-band spectra - a ﬁrst step. In IEEE

International Conference on Acoustics, Speech and

Signal Processing, pages 1278–1281.

Mollis, M. R. (2005). Evaluating models of vowel percep-

tion. Journal of the Acoustical Society of America,

118(2):1062–1071.

Moore, B. C. J. (1989). An Introduction to the Psychology

of Hearing. Academic Press.

Rabiner, L. and Juang, B.-H. (1993). Fundamentals of

Speech Recognition. Prentice-Hall, Inc.

Zahorian, S. A. and Jagharghi, A. J. (1993). Spectral-

shape features versus formants as acoustic correlates

for vowels. Journal of the Acoustical Society of Amer-

ica, 94(4):1966–1982.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications
