ADAPTIVE REAL-TIME WATERMARKING USING BLOCK

CLASSIFICATION FOR H.264 COMPRESSED DOMAIN

Yin Zhang, Zengxiang Lu and Haiming Lu

Tsinghua National Laboratory for Information Science and Technology

Research Institute of Information Technology, Tsinghua University, Beijing 100084, China

Keywords: H.264 compressed video, adaptive watermarking, block classification, real-time, drift compensation.

Abstract: Focusing on the problem that watermark can cause visible image distortions in some plain areas, an adaptive

watermarking algorithm for H.264 is proposed. To embed watermark quickly, we directly operate in the

DCT domain. For high imperceptibility, we classify the blocks based on Human Visual System (HVS).

However, most current classification methods are not suitable for H.264 compressed domain because the

DCT coefficients residue cannot reflect the texture activity accurately due to the employment of intra-

prediction. A new block classification method is applied, in which we make restriction during the encoding

process so that the 4×4 blocks can be classified into plain, edge and texture blocks according to the intra-

prediction mode and quantized integer DCT coefficients in compressed domain. It is effective in block

classification and realizes good adaptive performance for watermarking. Drift compensation is also

accomplished in our watermarking algorithm. The experimental results demonstrate our watermarking

method can achieve both large capacity and good image imperceptibility. Additionally, the method is simple

and appropriate for real-time applications.

1 INTRODUCTION

Because of its high compression efficiency, H.264,

the next generation video coding standard

(Richardson, 2003), is expected to replace MPEG-2

and H.263 in many current applications. Therefore,

of video become an important issue. Digital

watermarking has been proposed to address these

needs. At present, there are many watermarking

schemes for current popular standards such as

MPEG-1 and MPEG-2, but only a few for H.264.

Besides, as many new features are introduced to

H.264, a large number of previous video

watermarking algorithms cannot be applied directly,

so development of new algorithms is required to fit

this new standard.

Video watermarking algorithms can be divided

according to the embedding domain, such as spatial

domain and compressed domain. If we choose

spatial domain, we should first decode the video and

then re-encode it. It is impractical as it takes a lot of

time. Thus, designing low complexity video

watermarking algorithms to embed the watermark in

the H.264 compressed domain is attractive.

Noorkami and Mersereau proposed a

compressed-domain video watermarking method for

H.264 (Noorkami and Mersereau, 2005). The

watermark is embedded in the quantized AC

coefficients of I frames. The embedding locations

within a macroblock are determined by a key

extracted from the macroblock itself. In (Sakazawa

et al., 2006), the authors directly embedded a

watermark into a bitstream generated by an H.264

video encoder and proposed a compensation method

to solve drift problem. These embedding methods

are compressed-domain based and have low

complexity. However, they do not adapt to local

image characteristics, so the watermark capacity is

limited.

A more image-dependent scheme could provide

high capacity as well as imperceptibility. In

(Noorkami and Mersereau, 2007), a framework for

robust watermarking of H.264-encoded video is

presented. The authors employ Watson’s human

visual model to increase the payload and add

robustness while limiting visual distortion. But the

watermarking algorithm embeds the watermark in

the H.264 encoder. The perceptual model finds the

location of coefficients using the original video

frame. So it cannot be performed in real time.

308

Zhang Y., Lu Z. and Lu H. (2008).

ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED DOMAIN.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 308-313

DOI: 10.5220/0001935703080313

 SciTePress

Another kind of adaptive watermarking schemes

exploits the HVS characteristics to classify the

image into several classes based on several

parameters (texture, edge, luminance, chroma, etc.).

As human sensitivity to error is different in different

classes, different watermark strength is embedded.

So the classification rule is the key technique in

adaptive watermarking algorithms.

Some block classification methods in DCT

compressed domain have been proposed. The AC

energy of the DCT coefficients of a block is a

common measure of the local block texture activity.

By calculating the energy of AC coefficients, we can

determine whether the block is smooth or not. In

(Tong and Venetsanopoulos, 1998), a more

complicated model for JPEG application based on

block classification and texture masking is

presented. However, these methods cannot be

applied directly to H.264 video. With the

employment of intra-prediction, the DCT

coefficients residue cannot reflect the texture

activity accurately.

The goal of this paper is to present an adaptive

watermarking algorithm for H.264 compressed

domain. If a compressed video bitstream is to be

watermarked, it has to be decoded to some extent.

Our algorithm is designed to operate directly in the

DCT domain to make it suitable for real-time

application. Then how to achieve block

classification according to H.264 quantized DCT

residues becomes the first task.

The paper is organized as follows. In Section 2,

an improved block classification algorithm is

introduced. In Section 3, we propose a simple

watermarking method based on block classification.

Experimental results are provided in Section 4 to

show the performance of the proposed algorithm.

Finally, conclusions are drawn in Section 5.

2 PROPOSED BLOCK

CLASSIFICATION METHOD

In our prior work (Zhang et al., 2008), we have

noticed the limitation of previous block

classification methods encountered in H.264 and

proposed a new method. Here we extend this method

and further improve classification.

Our target is to get better block classification

result from the DCT coefficients in H.264 bitstream.

Because of the employment of intra-prediction, the

DCT coefficients in the H.264 bitstream is in fact

the prediction residue signal, which cannot reflect

the texture activity accurately. However, for DC

prediction mode, all samples of the current 4×4

block are predicted by the mean of the adjacent

samples, and this will not affect the distribution of

AC coefficients. The DCT coefficients residue is

still available for the classification rules. So we

propose a prediction mode restriction method to

overcome this drawback.

The experiments shows that the texture of a

block is uniform when its variance is very small, and

the encoder will most probably choose mode 0~2 as

the best prediction mode for blocks with a uniform

texture; on the contrary, mode 3~8 will be selected

as the best when the block has a complex texture

(Wang et al., 2007). Based on this result, we give

our approach as follows.

1) Restriction during the encoding process

a. Transform every 4×4 block into integer DCT

domain

b. Calculate AC coefficients energy E

,0,0

AC i j

=−

∑∑

(1)

c. Set the prediction mode

determine the best mode using RDO 1

use DC mode only 1

if E T

⎧

⎨

≤

⎩

If the energy value is larger than the threshold

T1, the encoder determines the best mode using

RDO (Rate Distortion Optimization) as usual. If the

energy value is small, which means the predicted

blocks with different prediction modes are almost

the same, we then force the encoder to use DC

mode. This restriction will neither degrade the

picture quality nor increase the bit rate markedly like

restriction of DC mode only, and is convenient for

block classification in the next step.

2) Block classification

a. Obtain the intra prediction mode and the DCT

coefficients residue of current block

b. If mode is DC, calculate AC coefficients

residue energy E

c. The block is classified by

non-smooth area mode DC or

(mode=DC and 2)

smooth area mode=DC and 2

if E T

≠

≤

⎧

⎪

⎨

⎪

⎩

where T2 is another threshold and usually much

smaller than T1.

For H.264 video encoded with our restriction, we

can detect the block type directly in compressed

domain. If the prediction mode is not DC mode,

obviously the preceding AC energy value is large;

we consider it as non-smooth block. If the prediction

mode is DC mode, we cannot conclude whether the

preceding AC energy value is large or not, and then

ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED

DOMAIN

309

we calculate the AC residues energy for further

classification because the distribution of AC

coefficients are not destroyed in DC mode.

3) Improved block classification

In this way we can find non-smooth area with

prediction mode and the AC coefficients energy

calculation. With a little change of the method above,

we can differentiate between the edge and texture

blocks. We discover that directional prediction fits

the edge areas nicely but for texture blocks

prediction blocks are not so similar. That’s to say,

texture blocks will have a high AC energy even after

intra prediction. So step b) and c) can be modified as:

b. Calculate AC coefficients residue energy E

for all blocks

c. The block is classified by

3 texture;

mode=DC flat;

edge.

if E T

else if

else

⎧

⎪

⎨

⎪

⎩

where T3 is another threshold and maybe not

equal to T2.

With only AC energy we cannot tell texture from

edge. But here we utilize the information provided

by H.264 intra coding, i.e. the encoder typically

selects the prediction mode for each block that

minimizes the residues. So after intra prediction

edge blocks probably have lower AC residues

energy. Then if E

R is large, no matter whether the

prediction mode is DC or not, it is identified as a

texture block; otherwise we should consider the

prediction mode.

3 H.264 WATERMARKING

ALGORITHM

When H.264 bitstream is to be watermarked, it is

required to be decoded backwards to some extent.

Considering the real-time requirement of video

watermarking, the processes of the watermarking

embedding and detecting are directly performed in

the DCT domain to avoid some computationally

expensive operations (i.e. DCT, inverse DCT). Thus

only inverse entropy coding and run-level decoding

must be executed. A block diagram of our method is

illustrated in Fig. 1.

During the watermarking process, first, H.264

compressed data are analyzed to distinguish a

picture frame, and the blocks in I-frames are

extracted from the bitstream by entropy decoding

(CALVC or CABAC). Then the masking matrix is

generated based on block classification, and the

DCT coefficients in the selected blocks are modified

according to the embedding information. After the

modification, DCT coefficients are entropy encoded

to form an H.264 compliant bitstream. The details of

embedding process are described as follows.

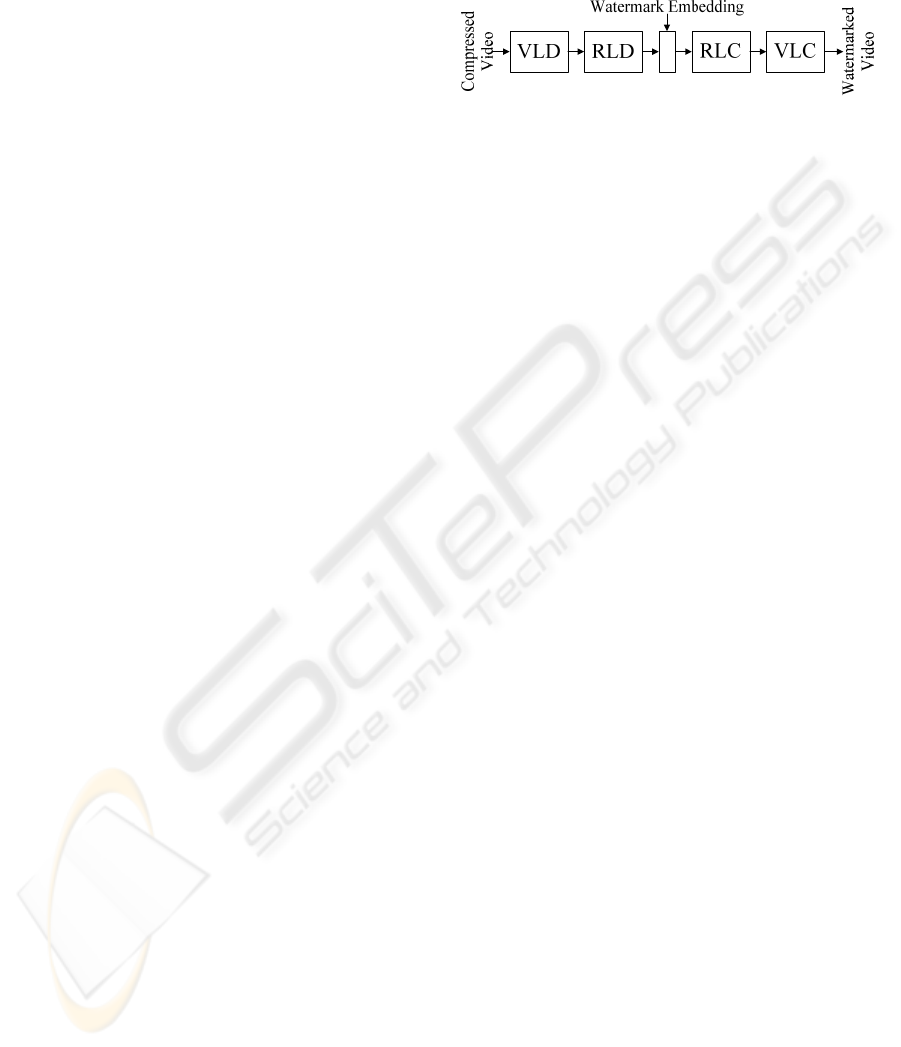

Figure 1: The block diagram of the proposed

watermarking embedding procedure.

3.1 Watermark Embedding

At first, the binary sequence is mapped into a bipolar

sequence and then modulated by the Spread-

Spectrum technology to obtain the watermark

sequence for embedding, denoted by Ws.

We use the masking matrix to choose the blocks

that are suitable for embedding watermark. The

masking matrix is obtained by block classification.

If the (i,j) block is classified as a smooth area, then

ij=0; otherwise Mij=1, where Mij denotes the

masking value of the (i,j) block. Only Mij=1 is a

candidate for embedding the watermark.

We insert watermark bits by altering the

quantized DC coefficients of luminance blocks

within I-frames. We choose DC coefficient because

it is more stable than ACs; moreover, as altering DC

do not change AC energy, the block classification

will not be affected. The X(0,0) is replaced by the

watermarked coefficient X*(0,0),

mod 2 1

mod 2 0

mod 2 1

mod 2 0

*( 1), { 1,1}

ii i

Xwm ifX

if Ws X

XifX

if Ws X

Xwm ifX

wm wm wm

−

⎧

⎨

⎩

⎧

⎨

⎩

=−∈−

(2)

Where X

i and Xi* respectively denote the DC

coefficient of original and watermarked image in

block Bi, and Bi refer to blocks with M

ij=1.

For H.264 low bit-rates video stream, the

quantization step size is large, so 1 quantization

level will affect the image quality a lot. We only

alter DC coefficient by 1 to change the parity.

We notice that the DC coefficients are added and

subtracted alternately, but there is only subtracting

in (Noorkami and Mersereau, 2005). As the intra-

prediction scheme in H.264 may cause the error

propagation due to the embedding, our method can

make compensation for the drift and will not

introduce significant degradation.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

310

3.2 Watermark Detection

Blind watermark extraction is performed after

entropy decoding without the original video. The

major steps are described as follows.

1. Block classification is used to select all the

possible blocks from all 4*4 blocks.

2. The watermark bit is determined by

1 if mod 2 1

0 if mod 2 0

⎧

⎪

⎨

⎪

⎩

(3)

4 EXPERIMENTAL RESULTS

In our experiments, the proposed method is

implemented in H.264 reference software version

JM11.0. The standard video sequence Foreman

(QCIF, 176×144) is used for simulation. All

experiments are running on Core Duo 2 2.2GHz.

4.1 Block Classification

We have tested the proposed encoding restriction

method with RD performance (Zhang et al., 2008).

The result demonstrates our algorithm is effective in

block classification without affecting compression

efficiency too much. The block classification result

based on the energy of AC coefficients after 4×4

Integer DCT transform without intra-prediction is

used as the reference result. The results of our

method are compared with it to measure the

performance. The experiment shows that our method

can make good judgement and our results are almost

the same as the reference.

However, those results are only the classification

of smooth and non-smooth areas. Results of the

further classification are given in Fig. 2, where black

represents texture, grey represents edge and white

represents flat.

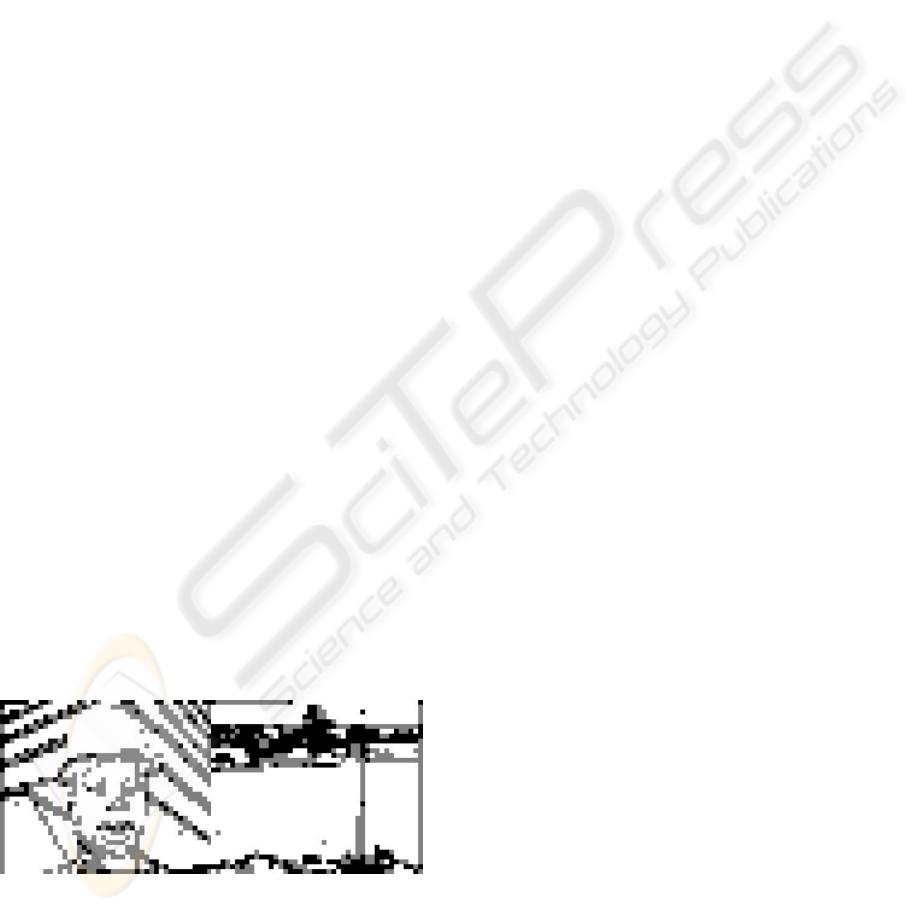

Figure 2: Further block classification result.

Intuitively, it can be seen that the classification

result is correct, although may not be very accurate.

In fact, accurate division of edge and texture is

difficult since they are often mixed together.

However, here the classification is appropriate for

adaptive watermarking even if it is not accurate.

Because in adaptive watermarking, the scaling factor

varies according to the classification and usually has

a relationship as below:

texture edge flat

αα

By using our method, the texture block has a

high AC energy, i.e. the DCT coefficients have a

large value, thus the effect of watermark embedding

is smaller and we can embed a high strength. That’s

to say, even though an edge block is classified as

texture by mistake and uses a large scaling factor

accordingly, the watermark embedding will not

affect the perceptual quality as the block has large

coefficients.

The thresholds are determined according to real

applications. Concerning adaptive watermarking, the

reference block classification is performed in

advance and a threshold T is chosen to fulfil the

need for watermark capacity. The optimum T1

should be identical with T used for reference

classification, in order that not only good judgement

is made but also the number of non-plain blocks

classified is larger than the watermark capacity. T2

can be set to be 5 based on our experiments, and T3

should be larger than T2 to find stronger texture, e.g.

10 in our experiments.

4.2 Watermarking

Our watermarking algorithm embeds the watermark

in JM11.0 decoder, according to block classification

result. As the algorithm used here is based on parity,

the scaling factor is of no effect, so we only classify

each 4×4 block into plain and non-plain blocks.

4.2.1 Image quality

First, the effect of watermark is evaluated both

subjectively and objectively. Fig. 3 shows one frame

of this sequence with and without the watermark,

along with PSNR (dB). As shown in Fig. 3c, the

watermark is invisible after embedding, and the

quality of watermarked video is as well as the

original video even though PSNR is not high. For

comparison, Fig. 3d gives the result for non-adaptive

watermarking, in which we embed 1 bit watermark

every 3 blocks. Although the watermark bits are

fewer, we can see visible artifacts in the “hat” area.

ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED

DOMAIN

311

(a) Original (b) Embedding position

(627 bits, 29.77dB) (528 bits, 30.15dB)

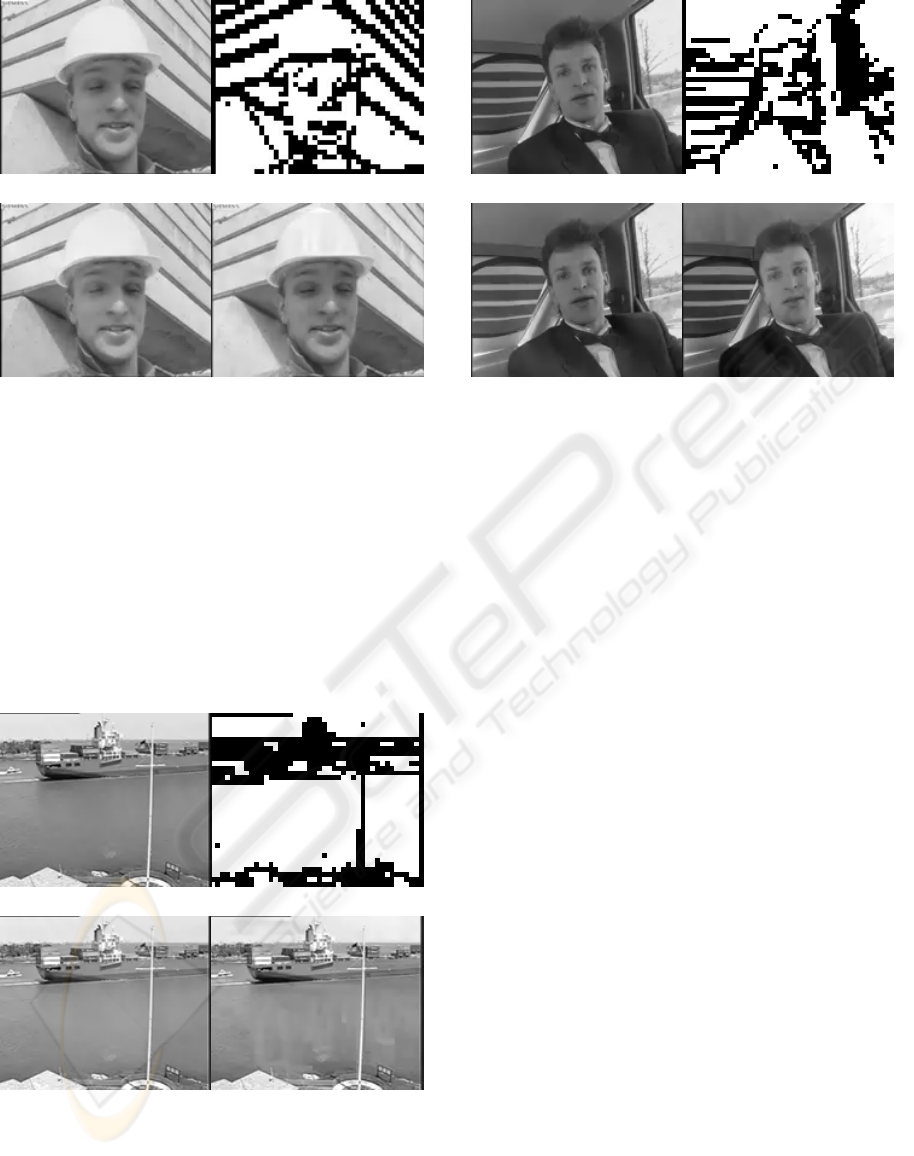

Figure 3: Adaptive and non-adaptive watermarking of

Foreman.

We notice that the watermarked frame in Fig. 3c

is of better quality but with a lower PSNR. The

PSNR metric does not take into account image

properties such as flat and textured regions.

According to our method, the watermark is

embedded into textured regions and into edges, so

the PSNR is inadequate to measure image quality in

this case. In other examples, we only compare the

perceived visual quality.

(a) Original (b) Embedding position

(548 bits) (528 bits)

Figure 4: Adaptive and non-adaptive watermarking of

Container.

(a) Original (b) Embedding position

(615 bits) (528 bits)

Figure 5: Adaptive and non-adaptive watermarking of

Carphone.

Watermarking of another two standard video

sequences is also simulated. Fig. 4 and 5 shows the

original frames, the block classification results, the

watermarked frames with adaptive and non-adaptive

watermarking. In the experiments, no visible

artifacts can be observed for adaptive watermarking,

but for non-adaptive watermarking, we can tell

distortions both in the “sea” and in the “ceiling”.

4.2.2 Capacity

Watermark capacity is compared to some other

compression-domain methods (Noorkami and

Mersereau, 2005; Sakazawa et al., 2006). The latter

embeds 16 bits per frame, and the number varies

from 22 to 81 in the former method. However, our

method embeds several hundred watermark bits in

one I frame, with good imperceptibility. We can

change T1 and T2 in block classification method and

accordingly adjust the total number of watermark

bits.

4.2.3 Computational Complexity

Most previous embedding algorithm is integrated in

H.264 encoder. That’s to say, for a compressed

H.264 bitstream, these methods should first decode

the video sequence, then insert the watermark during

encoding process. Obviously this make the

computation complicated. The time cost is at least

the sum of video decoding time and re-encoding

time. However, the proposed method needs only

entropy decoding and DCT coefficient alteration, so

performs much faster.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

312

The processing time is recorded in Table 1. In

the simulation, Foreman (176×144, comprised of 50

I-frames) is tested as experimental samples. For

simplicity, we only give the processing time of JM

encoder and decoder.

Table 1: Comparison of processing time.

Proposed JM decoder JM encoder

Time(s) 0.562 0.515 7.234

It is observed that the proposed method only

consumes a little more CPU time than JM decoder,

thus can satisfy the real-time requirement.

4.2.4 Drift Compensation

Our embedding strategy brings a drift compensation

in order to weaken the error propagation. The results

show that there is almost no degradation. On the

other hand, in the case of no compensation, the drift

accumulation incurs a visible degradation especially

for a large capacity. First let wm

i always be -1 in

Equation 2 (Noorkami and Mersereau, 2005), the

image turns darker and darker in the right bottom

corner, as shown in Fig. 6b. In another comparison,

add 1 to DC coefficient when Ws

i=1 and subtract 1

from it when Ws

i=0. The image gets either brighter

or darker according to different random sequences,

as shown in Fig. 6c and 6d.

(a) Original (b) Watermarked

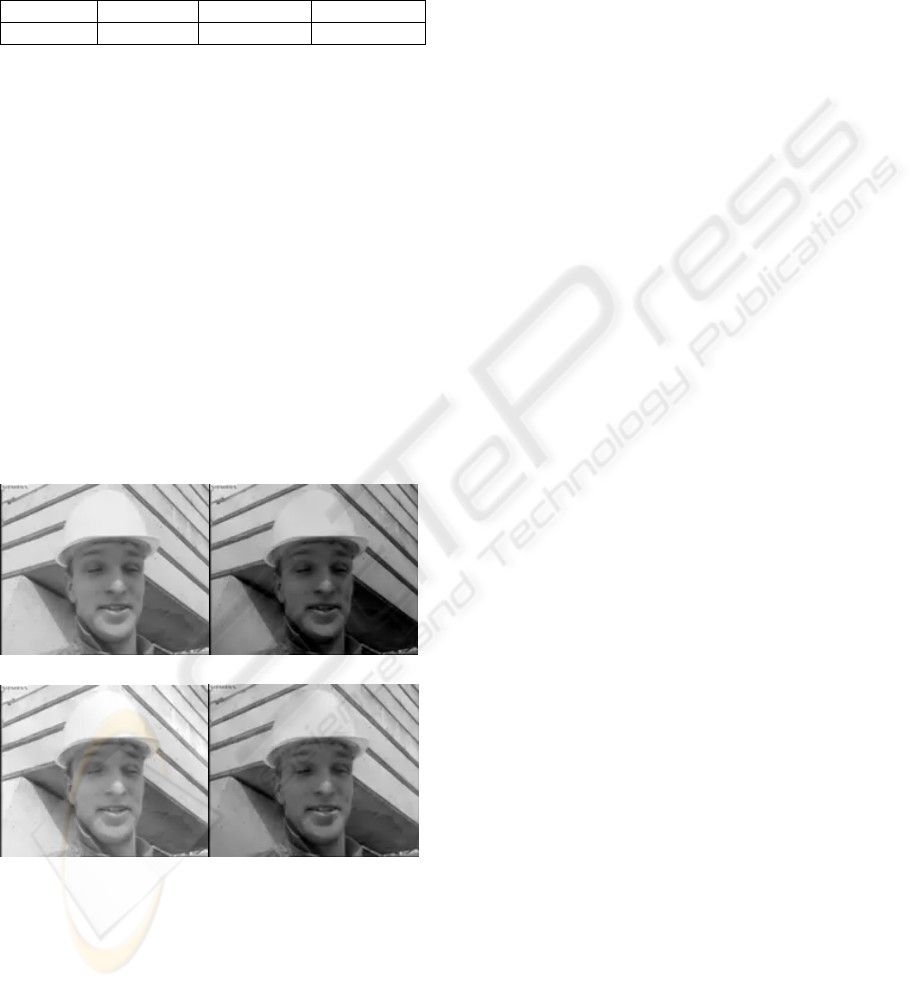

Figure 6: Examples of no compensation.

5 CONCLUSIONS

In this paper, we improved the block classification

algorithm by restricting intra prediction mode in

H.264 video coding. Our experiments verify that the

proposed method can attain accurate block

classification result based on DCT coefficients

residue without sacrificing compression ratio too

much. It is further used in an adaptive real-time

watermarking scheme. The algorithm is fast and

appropriate for real-time applications, also

accomplishes the compensation for error

propagation. Simulation results show that the

proposed method has a large capacity and preserves

the perceptual quality of the video.

However, the proposed watermark embedding

and detection procedures are very simple. It is robust

against modifications in the H.264 bitstream domain,

but cannot resist against signal processing attacks.

Because any operation including re-encoding may

change the prediction modes and subsequently the

residuals in the blocks, the watermark will be

destroyed. In future work, a new algorithm will be

designed to improve robustness, especially against

re-encoding attacks.

REFERENCES

Richardson, I.E.G., 2003. H.264 and MPEG-4 video

compression. John Wiley & Sons Ltd., West Sussex,

England.

Noorkami, M. and Mersereau, R.M., 2005. Compressed-

domain video watermarking for H.264. In Proc. of

International Conference on Image Processing

(ICIP’05), pp. 890~893.

Sakazawa, S., Takishima, Y., and Nakajima, Y., 2006.

H.264 native video watermarking method. In IEEE

International Symposium on Circuits and Systems

(ISCAS 2006), pp. 1439-1442.

Noorkami, M. and Mersereau, R.M., 2007. A framework

for robust watermarking of H.264-encoded video with

controllable detection performance. In IEEE

Transactions on Information Forensics and Security,

Vol. 2, No. 1, pp. 14-23.

Tong, H.H.Y. and Venetsanopoulos, A.N., 1998. A

perceptual model for JPEG applications based on

block classification, texture masking, and luminance

masking. In Proc. of International Conference on

Image Processing (ICIP’98), pp. 428-432.

Zhang, Y., Lu, Z.X., and Lu, H.M., 2008. A novel block

classification method for H.264 compressed video. To

appear in Proc. of 16th International Conference on

Computer Communications and Networks

(ICCCN’08).

Wang, Z.N., Yang, J., Peng, Q., Ma, Z., and Zhu, C.Q.,

2007. A fast transform domain based algorithm for

H.264/AVC intra prediction. In IEEE International

Conference on Multimedia and Expo 2007 (ICME’07),

pp. 1563-1566.

ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED

DOMAIN

313
