1 INTRODUCTION

MusicMeshFS (MMFS) is here introduced as a sys-

tem able to classify and to manage multimedia ﬁles

collections of growing size, in such a fast automatic

way, conﬁgurable and portable on different platforms.

MMFS appears as a virtual ﬁle system, implemented

on Linux in user space, where multimedia ﬁles are

the data source and a directory tree, arranged accord-

ing to end user preferences, represents the output. As

for every Linux ﬁle system it’s possible to perform on

it classical operations as read, open, rename and so

on and all these operations will be based mainly on

music tags (for example author, album) values. It’s

either possible to use the shell tools like ﬁnd to query

the meta information of multimedia ﬁles. This ap-

proach enables the user to keep handy collections of

data as well as meta information in order to reorganize

data according his own choices. With meta informa-

tion we mean the tag one can associate to each ﬁle

in almost every audio format.The tags we consider in

MMFS are information such author of the track, title,

year, album, track number, musical genre, that can

be extracted by almost every musical format thanks

to the TagLib C/C++ library (Wheeler, 2008). MMFS

has been implemented in C language and distributed

under the GNU GPL license

. The project is based

on the use of the FUSE library (Szeredi, 2008, Singh,

http://code.google.com/p/musicmeshfs/

2006) to generate a ﬁle system in user space.

2 A MUSIC FILE SYSTEM IN

USERSPACE

The main idea of this work is the managing of mu-

sic information by a ﬁle system tree, using the FUSE

library. It avoids the necessity of working in kernel

space and we get rid of the portability problems be-

tween the various releases of the Linux kernel. In-

stead, we can use a simple API to implement a ﬁle

system with a series of callbacks depending on the op-

erations to perform. FUSE appears to the kernel like

a classical ﬁle system, but its behaviour is deﬁned in

user space. Implementing such ﬁle system requires

some extra cost in terms of computation. Anyway,

it’s a fair price to pay for the advantages it offers: all

meta information of the multimedia ﬁles are available

for access by shell tools or even by graphical inter-

faces (ﬁle browsers).

The use of FUSE library in the project is limited to the

implementation of some of the callback functions de-

ﬁned in the struct fuse operations. These call-

back functions are self explaining for a Linux user, as

getattr, read, readdir, readlink, mknod, mkdir, unlink,

rmdir, symlink, rename, link, chmod, chown, truncate

and write.

Furthermore, there are some callback functions im-

380

Corriero N., Cozza V., Zhupa E. and De Tullio V. (2008).

A CONFIGURABLE LINUX FILE SYSTEM FOR MULTIMEDIA DATA.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 380-383

DOI: 10.5220/0001937103800383

 SciTePress

plemented to optimize the code execution.

For semplicity, has been developed a little library

over FUSE, called db fuse, where a subset of

these functions has been implemented, with the pur-

pose to offer all the necessary functionality to man-

age tags of musical ﬁles. db fuse getattr(),

db fuse readdir() and db fuse read() have been

the ﬁrst functions implemented, because they en-

able navigating inside the ﬁle system. Particularly

db fuse readdir(), must work with a user schema

considering it a generative grammar to populate the

directory(Love, 2005). Then db fuse open() and

db fuse release() have been added to the project;

anyway, because generally multimedia ﬁles have a big

size, and they are read in chunks by players, it doesn’t

make sense that at each access the player must re-

solve the real ﬁle name; the idea is that only at the

moment of opening the virtual ﬁle for the ﬁrst time,

db fuse open() analyzes the path name of the ﬁle,

ﬁnds the ﬁrst real ﬁle matching the user requirements,

opens it in readonly mode and it refers to this ﬁle us-

ing the returned ﬁle handler. db fuse read(), then,

will just use the ﬁle handler, and db fuse release()

will refer to it for closing the ﬁle. In conclusion,

db fuse rename() has been realized with the aim of

invoking rename local file(), once done the syn-

tactic controls over virtual path about the name to

modify and the new expected name.

Actually, the role of rename local file() is to set

tags with new values inside the multimedia ﬁle. Im-

plicitly the database will be updated too, this because

the monitoring process will assure real time synchro-

nization of the database with new data when new

tags are inserted. This is possible thanks to inotify,

a Linux kernel API that makes simpler the monitor-

ing of the changes in ﬁles and directories. Inotify

supports event-driven programming; it makes possi-

ble that when directories and ﬁles are added, updated

or removed from the pool of monitored directories,

the new ﬁles will be parsed and the database will be

updated.

3 MMFSLANGUAGE

MMFS makes possible the indexing of musical

collections and showing of data stored inside the

database by a directories view, as many existing sys-

tem do, but moreover it offers to the end user a con-

ﬁguration language, that allows to query the database

without the need of SQL-like languages knowledge.

From the user point of view, MMFS can be used as a

classical ﬁle system, by command line and by graphi-

cal ﬁle browser as well. In addition it allows to choose

the multimedia ﬁles organization by setting a client

side parameter that is called schema.

By the schema the user can set the ﬁnal structure of

directories by using some placeholders, for example

%artist or %album, to tell the system that the ﬁle

name or directory name will contain, in that position,

music belonging to the artist or to the album.

The language to set the schema will follow the Ex-

tended Backus-Naur Form grammar:

<SCHEMA> ::= <NAME> ( "/" <NAME> )*

<NAME1> ::= <FIXED> ( <NAME2> )?

<NAME2> ::= <KEYWORD ( <NAME1> )?

<FIXED> ::= ( [ˆ%/] | "%%" )+

<KEYWORD> ::= "%artist" | "%year"

| "%album"| "%track" | "%title"

| "%genre" | "%host"| "%path"

| "%type" | "%filename"

Generally talking, a schema is divided into direc-

tory and ﬁle name, each of them represented as a se-

quence of keywords and ﬁxed elements. Keywords

and their semantic must be deﬁned in a conﬁguration

ﬁle that will be used inside db

fuse library.

The schema aims to give the possibility of introducing

an order relation amoung source ﬁles: a conceptual

order with respect to ﬁle system tree levels, a lexi-

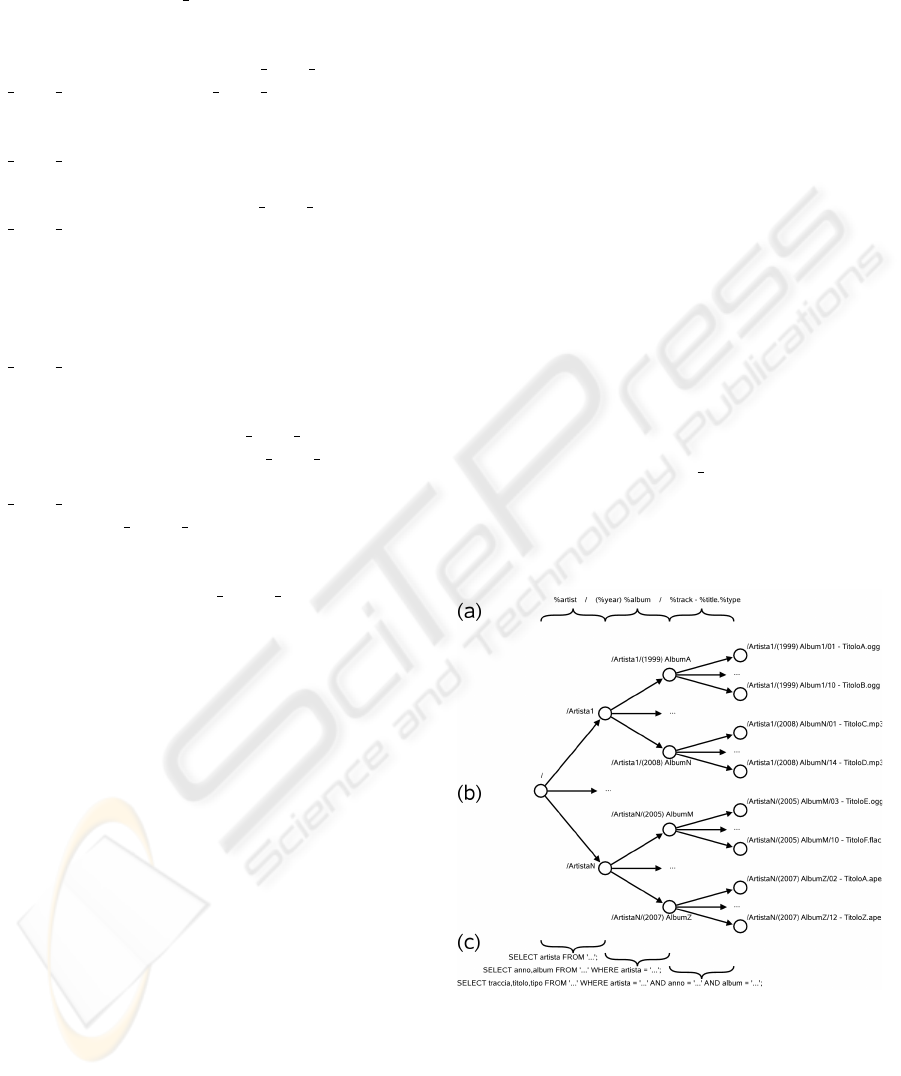

cographical order among sibling nodes. In ﬁgure 1.a

Figure 1: Schema.

you can see an example of schema inserted by the ﬁ-

nal user and in 1.b the resulting tree. The root obvi-

ously is ’/’ (this example is suppose to follow the ﬁle

system mount point). The schema can be divided into

levels, each separated by the directory separator char-

acter (’/’). Then %artist(%year) album/%track

A CONFIGURABLE LINUX FILE SYSTEM FOR MULTIMEDIA DATA

381

- %title.%type must be considered as composed

of three parts: %artist, then (%year) album and

ﬁnally %track - %title.%type. In this simple

example the whole ﬁrst level is just a keyword:

%artist, then implicitly the user is asking for all

the artist names belonging to the database. The sys-

tem then will perform a query such as “SELECT

artist name FROM . . . ;” where “artist name” is the

table corresponding to the keyword “%artist”, ﬁg-

ure 1.c. The sublevels will be calculated in a sim-

ilar way, but using the WHERE clause too, impos-

ing stronger restriction going deeper in the tree. Each

couple “database column”, “value” corresponds to the

variable terms found inside the hierarchy at that time.

Then, to have the enumeration of ﬁles presents in the

directory - let’s say “U2” - will be performed a query

such as “SELECT year, album FROM . . . WHERE

(artista = “U2”);” and so on.

4 MUSICMESHFS

ARCHITECTURE

The modular architecture of the system can be seen

mainly as formed by a dæmon and a client. Mu-

sicmeshfsd is the process that aims to ensure consis-

tency among real data (information inside monitored

ﬁles and directory) and the internal database. More

in detail, it has to monitor local ﬁles but it can be ex-

tended to intercommunicate with other instances of

musicmeshfsd in other hosts so to work over remote

ﬁles.

Musicmeshfsc is the process that makes possible to

show informations like in a ﬁle system tree according

to a user deﬁned schema. Then the tree will be popu-

lated with the information stored by musicmeshfsd.

The ﬁle system is implemented in quasi-read-only

mode, as it won’t be possible to create or to move ex-

ternal multimedia ﬁles, and the only reasonable mod-

iﬁcation consists of renaming. This because seman-

tically it doesn’t make sense deleting or creating a

virtual ﬁle. The reason why renaming is allowed is

that it can be useful to change the ﬁle, in the sense

of renaming its tag. Obviously, it’s not possible to

move a ﬁle inside a virtual ﬁle system because there

is not any physical place (source directory) where to

move the ﬁle. Remind that the ﬁle collection can be

established just adding ﬁles to the monitored direc-

tory and then modifying the database. A nonsense

case is the one of creating an empty ﬁle. In this case

the user will create just a name in the database not

associated to any real ﬁle. The role of renaming is

important for enabling the end user to correct tag-

ging mistakes or eventually to add missing informa-

tion. So rename acts only on the tag and is imple-

mented in such a tricky way that is possible to move

directories and ﬁles without limitation, but the new

ﬁle name must contain the same information with the

original ﬁle. Obviously, the destination ﬁle will fol-

low the user schema and, even more, the depth level

between old and new name must be the same to avoid

ambiguity between the tag types or having an incon-

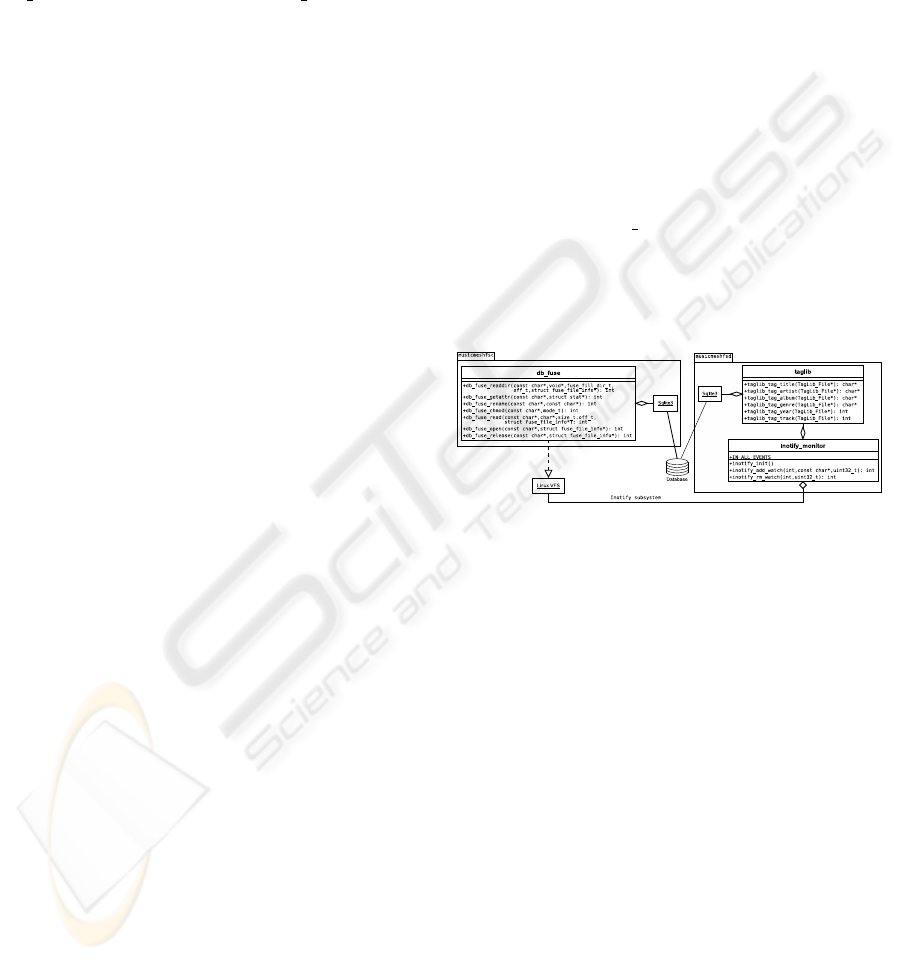

sistent database. In ﬁgure 2 the general architecture

is showed. The two main components intercommu-

nicate by a shared relational database. Musicmeshfsc

implements the previously analyzed FUSE functions,

that correspond to a realization of the Linux Virtual

File system Switch.

The usage of a database to manage information, ap-

pears as a solution that makes our ﬁle system able to

manage any kind of information that includes meta-

data. Currently the db fuse library manages data once

they are stored inside the database. The same ap-

proach has been used as well to arrange in a ﬁle sys-

tem fashion metadata retrieved from emails (data, ob-

ject, subject, sender, receiver and so on).

Figure 2: Architecture.

In the project’s architecture there is a compo-

nent included in the musicmeshfsc, that represents

a reusable and extendable library that can be used

for general purpose application to create a virtual ﬁle

system for any kind of data stored inside a sqlite3

database.

Musicmeshfsc has been divided in two well separated

logical parts: one database content dependent, the

other not.

First part accomplishes generation of the ﬁle system

hierarchy, starting from a generic database and a con-

ﬁguration schema; the second part accomplishes man-

agement of insert, update and remove operations ref-

ered to single tuples inside database tables, as well

as the interpretation of keywords choosed by the end

user.

The user must deﬁne the database table names, the

keywords to use inside the schema to arrange the ﬁle

system and the related table column name and ﬁnally

in case of JOIN the tables that is possible to merge

and the constraints to impose in the WHERE state-

ments (T1.externKey == T2.referencedValue). Once

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

382

the user sets these values, it will be easier to execute

the right query for the information retrieval.

Inside the db fuse library two parsers have been im-

plemented, one for the conﬁguration schema, the sec-

ond to parse the virtual ﬁle system pathnames. These

features will allow the user of this library to be able

to conﬁgure the ﬁle names by a schema.

5 MUSIC SHARING OVER

EMBEDDED DEVICES

Every embedded device can use Linux and MMFS.

One way to boot a kernel on mobile devices by a non-

invasive approach is showed in (Corriero et al., 2008);

the idea is to install the kernel over a miniSD card, us-

ing Haret(REF, 2007) as bootloader.

The compilation kernel phase appears quite tricky be-

cause of special conﬁgurations and optimized patches

for the used device. The kernel version used is

2.6.21.hh18, where hh stands for handhelds. The

source code was already patched with needed mod-

ules for htc blueangel family devices

. Compiled

the kernel, a minimal embedded distribution has been

created. Embedded devices offer technologies well

suited to implement wireless versatile functionalities

for creating ad hoc mesh network; The idea is to build

up a decentralized ad hoc mesh network without static

servers. In this kind of network is possible to reach far

nodes inside the network exploiting the shared band

among all network nodes. The nodes then will act

both as clients and as servers. Generally wireless de-

vices are used for managed connection, in the sense

that there is an access point to allow a node to con-

nect to network services. In this work an ad hoc con-

nection is proposed but in the opposite it’s possible to

create a peer to peer communication without the need

of a server node and then it’s possible to create a mesh

network infrastructure; depending on the kind of con-

nection, the way of conﬁguring the wiﬁ card changes.

In all the case where mobility plays an important rule

(smartphone), it’s better to consider a special case of

Wiﬁ Mesh network in mobility context linked in ad

hoc manner: the manet. Routing protocols refering to

manet take into consideration the high level of mobil-

ity of network nodes, particularly the Ad hoc On De-

mand Distance Vector reactive protocol (aodv) gen-

erates a path between nodes only on a source node

demand. To allow a smartphone to natively use mesh

network, the aodv-uu module(aod, 2008) has been in-

To download hh-kernel source code:

cvs -d :pserver:anoncvs@anoncvs.handhelds.org:/cvs

checkout linux/kernel26

cluded while compiling the kernel. Installing MMFS

on such embedded devices in the manet, brings to the

creation of a framework for sharing musical informa-

tion among mesh nodes. The virtual music ﬁle system

will be able to managing, analyzing and monitoring a

set of directories and extracting multimedia data from

ﬁles of supported types and offering a ﬁle system view

of these data inside a directory tree arranged accord-

ingly to the user preferences. One open problem is

that of shared music author copyright. A system to

certify licenses is needed to avoid the spreading of il-

legal detected music by any network node.

6 CONCLUSIONS AND FUTURE

WORKS

Managing the music data inside a virtual ﬁle system

seems to be a perfect solution for users that must hang

with a big musical data bank and that don’t accept the

static data organizations proposed from almost all the

music players. As well, it seems to be a good way for

managing the organization of exchanged and shared

multimedia ﬁles coming from different sources inside

a mesh, hiding to the end user the classiﬁcation but

allowing him to impose his own hierarchy. A further

extension of this work would be to extend the number

of analyzed tags and to insert personal metainforma-

tion, for example about personal opinions of the user

refering to a music track, generating an always origi-

nal music tree.

REFERENCES

(2007). Haret reverse engineering tool.

(2008). Aodv-uu homepage - uppsala university. http://

www.it.uu.se/research/group/coregroup.

Corriero, Cozza, Pistillo, and Zhupa (2008). Wiﬁ mesh for

handhelds in linux.

Love, R. (September 2005). Kernel korner - intro to inotify.

Singh, S. (2006). Develop your own ﬁlesystem with fuse.

http://www.ibm.com/developerworks/linux/library/

lfuse.

Szeredi, M. (2008). Fuse. http://fuse.sourceforge.net. Home

page.

Wheeler, S. (2008). Taglib, http://developer.kde.org/

wheeler/taglib.html. Home page.

A CONFIGURABLE LINUX FILE SYSTEM FOR MULTIMEDIA DATA

383
