A RANDOM CONSTRAINED MOVIE VERSUS A RANDOM

UNCONSTRAINED MOVIE APPLIED TO THE FUNCTIONAL

VERIFICATION OF AN MPEG-4 DECODER DESIGN

George S. Silveira, Karina R. G. da Silva and Elmar U. K. Melcher

Universidade Federal de Campina Grande

Aprigio Veloso Avenue, 882, Bodocongo, Campina Grande - PB, Brazil

Keywords:

Randmovie, movie, stimuli,VeriSC, SystemC, functional coverage, veriﬁcation.

Abstract:

The advent of the new VLSI technology and SoC design methodologies has brought about an explosive growth

to the complexity of modern electronic circuits. One big problem in the hardware design veriﬁcation is to ﬁnd

good stimuli to make functional veriﬁcation. A MPEG-4 decoder design require movies in order to make the

functional veriﬁcation. A real movie applied alone is not enough to test all functionalities, a random movie

is used as stimuli to implement functional veriﬁcation and reach coverage. This paper presents a comparison

between a random constrained movie generator called RandMovie versus the use of a Random Unconstrained

Movie (RUM). It shows the beneﬁts of using a random constrained movie in order to reach the speciﬁed

functional coverage. With such a movie generator one is capable of generating good random constrained

movies, increasing coverage and simulating all speciﬁed functionalities. A case study for an MPEG-4 decoder

design has been used to demonstrate the effectiveness of this approach.

1 INTRODUCTION

Hardware architectures are becoming very complex

nowadays. These designs are composed of micropro-

cessors, micro-controllers, digital signal processing

units and Intellectual Properties cores (IP cores) de-

signed to perform a speciﬁc task as a part of a larger

system. In order to implement these complex designs

and the chips, the implementation should be com-

posed of many project phases such as: speciﬁcation,

RTL implementation, functional veriﬁcation, synthe-

sis and prototyping.

Functional veriﬁcation represents the most dif-

ﬁcult phase of all. Literature shows that 70%

of all project resources are involved in this pro-

cess (Bergeron, 2003).

Functional veriﬁcation can be used to verify if the

design has been implemented in agreement with spec-

iﬁcation. It uses simulation to verify the DUV - De-

sign Under Veriﬁcation. During simulation all results

coming from the DUV are matched to the results com-

ing from a Reference Model (Golden Model). Veriﬁ-

cation can only achieve the required objective if all

speciﬁed functionalities are exercised and veriﬁed.

One of the challenges posed by functional veriﬁ-

cation is that of applying good stimuli in order to ex-

ercise the speciﬁed functionalities. Some techniques

attempt to solve this problem by using randomly gen-

erated stimuli (James Monaco and Raina, 2003) and

(ahi). Random stimulus can emulate automation: Left

to its own, a properly designed random source may

eventually generate the desired stimulus. Random

stimulus will also create conditions that may not have

been foreseen as signiﬁcant. When random stimuli

fail to produce the required stimulus, or when the

required stimulus is unlikely to be produced by an

unbiased random stimuli source, constraints can be

added to the random stimulus to increase the proba-

bility of generating the required stimulus. Although

randomly generated stimuli are often better than di-

rect stimuli (Bergeron, 2003), one can not be certain

whether all speciﬁed functionalities have been exer-

cised, being, as it is, impossible to show the existence

of any functionality that has not been exercised. To

get around this problem one must use coverage mea-

surements together with random stimuli. Coverage, in

its broadest sense, is responsible for measuring veri-

ﬁcation progress across a plethora of metrics, helping

271

S. Silveira G., R. G. da Silva K. and U. K. Melcher E. (2008).

A RANDOM CONSTRAINED MOVIE VERSUS A RANDOM UNCONSTRAINED MOVIE APPLIED TO THE FUNCTIONAL VERIFICATION OF AN

MPEG-4 DECODER DESIGN.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 271-278

DOI: 10.5220/0001938602710278

 SciTePress

the engineer to assess the rating of these metrics rela-

tive to the design speciﬁcation (Piziali, 2004).

Random generation can automate test vector gen-

eration but is worthy only with constraints applied

along with coverage measurement. Constraints are

used to avoid the generation of illegal stimuli as

well as to steer toward interesting scenarios and the

coverage approach is used to measure the veriﬁca-

tion performance of the system. Some works have

been produced aiming at producing good random

movies, as (G.Miyashita, 2003) and (Seong-Min Kim

and Kim, 2003).

The purpose of this work is to use an MPEG-

4 decoder design to compare approaches of stim-

uli: Random-constrained and Random-Unconstrained

Movie. For that matter Random-Unconstrained

Movie has been used in the MPEG-4 simulation, but

the Bitstream processor (BS) - part of MPEG-4 de-

coder - has not achieved the desired coverage by

means of these stimuli. Consequently, in order to

verify the BS, a synthetic movie generator to cre-

ate pseudo-random images was implemented. The

synthetic movie generates pseudo-random images in

MPEG-4 Simple Proﬁle Level 0.

The remaining of the paper is organized as fol-

lows: Section 2 shows the MPEG-4 decoder design;

Section 3 explains the architecture approach; Sec-

tion 4 deals with implementation of the movies; Sec-

tion 5 presents the results, and Section 6 draws some

conclusions.

2 MPEG-4 DECODER DESIGN

MPEG-4 is an open standard created by the Motion

Picture Experts Group (MPEG) to replace the MPEG-

2 standard. MPEG-4 coding can be carried out in var-

ious proﬁles and levels. The reason for such a divi-

sion is to deﬁne subsets of the syntax and semantics.

This is why MPEG-4 ﬁts into a variety of applica-

tions, some of which can take advantage of VLSI im-

plementation optimizing and power dissipation.

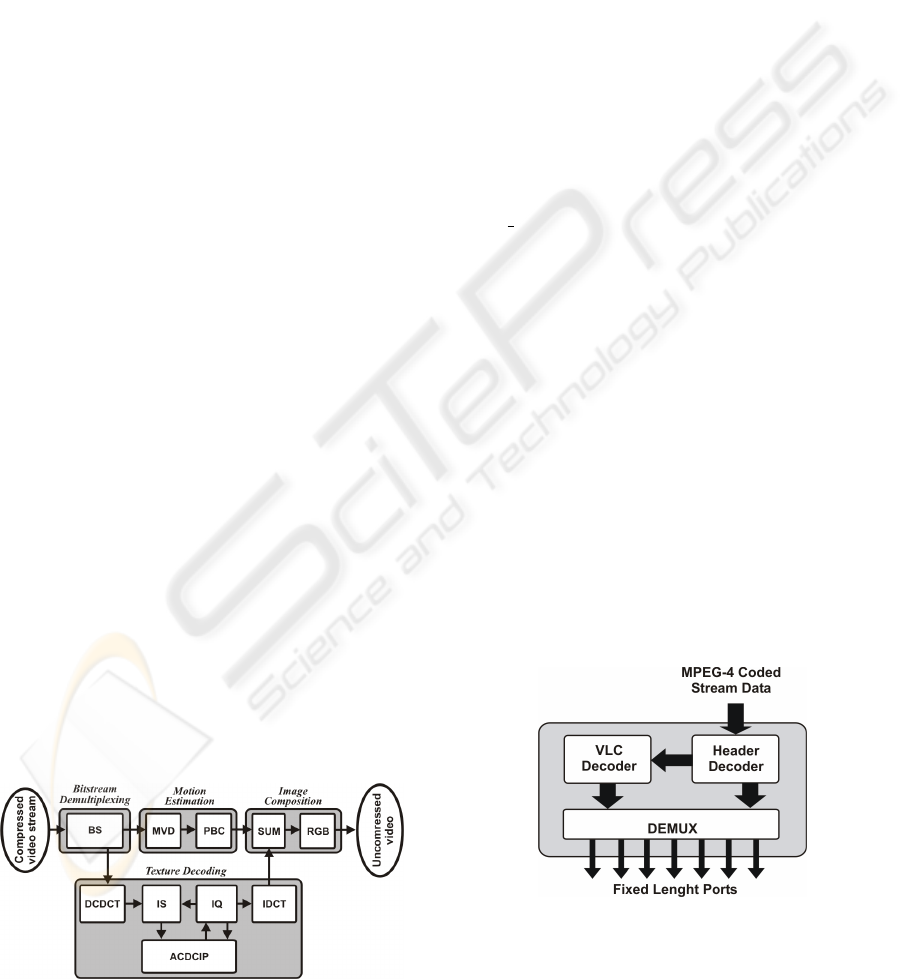

Figure 1: MPEG-4 decoder schema.

The used MPEG-4 movie decoder IP core under

consideration is a Simple Proﬁle Level 0 movie de-

coder. The block schematic of the MPEG-4 decoder

is described in Figure 1. The Reference Model is the

XVID software (Team, 2003).

Today this MPEG-4 IP core is implemented in a

silicon chip. It has 22.7mm

at a 0.35µm CMOS 4 ML

technology with a 25 MHz working frequency (Ana

Karina Rocha and Araujo, 2006).

The MPEG-4 decoder IP-Core veriﬁcation was

implemented using VeriSC methodology and the

BVE-COVER coverage library (K. R. G. da Silva and

do N. Cunha, 2007). A hierarchical approach was

employed for veriﬁcation. The MPEG-4 was di-

vided in modules and each module was veriﬁed sepa-

rately (K. R. G. da Silva and Pimenta, 2004).

Veriﬁcation was carried out for each module of the

MPEG-4 decoder, MVD (Motion Vector Decoding),

MVD

VOP (Motion Vector Decoding Video Object

Plane), PBC (Prediction Block Copy), DCDCT (De-

coding Coefﬁcient for DCT), IS (Inverse Scan), ACD-

CPI (AC and DC Prediction for Intra), IDCT (Inverse

DTC), IQ (Inverse Quantization) and BS (Bitstream

Processor). In the veriﬁcation phase, it was used as

test vector, speciﬁc random stimuli for each block of

MPEG-4, always measuring the speciﬁed coverage.

Most of the blocks reached 100% coverage during

veriﬁcation, except the Bitstream processor (BS).

The Bitstream processor is a special module. It

can be simulated only using movies as input, because

it is the ﬁrst module of the MPEG-4 decoder. The

BS is a module that receives the compressed movie

stream in the MPEG-4 format and feeds the other

blocks with the proper data and/or conﬁguration pa-

rameters so that, each one is able to execute its func-

tion. Figure 2 shows the block schematic of the BS.

Figure 2: Bitstream schema.

In the BS veriﬁcation module was ﬁrst used a

Random-Unconstrained Movie as stimuli, as shown

in the next subsection.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

272

2.1 Random-Unconstrained Movie

Architecture

The architecture of the Random-Unconstrained

Movie generator has been designed to be simple, ﬂex-

ible and reusable. The Random-Unconstrained Movie

is a movie that uses pure randomization, where a

range of values are generated and there are no con-

straints applied to create scenarios and reach speci-

ﬁed coverage aspects. It could be used in the test-

bench of the MPEG-4 IP core or any other video-

based systems as an input movie to stimulate all the

functionalities. In order to implement the Random-

Unconstrained Movie a frame generator has been de-

veloped. Is created a frame QCIF (177x144), each

pixel is selected randomly between a range [0,255].

Produced frames are submitted in sequence to an en-

coder that compresses the video in the desired format.

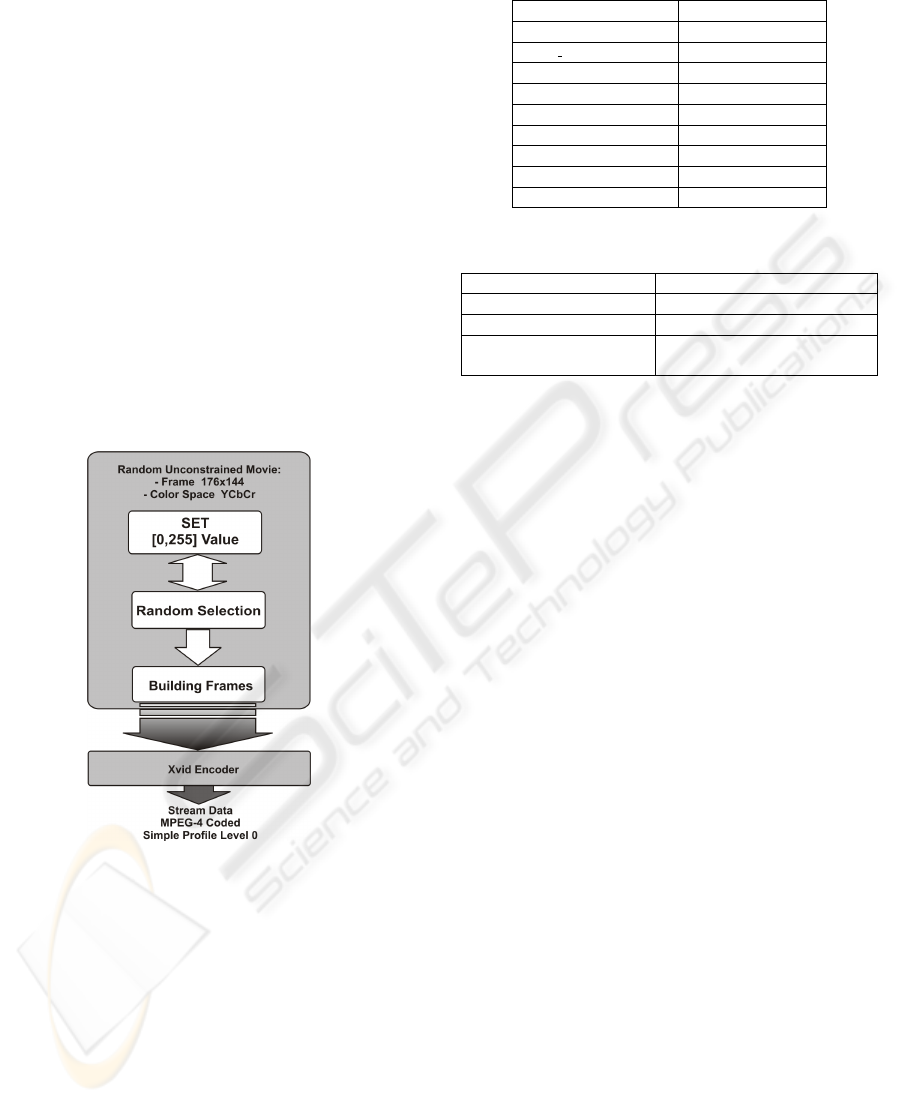

Figure 3 shows the Random-Unconstrained Movie ar-

chitecture.

Figure 3: Random-Unconstrained Movie architecture

adopted.

2.2 MPEG-4 Coverage

The MPEG-4 veriﬁcation ﬁrst attempt was accom-

plished using Random-Unconstrained Movie together

with random stimuli. The Bitstream module (BS) did

not achieve 100% coverage, but all the other modules

achieved 100% coverage, as shown in Table 1.

BS block is a dedicated processor implemented to

demultiplex multimedia streams. The BS features are

presented in Table 2.

The BS coverage was measured in its output ports,

because it was necessary to verify if the BS was gen-

erating demultiplex stream data correctly. The Bit-

Table 1: MPEG-4 coverage accumulated blocks.

Modules RUM Coverage %

MVD 100

MVD VOP 100

PBC 100

DCDCT 100

IS 100

ACDCIP 100

IDCT 100

IQ 100

BS 67

Table 2: BS Features.

RTL SystemC 1667 lines of source code

SystemC Testbench 2607 lines of source code

ROM Size 16K

Logic Elements in Altera

Stratix II FPGA

6000

stream has 7 output ports (2 with image data and 5

with conﬁguration data).

2.3 The Bitstream Low Coverage

Causes

The BS low coverage, lead to an analysis of the sim-

ulation data, and it was discovered that the problem

was caused due to the movie stream used as simula-

tion input. The problem was caused by the following

reasons: The AC coefﬁcients vary from each other

by a small threshold, due to the characteristics of the

quantization method used by video encoders, which

(depending on quantization parameters) may cause

a signiﬁcant loss to the high frequency coefﬁcients.

This loss may result in a signiﬁcant distortion from

the original image and, consequently to the low vari-

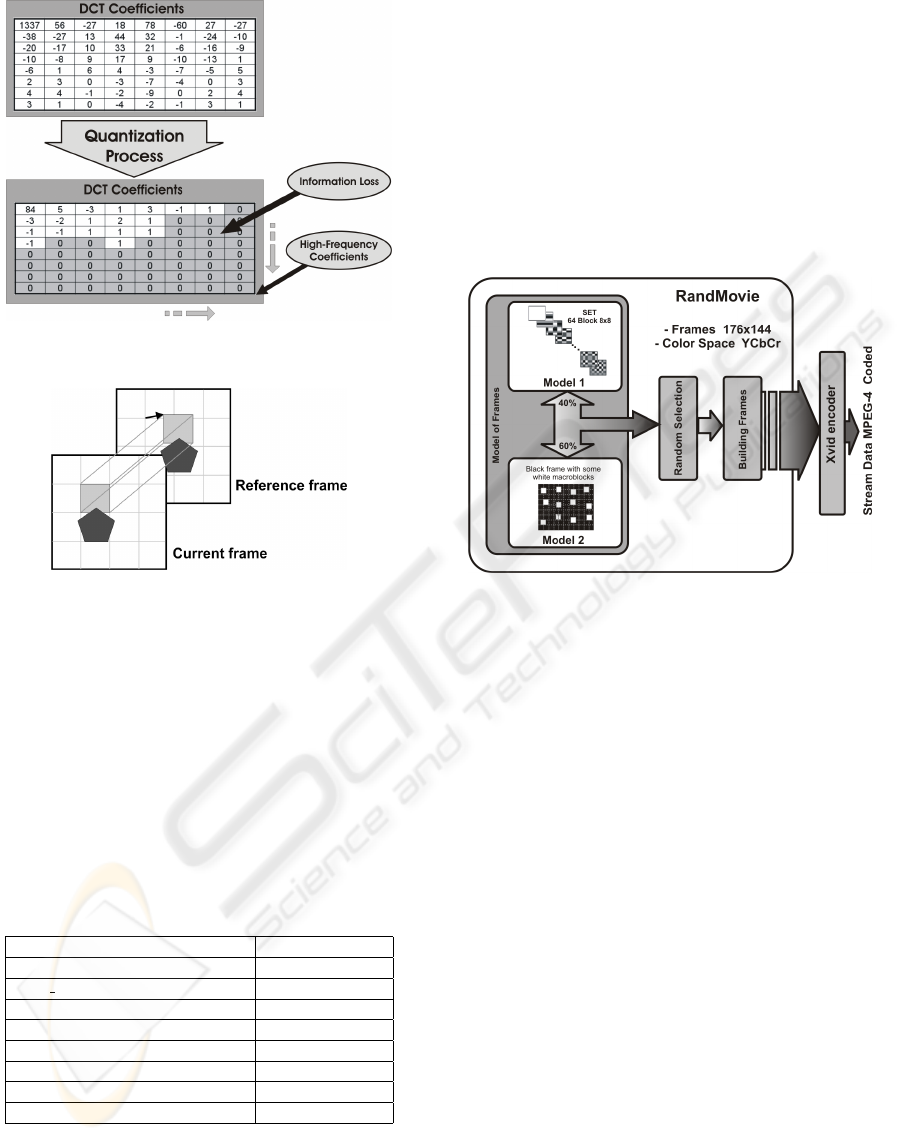

ation of the AC coefﬁcients. The Figure 4 show a co-

efﬁcients block example passing by the quantization

process.

Another problem was the low motion vector vari-

ation. This occurs because the search of a ref-

erence pixel of a previous frame yields the most

similar pixel to the current pixel. Due to the ex-

cess of information from the previous frame, dur-

ing the search of pixels block to serve as reference,

the encoder will have a lot of similar blocks op-

tion to be used as block of pixels reference when

generating the vector. These have very low differ-

ences amongst their coordinates which result in very

small motion vectors, as shown in Figure 5.

As shown in Table 3, the DCDCT and MVD out-

put ports of the BS module have a low coverage rating

because of the characteristics of the encoding process.

A RANDOM CONSTRAINED MOVIE VERSUS A RANDOM UNCONSTRAINED MOVIE APPLIED TO THE

FUNCTIONAL VERIFICATION OF AN MPEG-4 DECODER DESIGN

273

Figure 4: Quantization process.

Figure 5: Low variation vectors.

Due to the coverage problems, as explained in this

section, was not possible to achieve the coverage in

the functional veriﬁcation, than was necessary to look

for other solutions to improve the required coverage.

Then, was chosen a Random-constraint process to be

applied to a movie generator. This movie generator

was implemented and is called RandMovie. It is ca-

pable of putting into operation a set of functionalities

to guarantee that the MPEG-4 will be exercised in or-

der to achieve its speciﬁed coverage, as explained in

next section.

Table 3: BS output port coverage.

BS output port RUM Coverage%

MVD 47

MVD VOP 55

PBC 54

DCDCT 43

IS 61

ACDCIP 64

IQ 57

Total Accumulated Coverage % 67

3 RANDMOVIE ARCHITECTURE

The RandMovie has a similar architecture from the

Random-Unconstrained Movie. But, the differences

are very important to create the necessary scenarios

to reach coverage parameters.

In the RandMovie the generated videos are cre-

ated intending to hit high level of coverage in the

functional veriﬁcation process. With this proposal

many different scenarios were created. Figure 6

shows the RandMovie architecture.

Figure 6: RandMovie architecture adopted.

The differences from RandMovie and Random-

Unconstrained Movie are mainly in the frames con-

struction, before submitting it to the encoder. To

achieve this, the randomicity has to be constrained to

achieve the coverage. It is constrained in two different

moments:

• When it is necessary to reach the DCDCT cov-

erage, which can not be reached by the Random-

Unconstrained Movie.

• In order to constrain the MVD, the frames are

implemented with less texture information be-

tween the frames. They are implemented with

extremes colors, black frames with white 16x16

macroblocks inserted randomly in 32x32 pixels

space.

The DCT produces an energy concentration in

the DC coefﬁcient, generating AC coefﬁcients close

to zero. Because of this, the frame generator has

to stimulate the DCT to generate the AC coefﬁcient

for medium and high frequencies above a minimum

value. This has to be done to guarantee that medium

and high frequencies coefﬁcients will not be sup-

pressed by quantization process.

Any 8x8 pixels block can be represented as a sum

of 64 base patterns (Rao and Yip, 1990) as shown in

Figure 7. The DCT output is the set of weights for

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

274

these bases (DCT coefﬁcients). It is necessary to mul-

tiply each base pattern by its weight and sum all of

them, producing as a result a decoded image blocks.

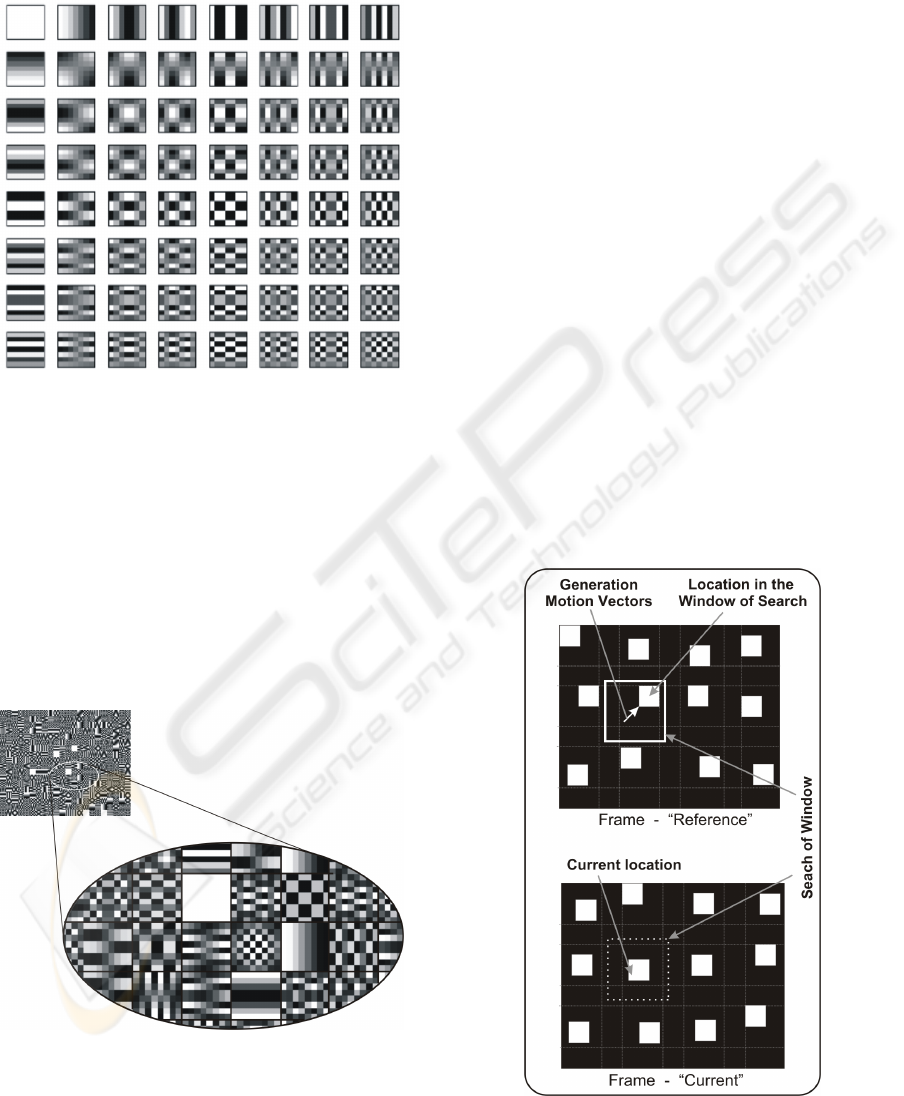

Figure 7: 8x8 DCT base patterns.

Using the base patterns, random frames can be

generated in each 8x8 pixels block of the frame. It

will have the visual pixels to some of the 64 blocks

of the base pattern. Each 8x8 frame blocks are ran-

dom selected from 64 blocks pattern. Then, each

block have visual characteristics have the same base

patterns as any block. This way, DCT will gener-

ate the coefﬁcients DC and AC with values that after

the quantization process will obtain AC of averages

and high frequencies with signiﬁcant values. Figure 6

show an example these frames.

Figure 8: Frame with feature to DCT.

Motion estimation is block based and involves

searching the VOP reference from the closest match

to the current block to be coded. Once the block is

founded, a motion vector is used to describe its loca-

tion.

Motion estimation is performed on each of the

four luminance blocks in a macroblock. Depending

on the macroblock type up to four motion vectors are

coded. Inside the current frame, the motion estima-

tion generates a motion vector making a reference to

the previous frame, searching for a pixel in the pre-

vious frame that are in the same place of the pixel in

the search window in the current frame. It makes a

scan inside a search window to implement the match-

ing criteria between the pixels. This seek is not based

on a perfect pixel match, but based on the group of

pixel that are closest to the target pixels.

Due to the characteristics of the process of mo-

tion estimation for the encoder, it should reduce the

amount of similar images inside of the search win-

dow. Thus, they can generate frames with extreme

colors to maximize the difference among the pixels

blocks and to add the minimum of similar pixels in-

side of the search window, as shown in the Figure 9.

Thus, during the search for similar blocks inside

of the delimitation of the search window, the encoder

won’t have options of close images to the current

block to use as reference. In this case, it will have

to look for the similar blocks in the neighborhood of

that search window, causing the generation of larger

vectors.

Figure 9: Motion Estimation.

A RANDOM CONSTRAINED MOVIE VERSUS A RANDOM UNCONSTRAINED MOVIE APPLIED TO THE

FUNCTIONAL VERIFICATION OF AN MPEG-4 DECODER DESIGN

275

4 IMPLEMENTATION

This section shows the implementation of the

Random-Unconstrained Movie and the implementa-

tion of the RandMovie in order to understand the in-

sertion of constraints in the generated movie.

4.1 Random-Unconstrained Movie

Implementation

The Random-Unconstrained Movie generates random

images made up of texture information, which are

properly coded by means of Variable Length Coding

(VLC) and Fixed Length Coding (FLC) for the header

information.

The encoder features are: open source C++ to be

used together with SystemC and coupled to the test-

bench. Xvid v0.9 was selected as an encoder because

it is capable of implementing all functionalities of an

MPEG-4 Simple Proﬁle Level 0 (ISO/IEC, 2004).

The variables and value ranges were speciﬁed, in

order to generate a random-constrained movie with

texture and motion based on MPEG-4 standard. The

main variables in this process came from the DCT e

MVD modules.

The DCT parameters should reach the values for

the following variables:

• Level: [-2048 to 2047], indicates the pixel value;

• Run: [0 to 63], shows the quantity of zero value

before a level value;

• Last: [0 and 1], indicates the last matrix coefﬁ-

cient.

The MVD parameters should reach the values for

the following variables:

• Horizontal mv data: [-32 to 32], horizontal coor-

dinate of the motion vector;

• Horizontal mv residual: [0 to 32], difference be-

tween frame current and reference;

• vertical mv data: [-32 to 32 ], vertical coordinate

of the motion vector;

• Vertical mv residual: [0 to 32], difference be-

tween frame current and reference;

The generated frames are built with dimensions

QCIF (177x144), each value of the pixel is selected

among a value range of [0,255].

4.2 RandMovie Implementation

The adopted strategies provides 2 ways of creating

frames to the videos production: a form based on the

base patterns, where each macroblock of the frame

visually matches a base patterns and the other way is

based on the creation of black frames with some white

macroblocks of pixels inserted in random places in

the frame. To guarantee that RandMovie can generate

the necessary stimuli to exercise the movement esti-

mation way necessary to constrain the randomness in

which the selection of a frame format is made, be-

cause it is necessary to guarantee some sequences of

black/white-doted frames inside the video. This is

needed because of the strategy that the encoder uses

to generate the motion vectors, as shown in the Fig-

ure 10.

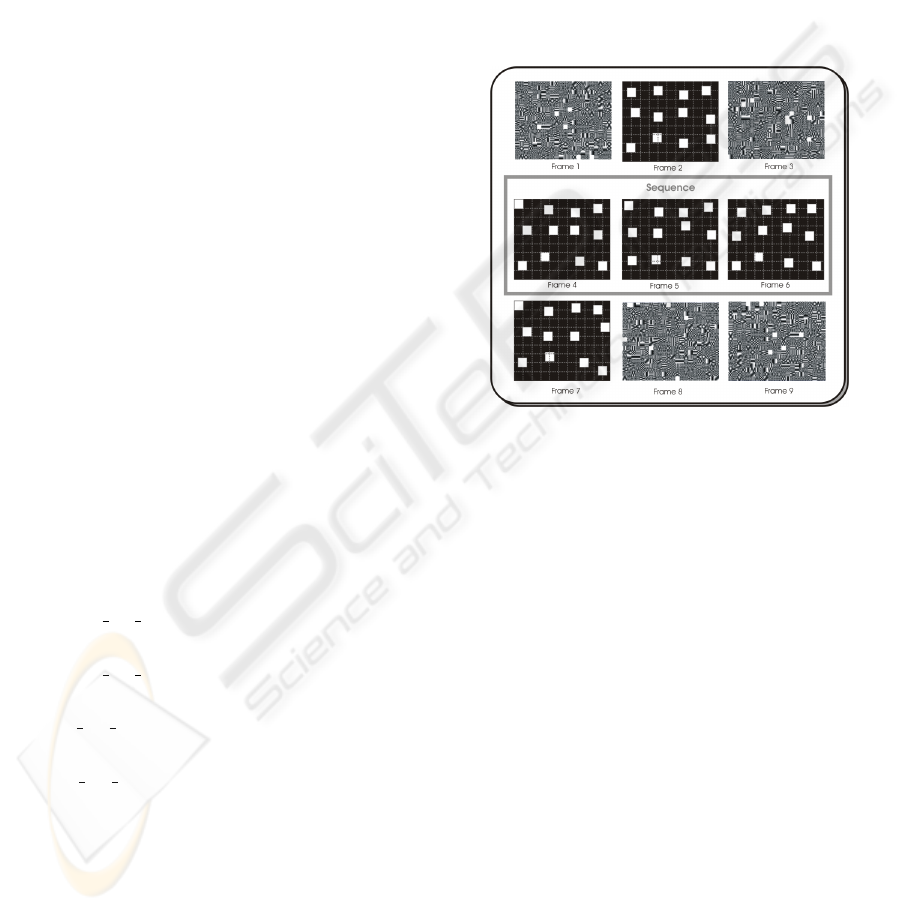

Figure 10: Sequence frames.

The modiﬁcation of the randomness of Rand-

Movie to generate efﬁcient stimuli to texture encod-

ing and motion estimation was the redistribution of

the two ways of creating frames probability. This

way, the frames using the base patterns have the oc-

currence probability of 60%, while the black/white-

doted frames have 40% chance of being selected.

5 RESULTS

The Random-Unconstrained Movie and RandMovie

were applied in the Functional Veriﬁcation of MPEG-

4. Then, was necessary to make new simulations in

the MPEG-4 and their sub-modules in order to reach

the speciﬁed coverage.

The BS module coverage was measured in 7 out-

put ports, using the same parameter as speciﬁed for

the Random-Unconstrained Movie. During the simu-

lation, was possible to verify which values were cov-

ered in the port variables. With the results was possi-

ble to compare the ﬁnal results of both movie as input

in the veriﬁcation. The comparison is presented in the

Table 4. In this table is possible to see that the Rand-

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

276

Movie was better for almost all the variables speci-

ﬁed. The total coverage was 97% compared to 67%

coverage from the Random-Unconstrained Movie.

Table 4: Coverage between Random-Unconstrained Movie

and RandMovie.

BS output port RUM Coverage % RandMovie

Coverage %

MVD 47 100

MVD VOP 55 100

PBC 54 100

DCDCT 43 75

IS 61 100

ACDCIP 64 100

IQ 57 100

Total Accumulated

Coverage %

67 97

Another result can be seen in Figure 11. It

shows improvement of the coverage in function of

the time by using Random-Unconstrained Movie ver-

sus RandMovie. It is possible to see that the Rand-

Movie reached better coverage ﬁrst then Random-

Unconstrained Movie. The RandMovie generator

reached the speciﬁed coverage earlier and was con-

sidered satisfactory to the Bitstream module.

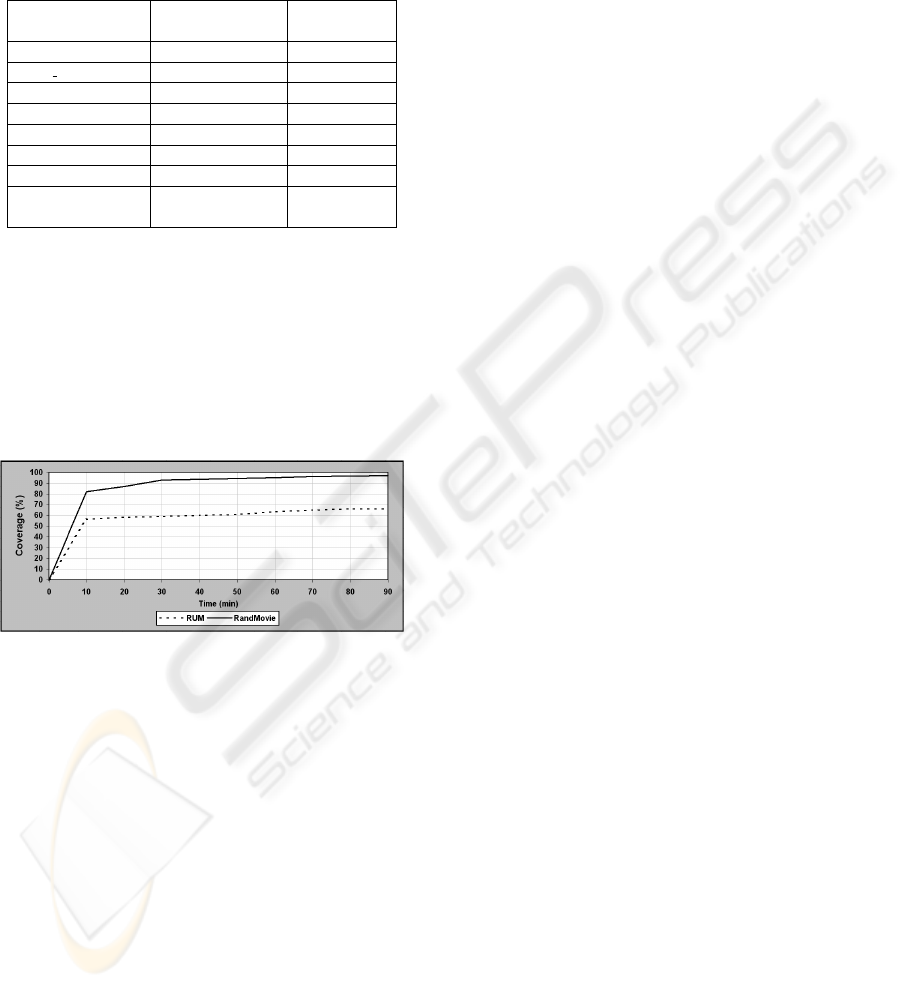

Figure 11: Comparison between Random-Unconstrained

Movie and RandMovie.

Another very important result was obtained in the

veriﬁcation using the RandMovie. The coverage anal-

ysis revealed a coverage hole in the BS simulation re-

sults, i.e. a functionality that has not been exercised

before with the Random-Unconstrained Movie. The

analysis of this coverage hole revealed an error in the

BS implementation. The discovered error was lead-

ing to a wrong communication between Bitstream and

MVD modules. This could cause an error in the com-

position of the image in the MPEG-4 IP-Core. The

error occurred because a register with 6 bits was used

when 7 bits should be used. Due to functional cov-

erage and the RandMovie stimuli generator, the error

was eliminated in the MPEG-4 IP-Core.

RandMovie was limited by the encoder imple-

mentation, mainly the DCT coefﬁcient generator in

the Xvid encoder: it implemented saturation in the

8x8 blocks after DCT transformation. This satura-

tion keeps values in the range [-1024, 1024]. Due to

the Xvid encoder limitations, in spite of the fact that

frames did present visual characteristics in the base

pattern, it was not possible to stimulate the Xvid en-

coder sufﬁciently to make it generate coefﬁcients to

cover the whole range of values [-2048, 2048].

RandMovie has some advantages if we consider

the related works (G.Miyashita, 2003) and (Seong-

Min Kim and Kim, 2003), like the utilization of ran-

domness applied to the video generation, assuring the

high level of coverage rating, simple implementation,

simple attachment to the MPEG-4 IP core testbench

and ﬂexibility to be reused directly in other kinds of

testbenchs for video decoding systems. One could,

for example, reconﬁgure Xvid for a higher resolu-

tion, or change the encoder to build a random video

in H.264 format.

6 CONCLUSIONS

This paper proposes to compare two approaches of

synthetic movie generation, Random-Unconstrained

generation and random-constrained generation. With

the constraints applied in the movie generator it

was possible to generate good random-constrained

movies, increasing coverage and simulating all the

speciﬁed functionality with respect to a Random-

Unconstrained Movie. With the RandMovie it was

also possible to ﬁnd a real error in the implementa-

tion of the MPEG-4 design.

The approach has the disadvantage that it depends

on the capabilities of the encoder used, but analyzing

the presented results, it is possible to conclude that

the directed stimuli used in the random-constrained

movie generation are more efﬁcient that the presented

in the Random-Unconstrained Movie.

REFERENCES

Ana Karina Rocha, Patricia Lira, Y. Y. J. E. B. E. M. and

Araujo, G. (2006). Silicon validated ip cores designed

by the brazil-ip network. In IP/SOC 2006.

Bergeron, J. (2003). Writing Testbenches: Functional Ver-

iﬁcation of HDL Models. Kluwer Academic Publish-

ers, MA, USA, 2nd edition.

G.Miyashita (2003). High-level synthesis of a MPEG-4 de-

coder using systemc. In Master’s thesis, Informatics

and Mathematical Modelling, Technical University of

Denmark.

ISO/IEC, J. T. C. (December 2004). Information

technology-coding of audio-visual objects - part 2: Vi-

sual.

A RANDOM CONSTRAINED MOVIE VERSUS A RANDOM UNCONSTRAINED MOVIE APPLIED TO THE

FUNCTIONAL VERIFICATION OF AN MPEG-4 DECODER DESIGN

277

James Monaco, D. H. and Raina, R. (2003). Functional

veriﬁcation methodology for the powerpc 604 micro-

processor. In DAC ’96: Proceedings of the 33rd an-

nual conference on Design automation, New York,

NY, USA. ACM Press.

K. R. G. da Silva, E. U. K. Melcher, G. A. and Pimenta,

V. A. (2004). An automatic testbench generation tool

for a systemc functional veriﬁcation methodology. In

SBCCI ’04: Proceedings of the 17th symposium on

Integrated circuits and system design. ACM Press.

K. R. G. da Silva, E. U. K. Melcher, I. M. and do N. Cunha,

H. (2007). A methodology aimed at better integration

of functional veriﬁcation and rtl design. In Design

Automation for Embedded Systems.

Piziali, A. (2004). Functional Veriﬁcation Coverage Mea-

surement and Analysis. Kluwer Academic, USA, 1nd

edition.

Rao, K. R. and Yip, P. (1990). Discrete cosine trans-

form: algorithms, advantages, applications. Aca-

demic Press Professional, San Diego, CA, USA.

Seong-Min Kim, Ju-Hyun Park, S.-M. P. B.-T. K. K.-S. S.

K.-B. S. I.-K. K. N.-W. E. and Kim, K.-S. (2003).

Hardware-software implementation of mpeg-4 video

codec. ETRI Journal, London.

Team, X. (2003). Xvid api 2.1 reference (for 0.9.x series).

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

278
