A ROBUST SPEECH COMMAND RECOGNIZER FOR

EMBEDDED APPLICATIONS

Alexandre Maciel

, Arlindo Veiga

, Cláudio Neves

, José Lopes

Carla Lopes

1,2

, Fernando Perdigão

1,3

and Luís Sá

1,3

Instituto de Telecomunicações, Universidade de Coimbra, Portugal

Instituto Politécnico de Leiria - ESTG, Portugal

Departamento de Engenharia Electrotécnica e de Computadores, FCTUC, Universidade de Coimbra, Portugal

Keywords: Speech recognition, noise robustness, embedded systems.

Abstract: This paper describes a command-based robust speech recognition system for the Portuguese language. Due

to an efficient noise reduction algorithm the system can be operated in adverse noise environments such as

in cars or factories. The recognizer was trained and tested with a speech database with 250 commands

spoken by 345 speakers in clean and noisy conditions. The system incorporates a user friendly application

programming interface and was optimized for embedded platforms with limited computational resources.

Performance tests for the recognizer are presented.

1 INTRODUCTION

Environment noise can drastically decrease the

performance of automatic speech recognizers as it is

the case of vehicle and factory environments. Under

such adverse conditions, many speech recognition

applications use a reduced vocabulary in order to

improve the recognition rate. Even in the case of

simple command recognizers, noise reduction

techniques should be carefully designed. There are

two common approaches to the noise robustness

problem: signal processing techniques applied to the

input speech or online adaptation of the recognition

models to the present noise conditions. The latter

generally requires higher computational resources

and is not suited to embedded applications. Signal

processing techniques for noise reduction include

Wiener filtering, histogram equalization (Peinado

and Segura, 2006), and others. A powerful feature

extraction system for noise robust speech

recognition was standardized by ETSI (ETSI, 2003).

This system was developed for Distributed Speech

Recognition and includes an Advanced Front-End to

be implemented in client terminals such as portable

devices and cell phones. These terminals send the

extracted parameters to a remote server that runs a

speech recognition engine. In embedded speech

recognition with limited vocabulary, both the feature

extraction and the speech recognition tasks are

carried out in the terminal devices. Another common

requirement for these embedded systems is their

ability to run on limited hardware resources.

In this paper we describe a command speech

recognizer for European Portuguese that

incorporates a new and efficient algorithm to reduce

the noise in the acoustical signal and runs in low

complexity embedded hardware platforms. The

recognizer was trained and tested with a speech

database that was recorded under the framework of a

cooperation project funded by the Portuguese

government (Tecnovoz, 2008).

The paper is organized as follows. In section 2

we describe the algorithms that were used in the

extraction of noise robust features. In section 3 we

describe the Tecnovoz database and the training of

the system. The implementation of the decoder is

addressed in section 4. Section 5 describes the

application programming interface to operate the

recognizer. Performance tests are presented in

section 6. Finally, in section 7, we present the

conclusions of this paper.

Maciel A., Veiga A., Neves C., Lopes J., Lopes C., Perdigão F. and Sá L. (2008).

A ROBUST SPEECH COMMAND RECOGNIZER FOR EMBEDDED APPLICATIONS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 92-95

DOI: 10.5220/0001938700920095

 SciTePress

2 NOISE ROBUST FEATURE

EXTRACTION

The ETSI noise reduction front-end is based on a

two stage Wiener filtering system. The Wiener filter

is estimated in the linear frequency domain and is

implemented by a time domain convolution. A

modified implementation of the ETSI front-end was

presented by (Li et al, 2004), where both the filter

estimation and operation is carried out in the Mel

frequency domain. In our implementation we

improved the efficiency of this modified front-end

by using the signal processing scheme depicted in

Figure 1.

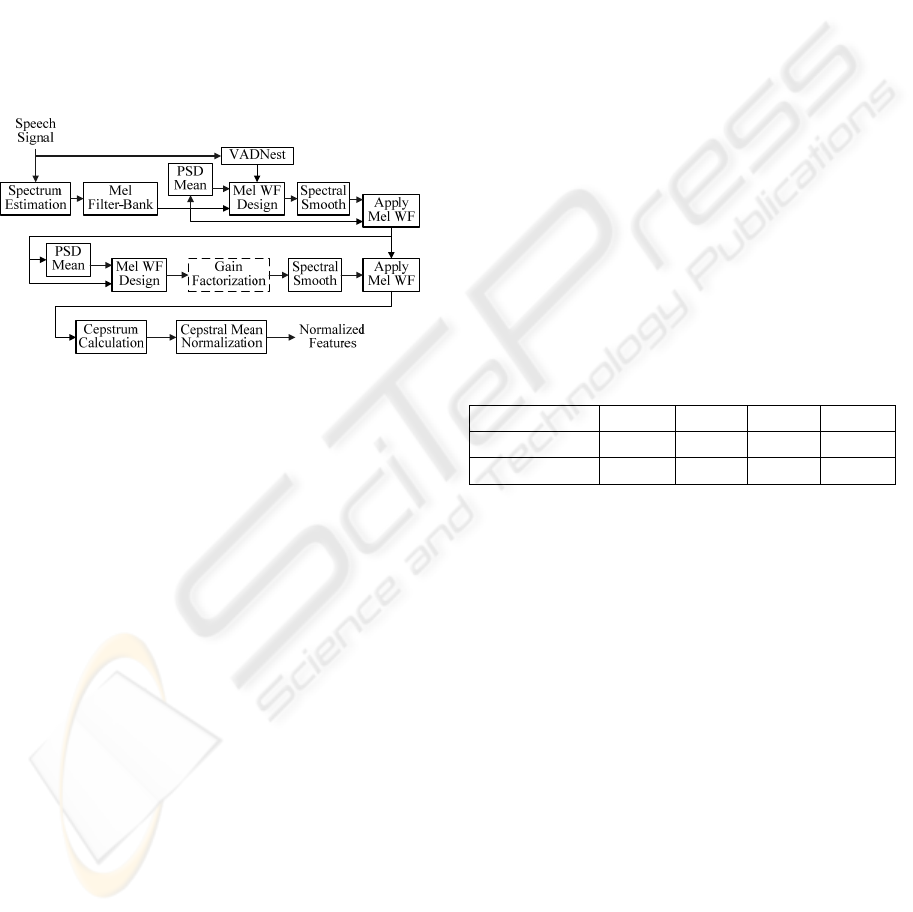

Figure 1: Block diagram of the feature extraction system.

As can be seen the speech signal is processed by

a two stage Wiener filter (WF). The estimated signal

spectrum is applied to a Mel filter-bank. The signal

frames are classified as noise only or speech plus

noise by the VADNest block, as required for the

Wiener filter design.

A novel characteristic of this front-end compared

to others resides on the “Spectral Smooth” block. In

our implementation we reduce the operations

involved in the smoothing of the Wiener coefficients

to a single pre-computed matrix (Neves et al, 2008).

The noise reduction system includes a second

Wiener filter stage, which, apart from a gain

factorization block, is similar to the first one. We

found that the gain factorization proposed in (ETSI,

2003), when applied in the Mel frequency domain

does not increase the system performance and can be

omitted.

The de-noised frames are converted to cepstral

coefficients by a discrete cosine transform (DCT)

and their means are normalized (CMN), (Neves et

al, 2008), by an online algorithm. As a result, 12

cepstral coefficients plus log energy are produced

which, together with their first and second time

derivatives, lead to a feature vector with 39

components.

3 MODEL TRAINING

3.1 Database Description

The recognizer is based on hidden Markov models

(HMMs) which were created using the speech

feature vectors described in the last section. The

Tecnovoz speech database was used to train the

HMM models. This speech database was designed

regarding typical application demands in terms of

vocabulary and acoustic environments. The

collected speech includes about 250 commands and

several phonetically rich sentences. About 30

minutes of spoken content was recorded from each

speaker. Three acoustical environments were

considered, namely Clean (TVFL), Vehicle (TVV)

and Factory (TVF) environments, as indicated in

Table 1.

All speech files in the database were

automatically classified according to its signal-to-

noise ratio (SNR). For training proposes only files

with SNR above 15 dB were used in the

experiments, totalling 137,237 files. From these,

103,001 (75%) were picked up for training 27,382

(20%) for testing and 6,854 (5%) for development.

Table 1: Audio files and gender distributions.

Distributions TVFL TVF TVV Total

Audio Files 119975 8633 8629 137237

Gender (F/M) 99/180 19/16 9/22 345

3.2 Training

Three different approaches were used to find the

acoustic models which best fit to the task of

command recognition: whole-word models, context-

free phone models, and context-dependent triphone

models. The word models are best suited for a

command recognizer but have the disadvantage of

being tied to a predefined vocabulary, which is not

the case with phone models.

The models were trained using the HTK toolkit

(HTK3, 2006) which performs Baum-Welch

parameters re-estimation. In order to evaluate the

performance of the models in a recognition task,

Viterbi algorithm was used and a grammar was

defined with all the 254 commands in parallel.

Results showing the comparative performance of the

three approaches are presented in section 6.

A ROBUST SPEECH COMMAND RECOGNIZER FOR EMBEDDED APPLICATIONS

4 DECODER

The decoder task consists in finding the best

sequence of commands given the speech features

and models. The decoder is based on the Viterbi

algorithm applied to a command grammar task and

follows the “token passing” paradigm (HTK3,

2006). The core of the decoder was written in C++

programming language, but critical sections were

optimized in assembly using Intel SSE and AMD

3DNow! floating-point extensions.

A confidence measure of the recognition results

was incorporated in the decoder. This measure is

essential to real applications because there are

always recognition errors and therefore the

recognition results need to be accepted or rejected.

Confidence measures can also be used for spotting

errors as well as to detect out-of-vocabulary words.

To detect out-of-vocabulary (OOV) words, we used

a so called “filler model” (Yu et al, 2006). This

model was trained with all commands and phrases

present in the training database. In order to calculate

the confidence measure, a reference model was

formed by taking all phone models in parallel. The

purpose of this model is to give a score comparison

with the main result. For well pronounced words,

both the reference model and the result’s models

should give almost identical scores. On the contrary,

the scores would be very different in the case of

misrecognized words.

In a first step the decoder tests whether or not a

result is an OOV word using the “filler model”. If

the result is not assigned as an OOV word, then a

confidence measure is computed using the reference

model. This is done by passing the speech feature

vectors associated to the result to the reference

model. The difference between the scores of the

reference and the result’s models is normalized by

the number of frames. This value is then applied to a

sigmoid function in order to obtain a normalized

confidence measure between 0 and 100%.

In integrating the decoder with the feature

extraction front-end, a VAD (voice activity detector)

is used in order to signal speech endpoints. This

detector is essential since it frees the decoder from

processing very long sequences that do not

correspond to speech.

Due to the optimizations referred to previously,

the decoder operates in real time. After the detection

of a speech starting point, the decoder immediately

starts the recognition process. As soon as the

detector signals the speech endpoint, the decoder

supplies the API, described in the next section, the

best result for this speech segment.

5 APPLICATIONS INTERFACE

In order to use the speech recognizer in practical

applications, we developed an application

programming interface (API) which allows the real-

time control of the speech recognition engine and

the audio interface. As shown in Figure 2, the

applications interact with the recognition engine

through the API. The API hides from the user the

low level details of the engine operation, audio

drivers and grammar handling.

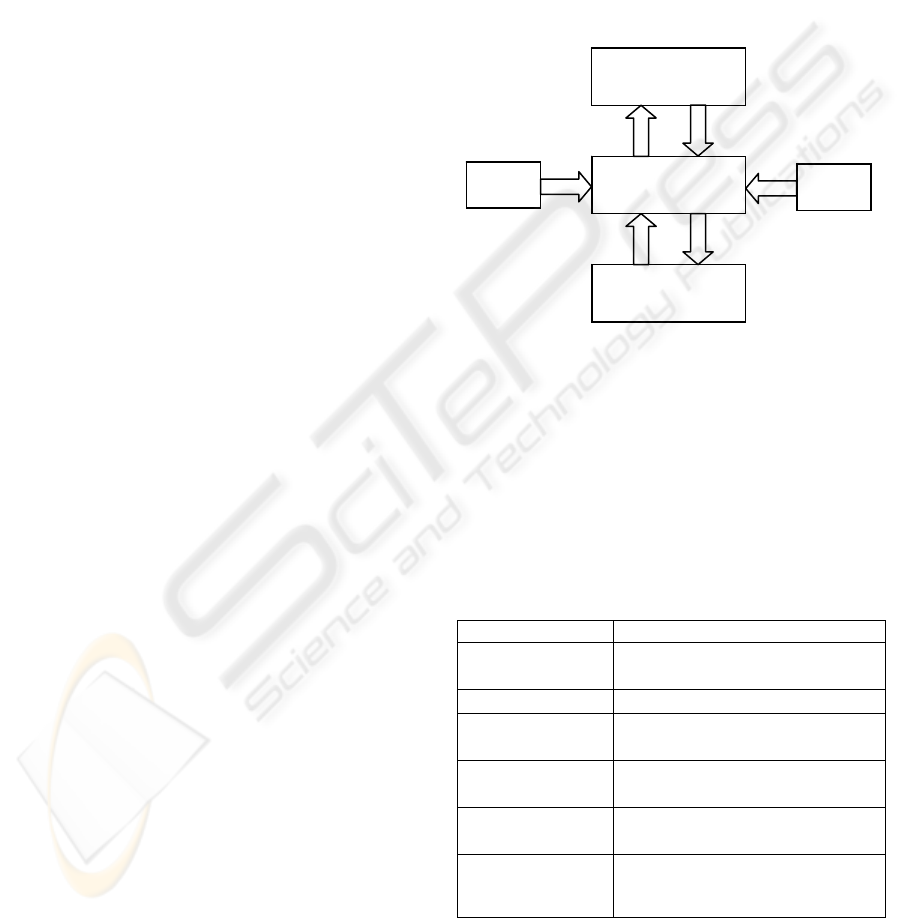

Figure 2: API interaction model.

The API was designed for the embedded

Windows operating systems, such as XPe and CE.

The grammars are specified in XML, according to

W3C SRGS format.

From a programming point of view, the API

consists of a single class referred to as SREngine.

This class exposes to the applications a set of

methods and properties that are described in Table 2.

Table 2: Main API methods.

Method/Event Basic Description

InitSREngine

Method to initialize events,

audio stream and the engine.

LoadGrammar

Method to load a grammar.

SetRuleState

Method to activate/deactivate a

grammar rule.

StartRecognition

Method to start the recognition

process.

StopRecognition

Method to stop the recognition

engine.

OnSRecognition Event that occurs whenever a

recognition result is available with

an associated confidence measure.

With the limited set of methods presented in

Table 2 it is easy to build compact Windows speech

recognition applications.

API

Audio

Grammar

Application

Recognizer

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

6 RESULTS

In section 2 we described a new noise robust feature

extraction front-end based on the ETSI standard. In

order to assess the merit of our front-end, we

compared both front-ends using the Tecnovoz

database. Whole word models were trained and

tested as described in section 3, using both front-

ends. The models are described by a 10 component

Gaussian mixture. As it can be seen in Table 3, our

front-end outperforms the ETSI front-end by a figure

of 2% in recognition rate.

Table 3: Front-end comparison results.

Front-end Recognition rate

ETSI front-end

94.88%

New front-end

96.88%

In section 3 we described 3 possible approaches

for the recognition units: whole-word models,

context-free phone models, and context-dependent

triphone models. The training and testing datasets

were the same as in the previous experiment and the

results are presented in Table 4.

Table 4: Results obtained for Tecnovoz database.

Acoustic Model Recognition rate

Whole-word 96.88% (10 mixtures)

Phone model 91.41% (16 mixtures)

Triphone model 97.13% (10 mixtures)

Triphone model 97.50% (16 mixtures)

With the whole-word model set the recognition

rate is 96.88%. This model set has 46.7k Gaussians

(about 3.6M parameters).

For the context-free phone model set we used a

multiple pronunciation dictionary but, despite of

this, we obtained a recognition rate of only 91.41%

even with a larger number of 16 mixtures. As the

main concern is word recognition performance, the

silence/pause models are simply ignored in the

recognition evaluation. This low performance value

is obviously due to the lack of parameters: only

1,888 Gaussians (150k parameters).

For the triphone model set, no multiple

pronunciation dictionary was used and, as before,

the silence/pause models were ignored. The result of

97.50%, was obtained for 16 mixtures with 32,208

Gaussians (about 2.5M parameters) and 846 physical

triphone models. The result for 10 mixtures is also

shown and compares favourably with the whole-

word case.

7 CONCLUSIONS

A speech command recognizer for the Portuguese

language was presented in this paper. It incorporates

a new noise robust front-end and a Viterbi decoder

optimized for real time operation in embedded

applications. A compact programming interface for

application development was also presented. Several

recognition units were discussed and evaluated.

Results with the presented recognizer show that

the models based on triphone units are higher than

whole-word or context-free phone models. A

possible explanation for this result could be the fact

that, on average, there are much more occurrences of

triphones than whole-words, which leads to a better

parameter estimation. The use of triphones is also a

better solution, as it combines fewer parameters with

higher recognition rate.

The noise robustness of our front-end was also

evaluated, showing an increased performance when

compared to the ETSI front-end. This result suggests

that the ETSI front-end may be biased towards the

database used in its development.

REFERENCES

ETSI, 2003. ETSI ES 202 050 v1.1.3. Speech Processing,

Transmission and Quality Aspects (STQ); Distributed

Speech Recognition; Advanced Front-end Feature

Extraction Algorithm; Compression Algorithms.

Technical Report ETSI ES 202 050, ETSI.

HTK3, 2006. The HTK book (for HTK version 3.4).

Technical report, Cambridge University. England.

http://htk.eng.cam.ac.uk/.

Li, J.-Y., Liu, B., Wang, R.-H., and Dai L.-R., 2004. A

Complexity Reduction of ETSI Advanced Front-end

for DSR. In proc. of ICASSP’2004, vol. I, pp. 61-64.

Montreal, Canada.

Neves, C., Veiga, A., Sá, L., and Perdigão, F., 2008.

Efficient Noise-Robust Speech Recognition Front-end

Based on the ETSI Standard. Submitted to

INTERSPEECH’2008. Brisbane, Australia.

Peinado, A., and Segura, J., 2006. Speech Recognition

over Digital Channels: Robustness and Standards,

John Wiley & Sons, Ltd. England.

Tecnovoz, 2008. http://www.tecnovoz.pt/web/home.asp.

Yu, D., Ju, Y., Wang, Y.-Y., and Alex, W., 2006. N-Gram

Based Filler Model for Robust Grammar Authoring.

In proc. of ICASSP’2006, vol. I, pp. 565-568.

Toulouse, France.

A ROBUST SPEECH COMMAND RECOGNIZER FOR EMBEDDED APPLICATIONS
