A COMPOUND IMAGE ENCODER BASED ON THE MULTISCALE

RECURRENT PATTERN ALGORITHM

Nelson C. Francisco

1,6

, Ricardo N. R. Sardo

, Nuno M. M. Rodrigues

1,2

, Eduardo A. B. da Silva

Murilo B. de Carvalho

, S´ergio M. M. de Faria

1,2

, Vitor M. M. da Silva

1,5

and Manuel J. C. S. Reis

Instituto de Telecomunicac¸˜oes, Portugal

ESTG, Instituto Polit´ecnico Leiria, Portugal

PEE/COPPE/DEL/Poli, Univ. Fed. Rio de Janeiro, Brazil

TET/CTC, Univ. Fed. Fluminense, Brazil

DEEC, Universidade de Coimbra, Portugal

DE/CITAB, Univ. de Tr´as-os-Montes e Alto Douro, Portugal

Keywords:

Image Coding, Pattern Matching, Compound Images, Scanned Images.

Abstract:

In this paper we present the current state of the project SCODE (Scanned COmpound Document Encoder).

The objective of this project is the development of a new image application, based on the Multidimensional

Multiscale Parser algorithm (MMP), for compression of scanned documents, composed by pictures, graphs

and text.

MMP is a generic compression algorithm that has been successfully applied in image coding. The use of

a multiscale adaptive pattern matching coding paradigm allows it to achieve good results, consistently, for

both smooth and text images. On the contrary, the traditional transform-based methods have a well known

performance deﬁcit for non-smooth image coding.

Current state-of-the-art compound image coding schemes rely on the use of segmentation techniques to split

foreground and background planes of an input image. The performance of such methods, generally, degrades

with the loss of efﬁciency of the segmentation process, namely for complex documents or low quality scans.

These losses result from the use of transform-based compression for the background layer, like in DjVu or

JPEG2000/Part6. The ﬂexibility of MMP algorithm makes it efﬁciency independent of the segmentation

process. Our experimental results show that MMP already outperforms some state-of-the-art algorithms, thus

proving its usefulness as a compound image encoding algorithm.

In this paper we present the current results and the developed coding schemes, as well as an overview on the

future work for this project.

1 INTRODUCTION

The increasing relevance of internet as a communi-

cation and publishing media for written documents,

and the decreasing price of scanning and storage hard-

ware, are contributing for the progressive substitution

of the traditional paper by digital media support. Ex-

amples of this can easily be found in on-line digital

libraries and publishing sites (namely scientiﬁc publi-

cations), that make available electronic copies of do-

cuments that were originally created in paper, or for

which the original digital versions are no longer avail-

able. Other important application is the digital storage

of document records, like those used in several do-

cument archives. This has the advantage of avoiding

the large storage and preservation requirements, asso-

ciated with the original paper versions.

However, efﬁcient compression of these digital

documents is a challenging task. A simple approach

to this problem would be the use of the traditional

state-of-the-art image codecs to compress images re-

sulting from the scanned documents. Nevertheless, it

is a well known fact that traditional image coding al-

gorithms are not capable of achieving a satisfactory

performance for non low-pass images, like those re-

sulting from document scanning. Because of this,

several dedicated algorithms have been proposed in

the literature, that were speciﬁcally optimised for cod-

162

C. Francisco N., N. R. Sardo R., M. M. Rodrigues N., A. B. da Silva E., B. de Carvalho M., M. M. de Faria S., M. M. da Silva V. and J. C. S. Reis M.

(2008).

A COMPOUND IMAGE ENCODER BASED ON THE MULTISCALE RECURRENT PATTERN ALGORITHM.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 162-167

DOI: 10.5220/0001940601620167

 SciTePress

ing compound images. These methods usually adopt

a segmentation procedure, to separate text from the

background and natural images, using different tech-

niques to compress each of these components. Impor-

tant examples of these methods are Digipaper (Hut-

tenlocher et al., 1999) and DjVu (Bottou et al., 1998),

that feature advanced technologies, such as image

layer separation, progressive loading, arithmetic cod-

ing and lossy compression for bitonal images, allow-

ing for high quality, readable images to be stored in

an efﬁcient way.

The main objective of the SCODE project is the

development of an efﬁcient compression algorithm

for scanned document compression, based on a re-

cently proposed paradigm for image coding, referred

to as the Multidimensional Multiscale Parser (MMP)

algorithm. This algorithm was originally proposed as

a multidimensional lossy signal compression method,

and its results demonstrated that it is a good alter-

native to the state-of-the-art transform-quantization

based image encoders.

MMP uses a multiscale adaptive dictionary of

vectors to approximate variable-length input vectors,

that result from parsing an original input block of

data. Scaling transformations allow the matching of

each dictionary element to the original blocks, which

may have different sizes. This makes MMP an ex-

tremely versatile encoding algorithm, that has showed

good results when applied to a wide variety of signal

sources, ranging from voice and ECG to stereoscopic

images and video signals.

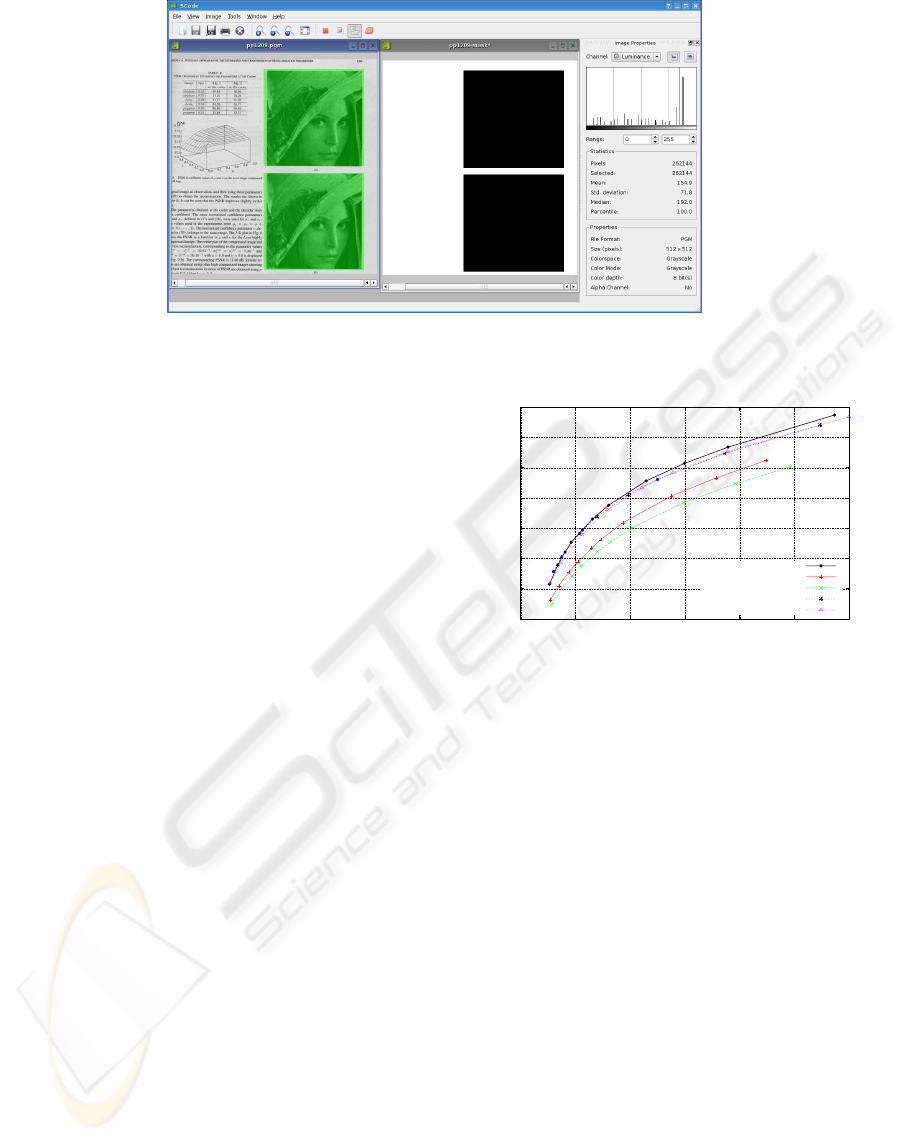

The SCODE software prototype will offer a set of

tools for compress and manage scanned documents,

as well a set of features commonly found in this type

of applications (the possibility of navigating docu-

ments, zooming and panning page images, producing

and displaying side navigation thumbnails, saving and

printing page and documents). This application im-

plements a segmentation tool in order to split images

and text planes, such the appropriate MMP algorithm

can be used for each type of data. The segmentation

of the digital document will be performed manually,

automatically or using a combination of both, accord-

ing to the application scenario.

In Section 2 we present the various versions of the

MMP algorithm and the dictionary trainning proce-

dure. Section 3 details the implementation of MMP

for coding text images and Section 4 describes the

SCODE prototype software. The Experimental re-

sults are shown in Section 5 and Section 6 devises

some conclusions and further work.

2 MMP IMAGE CODING

In this section, we present the current state of MMP

algorithm. A detailed presentation of this subject can

be found in (de Carvalho et al., 2002).

2.1 The MMP Algorithm

The MMP algorithm was proposed has a generic lossy

data compression method (de Carvalho et al., 2002).

MMP coding is based on the use of an adaptive dic-

tionary D

, to represent input data segments X

. For

each input image block, the algorithm ﬁrst searches

the dictionary for the element S

that minimises the

Lagrangian cost function J(T ) = D(X

, S

) + λR(S

where D() is the sum of square differences (SSD)

function and R() is the rate needed to encode the ap-

proximation. The superscript l means that the block

belongs to scale l, that corresponds to a block size

of (2

⌊

l+1

⌋

× 2

⌊

⌋

). The algorithm then proceeds with

the segmentation of the original block in two blocks,

l−1

and X

l−1

, each with half the pixels of the orig-

inal block, searching the dictionary of scale (l − 1)

for the elements S

l−1

and S

l−1

that minimise the cost

functions for each of the sub-blocks. The compres-

sion cost associated with each of the previous alter-

natives is then evaluated and the algorithm decides

whether to segment or not the original block. Each

non-segmented block of scale l is approximated by

one word S

of the dictionary D

. If a block is seg-

mented, then the same procedure is recursively ap-

plied to each segment.

MMP uses a binary segmentation tree to represent

the optimal partitioning of each block, that is encoded

using two binary ﬂags: ﬂag ’0’ represents the tree

nodes or block segmentations, and ﬂag ’1’ represents

the tree leaves (sub-blocks that are not segmented).

The leaf ﬂags are followed by the index that identiﬁes

the dictionary element selected to represent the cor-

responding sub-block. All these items are encoded

using an adaptive arithmetic encoder, with a different

context for each tree level, that corresponds to a block

scale.

Figure 1 represents the segmentation of a block

and its corresponding segmentation tree. In this ex-

ample, i

,...,i

are the indexes chosen to encode each

sub-block. The corresponding string of symbols is as

follows:

0 1 i

0 0 i

1 i

The adaptive dictionary used by MMP is updated

with new patterns originated by the blocks already

processed. Each time a block of scale l is segmented

into two l−1 sub-blocks, a new block is originated by

the concatenation of two dictionary elements selected

A COMPOUND IMAGE ENCODER BASED ON THE MULTISCALE RECURRENT PATTERN ALGORITHM

163

i2 i3

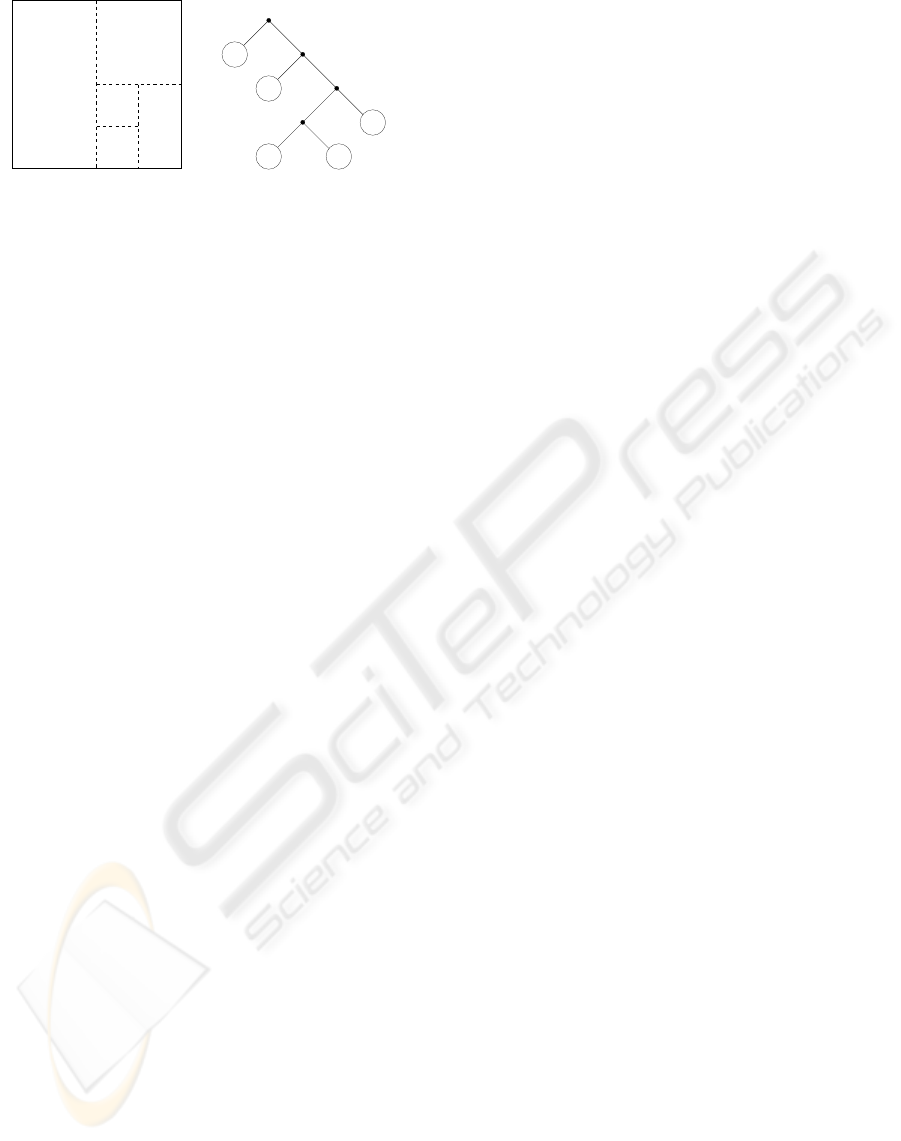

Figure 1: Segmentation of a 4×4 block (scale 4)(a) and the

corresponding 5 scale binary tree (b).

for these sub-blocks. This new block is used to up-

date the dictionaries in every scale, using a separable

scale transformation T

to adjust the vector’ original

scale l to each dictionary scale s. The decoder is jeeps

a synchronised copy of the dictionary, using only the

information of the segmentation ﬂags and dictionary

indexes.

2.2 MMP with Predictive Coding:

MMP-I Algorithm

Although MMP shows results that considerably out-

perform those of state-of-the-art transform based al-

gorithms for non-smooth images, this performance

advantage is not veriﬁed for smooth image compres-

sion. MMP-I (Rodrigues et al., 2005) reduced this

gap in performance for smooth images and brought

MMP’s results closer to those of transform-based al-

gorithms, without compromising the results for non-

smooth images. The MMP-I algorithm combines the

MMP coding principles with intra-frame prediction

techniques, like those used in the H.264/AVC stan-

dard (Joint Video Team (JVT), 2005).

For each original block X

, MMP-intra ﬁrst deter-

mines the prediction block P

and the corresponding

residue block Q

, that is encoded by the MMP al-

gorithm. The additional prediction overhead is eval-

uated by the Lagrangian R-D cost functions, allow-

ing the encoder to determine the best trade-off be-

tween the prediction accuracy and the bit-rate needed

to encode it. The prediction information is encoded

together with the original MMP ﬂags and indexes,

using an adaptive arithmetic coder (Rodrigues et al.,

2005). With this information, the decoder is able to

reconstruct the image blocks by calculating the cor-

responding prediction block and adding it to the de-

coded residue block.

2.3 Efﬁcient Dictionary Adaptation:

MMP-II Algorithm

MMP-I uses the same dictionary updating procedure

as the original MMP. However, experimental tests re-

vealed some inefﬁciencies in this procedure. This ob-

servation motivated the investigation of several dic-

tionary adaptation techniques that improved the per-

formance of MMP-I, resulting in a new algorithm ref-

ereed as MMP-II (Rodrigues et al., )

MMP-II uses an improved context modelling for

the dictionary elements, resulting in an increase of

the arithmetic encoder performance. The dictionary

elements are organised into partitions, and each dic-

tionary element is identiﬁed using a partition index

followed by its index inside that partition. The origi-

nal block scale is used as a context, exploiting the fact

that blocks generated at different levels have different

matching probabilities.

An efﬁcient redundancy control scheme for dic-

tionary elements is also used. The insertion of a new

block in the dictionary is only done if its distance, in

relation to another block already available in the dic-

tionary, is inferior to a given threshold d. This pre-

vents the creation of a new index for blocks that bring

very little distortion gains, that would also increase

the overall rate.

In order to improve the dictionary approximation

power, MMP-II uses extra blocks, originated by geo-

metric transformations and translations of the original

block, to update the dictionary. A norm-equalisation

procedure is also used, in order to adapt the new code-

vector patterns to the residue signal’s statistical distri-

bution. A detailed description of the MMP-II coding

can be found in (Rodrigues et al., ).

2.4 Flexible Partitioning: MMP-FP

Algorithm

Experimental results have shown that the rigid dyadic

block partitioning scheme used by MMP was some-

what ineffective and the compression performance of

the algorithm was very dependent on the direction in

which the segmentation is done in each scale. This

observation clearly indicated that for some blocks the

vertical segmentation performed better that the ho-

rizontal one, and (vice versa). This motivated the

implementation of an alternative MMP segmentation

scheme (Francisco et al., 2008), where each block can

be segmented along either the horizontal or the verti-

cal direction, based on a local R-D criterion.

Prior to being encoded, each image block X

segmented in both directions. This procedure is ap-

plied recursively for each child node, expanding the

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

164

segmentation tree of the block. The value of the La-

grangian cost function for each segmentation option

is then evaluated from the bottom of the tree up, and

the option with lower cost is chosen. If the decision

to segment the block using one direction is taken, the

child nodes generated in the other direction of the seg-

mentation tree are pruned. If the lowest Lagrangian

cost corresponds to a non-segmentation decision (i.e.

the block corresponds to a tree leaf), all child nodes

are pruned.

As a direct consequence of this new segmentation

scheme, the block partition dimensions become very

ﬂexible and the method is able to adapt much more ef-

ﬁciently to the input signal’s features. The new ﬂexi-

ble segmentation scheme is used by MMP-II, both for

the compression of the predicted residue and for the

prediction step. This results in a much more accurate

prediction process, creating a predicted residue with

lower energy, that is more efﬁciently compressed by

MMP. This partitioning method also uses block sizes

that favour the prediction process, like very narrow

blocks (e.g. 16×1), generating a more accurate pre-

diction signal.

The ﬂexible segmentation scheme improved con-

siderably MMP’s performance. For smooth ima-

ges, MMP-FP is able to outperform state-of-the-

art transform-based algorithms for bit-rates above

0.3bpp, increasing even more MMP’s performance

for non-smooth images.

2.5 A Dictionary Training Procedure

The initial dictionary used by MMP is quite simple,

containing only a set of homogeneous blocks in each

scale, distributed along the signals’ dynamic range.

The increase of its approximation power depends on

the insertion of new code-vectors during image com-

pression. Consequently, the initial blocks are coded

in a less efﬁcient way, due to the higher number of

segmentations imposed before the dictionary reach a

convenient variety of patterns. Therefore, a quick and

appropriate growth of the dictionary is very impor-

tant, in order to reduce the number of block segmen-

tations and, consequently, enhance the compression

performance of the algorithm. This motivated the de-

velopment of a dictionary training procedure, such

that an additional set of patterns are generated and in-

serted in the initial dictionary. A group of representa-

tive test images were encoded sequentially, at differ-

ent bit-rates, and the dictionary blocks used for coding

one image were inserted in the trained dictionary, that

was used to compress the subsequent image.

Experimental results have shown that the train-

ing procedure for smooth images increases the MMP

PSNR values by up to 0.3dB for lower bit-rates. The

use of an extra context for the initial blocks assures

that the encoder’s performance is not compromised

by the entropy increase imposed by these blocks. This

new method allowed MMP to outperform transform-

based coding algorithm for bit-rates down to 0.15bpp.

3 MMP FOR TEXT IMAGE

CODING

All previously described evolutions of MMP were de-

veloped to increase its performance for smooth im-

ages. However, the new techniques also allowed

MMP to increase its performance for non-smooth im-

ages. Furthermore, experimental results have shown

that the use of a predictive schemes is of little utility

in text images. Low pixel correlation compromise the

accuracy of the prediction stage, resulting in residue

blocks with an energy level close to that of the origi-

nal block. The cost for coding the prediction informa-

tion will be increased more than that of non-predictive

scheme compression.

This observations motivated a new implementa-

tion of the MMP algorithm, where the inﬂuence of

each previously discussed technique was studied and

evaluated, in order to obtain a new version of MMP,

speciﬁcally optimised for text-images. The resulting

encoder is not based in a predictive scheme, but uses

the features of MMP-II, as well as the ﬂexible par-

titioning scheme, described in section 2.4. The new

method increased the MMP’s performance for text

images, with considerable computational complexity

reduction.

Such method is adequate to be used in the SCODE

application for compression of the non-smooth image

layer, obtained from the segmentation process.

4 THE SCODE APPLICATION

The SCODE software application intends to be a

stand-alonecreator a viewer of MMP documents ﬁles.

Because it is a Qt-based program (Qt is a cross-

platform application framework provided by Troll-

tech), it can run across multiple operating systems,

namely Windows, Linux/X11 and Mac OS X. This

application has been developed simultaneously with

the encoder algorithms, providing a GUI with the ba-

sic tools for image analysis and manipulation.

At this point, the application supports the display

and processing, simultaneously, of one or more im-

age ﬁles from various image formats. It also displays

A COMPOUND IMAGE ENCODER BASED ON THE MULTISCALE RECURRENT PATTERN ALGORITHM

165

Figure 2: SCODE graphical inteface.

some useful statistics about each images, or selected

region, such as the histogram, the mean and standard

deviation. It also offers a set of tools to navigate in

documents, zoom and pan images, produce and dis-

play side navigation thumbnails, or save and print im-

age documents.

However, the main feature is the segmentation

process that splits the image into two layers, accord-

ing to the digital document characteristics, namely

smooth and non-smooth regions. Such segmentation

is intended to be manual, automatic or assisted, where

two techniques are combined. At this stage, only

the manual segmentation is implemented. The appli-

cation allows the user to draw a segmentation mask

and save it as a new bi-level image. This process is

the start point for selecting the compressing scheme

(smooth/non-smooth) to compress each layer. Fig-

ure 2 shows the current graphical interface.

The original image is presented in the left win-

dow. The user is able to manually draw the segmenta-

tion mask, that in this case corresponds to the smooth

image component and is highlighted in green. The

window in center displays the binary mask generated,

with white pixels corresponding to the text layer and

black pixels to the smooth image layer. In the right,

some informations about the image’s statistics are dis-

played, including its histogram, median and standard

deviation.

In the next stage of this work an automatic seg-

mentation method will be implemented. Although as-

suming that an automatic segmentation process might

introduce some problems, mainly due to a bad scan-

ning, we expect that the universality of MMP will be

able to overcome such problem, adapting the dictio-

nary to the pattern of the chosen region. This charater-

istic cannot be showed by our counterparts encoders,

that make pre-assumptions about the segmented lay-

ers and when it fails the results are catastrophic.

0 0.2 0.4 0.6 0.8 1 1.2

PNSR

bpp

Image LENA

MMP-FT+training

MMP-text

MMP-RD

H.264/AVC

JPEG2000

Figure 3: Experimental results for image LENA 512×512.

5 EXPERIMENTAL RESULTS

In this section, we present some experimen-

tal results obtained with the current version of

MMP. Figures 3 to 5 show the experimental re-

sults for three images: smooth images (LENA

and GOLDHILL) and a text image (SCAN004).

These test images are available for download at

(http://www.estg.ipleiria.pt/∼nuno/MMP/, ).

Figures 3 and 4 show that the best results for

smooth image coding are obtained with when using

MMP-FP, associated with the dictionary training pro-

cedure. For non-smooth images, we notice an ad-

vantage of the MMP, version without predictive cod-

ing (MMP-text). Besides having a lower compu-

tational complexity, MMP-text consistently outper-

forms MMP with predictive coding.

These ﬁgures also show the improvements in per-

formance over the original MMP, for all image types.

As we can see in these ﬁgures, the current versions of

MMP already outperform the transform-based algo-

rithms (JPEG2000 and H.264/AVC), both for smooth

and non-smooth images. Because the MMP-FP and

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

166

0 0.2 0.4 0.6 0.8 1 1.2 1.4

PNSR

bpp

Image GOLDHILL

MMP-FT+training

MMP-text

MMP-RD

H.264/AVC

JPEG2000

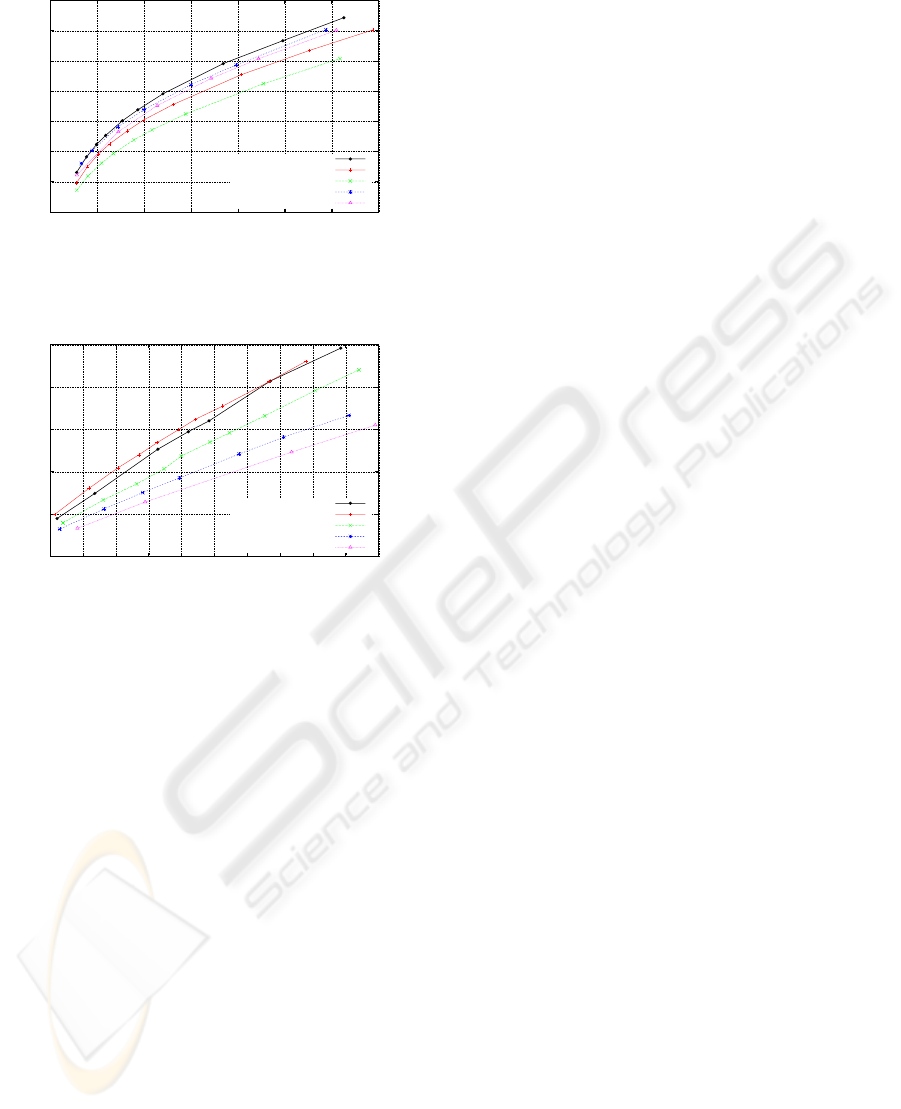

Figure 4: Experimental results for image GOLDHILL

512×512.

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2

PNSR

bpp

Image SCAN0004

MMP-FT+training

MMP-text

MMP-RD

H.264/AVC

JPEG2000

Figure 5: Experimental results for image SCAN0004

512×512.

MMP-text are able to achieve such good results for

smooth and text images, we expect a light impact

on performance, when region misclassiﬁcation occurs

during segmentation.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we present the objectives and the on go-

ing work on the SCODE project. The coding tech-

niques already investigated allow our MMP-based en-

coders to outperform transform-based algorithms for

smooth images, as well as for text images.

These results have highlighted the universality

of MMP, showing its promising applicability for

scanned documents. This is a good indication for the

ﬁnal encoding application, that will use a segmenta-

tion process to separate the smooth and text image

regions, and encode them independently, using opti-

mised versions of MMP. The method’s versatility will

be very useful in eliminating the performance losses

observed for current state-of-the-art encoders, when

segmentation accuracy fails. Nevertheless, current

MMP results demonstrate that the adaptive multiscale

pattern matching paradigm is a promising option to

the well established state-of-the-art transform-coding

methods.

For future work we intend to perform some op-

timisations, in the MMP algorithm and in its imple-

mentation. The ﬁrst is related to the MMP compres-

sion efﬁciency and the latter aims to reduce the com-

putational complexity. Another objective is the deve-

lopment and implementation of the automatic and as-

sisted segmentation for the different types of regions.

ACKNOWLEDGEMENTS

Project SCODE (PTDC/EEA-TEL/66462/2006) is ﬁ-

nancially supported by FCT - ”Fundac¸˜ao para a

Ciˆencia e Tecnologia”, Portugal.

REFERENCES

Bottou, L., Haffner, P., Howard, P., Simard, P., Bengio, Y.,

and Cun., Y. (1998). High quality document image

compression with djvu. J. Electron. Imaging, pages

410–425.

de Carvalho, M., da Silva, E., and Finamore, W. (2002).

Multidimensional signal compression using multi-

scale recurrent patterns. Elsevier Signal Processing,

(82):1559–1580.

Francisco, N. C., Rodrigues, N. M. M., da Silva, E. A. B.,

de Carvalho, M. B., de Faria, S. M. M., Silva, V.

M. M., and Reis, M. J. C. S. (2008). Multiscale re-

current pattern image coding with a ﬂexible partion

scheme. IEEE International Conference on Image

Processing.

http://www.estg.ipleiria.pt/∼nuno/MMP/.

Huttenlocher, D., Felzenszwalb, P., and Rucklidge, W.

(1999). Digipaper: A versatile color document im-

age representation. Proc. IEEE Int. Conf. on Image

Processing, pages 219–223.

Joint Video Team (JVT), ISO/IEC MPEG & ITU-T VCEG,

I. J. . I.-T. S. Q. (2005). Draft of Version 4

of H.264/AVC (ITU-T Recommendation H.264 and

ISO/IEC 14496-10 (MPEG-4 part 10) Advanced

Video Coding).

Rodrigues, N. M. M., da Silva, E. A. B., de Carvalho, M. B.,

de Faria, S. M. M., and Silva, V. M. M. On dictionary

adaptation for recurrent pattern image coding. Ac-

cepted for publication in IEEE Transactions on Image

Processing.

Rodrigues, N. M. M., da Silva, E. A. B., de Carvalho, M. B.,

de Faria, S. M. M., and Silva, V. M. M. (2005). Uni-

versal image coding using multiscale recurrent pat-

terns and prediction. IEEE International Conference

on Image Processing.

A COMPOUND IMAGE ENCODER BASED ON THE MULTISCALE RECURRENT PATTERN ALGORITHM

167
