SUBJECTIVE VERIFICATION OF PERCEPTUAL METRICS FOR

MAGE WATERMARKING FIDELITY

Franco Del Colle and Juan Carlos G´omez

Laboratory for System Dynamics and Signal Processing, FCEIA, Universidad Nacional de Rosario, Argentina

CIFASIS, CONICET

Keywords:

Image Digital Watermarking, Discrete Wavelet Transform, Perceptual Distortion Metrics.

Abstract:

In this paper, the performance of several state-of-the-art watermark perceptual transparency metrics is evalu-

ated through subjective assessment. Simulation results show that a metric based on S-CIELAB distortion maps

proved to be better correlated to the subjective tests than other objective metrics available in the literature. The

paper focus on Image Adaptive Watermarking methods in the Discrete Wavelet Transform Domain since they

yield better results regarding robustness and transparency than other watermarking schemes.

1 INTRODUCTION

Digital Watermarking has become the most efﬁcient

and widely used technique addressing the issue of

digital data protection. The idea is to imperceptibly

embed information (the watermark) into the original

data in such a way that always remains present and de-

tectable. A set of requirements should be met by any

watermarking technique (Barni and Bartolini, 2004).

The main requirements are perceptual transparency,

payload of the watermark and robustness. Percep-

tual transparency refers to the property of the water-

mark of been imperceptible in the sense that humans

can not distinguish the watermarked images from the

original ones by simple inspection. Payload of the

watermark refers to the amount of information stored

in the watermark, which in general depends on the ap-

plication. Finally, robustness refers to the capacity of

the watermark to remain detectable after alterations

due to processing techniques or intentional attacks.

Good overviews on the state of the art of classi-

cal watermarking techniques can be found in the re-

cent textbooks (Barni and Bartolini, 2004) and (Cox

et al., 2002), and in (Langelaar et al., 2000), (Petitco-

las, 2000) and the references therein.

Among the different approaches that have been

proposed in the literature for the watermarking of still

images, the ones in the transform domain which are

adapted to the particular image have proved to deliver

better results regarding transparency and robustness.

In these methods the length, location and amplitude

of the watermark is adapted to the image character-

istics (Barni et al., 2001) and (Podilchuk and Zeng,

1998). This paper will focus on Image Adaptive

Discrete Wavelet Transform (IADWT) domain water-

marking techniques.

In this paper, several perceptual metrics for water-

mark image ﬁdelity evaluation are validated through

subjective tests. In particular, the perceptual metrics

introduced in (Le Callet and Barba, 2003), in (Del

Colle and G´omez, 2008) and in (Wang et al., 2004)

are considered. Simulation results show that the per-

ceptual metric in (Del Colle and G´omez, 2008) out-

perform the other metrics regarding correlation to the

subjective tests.

2 IADWT WATERMARKING

In this paper, the watermark embedding scheme in the

DWT domain in (Podilchuk and Zeng, 1998) is con-

sidered. Here, the watermark is modulated by the Just

Noticeable Differences (JND) thresholds, and the co-

efﬁcients are marked whenever they are greater than

the JND threshold, i.e.

(u,v) =



X(u,v) + J(u,v)w(ℓ)

X(u,v) > J(u,v)

X(u,v) othewise

(1)

where

X(u,v) and

(u,v) are the DWT coefﬁ-

cients of the original image and the watermarked im-

age respectively, and J(u, v) is the JND matrix at the

u, v frequency in the DWT domain. In this scheme,

397

Del Colle F. and Carlos Gómez J. (2008).

SUBJECTIVE VERIFICATION OF PERCEPTUAL METRICS FOR IMAGE WATERMARKING FIDELITY.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 397-400

DOI: 10.5220/0001940903970400

 SciTePress

the watermark sequence w(ℓ) is generated from a

zero mean, unit variance, normally distributed ran-

dom sequence. In this way, the watermark sequence

weighted by the JND thresholds has lower power

than the maximum power that can be inserted with-

out causing noticeable distortions in the image.

The JND thresholds are computed based on a per-

ceptual model of the Human Visual System (HVS). A

widely used perceptual model is the one introduced

in (Watson et al., 1997), which takes into account

frequency sensitivity, local luminance and contrast

masking effects to determine an image-dependent

quantization matrix, which provides the maximum

possible quantization error in the DWT coefﬁcients

which is not perceptible by the HVS.

The following modiﬁcation to the IADWT inser-

tion scheme in (1) can be introduced

(u,v) =



X(u,v)+ J(u,v)w(ℓ)

X(u,v) > J(u, v) > T

X(u,v) othewise

(2)

This modiﬁed insertion scheme will be hereafter

denoted as IADWT

. The rationale for the con-

straint J(u, v) > T is that when the JND thresholds

are too small, the magnitude of the marking term

in (2) becomes negligible. The introduction of the

lower bound T has then the advantage of reducing

the watermark length, improving in this way the ﬁ-

delity. Through simulation trials a value of T equals

12 provedto be the most suitable for all tested images.

3 FIDELITY ASSESSMENT

In the evaluation of image watermarking methods it

is of interest to judge the ﬁdelity of the watermarked

image. Basically, the ﬁdelity is a measure of the sim-

ilarity between the images before and after the water-

mark insertion. The natural way to assess ﬁdelity is to

run a subjectivetest where observers are asked to rank

the distortion of the images in a given scale. This type

of evaluation involves large number of individuals in

order for the results to be statistically signiﬁcant and

demands considerable time.

As an alternative to this, an objective assessment

based on a metric that quantiﬁes the watermarked im-

age ﬁdelity can be performed since it is less time con-

suming and does not require the involvement of hu-

man beings. However this objective assessment is

usually validated with a subjective test. Several met-

rics have been proposed in the literature to quantify

image quality, see for instance (Winkler, 2005) and

the reference therein. The most successful ones are

those that take into account the perceptual character-

istics of the HVS. These techniques could eventually

be used to quantify watermark ﬁdelity.

3.1 Subjective Assessment

As pointed out before the straightforward way to as-

sess the ﬁdelity of watermarked images is to run a

subjective test. There are standardized techniques

to perform subjective tests for general image qual-

ity assessment. For instance the Recommendation

ITU-R BT.500-11 (ITU, 2002) speciﬁes a methodol-

ogy for the subjective assessment of still image qual-

ity. On the other hand no standards are available

for subjective assessment of watermarked image qual-

ity. Since watermarked images can be considered

as the result of some processing operations (the wa-

termark embedding algorithms) applied to the origi-

nal image, these general subjective quality assessment

techniques could be applied to watermarked images.

In this paper, the Double Stimulus Impairment Scale

(DSIS) protocol, described in (ITU, 2002), is used.

This protocol has also been used by Marini and coau-

thors in (Marini et al., 2007) in the same context.

The experiment was carried out in a room de-

signed according to the recommendation ITU-R

BT.500-11 (ITU, 2002). Fourteen observers were en-

rolled to do the test and ﬁfteen different natural im-

ages were watermarked using the two IADWT algo-

rithms described in section 2. This resulted in 20 min

sessions where observers were asked to rate 30 im-

ages at an observation distance of six times the dis-

play size of the images. The original and the wa-

termarked images were displayed side by side on the

monitor and the observers were asked to rate the qual-

ity of the marked image compared to that of the orig-

inal on a scale of ﬁve categories, namely 5=Imper-

ceptible, 4=Perceptible but not annoying, 3=Slightly

annoying, 2=Annoying, and 1=Very annoying. The

results of these experiments are included in section 4.

3.2 Objective Assessment

To avoid the dependence on human judgement, the

objective assessment of watermarked image ﬁdelity

using a metric that takes into account the character-

istics of the HVS is desirable. Several perceptual

metrics have been proposed to quantify image qual-

ity. The S-CIELAB based metric introduced by the

present authors in (Del Colle and G´omez, 2008) will

be brieﬂy described and compared to the Komparator

metric introduced in (Le Callet and Barba, 2003) and

the SSIM metric introduced in (Wang et al., 2004).

All of them take into account the different sensitivi-

ties of the human eye for color discrimination, con-

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

398

trast masking and texture masking.

he S-CIELAB (Zhang, 1996) metric is an ex-

tension of the CIELAB metric (CIE, 1971) which

incorporates the different spatial sensitivities of the

three opponent color channels by adding a spatial pre-

processing step before the standard CIELAB ∆E cal-

culation. As a result a S-CIELAB ∆E

distortion

map, indicating where the visible distortions are in the

image and how large this distortions are, is obtained.

Due to the spatial distribution of the S-CIELAB

∆E

errors in the distortion maps it is difﬁcult to

make a comparison with other metrics. To provide

a unique parameter quantifying the ﬁdelity, a pooling

of the S-CIELAB ∆E

errors is proposed by deﬁning

the following ﬁdelity factor:

F ,



1−

∑

i=1

∑

j=1

(S∆E

(i, j)Mask(i, j))

∑

i=1

∑

j=1

√

(i, j)



×1

(3)

where S∆E

is a matrix with the values of the S-

CIELAB ∆E

errors for each pixel, i.e. the image

distortion map, Mask is a mask with ones in the posi-

tions where the S-CIELAB ∆E

errors are above the

threshold and zeros otherwise, X

, X

and X

are the

image components in the Lab color space. Values of

F close to 100 % indicates that non perceptible dis-

tortion is present in the watermarked image.

The performance of the above described percep-

tual metrics will be compared in section 4 with a pool-

ing of the standard Root Mean Square (RMS) error,

namely, the RMS Fit (RMS

FIT

) deﬁned as:

RMS

FIT

1−

∑

i=1

∑

j=1

√

∆X

(i, j)

+∆X

(i, j)

+∆X

(i, j)

∑

i=1

∑

j=1

√

(i, j)

×1

(4)

where the subindexes R, G and B denote the corre-

sponding image components in the RGB color space.

4 RESULTS

The metrics described in subsection 3.2 are used in

this section to evaluate the ﬁdelity of the IADWT

watermarking described in section 2. A set of ﬁf-

teen (256×256) natural color images was used. The

complete image dataset can be downloaded from:

http://www.fceia.unr.edu.ar/lsd/mrg/watermark/.

Results from two separate tests are presented in

this section. The purpose of Test 1 is to compare the

four ﬁdelity metrics, namely, the standard RMS

FIT

and the perceptual metrics, SSIM, Komparator and

the one deﬁned in eq. (3). On the other hand, Test 2 is

designed to compare the ﬁdelity of the two IADWT

insertion schemes described in section 2 using the

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Assessment

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Images

Assessment

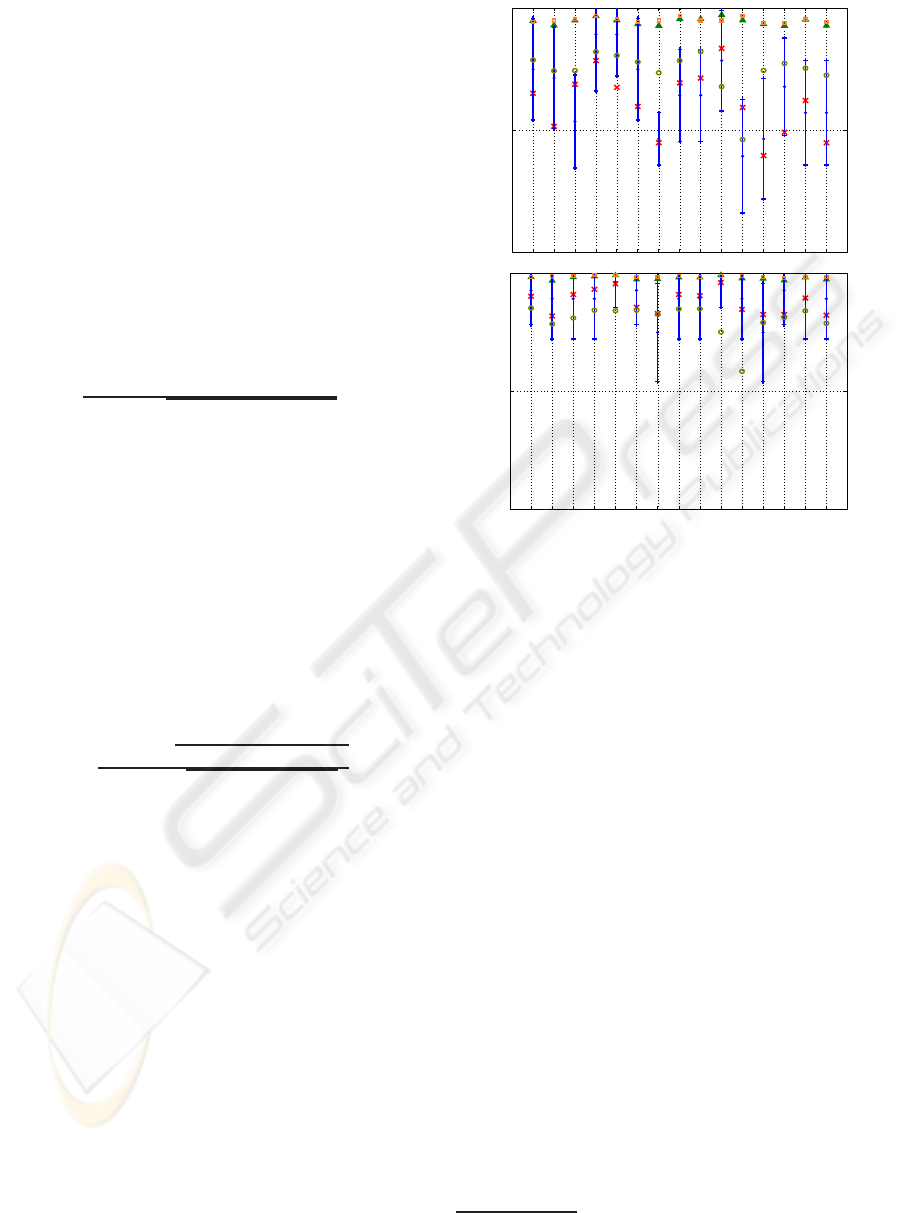

Figure 1: Comparison of Objective and Subjective Assess-

ent for methods IADWT (top) and IADWT

(bottom).

CI: Blue solid line, RMS

FIT

: green triangles, SSIM: orange

squares, Komparator: brown circles, F : red crosses.

S-CIELAB based metric, which is the one that best

matches the subjective tests.

Test 1 - Fidelity Metrics Comparison. In order

to illustrate which metric provides the best objective

assessment of image quality for both watermarking

methods, the four metrics are computed and com-

pared to the mean opinion score

(MOS) for the ﬁf-

teen images. The corresponding 97.5 % conﬁdence

intervals (CI) were also calculated to specify inter-

vals of values with the highest likelihood of contain-

ing the true value of the general MOS. These inter-

vals, centered in the MOS, are shown in blue solid line

in Fig. 1; the non perceptual RMS

FIT

is denoted with

green triangles, the SSIM values with orange squares,

the Komparator values with brown circles, while the

Fidelity Factor F with red crosses. The values in

Fig. 1 are normalized in the range [1, 5].

From Fig. 1 it is clear that the RMS

FIT

does not

give a correct assessment of ﬁdelity as the values fail

to fall in the conﬁdence intervals for twelve out of

thirty watermarked images. The number of points that

fall outside the conﬁdence intervals and the average

distance (d) of each metric to the MOS were calcu-

he Mean Opinion Score for each image is the average

of the scores assigned by the observers.

SUBJECTIVE VERIFICATION OF PERCEPTUAL METRICS FOR IMAGE WATERMARKING FIDELITY

399

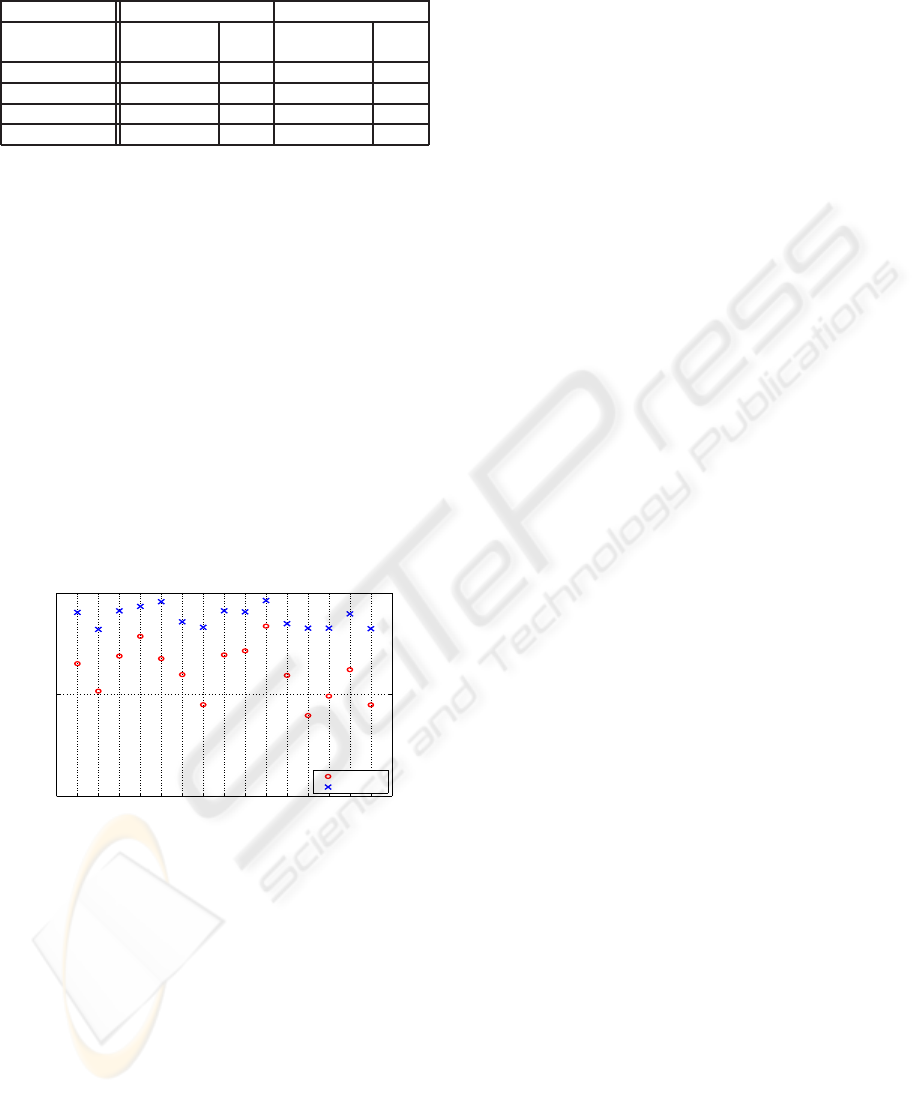

Table 1: Performance of the metrics.

IADWT IADWT

Points d Points d

outside CI outside CI

RMS

FIT

10 0.59 2 0.18

SSIM 9 0.29 2 0.12

Komparator 3 0.26 3 0.20

F 1 0.23 0 0.08

lated for both Watermarking algorithms and the cor-

responding values are shown in Table 1. From Fig. 1

and Table 1, it is clear that the metric F is the one that

best ﬁts the subjective results, although the Kompara-

tor metric gives also acceptable results.

Test 2 - Watermarking Schemes Comparison. The

ﬁdelity factor, F , is used to compare the performance

of the IADWT and IADWT

insertion schemes. In

Fig. 2, the values of F for the IADWT and IADWT

insertion schemes are represented by red circles and

blue crosses, respectively.

As it can be observed, the IADWT

method out-

performs the IADWT one regarding ﬁdelity. This

holds even for images with large uniform color re-

gions, where the image adaptive methods are sup-

posed to work poorly (Podilchuk and Zeng, 1998) (re-

sults are not shown here due to space limitation).

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Images

Assessment

IADWT

Figure 2: Objective Assessment based on F for methods

IADWT (red circles) and IADWT

(blue crosses).

5 CONCLUDING REMARKS

Several image perceptual metrics have been tested in

this paper for the purpose of evaluating the trans-

parency of image watermarking insertion schemes.

In particular IADWT watermark insertion algorithms

were tested. The evaluation has been carried out

by performing subjective tests using the protocol de-

scribed in (ITU, 2002) and comparing the MOS to

the result of each metric. Simulation results show

that the image ﬁdelity factor based on the S-CIELAB

∆E

perceptual distortion maps has a better correla-

tion with the subjective tests for the purposes of quan-

tifying still image watermarking ﬁdelity. In addition,

a comparison of the ﬁdelity of the two IADWT wa-

termarking schemes has been done showing that the

IADWT

outperforms the method in (Podilchuk and

Zeng, 1998) regarding image ﬁdelity.

REFERENCES

Barni, M. and Bartolini, F. (2004). Watermarking Systems

Engineering - Enabling Digital Assets and Other Ap-

plications. Marcel Dekker, Inc., New York.

Barni, M., Bartolini, F., and Piva, A. (2001). Im-

proved wavelet-based watermarking through pixel-

wise masking. IEEE Transactions on Image Process-

ing, 10(5):783–791.

CIE (1971). Recommendations on uniform color spaces,

color difference equations, psychometrics color terms.

Technical Report CIE 15 (E.-1.3.1), Vienna, Austria.

Cox, I., Miller, M., and J.Bloom (2002). Digital Water-

marking. Morgan Kaufmann, San Francisco.

Del Colle, F. and G´omez, J. C. (2008). DWT-based digital

watermarking ﬁdelity & robustness evaluation. Jour-

nal of Computer Science & Technology, 8(1):15–20.

ITU (2002). Recommendation ITU-R BT.500-11: Method-

ology for the subjective assessment of the quality of

television pictures. Technical report, International

Telecommunication Union.

Langelaar, G., Setyawan, I., and R.Lagendijk (2000). Wa-

termarking digital image and video data. IEEE Signal

Processing Magazine, 17(5):20–46.

Le Callet, P. and Barba, D. (2003). A robust quality metric

for color image quality assessment. In Proceedings of

the IEEE International Conference on Image Process-

ing, volume 1, pages 437–440.

Marini, E., Autrusseau, F., Le Callet, P., and Campisi, P.

(2007). Evaluation of standard watermarking tech-

niques. In Proc. of SPIE-IS& Electronic Imaging, vol-

ume 6505, pages 1–10, San Jose, CA, USA.

Petitcolas, F. (2000). Watermarking schemes evaluation.

IEEE Signal Processing Magazine, 17(5):58–64.

Podilchuk, C. and Zeng, W. (1998). Image-adaptive water-

marking using visual models. IEEE Journal on Se-

lected Areas in Communications, 16(4):525–539.

Wang, Z., Bovik, A., Sheikh, H., and Simoncelli, P. (2004).

Image quality assessment: from error visibility to

structural similarity. IEEE Transactions on Image

Processing, 13(4):600–612.

Watson, A., Yang, G., Solomon, J., and Villasenor, J.

(1997). Visibility of wavelet quantization noise. IEEE

Transactions on Image Processing,, 6(8):1164–1175.

Winkler, S. (2005). Digital Video Quality Vision Models

and Metrics. John Wiley & Sons Ltd, Chichester, UK.

Zhang, Z. (1996). A spatial extension to CIELAB for digi-

tal color image reproduction. Society for Information

Display Symposium Technical Digest, 27:731–734.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

400
