AUTHENTICATION EMPLOYING NEIGHBOR TABLES IN

MOBILE AD HOC NETWORKS

Dorsaf Azzabi, Kunihito Tanaka, Ushio Yamamoto and Yoshikuni Onozato

Graduate School of Engineering, Gunma University 1-5-1 Tenjin-cho, Kiryu, Gunma, 376-8515, Japan

Keywords: MANET, transmission range, mobility, neighbor authentication.

Abstract: In this paper we investigate the authentication mechanism in mobile ad hoc networks (MANET).

Developing a trustworthy authentication mechanism in a dynamic and volatile ad hoc mobile setting is a

complex task. The goal of this paper is to propose an authentication mechanism to validate the existence of

neighborhood in MANET. We focus on common adjacent nodes which can authenticate and trust a mobile

node. Simulation results show the existence of common adjacent nodes that are able to establish trust and

obtain the effective range of neighbor authentication in terms of transmission range and node density.

1 INTRODUCTION

Ad-hoc networks are based on naive “trust-your-

neighbor” relationships. Such relationships

originate, develop and expire on the fly and usually

have short life spans. As the overall environment in

such a network is cooperative by default, these trust

relationships are extremely susceptible to attacks.

For a number of reasons, including better service,

selfishness, monetary benefits or malicious intent,

some nodes can easily mould these relationships to

extract desired goals. Also, the absence of fixed trust

infrastructure, limited resources, ephemeral

connectivity and availability, shared wireless

medium and physical vulnerability, make trust

establishment virtually impossible. To overcome

these problems, trust has been established in ad-hoc

networks using a number of assumptions including

pre-configuration of nodes with secret keys, or

presence of an omnipresent central trust authority

Authentication mechanisms in mobile ad hoc

networks (MANET) are very important since the

role of MANET is to get information through nodes

by ad hoc mode in the network field. In MANET the

communication among nodes to relay information is

exposed to various security attacks. There have been

many works for authentication. However

authentication for MANET especially for moving

nodes is usually left to future research. L. Lazos et

al. (Lazos, 2005) describe typical security threats

such as the wormhole attack and the Sybil attack.

They propose the SeRLoc for the secure localization

in the presence of these threats. They show, based on

their performance evaluation, that it is robust against

various sources of error. But they do not consider

mobile nodes.

LITEWORP (Khalil, 2005) allows detection of

the wormhole by isolating the malicious nodes. The

detection is based on a local monitoring using

neighbor lists. A node will not receive a packet from

a node that is not a neighbor nor forward to a node

which is not a neighbor. It is not assessed whether

the LITEWORP is applicable to the mobile

situations. Azzabi and Uchihara et al. (Azzabi, 2007)

proposed their neighbor authentication mechanism

for neighboring nodes that can cope with nodes

mobility and hostile environments.

Importance of secure neighbor discovery in

wireless networks is explained by Poturalski et al.

(Poturalski, 2008). Time-based protocols and time-

and location-based protocols to achieve secure

neighborhood discovery are proposed and proved in

a formal model. Their protocols are applicable even

in low-density networks.

In this paper we focus on the neighbor

authentication mechanism (Azzabi, 2007) utilizing

neighbor tables which might be practical in ad hoc

mobile environments, since developing a

trustworthy authentication mechanism in a dynamic

and volatile ad hoc mobile setting is a complex task.

We will demonstrate the proposed neighbor

authentication mechanism in this paper operate in

such hostile environment. The goal of this paper is

to extend effective range of the neighbor

Azzabi D., Tanaka K., Yamamoto U. and Onozato Y. (2008).

AUTHENTICATION EMPLOYING NEIGHBOR TABLES IN MOBILE AD HOC NETWORKS.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 47-52

DOI: 10.5220/0002027300470052

 SciTePress

authentication mechanism in MANET. We

investigate how to increase common adjacent nodes

which can authenticate and trust a mobile node.

Simulation results show the existence of common

adjacent nodes that are able to establish trust and

obtain the effective range of neighbor authentication

in terms of transmission range and node density.

2 NEIGHBOR

AUTHENTICATION

MECHANISM

2.1 Network Model

We assume a MANET shown in Fig.1 where mobile

nodes are randomly allocated and move according to

the random waypoint model (Bettstetter, 2004)

where the length of each leg is limited within a

mobility range M. Transmission range of each node

is fixed as r. Packets are transmitted through nodes

in an ad hoc mode. All packets are gathered at the

Base Station (BS). The network topology changes

dynamically since the nodes are mobile.

All mobile nodes NN in the MANET have two

kinds of their neighborhood tables: Physical

existence table (P-table) and Authentication table

(A-table). P-table lists all nodes within the

transmission range of the node. A-table lists all

authenticated nodes within the transmission range of

the node. Furthermore a mobile node constructs

Enlarged authentication table (E-table) based on the

A-table. E-table shows all authenticated nodes of the

node and its authenticated nodes within the

transmission range of the node. Therefore E-table is

constructed by combining A-table of the node and

the ones of the authenticated nodes. When a node

moves, the neighborhood tables are updated. A

received packet is authenticated based on the node

which has sent it. A node does not receive a packet

from a node that is un-authenticated nor forward to a

node which is not a neighbor (Khalil, 2005). Any

node in the neighborhood tables has to be

authenticated in order to keep a secure

communication. That is why, for a malicious node to

attack the MANET, its only opportunity is to enter

in the neighborhood table.

Nodes in a MANET are classified as the

following three nodes: authenticated nodes,

unapproved nodes and isolated nodes. Authenticated

nodes have been recognized in the network by their

neighborhood relationships. Unapproved nodes are

not approved by the neighbor authentication

mechanism. Isolated nodes have not been in

communication with other nodes.

We assume that all nodes initially distributed are

not malicious nodes. We investigate authentication

mechanism for new comers after initial settings so

that we can keep secure communications for mobile

nodes in hostile environments.

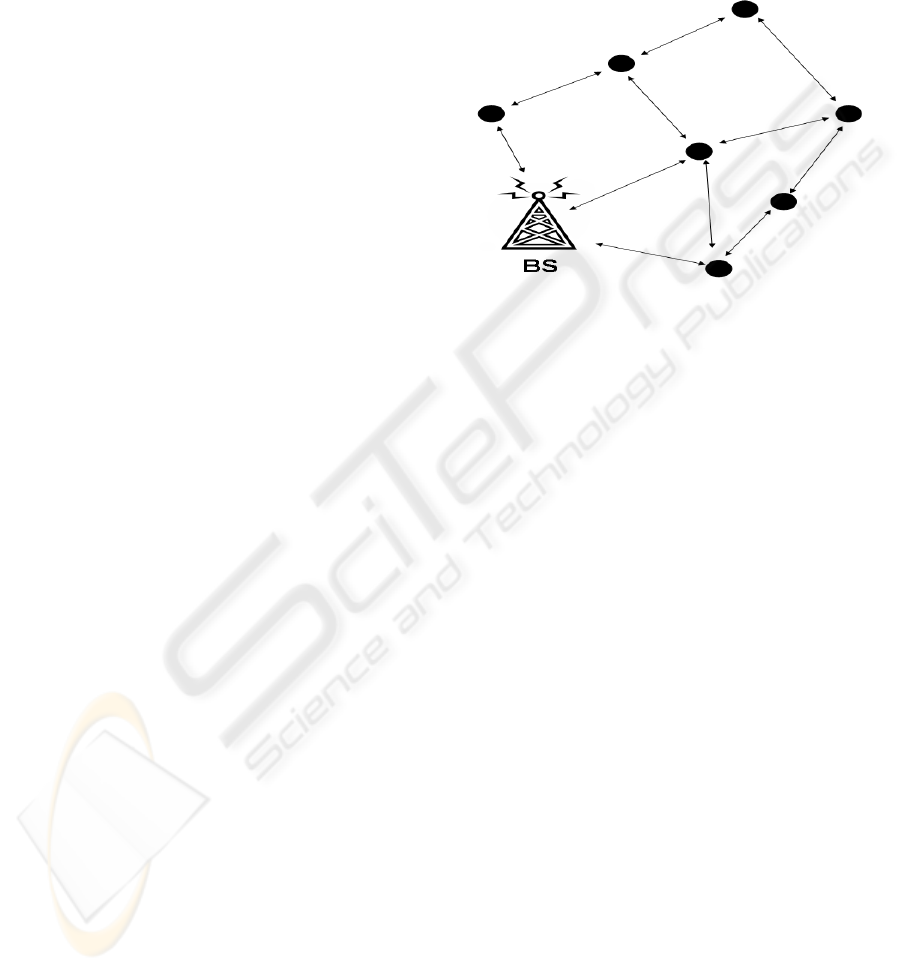

Figure 1: A MANET where packets are transmitted

through nodes in an ad hoc mode. All packets are gathered

at the BS.

2.2 Neighbor Authentication

Mechanism for MANET

In order to authenticate a node, it is necessary to

check the existence of common adjacent nodes and

examine all nodes within its transmission range.

This authentication process is executed employing

two neighborhood tables; P- and A-tables, and

enlarged authentication table E-table. Theses tables

are initially constructed when all nodes are allocated

at initial position. In this process, P-table is

constructed at first by exchanging beacon including

the node ID. Then, each node copies its own P-table

to A-table, because all nodes are initially reliable by

our assumption. Next, the node asks all nodes in its

A-table to reply its A-table. Combining all received

A-tables, the node construct E-table.

When a node moves into the transmission range

of another node, three tables need to be updated.

Especially, updating A-table needs the existence of

common adjacent nodes. Common adjacent nodes

only can authenticate newly detected node.

The authentication mechanism is explained in

Fig.2. Assume the two nodes n

and n

where n

moving into the transmission range of n

as shown in

Fig.2. We explain how n

constructs three tables: P-,

A- and E-tables. Both n

and the neighboring nodes

of n

always monitor the way n

behaves. They may

only give the authenticity of n

. When n

moves,

there are two common adjacent nodes of n

and n

WINSYS 2008 - International Conference on Wireless Information Networks and Systems

i.e. n

and n

as shown in Fig.2. They mediate

between n

and n

. n

searches E-table and finds that

and n

are common adjacent nodes, namely, they

authenticates both n

and n

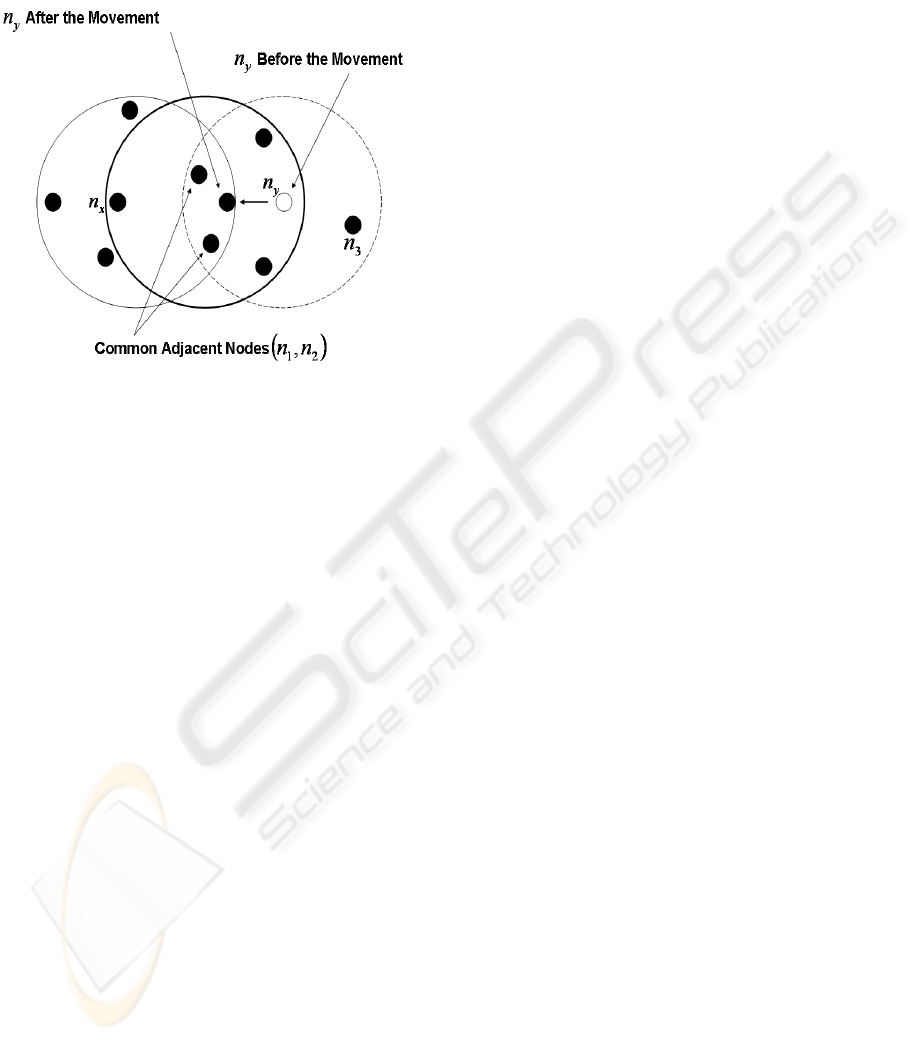

Figure 2: Common adjacent nodes after the movement of

The authentication algorithm is given as follows:

Step1) n

(moving node) broadcasts a randomly

generated nonce value (Lazos, 2005).

Step2) n

receiving the broadcast from n

responds

with the ID of n

and the received nonce value.

Step3) n

realizes that it is entering the transmission

region of n

. And n

searches for the common

adjacent nodes from E-table. If the common

adjacent node exists, n

asks a confirmation of

authenticating n

to the common adjacent nodes.

In this case, n

also asks a confirmation of

authenticating n

to the common adjacent nodes.

When the common adjacent node receives

confirmation packets from both n

and n

, it

recognizes that they are justified nodes, then it

replies to them. After receiving this reply, n

appends n

to the A-table. If n

can’t receive such

reply, it does not add n

to the A-table.

Step4) n

asks all nodes in its A-Table to send back

their A-tables to ny.

Step5) After receiving all A-tables, n

construct E-

table by combining all A-tables so far received.

In order to extend effective range of the neighbor

authentication mechanism, in Step 4) in the above

algorithm, we enlarge asking range of n

neighbors of authenticated nodes, which we call

one-step neighbors. Furthermore we enlarge asking

range of n

to one by next neighbors, which we call

two-step neighbors. When authenticated nodes are

sparsely located, this extension of authentication

does not increase authenticated nodes so much.

However in rather dense node distributions, we will

show the effect of the extension in the next section.

We also introduce the following two control

messages to isolate the malicious nodes when we

detect attacks such as the wormhole: an accusation

message and a suspicion message (Azzabi, 2007).

The accusation message is sent to the BS when a

node finds a malicious node in the neighborhood list.

BS deletes the malicious node if BS receives a

number of accusation messages beyond the

threshold. The suspicion message is sent to the BS

when a node doubts the neighborhood relationship.

BS asks, in that case, all nodes to delete the

suspicious node from their neighborhood lists.

In order to detect the malicious node with the

collaborative detection in the above mechanism,

common adjacent nodes are necessary so that

authenticity of the node is verified. We take in

consideration the condition that nodes are not

isolated in mobile situations, where the proposed

authentication mechanism works and the trust is

placed.

2.3 Countermeasure Against Malicious

Nodes

In this paper we assume that all nodes initially

distributed do not include any malicious node so that

all neighbor tables are correct at the initial state. We

investigate authentication mechanism works sound

for updating in case when any malicious nodes

attack after initial settings we can keep secure

communications for mobile nodes in hostile

environments.

If one malicious node attacks by forging P-table,

or A-table, the above mechanism can detect illegal

updating of the tables. Even though unjustly

fabricated authentication node can be detected by

legitimate nodes. When two malicious nodes attack,

if we can separate the two compromised nodes, the

above mechanism can detect. However if the two

nodes are in proximity or collude with such as in a

wormhole link, we cannot detect them (Tanaka,

2008). This is left for future research.

We will describe more about these control

mechanisms in our future work. So far, the scope of

this paper is to verify via simulation the idea of

neighbor authentication, that is if a neighbor exists

or not, because it is a fundamental prerequisite, in

order to implement the before mentioned trust

control messages.

AUTHENTICATION EMPLOYING NEIGHBOR TABLES IN MOBILE AD HOC NETWORKS

3 SIMULATION SCENARIO AND

RESULTS

3.1 Simulation Scenario

We consider simulating, as mentioned above, the

authentication mechanism of adjacent nodes. The

proposed authentication mechanism needs

cooperation and coordination scenarios in ad hoc

mobile environments so that isolated nodes should

not be left so. We consider authenticated nodes as

the nodes that have been recognized in the network

by their neighborhood relationships. Isolated nodes

are the nodes that have not been in communication

with other nodes. Unapproved nodes are defined as

nodes which are not authenticated by any node

within its transmission range even though there are

nodes within its transmission range. The number of

isolated nodes and the number of unapproved nodes

are indeed important parameters to evaluate the

performance of the neighbor authentication

mechanism.

We randomly distributed NN nodes within

100x100 rectangular area where we set NN=100,

200, 300, 400, and 500, and the transmission range

r= 1, 2, 3, …, 9. We assume that each node moves

according to the random waypoint model (Bettstetter,

2004) within a mobility range M for each movement,

where M= 1, 2, 3, …, 9. We measure the number of

authenticated nodes, the number of isolated nodes,

and the number of unapproved nodes.

3.2 Simulation Results

The percentage of authenticated nodes among NN

nodes for various values of mobility range when r=9

is shown in Fig. 3. As NN increases, the numbers of

authenticated nodes increase. When mobility range

is much higher, the percentage of authenticated

nodes is very low. It is very understandable that if

the nodes are very mobile, the communication

environment is not stable unless the transmission

range is set proportionally to cope with the high

mobility rate. This is shown through the slice

authentication distribution improvement when r=9.

The percentage of isolated nodes for various

values of mobility range is shown in Fig. 4. As NN

increases, the numbers of isolated nodes decrease

when mobility range is much smaller. In Figs. 5 and

6, we notice that from a transmission range from 1 to

9 the number of isolated nodes tends to decrease for

various mobility ranges varying between 1 and 9.

The percentage of isolated nodes decreases as NN

increases. The bigger the number of nodes is and the

larger the transmission range is, the more common

adjacent nodes are kept in the network where a node

is not fixed in one position.

The numbers of unapproved nodes for various

values of mobility range are shown in Figs.7 and 8.

As r increases, the number of unapproved nodes

increases until the neighbor authentication

mechanism works. In Fig.7, as NN=100, the number

of unapproved nodes increases especially for a

higher mobility range (from 2 and above) because

the nodes can cover more transmission areas so that

chances of authentication occurs but failed. However

when the number of nodes is much higher as shown

in Fig. 8, where NN=500, the number of unapproved

nodes decreases for increasing transmission ranges.

This is because of the authentication mechanism the

number of unapproved nodes decreases. In Fig. 8, all

curves seem to have the similar tendency.

In Fig. 9, isolated, authenticated and unapproved

nodes for the cases of one-step neighbor and two-

step neighbor are depicted in the four sections where

LEFTUP shows position of nodes, RIGHTUP shows

one-step neighbor case, RIGHTDOWN shows two-

step neighbor case, and LEFTDOWN shows

augmented relations because of increased

authentication process where NN=500, r=10 and

M=9. There are 358 authenticated nodes. In the one-

step neighbor case, 101 authenticated nodes increase

because of enlarging to one-step neighbor. There are

still 41 unapproved nodes.

Our algorithm checks for and confirms the idea

that a node is authenticated by its neighbor. Our

graphs show two main parameters in this simulation

that influence the authentication process: node

mobility and transmission range. The higher the

transmission range is, the better the percentage of

authenticated nodes is. When node density increases,

and the transmission range increases, the trust

increases. The parameters in form of authentication

percentage and isolated nodes ratio indicate the

performance measures.

So far we have been simulating the first aspect of

our algorithm. Using the neighborhood table, if a

node has a neighbor, it is authenticated, if it has not,

it is not. We conclude that only neighboring nodes

can authenticate an existent node. We tested the

neighbor authentication method to determine under

which parameters it works (the region, the

transmission range etc.). We verified it for a

different range of nodes mobility and transmission

rage.

WINSYS 2008 - International Conference on Wireless Information Networks and Systems

4 CONCLUSIONS

We simulated an authentication mechanism for

establishing trust in MANET. Our aim is to

investigate and describe the fundamentals behind

nodes interaction while considering their mobility

range with different transmission ranges. As

common adjacent nodes increase, more nodes are

authenticated under the proposed mechanism.

Through our simulation study we show in which

cases the authentication is achievable so that we

could in a next level introduce the trust control

messages (accusation message and suspicion

message) in order to establish a trust relationship

among the neighboring nodes.

This level will be explored in our upcoming

paper. We will try to simulate the impact of these

messages on the behavior of the MANET. We also,

ought to mention that the interference problems

associated with the large number of nodes as well as

hidden terminal problems with enlarged

transmission ranges have to be reviewed in our

future study.

REFERENCES

Lazos, L., Poovendran, R., 2005. SeRLoc: Robust

localization for wireless sensor networks, ACM

Transactions on Sensor Networks, vol.1, no.1, pp.73-

100.

Khalil, I., Bagchi, S., Shroff, N.B., 2005. LITEWORP: A

lightweight countermeasure for the wormhole attack in

multi-hop wireless networks, In the International

Conference on Dependable Systems and Networks

(DSN), pp.612-621.

Azzabi, D., Uchihara, N., Tanaka, K., Onozato, Y., 2007.

Simulation of authentication mechanism in MANET,

In The Second Asia-Pacific Symposium on Queueing

Theory and Network Applications (QTNA), pp.289-

296.

Bettstetter, C., Hartenstein, H., Perez-costa, X., 2004.

Stochastic properties of the random waypoint mobility

model, Wireless Networks, vol.10, pp.555-567.

Poturalski, M., Papadimtratos, P., Hubaux, J.P., 2008.

Secure neighbor discovery in wireless networks:

Formal investigation of possibility, In ASIACCS’08,

pp.189-200.

Tanaka, K., Onozato, Y., 2008., Node management

method using authentication process with neighbor

table in ad hoc network, IPSJ SIG Technical Report,

2008-MBL-44, pp.237-244.

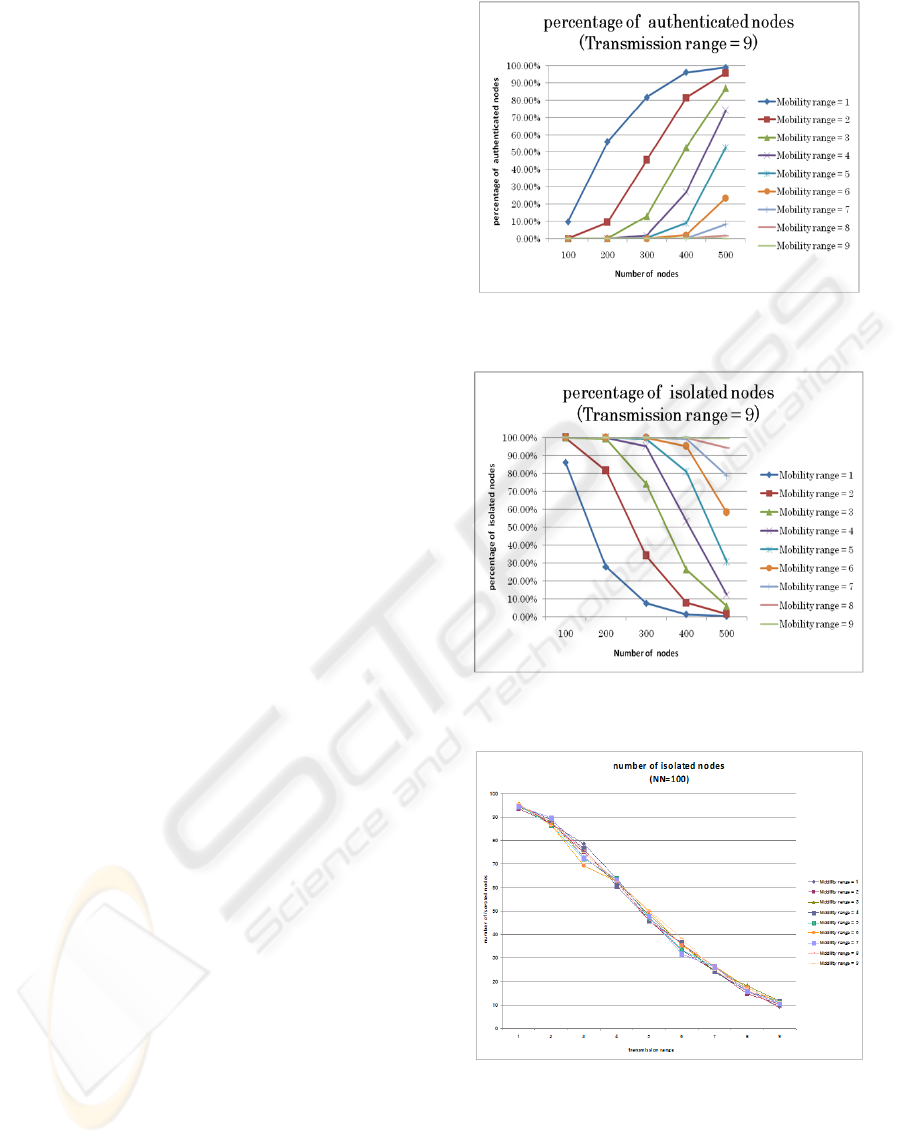

Figure 3: Percentage of authenticated nodes for various

values of mobility range when r=9.

Figure 4: Percentage of isolated nodes for various values

of mobility range when r=9.

Figure 5: Number of isolated nodes versus transmission

range for various values of mobility range with NN = 100.

AUTHENTICATION EMPLOYING NEIGHBOR TABLES IN MOBILE AD HOC NETWORKS

numberofis olated nodes

(NN= 500)

100

150

200

250

300

350

400

450

500

123456 789

transmiss ion ra ng e

numb erof is orated nodes

Mobilit y r a n g e = 1

Mobilit y r a n g e = 2

Mobilit y r a n g e = 3

Mobilit y r a n g e = 4

Mobilit y r a n g e = 5

Mobilit y r a n g e = 6

Mobilit y r a n g e = 7

Mobilit y r a n g e = 8

Mobilit y r a n g e = 9

Figure 6: Number of isolated nodes versus transmission

range for various values of mobility range with NN = 500.

Figure 7: Number of unapproved nodes versus

transmission range for various values of mobility range

with NN = 100.

numberofunapprovedno des

(NN=50 0)

100

150

200

250

300

350

400

450

500

123456 789

transmissionra n g e

numberof unapprovednodes

Mobilit y ra n ge = 1

Mobilit y ra n ge = 2

Mobilit y ra n ge = 3

Mobilit y ra n ge = 4

Mobilit y ra n ge = 5

Mobilit y ra n ge = 6

Mobilit y ra n ge = 7

Mobilit y ra n ge = 8

Mobilit y ra n ge = 9

Figure 8: Number of unapproved nodes versus

transmission range for various values of mobility range

with NN = 500.

Figure 9: Isolated, authenticated and unapproved nodes for

increasing authenticated nodes are depicted in the four

sections where LEFTUP shows position of nodes,

RIGHTUP shows one-step authentication process,

RIGHTDOWN shows two-step authentication process,

and LEFTDOWN shows augmented relations because of

increased authentication process(NN=500, r=10, M=9).

WINSYS 2008 - International Conference on Wireless Information Networks and Systems
