Improved Image Retrieval using Visual Sorting and

Semi-Automatic Semantic Categorization of Images

Kai Uwe Barthel, Sebastian Richter, Anuj Goyal and Andreas Follmann

FHTW Berlin, Treskowallee 8, 10313 Berlin, Germany

Abstract. The increasing use of digital images has led to the growing problem

of how to organize these images efficiently for search and retrieval. Interpreta-

tion of what we see in images is hard to characterize, and even more so to teach

a machine such that any automated organization can be possible. Due to this,

both keyword-based Internet image search systems and content-based image re-

trieval systems are not capable of searching images according to the human

high-level semantics of images. In this paper we propose a new image search

system using keyword annotations, low-level visual metadata and semantic in-

ter-image relationships. The semantic relationships are learned exclusively from

the human users’ interaction with the image search system. Our system can be

used to search huge (web-based) image sets more efficiently. However, the

most important advantage of the new system is that it can be used to generate

semi-automatically semantic relationships between the images.

1 Introduction

Over the last decade the amount of digital images has increased tremendously. In

order to make use of these images, efficient methods for archiving, organizing,

searching and retrieving had to be developed.

Text-based Internet image search systems from Google, Yahoo! or Microsoft

mostly use image file names or words from the context of the web page containing the

image as keywords. Usually these keyword-based image searches will generate very

large result sets, which typically are displayed on separate web pages containing ar-

rangements of about 20 images. The quality and effectiveness of these keyword-based

Internet image search systems is quite good if the goal is to find any images that cor-

respond to the keyword. However if the goal is to find images with particular attrib-

utes then the performance is rather poor, as the search systems neither know the inten-

tion of the searching user nor the semantic relationships of the images that can be

found on the Internet. This effect is amplified by homonyms, names similar to the

query keyword and misclassified images. When performing a keyword based Internet

image search, typically only a tiny fraction of the huge set of result images will be

inspected, making the search for a particular image very time consuming or even

impossible. A similar effect happens with image databases containing manually anno-

tated images. If images are searched using only one keyword then the result set might

be far too large to be inspected; on the other hand for a query with too many key-

words, only very few or no images at all might be found.

Barthel K., Richter S. and Goyal A. (2008).

Improved Image Retrieval using Visual Sorting and Semi-Automatic Semantic Categorization of Images.

In Metadata Mining for Image Understanding, pages 67-77

DOI: 10.5220/0002339400670077

 SciTePress

In this paper we propose an image search system using keyword annotations, low-

level visual metadata and semantic inter-image relationships. The semantic relation-

ships are learned exclusively from the human users’ interaction with the search sys-

tem. The proposed system can be used to search huge (web-based) image sets more

efficiently. Our system retrieves more images in an initial phase. We use CBIR tech-

niques not to search but to sort these images according to their visual similarity. Using

this visually sorted arrangement more images can be displayed simultaneously. Thus

the user can identify very quickly images, which are good candidates for the desired

search result. In the next step these images will serve as a visual filter for further

result images. The filtering will refine the search result and generate more images that

are similar to the desired query. Our proposed system dramatically cuts down the time

for image retrieval.

However, the most important advantage of the new system is that it can be used to

learn semi-automatically semantic relationships between images from the users inter-

action with the system. These relationships are language independent and can be used

to further improve the quality and effectiveness of the image search.

The rest of this paper is organized as follows: Section 1 reviews the principle and

current approaches of content-based image retrieval systems. Visual image sorting

using self-organizing maps is described. Section 2 presents the proposed strategy and

compares our scheme to other approaches. Section 3 describes implementation details

and evaluates the new approach. We conclude the paper in Section 4.

1.1 Content-based Image Retrieval

In order to avoid manual annotation and to automate the process of image retrieval,

content-based image retrieval (CBIR) techniques have been developed since the early

1990s. A good overview about the current state of the art of CBIR can be found in [2].

CBIR systems use automatically generated low-level metadata (features) to describe

the visual statistics of images (like color, texture, and shape) [1, 8].

Low-level CBIR-systems are very well suited to find images that share visual fea-

tures. These systems rely on the assumption that similar images do also have similar

features. This assumption may be correct in many cases, however the opposite case is

not necessarily true. Similar features could come from very different images that do

not share any semantic similarities (see figure 1, images a and b).

Despite intense research efforts, the results of CBIR systems have not reached the

performance of text based search engines. There are still several unsolved problems:

The search for particular images is difficult if no query image is available.

Some approaches do use manually drawn sketches. However, the visual features of

these sketched images can differ significantly from those of “real” images.

Recent approaches (SIFT) have used interest points describing significant local fea-

tures of an image [7]. Interest points have proven to be very effective in finding im-

ages containing identical objects although the lightning conditions, the scale and the

viewing positions can vary. However, even sophisticated CBIR systems using interest

points cannot determine similarities between images that do have similar semantic

content but do look different (see figure 1, images c and d).

The main problem of CBIR systems is the fact that there is an important (semantic)

gap between the “content” that can be described with low-level visual features and the

6868

description of image content that humans use with high-level semantic concepts. Up

until now algorithms cannot achieve high-level semantic understanding of images.

a b c d

Fig. 1. Problems of CBIR: Low-level CBIR would consider images a and b similar. Even

sophisticated CBIR systems cannot determine the semantic similarity between images c and d.

Similarities between different kinds of features are measured using different appropriate met-

rics. It is not clear how these different metrics should be weighted if several features are com-

bined for the search.

1.2 Image Sorting using Self-Organizing Maps

In general it is problematic to find useful orderings for larger image sets. Most image

management programs allow the sorting of images by size, date, or file format. Sort-

ing images by similarity usually is not possible. Although it is not sure if the problems

of current CBIR systems will be solved in the near future, the technique of automatic

low-level feature extraction can be used to sort image sets. In the high dimensional

feature vector space each image is represented by one vector. The locations of all

vectors represent an ordered arrangement of the images. Due to the high number of

dimensions, however, this order is unimaginable for human users.

Self-organizing maps (SOMs) are a data visualization technique, which reduce the

dimensions of data through the use of self-organizing neural networks [5]. SOMs

produce a map of usually one or two dimensions, which group similar data items

together. The basic self-organizing map can be visualized as a neural-network array.

The nodes of this array are trained and get specifically tuned to various input signal

patterns. The learning process of the network is competitive and unsupervised.

The learning or training of a SOM consists of the following procedure: Initially the

array of nodes is set up with random vector values. Next a sequence of training vec-

tors is matched against all nodes m

of the array. For each training vector x the win-

ning (best matching) node m

(in the sense of minimal distance) is determined.

argmin x

−

{

}

(1)

The vector of the winning node and its neighborhood are updated such, that

t + 1

()

(

)

(

)

−

(

)

[

]

(2)

where t are discrete time steps, h

is a neighborhood function that decays for increas-

ing values of t and for nodes with larger distance from m

. This means that the win-

ning node and its neighborhood are adapted to the training vector. After successive

training the nodes in the array become ordered as if some meaningful nonlinear coor-

dinate system for the different input features were being created over the network.

6969

SOMs have been used for CBIR [4]. Determining the closest neighbors in the SOM

retrieved similar images. This technique was combined with a relevance feedback

system. Deng et al. [3] proposed a SOM-based scheme to visualize and compare im-

age collections. In our proposed scheme we use a self-organizing map to automati-

cally sort images according to their visual similarity.

2 The Proposed Strategy

We propose a system that can be used to search extremely large Internet-based image

sets more efficiently. In order to overcome the drawbacks of keyword-based image

search systems and low-level feature-based CBIR systems our approach combines the

ideas of high and low-level image retrieval systems. The new system significantly

reduces the retrieval time and it can be used to learn (semantic) inter-image relation-

ships from the users’ interaction with the system.

Related Work

Previous approaches also proposed to use the combination of high-level semantic and

low-level statistical metadata for image retrieval. However most of these systems

were mainly focused on the automatic annotation of images.

Wenyin et al. introduced a scheme for semi-automatic image annotation [12]. They

used a relevance feedback system that automatically added annotations for positive

feedbacks.

Relevance Feedback (RF)

Systems have been proposed to optimize the image retrieval systems. Usually RF is

used to adapt the weights of the different features or to modify the search query. If the

relevance feedback is based only on few result images, very often the CBIR systems

tend to over-adapt to the particular features that were chosen for the feedback. An-

other problem is that the system does not know why the feedback was given. The

system does not know which feature (color, shape or other) were the reason for the

positive (or negative) feedback.

Pan et al. propose a graph-based automatic image captioning relying on the simi-

larity of low-level metadata [10]. This approach works nicely for a database contain-

ing sets with many similar images taken in the same conditions but it will definitely

have problems with different images from independent sources, as they can be found

on the Internet. Wang et al. suggest allowing the user to choose from either a semantic

or a visual query [13].

Lu et al. [6], and Zhou et al. [14] propose combining semantic keywords and low-

level features. By using relevance feedback techniques they assign weighted links

between the images and the keywords. However this scheme has the same problem as

low-level CBIR systems. The fact that several images have a strong link to the same

particular keyword does not mean that humans would consider these images similar.

This is particular true for homonyms and names. We avoid this problem by not link-

ing the images to the keywords but linking the images with each other.

Overview of the Proposed System

We will first give an overview of our proposed system. In the rest of the paper the

used techniques will be explained in detail. Our system consists of several steps.

7070

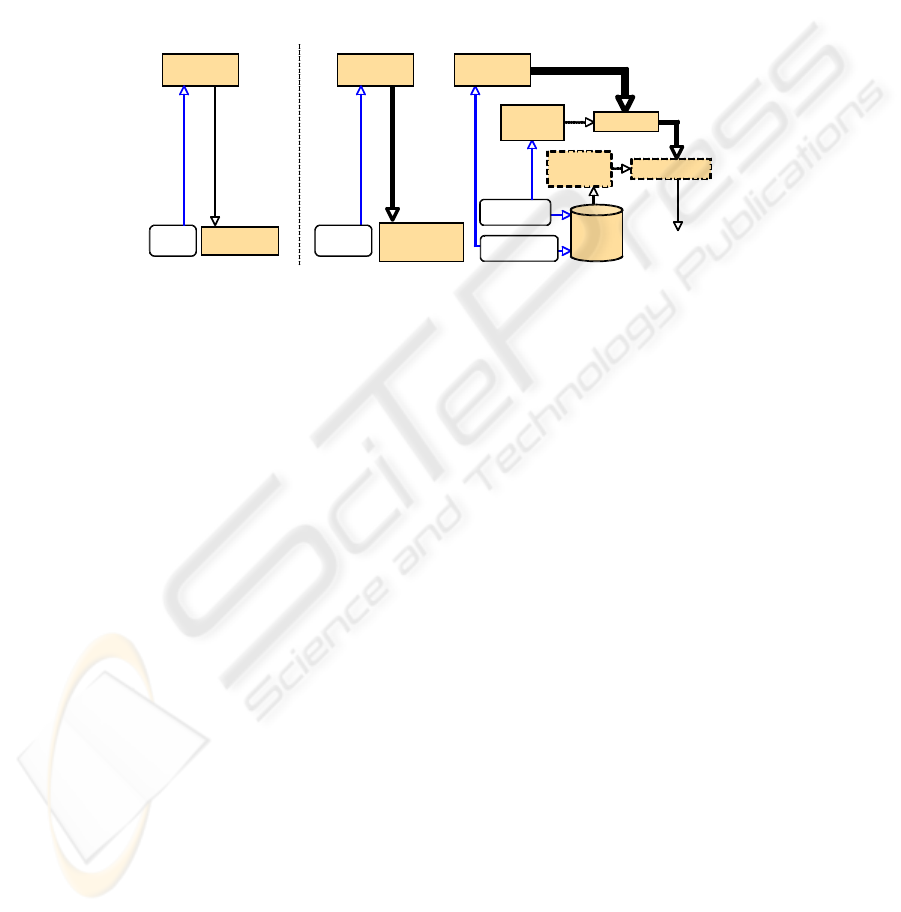

Figure 2 shows a comparison of conventional Internet-based image retrieval and our

proposed scheme. A conventional keyword-based Internet image search will produce

a huge set of result images. However only very few of these images will be viewed.

Our system retrieves more images in an initial phase. We use CBIR techniques not

to search but to sort these images according to their visual similarity by using a self-

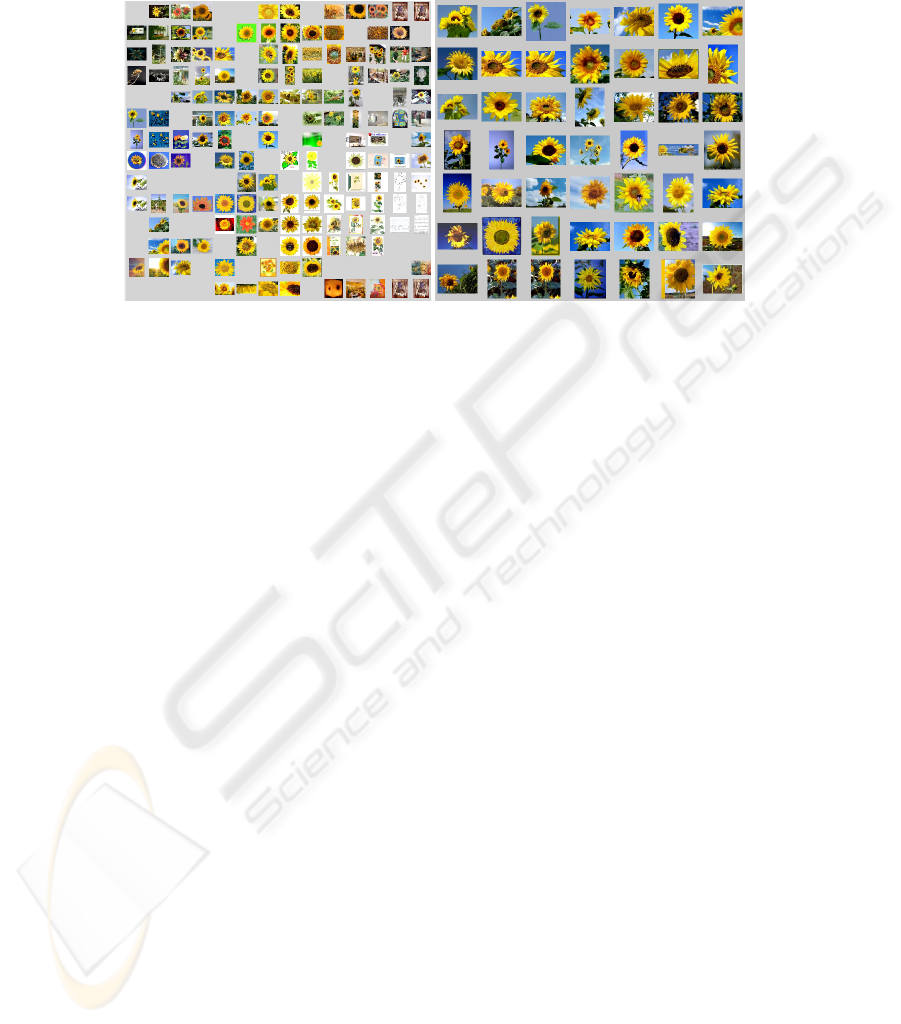

organizing map. Using this visually sorted arrangement more images can be displayed

simultaneously compared to an unsorted set. Up to several hundred images can be

inspected, which in most cases is sufficient to get a good representation of the entire

result set. Thus the user can identify quickly those images, which are good candidates

for his desired search result. These images will now be used to refine the result.

Internet

image search

Small

result set

Internet

image search

1: Keyword

query

Display of images

sorted by visual

similarity

Larger

result set

2a: Selection of

result candidates

Semantic filter

Huge

result set

Refined result set

Calculation of

visual filter

parameters

Database

Calculation of

semantic filter

parameters

2b: Query with

the same keyword

Display of

unsorted images

Keyword

query

Internet

image search

Visual filter

Fig. 2. Conventional Internet image search system (left) and the new proposed scheme (right).

User interaction is printed in italics (blue).

Again we use CBIR techniques to filter out those result images that do not share any

visual similarities with the candidate images. The filtering will generate more images

that are similar to the desired query. This approach helps consistently to reduce the

time required for the search for a particular image.

The most important advantage of the new system is that it can be used to learn se-

mantic relationships between images. In order to refine the result the user will make a

selection to mark candidate images. First of all the selection of these images can be

seen as an affirmation that the keyword and these images actually do match. Even

more important, however, is the relationship between the selected images. By making

the selection the user expresses the fact, that according to his needs or view these

images do share some common semantic meaning in some sense. Although the par-

ticular semantic information is unknown to the system, these relationships - when

collected over many users - can be used for several purposes that will be described in

the next section. Instead of learning the degree of confidence between an image and

associated keywords like previous approaches, our new scheme does learn the seman-

tic relationships between the images from the users’ interaction with the system.

3 Implementation

Visual Sorting

In order to generate visually sorted arrangements of the result images we examined

different low-level features and SOM types. It turned out that only features describing

color were able to generate sortings that people would consider visually pleasing and

7171

useful. In our prototype implementation we use feature vectors derived from the

MPEG-7 color-layout descriptor, which can be seen as a heavily compressed thumb-

nail of 8x8 pixels. We managed to improve the sorting quality by giving the chromi-

nance components a higher weight, by selecting only those DCT-transform coeffi-

cients with a strong variance and by omitting their quantization. Using these feature

vectors, that can be calculated efficiently, good visual sorting results can be achieved

even for very large image sets.

We investigated different SOM-types. In contrast to normal SOMs, the mapping

rules had to be modified to ensure that no node position was occupied by more than

one image, because otherwise these images would be overlapping when displayed. In

our prototype we use a square network with a number of nodes that is larger than the

number of images to be sorted. Using a larger SOM size will result in a visually more

pleasing sorting, however the display size for thumbnails will become smaller. We

heuristically determined a 30% enlargement of the SOM as a compromise between a

good visual sorting quality and a not too small thumbnail size. Best sorting results

were achieved with a torus-shaped SOM by connecting the top nodes with the bottom

nodes and the left nodes to the right nodes. To achieve a fast execution we used a

Batch-SOM with incremental filters. Typically image sets can be sorted in 20 itera-

tions. For 200 images the sorting time is less than 50 ms (Pentium 4, 3 GHz).

Visualization / Selection of Desired Images

Due to the sorting all images are arranged in such a way that visually similar images

will be positioned close to each other. The sorted display makes it much easier to find

a particular image within larger image sets.

Figure 3a shows the 20 first result images obtained from Google searching for “Eiffel

Tower” images. The first 150 result images are shown on the right in figure 3b. In this

unsorted display it is difficult to find particular images. In comparison, the visually

sorted map is shown below on the left (figure 3c).

In a next step the user has to select images that correspond to the desired search re-

sult. In order to be able to quickly find desired images the sorted map can be zoomed

and panned. Although many more images are displayed compared to conventional

image search systems, possible candidate images can more easily be found and

marked due to the visually sorted display.

Filtering of Keyword-based Image Retrieval Results

When all candidate images have been selected, a new image search is initiated using

the same query keyword. At this time more images will be retrieved from the image

search system. The marked candidate images will serve to filter-out unwanted images.

Again we tested different features for their ability to find images that are visually

similar to the candidate images. As mentioned before, even sophisticated CBIR-

schemes like SIFT will fail if images are similar but look different.

We found that a feature vector based on the multimodal neighborhood signature [9]

is better suited for the visual filtering process. For each image we determine the 16

most representative pairs of neighboring colors. These feature vectors are matched

using the earth movers distance (EMD) [11].

7272

a b

c d

Fig. 3. Google image search using “Eiffel Tower” as keyword. a) 20 first result images as

displayed in a web browser, b) the 150 first result images from the same query unsorted (in the

order as they were delivered by Google), c) same images like b but sorted by similarity. From

this set six candidate images (that were taken at night) were selected, d) the 49 most similar

images filtered from a set of 1000 result images.

Let the index of the candidate images be denoted by k. For each new result image

with index i the distances between its feature vector x

and all feature vectors of the

candidate images xc

have to be determined. The minimum of these distances

min

EMD xc

, x

(

)

{

}

(3)

indicates how similar a new result image is compared with the set of candidate im-

ages. After all the distances of the newly retrieved images are determined, the set of

the N best matching images will be displayed. Evidently the filtered result will be-

come better if more images are retrieved and filtered. However in our prototype im-

plementation we found that retrieving a number of images, which was five to ten

times higher than the number of desired images gave very good results in most cases.

An example result generated by our prototype implementation is shown in figure 3. A

Google image search was initiated using the keyword “Eiffel Tower”. From the first

150 visually sorted images (c) six candidate images that showed the Eiffel Tower at

night were selected. These images were used to filter a set of 1000 images. The result

7373

of the 49 most similar images is shown in (d). Figure 4 shows another example where

five candidate images (sunflowers with blue backgrounds) were used to filter a total

of 1000 sunflower images.

Fig. 4. Left: 150 “sunflower” images (visually sorted), five images with sunflowers on blue

backgrounds were chosen as candidate images to filter 1000 “sunflower” result images. The 49

best matches are shown on the right.

Semi-Automatic Generation of Semantic Image Relationships

An Internet based keyword image query will retrieve images that somehow are related

to that keyword. Many of these images might be good results; however there will also

be images from homonyms and proper names. In addition wrongly classified images

that semantically do not match the keyword will be retrieved as well.

Previous systems used relevance feedback techniques to learn the degree of confi-

dence between an image and associated keywords. However, this approach has sev-

eral disadvantages: First, users do not like to give feedback, therefore not all result

images will be marked as positive or negative examples. Secondly, it is not clear for

the search system why a particular feedback was given. Finally, as mentioned before,

homonyms cannot be distinguished in this way.

With our proposed system these problems do not occur. If the number of displayed

result images is large enough – which is possible due to the sorted display – then the

chance that at least some images will match the desired query will be quite high. In

this case – in order to refine the search result – the user will automatically give feed-

back by selecting matching candidate images. If no matching results were available,

the user would rather ask for more images or try a new search with other keywords.

The selection of some images as candidate images can be seen as an affirmation for

a match between the keyword and these images. Even more important, however, is

the relationship between these selected images. By making the selection of these

candidate images the user expresses the fact, that according to his desired search these

images do share some common semantic meaning in some sense. Even though the

particular semantic relationship is not known to the system, this selection can still be

used to model the semantic inter-image similarities.

Our system does store the inter-image relationships by connecting all candidate

images with weighted links. The weight represents how often two particular images

have been selected together as part of a candidate set. Every time a user makes a new

7474

selection of two or more candidate images, the links of these candidate images will be

updated. If a particular pair of images had already been selected together before, their

link weight will be increased by 1. New images, that had not been selected together

before will be linked with an initial weight of 1.

If enough relationships from different sets of candidate images are collected from

many users, this collected information can be used to model the degree of semantic

similarity of images. Obviously different users will group different sets of candidate

image sets according to their needs. However our experiments indicate that this does

not affect the ability of the system to learn the semantic relationships between images.

Very similar images will have strong link weights, whereas dissimilar images will

have very weak weights or no links at all.

It must be mentioned, that the proposed system has to learn from many users’ in-

teractions before estimates of the inter-image similarities can be used to improve

image retrieval results. If for a particular keyword search an image never gets selected

as candidate, then it obviously should be excluded as result image for this keyword.

The proposed scheme automatically does separate homonyms.

…

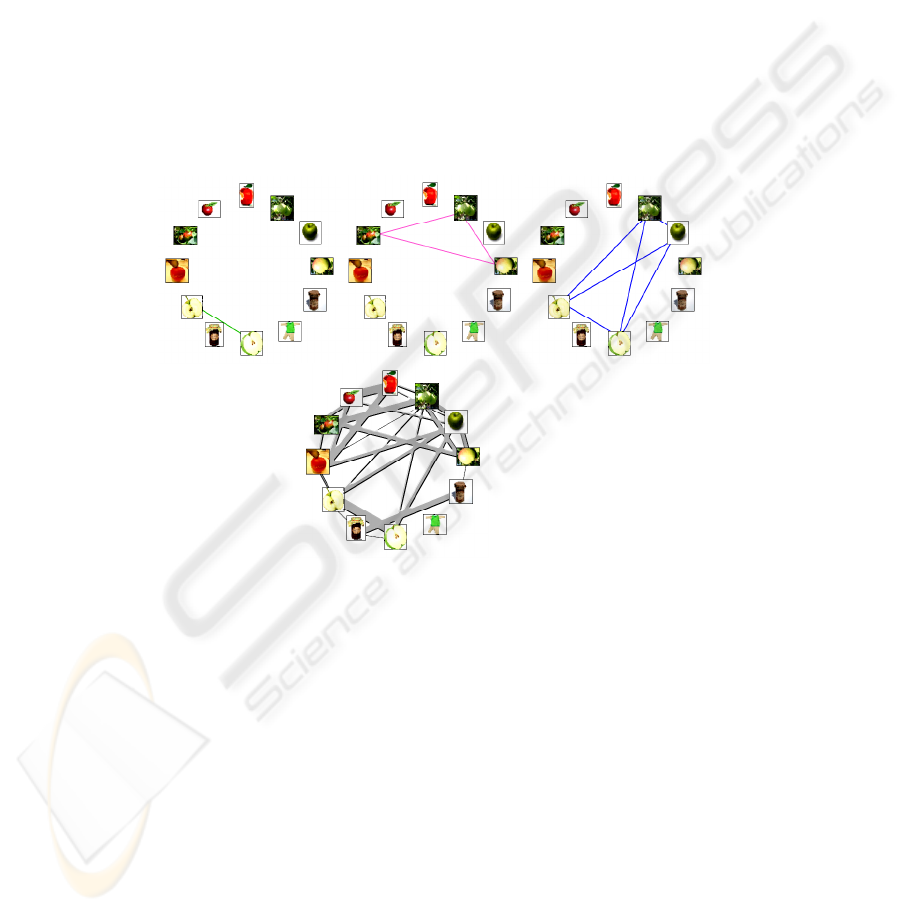

Fig. 5. Top: Three possible candidate sets (apple halves, apples on trees, green apples). The

connecting lines indicate the relationships. These relationships can be collected over many

users. Below: A map of relationships that our system could build from many different candidate

sets. The degrees of similarities are expressed by the thicknesses of the links.

Figure 5 shows an example as it can be generated by our system by combining candi-

date sets from different users. Individual candidate sets (top) can be used to build up a

network of weighted links of image relationships (below). The thicknesses of the links

between the images represent the similarity of the images.

There are two ways in which the described learning of semantic image relationships

can be used to improve the proposed image retrieval system: A semantic query by

example can be achieved by simply retrieving those images with the strongest links to

the query image. In addition the estimated similarities can also be used to perform an

additional semantic filtering step as shown in figure 2. This filter will remove images

that semantically do not match the candidate set. In another mode it could also be

7575

used to add further images that do not match the visual similarity but that do have a

high estimated semantic similarity.

4 Conclusions

We have proposed a new image retrieval system that dramatically reduces the time

needed to find a particular image in huge image sets as they can be found using Inter-

net image search systems. The new approach combines both visual and semantic

metadata. Unlike other approaches the new system does not try to learn the degree of

confidence between an image and an associated keyword. We rather propose to model

the degree of similarity between images by building up a network of linked images.

The weights of the inter-image links are learned from the users’ interaction with the

system only. For each image search candidate images that are selected from an initial

sorted result set help to refine the result by filtering out non-suiting images. Using this

information from many users the semantic inter-image relationships of all images can

be modeled. We have implemented a prototype of an image search system as de-

scribed before. The results obtained with the new scheme are very promising.

There remain many optimization possibilities for the proposed approach. Our sys-

tem is using image search results from image retrieval systems like “Google image

search”. Currently all images need to be downloaded first before they can be checked

if they do conform to the required filtering criteria defined by the candidate set. The

system could be much more efficient if it was implemented on the server side.

Another problem is the proper choice of the descriptors to extract the visual fea-

tures. The proposed color layout descriptor works very nicely for visually sorting

arbitrary image set. For the filtering of new result images against the set of candidate

images however, further improvements are to be expected with the combination of

other features types.

In future work we will provide experimental evaluation and comparison with other

schemes, however none of the well-known reference image databases can be used for

this purpose. We will set up a database with homonyms and misclassified images as

they can be obtained from typical Internet search systems.

References

1. M. Bober: MPEG-7 visual shape descriptors. Special issue on MPEG-7, IEEE Transactions

on Circuits and Systems for Video Technology 11/6, 716-719 (2001)

2. Ritendra Datta, Jia Li, James Ze Wang: Content-based image retrieval: approaches and

trends of the new age. Multimedia Information Retrieval 2005: 253-262

3. D. Deng, J. Zhang and M. Purvis: Visualisation and comparison of image collections based

on self-organised maps, ACSW Frontiers '04: Workshop on Australasian information secu-

rity, Data Mining and Web Intelligence, and Software Internationalisation (2004)

4. J. Laaksonen, M. Koskela, and E. Oja, PicSOM - Self-Organizing Image Retrieval With

MPEG-7 Content Descriptors, IEEE Trans. on Neural Networks, Vol. 13, No. 4, (2002)

5. Kohonen, T., Self-Organizating Maps, New York: Springer (1997)

7676

6. Y. L. Lu, C. Hu, X. Zhu, H. J. Zhang, and Q. Yang, “A unified framework for semantics

and feature based relevance feedback in image retrieval systems,” in Proceedings of 8th

ACM International Conference on Multimedia (MM '00), pp. 31–37

7. David G. Lowe, "Distinctive image features from scale-invariant keypoints," International

Journal of Computer Vision, 60, 2 (2004), pp. 91-110.

8. Manjunath B. S. , Ohm J. R. , Vasudevan V. V., Yamada A. “Color and texture descriptors.

Special issue on MPEG-7”, IEEE Transactions on Circuits and Systems for Video Technol-

ogy, 11/6, 703-715 (2001)

9. G. Matas, D. Koubaroulis and J. Kittler, Colour Image Retrieval and Object Recognition

Using the Multimodal Neighbourhood Signature, 6th European Conference on Computer

Vision, Dublin, Ireland, June 2000

10. Jia-Yu Pan, Hyung-Jeong Yang, Christos Faloutsos, Pinar Duygulu: GCap: Graph-based

Automatic Image Captioning (2004)

11. Rubner, Y., Tomasi, C., and Guibas, L. J. 1998 The Earth Mover's Distance as a Metric for

Image Retrieval. Technical Report. UMI Order Number: CS-TN-98-86, Stanford Univ.

12. Liu Wenyin, Susan Dumais, Yanfeng Sun, HongJiang Zhang, Mary Czerwinski, Brent

Field: Semi-Automatic Image Annotation (2001)

13. Wei Wang, Yimin Wu, Aidong Zhang: SemView: A Semantic-sensitive Distributed Image

Retrieval System, National Conference on Digital Government Research (2003)

14. X. S. Zhou, T. S. Huang, “Unifying Keywords and Visual Contents in Image Retrieval”,

IEEE Multimedia, April-June Issue, 2002.

7777
