Media Analysis and the Algorithm Ontology

Patrizia Asirelli

, Sara Colantonio

, Suzanne Little

Massimo Martinelli

and Ovidio Salvetti

Institute of Information Science and Technologies (ISTI)

Italian National Research Council (CNR)

Via Moruzzi 1, 56124, Pisa, Italy

Institute of Computer Vision and Applied Computer Sciences (IBaI)

Leipzig, Germany

Abstract. Media analysis algorithms are used for a variety of purposes. They

may improve media facets such as contrast or signal-to-noise ratio or extract low-

level details such as MPEG-7 features to be used in data mining and other higher-

level processing. However, algorithms are difﬁcult to manage, understand and

apply in particular for non-expert users. Therefore we are developing an algo-

rithm ontology to support identiﬁcation, aggregation and recording of algorithms

for media analysis. This is especially useful for domains with high-volumes of

complex media objects to investigate and integrate. Algorithms for media analy-

sis may be applied at multiple points within a typical multimedia lifecycle. This

article discusses a proposed algorithm ontology to support identiﬁcation, retrieval

and application of multimedia analysis processes and its application to metadata

management and multimedia interoperability.

1 Introduction

Advances in tools and technologies for digital media production and analysis have

brought the need for more complete and interoperable descriptions of media processing

to the forefront. Information captured at each stage of the multimedia lifecycle is of

great value for tasks such as analysis, data mining and media reuse.

For example, in the medical research ﬁeld media data is a common output of the

experimental evaluation phase where specimen or patient data consists of numerical

measurements and scans, micrographs or visualizations. This media is often normal-

ized, segmented and analyzed using a variety of media analysis algorithms and then

integrated into the larger pool of data for investigation and evaluation. This is also true

of other scientiﬁc research ﬁelds and areas such as industrial monitoring or digital art

curation where media is captured and processed before being used to assess a process,

mined for knowledge or to evaluate a theory.

Therefore, the media that is produced has a variety of possible applications and of-

ten undergoes post-production processing and possibly further low-level analysis pro-

cedures before being annotated, evaluated or applied. Even once media has been as-

Asirelli P., Colantonio S., Little S., Martinelli M. and Salvetti O. (2008).

Media Analysis and the Algorithm Ontology.

In Image Mining Theory and Applications, pages 16-25

DOI: 10.5220/0002341300160025

 SciTePress

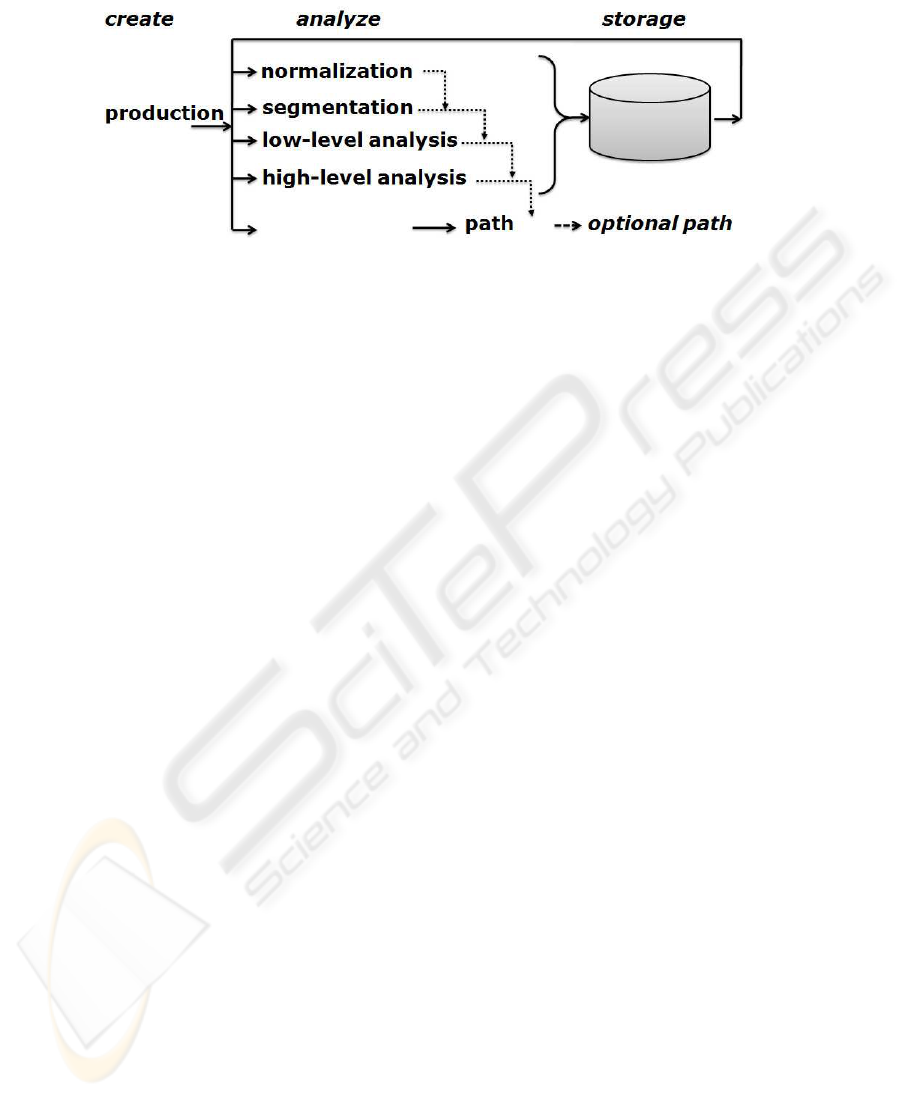

Fig.1. Three main phases of media processing and analysis: Create, Analyze, Storage. Multiple,

potentially iterative paths are possible.

similated into the general data set it may still undergo analysis processes at later stages

within its life cycle.

Figure 1 shows an abstract illustration of a possible media process. Firstly, algo-

rithms may be applied in pre-processing directly after the capture of the media. Exam-

ples of algorithms used here may include those to increase contrast, improve signal-to-

noise ratio or normalize variations.

Secondly, algorithms may be used in media analysis possibly for the purpose of

data mining or ﬁne-grained semantic annotation. This generates a set of low-level anal-

ysis data from the media object. Algorithms used here may include segmentation or

edge detection algorithms followed by processes to extract low-level features such as

those deﬁned by the MPEG-7 standard. In addition, higher level processing using ma-

chine learning techniques such as neural networks [19] or case-based reasoning [25]

and approaches such as semantic inferencing rules [17] may be used to derive semantic

annotations from the low-level details.

Thirdly, algorithms may be used for media conversion or touching up prior to reuse

of the media or applying secondary analysis processes. This will usually include algo-

rithms similar to pre-processing but potentially occurs at multiple later stages through-

out the media lifecycle. Examples may include reducing the size or resolution of an

image, format conversion or speciﬁc processing prior to applying 3D volume rendering

or isosurface generation.

There are a number of reasons why a clear, formal description of processes, algo-

rithms or methods applied to media objects is a useful and necessary part of multimedia

metadata and the multimedia lifecycle. These descriptions should be detailed – not only

general process descriptions but speciﬁc deﬁnitions of the requirements, formats and

outcomes relating to media analysis algorithms.

Firstly, clear deﬁnitions of algorithms are useful for the identiﬁcation of syntacti-

cally appropriate algorithms. For example, algorithms that require input media to be of

colour type RGB as opposed to binary or black and white images.

Secondly, higher-level semantic descriptions enable the use of pre-existing exam-

ples or case-studies to develop solutions for similar problems. For example, using broad

general statements of the ﬁnal goal such as “segment this image” or “improve image

1717

quality” and developing a sequence of possible processes to apply to achieve the de-

sired outcome For example, a researcher needs to reduce the noise and improve the

contrast in a radiology image prior to analysis and interpretation but is unfamiliar with

the speciﬁc algorithms that could apply in this instance.

Finally, it is important to keep an accurate, complete and defensible record of the

processing that has been applied to a media object within its entire lifecycle. This type

of provenancedata is especially important in scientiﬁc or investigativedomains. In addi-

tion, many applications require the processes applied to media to be concisely recorded

for re-use, re-evaluation or integration with other analysis data.

The problem is that algorithms for media analysis are difﬁcult to manage, under-

stand and apply, particularly for non-expertusers. The main difﬁculty lies in quantifying

and articulating the “visual” (or “aural”) result of an algorithm so that its purpose and

outcome can be unequivocally understood and interpreted independently of the media

domain.

Therefore,we are developingan algorithm ontologythat aims to record and describe

available algorithms for application to image (and eventually other media) analysis.

This ontology can then be used to interactively build sequences of algorithms to achieve

particular outcomes. In addition, the record of processes applied to the source image can

be used to deﬁne the history and provenance of data.

This article presents an outline of the algorithm ontology, its use within an example

scenario and discusses how it can be applied to multimedia metadata management and

to promote interoperability of multimedia metadata.

2 Related Work

The multi-dimensional nature of multimedia metadata and the challenges this presents

when integrating media, particularly in a web-based system, is a well-known problem

[9], [26]. A large number of initiatives aiming at standardizing metadata have come to

light in recent years to describe multimedia content in different domains and to enable

sharing, exchanging and interoperability across a wide range of networks. According to

their functionality, two types of standards can be distinguished:

· One is directly related to the representation of multimedia content for a speciﬁc

domain and provides a standardized description scheme or well-deﬁned syntax.

· The other integrates metadata standards from different domainsto provide metadata

models or broad semantic deﬁnitions and enhance general semantic interoperabil-

ity.

A variety of standards to describe and deﬁne multimedia objects and their contents

have been proposed such as MARC [21], Dublin Core [13]), VRA Core [28], LOM

[20], DIG35 [12], MPEG-7 [22] and MPEG-21 [23]. A general comparison and review

of these standards can be found at [24]. These standards are illustrative of the ﬁrst type.

However, they generally lack sufﬁcient detail to describe low-level media features and

tend to concentrate on more abstract metadata and semantics.

Within these standards, the use of MPEG-7 for the description of multimedia docu-

ments is wide-spread. MPEG-7, named “Multimedia Content Description Interface”, is

1818

a standard for describing the multimedia content data. It is not aimed at any one appli-

cation in particular; rather, the elements that MPEG-7 standardizes support as broad a

range of applications as possible. MPEG-7 provides a document description language

(DDL) to encode a structured, schema-based model to describe media-speciﬁc proper-

ties of audio, video, and text data, as well as the individual content objects within each

primitive media stream.

Within the second type of standard a number of general multimedia ontologies have

been proposed to support the interoperability of multimedia tools and metadata. A num-

ber of these are based on the MPEG-7 standard and deﬁne the key concepts as classes

and properties. For example, Hunter [16], Tsinaraki et al. [27], and AceMedia [1] are

all based on the MPEG-7 standard.

Semantic deﬁnitions of algorithms can also be found in the algorithm pattern of

the Descriptive Ontology for Linguistic and Cognitive Engineering (DOLCE) [14] and

in an ontology proposed in [2] where structures for detecting, classifying or annotat-

ing a region of an image are included with more generic media concepts. M-OntoMat-

Annotizer [8] also includes concepts recordingprocessing knowledge.A semantic frame-

work proposed in [11] includes an analysis ontology that aims to describe abstract

media processes. Finally a general thesaurus for image analysis purpose has been de-

veloped [4], [7]. All of these standards provide some level of semantic structure for

deﬁning media and analysis processes.

The difﬁculty is that these standards do not provide sufﬁcient levels of detail to ad-

dress multimedia understanding problems. For instance, extensions are required to the

MPEG-7 standard to deﬁne speciﬁc low-level analysis features such as ‘eccentricity’,

‘color range’, etc. Previous work by Hollink et al. [15] describes some extensions to

Hunter’s MPEG-7 ontology by creating subproperties of the visual descriptor to incor-

porate analysis terms.

In the end, we have both, to acknowledge the need to extend the available technol-

ogy towards multimedia ontologies, and to add more semantics in order to be able to

handle applications which require annotation, retrieval and summarization of multime-

dia documents.

3 Algorithm Ontology

Previous sections have shown that formal semantics describing media analysis algo-

rithms are needed to address issues such as discovery of algorithms, choreography of

algorithms and recording of provenance. This section describes the ongoing develop-

ment of an ontology to describe and deﬁne image analysis algorithms and presents an

example scenario illustrating how this ontology may be applied.

Starting from image understanding problems (e.g. segmentation, analysis, etc.), we

are working to the realization of a thesaurus containing related concepts and algorithms.

It would be important to represent features on how metadata are extracted so that they

can be used at a higher level for images, and multimedia information handling in gen-

eral. We have deﬁned this meta-information as morpho-densitometric (shapes, how the

object is made, etc.) and spectral characteristics.

1919

Another important feature would be to record how a speciﬁc result has been ob-

tained starting from a particular input to represent the set of algorithms and/or pro-

cedures used to produce a particular result. This work is also based on the preliminary

results obtained in a collaborativeproject with the Dorodnicyn Computing Centre of the

Russian Academy of Science that developed a technical vocabulary of more than 1000

terms describing image characteristics, algorithms used to obtain images, and relations

among terms [3].

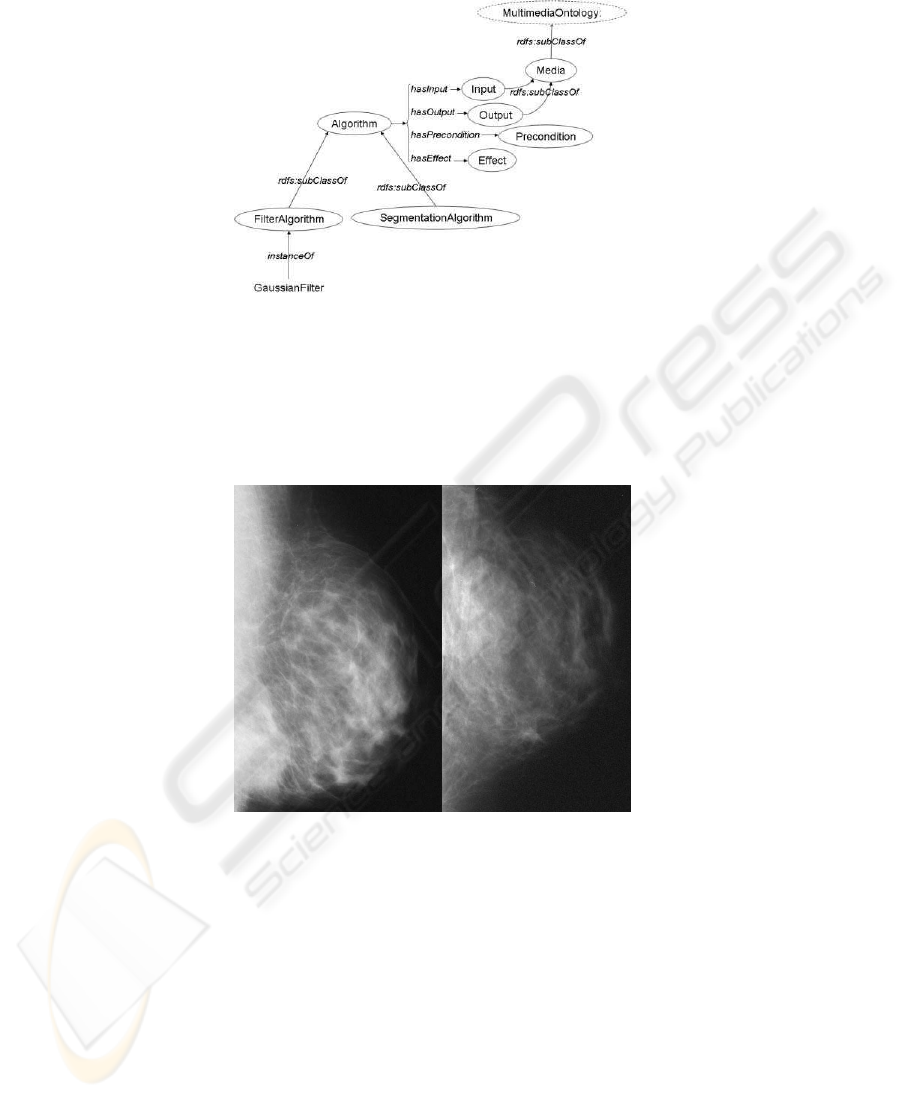

Figure 2 shows a class diagram of part of the algorithm ontology. The main concept

is the Algorithm class which has a number of subclasses that classify the different types

of algorithms (FilterAlgorithm, SegmentationAlgorithm, etc.). Information about each

algorithm, such as the Input, Output, any Preconditions and the Effect are also included.

The effect of applying an algorithm is the most difﬁcult concept to articulate. This is

a key area of research as we endeavor to deﬁne the outcome in an independent man-

ner. The ontology can also be integrated with existing media ontologies, such as those

referenced in section 2, to deﬁne the class and characteristics of media.

3.1 Example Scenario

To be more precise on the kind of problems we want to face we introduce the following

scenario.

The Problem:

Classify the dense breast tissue in mammography images, according to the BI-RADS

classiﬁcation [18].

Hypothesis of solution:

Step 1: Get a digital mammogram of patient P (result: image I

, see Figure 3).

Step 2: Improve the quality of the input image I

by applying a digital ﬁlter (result:

image I

Step 3: Extract the different tissues by applying a region-based segmentation algorithm

to the input image I

. As a result, image I

is partitioned in a set of N homogeneous

regions (result: image I

i=1,...,N

}).

Step 4: Select the region R

corresponding to the dense tissue and describe it by apply-

ing a list of algorithms for computing geometrical and densitometric properties (result:

array A).

Step 5: Classify the tissue by applying a classiﬁcation function to the input array of

features A (result: the label of the density class C ∈ {Class I, Class II, Class III, Class

IV}).

However, for each of the previous steps a question arises regarding the choice of the

different algorithms that can be applied to the input data.

In Step 2, the issue regards the digital ﬁlter selection: a number of ﬁlters, e.g.

Fourier, Wiener, Smoothing, Anisotropic, etc., can be applied having different input-

output formats and giving slightly different results. However, a ﬁlter that preserves

edges, reduces noise and removes small curvilinear structures can be the best choice

in the case at hand.

2020

Fig.2. Class diagram of part of the Algorithm Ontology.

In Step 3, several segmentation algorithms can be considered for region extraction:

clustering, histogram, homogeneity criterion, etc.. The choice can heavily rely on the

image type and the problem at hand.

Fig.3. Digital mammograms.

In Step 4, the question is related to the selection of signiﬁcant geometrical and den-

sitometric properties used for describing the extracted region. Usually, several possi-

bilities are available, depending on the considered mathematical models for describing

closed curves (regions) and the grey level distribution inside each region (histogram,

Gaussian-like, etc.), but supplying the user a tool for selecting the most relevant one

according to their meaning could reveal as one of the most viable solution.

In Step 5, the question regards the classiﬁcation function, which can be deﬁned ac-

cording to one of the several pattern recognition methods. In many cases, such methods

are adaptive and this further complicates the selection.

2121

This type of detailed analysis processes where decisions made in each step have a

signiﬁcant impact upon choices in following steps and where multiple media objects or

textual/numerical metadata may result are common in these types of scenarios.

4 Applying the Algorithm Ontology

4.1 An Infrastructure for Multimedia Metadata Management

MultiMedia Metadata Management (4M) Infrastructure [5], [6] has been developed as

part of MUSCLE (Multimedia Understanding through Semantics, Understanding and

Learning) through the EU Network of Excellence (NoE) initiative with the aim of sup-

porting multimedia analysis, exchange and foster collaboration among research groups.

The infrastructure consists of ﬁve main co-operating units, devoted to feature extraction

from multimedia objects, database management, algorithms and annotations handling,

and integration. 4M has been designed taking into account the use of the most promis-

ing existing tools, open-source software, java-based implementations and multimedia

metadata standards.

The system has four main goals:

· To store, organize and retrieve distributed multimedia resources;

· To manage algorithms for information processing;

· To add semantic annotations;

· To access, protect and/or share information.

One possible processing sequence using the 4M architecture is as follows.

1. media upload;

2. media analysis to produce MPEG-7 feature data;

3. media storage with metadata in XML database;

4. identiﬁcation of algorithms to achieve a user goal;

5. application of algorithms to media;

6. recording of outcomes in the database;

7. query of data to ﬁnd related media;

The 4M infrastructure provides an environment for handling both low-level fea-

tures extracted from multimedia objects, and semantic high-level information coming

from automatic and semi-automatic processes of annotation and ﬁnally for managing,

integrating and processing all of this information.

The algorithm ontology, within the 4M infrastructure, can assist in classifying ac-

quired knowledge about a domain and help users to solve related problems. For ex-

ample, in stages 2, 4 and 5 of the suggested process the algorithm ontology provides

a standardised set of terms for searching, comparing and applying media processing

functions.

Within the 4M infrastructure, the algorithm ontology enables users to query for

available processing tools based on their classiﬁcation (alg:Algorithm), on their effect

(alg:hasEffect) or to browse for available processing options based on the current input

data format (alg:hasInput). It also enables the recording and storage of media processing

steps in a clear and independent manner.

2222

4.2 Multimedia Interoperability

The algorithm ontology can also play an important role in the interoperability of mul-

timedia metadata. This interoperability can be approached from two points of view:

low-level (syntactic) interoperability and high-level (semantic) interoperability.

At the low-level, it concerns formats and data structures, eventual transformations

between them and therefore the related algorithms of conversion. Sometimes an ade-

quate and optimal conversion cannot ignore information related to data itself. Thus an

ontology can be associated with the conversion process that can interest the algorithms

(different but computationally equivalent algorithms); media associated to data struc-

tures and the data structures themselves (different but associated with the same media).

At the high-level, interoperability concerns the domain problem, that is the analogy

of only apparently different or distinct problems but similar in reality and that therefore

can be faced and solved with the same methodology (computational procedure). In this

case, domain problem semantics can be codiﬁed to make the most of paradigmatic cases

then used as a reference for the solution of real problems.

For example, regarding the mammography scenario, this can be extended starting

from a speciﬁc pre-analyzed case in order to deﬁne a general reference procedure: what

happens if we have to study a mammogram case starting from an actual arbitrary im-

age of a patient? This gives a general procedure that acts as a pattern deﬁned using the

algorithm ontology. Speciﬁc implementations of algorithms can then be selected based

on the properties of the individual media. For example, the general class of FilterAl-

gorithms has many separate implementations that have equivalent effect but operate on

different parameters. Once deﬁned, this speciﬁc procedure can then be recorded and

stored with the media to provide information for future analysis tasks.

The proposed algorithm ontology supports both types of interoperability.Low-level,

syntactic details are described in the Input and Precondition classes while high-level,

semantic details are contained in the Effect class. This allows the selection, combination

and application of algorithms based on both basic format requirements and on the user

desired outcome. This support is useful for both annotation tasks (applying semantically

equivalent algorithms to ensure consistency across media objects) and for querying of

media based on a description of the processes that have been applied to it (e.g., ﬁnd

media that have had normalization of the light level).

5 Future Work and Conclusions

The processes needed to obtain, elaborate and analyze multimedia objects can be clas-

siﬁed, deﬁned and described through a speciﬁc ontology of algorithms. This ontology

could be used as a base to classify acquired knowledge required in order to solve prob-

lems related to the analysis of multimedia objects. The use of the ontology not only will

help to solve the problems already known but also similar problems or problems related

to analogous contexts.

Development work on the algorithm ontology is ongoing. In particular the questions

relating to the quantiﬁcation and speciﬁcation of ‘visual’ outcomes from applying an

algorithm are challenging. Identifying the main classes of existing algorithms deﬁned

2323

and used in literature is extending the ontology. Integration with the 4M infrastructure

and the potential use in conjunction with semantic web services and web service chore-

ography technologies is also of interest.

This article has discussed the need for an algorithm ontology in domains such as

scientiﬁc or medical research, industrial analysis and large-scale digital art analysis.

Media, as applied in the scenarios discussed, may undergo multiple analysis, processing

and analysis phases. Formalized, structured deﬁnitions of media processing algorithms

will enable users to classify, identify, locate, apply and record processing and analysis

of media throughout its lifecycle.

Acknowledgements

The authors would like to thank members of the W3C Multimedia Semantics Incuba-

tor Group for their stimulating discussions about how the Algorithm ontology can be

applied to multimedia interoperability. Suzanne Little is supported through a MUSCLE

Internal Fellowship (European Commission No. 507752).

References

1. AceMedia: Project, http://www.acemedia.org (2007)

2. Arndt, R., Staab, S., Troncy, R., Hardman, L.: Adding Formal Semantics to MPEG-7: De-

signing a Well Founded Multimedia Ontology for the Web. Fachbereich Informatik Technical

Report Nr. 4. (2007)

3. Asirelli, P., Martinelli, M., Salvetti O.: MUSCLE submission to the Call for a Common

Multimedia Ontology Framework Requirements.

http://www.acemedia.org/aceMedia/ﬁles/multimedia ontology/cfr/MM-Ontology-Call-

Requirements ISTI.pdf (2006)

4. Asirelli, P., Martinelli, M., Salvetti, O.: Call for a Common Multimedia Ontology Framework

Requirements. Harmonization of Multimedia Ontologies Activity. (2006)

5. Asirelli, P. Little, S., Martinelli M., Salvetti, O.: MultiMedia Metadata Management: a Pro-

posal for an Infrastructure. In: SWAP, Semantic Web Technologies and Applications. (2006)

6. Asirelli, P., Martinelli M., Salvetti, O.: An Infrastructure for MultiMedia Metadata Man-

agement. In: First International workshop on Semantic Web Annotations for MultiMedia at

WWW2006, Edinburgh, Scotland. (2006)

7. Beloozerov, V.N., Gurevich, I.B., Gurevich, N.G., Murashov, D.M., Trusova, Y.O.: The-

saurus for Image Analysis: Basic Version. Pattern Recognition and Image Analysis,

Vol. 13(4), (2003) 556-569

8. Bloehdorn, S., Petridis, K., Saathoff, C., Simou, N., Tzouvaras, V., Avrithis, Y., Handschuh,

S., Kompatsiaris, I., Staab, S., Strintzis, M.G.: Semantic Annotation of Images and Videos for

Multimedia Analysis. In: ESWC 2005, 2

European Semantic Web Conference, Heraklion,

Greece (2005)

9. Boll, S., Klas, W., Sheth A.: Overview on Using Metadata to Manage Multimedia Data.

McGraw Hill. (1998)

10. Dasiopoulou, S., Papastathis, V.K., Mezaris, V., Kompatsiaris, I., Strintzis, M.G.: An On-

tology Framework For Knowledge-Assisted Semantic Video Analysis and Annotation. In:

SemAnnot 2004, 4

International Workshop on Knowledge Markup and Semantic Annota-

tion at the 3

International Semantic Web Conference. (2004)

2424

11. Dasiopoulou, S., Papastathis, V.K., Mezaris, V., Kompatsiaris, I., Strintzis, M.G.: An On-

tology Framework For Knowledge-Assisted Semantic Video Analysis and Annotation. In:

SemAnnot 2004, 4

International Workshop on Knowledge Markup and Semantic Annota-

tion at the 3

International Semantic Web Conference. (2004)

12. DIG35: I3A DIG35 Initiative Group. http://www.i3a.org/i dig35.html (2001)

13. Dublin Core Metadata Element Set

Version 1.1, http://dublincore.org/documents/1999/07/02/dces/

14. Gangemi, A., Guarino, N., Masolo, C., Oltramari, A., Schneider, L.: Sweetening Ontologies

with DOLCE. In: EKAW2002. (2002)

15. Hollink, L., Little S., Hunter, J.: Evaluating the Application of Semantic Inferencing Rules

to Image Annotation. In: KCAP05, the 3

International Conference on Knowledge Capture.

(2005)

16. Hunter, J.: Adding Multimedia to the Semantic Web - Building and Applying MPEG-7 On-

tology. Multimedia Content and the Semantic Web: Standards, and Tools, Giorgos Stamou

and Stefanos Kollias (Editors), Wiley. (2005)

17. Hunter, J. and Little, S.: A Framework to Enable the Semantic Inferencing and Querying of

Multimedia Content. International Journal of Web Engineering and Technology – Special

Issue on the Semantic Web (2004)

18. Liberman, L., Menell, J.H.: Breast imaging reporting and data system (BI-RADS). Radiol

Clin North Am, Vol. 40, May, (2002) 409-30

19. Little, S., Salvetti, O., Perner, P.: Semantic Annotation of Images. In: A.K.H. Tung, Qiuming

Zhu, N. Ramakrishnan, O.R. Zaane, Yong Shi, Chr.W. Clifton, Xindong Wu (Eds.), Proceed-

ings IEEE ICDM Workshops. (2007) 45-51

20. LOM: IEEE Learning Technology Standards Committee’s Learning Object Meta-data Work-

ing Group, http://ltsc.ieee.org/wg12/ (2002)

21. MARC: Standard, http://www.loc.gov/marc/ (1999)

22. MPEG-7: Multimedia Content Description Interface. ISO 15938. (2003)

23. MPEG-21: http://www.chiariglione.org/mpeg/standards/mpeg-21/mpeg-21.htm (2002)

24. MUSCLE: An Overview of Multimedia Metadata Standards (MUSCLE NoE internal publi-

cation), http://muscle.isti.cnr.it/Standards/index.xml (2005)

25. Perner, P.: Data Mining on Multimedia Data. LectureNotes in Computer Science, Springer.

(2002)

26. Stamou, G., van Ossenbruggen, J., Pan, J.Z., Schreiber, G.: Multimedia Annotations on the

Semantic Web. IEEE MultiMedia, Vol. 13, (2006) 86-90

27. Tsinaraki, C., Polydoros, P., Kazasis, F., Christodoulakis, S.: Ontology-based Semantic

Indexing for MPEG-7 and TV-Anytime Audiovisual Content. Special issue of Multime-

dia Tools and Application Journal on Video Segmentation for Semantic Annotation and

Transcoding, Vol. 26, (2005) 299-325

28. VRA Core 4: http://www.vraweb.org/projects/vracore4/index.htm (1999)

2525
