compounded by the resistors R
f
, R
1
and R
2
, which
results in a high gain conversion, being the output
voltage of A1:
)
12 12 2
2
() ( )
pd f f
o
VR R I RR R RR
V
R
+
+− ++
=
(1)
where V
+
is the voltage at the non-inverting input of
the operational amplifier A1, and I
pd
is the current
generated by the photodiode. The voltage V
+
takes a
value of few mV and can be changed through the
variable resistor R
var
. The effect of this parameter is
to compensate the input offset voltage of the
operational amplifier, which can have a high
influence on the output because of the great gain of
this stage.
Under ideal conditions (V
+
=0) and assuming
R
f
>> R
2
, Equation (1) can be rewritten as:
1
2
1
opdf
R
VIR
R
⎛⎞
=+
⎜⎟
⎝⎠
(2)
Selecting a high value for R
f
and making R
1
>R
2
,
a gain factor of 10
11
– 10
13
V/A can be achieved.
The output voltage of A1 is conditioned using
two parallel stages , formed by the operational
amplifiers A2 and A3. In each stage, the signal is
firstly filtered through a RC low-pass filter. The
operational amplifier A2 acts as a buffer, whereas
A3 amplifies the output voltage of the I/V converter
before sending it to the microcontroller. In this way,
the μC receives two signals, one corresponding to
the filtered output of the first stage, and another that
is an amplification of this last one. The purpose of
having two different channels for measuring the
same signal is to expand the range of lactate that can
be analysed.
The outputs of A2 and A3 are connected directly
to the microcontroller (μC) (PIC18F2550,from
Microchip Inc.), which uses an internal 10-bit
analog-to-digital converter to alternatively sample
these signals at high frequency. A serial EEPROM
module (24LC512, from Microchip Inc.) of 512kbit
is used to store the sampled data. Finally, once the
calibration function (see next section) programmed
in the microcontroller is applied, results are sent to
the LCD display (Figure 1). All electronic circuitry
is included in an enclosure with optical, magnetic
and electrical shielding.
Moreover, control software written in Visual
Basic allows the user to optionally communicate the
instrument with a computer via an USB port to
receive the data for further analysis.
Main advantages of our design lie on portability,
low cost because of the use of a photodiode instead
of a costly or bulky photomultiplier, and the use of
non invasive samples. Most commercial portable
lactate meters use blood or serum for lactate analysis
(www.lactate.com, Poscia, 2005).
4 BIOSENSOR COMPOSITION
AND MEASUREMENT
CONDITIONS
Composition of sensing membrane was optimized in
terms of type and concentration of membrane
polymer, supporting electrolyte, pH and buffer,
luminol concentration, enzyme units, and BSA
concentration.
0
200
400
600
0 5 10 15 20
t / s
ECL relative sign

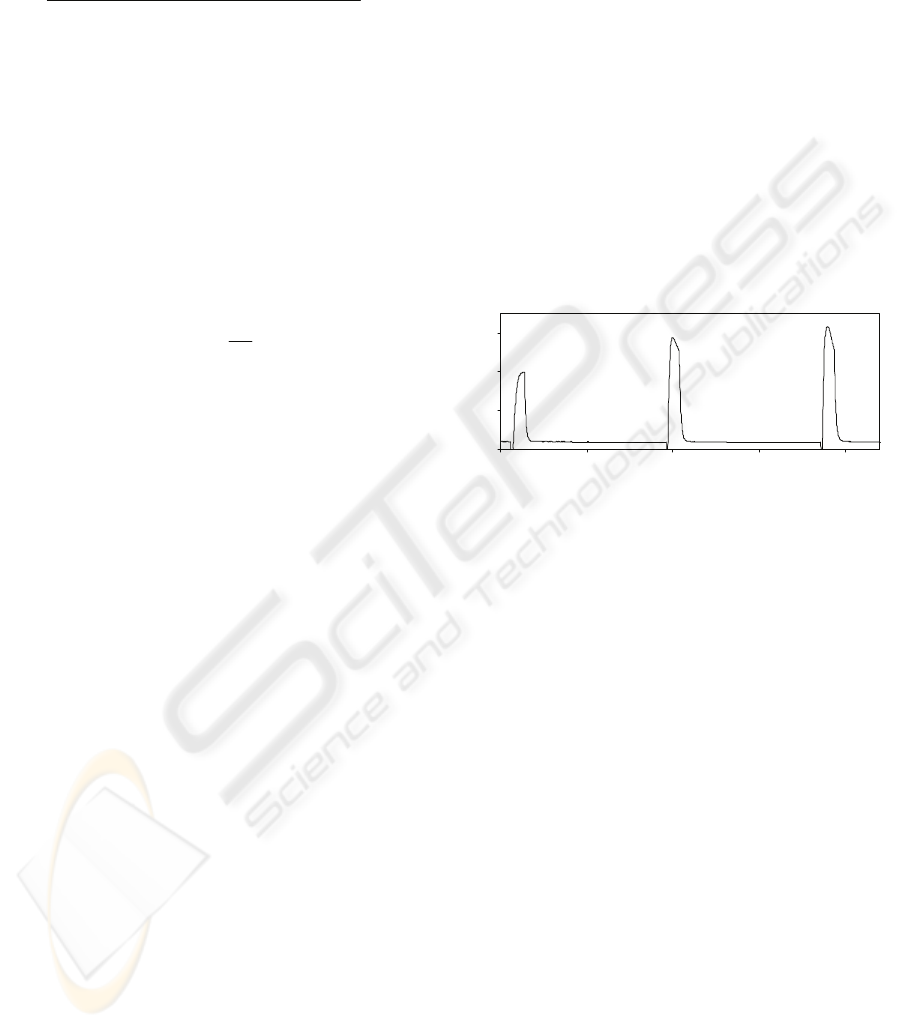

Figure 4: Relative ECL lactate signals.
Different types of ECL analytical signals were
studied using the instrument described in the
previous section in order to obtain an analytical
parameter for lactate concentration. The intensity of
the collected light, resulting from the reaction on the
sensor, did not show a direct relationship with the
lactate concentration, as can be seen in Figure 4,
where three steps at fixed potential were applied to
the same problem drop. The intensity of the light is
increased with successive potential steps. From these
current pulses, a kinetic signal derived from the
relative increase of the signal was chosen for the
measurement of the lactate concentration, since it
remains stable for different excitation pulses. The
measurement conditions studied were: a) applied
potential (0.5 V); b) waiting time before the first
pulse (3 min); c) time between pulses, being 10 s for
better sensitivity; d) pulse time with 1 s as best for
sensitivity and time of analysis.
The sample volume in the screen-printed device
was spotted with a micropipette. From the influence
of sample volume, studied between 20 and 40 µL.
Low volumes have high ECL signals but poor
repeatability. The signal and the standard deviation
decrease when the volume increases. The reason of
this behaviour is that low volumes don’t cover the
