AN APPROACH TO ENFORCE CONTEXT-AWARE ACCESS

CONTROL TO PROCESS-BASED HEALTHCARE SYSTEMS

BUILD ON A GRID INFRASTRUCTURE

Vassiliki Koufi, Flora Malamateniou and George Vassilacopoulos

Department of Digital Systems, University of Piraeus, 80, Karaoli & Dimitriou Str., Piraeus 18534, Greece

Keywords: Grid portal application, Process, Role-based access control (RBAC), xoRBAC, Context.

Abstract: Healthcare is an increasingly collaborative enterprise involving a broad range of healthcare services

provided by a number of geographically distributed and organizationally disparate healthcare providers.

Grid technology has emerged as an integration infrastructure for shared and coordinated use of diverse data

resources residing in the healthcare settings of a health district. Moreover, healthcare processes can be

formed as compositions of web services that use grid database services to provide integrated healthcare

information thus improving healthcare quality. Further improvement can be achieved by means of Grid

portal applications developed on a wireless and mobile infrastructure as they provide to ubiquitous and

pervasive access to healthcare processes at the point of care. In such environments, the ability to provide an

effective access control mechanism that meets the requirement of the least privilege principle is essential.

Adherence to the least privilege principle requires continuous adjustments of user permissions in order to

adapt to the current situation. This paper presents an access control architecture for HDGPortal, a Grid

portal application which provides access to workflow-based healthcare processes using wireless Personal

Digital Assistants. The proposed architecture utilizes the xoRBAC component, which provides a role-based

access control service that enables the enforcement of fine-grained context-dependent access control

policies via context constraints. In particular, xoRBAC is integrated in our process-oriented healthcare

environment which is build on top of a Grid infrastructure and is accessible through HDGPortal. Thus, the

risk of compromising information integrity during task executions is reduced.

1 INTRODUCTION

Healthcare delivery is a highly complex process

involving many individuals and organizations (Koufi

and Vassilacopoulos, 2008). Providing readily

access to integrated healthcare information at the

point of care remotely requires a system architecture

that enables collaboration and coordination among

healthcare services and facilitates the mobility of

healthcare professionals. To this end, a prototype

Grid portal application, namely HDGPortal, has

been developed that provides pervasive access to

process-based healthcare systems (Koufi and

Vassilacopoulos, 2008).

HDGPortal is a portal application that is used to

run healthcare processes implemented in the

Business Process Execution Language (BPEL).

These processes invoke web services, while on

execution, in order to provide integrated access to

healthcare information scattered around disparate

and geographically dispersed systems. These

services are sophisticated high-level services that

use Grid database services as basic primitives for

their creation. Grid database services offer

capabilities such as data federation and distributed

query processing and are generated by using Open

Grid Services Architecture - Data Access and

Integration (OGSA-DAI) (Open Grid Services

Architecture - Data Access and Integration (OGSA-

DAI), 2008), a middleware product which is part of

the Globus Toolkit (The Globus Toolkit, 2008). In

the remainder of this paper, we refer to web services

that are defined, deployed and executed using these

service-oriented Grid computing infrastructures as

Grid services (Emmerich, Butchart, Chen,

Wassermann and Price, 2006).

As tight matching of permissions to actual usage

and need is essential in healthcare applications, one

important security requirement in HDGPortal is

adherence to the least privilege principle. Its

Kouﬁ V., Malamateniou F. and Vassilacopoulos G. (2009).

AN APPROACH TO ENFORCE CONTEXT-AWARE ACCESS CONTROL TO PROCESS-BASED HEALTHCARE SYSTEMS BUILD ON A GRID

INFRASTRUCTURE.

In Proceedings of the International Conference on Health Informatics, pages 22-29

DOI: 10.5220/0001539900220029

 SciTePress

enforcement requires continuous adjustments of user

permissions to ensure that users assume the

minimum sets of permissions required for the

execution of each task of a healthcare process

selected. To this end, changes in contextual

information should be sensed during task executions

and relevant actions should be fired in response to

these changes.

xoRBAC is an open source software component

that provides a policy decision point with an

integrated policy repository for Role-Based Access

Control (RBAC) policies (xoRBAC, 2008). In

particular, xoRBAC provides an RBAC service that

conforms to level 4a of the NIST model for RBAC

(Neumann and Strembeck, 2001). In its current

form, it preserves the advantages of role-based

access control, and allows for the definition of

“traditional” RBAC policies. Additionally it adds

further flexibility through the specification of fine-

grained context-dependent access control policies

via context constraints (Neumann and Strembeck,

2003). On these grounds, the incorporation of

xoRBAC in a process-based healthcare system build

on top of a Grid infrastructure can offer significant

benefits in the design and implementation of a

context-aware access control mechanism.

This paper is mainly concerned with situations,

often occurred in healthcare delivery, where the

information requested by an authorized user needs to

be available when and where needed. Thus, a

context-aware access control mechanism is proposed

that utilizes xoRBAC component and, hence, it

incorporates the advantages of broad, role-based

permission assignment and administration across

object types, as in RBAC, and yet provides the

flexibility for adjusting role permissions on

individual objects during a BPEL process enactment

according to the current context. During the

execution of a workflow instance, changes in

context information are sensed to adapt user

permissions to the minimum required for completing

a job. Relevant access control policies are enforced

at both the BPEL task level and the Grid database

service level.

2 RELATED WORK

In the last few years, there has been a trend towards

using BPEL for Grid service composition

(Emmerich, Butchart, Chen, Wassermann and Price,

2006). Security aspects, such as authentication and

access control, are not standardized through BPEL,

but are left to the implementation of BPEL

compliant process engine (Mendling, Strembeck,

Stermsek and Neumann, 2004; Thomas, Paci,

Bertino and Eugster, 2007; Bertino, Crampton and

Paci, 2006). Several studies have been conducted

regarding the enforcement of access control in BPEL

(Mendling, Strembeck, Stermsek and Neumann,

2004; Thomas, Paci, Bertino and Eugster, 2007;

Bertino, Crampton and Paci, 2006; Dou, Cheung,

Chen and Cai, 2005; Paci, Bertino and Crampton,

2008; Fischer, Bleimann, Fuhrmann and Furnell,

2007). Most of these studies argue that BPEL can

benefit from incorporating properly enhanced role-

based access control (RBAC) mechanisms (National

Institute of Standards and Technology (NIST)

RBAC, 2008).

In turn, grid middleware, namely Open Grid

Services Architecture - Data Access and Integration

(OGSA-DAI) (Open Grid Services Architecture -

Data Access and Integration (OGSA-DAI), 2008),

that facilitates data federation and distributed query

processing through the use of grid database services

provides relatively simple and static mechanisms

regarding authorization and access control

(Adamski, Kulczewski, Kurowski, Nabrzyski and

Hume, 2007). In particular, OGSA-DAI mechanisms

are written in a modular way so as to enable

incorporation of application-specific security models

in relatively straightforward fashion (Power,

Slaymaker, Politou and Simpson, 2005). Hence,

several studies have been conducted regarding the

enhancement of these access control mechanisms

(Adamski, Kulczewski, Kurowski, Nabrzyski and

Hume, 2007; Power, Slaymaker, Politou and

Simpson, 2005). Most of these studies argue that

moving from identity-based to role-based access

control mechanisms can offer significant benefits in

the provision of effective access control over Grid

middleware services (National Institute of Standards

and Technology (NIST) RBAC, 2008).

In this paper we propose a security architecture

that implements access control in the context of a

pervasive process-based healthcare system build on

a Grid infrastructure. The proposed architecture

utilizes the xoRBAC component on both the BPEL

and the Grid Database service level in order to

enforce fine-grained context-dependent access

control policies.

3 MOTIVATING SCENARIO

To illustrate the main principles of the security

architecture incorporated into the HDGPortal, a

sample integration project is described which is

AN APPROACH TO ENFORCE CONTEXT-AWARE ACCESS CONTROL TO PROCESS-BASED HEALTHCARE

SYSTEMS BUILD ON A GRID INFRASTRUCTURE

concerned with the automation of a cross-

organizational healthcare process spanning a health

district. Typically, a health district consists of one

district general hospital (DGH) and a number of

peripheral hospitals and health centers. As patient

referrals are usually made among various healthcare

providers within a district (e.g. for hospitalization,

for outpatient consultation or for performing

specialized medical procedures), there is a need to

ensure authorized access to the tasks comprising the

relevant healthcare processes and, then, to patient

information required through the execution of these

tasks.

Suppose that a healthcare process is concerned

with a radiological request issued by physicians on a

ward round, for their patients. The radiological

department receives each request, schedules the

radiological procedures requested and sends a

message to the requesting physician notifying

him/her on the date and time scheduled for its

performance. On performing the radiological

procedure requested, the radiologist accesses the

relevant part of the patient record and issues a

radiological report, incorporating both the

radiological images and the associated assessment,

which is send to the requesting physician.

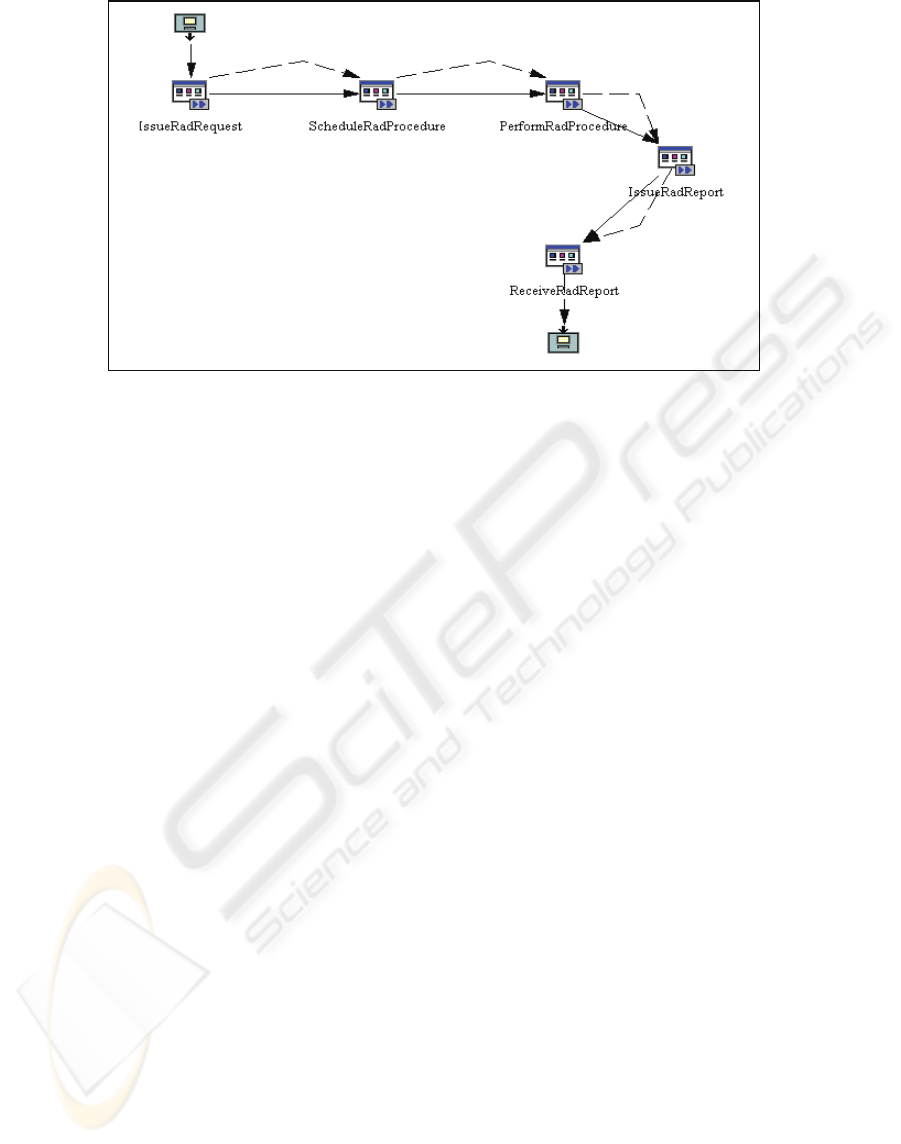

Figure 1 shows a high-level view of the

healthcare process using IBM Websphere Workflow

build-time tool (IBM Corporation. IBM Websphere

Workflow – Getting Started with Buildtime V. 3.6,

2005). In this business process the hospital

organizational units involved are the clinical

department and the radiology department of a

hospital and the roles participating in the healthcare

process are physician (PHYS) and radiologist

(RDD). Table 1 shows an extract of workflow

authorization requirements regarding task execution

and related data access privileges assigned to these

roles, respectively.

From an authorization perspective, the healthcare

process of Figure 1 surfaces several requirements

with regard to task execution and Grid database

services’ invocation. These requirements include the

following:

 Restricted task execution

In certain circumstances the candidates for a

task instance execution should be dynamically

determined and be either a sub-group of the

authorized users or only one, specific

authorized user. For example, a request for

performing a radiological procedure on a

patient (e.g. CT or MRI), issued by a

physician, should be routed only to the sub-

group of on-duty radiologists who hold the

relevant sub-specialty and the radiological

report, issued by the radiologist, should be

routed only to the requesting physician.

 Restricted grid database service invocation

Given that a role holder can execute a specific

task, he/she should be allowed to exercise a

dynamically determined set of permissions on

certain data only which are accessible via the

associated Grid database services. For

example, during the execution of the

“IssueRadRequest” task, the relevant Grid

database services invoked should allow a

physician to write and read patient record data

and to issue (write, edit and send) radiological

requests only for his/her patients while on

duty and only within the hospital premises.

Table 1: Extract of authorization requirements for the

healthcare process of Figure 1 (Task execution and data

access permissions).

1. PHYSs may issue requests for radiological

procedures on patients while on duty and within the

hospital premises (IssueRadRequest).

1.1 PHYSs may write radiological requests for their

current patients.

1.2 PHYSs may edit radiological requests for their

current patients before sent.

1.3 PHYSs may send radiological requests for their

current patients.

1.4 PHYSs may cancel radiological requests for their

current patients after sent.

1.5 PHYSs may read patient records of their current

patients.

2. RDDs holding a specific sub-specialty may

perform only relevant radiological procedures on

patients (RerformRadRequest)

3. RDDs may issue patient-oriented radiological

reports on request by physicians (IssueRadReport).

3.1 RDDs may read patient record data before sending

their radiological reports.

3.2 RDDs may write patient-oriented radiological

reports for their current patients.

3.3 RDDs may edit patient-oriented radiological

reports for their current patients before sent.

3.4 RDDs may send patient-oriented radiological

requests for their current patients

3.5 RDDs may cancel patient-oriented radiological

reports after sent.

3.6 RDDs may read past patient radiological reports

prepared by them.

4. PHYSs may receive patient radiological reports

issued by radiologists only if requested by them

(ReceiveRadReport).

4.1. PHYSs may read the requested radiological reports

on their patients.

4.2. PHYSs may read patient records of their patients.

HEALTHINF 2009 - International Conference on Health Informatics

Figure 1: Radiological request process model using IBM WebSphere Workflow.

The above requirements suggest that certain

permissions of the healthcare process participants

depend on the process execution context. In

particular, contextual information available at access

time, such as proximity, location and time, can

influence the authorization decision that allows a

user to perform a task and, given this permission, to

invoke the associated Grid database services. This

enables a more flexible and precise access control

policy specification that satisfies the least privilege

principle.

4 SECURITY ARCHITECTURE

Figure 2 illustrates a high-level view of HDGPortal

architecture, which is described by a three-tier

model, comprising the PDA client, the server site of

the DGH and the Grid which, in turn, comprises

remote data resources. The latter are heterogeneous

and reside in geographically distributed and

organizationally disparate healthcare providers

within a health district. HDGPortal’s architecture

requires enhanced security mechanisms with special

focus on authorization and access control over the

tasks comprising the BPEL processes and the

underlying services (Grid database services and Grid

services invoking them). Figure 3 illustrates a high-

level view of the proposed security architecture

which consists of a global access control service,

residing on a server at the DGH site, and one local

access control service, residing at each healthcare

organization within the health district. Both services

are making use of the xoRBAC access control

component which provides an RBAC service that

conforms to level 4a of the NIST model for RBAC

(Neumann and Strembeck, 2001) and constitutes a

core component of this architecture.

xoRBAC does not demand on a specific

authentication mechanism, it only assumes that some

authentication service is in place (Neumann and

Strembeck, 2001). Therefore, in HDGPortal

prototype authentication is performed by means of a

sophisticated authentication environment based on

X.509 certificates and SSL. In particular, Grid

Security Infrastructure (GSI) authentication

mechanism is used which defines single sign-on

algorithms and protocols, cross-domain

authentication protocols, and temporary credentials

called proxy credentials stored in the MyProxy

Server (MyProxy Credential Management Service,

2008). MyProxy is open source software for

managing X.509 Public Key Infrastructure (PKI)

security credentials (certificates and private keys)

(MyProxy Credential Management Service, 2008). It

combines an online credential repository with an

online certificate authority to allow users to securely

obtain proxy credentials when and where needed,

without worrying about managing private key and

certificate files (MyProxy Credential Management

Service, 2008). In our environment, a MyProxy

server is hosted on a server at the DGH site.

Healthcare professionals use MyProxy to delegate

credentials to the HDGPortal, which then is acting

on their behalf. This is achieved by storing

credentials in the MyProxy repository and retrieving

them when logging in HDGPortal by typing in the

MyProxy passphrase.

All web transactions are executed under the

Secure Socket Layer (SSL) via HTTPS.

AN APPROACH TO ENFORCE CONTEXT-AWARE ACCESS CONTROL TO PROCESS-BASED HEALTHCARE

SYSTEMS BUILD ON A GRID INFRASTRUCTURE

Figure 2: System Architecture.

Figure 3: Security Architecture.

Grid Service

Data Grid

Portal

Global Security Server

BPEL Process

...

Existing

Information

System

PDA Client

District General Hospital Grid

Local Authorization Server

Healthcare Organization

DGH

User-to-Role assignments

Task-related role permissions

Role permissions related to Grid

database services

Internet

HDGPortal

Internet

...

Global xoRBAC instance

Local xoRBAC instance

OGSA-DAI Service OGSA-DAI Service

Oracle MySQL Postgres

MyProxy Server

BPEL Engine

Global

access control service

Local

access control service

HEALTHINF 2009 - International Conference on Health Informatics

4.1 Access Control Mechanism

In HDGPortal prototype, access control is provided

at two levels: the BPEL task level and the Grid

database service level (Koufi and Vassilacopoulos,

2008). Hence, a middleware-based access control

mechanism has been developed which is employed

to mediate between subjects (healthcare

professionals) and objects (BPEL tasks and Grid

database services) and to decide whether access of a

given subject to a given object should be permitted

or denied by taking into account the current context.

In particular, the Java Authentication and

Authorization Service (JAAS) (Java Authentication

and Authorization Service, 2008) was used for the

development of:

 an, external to the BPEL engine, access control

service (global access control service) that

regulates user access to BPEL tasks

comprising the healthcare processes. These

tasks are hosted on the BPEL engine at the

DGH site.

 an, external to OGSA-DAI, access control

service (local access control) that enhances its

mechanism by adding context-awareness

features. In particular, this service regulates

access to Grid database services which form

the basic primitives for the generation of the

Grid services invoked by the relevant tasks.

Grid database services are hosted on web

servers at healthcare organizations’ sites.

The above access control services utilize two

kinds of xoRBAC instances. In particular,

 the global access control service uses a

xoRBAC instance (global xoRBAC instance)

for the definition of permissions on the

corresponding BPEL tasks comprising the

healthcare processes. These permissions are

assigned to roles which are, in turn, assigned

to healthcare professionals. The global

xoRBAC instance resides on a server at the

DGH site.

 each local access control service uses a

xoRBAC instance (local xoRBAC instance)

for the definition of permissions on the

corresponding Grid database services invoked

by the relevant BPEL tasks. The local

xoRBAC instance resides on a server at each

healthcare setting.

According to the proposed mechanism, each

request for a task execution, issued by a healthcare

professional, is captured and passed to the global

xoRBAC instance which decides whether access

should be granted. As each task execution invokes

exactly one Grid service, allowing task execution

means allowing the invocation of the underlying

Grid service. The decision for granting access or not

is taken in accordance to the active role set of a

subject (healthcare professional) and the context

holding at the time of the attempted access. During

task execution, the relevant Grid service is invoked

which, in turn, may involve the invocation of a

number of Grid database services residing at

different sites within a health district. Each request

for the invocation of a Grid database service is

captured at the site hosting the service and passed to

the corresponding local xoRBAC instance which

decides whether access should be granted with

regard to the current context.

4.2 Context Information Management

In the HDGPortal prototype, the contextual

information is determined by a pre-defined set of

attributes related to:

 the user (e.g. user certificate, user/patient

relationship),

 the environment (e.g. client location and time

of attempted access) and

 the data resource provider, namely to the

healthcare organization (e.g. local security

policy).

For example, the permissions of a physician

using HDGPortal on his/her PDA, are adapted

depending on his/her identity (included in the proxy

certificate), location and time of access as well as

the security policy of each healthcare organization

where a portion of the requested information is

stored.

Context information relevant to access control is

used for the definition of context constraints which

enable the enforcement of fine-grained context-

dependent access control policies. In xoRBAC

component, enforcement of such policies is achieved

via the dynamic constraint manager sub-system. The

latter comprises the environment mapping which

captures context information via physical and logical

sensors, and the constraint evaluation which uses

the collected values to evaluate the relevant context

constraints associated with a certain conditional

permission (Guth, Neumann and Strembeck, 2003).

Context constraints are composed of context

conditions through which they combine and

interrelate the measurements of the sensors (Guth,

Neumann and Strembeck, 2003).

AN APPROACH TO ENFORCE CONTEXT-AWARE ACCESS CONTROL TO PROCESS-BASED HEALTHCARE

SYSTEMS BUILD ON A GRID INFRASTRUCTURE

In HDGPortal, context information is captured

by a set of xoRBAC’s logical sensors. These consist

only of software components and are used to gather

information extracted from system internal sources

(e.g. the IP address of a certain device, information

stored in databases or log files, the status of other

applications or services, CPU ID, CPU state,

network load and so on) (Neumann and Strembeck,

2003). Currently, xoRBAC implements three types

of logical sensors, namely Localhost, Database and

Flatfile Sensors, respectively. HDGPortal utilizes

these types of sensors in conjuction with an

Authentication Sensor. The Database and Flatfile

Sensors are used in their current form while

Localhost Sensor has been extended in order to

provide additional information (i.e. the client’s IP).

Moreover, the Authentication Sensor is a logical

sensor build from scratch which is concerned with

user-related context information (i.e. the validation

of the user’s proxy certificate). In particular,

HDGPortal uses:

 Localhost Sensor for capturing context

information related to the environment (i.e.

time of attempted access and client location).

Time is captured via

clock, a context function

which is already exported by

LocalhostSensor.

In order for client location to be captured,

LocalhostSensor is extended with an additional

context function, namely

clientLocation which

processes the HTTP headers of each client

request in order to extract the client’s IP and

determine whether the healthcare professional

using it is in hospital premises at the time of

the attempted access.

 Database Sensor for capturing part of the

context information related to the user (i.e.

user/patient relationship). This information is

retrieved by querying the relevant MySQL

database. One important disadvantage of this

sensor though is that in-depth knowledge of

the underlying database schema is required.

 Flatfile Sensor for capturing context

information relevant to the data resource

provider, namely the healthcare setting

hosting part of the patient’s medical record.

This information is the provider’s local access

control policy regarding certain individuals

(i.e. an access control list) and is stored in a

file at the provider’s site. In particular, if there

is an entry for a user requesting access to a

data resource then the authorization decision

is based on the rights assigned to him via that

entry and overrides the decision deducted by

taking into account the rest of the information

comprising the context information model.

 Authentication Sensor for checking the validity

of the credentials used by each user requesting

access to the system.

In the case of the healthcare process described in

Section 3, a physician may execute the task

“IssueRadRequest” (i.e. issue a request for a

radiological procedure on one of his/her patients)

while on duty and within the hospital premises.

Thus, the context attributes to be taken under

consideration in the relevant authorization decision

are:

1. current_date_&_time

2. duty_date_&_time_interval

3. client_IP_address

4. in_premises_IP_address

The values of these attributes are collected via a

subset of the above mentioned sensors. The context

conditions that must evaluate to true in order for

access to be granted to the physician are:

1. current_date_&_time in duty_date_&_time_

interval

2. client_IP_address is-a in_premises_IP_

address

These context conditions compose the context

constraint which is associated with the conditional

permission on the task “IssueRadRequest”. This

constraint is evaluated by the constraint evaluation

component of the xoRBAC’s dynamic constraint

management sub-system whenever access to the task

is requested.

5 CONCLUDING REMARKS AND

FUTURE WORK

Development of pervasive applications that provide

readily access to integrated healthcare information at

the point of care, introduces security risks especially

with regard to authorization and access control.

Hence, relevant mechanisms must be in place that

can conveniently regulate user access to information

while providing confidence that security policies are

faithfully and consistently enforced within and

across organizations residing in a health district. In

particular, when adherence to the least privilege

principle is considered a prominent feature of a

system, the incorporated access control mechanism

should provide tight, just-in-time permissions so that

authorized users get access to specific objects

HEALTHINF 2009 - International Conference on Health Informatics

subject to the current context. The access control

mechanism presented in this paper meets the

aforementioned requirements and is embedded into a

Grid portal application, namely HDGPortal. In

particular, the mechanism ensures authorized

execution of BPEL tasks and invocation of relevant

Grid database services in accordance with the

current context. To this end, a number of xoRBAC

instances are integrated at both the BPEL and the

Grid database service level as policy decision points.

Thus, a tight matching of permissions to actual

usage and need is ensured through the specification

of fine-grained context-dependent access control

policies.

Currently, the pieces of information influencing

authorization decisions in xoRBAC are rather

limited. This fact, suggests directions for future

work. In particular, the enrichment of the context

information model used by xoRBAC may enable the

enforcement of even more effective access control

policies in healthcare. Furthermore, certain

disadvantages that appear in the mechanisms that are

currently used for the collection of the context

information may constitute an interesting topic for

further research.

REFERENCES

Koufi, V., Vassilacopoulos, G., 2008. HDGPortal: A Grid

Portal Application for Pervasive Access to Process-

Based Healthcare Systems, In PervasiveHealth’08,

2nd International Conference in Pervasive Computing

Technologies in Healthcare.

Emmerich, W., Butchart, B., Chen, L., Wassermann, B.,

Price, S., 2006. Grid Service Orchestration Using the

Business Process Execution Language (BPEL),

Journal of Grid Computing (2006) 3: 283-304.

Mendling, J, Strembeck, M, Stermsek, G, Neumann, G.,

2004. An Approach to Extract RBAC Models for

BPEL4WS Processes, Proceedings of the 13th IEEE

International Workshops on Enabling Technologies:

Infrastructure for Collaborative Enterprises.

Thomas, J., Paci, F., Bertino, E., Eugster, P., 2007. User

Tasks and Access Control over Web Services,

Proceedings of the 15th IEEE International

Conference on Web Services, 2007.

Bertino, E., Crampton, J., Paci, F., 2006. Access Control

and Authorization Constraints for WS-BPEL,

Proceedings of the IEEE International Conference on

Web Services, 2006.

Open Grid Services Architecture - Data Access and

Integration (OGSA-DAI), http://www.ogsadai.org.uk/.

Adamski, M., Kulczewski, M., Kurowski, K., Nabrzyski,

J., Hume, A., 2007. Security and Performance

Enhancements to OGSA-DAI for Grid Data

Virtualization, Concurrency and Computation.:

Practice and Experience, 2007.

Dou, W., Cheung, SC., Chen, G., Cai, S., 2005.

Certificate-Driven Grid Workflow Paradigm Based on

Service Computing, Lecture Notes in Computer

Science (2005) 3795: 155-160.

Power, D., Slaymaker, M., Politou, E., Simpson, A., 2005.

A Secure Wrapper for OGSA-DAI, Lecture Notes in

Computer Science (2005) 3470: 485-494.

IBM Corporation. IBM Websphere Workflow – Getting

Started with Buildtime V. 3.6, 2005.

Java Authentication and Authorization Service,

http://java.sun.com/javase/6/docs/technotes/guides/sec

urity/jaas/JAASRefGuide.html.

National Institute of Standards and Technology (NIST)

RBAC, http://csrc.nist.gov/groups/SNS/rbac/

Neumann, G., Strembeck, M., 2001. Design and

Implementation of a Flexible RBAC-Service in n

Object-Oriented Scripting Language. Proceedings of

CCS’01, November 5-8, 2001, Philadelphia,

Pennsylvania, USA.

Neumann, G., Strembeck, M., 2003. An Approach to

Engineer and Enforce Context Constraints in an

RBAC Environment, Proceedings of SACMAT’03,

June 2-3, 2003, Como, Italy.

The Globus Toolkit, http://www.globus.org/

xoRBAC, http://wi.wu-

wien.ac.at/home/mark/xoRBAC/index.html

Neumann, G., Strembeck, M., 2003. An Approach to

Engineer and Enforce Context Constraints in an

RBAC Environment, ACM Transactions on

Information and System Security, Vol. 7, No. 3,

August 2004, pp 392-427.

MyProxy Credential Management Service,

http://grid.ncsa.uiuc.edu/myproxy/

Paci, F., Bertino, E., Crampton, J., 2008. An Access-

Control Framework for WS-BPEL, International

Journal of Web Services Research, Vol. 5, Issue 3, pp.

20-43.

Fischer, K.P., Bleimann, U., Fuhrmann, W., Furnell, S.M.,

2007, "Security policy enforcement in BPEL-defined

collaborative business processes", Proceedings of the

1st International Workshop on Security Technologies

for Next Generation Collaborative Business

Applications (SECOBAP'07).

Guth, S., Neumann, G., Strembeck, M., 2003.

“Experiences with the Enforcement of Access Rights

Extracted from ODRL-based Digital Contracts”. In

DRM’03, 3

ACM Workshop on Digital Rights

Management.

AN APPROACH TO ENFORCE CONTEXT-AWARE ACCESS CONTROL TO PROCESS-BASED HEALTHCARE

SYSTEMS BUILD ON A GRID INFRASTRUCTURE
