A TOOL FOR ENDOSCOPIC CAPSULE DATASET

PREPARATION FOR CLINICAL VIDEO EVENT

DETECTOR ALGORITHMS

Sérgio Lima

, João Paulo Cunha

1,2

, Miguel Coimbra

and José M. Soares

IEETA – University of Aveiro, Aveiro, Portugal

DETI – Department of Electronics, Telecommunications and Informatics of University of Aveiro, Portugal

IT – Faculdade de Ciências da Universidade do Porto, Portugal

Hospital General Santo António, Porto, Portugal

Keywords: Capview, Endoscopic Capsule, Image Processing, Computer Aided Vision.

Abstract: In all R&D projects there's at least one phase of model verification and accuracy, and when we are working

with visual information (such as pictures and video) this phase should be emphasised. When working with

medical information and clinical trials the truth of automatic results must be accurate. This work is based on

the need of a huge and well annotated dataset of pictures retrieved from endoscopic capsule. This datasets

should be used to learn the computer vision algorithms focused on endoscopic capsule video processing,

and event detection.

1 INTRODUCTION

The endoscopic capsule (EC) (Ravens et al., 2002;

Iddan et al, 2000) is a small device with a behavior

similar to a photographic camera that flows through

the human digestive system recording pictures after

being swallowed by the patient. Considering that the

exam lasts between 6 to 8 hours, and that the EC

records/store frames with a 2 frames per second

cadence, it results on approximately 57600 frames to

be analysed, which could take up to 90 minutes

(Qureshi et al., 2004).

With this amount of information, pattern

recognition and machine learning algorithms are

helpful to augment review time efficiency by

automating or semi-automating this task. To achieve

this level of automatic analysis we need many

theoretical studies, which can benefit immensely

from experimental software that has been

specifically designed to support hypothesis testing

and validation.

On the other hand these algorithms require a

substantial number of test sets and correspondent

training ones. Therefore to fulfil this gap the ECCA

software was created (described bellow).

The principal motivation for its creation was the

lack of annotated EC events at large scale in a way

that could be used on computer vision algorithms.

The several repositories (also called atlas) on the

internet with endoscopic images and videos (GIA,

;AGE, ) are for education purposes only. Its

information is disease centric, containing patterns

and symptoms for each one so it maintains all the

clinicians all over the world up to date.

The ECCA repository has a different philosophy.

Its paradigm is based on machine learning

algorithms. Therefore it’s not sufficient one or two

photos from each disease neither it’s important many

of the clinical and symptomatic information.

In this paper we describe the “Endoscopic

Capsule Capview cAtaloguer” (ECCA), a tool for

creating subsets of annotated images for simplified

collection and management of image datasets.

The tool here described is intended to be a

complement of the Capview software platform

(Cunha et al., 2006) that is already used by doctors

to perform an agile diagnostic review of videos from

the Endoscopic Capsule (EC). It integrates several

functionalities, such as flexible report generation

facilities or a MPEG-7 features extraction engine to

support automatic detectors for bleeding events and

topographic segmentation (Coimbra et al., 2006;

Cunha et al., 2008; Coimbra et al., 2005). At the end

of a review process with Capview, we will have a set

of events marked by the clinician. These events

265

Lima S., Cunha J., Coimbra M. and M. Soares J. (2009).

A TOOL FOR ENDOSCOPIC CAPSULE DATASET PREPARATION FOR CLINICAL VIDEO EVENT DETECTOR ALGORITHMS.

In Proceedings of the International Conference on Health Informatics, pages 265-269

DOI: 10.5220/0001548502650269

 SciTePress

(short videos around the image where a particular

event was marked, such as a polyp) are the data units

we use for the ECCA tool. We aim at using them for

further annotation of independent clinicians to

obtain a multi-reviewer consensus degree on the

collected events.

The present tool is then intended to generate and

manage the multi-expert annotation and dataset

creation for further development of new detectors

that will be integrated in the Capview platform.

2 ECCA TOOL

2.1 Objectives

With this software tool we'll retrieve several subsets

of endoscopic images (gathered from real exams),

divided by type of disease, size of polyps or tumours

when applied, and their morphology. Those images

will also have information about image quality,

where high quality means low presence of food

and/or fecal matter, and good light conditions.

Thus, its primary objective is to contain an

on-line repository with enough information to test

and verify each new algorithm that works with EC

video and/or images.

On the course of the development process,

another challenge came up: Use this software to

teach fresh intern doctors analysing this kind of

exams. We then need the ability to compare two

different catalogues, and identify their differences so

that performance of training doctors could be

measured.

2.2 Architecture

ECCA has a database-centric architecture. This

means that the main logic of it is to store

information. In this particular case we want to store

a catalogue of image annotations.

In this framework, a catalogue of EC images

needs to store information on event category and

Medical doctor (MD) responsible for that annotation

(Figure 1).

The application needs a thin layer of security,

where each medical doctor has its own

username/password to distinct each catalogue from

another. Thus one user cannot see or edit other user

catalogue. Therefore the results of one doctor aren't

biased by others.

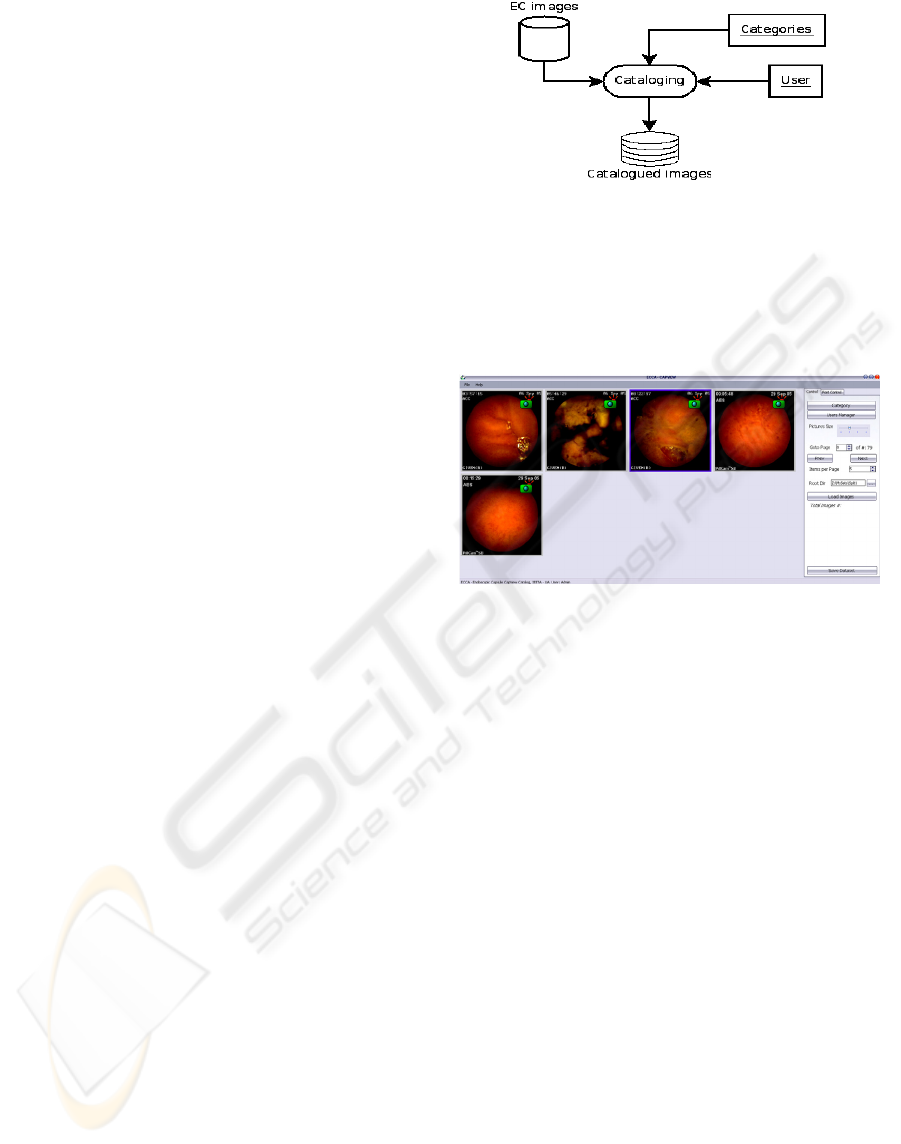

Figure 1: Simplified architecture.

2.2.1 Workflow

An MD enters its username and password, giving

access to main window (Figure 2) where EC images

will appear.

Figure 2: Main window.

He selects the desired image, by double-clicking

on it, and then a popup window () appears with only

the selected image and a panel with the categories

available to that image. After the MD makes his

choice of type of illness, its description, and quality,

the save button must be clicked. When clicked, the

information for that image is automatically stored in

the database (xml file for simplicity), and the next

image in line appears inside the popup window.

When all MD's finished their annotations, the

database will have information about each image

and correspondent illness and description.

With that database, we can create the subsets of

annotated images about each disease based on the

multi-expert classification obtained through ECCA

tool and establish the “gold standard” set by

choosing only the events where all experts agreed.

2.3 Applications

After describing how the software was designed it’s

necessary to show what can be done with it. The tool

has 2 main applications “Dataset Manager” and

“Pedagogical/Teaching”.

HEALTHINF 2009 - International Conference on Health Informatics

266

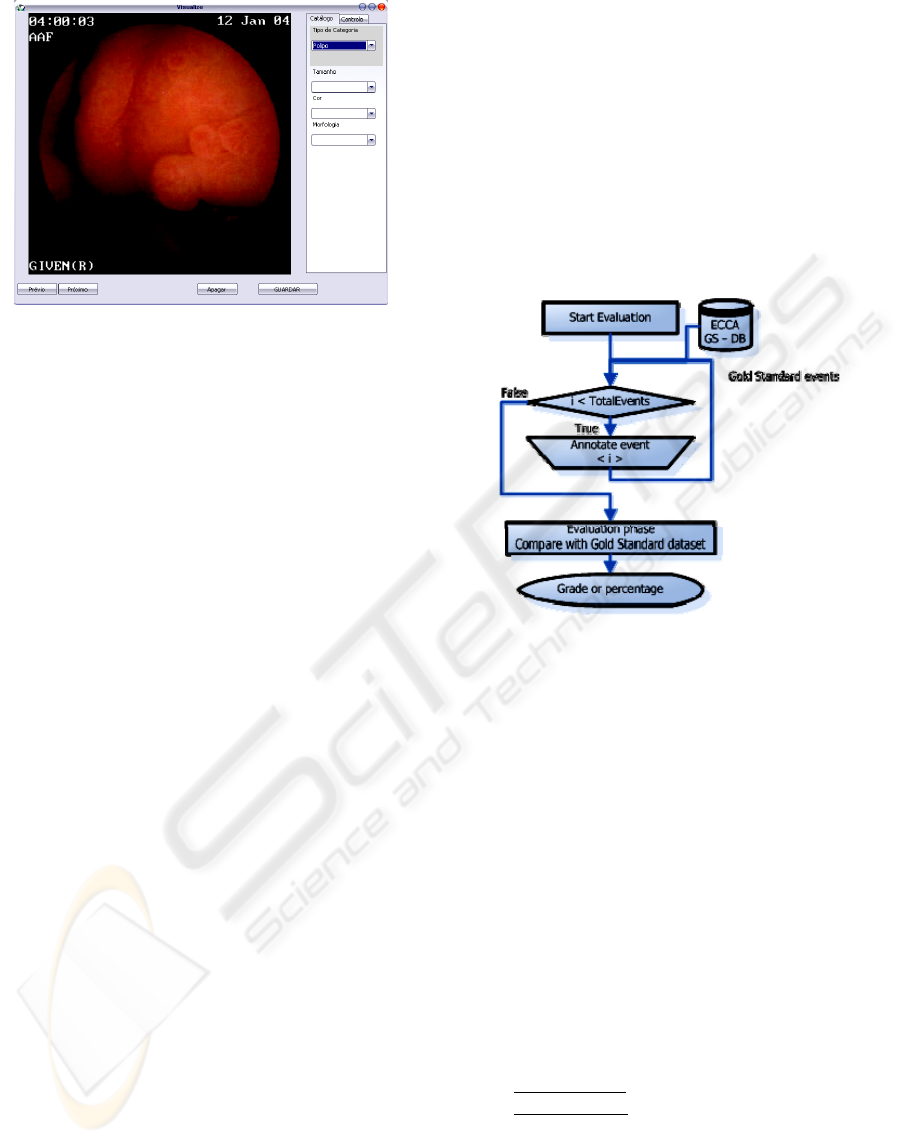

Figure 3: ECCA popup window.

2.3.1 Dataset Manager

Like it was said before the purpose of this dataset

manager is to create a considerable amount of

annotated EC exams, containing images and small

video clips, so following has validated and reliable

data to work on.

The images contained in this database have

mainly low resolution with 256x256 pixels, and the

newer capsules with 512x512 pixels. Previous

studies using computer aided tumor detection

(Karkanis et al, 2003) use 1K*1K pixels which is 16

times better than the first and 4 times better than the

last. Therefore the analysis and algorithms to detect

events such as tumors or polyps using this kind of

exams should be tested exhaustively against many

samples.

The methodology in the creation of this database

took advantage of the IEETA-CapDB (Campos,

2006) which contains considerable amount of

endoscopic capsule exams and respective diagnosis

retrieved from different clinicians that used the

CapView software, and submitted those diagnosis to

IEETA-CapDB repository on an anonymous and

freely manner.

Focusing on diagnosis of polyps, tumors and

normal cases 1900 randomly selected event images

and corresponding videos were gathered on an

uniform basis (evenly distributed by each test case).

The manager allows the creation of a gold

standard set of events derived from the annotation of

clinicians using the workflow described above. Then

they are filtered by similarity, i.e only the

annotations that are equal by all EC experts will be

present on the gold standard. At the end a confident,

distinct and valid dataset of annotated events is

available.

2.3.2 Pedagogical

Using it as pedagogical/teaching tool has an

important requirement. The gold standard (GS)

database must already be present. This GS database

or dataset is created using only the annotations from

the clinicians belonging to the capsule experts group

using for that matter the dataset manager, which

contains all the exams and respective annotations.

With the gold standard reference dataset and the

methodology bellow it’s possible to evaluate each

person.

Figure 4: Evaluation workflow.

The schematic above illustrates the methodology

to evaluate each one. It cycles through all exams

inside GS dataset and the student/person to evaluate

must annotate it. After all the exams were annotated

the final step will evaluate his responses/annotations.

In the evaluation phase all the events are

compared to the GS dataset and it will grade each

response based on the following equation:

EVAL = 60% x Type + 40% x (# correct

characteristics / # GS characteristics)

(1)

The equation (1) gives more weight to the type

of illness (either it's a polyp, tumor or normal case),

and the remaining will be equally distributed by all

the characteristics of that illness (inside

characteristics.xml file, see results section).

The evaluation takes into account the following:

type of illness

: normal case, tumor or polyp

characteristics

of each illness:

polyp: size, morphology, color.

tumor: size, morphology, color

normal: not applied, it hasn't any

characteristics.

A TOOL FOR ENDOSCOPIC CAPSULE DATASET PREPARATION FOR CLINICAL VIDEO EVENT DETECTOR

ALGORITHMS

267

There are also some extra categories that will not

be considered because it’s only for image quality

screening such as food remains, image quality, and

others. This “others” category means that image

doesn’t belong to any of the categories above. The

“image quality” is evaluated using some qualitative

expressions such “good”, “bad” or “moderate”.

At the end there is an overall rating resulting

from the average of each grade of each event.

With the methodology illustrated in it's possible

to quantify the capacity each group of clinicians has

to diagnose using the endoscopic capsule method.

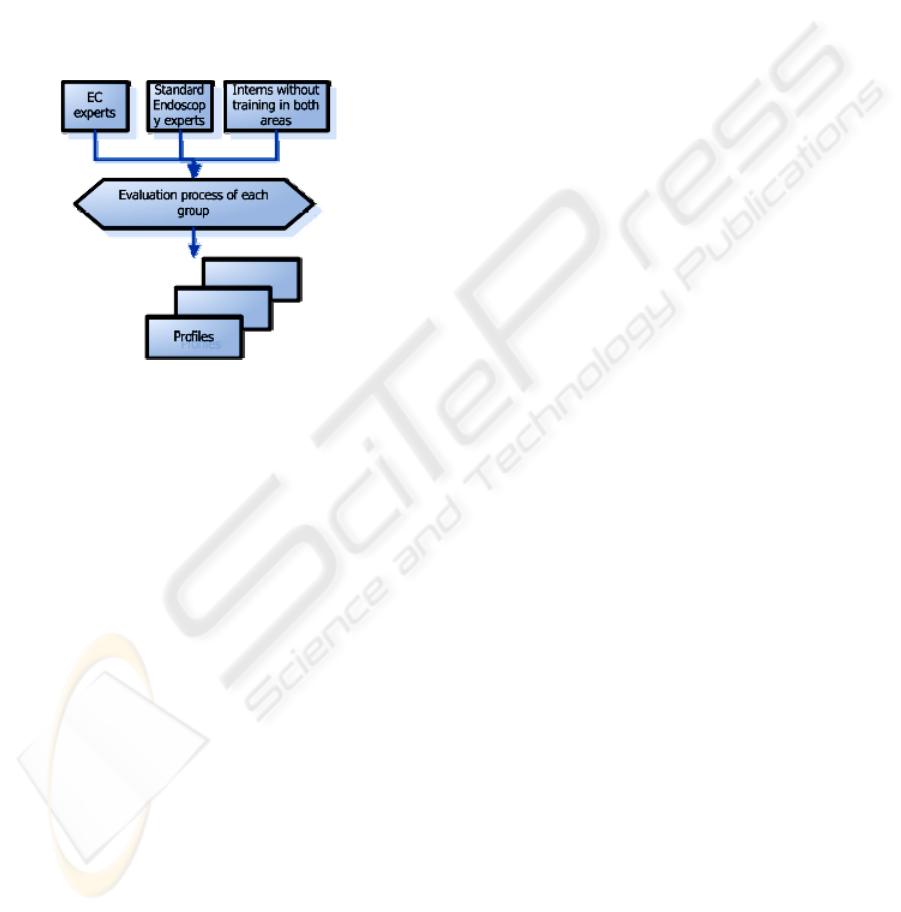

Figure 5: Group evaluation.

This methodology will show the capability of

distinct group of clinicians to diagnose using EC

method. Because those results are off scope of this

article they would be presented in a future work.

Then with more insight and reasonable amount of

clinicians using this software, it would be possible to

answer some of the questions above.

3 RESULTS

The present version of the event database has an

overall of 1900 events. Our clinical partners at

HGSA, Porto are using this software. Until the

present date two experts in Endoscopic Capsule

diagnosis and a couple of interns used it and had an

overall of 3700 annotations. About 900 were

annotated 3 times, and the remaining 1000 were

annotated only once. Thus, the confidence on those

first 900 events is very high. It is only a question of

time to annotate all events.

The tool is able to produce a “results file” in the

form of a ZIP file. That ZIP file will contain a

directory with all the images, and one CSV file with

the raw data. These CSV file has the following

structure:

(imagepath), (type), (GoldStandard), (characteristic),

(value), {(characteristic),(value)}

The first column contains the path of the image.

Second the type of illness (tumour, polyp, or

normal). Third the GoldStandard is a boolean field,

telling if that image is part of the Gold standard

dataset. The fields after has a list of characteristics

and respective value for that image. This list can

have many pairs (characteristic, value), ex: (Size,

5mm), (Colour, Red). All the possible characteristics

and its values will be discriminated on the file

caracteristics.xml also inside the ZIP file.

Its structure follows:

...

...

</characteristic>

...

</characteristics>

4 DISCUSSION

The experts in EC diagnosis at HGSA are creating

the gold standard dataset which will be used to test

and train future computer vision algorithms. Their

feedback tells us that it’s easy to use and a handy

tool, with the only setback being the time needed to

annotate all the events which takes over 4 hours.

The ECCA software generates subsets of

annotated events derived from those high confidence

ones that will be used in the development of

computer vision algorithms to be integrated in the

Capview software, which is our main research goal.

Therefore a well annotated and high confidence

dataset of events is at the most importance. Thus it

could be used as train/test sets for machine learning

algorithms. The difference between Capview and

ECCA tool is that the first is used for clinical and

diagnosis annotation, while the ECCA aims a

construction of a well defined dataset with necessary

information for event detector algorithms.

Those algorithms need to minimize the

classification error rate and improve its performance.

One of the main aspects to take into attention is the

training and test sets size and quality. It should be

large enough and independent from one another

(Jain et al., 2000). This can easily be generated using

the ECCA tool.

The evidence of pedagogical relevance is not

proved yet, because there were not subjects that tried

HEALTHINF 2009 - International Conference on Health Informatics

268

this software, therefore there are not results to

demonstrate this approach.

5 CONCLUSIONS

The ECCA software is not another endoscopic or

endogastric atlas. The atlas is for humans as is this

tool for computers. Those atlas are available on the

internet or books which intends to instruct and

provide up to date information about endogastric

diseases, in a way that medical doctors can provide

the best care possible, while the tool described in

this paper aims a similar learning phase for

computers and artificial intelligence algorithms.

The main objective is to create a large set of data

capable of training and testing several machine

learning and computer vision algorithms. In that way

distinct algorithms could be tested with the same or

similar test and training data. Therefore, the

comparison between them could be performed more

directly and with high accuracy.

Several on going studies taken place at SIAS-

IEETA R&D department using computer vision

applied to EC video benefit from the data gathered

from this tool. The development and evaluation of

these computer vision and detection algorithms,

based on EC video processing, become a simpler

process by using the data gathered by this tool.

Furthermore, it may be used as a teaching tool

for EC specialist trainees. Due to lack of test

subjects, students willing to expend some time

trying this tool, there are not data that prove or not

the pedagogical relevance of this software, in spite

accreditation by the EC specialists.

ACKNOWLEDGEMENTS

The authors would like to thank the

Gastroenterology Department of Santo António

General Hospital (HGSA) in Portugal and the

endoscopic capsule specialists of the same

department for their contribution to the clinical

annotation using the ECCA software. The authors

would also like to thank the IEETA institute for their

vital support The presented work was developed in

the scope of project PTDC/EEA-ELC/72418/2006,

financed by FCT (Fundação para a Ciência e a

Tecnologia), under “POS-Conhecimento”

programme of the Portuguese Government.

REFERENCES

Cunha, J. P. S., Coimbra, M., Campos, P., and Soares, J.,

(2008), "Automated Topographic Segmentation and

Transit Time Estimation in Endoscopic Capsule

Exams", in IEEE Trans. on Medical Imaging, vol. 27,

pp. 19-27.

GIA, Gastro Intestinal Atlas Home Page

http://www.gastrointestinalatlas.com/index.html

AGE, Atlas of Gastrointestinal Endoscopy,

http://www.endoatlas.com/

Iddan, G., Meron, G., Glukhovsky, A., and Swain P.,

(2000). Wireless Capsule Endoscopy, Nature, pp. 405-

417

Qureshi, W.A., (2004). Current and future applications of

capsule camera, Nature, vol.3, pp. 447-450

Ravens, A.F., Swain, C.P., (2002). The wireless capsule:

new light in the darkness, Digestive Diseases, vol.20,

pp. 127-133

Coimbra, M., Campos, P., Cunha, J.P.S., (2005).

Extracting clinical information from endoscopic

capsule exams using mpeg-7 visual descriptors,

Integration of Knowledge, Semantics and Digital

Media Technology EWIMT, pp.105-110.

Cunha, J. P. S., Coimbra, M., Campos, P., and Soares, J.,

(2006). The First Capview.Org Automatic Tool for

Capsule Endoscopy, presented at 4th Iberian Meeting

of Capsule Endoscopy, Coimbra.

Coimbra, M., Campos, P., and Cunha, J.P.S., (2006).

Topographic Segmentation and Transit Time

Estimation for Endoscopic Capsule Exams, in IEEE

ICASSP - International Conference on Accoustics,

Speech and Signal Processing. Toulouse, France:

IEEE.

Jain, Anil K., Duin, Robert P.W., Mao Jianchang, (2000).

Statistical pattern recognition: A Review, IEEE

Transactions on pattern analysis and machine

intelligence, vol.22 No.1 pp. 4-37

Karkanis, Stavros A., Iakovidis, Dimitris K., Maroulis,

Dimitris E., Karras, Dimitris A., (2003). Computer-

Aided Tumor Detection in Endoscopic Video Using

Color Wavelet Features, IEEE Transactions on

Information Technology in Biomedicine, vol. 7, No 3,

pp. 141-152.

Campos, Paulo Costa Pereira, (2006). Plataforma de

arquivo e processamento de eventos em cáspula

endoscópica, Aveiro: Department of Electronics,

Telecommunications and Informatics, University of

Aveiro.

A TOOL FOR ENDOSCOPIC CAPSULE DATASET PREPARATION FOR CLINICAL VIDEO EVENT DETECTOR

ALGORITHMS

269
