EXPERIMENTAL DIGITAL BPSK MODULATOR DESIGN

WITH VHDL CODE FOR BIODEVICES APPLICATIONS

Gihad Elamary, Graeme Chester and Jeffery Neasham

School of Electrical,Electronics and Computer engineering, Newcastle University, Newcastle Upon Ttyne, U.K.

Keywords: VHDL coding modulator, BPSK digital modulator, CPLD/FPGAs.

Abstract: In this paper, we propose a new simple design for a BPSK modulator applied to implant telemetry

applications as demonstrated. We used hardware description language VHDL (IEEE standard) to generate a

BPSK digital signal. The carrier and data are interfaced to the CPLD and FPGAs board for testing, we used

the local clock oscillator, which is operating at 25.175 MHz reduced into 12.5 MHz for the carrier and

2Mbps for data source. The modelled modulator has been designed simulated and performance was

evaluated by measurements, considering low power consumption and size for medical purpose. Moreover,

the advantages of this modulator are it can be reconfigured and upgraded to enhance the bit rate.

1 INTRODUCTION

Wireless infrastructure is fast growing and this

technology may also be used for medical

applications such as biotelemetry, telemedicine and

healthcare (R.Harrison, et al., 2006). One of these

applications is transcutaneous wireless implant

telemetry, in order to communicate through wireless

inductive coupling to transfer the power and data to

a battery less implant (K.D.Wiseet al, 2004; C.Sauer

et al, 2004). Demand for higher data rates is high as

a result of increasing the electrode numbers for

reading nerve signal information or controlling data.

In such applications BPSK has advantages over

ASK and FSK modulations. The advantage of

BPSK is having fixed carrier signal amplitude that

provides stable power transfer and independent data

modulation. This is suitable to provide a constant

RF signal into an implant device. The advantage is

high readability for DC voltage supply at different

distances between reader coils and implant part. We

propose in this work to develop VHDL code to

generate a digital BPSK signal for improving

modulator performance and increasing the data rate

(Bob Zeidman, 2002). Compared to the other

analogue modulators, this type of modulator

provides digital synthesis and the flexibility to

reconfigure and upgrade with the two most often

used languages VHDL-and Verilog- based

(P.Niktin, et al., 2005; J.S. Ruque, et al., 2005).

2 METHOD

The BPSK signal can be represented mathematically

in an analogue way as in equation (1).

As demonstrated in Figure 1, for this technique it is

essential to convert the binary data

)(tm into a

NRZ signal that maps a logic ‘0’ to -1V(nominal)

and logic ‘1’ to +1V. This data signal controls the

transition shift

),0(

for the carrier signal. This

results in high power consumption for these types of

analogue modulators, reduces their efficiency and

limits their biomedical application. This also

increases the hardware complexity of the circuit and

produces a large physical device.

The proposed modulator is developed with

VHDL description code to generate carrier shifter

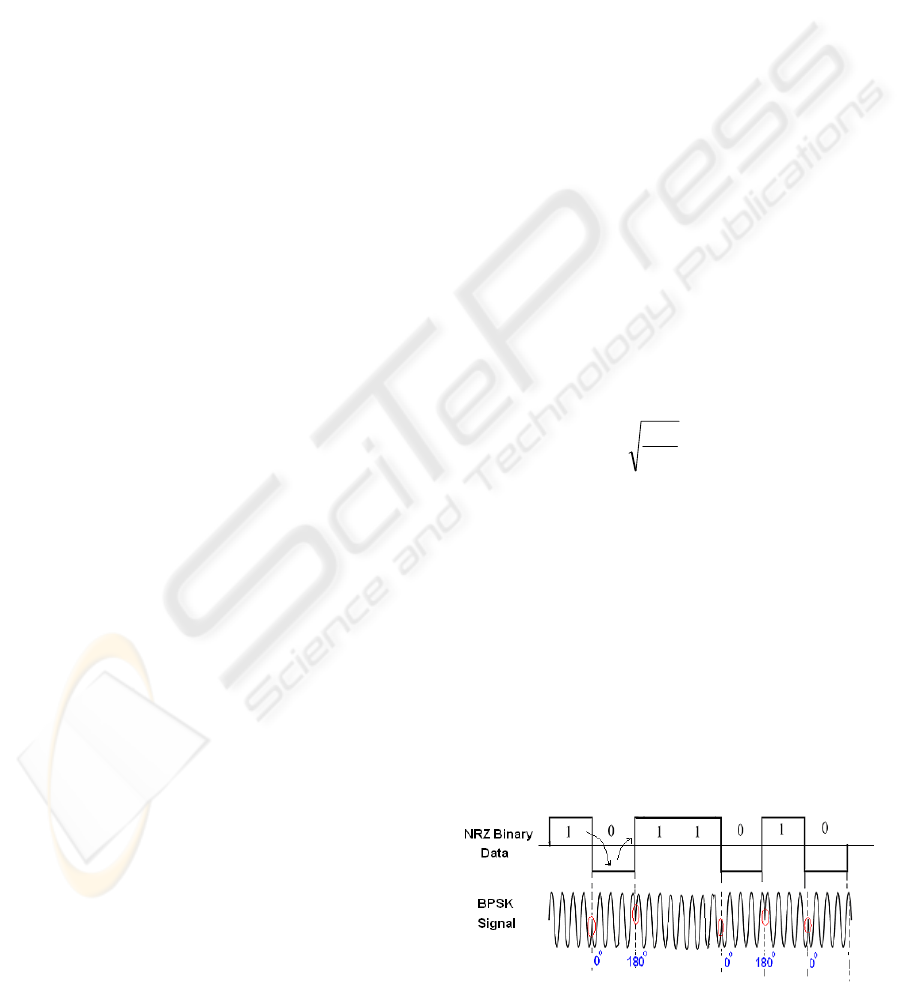

Figures 1: Illustrated the BPSK waveform with respect

NRZ) data transitions.

)(

)()(

rfrf

BPSK

twCos

tmtS

(1)

251

Elamary G., Chester G. and Neasham J. (2009).

EXPERIMENTAL DIGITAL BPSK MODULATOR DESIGN WITH VHDL CODE FOR BIODIVECES APPLICATIONS.

In Proceedings of the International Conference on Biomedical Electronics and Devices, pages 251-255

DOI: 10.5220/0001549402510255

 SciTePress

frequencies (0, 180°) which are controlled by the

input binary data to perform the transition of the

BPSK signal (I. Grout, et al, 2005). The modulator

consists of digital and analogue parts as depicted in

Figure 2. The output is selected by the multiplexer

then filtered with a passive Band Pass Filter (BPF)

to eliminate the higher frequencies and the

harmonics associated with the square wave signal in

order to provide the transmit analogue signal (Tx).

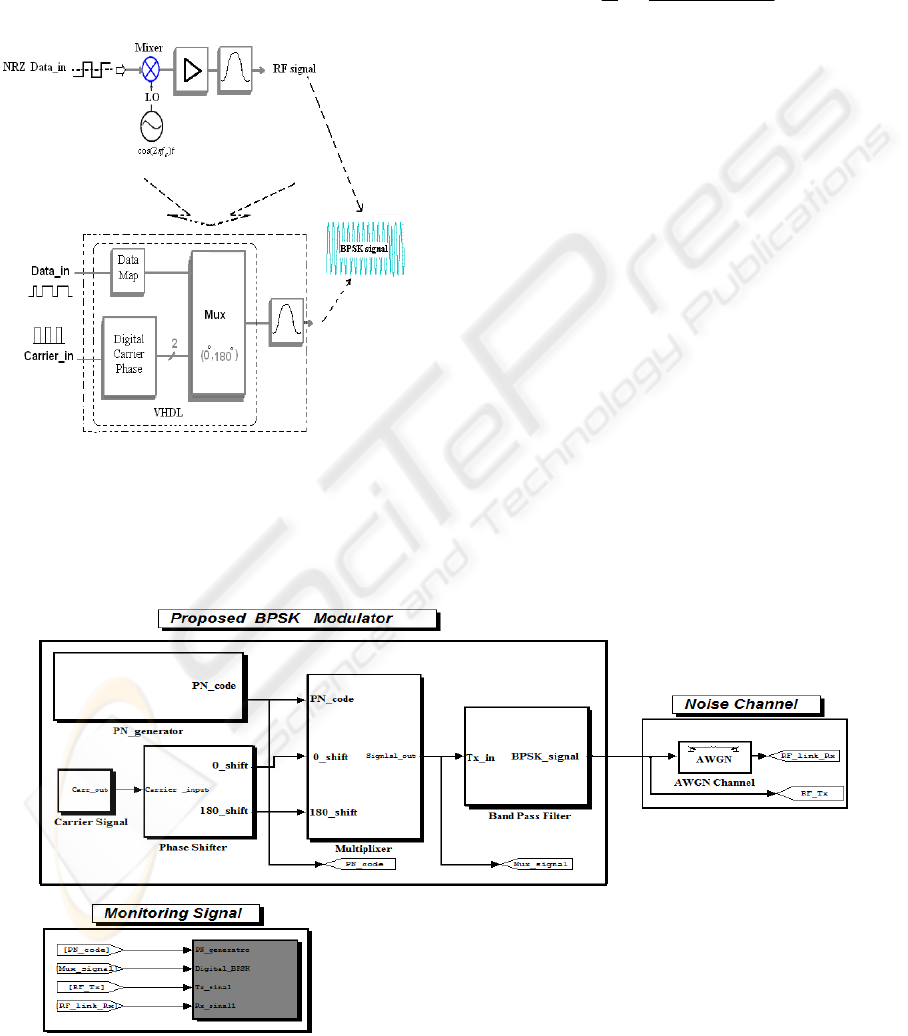

Figure 2: Illustration of the block diagram for the

proposed BPSK Modulator.

The simulated random data signal (Data_in) that is

generated by a PN sequence can be represented by

Fourier series analysis as in equation (2).

Where the input carrier signal is a periodic pulse

train signal and mathematically expressed by the

Fourier series as in equation (3).

The filter is essential for the modulator to complete

the process (off-chip). The output signal produced

by it is an analogue form. We investigated two types

of filters in this paper, Low Pass Filter (LPF) and

Band Pass Filter (BPF). The BPSK VHDL output

signal is fed into the test filters. These filter it to

pass the fundamental frequency (

dataf ±

) and to

remove the harmonics and the DC component. Our

prototype analogue filter uses the Chebyshev filter

II as opposed to the other filters such as Chebyshev

I, Butterworth, Elliptic and Bessel. Our second

choice is Butterworth LPF as this was observed to

give better performance than the other types.

3 MODULE SIMULATION

A. Simulink/ MATLAB Simulation

The BPSK modulator was designed and simulated

with Simulink/MATLAB to verify and validate the

modulator specifications. The demodulator is also

constructed using the same tools to examine the

performance of the proposed modulator. The

architecture block diagram of Tx_Mod is shown in

Figure 3: The simulink BSPK modulator diagram.

)()(

nTtpctPN −=

∑

∞

−∞=

(2)

sin((2 1) )

()

(2 1)

kwt

Carrier t

∞

−

∑

(3)

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

252

Figure 3. The simulation result of the Simulink

modulator is presented in Figure 4. The signal in

Figure 4a presents the digital BPSK signal while the

signal in Figure 4b presents the filtered BPSK output

of the BPF. The Tx and the Rx data are presented in

Figure 4c and Figure 4d respectively. Figure 5 shows

the spectrum of the transmitted RF signal (CH1) and

the received RF signal (CH2) in the presence of noise

(AWGN). Finally Figure 6 shows the simulation

result for the Bit Error Rate (BER) of the designed

demodulator.

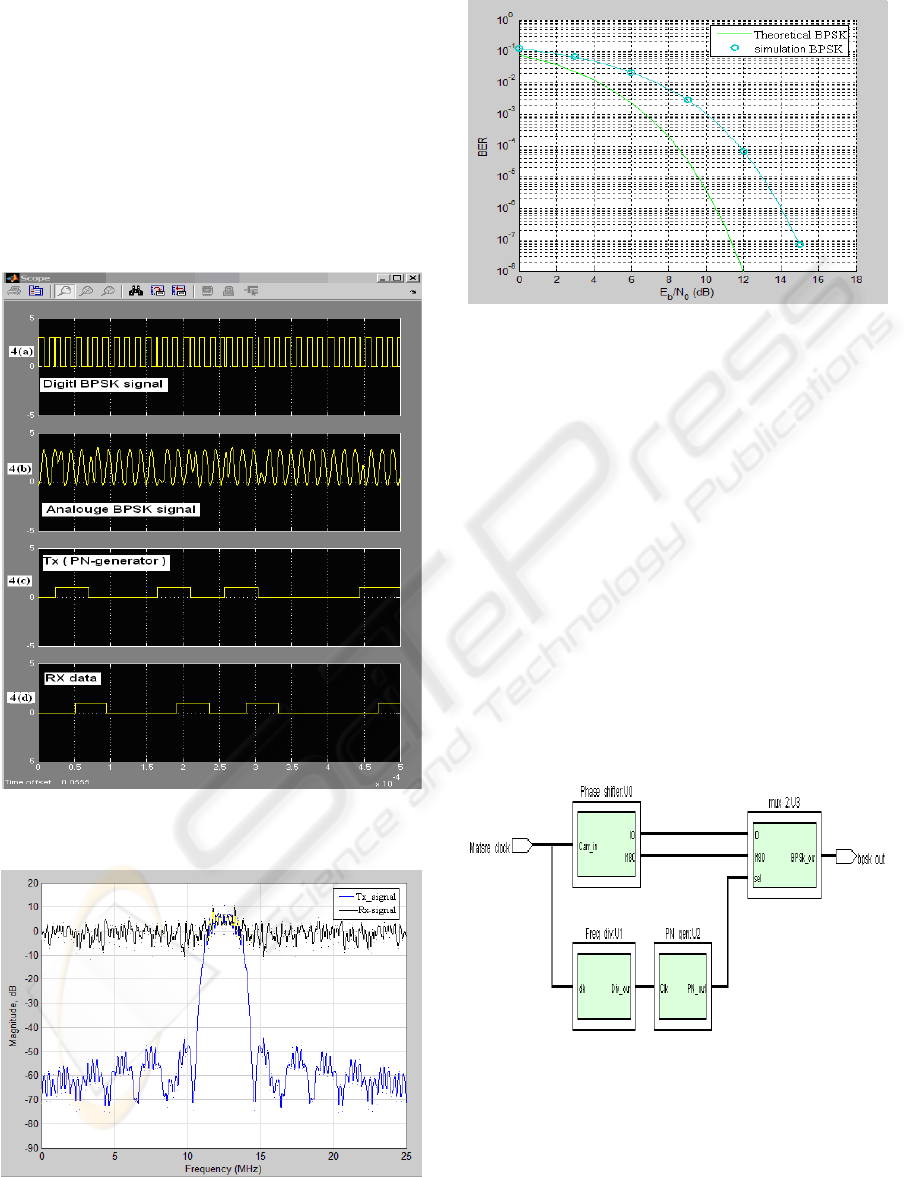

Figure 4: The simulated BPSK modulator output signals

results by Matlab/Simulink at frequency12.5 MHz.

Figure 5: The Spectrum of BPSK transmit and receive

signals at Data rate 2MHz, carrier 12.5MHz.

Figure 6: The BER simulation diagram of demodulator

signal from the proposed BPSK modulator.

B. VHDL-code Simulation

The modulator is implemented using VHDL code

and built by the Altera UP2 development kit board.

The carrier frequency 12.5 MHz was generated by

the local clock signal that operates at 25.175 MHz.

The signal data clock was reduced to 2MHz by a

frequency divider then used to generate a random

PN_sequence, which provided the transitions of the

carrier selected by the multiplexer (V.Pwdroni,

2007). The behavioural block diagram of the VHDL

code of the BPSK modulator is illustrated in

Figure_7, whilst the simulated result of this

modulator is presented in Figure 8 which

demonstrates the output signal waveforms indicating

the transitions (0°,180°) of the carrier signal (output

of multiplexer) due to the data source.

Figure 7: The VHDL Digital BPSK Modulator.

4 EXPERIMENTAL RESULTS

AND DISCUSSION

In this section we provide the measurements which

were conducted using the Altera UP2 Development

EXPERIMENTAL DIGITAL BPSK MODULATOR DESIGN WITH VHDL CODE FOR BIODIVECES

APPLICATIONS

253

Figure 8: The simulated waveform generated by Altera development tools for BPSK Modulator.

kit board for testing the VHDL code modulator and

comparing the performance with the simulated

BPSK modulation. The Agilent digital demodulator

(E8048A VXI) is used to receive the filtered RF

BPSK signal, and analyse the parameters of the

transmitted BPSK signal Tx as demonstrated in

Figure 9.

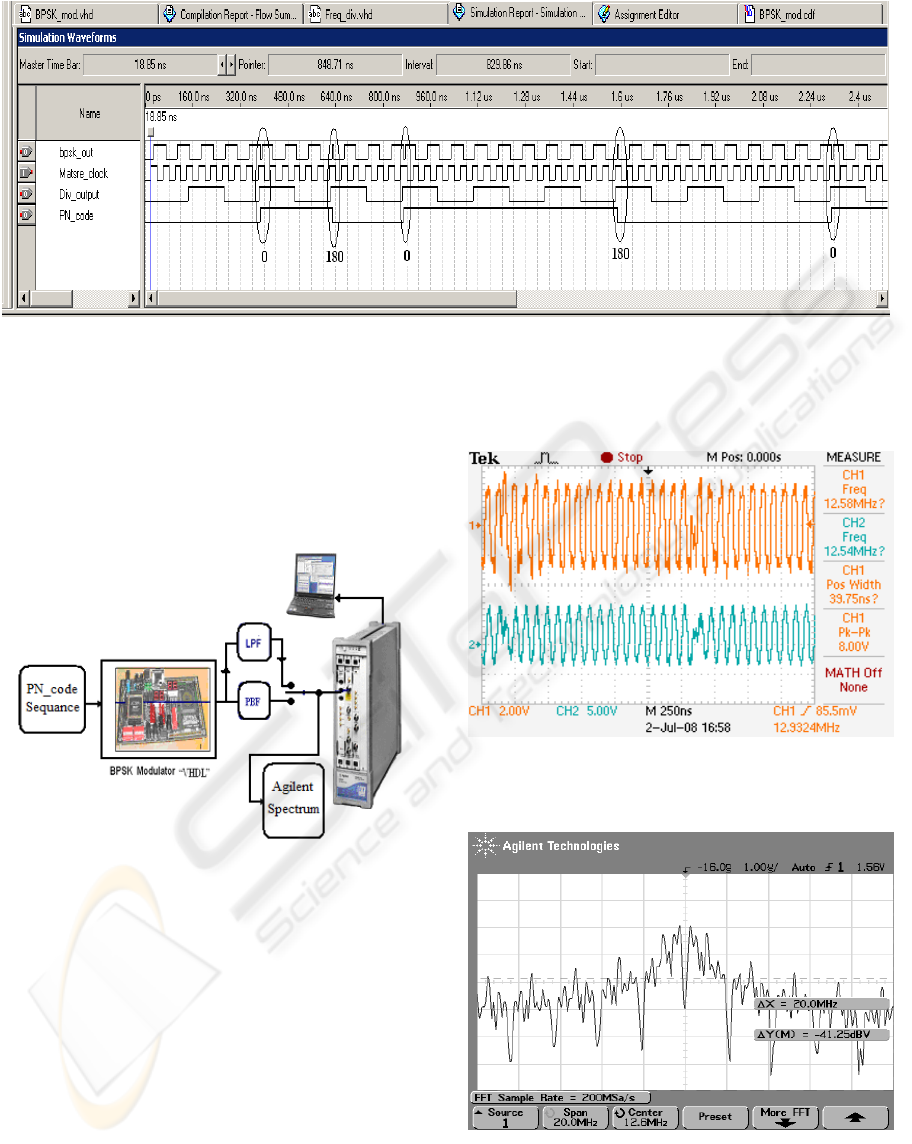

Figure 9: Illustrated the Lab measurement withUK2 Alter.

Aboard and Agilent digital demodulator (E8048A)

The

desired carrier signal was generated from the master

clock on the circuit board that operates at 25.175

MHz, and the carrier phase acquires two discrete

states (0, π) at frequency 12.5 MHz. This

corresponds to the PN-code data source generated

with VHDL code inside the FPGAs at 2Mbps in

order to produce the BPSK modulation. The

behavioural simulation results produced BPSK

digital signal, passed through passive BPF for

harmonics separation. We investigated two

prototypes of filters in this paper, LPF and BPF.

Our choice was the Chebyshev filter II as this

has better performance than the other types. The

filtered output signals, captured with Tektronix

scope and Agilent spectrum analyser are

demonstrated in Figures 10 and 11 respectively.

Figure 10: The output of VHDL BPSK modulator (digital

signal) Top and filtered signal bottom at carrier frequency

12.5 MHz.

Figure 11: The Spectrum of BPSK transmitted signal at

carrier 12.5 MHz.

The Agilent digital demodulator was used to

measure the spectrum of the Rx BPSK signal as

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

254

shown in Figure 12 while the constellation diagram

of the demodulated signal is presented in Figure 13.

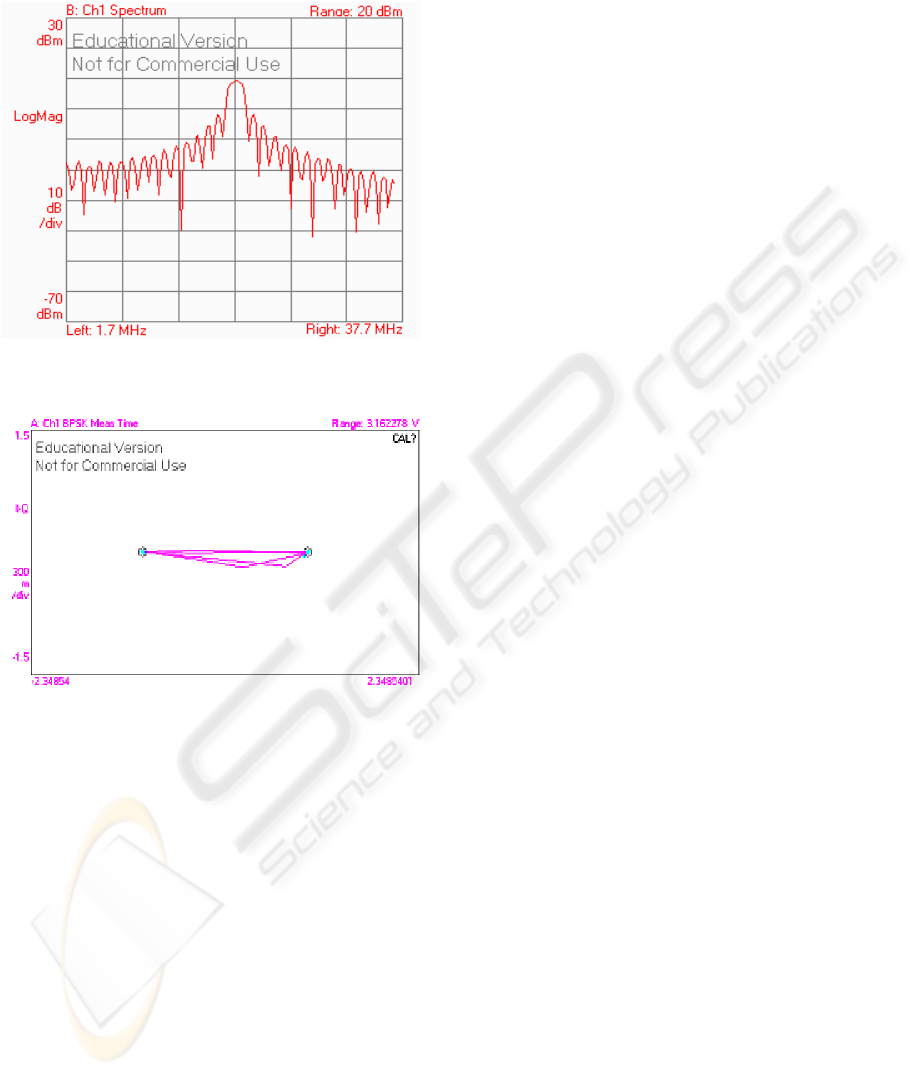

Figure 12: The Rx- BPSK signal spectrum at 12.5 MHz

carrier (data rate 2Mbps).

Figure 13: The constellation diagram of BPSK at

Demodulator using Agilent digital demodulator (E8048A).

5 CONCLUSIONS

We implemented a new simple BPSK digital

modulator model in the Simulink MATLAB

environment. This has been successfully

implemented using hardware description language

VHDL code by the Altera UP2 development board.

The modulator generates the BPSK signal directly

from the binary data in order to control the carrier

signal. The output producing a modulated digital

signal was filtered to transmit through a miniature

BPF. Experimentally measurements are presented at

carrier frequency 12.50 MHz, and data rate 2Mbps,

which present good performance with high data rate

and carrier suppression >35dB. The filter is a critical

part of the design. For this work we designed and

simulated different types of analogue filter and

compared them to choose the best filter

performance. The simulation results were that the

Chebyshev I & II, appeared optimum at BPFs

compared to the others, and optimum LPF

performance was form the Butterworth type. Digital

filters could be implemented to allow integration

with the digital modulator device. However the

disadvantage of digital filter is that they need

clocking at high multiples of the sampling frequency

which increases the power consumption and size. As

future work, it is still necessary to investigate other

methods to improve the harmonic rejection

performance of the analogue output filters by digital

synthesis of alternative waveforms at the modulator.

It is also an intention to up-convert the signal into an

ISM unlicensed frequency band (e.g. 402~405 MHz)

for biomedical telemetry purposes.

REFERENCES

R. Harrison, P. Watkins, R. Kier, R. Lovejoy, D.Black, R.

Normann, F. Solzbacher. (2006). “Low power

Integrated Circuit for a Wireless 100 - Electrode

Neural Recording System” IEEE International solid

state circuit conference.

K. D. Wise,D. J. Anderson, J. Fhetke, D. R. Kipke, K. N.

Ajafi. (2004). “Wireless Implantable Microsystems:

High Density Electronic Interfaces to the Nervous

System.” Proceeding of the IEEE, Vol. 92. No.1,

January

C. Sauer, M. Stanacevic, G. Cauwenberghs, N. Thakor.

(2004). “Power Harvesting and telemetry in CMOS

for Implanted devices” IEEE.

Bob Zeidman.(2006) “Designing with FPGAs and CPLD”

P. Nikitin, E.Normark, C.Wakayama, R.Shi.( 2004).

VHDL-AMS Modelling and Simulation of BPSK

Transceiver system.

J. S. Ruque, D .I .Ruiz, C. E. Carrion. (2004). “Simulation

and implementation of the BPSK Modulation on a

FPGA Xilinx Spartan 3 xcs200-4ftp256, using

simulink and System generator block set for

DSP/FPGA”.

Chad A. Bossetti, Jose Marmena, Miguel A., L. Nicolelis,

Patrick D. Wolf. (2005). Transmission Latencies in

Telemetry Linked Brain Machine Interface

transactions on Biomedical Engineering IEEE.

Volnnei A. Pedroni “Circuit Design with VHDL”. (2007).

I. Grout, J.Ryan, T. O.Shea. (2005) “Configuration and

debug of filed Programmable gate Arrays using

MATLAB/ SIMULINK”. Journal of Physics.

EXPERIMENTAL DIGITAL BPSK MODULATOR DESIGN WITH VHDL CODE FOR BIODIVECES

APPLICATIONS

255
