A PRELIMINARY STUDY ON THE DETECTION OF

TRANSCRIPTION FACTOR BINDING SITES

Erola Pairo, Santiago Marco

Institut de bioenginyeria de Catalunya,Baldiri i Reixac 13, 08028, Barcelona, Spain

Departament d’electronica, Universitat de Barcelona, Mart´ı i Franqu`es 1, 08028, Barcelona, Spain

Alexandre Perera

Centre de Recerca en Enginyeria Biomdica

CIBER de Bioingeniera, Materiales y Nanomedicina (CIBER-BBN), Spain

Keywords:

Transcription factors, Binding sites, Principal components analysis.

Abstract:

Transcription starts when multiple proteins, known as transcription factors recognize and bind to transcription

start site in DNA sequences. Since mutation in transcription factor binding sites are known to underlie diseases

it remains a major challenge to identify these binding sites. Conversion from symbolic DNA to numerical

sequences and genome data make it possible to construct a detector based on a numerical analysis of DNA

binding sites. A subspace model for the TFBS is built. TFBS will show a very small distance to this particular

subspace. Using this distance binding sites are distinguished from random sequences and from genome data.

1 INTRODUCTION

Understanding transcription is a major challenge in

molecular biology, and knowledge of transcription

factors binding sites is a prerequisite for a com-

plete understanding of gene expression. Transcrip-

tion factor binding sites (TFBS) are typically short

sequences, shorter in eukaryotes than in prokaryotes,

and degenerate. These sequences show variability

without loss of function. TFBS are mostly located

near the transcription start site, in the promoter of a

gene, but in complex organisms, such as humans, can

be located several kilobases away from it. Charac-

teristics described above made the detection of TFBS

challenging, although both experimental and compu-

tational methods have been developed (Bulyk, 2003).

Availability of genome collected data and large-

scale gene expression experiments make it possible to

devise a large number of algorithms for identiﬁcation

and prediction of transcription factor binding sites.

Many algorithms use non-coding sequences of co-

regulated genes from a single specie or non-codingse-

quences from orthologous genes from several related

species for doing de novo motif discovery (Pavesi

et al., 2004). Other algorithms use known transcrip-

tion factors, to build a model and search binding sites

in databases (Hannenhali, 2008).

Models of transcription factor binding sites can

be based on consensus sequences, where each posi-

tion is represented by the most common nucleotide

on that position using the IUPAC alphabet. Whether

a sequence belong or not to a transcription factor is

determined by the mismatches to the consensus, like

Weeder (Pavesi et al., 2001). Position weight matrices

(PWM) provide a probabilistic representation of bind-

ing sites because they capture the relative preference

for all four bases at each position. Among the mo-

dels for discovery and ﬁnding of transcription factors

based on PWM, some examples are Gibbs sampling

(Neuwald et al., 1995) and MEME (Bailey and Elkan,

2006). There are also models that use Hidden Markov

chains, which take into account interpositional depen-

dence.

While genomic information is represented by

character strings, it can also be mapped into a nume-

rical sequence. Many conversions from the symbolic

DNA sequences to numeric sequences have been pro-

posed (Anastassiou, 2001; Cristea, 2005). Nume-

rical representations can be used to analyze nume-

rical DNA sequences for detecting transcription fac-

tor binding sites. In this paper a detector based on a

subspace model of the TFBS is proposed. The sub-

506

Pairo E., Marco S. and Perera A. (2009).

A PRELIMINARY STUDY ON THE DETECTION OF TRANSCRIPTION FACTOR BINDING SITES.

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing, pages 506-509

DOI: 10.5220/0001550305060509

 SciTePress

space is found by a Principal Component Analysis

(PCA) of a training dataset containing known exam-

ples of TFBS. The structure of the sequences that are

recognized by a speciﬁc transcription factor can be

captured by its covariance, taking into account inter-

positional dependence. While PWM based methods

use only the information regarding the frequency of

each nucleotide at a given position, the development

of methods that capture interpositional dependence

opens new possibilities to improve detector perfor-

mance.

2 MATERIALS AND METHODS

The analysis has been done on four different groups

of DNA sequences previously aligned. Each one

is recognized by a transcription factor as a bin-

ding site. The ﬁrst two groups of sequences

come from Dr. Schneider data’s (http://www.-

lmmb.ncifcrf.gov/∼toms), and corresponds to the

Dr. Thomas Schneider’s work on the characteri-

zation of transcription factor binding sites (Schnei-

der, 1997). The last two groups have been obtained

using the TRANSFAC data base (http://www.gene-

regulation.com/pub/databases.html), that contains

data on transcription factors, their binding sites and

the regulated genes. The last groups of sequences

have been aligned using MUSCLE (Edgar, 2004). Ta-

ble 1 summarizes the characteristics of these groups

of sequences.

Not all the aligned sequences, corresponding to

a certain transcription factor, have the same length,

because of missing data at the extremes of some se-

quences. To carry out PCA sequences of the same

length are needed, therefore data have been prepro-

cessed and missing values have been omitted. Al-

though many techniques to model missing data have

been proposed, the present work only considers posi-

tions where the nucleotide is present for all sequences.

In order to perform or a PCA analysis conversion

to numerical sequences is needed. Each nucleotide

has been assigned to a vertex of a regular tetrahedron,

so that nucleotides are symmetric among each others

(Silverman and Linske, 1986). In ﬁgure 1, the posi-

tion of each nucleotide in a tetrahedron is schemati-

cally shown.

Vectors corresponding to each nucleotide of a se-

quence have been concatenated to a vector, and the

different sequences corresponding to a TFBS have

been arranged in matrix form. The result obtained is

a matrix with 3· Number of nucleotides columns and

as many rows as the number of original sequences.

Principal component analysis performs a eigen-

−0.5

0.5

−1

−0.5

0.5

A=(0,0,1)

T=(2sqrt(2),0,−1/3)

C=(−sqrt(2)/3,−sqrt(6)/3,−1/3)

G= (− sqrt(2)/3, −sqrt(6)/3,−1/3)

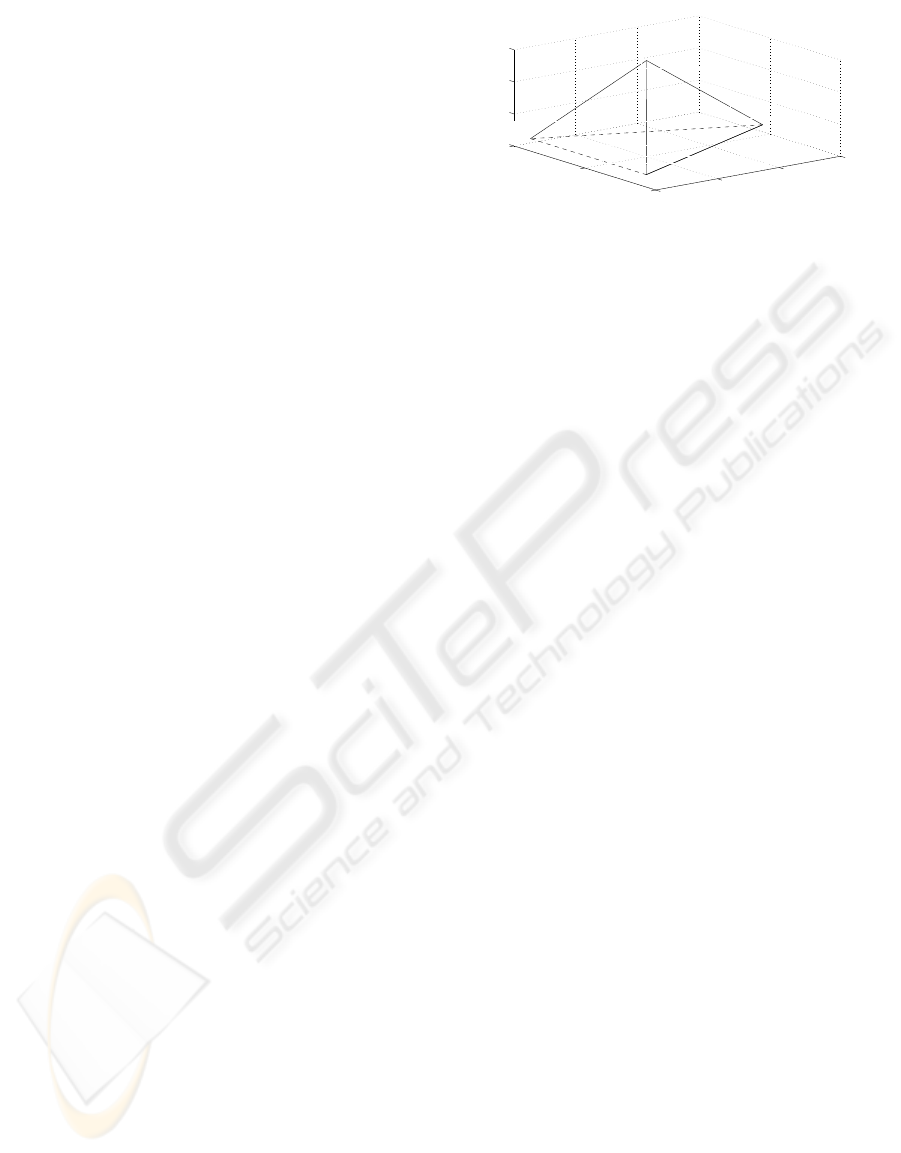

Figure 1: Schema to illustrate the numerical representation

of DNA. Each nucleotide is placed in a vertex of a regular

tetrahedron.

analysis of the covariance and permits to project the

data into a subspace deﬁned by the set of eigenvectors

capturing the maximum variance. Equation 1, shows

the PCA decomposition, where X is the DNA numer-

ical matrix with dimensions M × 3N (where M is the

number of sequences and N is the binding site length),

A are the scores, B are the eigenvectors (loadings),

and E the error. Dimensions of A are M · npc and

dimensions of B correspond to 3N · npc, where npc

represents the number of principal components in the

model.

X = AB

+ E (1)

In case of DNA sequences,the similarly distribu-

tion of the variance along all dimensions indicates the

complexity of DNA data. In order to capture a great

percentage of variance more dimensions have to be

taken into account.

A detector has been created using Q-residuals,

calculated using equation 2, where E is the distance

orthogonal to the subspace deﬁned by the principal

components. Since most of the variance of trans-

cription factor binding sites has been captured by

the model, the Q-residuals of a sequence belonging

to a binding site should be small, while random se-

quences should have higher Q-residuals, according to

their symmetric variance in all the space. Deﬁning a

threshold on Q-residuals, TFBS can easily been dis-

tinguished from random sequences.

Q = EE

(2)

Models with different number of principal com-

ponents have been built for each transcription factor

and to demonstrate that binding sites have a struc-

ture 100,000 random sequences have been used as

test data. To evaluate the detector we propose the use

of Receiving Operating Characteristic (ROC) curves,

which show the true positive rate (TP) against the

false positive rate (FP). ROC curves have been com-

puted in a range of principal components in order to

A PRELIMINARY STUDY ON THE DETECTION OF TRANSCRIPTION FACTOR BINDING SITES

507

Table 1: Summary of the principal characteristics of the studied DNA sequences.

Transcription factor Organism number of bases Sequences aligned

Argr E. Coli 13 34

T7 symmetry Plasmid T7 41 34

ROX1 S.cerevisae 12 20

Abf1 S.cerevisae 11 22

study the efﬁciency of the proposed detector. Study-

ing the Area under ROC curve (AUC), helps to choose

the ideal number of principal components for a given

TFBS. The results have been validated using leave-

one-out-cross-validation: a TFBS sequence has been

removed and the remaining have been used to calcu-

late a model. Then, this model has been used to distin-

guish the removed sequence from random sequences.

Finally, a more realistic data has been used like

test data.S.cerevisae chromosomes 1 and 16, where

Abf1 and ROX1 binding sites, respectively, are

known to be. The model has been built without the

binding sequences in the chromosome and leave one

out has been used, to compute ROC curves in real

data.

−4 −2 0 2 4

−3

−2

−1

Scores on PC 1 (15.16%)

Scores on PC 2 (11.95%)

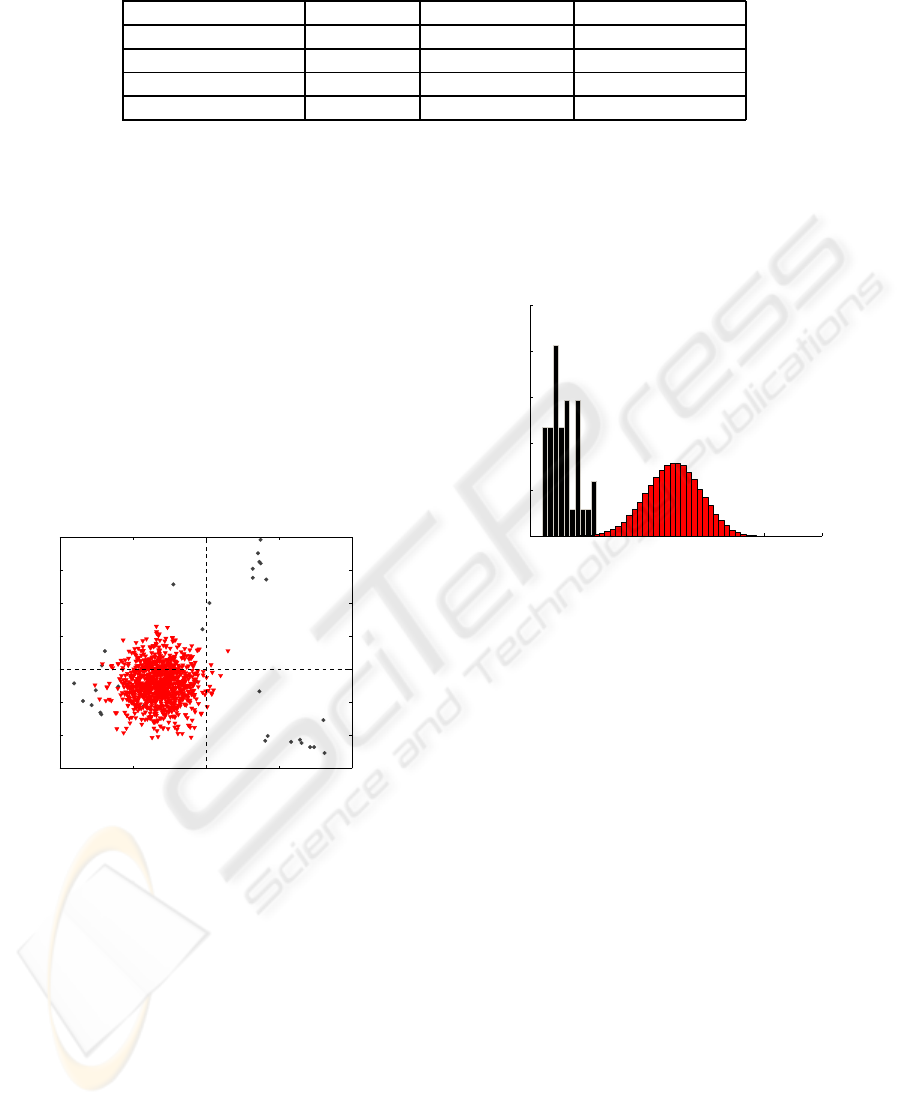

Figure 2: Scores in PCA 2 versus scores in PCA 1. T7 sym-

metry sequences are represented with circles and random

sequences with triangles.

3 RESULTS

A ﬁrst visualization of the data can be obtained rep-

resenting the scores of the two ﬁrst principal compo-

nents. In ﬁgure 2, the scores of the ﬁrst principal com-

ponents in T7 symmetry binding sites are shown, for

better visualization only 1000 random sequences are

represented. It can be observed that binding sites have

a structure different from random sequences.

In order to conﬁrm that Q-residuals can be used

in order to build a detector, the histograms of Q-

residuals have been computed, for model data and

100,000 random sequences in each TFBS. In ﬁgure

3, the histogram has been represented, using 8 prin-

cipal components and Argr binding sites. It is clearly

shown than a threshold can be deﬁned between ran-

dom sequences and binding sites.

0 5 10 15 20 25

0.05

0.1

0.15

0.2

0.25

Q−residuals(26,03%)

Probability distribution

Figure 3: Q-residuals histogram of transcription factor

binding, in black, and random sequences in red. A threshold

can be deﬁned to separate the two kinds of sequences

3.1 Detection Within Synthetic Data

The ideal number of principal components can be

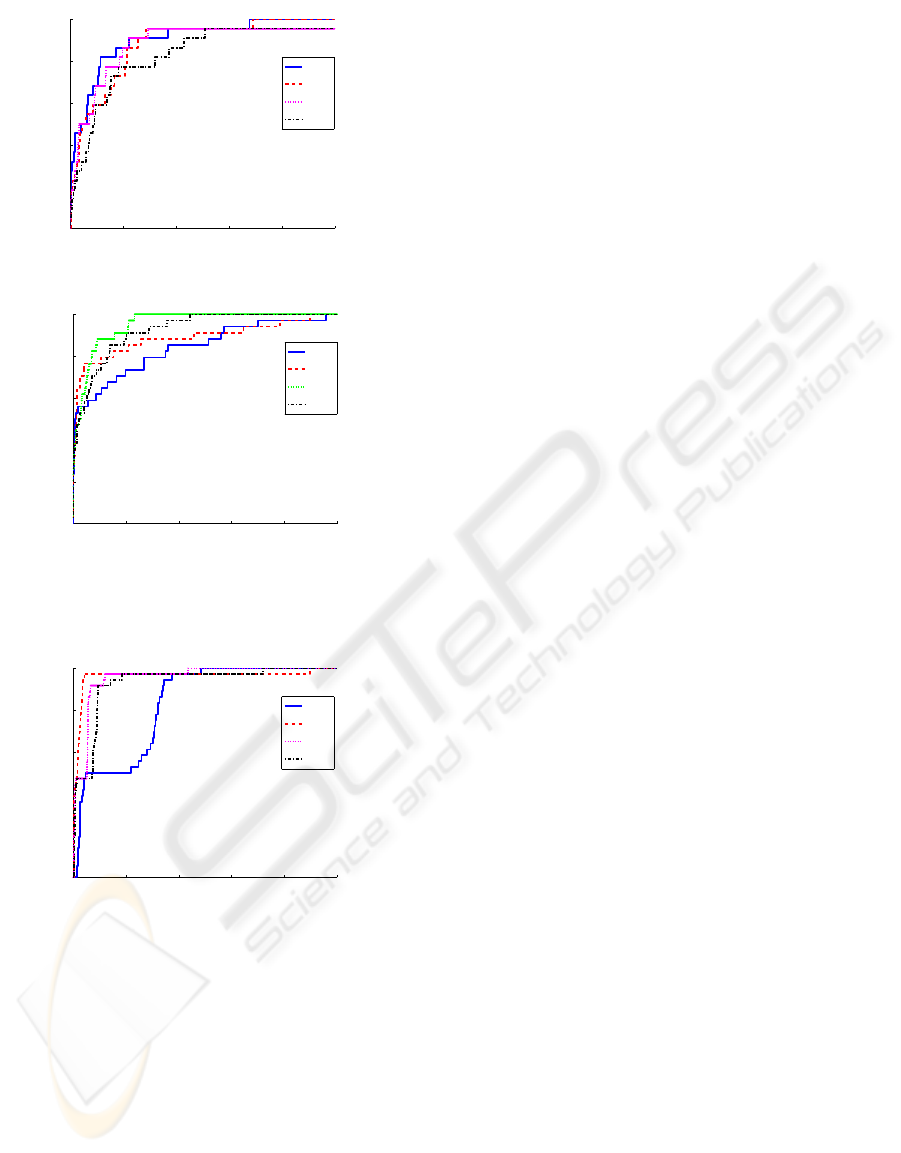

chosen, as it is said above, using AUC. ROC curves

for Abf1 and Argr in ﬁgure 4, show that this number

is different for each TFBS. Increasing the number of

principal components, in Argr binding sites, leads to

better efﬁciency of the detector, but it exists a thres-

hold and above it, the PCA starts capturing indivi-

dual information of each sequence. Trying to increase

more the number of principal components leads then,

to worse efﬁcient detectors. In Abf1 the ideal number

of principal components is one, and using only two

principal components decreases the AUC.

3.2 Detection Within a Real Genome

Next step on the validation of a the detector must be

detect TFBS within the chromosome where they are

known to be. Abf1 and ROX1 models are used to test

the chromosomedata, and ﬁgure 5 showthat the result

is even better than the detection in random sequences.

BIOSIGNALS 2009 - International Conference on Bio-inspired Systems and Signal Processing

508

0 0.01 0.02 0.03 0.04 0.05

0.2

0.4

0.6

0.8

1 pc

4 pc

6 pc

11 pc

(a) ROC Abf1

0 0.05 0.1 0.15 0.2 0.25

0.2

0.4

0.6

0.8

1 pc

7 pc

13 pc

18 pc

(b) ROC ARGR

Figure 4: ROC curves for two different transcription factor

binding sites.

0 0.002 0.004 0.006 0.008 0.01

0.2

0.4

0.6

0.8

1 pc

8 pc

12 pc

14 pc

Figure 5: Detection of ROX1 binding site within the yeast

chromosome 16 .

4 CONCLUSIONS

A detector that uses Q-residuals has been proposed

to distinguish TFBS from random and genome se-

quences. ROC curves show that this detector can

be used efﬁciently to ﬁnd TFBS locations in random

data, as a preliminary study of the accuracy of Q-

residuals detectors. Increasing the number of princi-

pal components not always involves more accuracy in

the detection, as it exists a ideal number of principal

components that must be chosen for each TFBS.

Efﬁciency of the detector has also been proved

using a complete chromosome where the Abf1 and

ROX1 binding sites are known to be. The results have

also been tested using a leave one out cross valida-

tion. Inside the genome the resolution of the detector

is higher than in random sequences.

Detection in higher organisms and comparison be-

tween this detector and other detectors proposed in

literature have to be developed in the future.

ACKNOWLEDGEMENTS

This work has been partially supported by the Span-

ish Ministerio de Ciencia y Tecnologa through the CI-

CYT GRANT TEC2007-63637 and the Ramon y Ca-

jal program.CIBER-BBN is an initiative of the Span-

ish ISCIII.

E.P. wants to thank IBEC for supporting her PhD

ﬁnancially.

REFERENCES

Anastassiou, D. (2001). Genomic signal processing. Signal

Processing Magazine, IEEE, 18(4):8–20.

Bailey, T. and Elkan, C. (2006). Meme:discovering and

analizing dna and protein sequence motifs. Nucleic

acids research, 34:W369–W373.

Bulyk, M. (2003). Computational prediction of

transcription-factor binding site locations. Genome

Biology, 5(1):201.

Cristea, P. (2005). Genomic Signal processing and statis-

tics, chapter Representation and analysis of DNA se-

quences. Hindawi Publishing Corporation.

Edgar, R. (2004). Muscle: multiple sequence alignment

with high accuracy and high throughput. Nucleic

Acids Res, 32(5):1792–1797.

Hannenhali, S. (2008). Eukaryotic transcription factor bind-

ing sites- modeling and integrative search methods.

Bioinformatics, 24.

Neuwald, A., Liu, J., and Lawrence, C. (1995). Gibbs mo-

tif sampling: Detection of bacterial outer membrane

protein repeats. Protein Sci., 4:1618–1632.

Pavesi, G., Mauri, G., and Pesole, G. (2001). An algo-

rithm for ﬁnding signals of unknown length in dna se-

quences. Bioinformatics, 17:207–214.

Pavesi, G., Mauri, G., and Pesole, G. (2004). In silico repre-

sentation and discovery of transcription factor binding

sites. Brief Bioinform, 5(3):217–236.

Schneider, T. (1997). Information content of individual ge-

netic sequences. J. Theor. Biol., 189:427–441.

Silverman, B. and Linske, R. (1986). A measure of dna

periodicity. Journal of Theoretical Biology, 118:295–

300.

A PRELIMINARY STUDY ON THE DETECTION OF TRANSCRIPTION FACTOR BINDING SITES

509
