A MONITORING TOOLKIT FOR A DISTRIBUTED CLINICAL

DATA INTEGRATION ENGINE

Vânia Santos

, Daniel Oliveira

, Ilídio C. Oliveira

1,2

and J. P. S. Cunha

1,2

Institute of Electronics and Telematics Engineering of Aveiro (IEETA), Portugal

Dept. of Electronica, Telecommunications and Informatics, University of Aveiro, Portugal

Keywords: Health information systems, Health telematic networks, Heterogeneous sources integration.

Abstract: The Rede Telemática da Saúde (RTS) is a telematic network connecting health care providers in the Aveiro

region (Portugal), aiming at supporting the continuity of care. Using the RTS, health care professionals and

institutions can securely share clinical data. RTS makes use of an integration engine, which accesses the

scattered data sources to create a virtual unified view of patients’ information. RTS is deployed over a wide-

area private network, shared among a great variety of bandwidth links, systems and applications, which can

impact the infrastructure service levels in multiple ways. In this paper, we describe the development of a

toolkit for monitoring the performance of the distributed integration process. These analysis mechanisms

make it is possible to detect bottlenecks and introduce optimizations in the system, especially with respect to

the integration engine module. Its deployment in the production RTS health telematic network assists the

maintenance team and the decision taking process to handle usage trends and systems needs.

1 INTRODUCTION

Regional clinical communication networks are being

developed all around the world. (MedCom Team,

1999), (Petersen, M.E. et al, 2006), (

Katehakis,

D.G. et al, 2000

)

The Rede Telemática da Saúde (RTS) is a health

telematic network in the Aveiro region (Portugal),

allowing institutions and professionals to share

information about patients and related treatment

activities. At the heart of RTS there is an integration

engine named “HIETA – Health Care Interface

Engine for Telematic Applications” that builds a

virtual patient record by indexing scattered patient

data in a central Catalogue. The patient data itself is

not replicated, but metadata that describes the

information available and the associated sources.

(Cunha et al, 2006), (Cunha, J.P., 2007)

The early deployment of RTS in production

lacked the means to easily monitor the integration

engine processes, especially with respect to the

impact of network performance and distributed

information sources response time in the whole

process.

The problem was actually stressed with the

increasing utilization of the system and the

appearance of delays in the periodic distributed

integration processes. To understand the extent and

nature of delays and measure RTS service levels,

several questions were raised: are there bottlenecks

in the source data bases? Are there bottlenecks in the

transport over the network? Will integration engine

exhibit which performance trends as the information

in the network grows? Can the process tolerate

network failures gracefully?

To address these questions, a new module was

required in the RTS suite, allowing monitoring the

system and track problems in the distributed

integration process. The module, the RTS

Monitoring Toolkit, should also provide an

information base about the network performance,

extracting statistical data to support operations and

optimizations.

The Monitoring Toolkit module would assist the

understanding of the whole integration process

performance and, in connection to this end, provide

additional system health parameters. Besides

snapshot views, the solution was expected to provide

historical data and friendly analysis tools, allowing

to detect trends.

300

Santos V., Oliveira D., C. Oliveira I. and Cunha J. (2009).

A MONITORING TOOLKIT FOR A DISTRIBUTED CLINICAL DATA INTEGRATION ENGINE.

In Proceedings of the International Conference on Health Informatics, pages 300-305

DOI: 10.5220/0001551603000305

 SciTePress

2 MONITORING TOOLKIT

REQUIREMENTS

The RTS application suite is heavily based on

distributed processes calling for instruments to

schedule tasks and assess network availability and

the overall Catalogue update performance.

All middle to extensive weights systems must

have a monitoring tool to understand system

performance and react accordingly to system

behaviour. Nevertheless, RTS represents a larger

challenge: a distributed records system, supported by

a distributed network connecting several different

sources spread along a larger geographical area.

(Tanenbaum, 2002)

RTS works to unify and centralize clinical

information collected from heterogeneous data

sources, differing not only in operating systems but

also in the healthcare system encapsulating the

clinical information. In Portugal there are some

applicational systems distributed by hospitals,

regional health care centers and doctor support

systems. All of them produce clinical data, stored in

different database structures with certain associated

semantics, and all of these data are supposed to be

integrated into the RTS central database. If the

semantics are lost in the data conversion and

transmition, the data is useless, and the integration

purpose is lost.

This distributed infrastructure, the need of

keeping the data semantics, and the physical

obstacles like network failures and transmition delay

(which are inevitable) are the monitoring toolkit

challenges.

2.1 Monitoring Scenarios in the RTS

The Monitoring Toolkit requirements are organized

in three functional packages: Process management,

Catalogue Management and Probe management

(Figure 1).

Processes Management includes the use cases

to manage the integration scheduler, allowing,

through a graphical interface, to configure the RTS

scheduler, which defines when the configured

processes must execute.

Probe Management is used to monitor the

physical network layer and the information sources

availability. In the RTS monitoring system, a probe

is a message sent to the network for the purpose of

monitoring and collecting data about network

activity. It also compares a set of pre-selected probes

with the actual data coming from sources to assess

data correctness and individual source performance.

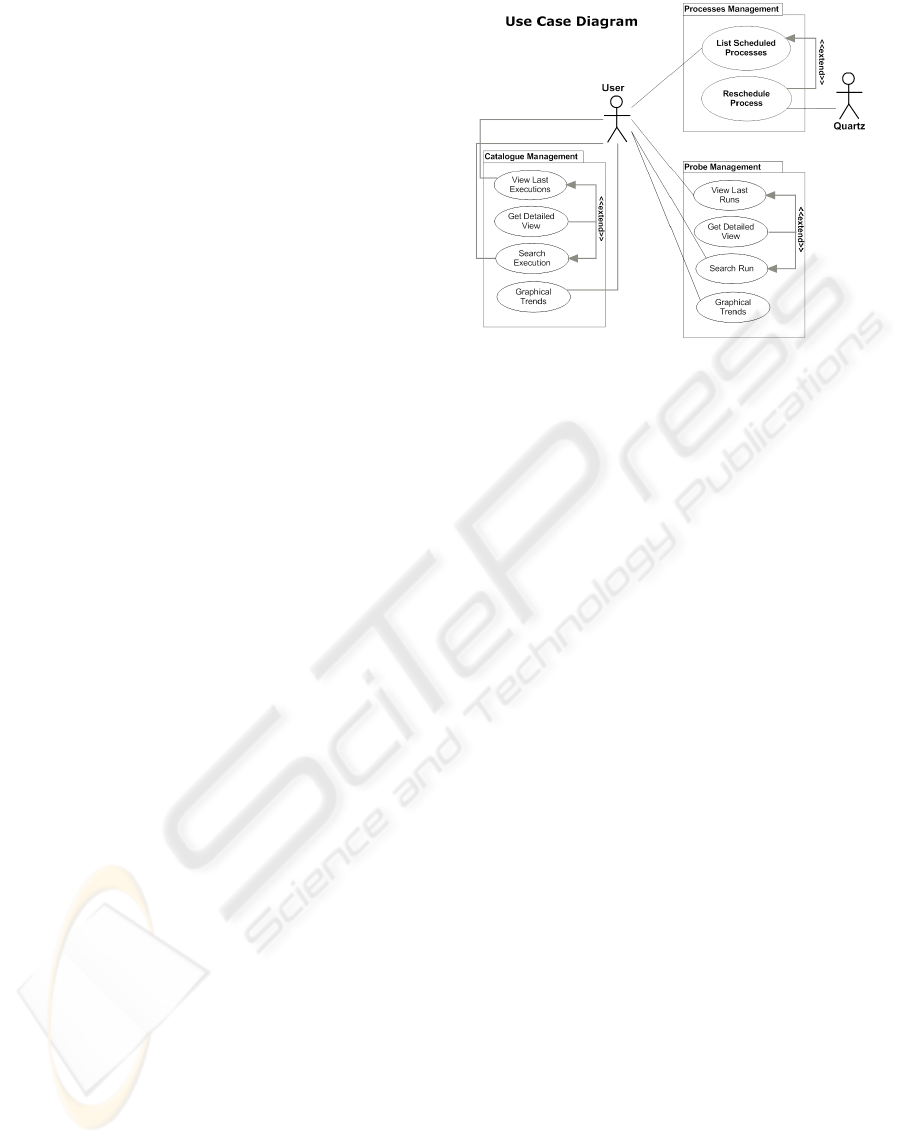

Figure 1: Monitoring Toolkit module use cases.

The Catalogue management is used to monitor

the data integration data process globally. Here, the

user is able to see the detailed integration process,

from the sub-process which builds the sources list to

the sub-process which saves the data in the database.

The Monitoring Toolkit builds charts of the

observed variables and provides a dashboard to

allow a global system state view and analysis to the

end-user.

While the scheduler management is quite trivial,

delegating the underling work to the Quartz library

(by Apache Jakarta Project, 2008) the two other

packages constitute the core of the monitoring tool:

the Sources availability probe, and the Catalogue

integration probe.

2.2 Sources Availability Probe

This task aims to check the network functional

status, selecting probe patients for reintegrate them

into the Catalogue. The fact of pre-selecting a

reduced number of patients and reuse it as a probe

set allows to obtain comparable results at different

levels, namely network availability, network

performance over time and integration sources

availability. The task starts to construct a list of all

available health care institutions in the network, and

while exists a source (from the built list) without a

probe patient, the process will keep selecting

patients already integrated in the catalogue to assign

them as a patient probe in a source without probe

patient. The assignment occurs when the selected

patient have episodes into the source which is being

processed. When all sources have probe patients, the

integration process will occur to the “source-probe

patient” combination (Listing 1).

A MONITORING TOOLKIT FOR A DISTRIBUTED CLINICAL DATA INTEGRATION ENGINE

301

Listing 1: Sources availability probe algorithm.

2.3 Catalogue Integration Probe

This probe aims to sense the Catalogue update

performance. To accomplish this task, sensors were

introduced in the method calls, along the update

workflow: visiting sources, gathering updates,

merging them to the Catalogue. The sensors

distribution along the process is illustrated in the

following algorithm.

Listing 2: Catalogue integration probe algorithm.

3 SYSTEM ARCHITECTURE

The Monitoring Toolkit was developed as a new

module to extend the RTS applications suite. We

will first introduce the RTS software organization

and then explain how the Monitoring Toolkit fits.

The RTS has a modular architecture, organized

in layers. The presentation layer encapsulates the

RTS web interfaces, which consisting in two web

portals, one to health care institutions professionals

(RTS_PRO) and other to the patients (RTS_UTE).

The web portal to the monitoring toolkit (RTS_REP)

also exists in this presentation layer.

The integration layer encapsulates the RTS

integration engine (RTS_IE) and important utilities

as the object conversion from Data Access Objects

to Data Transformed Objects (RTS_DTS).

The service layer encapsulates the gates to the

network services, which are the catalogue

(RTS_Catalogue) and the Wrappers

(RTS_Wrappers). The catalogue is the pointers

database to the information spread along the

network, and the wrappers get the clinical

information from the sources.

The persistent layer encapsulates the catalogue

and clinical data sources databases, the system

architecture end-points.

Presentation Layer

Integration Services Layer

Distributed Data Access Layer

Persistence Layer

RTS_Catalogue RTS_Wrappers

RTS_DTS RTS_IE

RTS_CIT RTS_PRO RTS_REP

Hosp. i Hosp. j

Primary

Care k

RTS

Catalogue

Presentation Layer

Integration Services Layer

Distributed Data Access Layer

Persistence Layer

RTS_Catalogue RTS_Wrappers

RTS_DTS RTS_IE

RTS_CIT RTS_PRO RTS_REP

Hosp. i Hosp. j

Primary

Care k

RTS

Catalogue

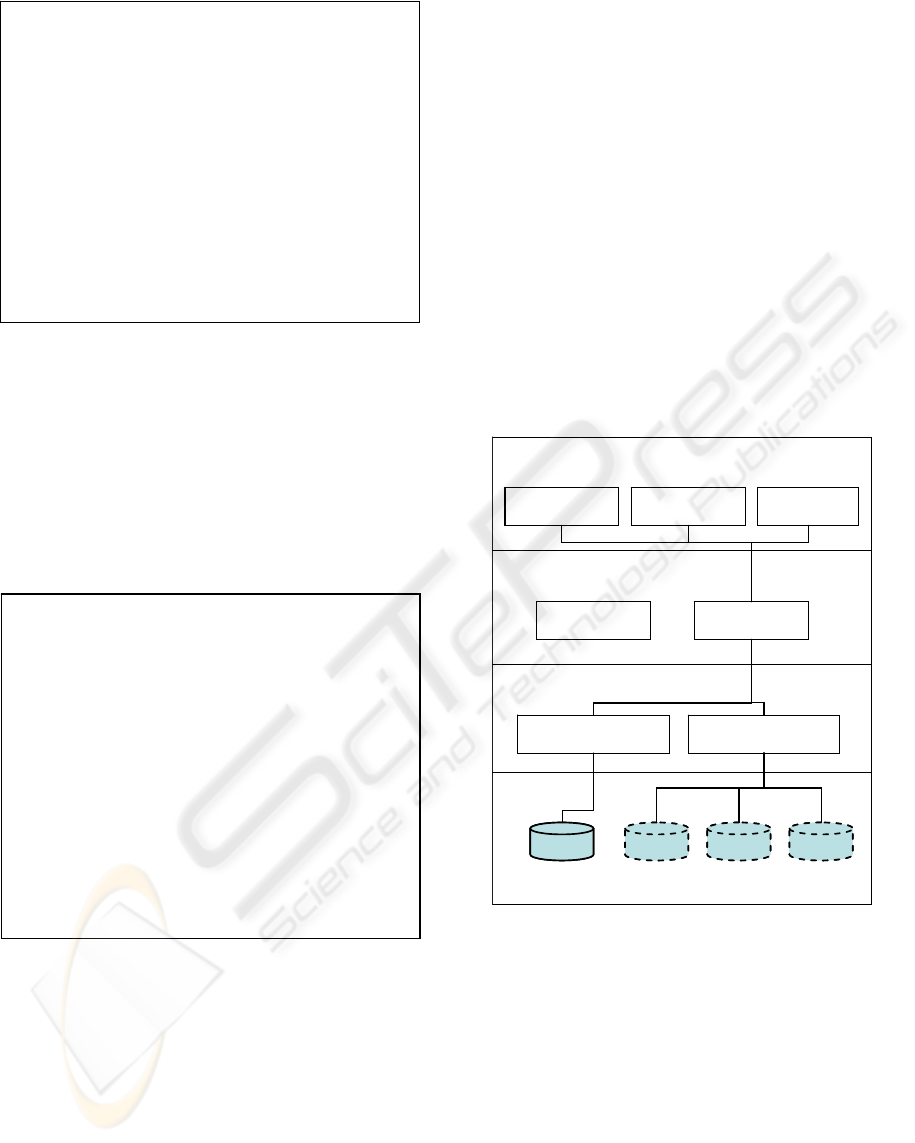

Figure 2: Rede Telemática da Saúde functional

architecture.

The Monitoring Toolkit introduced a complete new

reporting module in presentation layer, which

implements the web site to access the monitoring

functionalities.

This module communicates with service layer

through the integration engine, which is the module

responsible to process the network information and

processes.

To make integration engine able to analyse the

new sensors info, new methods has been added to

this module. Also, in service layer, the sensors were

Sensor1

Construct a list of available sources

For each source {

Sensor 2

Call non-intrusive elements to get

information

Sensor 3

Wait for source response

For each patient which information {

Sensor 4

Integrate information into the catalogue

}

store sensors information into the database.

construct a list of available sources

while exists sources without a selected patient

{

select the last integrated patient in the

catalogue

verify in which sources that patient has

episodes

select that patient to the identified sources

continue to next patient in the catalogue

}

for each patient

for each patient source selection

run the integration process

HEALTHINF 2009 - International Conference on Health Informatics

302

added to the processes code, to extract information

from the system.

Finally, new tables were inserted in the database,

to store the sensors information, and make

persistence layer able to map the new relational

objects into the services layer.

4 RESULTS

4.1 Scheduling the Distributed

Integration Processes

The first step is to use the tool to schedule the

processes we want to run, indicating the

chronometer time to fire them, as shown in Figure 3.

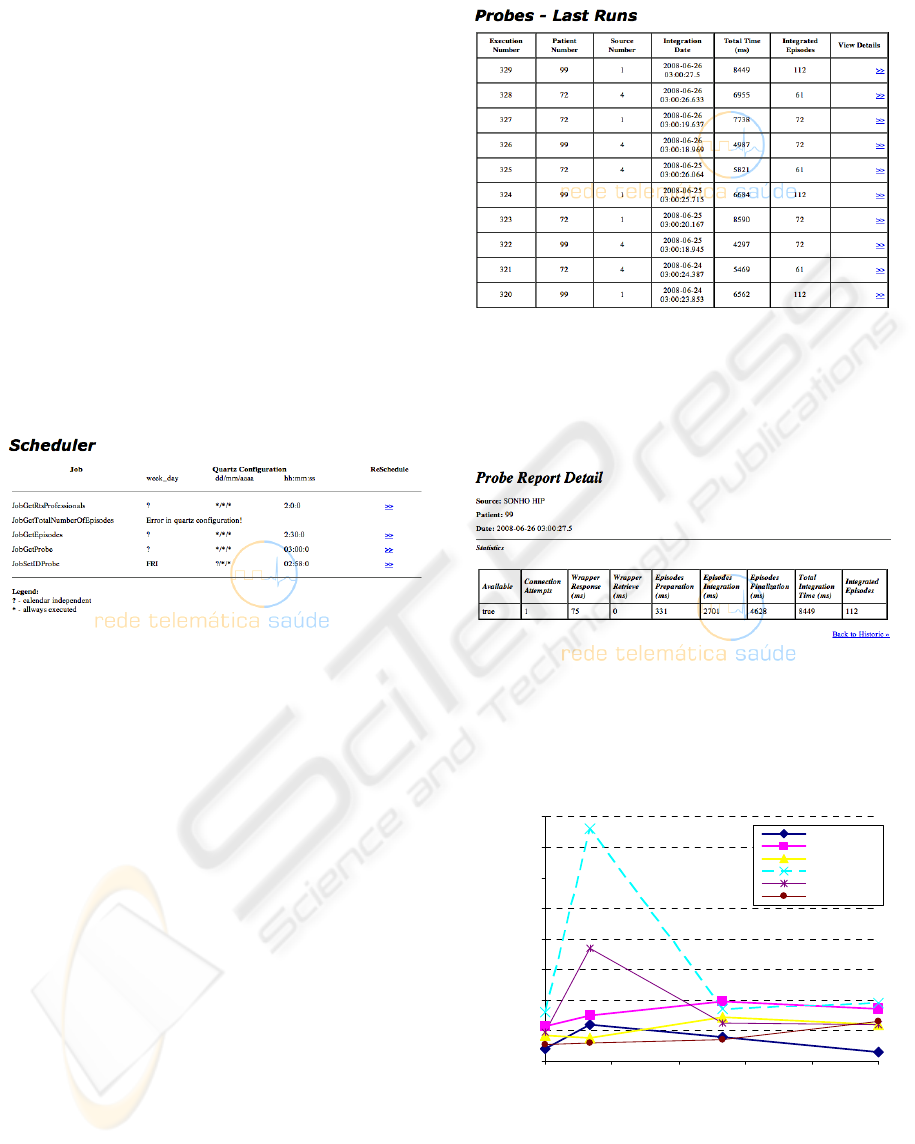

Figure 3: Scheduler Graphical Interface.

This interface shows the job to be scheduled and the

time configuration to each one of them. It shows the

day of week, hour, minute and second and day of the

year; all of these parameters are configurable.

Once processes are scheduled, using the web

interface, the system ensures that they are triggered

at the proper time, using the Quartz java library.

4.2 Sources Availability Probe results

The Figure 4 shows the tabular results view. This

table display, for each probe process, the patient

used to test the network, the source tested, the test

date, the total process time and the patient integrated

episodes. The last measure is used to calculate

relative times, as averages, to allow a regular

comparative analysis between sources. However, the

sub-processes aren’t shown here.

Figure 4: Tabular results interface.

The detailed view can be accessed through the

graphical interface, to allow an exhaustive process

analysis, as shown in

Figure 5.

Figure 5: Probe execution detail (first line in Figure 4).

Besides the tabular view, charts are also available.

The chart in Figure 6 depicts the probe process

execution results, for all sources in the network.

10000

20000

30000

40000

50000

60000

70000

80000

18-05-08 21-05-08 24-05-08 27-05-08 30-05-08 02-06-

Total time (ms)

S1@HIP

S1@HDA

S2@CS-Ilh

S2@CS-Vgs

S2@CS-Alb

S2@CS-Avr

Figure 6: Probe execution results (chart view), comparing

sources responses.

This graphic allows extracting network information:

it is clear that the source represented with dashed

line is taking more time than the others to execute

A MONITORING TOOLKIT FOR A DISTRIBUTED CLINICAL DATA INTEGRATION ENGINE

303

the probe test. This can be explained by looking at

Figure7, a relative measure graphic, which relates

the integration episode time to each source. This

measure is calculated dividing the total integrated

episodes by the total integration time, providing

comparable normalized values.

Figure 7: Comparison between sources performance,

taking into account the workload.

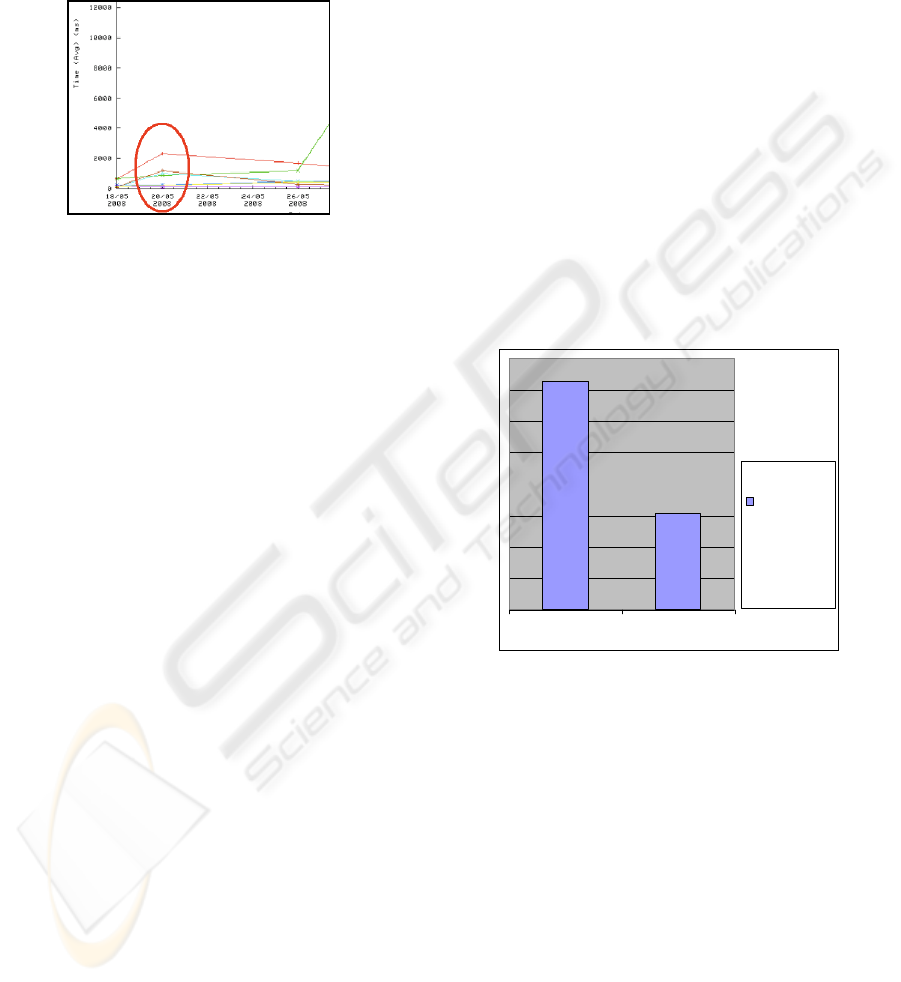

Figure 7 details the view of the day 20/05

executions. We can see that the reason why the

source was taking more time to execute the process

isn’t related to probe sub-process. We can see that

the source had a regular execution. So, the problem

is in the physical network, which made the

information to travel along the network more slowly

than other days.

This is an example of how this tool can be used.

There where problems in the network, which we are

able to identify, to know the reason and when they

happened.

4.3 Catalogue Integration Probe

Results

This process has a similar aim as sources availability

and network connectivity probe. This one aims to

sense the catalogue integration performance and

produce data to support decisions making about the

process. This process was executed over two

different algorithm approaches to the same

integration problem: the first one was a sub-optimal

and beta algorithm and the second one was an

improved version.

The first algorithm reconstructs the patient data

catalogue each time the source integration occurred.

This is a sub-optimal solution, because some data

already stored could be kept or updated, but ensures

that the catalogue gets the most recent view of

available patient data.

The second algorithm implements a strategy to

decide which data should be integrated, updated or

kept. Using this strategy, only the clinical data

changed in the sources is written into the catalogue:

other clinical data is kept and doesn’t need to be

reloaded. This incremental strategy allows a

performance optimization: only the data which is

effectively in need to be integrated flows in the

network reducing network traffic and the data

processing time.

The catalogue integration probe was expected to

reveal the differences between both algorithms and

show them in a useful way. As expected, we were

able to see the time differences, the process

performance and monitor the network behavior.

Figure 8 shows one of the results obtained: the

total catalogue integration time in both tested cases.

The integration time was reduced about 59% (about

10 hours). The time indicated was shown by the

monitoring toolkit, and the conclusion is that the

improved algorithm has a better performance than

the first version. The consequent decision was to

introduce this new version in the production

environment, to improve the total system

performance.

17:30

7:22

Full replace Incremental

Time spent

in a periodic

catalogue

update (in

hours)

Figure 8: Results obtained in monitoring toolkit, allowing

comparing integration time for each strategy.

5 CONCLUSIONS

The Monitoring Toolkit herein presented has proved

to be a valuable tool to control the network

availability and the processes which live on it. As

the system grows, the number of processes will grow

too, which implicates heavier system loads. The tool

is able to collect monitoring data to assist finding

performance bottlenecks and present these results

and trends through charts.

Unlike other general purpose system health

monitoring tools, for instance JMeter (by Apache

Jakarta Project, 2008), the RTS monitoring toolkit

herein present uses domain semantics to devise

HEALTHINF 2009 - International Conference on Health Informatics

304

monitoring work units. As an example, information

sources performance is established by running a

probing pre-defined patient cases integration job.

This tool is now running in production

environment, assisting the operations of the RTS

telematic health network. The next step is to

transform this monitoring tool in a real-time process,

endowing it of an intelligent failure recover process,

to minimize the data lose and to predict possible

system failures.

ACKNOWLEDGEMENTS

We would like to thank the active collaboration of

RTS consortium partners (Hospital Infante D. Pedro,

Hospital Distrital de Águeda and Sub-região de

Saúde de Aveiro). A special acknowledge is due to

Dr. Telmo Costa for is close engagement.

The presented work was financed by the “Aveiro

Digital” programme of the “Portugal Digital”

initiative and POSI programme of the Portuguese

Government.

REFERENCES

Tanenbaum, Andrew & Marteen van Steen, “Distributed

Systems: Principles and Paradigms”, 2002, Prentice

Hall.

Team, M.D., “MedCom -the Danish Health Care Data

Network”, M.o. Health, T.N.B.o Health, and D. Net,

Editors. 1999.

Petersen, M.E. and H.B. Jensen, “Danish national health

net and portal for citizens and professionals, in

European Comission Information Society and Media”.

2006

Katehakis, D.G., et al., “An Environment for the Creation

o an Integrated Electronic Health Record in

HYGEIAnet, the Rehional Telematics Network of

Crete”. 16th Annual Towards an Electronic Patient

Record Conference & Exhibition, 2000.

João Paulo Silva Cunha et al, “The RTS Project:

promoting secure and effective clinical telematic

information within the Aveiro Region”, 2006, eHealth

High Level Conference, Malaga (Spain)

Cunha, J.P. “RTS Network: Improving Regional Health

Services through Clinical Telematic Web-based

Communication System” in eHealth Conference 2007.

Berlin

Apache Jakarta Project, 2008, cited in 21-07-2008:

http://commons.apache.org/jelly/libs/quartz/tags.html

Apache Jakarta Project, 2008, cited in 27-10-2008:

http://jakarta.apache.org/jmeter/

A MONITORING TOOLKIT FOR A DISTRIBUTED CLINICAL DATA INTEGRATION ENGINE

305
