BRAZILIAN HEALTH-RELATED CONTENT

WEB SEARCH PORTAL

Presentation on a Method for its Development and Preliminary Results

Felipe Mancini, Alex Esteves Jaccoud Falcão, Anderson Diniz Hummel, Thiago Martini Costa

Cristina Lucia Feijo Ortolani, Fabio Teixeira and Ivan Torres Pisa

Department of Health Informatics, Federal University of São Paulo, Rua Botucatu 862, São Paulo, SP, Brazil

Keywords: Internet, health, Information storage and retrieval, Pattern recognition system.

Abstract: The increase in the amount of available information on the world wide web is inexorable, which, on one

hand, provides the web user with more information. On the other hand, however, web searches become

increasingly more difficult to handle due to the increasing number of retrieved documents. The present

study is a proposal of development for a Brazilian search portal specific for health-related content. The aim

of such development is to provide web users, mainly the non-specialist ones, with the largest number

possible of web pages relevant to their search terms and inferred search intentions. The proposed search

portal integrates web mining-based filters and a decision-making support tool. The preliminary study results

show that among the algorithms tested to incorporate a filter module specific for health-related content -

artificial neural networks, logistic regression and nearest neighbor clustering (NNC) -, the application of

NNC resulted in the automated web health-related content classifier with the best performance for

sensitivity and specificity 0.92 and 1.00 respectively.

1 INTRODUCTION

The world wide web content increases inexorably

each day pushing and being pushed by the

technological and economical development. Health-

related activities are one contributor to this increase.

In Brazil, 30% of web searches concern to

information on health conditions related topics

(CETIC, 2007).

However, adequacy and quality of available

information are two relevant issues regarding health-

related web content. A number of criteria for

assessing adequacy and quality have been devised

since 1997 (Lopes, 2004) such as the Health On Net

Foundation code (HON, 2008) and the criteria for

quality assessment by Health Information

Technology Institute (HITI, 2000).

These accrediting institutions have as aim

ensuring the suitability of heath information made

public on the web. However, the design of major

web search engines does not prioritize certified

websites. Chang et al. (2007) reported that in a

search concerning the health field, the first HON

certified reference was the 763th on the list of sites

retrieved by Google™.

This particular feature of major search engines

makes the system of quality certification for health

information on web unavailable for internet users. A

Brazilian study showed the usefulness and potential

appreciation of search engines incorporating a

feature that skims high quality health information -

83% of accesses to health-related sites didn’t use

popular web search engine (Silva, 2006).

There is an implied credibility in health sites.

The Harris Poll (2008) reported that 60% of

American web users believe entirely in the content

of the available health pages. This figure rises to

90% among Brazilian users (Silva, 2006). This

makes it even more important to provide Brazilians

accessing the worldwide web with assuredly

accurate health web pages.

This paper shows a method that aims at

implementing a Brazilian web portal for search and

retrieval of health focusing on the needs and

interests of the general public.

306

Mancini F., Esteves Jaccoud Falcão A., Diniz Hummel A., Martini Costa T., Lucia Feijo Ortolani C., Teixeira F. and Torres Pisa I. (2009).

BRAZILIAN HEALTH-RELATED CONTENT WEB SEARCH PORTAL - Presentation on a Method for its Development and Preliminary Results.

In Proceedings of the International Conference on Health Informatics, pages 306-310

DOI: 10.5220/0001552303060310

 SciTePress

2 METHODS

The architecture of this search portal, called In

Health Search Model (InHealth), has a services-

oriented architecture (SOA) (Erl, 2007), therefore,

all modules to be incorporated to it should follow

interoperation standards based on web-services

(Papazoglou, 2007).

InHealth comprises fundamentally 3 modules –

indexing module (IndHealth), inference module

(InfHealth) and a graphical user interface module

(IntHealth). The interaction of these 3 modules

within InHealth architecture is outlined in Figure 1.

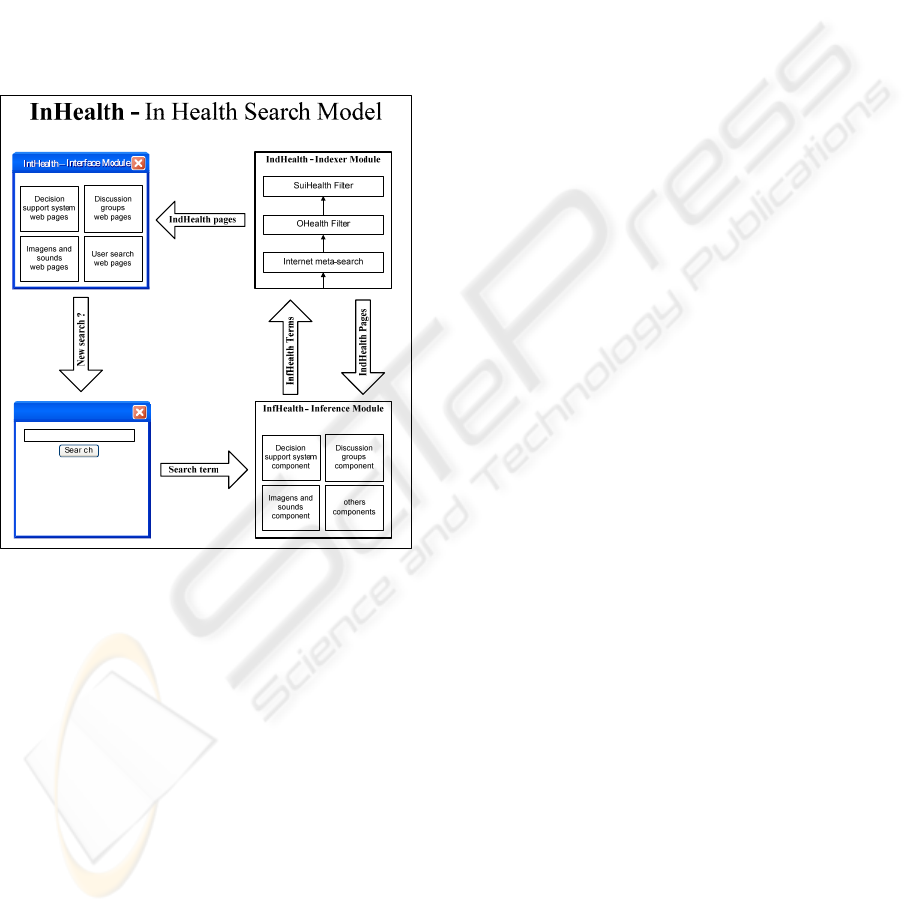

Figure 1: In Health Search Model modules interaction.

As indicated in Figure 1, after a search term is

entered, the web service Inf Health performs a pre-

processing and selects related search terms supplied

to IndHealth, which retrieves sites relevant sites

supplied to IntHealth. IndHealth, InfHealth and

IntHealth are described below.

2.1 IndHealth

The portal is provided with a meta-search engine

(Dunford II, 2008). incorporated in IndHealth

module which works with Google and Yahoo

search engines.

IndHealth performs an index-based retrieval

using as indexing system the web content mining

(Kosala & Blockeel, 2000), which is a process to

find target information in documents subject to a

search. A number of techniques, such as information

retrieval (Hersh, 2003) and artificial neural

networks, can be used to implement this process

(Haykin, 1999).

The indexing module uses 2 filters: only-health

filter (OHealth) and suitability health filter

(SuiHealth) have been developed in Perl (Perl,

2008), PHP (PHP, 2008), Java (Java, 2008) and

MySQL (MySQL, 2008) database.

2.1.1 OHealth Filter

OHealth filter was incorporated into IndHealth

aiming at retrieving only web pages with health

information. Excluding commercial sites and

product advertisements, would save users searching

health issues the unwanted task of doing it

themselves (Tom & Latter, 2007).

Basically, this filter analyzes the similarity

between the web page content and the content of a

dictionary or descriptor for the health field, such as

DeCS (DeCS, 2008) or MeSH (MeSH, 2008). The

OHealth filter works with the assumption that the

greater the similarity between the web page under

analysis and health content descriptors, the higher

the probability of it being a web page focusing on

health issues.

2.1.2 SuiHealth Filter

Tang and Ng (Tang and Ng, 2006) reported that

using general-purpose searching engines, such as

Google, may render ineffective when the internet

search aims at reaching a diagnosis or understanding

better a health condition due to the web user coming

across with a large amount of irrelevant retrieved

information. Abraham and Reddy (Abraham and

Reddy, 2007) also showed some criticism regarding

the adequacy of both general-purpose and

specialized search engines for web user retrieving

information in the health field. Therefore, SuiHealth

filter focus on retrieving the web content which is

the most relevant and suitability possible to the

user’s search term.

The development of this filter ensues an

investigation carried out by Falcão

(http://telemedicina6.unifesp.br/healthrank) using

the social media (O'Reilly, 2005) to determine sets

of terms for automatic ranking and indexing relevant

health web content.

2.2 InfHealth

Using a search term, this module makes inferences

concerning the health content that the user would

like to be retrieving.

BRAZILIAN HEALTH-RELATED CONTENT WEB SEARCH PORTAL - Presentation on a Method for its Development

and Preliminary Results

307

Decision-making support system (SAD) can be

used for this goal (Musen et al., 2006). SAD reads

the user’s search term as a health condition sign or

symptom and retrieves from and internal database all

possible health conditions including such sign of

symptom, which are fed into IndHealth as search terms.

Lepidus (Silva & Roque, 2000) is an SAD

focusing on general medical practice that has shown

to be highly effective in providing its user with the

correct diagnosis in 84% of the cases where signs

and symptoms of a health condition is presented. Its

incorporation to IntHealth may result in improved

performance.

Other inference component can also integrate

IntHealth, such as those working with images,

audio-visual features, forum groups, and scientific

reports, particularly available on Virtual Health

Library (Bireme, 2008).

This component is development in PHP and Java

languages in conjunction with MySQL database.

2.3 IntHealth

IntHealth, the GUI module of the portal system, has

been developed using Ajax (Ajax, 2008) and PHP

languages, and the Mini Ajax framework (Mini

Ajax, 2008). Its GUI should follow the heuristics

concepts of Nielsen (2005).

(a)

(b)

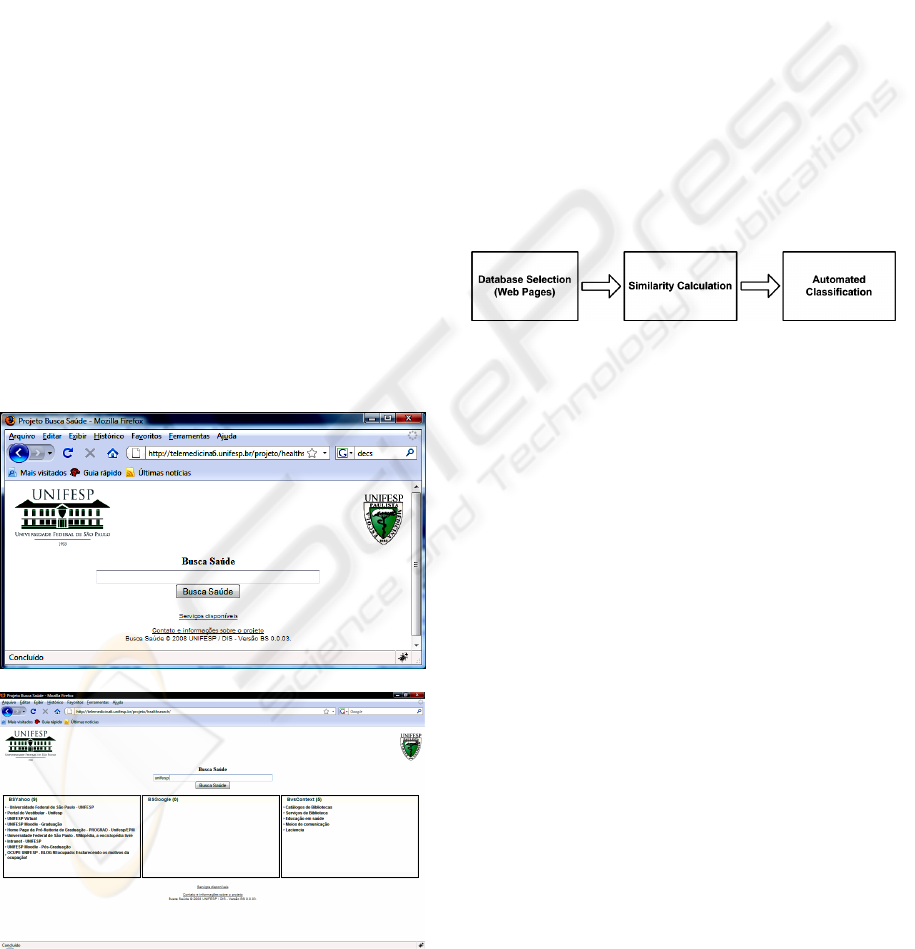

Figure 2: GUI proposed for InHealth portal for health-

related content web search.

Figure 2, also available at

http://telemedicina6.unifesp.br/healthsearch, show

the GUI of the InHealth web pages. Figure 2 (a)

shows the home page exhibiting just one box to

enter the search term. Figure 2 (b) shows the page

with the outcome of InHealth processing in a three-

box layout proposed by Mini Ajax. Each InfHealth

inference is processed on an asynchronous,

independent thread due this framework.

3 PRELIMINARY RESULTS

The present study focus on the preliminary results of

OHealth filter. This assessment involved 3 steps as

indicated in Figure 3. Firstly, 608 web pages from

the Merck Manual for Medical Information on

Health for the Family (Berkow et al., 2003) and 268

non-health web pages were selected.

Figure 3: Automated content classifier flow chart.

Next, the Term Frequency–Inverse Document

Frequency (TF-IDF) statistical model (Tardelli et al.,

2004) and stemming (Hersh, 2003) were used to

determine the similarity between the web pages

selected with the DeCS. The stopwords (Hersh,

2003) was unappreciated for the set of words

analyzed.

Finally, using similarity data sets for each web

page analyzed, classifier was development with the

use of free tools and open code for data mining,

Weka, developed by the University of Waikato

(Witten & Frank 2005). The goal of this classifier

was automatically recognition health-related content.

ANN, logistic regression (LR) (Bishop, 2007),

and nearest-neighbor clustering (NNC) (Duda, et al.,

2000) were used as aid algorithms for similarity

measurement, since they showed the best rates of

specificity and sensitivity as determined by the area

under the ROC curve (AUC) (Metz, 1978) when

applying the 10-fold cross validation test (Burnham

& Anderson, 2004). Others algorithms were tested

as bayes net, linear regression, and normalized

Gaussian radial basis function network (Bishop,

2007).

Specificity and sensitivity rates and AUC for

ANN, LR and NNC are presented in Table 1.

HEALTHINF 2009 - International Conference on Health Informatics

308

Table 1: Sensitivity (SE) and specificity (SP) rates, and

area under ROC curve (ROC) for nearest-neighbor

clustering (NNC), artificial neural networks (ANN), and

logistic regression (LR) classification algorithms, tested in

OHealth filter.

SE SP

0.92 1.00 0.98

0.80 0.88 0.91

0.92 1.00 0.98

At the current stage of the study, NNC showed

the best performance as aid algorithm for automated

classification of web health content with the best

rates of specificity and sensitivity, and the largest

area under the ROC curve – 0.92, 1.00, 0.98

respectively.

4 DISCUSSION

In the present study, nearest-neighbor clustering

(NNC) was able to recognize all Merck health web

pages – specificity 1 – and was able to filter 92% of

web pages with content not related to health issues –

sensitivity 0.92.

Despite OHealth showed a satisfactory

performance in classifying health web pages, its

represented a single editor (Merck). Further tests

should be run including health web pages from

different sources and different editorial

characteristics.

Another point requiring further investigation is

classification time performance. With the present

design, OHealth took approximately 7 minutes to

carry out the classifying calculations for each web

page. Other approaches to assess similarity have

been proposed such as white lists and memory hash

calculation.

Other software components integrating the

InHealth portal system are still in stages of design

and test, as the Lepidus adaptation and the GUI

improvement.

The authors also plan to implement a

questionnaire-based assessment tool to be applied on

the general and specialist web users in order to

compare the performance of InHeath with other

general-purpose search engines such as Google.

5 CONCLUSIONS

The usefulness of a search portal for web pages with

health-related content is potentially enormous, and

the challenge of its implementation is motivating.

The preliminary results of the present study show

that web mining techniques can improve the

specificity of search for health information on the

world wide web.

REFERENCES

Abraham, J., & Reddy, M. (2007). Quality of Healthcare

Websites: A Comparison of a General-Purpose vs.

Domain-Specific Search Engine. AMIA Symposium

Proceedings, (p. 858).

Ajax. (01 of 01 of 2008). Ajax. Access in 11 of 07 of

2008, available in Ajax:

http://www.w3schools.com/Ajax/Default.Asp

Berkow, R., Beers, M., Bogin, R., & Fletcher, A. (01 of 01

of 2003). Manual Merck de Informação Médica:

Saúde para a Família. Access in 08 of 07 of 2008,

available in Merck: http://www.msd-

brazil.com/msdbrazil/patients/manual_Merck/prefacio.

html

Bireme. (01 of 01 of 2008). VHL. Access in 11 of 07 of

2008, available in VHL:

http://www.bireme.br/php/index.php?lang=en

Bishop, C. (2007). Pattern Recognition and Machine

Learning. Springer: New Jersey.

Burnham, K., & Anderson, D. (2004). Model Selection

and Multi-Model Inference. Berlim: Springer.

CETIC. (01 of 11 of 2007). TIC Domicílios e usuários

2007. Access in 07 of 07 of 2008, available in CETIC:

http://www.cetic.br/usuarios/tic/2007/rel-int-10.htm

Chang, P., Hou, I., Hsu, C., & HF, L. (2006). Are Google

or Yahoo a good portal for getting quality healthcare

web information. AMIA Annu Symp Proc, (p. 878).

DeCS. (01 of 01 of 2008). DeCS - Health Sciences

Descriptors. Access in 07 of 07 of 2008, available in

http://decs.bvs.br/I/homepagei.htm

Duda, R., Hart, P., & Stork, D. (2000). Pattern

Classification. New York: Wiley-Interscience.

Dunford II, T. (2008). Advanced Search Engine

Optimization: A Logical Approach. Maui: American

Creations of Maui.

Erl, T. (2007). SOA Principles of Service Design. Prentice

Hall: New York.

Falcão AEJ. HealthRank: Construção e Avaliação de um

Software para Medir Adequação à Códigos de Ética e

Relevância de Websites em Saúde Utilizando Métodos

de Mídia Social e Indicadores Automatizados. Master

Thesys –Federal University of São Paulo, 2008.

Haykin, S. (1999). Neural Networks: a Comprehensive

Foundation. New Jersey: Prentice-Hall.

Hersh, W. (2003). Information Retrieval : a Health and

Biomedical Perspective. New York: Springer.

BRAZILIAN HEALTH-RELATED CONTENT WEB SEARCH PORTAL - Presentation on a Method for its Development

and Preliminary Results

309

HITI. (12 of 06 of 2000; ). HITI. Access in 02 of 22 of

2008, available in HITI:

http://hitiweb.mitretek.org/docs/policy.html

HON. (07 of 01 of 2008). HON. Access in 10 of 07 of

2008, available in HON: http://www.hon.ch/

Java. (11 of 07 of 2008). Java. Access in 11 of 07 of 2008,

available in Java: http://java.sun.com/

Kosala, R., & Blockeel, H. (2000). Web Mining Research:

a Survey. ACM SIGKDD Exploration , pp. 1-15.

Lopes, I. (2004). New paradigms for evaluation of the

information quality health retrieved on the web.

Ciência da Informação , pp. 81-90.

MeSH. (04 of 01 of 2008). MeSH. Access in 14 of 07 of

2008, available in MeSH:

http://www.nlm.nih.gov/mesh/

Metz, C. (1978). Basic principles of ROC analysis.

Seminars in Nucl Med , pp. 283-298.

MiniAjax. (01 of 01 of 2008). MiniAjax. Access in 11 of

07 of 2008, available in MiniAjax:

http://miniajax.com/

Musen, M., Shahar, Y., & Shortliffe, E. (2006). Clinical

Decision-Support Systems. New York: Springer-

Verlag.

MySQL. (01 of 01 of 2008). MySQL. Access in 09 of 07

of 2008, available in MySQL: http://www.mysql.com/

Nilsen, J. (01 of 01 of 2005). Ten Usability Heuristics.

Access in 11 of 07 of 2008, available in Ten Usability

Heuristics:

http://www.useit.com/papers/heuristic/heuristic_list.ht

O'Reilly, T. (30 of 09 of 2005). What Is Web 2.0: Design

Patterns and Business Models for the Next Generation

of Software. Access in 10 of 07 of 2008, available in

http://www.oreillynet.com/pub/a/oreilly/tim/news/200

5/09/30/ what-is-web-20.html

Papazoglou, M. (2007). Web Services: Principles and

Technology. Prentice Hall: New York.

Perl. (01 of 01 of 2008). Perl. Access in 08 of 07 of 2008,

available in Perl: http://www.perl.org/about.html

PHP. (2008 of 01 of 01). PHP. Access in 2008 of 07 of

17, available in PHP: www.php.net

Poll, T. H. (31 of 07 of 2008). Harris Poll Shows Number

of "Cyberchondriacs" – Adults Who Have Ever Gone

Online for Health Information– Increases to an

Estimated 160 Million Nationwide. Access in 11 of 07

of 2008, available in The Harris Poll:

http://www.harrisinteractive.com/harris_poll/index.asp

?PID=792.

Silva, R., & Roque, A. (2000). Clinical medical diagnosis

using a signal-processing approach. Conference on

Mathematics and Engineering Techniques in Medicine

and Biological (pp. 13-18). Las Vegas: CSREA Press.

Silva, WM. Navegar é preciso: Avaliação of impactos do

uso da internet na relação médico-paciente. Master

Thesis – University of São Paulo, 2006.

Tang, H., & NG, J. (10 of 11 of 2006). Googling for a

diagnosis—use of Google as a diagnostic aid: internet

based study. British Medical Journal

, pp. 1143-1145.

Tardelli, A., Anção, M., Packer, A., & Sigulem, D. (2004).

An implementation of the trigram phrase matching

method for text similarity problems. Stud Health

Technol Inform , pp. 43-49.

Toms, E., & Latter, C. (2007). How consumers search for

health information. Health Informatics Journal , pp.

213-223.

Witten, I., & Frank, E. (2005). Data Mining: Practical

machine learning tools and techniques. San Francisco:

Morgan Kaufmann.

HEALTHINF 2009 - International Conference on Health Informatics

310
