EXPRESSIVE SPEECH IDENTIFICATIONS BASED ON HIDDEN

MARKOV MODEL

Syaheerah L. Lutfi, J. M. Montero, R. Barra-Chicote, J. M. Lucas-Cuesta

Speech Technology Group, Technical University of Madrid, Spain

A. Gallardo-Antolin

Department of Signal Theory and Communications, Universidad Carlos III de Madrid, Spain

Keywords: Affective computing, Biometrics, Speech processing, Emotion identification.

Abstract: This paper concerns a sub-area of a larger research field of Affective Computing, focusing on the

employment of affect-recognition systems using speech modality. It is proposed that speech-based affect

identification systems could play an important role as next generation biometric identification systems that

are aimed at determining a person’s ‘state of mind’, or psycho-physiological state. The possible areas for

the deployment of voice-affect recognition technology are discussed. Additionally, the experiments and

results for emotion identification in speech based on a Hidden Markov Models (HMMs) classifier are also

presented. The result from experiment suggests that certain speech feature is more precise to identify certain

emotional state, and that happiness is the most difficult emotion to detect.

1 INTRODUCTION

Biometrics has been a long used method in the field

of information security and wide interest to

biometrics is observed to arise in recent years. By

definition, biometrics identification is a process to

identify (or verify (Vaclave Jr. and Riha, 2000)) a

person based on some feature of their biological

makeup, with the help of automated systems that

apply pattern recognition techniques. There are two

types of biometrics identification techniques:

• Behavioural: the identification tasks are based on

an individual’s psychology tendency, style or

preference such that through handwritten

signature (Bullington, 2005, Gamboa and Fred,

2003), keystroke dynamics or speaker

identification via his/her voice print (BenZeghiba

et al., 2001). Behavioural biometrics is

associated with less intrusive systems,

minimizing ethical issues and leading to better

acceptability by the users. On the other hand,

behavioural identification systems need to be

designed dynamically and receptive to variability

(Gamboa and Fred, 2004, Gamboa and Fred,

2003, Ronzhin et al., 2004), considering the

variability of most behavioural characteristics

over time.

• Physiological: the identification tasks are based

on invariant physical characteristics, such as

finger print, hand silhouette, blood vessel pattern

in the hand or back of the eye, DNA samples,

patterning of the iris or the most popular

technology , face recognition (Gamboa and Fred,

2003, Bullington, 2005). Though physiological

identification technologies are based on more

stable characteristics, usually data cannot be

gathered passively, without the knowledge or

permission of the person who is being observed.

Hence, these technologies often constitute an

invasion of privacy and remains controversial as

there were attempts of physiological biometric data

being sold to interested third parties (Steinhardt,

2000).

While important in the area of biometrics, the

focus of this paper is not the trade-offs between the

security and privacy, but to highlight a possible

foundation for the next generation of biometrics

devices based on the process of the recognition of

human emotion or affect via voice. The next sections

discuss the importance of integrating the affective

computing field to biometrics, followed by the

488

L. Lutﬁ S., M. Montero J., Barra Chicote R., Lucas-Cuesta J. and Gallardo-Antolín A. (2009).

EXPRESSIVE SPEECH IDENTIFICATIONS BASED ON HIDDEN MARKOV MODEL.

In Proceedings of the International Conference on Health Informatics, pages 488-494

DOI: 10.5220/0001556704880494

 SciTePress

possible use of vocal-affect biometrics, and the areas

where this technology could be deployed. Please

note that the words ‘affect’ and ‘emotion’ will be

used throughout this paper interchangeably.

2 AFFECT RECOGNITION

BIOMETRICS

Though ‘affect recognition’ systems such as the one

used for surveillance, the ‘HAL 9000’ computer

from the movie “2001: A Space Odyssey” (“I’m

afraid, Dave…”) or personal domestic- assistant

robots in “ I, Robot” that have good senses of their

masters’ emotional states, sound like science fiction,

there is an interest in making them a reality

(Bullington, 2005). For example, a recent proposal

invitation from DARPA’s Small Business

Innovation Research Center calls for the

development of a “non invasive emotion recognition

system…suitable for deployment in

military/operational environments or in

environments in which discrete observation of

potential enemy threats is desired” (DARPA, 2003).

In addition, SRI lists ‘Affective Computing’ as one

of their ‘Next Generation Technologies:’ “Affective-

computing technology will reduce the intrusiveness

of human-machine interface technology and perhaps

make the technology more acceptable to people

because of its more natural interactions and its

seamless presence in the environment.” (SRI-BI,

N/A). Machine learning in recognition and

adaptation to a human’s affective state is important

for natural human-computer interaction, but in

biometrics, identifying a man’s affective state could

be aimed at determining a person’s psycho-

physiological state. So far, very little studies are

found in emotion recognition for the purpose of

biometric identifications. And the existing ones

focus on facial emotion recognition biometrics. For

example, Gray (Gray, 2003) has proposed a

surveillance system that attempts to read a person’s

involuntary facial muscle-changes or what is termed

as “microexpressions”, that corresponds to his or

her emotional state. Nevertheless, building an affect

recognition system particularly based on voice for

identification and possible intervention has almost

never been attempted (Bullington, 2005).

2.1 Voice Affect Biometrics

In general, biometric analysis of speech aims at

identification of a person. However, analysis on the

emotion conveyed in the speech could reveal the

presence of a particular psychophysiological state of

the person via extralinguistic information (Ronzhin

et al., 2004, Huang, 2001). Simply put, voice-affect

identification could seek to predict an individual’s

‘state of mind’ and reach judgments about his or her

emotional states, impairments or behavioural

intentions (i.e.: criminal intent) (SRI-BI, N/A)),

despite the impostor deliberately trying to deceive

the system, in some cases. Naturally, such a system

will also recommend a possible course of prevention

(Bullington, 2005). Physiological-based biometrics

is constrained in terms of time, cost and detection of

certain emotional ‘colouring’ such as boredom or

fatigue. Additionally, these systems are dependent

on human observers, invasive and impose ethical

issues to some degree which make them unpopular

(Bullington, 2005, Ronzhin et al., 2004). In contrary,

voice-affect recognition systems are ideal and easy

to deploy as they are individual oriented system, that

does need human observers such that in facial-based

recognition system. It uses machine learning

algorithms to analyze and learn about the distinctive

patterns of emotional states responding of individual

users. Therefore, speech-based affect recognition is

more natural, contact-free and offers high processing

speed (Ronzhin et al., 2004). Though this kind of

technology is unsuitable to be used in a crowd

setting (i.e.: surveillance) on its own, it is ideal to be

deployed in smaller scoped, specific high risk

environment, where operator error could lead to

serious problems such as injuries or fatalities. An

example is the transportation industry or nuclear

power plant. Apart from that, employment agencies

or offices that recruit people for high-level security

jobs such that in financial industry, military etc. can

take advantage of this technology. In what follows,

three possible areas for the implementation for

voice-affect recognition technology are discussed:

1. Recruitment: Emotion detection in voice can

estimate the psychophysiological state that leads

to the determination of the psychological

compatibility and the readiness of a candidate to

accept a high security or stressful jobs. Industries

such as nuclear, aerospace, transportation,

financial etc. require workers that are fit for duty

in these kinds of work nature. They may be able

to determine when employees are not in the right

state of mind to complete their tasks or determine

the optimal conditions and most productive

situations for each individual. Rohnzin et al

(Ronzhin et al., 2004) proposed that the system

takes into consideration the lexical and

grammatical accuracy, apart from phrase

understandability of a conversation during

EXPRESSIVE SPEECH IDENTIFICATIONS BASED ON HIDDEN MARKOV MODEL

489

testing. Then, the output is matched against a

speech understanding model, to determine their

psychological compatibility. Bullington

(Bullington, 2005) pointed out that facial affect

recognition system can be deployed to detect

“possibly sleepy, intoxicated or distressed”

worker to alert in-charged security personnel or

deliver a warning to the worker himself. Such an

application can be integrated with speech

modality to enhance its functions.

2. Pathological detection and treatment: As

mentioned earlier, analysis of voice can reveal

hidden information, such as the true state of

emotion, even if a person is faking it.

Psychiatrists could benefit from this with regards

to diagnosing and treatment of psychological

disorders such as Post-Traumatic Stress

Disorders (PTSD) (Castellanos et al., 2006,

Morales-Perez et al., 2008). An example is the

study from Morales-Perez et al (Morales-Perez et

al., 2008) that utilizes a speech recognition

application that employ time-frequency

transformation techniques to extract relevant

speech features correlating to both time and

frequency domains. This information gives

pathological information for detecting the

anxiety level of a patient, thus providing the

suggestion of the suitable treatment required.

3. Group Decision Support: Affective data obtained

from speech analysis provides a more reliable

indicator about the level people’s feelings

(strength of support or dissent) about an issue

compared to a typical survey-based model

(Bullington, 2005).

The next sections present the speech emotion

identification experiments and the results.

3 EMOTION IDENTIFICATION

IN SPEECH

This section presents the speech emotion

identification experiments and the results obtained

3.1 Experiments

The experiments are run on a classifier based on

Hidden Markov Models (HMMs), which is

implemented on the Hidden Markov Model Toolkit

(HTK) (Young et al., 1995), originally developed for

speech recognition. The output of the HMM

classifier are ‘fake’ phonemes that are correlated to

emotion with the highest probability among all

emotion models together with its score value

(accuracy). This will be assumed as the emotion that

is identified from the speech input.

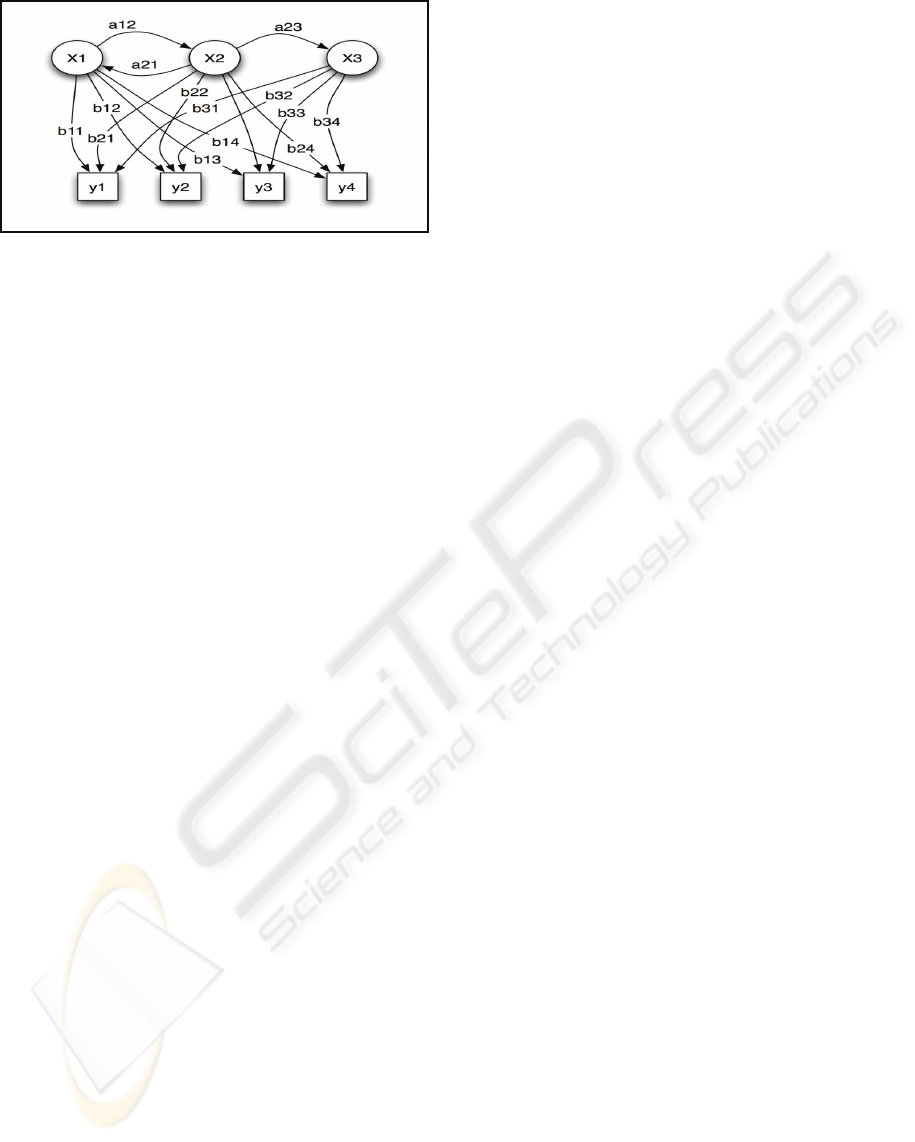

3.2 How HMM Works

HMMs are widely used in the field of pattern

recognition. Their original application was in speech

recognition (Rabiner, 1989). Given an HMM with a

predefined architecture, there exist some well-

established training algorithms to automatically

optimize the parameters of that architecture. An

example is the Baum-Welch training procedure

(Rabiner, 1989) which uses the Maximum

Likelihood Estimation (MLE) criterion. However,

the architecture of HMM as well as the number of

Gaussian mixtures per state and the number of

training iterations are usually empirically

determined. This section’s summarizes how HMMs

work, based on (Gunter and Bunke, 2004). When

using HMMs for a classification problem, an

individual HMM is constructed for each pattern

class. For each observation sequence, i.e. for each

sequence of feature vectors, the likelihood that this

sequence was produced by an HMM of a class can

be calculated. The class whose HMM achieves the

highest likelihood is considered as the class that

produced the actual sequence of observations. An

HMM consists of a set of states and transitions

probabilities between those states. One or several of

the states are defined as final states. For each state a

likelihood value for each possible observation is

defined. If there is a finite number of observations

then a probability for each observation, i.e. feature

vector, is defined, but if we have continuous

observation vectors a probability distribution is used.

Each instance of a state in the training set has an

impact on the training and leads to better parameter

estimation. This software employs the Baum-Welch

algorithm for training and the Viterbi algorithm for

recognition. These algorithm are used to define the

likelihood of an observation sequence for a given

HMM. Viterbi recognition uses the highest

likelihood of all possible state sequences, and the

Baum-Welch recognition considers the sum of the

likelihoods of all possible state sequences (Huang et

al., 2001). The output of the HMM classifier are

phonemes that are correlated to an emotion with the

highest probability among all emotion models

together with its accuracy value.

The figure below depicts the state, iteration and

transition probabilities between states in an HMM:

HEALTHINF 2009 - International Conference on Health Informatics

490

Legend:

x — states

y — possible observations

a — state transition probabilities

b — output probabilities

Figure 1: Probabilistic parameters of a hidden Markov

model (Rabiner, 1989).

3.3 Data Set

The use of acted speech recordings, though widely

criticized (Douglas-Cowie et al., 2000, Campbell,

2000), is chosen over natural speech for the

experiments reported in this paper. Though we are

well aware that natural speech corpus such as

Speech under Simulated and Actual Stress Database

(SUSAS) (Hansen et al., 1998) is more suitable for

this kind of study, we chose to use a readily

available corpus as a pilot study. A Spanish corpus,

The Spanish Emotional Speech corpus (SES), which

is described in detail in (Montero et al., 1998) is

used. It is a speaker-dependent database that

contains three emotional speech recording sessions

played by a professional male actor in an

acoustically-treated studio. The data taken are from

three sessions of recordings of paragraphs and each

session contains 4 paragraphs (12 in total). The

recordings simulate three primary emotions

(sadness, happiness and cold anger), a secondary

emotion (surprise) and a neutral speaking style. Each

of these paragraphs are recorded in three sessions of

each emotion, with exception to neutral, which was

recorded only in two sessions, as it is assumed that

there would not be a significant difference in any

two different neutral speaking style (producing 168

paragraph recordings in all of the emotional states).

From this, training dataset contains 165 paragraphs

while recognition set consists of the sentences from

3 remaining paragraphs for all the emotional states,

excluding cold anger (151 sentences). Therefore it

should be noted that this is not a text-independent

experiment and the result could be influenced by the

fact that data have been segmented differently

(multiple silence points in the paragraphs of training

set; silence-speech-silence-speech-….-silence, and

only two silence points in the recognition set;

silence-speech-silence. The texts used carry non-

emotionally inherent contents; they do not convey

any explicit emotional content.

3.3.1 Feature Extraction

All utterances were processed in frames of 25ms

window with 10ms frame shift. The two common

signal representation coding techniques employed

are the Mel-frequency Ceptral Coefficient (MFCC)

and Linear Prediction Coefficient (LPC) and are

improved using common normalization techniques;

Cepstral Mean Normalization (CMN).

Feature extraction in speech recognition system

consists of two steps. Kumar and Andreou (Kumar

and Andreou, 1998) points out that the

dimensionality of the speech waveform is reduced

by using procedures such as cepstral analysis, or

other form of analysis motivated by human speech

perception. In the latter, the dimensionality of the

obtained features vector is increased by an extended

form of features vector that includes derivative and

acceleration information. Therefore, in addition,

experiments with speech identification that exclude

accelerations and derivatives information are also

carried out.

3.3.2 States

As the speech representing the feature combination

will have dynamic properties, it is also natural to

consider using more than one state in the HMM;

common choices are to use three states.(Donovan

and Eide, 1998, Donovan and Woodland, 1995).

This can be formally thought of as modeling the

beginning, middle and end of the sentence file. In

the experiments reported here, the training set

contains ‘forced’ silences in the beginning and at the

end of the sentence. For this reason, the actual

minimum number of state is one. Additionally, the

experiment is run using two and three states per

HMM, to determine any improvements. This is

because it is assumed that each instance of a state in

the training set has an impact on the training and

leads to better parameter estimation.

3.3.3 Training Iterations and Gaussians

The numbers of training iterations used in all the

experiments are from six (6) to thirteen (13), and up

to thirty (30) Gaussians per state

EXPRESSIVE SPEECH IDENTIFICATIONS BASED ON HIDDEN MARKOV MODEL

491

4 RESULTS

From the base experiments, a number of iterations

with highest accuracy average are chosen. From this,

experiments employing training iterations 6, 7 and 9

have the optimum average accuracy. Therefore, the

results presented below uses the information from

one of those experiments, specifically with 6

training iterations, for both base and normalized

features (with and without derivations and

accelerations). The results of emotion identifications

are measured in terms of error rates.

Comparisons of Recognition Results

According to Based and Normalized Features

(w ith de riv + acc)

123

States

Error Rate (%)

mf c c

plp

mf c c _ c mn

plp_cmn

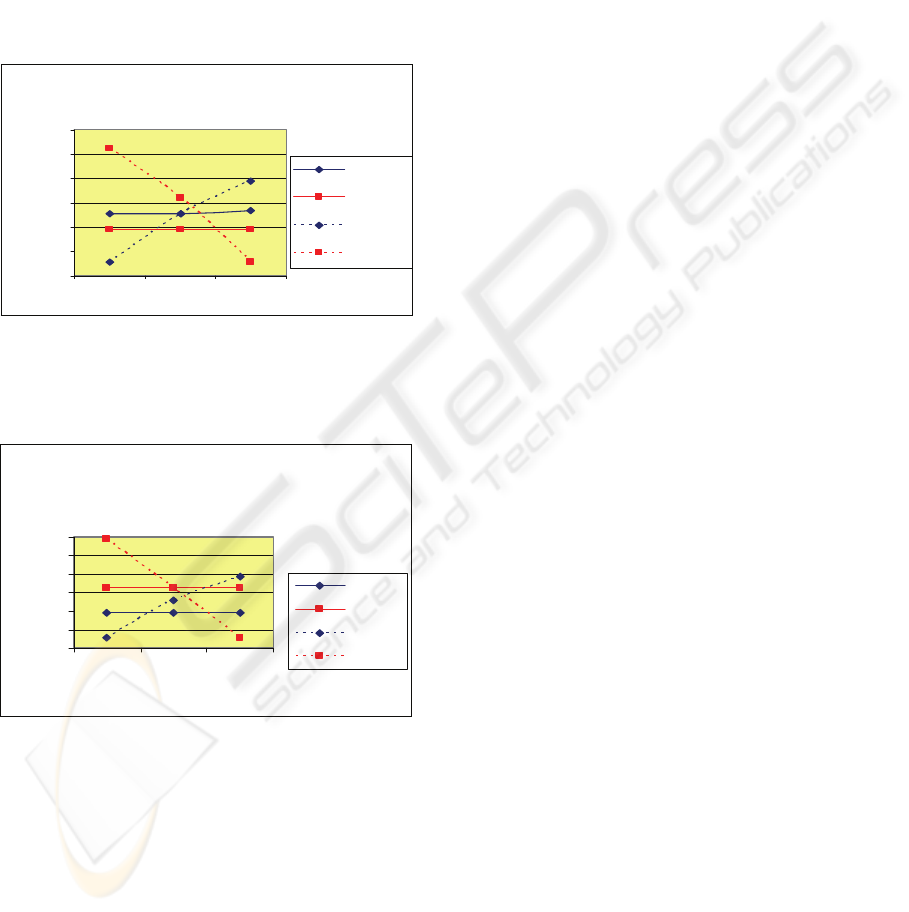

Figure 2: Recognition Results according to Features with

30 Gaussians per state, and 6 training iterations for all

states, before and after normalizations (with derivations

and accelerations).

Com parisons of Recognition Results

According to Based and Norm alized Feature s

(w ithout deriv + acc)

123

States

Error rate (%)

mfcc

plp

mfcc_cmn

plp_cmn

Figure 3: Recognition Results according to Features with

30 Gaussians per state, and 6 training iterations for all

states, before and after normalizations (without derivations

and accelerations).

Further, Table 1 and 2 below show the

comparisons of confusion matrix for emotion

identifications for base and normalized features

respectively. The last row of the tables show the

precision of the identification task, in other words,

how precise the identification is. This is defined by

the number of times the intended emotions are

correctly identified in proportion of the total number

of identifications (regardless of the accuracy).

5 DISCUSSION

Comparing the base features with derivatives and

accelerations in Figure 2, PLP is shown as a slightly

better feature, with error rate of 15.9 percent. The

horizontal lines representing both the base features

show that the number of states does not make much

difference. However, after normalization is applied,

number of states seems to influence the parameter

estimation. After normalization, the optimum

number of states for MFCC is one (1) while the

worst is three (3). It is however, reversed with the

PLP feature. The fact that in certain number of states

(i.e.:MFCC with 3 states) worst parametric

estimation is produced compared to the base-feature

results implies that normalization may cause some

important speech information to be eliminated. As

for testing the features with and without derivatives

and accelerations, the comparison of Figure 2 and

Figure 3 clearly depicts that for test-set of 6 training

iterations, results for base-PLP feature without

derivatives and accelerations declined while it was

the opposite for MFCC, though the Level of

Confidence (LOC) for the differences of both

features were not significant. In contrast, the

normalized features without derivatives and

accelerations are almost equal to that of features

with derivatives and accelerations. Finally, the

confusion matrix for emotion identifications of both

base and normalized features in Table 1 and 2 shows

that happiness is the most difficult emotion to detect.

Additionally, Table 1 shows that MFCC is a more

precise feature at identifying happiness. These

results for happiness identification is also similar to

the identification by human listeners using the same

corpus in (Barra et al., 2006). As for the

identification of the rest of the emotions, both

features are almost equal, before and after

normalization. Perhaps the use of different features

is essential when it comes to the target emotions to

be identified, as suggested by the results shown in

the Tables.

ACKNOWLEDGEMENTS

This work has been partly funded by the Spanish

Ministry of Science and Innovation with the

contract: ROBONAUTA (DPI2007-66846-c02-02).

HEALTHINF 2009 - International Conference on Health Informatics

492

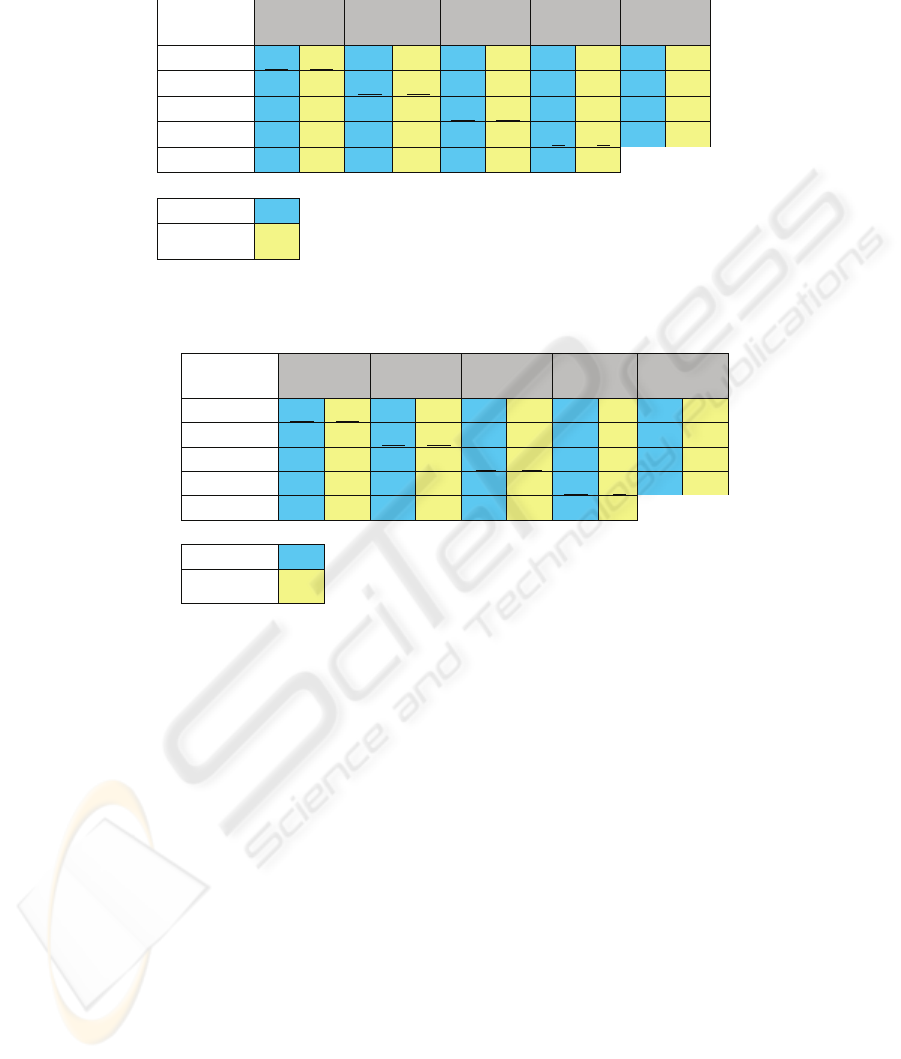

Table 1: Comparisons of Confusion Matrix for Emotion Identification between Base MFCC and PLP Features.

Table 2: Comparisons of the Confusion Matrix for motion Identification between Normalized MFCC and PLP Features.

REFERENCES

Barra, R., Montero, J. M., Macias, J., D'Haro, L. F.,

Segundo, R. S. & Cordoba, R. D. (2006) Prosodic and

segmental rubrics in emotion identification.

International Conference on Acoustics, Speech and

Signal Processing (ICASSP). Toulouse.

Benzeghiba, M. F., Bourlard, H. & Mariethoz, J. (2001)

Speaker verification based on user-customized

password. . Institut Dalle Molle d'Intelligence

Artificial Perceprive.

Bullington, J. (2005) ‘Affective’ computing and emotion

recognition systems: The future of biometric

surveillance? Information Security Curriculum

Development (InfoSecCD). Kennesaw, GA, USA.

Campbell, N. (2000) Database of Emotional Speech. ISCA

Workshop on Speech and Emotion. Belfast.

Castellanos, G., Delgado, E., Daza, G., Sanchez, L. G. &

Suarez, J. F. (2006) Feature Selection in Pathology

Detection using Hybrid Multidimensional Analysis.

IEEE 2006 International Conference of the

Engineering in Medicine and Biology Society (EMBS

'06). NY, USA.

Darpa (2003) Integrated system for emotion recognition

for the enhancement of human performance detection

of criminal intent. DARPA SB032-038. USA, DARPA.

Donovan, R. E. & Eide, E. (1998) The IBM trainable

speech synthesis system. ICSLP 98.

Donovan, R. E. & Woodland, P. C. (1995) Automatic

speech synthesiser parameter estimation using

HMMS. International Conference on Acoustic Speech

Signal Processing.

Douglas-Cowie, E., Cowie, R. & Schroder, M. I. (2000) A

new emotion database: Considerations, sources and

scope. ISCA Workshop on Speech and Emotion. New

Castle, UK.

Gamboa, H. & Fred, A. (Eds.) (2003) An identity

authentication system based on human computer

interaction behaviour, ICEISS Press.

Gamboa, H. & Fred, A. (2004) A Behavioural Biometric

System Based on Human Computer Interaction. Proc.

of SPIE, 5404.

Gray, M. (2003) Urban Surveillance and Panopticism: will

we recognize the facial recognition society?

Surveillance and Society, 1, 314-330.

Gunter, S. & Bunke, H. (2004) HMM-based handwritten

word recognition: on the optimization of the number

IDENTIFIED EMOTIONS (%)

INTENDED

EMOTIONS Hap Sur Sa Neu Ang

Hap

46,3 75,6 22.0 19,5 0 0 4,87 0 26,8 4,9

Sur

2,22 24,4 97,8 75,6 0 0 0 0 0 0

0 0 0 0 96,8 93,5 3,2 6,5 0 0

Neu

0 0 0 0 0 0 97 97 2,94 2,94

Precisions

95 73,8 83 80,9 100 100 91,7 94,3

mfcc

plp

IDENTIFIED EMOTIONS (%)

INTENDED

EMOTIONS

Hap Sur Sa Neu Ang

Hap

56,1 46,3 29,3 46,3 2,4 0 0 2,4 12,2 4,9

Sur

6,7 2,2 93,3 95,6 0 2,2 0 0 0 0

0 0 0 0 100 100 0 0 0 0

Neu

8,8 2,9 0 0 0 0 88,2 94 2,94 2,94

Precisions

79,3 90,5 77,8 69,3 96,9 96,9 100 97

mfcc

plp

EXPRESSIVE SPEECH IDENTIFICATIONS BASED ON HIDDEN MARKOV MODEL

493

of states, training iterations and Gaussian components.

Pattern Recognition, 37, 2069-2079.

Hansen, J. H. L., Bou-Ghazale, S. E., Sarikaya, R. &

Pellom, B. (1998) Getting started with the SUSAS:

Speech under simulated and actual stress database.

Huang, X. (2001) Spoken Language Processing, Prentice

Hall.

Huang, X., Acero, A. & Hon, H.-W. (2001) Spoken

Language Processing: A guide to theory, algortihm

and system development, New Jersey, Prentice Hall.

Kumar, N. & Andreou, A. G. (1998) Heteroscedastic

discriminant analysis and reduced rank HMMs for

improved speech recognition. Speech Communication,

26, 283-297.

Montero, J. M., Gutirrez-Arriola, J., Palazuelos, S.,

Enriquez, E. & Pardo, J. M. (1998) Spanish emotional

speech from database to TTS. ICSLP. Sydney.

Morales-Perez, M., Echeverry-Correa, J., Orozco-

Gutierrez, A. & Castellanos-Dominguez, G. (2008)

Feature Extraction of speech signals in emotion

identification. IEEE 2008 International Conference of

the Engineering in Medicine and Biology Society

(EMBS '08). Vancouver, Canada.

Rabiner, L. (1989) A tutorial on hidden Markov models

and selected applications in speech recognition. Proc.

of the IEEE, 77, 257-285.

Ronzhin, A. L., Lee, I. V., Karpov, A. A. & Skormin, V.

A. (2004) Automatic estimation of human's

psychophysiological state by speech. 9th Conference

of Speech and Computer (SPECOM '04). St.

Petersburg, Russia.

Sri-Bi (N/A) Next-Generation Technologies: Affective

Computing. SRI Consulting Business Intelligence.

Steinhardt, B. (2000) Face-off: Is the use of biometrics an

invasion of privacy? Network World. 05/08/00 ed.,

Network World Inc.

Vaclave Jr., M. & Riha, Z. (2000) Biometric

authentication systems., ECOM-MONITOR.

Young, S. J., Jansen, J., Ordell, J. J., Ollason, D. &

Woodland, P. C. (1995) The HTK Hidden Markov

Model Toolkit Book. Entropic Cambridge Research

Laboratory.

HEALTHINF 2009 - International Conference on Health Informatics

494
