COMPONENT-BASED FRAMEWORK FOR MOBILE DATA MINING

WITH SUPPORT FOR REAL-TIME SENSORS

Taneli Rautio, Perttu Laurinen and Juha Röning

Intelligent Systems Group, Department of Electrical and Information Engineering, FI-900014 University of Oulu, Finland

Keywords:

Mobile data mining, Component-based framework.

Abstract:

The increasing use of various mobile devices has shown that there is a need for mobile data mining applica-

tions. While many existing data mining frameworks can be modiﬁed to handle data streams generated in real

time, they are usually too complex and inﬂexible to be used in mobile devices. This paper presents Mobile

Smart Archive, a component-based framework for data stream mining in mobile devices. The framework

takes care of generic data mining operations, allowing the application developer to concentrate on implement-

ing only application-speciﬁc functionalities. This reduces implementation time and generates fewer errors,

since the underlying framework of the application is tested and robust. The presented framework is written in

C++ and it extends the existing Smart Archive framework with support for mobile systems and real-time sen-

sors. The beneﬁts of framework-based applications in the mobile world are presented by building and testing

a demonstration program in different computer architectures. In this paper we show that the MSA framework

is suitable for building data stream mining applications for the hardware-oriented mobile environment.

1 INTRODUCTION

Ubiquitous data mining and time series data mining,

among others, are research areas that are predicted to

hold critical and future promise in the ﬁeld of data

mining (Hsu, 2002). While obviously a very potential

research area, not much work has been done regard-

ing mobile data mining frameworks, even though the

beneﬁts of such frameworks in software engineering

have been recognized widely over 20 years ago (John-

son and Foote, 1988).

Frameworks are not very widely used in mo-

bile application development, since they tend to need

more system resources than applications that are

made and optimized for a single purpose. Compared

with desktop and server applications, the mobile envi-

ronment has been notorious for its limitations and re-

strictions in memory capacity and processing power.

This paper suggests that a well-designed and well-

implemented framework can still speed up the devel-

opment of a new application, even in the ﬁeld of mo-

bile systems.

This paper presents a component-based applica-

tion framework, called Mobile Smart Archive (MSA).

It is an extended C++ port of the Smart Archive

framework, originally written in Java and reported in

(Laurinen et al., 2005) and (Tuovinen et al., 2008).

The port is designed and modiﬁed to serve as a

generic data mining framework for mobile and em-

bedded systems such as handheld and laptop comput-

ers and PDAs. It has been specialized with support

for data stream mining using real-time sensors, but

its use is not limited strictly to that ﬁeld. Although

MSA shares its internal design with the original Smart

Archive, it has been modiﬁed to be better suited for

environments with limited resources, such as memory

and processing power.

MSA offersa tested and robust data mining frame-

work for use in mobile applications with different sen-

sors and data mining methods. It is not a framework

for real-time data mining, although in favorable cir-

cumstances it can be use to build applications that per-

form almost in real time. Instead, it is a frameworkfor

data stream mining, and the sensors that produce the

streams can produce real-time data. In (Thuraising-

ham et al., 2005) the major difference is explained: In

the case of real-time data mining, the goal is to mine

the data and output results in real time. In the case of

stream mining, the goal is to ﬁnd patterns over spec-

iﬁed time intervals. The MSA framework guarantees

that all the values from sensors are recorded in order,

without losses, and handled as fast as the underlying

hardware is able process them. The most signiﬁcant

advantage compared with data mining methods used

before is that the data from the real-time sensors are

collected at the same time as they are processed.

208

Rautio T., Laurinen P. and Röning J. (2009).

COMPONENT-BASED FRAMEWORK FOR MOBILE DATA MINING WITH SUPPORT FOR REAL-TIME SENSORS.

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence, pages 208-213

DOI: 10.5220/0001657702080213

 SciTePress

In this paper we

• explain why there is a need for a generic mobile

data mining framework

• discuss why the existing Smart Archive serves as

a good basis for a mobile data mining framework

• show how the framework is modiﬁed so that it ﬁts

into mobile systems and can reliably mine data

from real-time sensors

The paper is structured as follows: section 2 re-

views previous work related to MSA and describes

the motivation for creating a mobile data mining

framework. Section 3 discusses why the Smart

Archive framework servers a good basis for a mobile

data mining framework and goes into the details of the

internal design of the framework, especially related to

the original framework. Section 4 then demonstrates

the framework with a small example program. The

conclusions are discussed in section 5.

2 MOTIVATION AND RELATED

WORK

The development of MSA originated from a speciﬁc

need of our research group to apply data mining meth-

ods to time series data recorded from human move-

ments. They are usually tracked with several differ-

ent wearable sensors, which may be, for example, ac-

celerometers, magnetometers, gyroscopes and other

similar time series data-producing devices. Usually

the sensors and the software used to collect the data

havebeen proprietaryand tied closely together,mean-

ing that speciﬁc sensors can be used only with certain

software within a certain project.

Furthermore, the ways to store the data are nu-

merous: the data can be stored in the ﬂash memory

of the sensor, in a data ﬁle or in a database. In ad-

dition, the storage site can reside in a local computer

or in a network. Only the ﬁrst option allows data to

be recorded without environmental limitations. Oth-

erwise the sensors need a connection to the computer

that records the data, which means data recording is

restricted to the conﬁnes of the computer.

This has led to a situation where the data have to

be collected using different sensors, processed so that

they are uniform and transferred to a place where that

are available to the actual data mining software before

one can even think of starting the data mining process.

The process is, at best, slow. With several different

sensors and storage sites, it is also error-prone.

MSA speeds up the development of mobile data

mining applications where data stream-producing

sensors are used. The only two things the application

developer needs to do are code an interface between

the framework and the sensor(s) and deﬁne how the

data are processed in the ﬁlters of the application.

Everything else is handled by the framework. Even

though the framework has been implemented with the

data stream sensors in mind, the input to the appli-

cation can be any kind of device or storage site that

produces time series data.

Although data mining in a mobile environment

is an emerging ﬁeld of research, it appears that no

research has been done regarding mobile data min-

ing frameworks. However, there are some inter-

esting applications for mobile systems which intro-

duce different application areas for mobile data min-

ing. For example, MobiMine (Kargupta et al., 2002)

is client-server-based software for monitoring time-

critical ﬁnancial data from a handheld PDA. (Wang

et al., 2003) proposes a distributed and mobile data

mining system in which algorithms are encapsulated

into SQL Server-stored procedures. An experimen-

tal mobile and distributed data stream mining system

that allows real-time vehicle health monitoring and

drivercharacterization is presented in (Karguptaet al.,

2004).

Of course, existing non-mobile component-based

data mining application frameworks such as the orig-

inal Smart Archive (Laurinen et al., 2005), D2K

(NCSA Automated Learning Group, 2003), Knime

(Berthold et al., 2006) and YALE (Mierswa et al.,

2006) can be modiﬁed to receive and mine real-time

sensor data, but they do not work very well in mobile

systems. First of all, they all are written in Java and

therefore need Java Virtual Machine (JVM) to run.

Many embedded and mobile systems are not capable

of running JVM very well or it may not exist for these

systems at all. Secondly, some of the aforementioned

frameworks apply a graphical user interface (GUI) to

program and visualize the relationships between the

data mining application components, pipes and ﬁlters.

The compatibility of the GUIs with different mobile

systems, which can have output screens in various

sizes, is questionable. Finally, if needed, MSA al-

lows modiﬁcations anywhere in the code, not just in

the component API of the framework.

3 DESIGN OF THE

FRAMEWORK

The purpose of the MSA framework is to serve as a

core for different data stream mining applications in

mobile systems. To maximize the portability of the

framework, it has been written using standard C++

as much as possible. Since it is very portable, the

COMPONENT-BASED FRAMEWORK FOR MOBILE DATA MINING WITH SUPPORT FOR REAL-TIME

SENSORS

209

main advantage of using MSA is the reduced imple-

mentation time of data mining programs. If the ap-

plication classes are also written to conform to the

C++ standard, the generated application can be eas-

ily transferred to a different computer architecture or

a different operating system. On the other hand, the

data mining software can also be written to take full

advantage of the platform in which it is running by

using platform-speciﬁc code. In both cases the devel-

oper is not required to implement the underlying data

mining engine. On the contrary, the developer is free

to start building application-speciﬁc functionalities.

As already stated, MSA borrows most of its in-

ternal design from the original Smart Archive, whose

internal design is explained thoroughly in (Laurinen

et al., 2005) and (Tuovinen et al., 2008). Compared

with its predecessor, the structure has been modiﬁed

to better suit the mobile environment. The ﬁrst differ-

ences in design come from the fact that some of the

features of the original Smart Archive are language-

speciﬁc. Thus, some of the code could not be trans-

lated directly from Java to C++. However, most of

the improvements are related to maximizing the efﬁ-

ciency of the framework in a limited environment.

The challenges of mining data streams in a mobile

environment are introduced in (Karguptaet al., 2002).

They include:

1. handling a continuous ﬂow of data

2. efﬁcient representation and communication of

data mining models over a wireless network with

a limited bandwidth

3. visualization on a small screen

4. minimization of power consumption.

In the development of MSA, emphasis has been

placed on the ﬁrst two issues listed above, with the

third issue in mind.

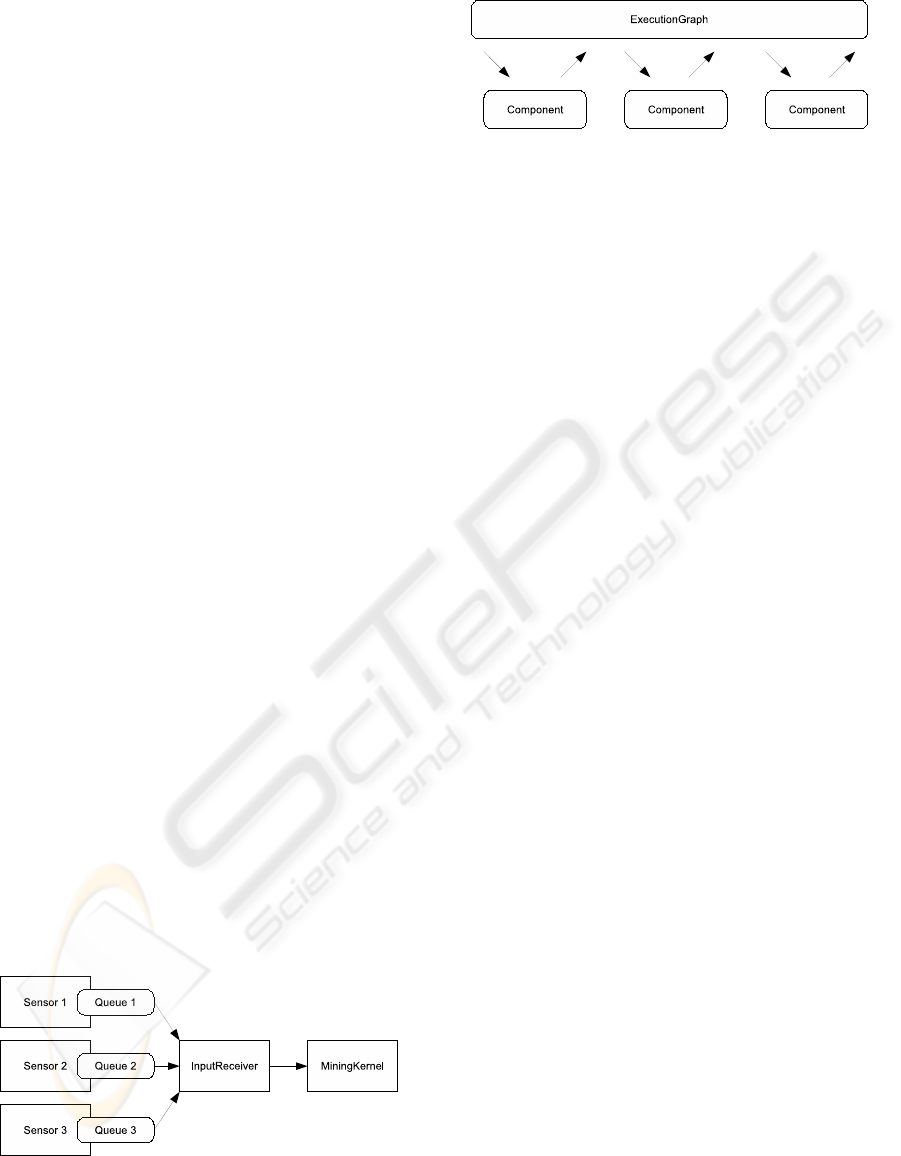

Figure 1 shows the overall arrangement of the

main classes in the framework. Compared with the

original Smart Archive, all of the illustrated classes

Figure 1: Threaded classes in the framework are illustrated

as rectangular boxes. Arrows illustrate data ﬂow within the

framework. The boxes with rounded corners represent data

buffers of the sensors.

Figure 2: ExecutionGraph class is responsible for transfer-

ing data between components in the right order.

run in separate threads. A continuous ﬂow of data

is ensured by presenting every real-world sensor as a

separately threaded object with a queue of its own for

storing sensor data. The

InputReceiver

class col-

lects all the data in a single storage site and the ac-

tual data processing class,

MiningKernel

, fetches the

data to be processed in the components of the frame-

work.

MSA uses pipes-and-ﬁlters architecture, where

the input data are processed and transferred from one

component to another via distinct pipes. A single

component includes a ﬁlter and optionally a sink. The

former takes care of data transformation and the latter

writes the transformed data into a permanent storage

site. A data mining graph,

ExecutionGraph

, resides

inside the

MiningKernel

class and is responsible for

transferring data from one component to another. The

data mining graph is illustrated in Figure 2.

Attaching new physical sensors to the framework

has been made easy by offering classes that imple-

ment serial port communications to applications. As

mentioned before, the sensors in the sensor classes do

not need to be actual physical devices. However, in

the domain of mobile data mining, the use of abstract

input devices may mean signiﬁcant performance loss.

A data mining application that uses for example a

database table as its input may be more efﬁcient when

implemented in a non-mobile domain.

Some compromises were made to ease the use

of the framework code and enhance its compatibil-

ity with different platforms. Most mobile applications

are not portable because their code is often optimized

for a certain device architecture. MSA uses standard

C++ whenever possible, but in order to maximize

the portability of the framework, free peer-reviewed

portable Boost libraries (http://www.boost.org) are

used in several places in the code. This means ap-

plications made with MSA may be not as fast as

single-purpose, platform-optimized applications, but

the framework signiﬁcantly eases and speeds up ap-

plication assembly, as proved in a case study in (Lau-

rinen et al., 2005).

Due to the openness of the MSA framework, fur-

ther threading of the framework components is pos-

sible if the data mining graph in the MiningKernel

thread becomes very large. Otherwise, in some cir-

ICAART 2009 - International Conference on Agents and Artificial Intelligence

210

cumstances a situation may arise in which execution

of the program is still in the middle of the MiningKer-

nel when the program should be receiving incoming

data. Currently the MSA framework only supports

standard C++ data types, i.e. one cannot send point-

ers to objects through the pipes. Since the data from

physical sensors are usually numeric, this should not

pose a very signiﬁcant problem.

The most interesting detail from the point of view

of the source code is the framework’s use of smart

pointers provided by the Boost library. In an embed-

ded environment, dynamic memory allocations are

traditionally frowned upon by programmers. Since

MSA is directed more towards mobile systems with a

little larger memory capacity, the use of smart point-

ers is acceptable. The structure of the data min-

ing graph is built automatically during the execu-

tion of the MSA application, which also makes the

use of smart pointers essential. It should be noted

that the use of raw pointers as members in appli-

cation classes is nowadays considered very harmful

(Smirnov, 2007). This means the application pro-

grammer can forget the error-prone

new

and

delete

commands for C++ dynamic memory allocation. The

usage of smart pointers will not eliminate the fact that

it is still the application programmer’s responsibility

to be sure the target platform has enough memory to

run the application.

The other Boost libraries used extensively in the

framework are a threading library and a variant value

type library. The former allows portable threads,

while the latter allows any value to be stored into the

any

variable.

The framework itself does not place any restric-

tions on the GUI, so application developers are fully

free to create such a graphical interface as they like.

Since use of the applications created with MSA is in-

tended to be quite short-term, the power consumption

aspect of the framework has been left in the back-

ground. Often the external sensors have considerably

shorter uptime than does the actual mobile device.

4 DEMONSTRATION PROGRAM

While this paper is concerned with the MSA frame-

work, its use cannot be demonstrated without a

demonstration program. Therefore, a very simple

application for testing the portability of the Mobile

Smart Archive framework was created. The applica-

tion was tested in three different target systems. The

ﬁrst two were desktop systems (Windows and Linux)

and the third was a mobile device with Linux (Nokia

N800). All of the aforementioned systems used a

wireless sensor box to record real-time data.

The N800 is a rather powerful handheld com-

puter with a 330 MHz ARM11 processor and a 128

MB memory. It uses a Linux-based operating sys-

tem and is therefore a suitable platform for demon-

strating the MSA framework. Shake (SAMH Engi-

neering Services, 2007) is a matchbox-sized sensor

box that includes an accelerometer, a magnetometer,

a gyroscope, capacitive sensors, a compass and a ther-

mometer. It can be connected to a computer with a

Bluetooth connection or a USB cable.

The aim of the application was to prove that ap-

plications made with Mobile Smart Archive are trans-

ferable to different processor architectures and oper-

ating systems. Especially the speed and reliability of

the software in the N800 was observed and compared

with those of the desktop PCs. After all, the process-

ing speed of the demonstration application is only one

aspect of comparison. The MSA framework reduces

the actual implementation time of data mining appli-

cations in many ways, which are also explored in the

program under discussion. In the course of building

the demonstration application, the following assump-

tions were proven to be correct:

• The robust and tested framework engine gives the

developer the freedom to focus on application-

speciﬁc functionalities

• No target machine-speciﬁc coding is required;

standard C++ is sufﬁcient for building an appli-

cation

• If the application-speciﬁc classes are coded in a

portable way (i.e. using standard C++), the same

application can be easily transferred from one tar-

get system to another without extra coding

The demonstration program worked as follows: a

Shake sensor box was used to collect three-axis ac-

celerometer data at a user-deﬁned frequency. The col-

lected data were relayed to the software via a Blue-

tooth connection. The application received the data,

attached time stamps and ordering numbers to each

data packet and forwarded them to a speciﬁed sink,

which in the demonstration program was either a lo-

cal text ﬁle or a table in a MySQL database.

Execution times were recorded with a built-in

timer that used a clock class from the Boost library.

The stored times include not only the actual time re-

quired to acquire the data with the sensor, they also

include initialization of the components, ﬁlters and

sinks and assembly of the data mining graph.

The test cases consisted of processing 100, 1000

and 10000 accelerometer data packets gathered using

a 100 Hz frequency. When the local text ﬁle in the

desktop PCs was used as a storage site for processed

COMPONENT-BASED FRAMEWORK FOR MOBILE DATA MINING WITH SUPPORT FOR REAL-TIME

SENSORS

211

data, data ﬂow through the application was close to

real time in all the tests, when the initialization and

set-up time of the application was ignored. With the

limited processing power of the N800, data mining

was roughly 2-3 times slower as the Table 1 indicates.

Table 1: Execution times of the demonstration program

when accelerometer samples were recorded into a ﬂat ﬁle.

Amount of data packets

Platform 100 1000 10000

Linux PC 3,26 s 11,49 s 98,96 s

Windows PC 2,69 s 10,67 s 98,76 s

N800 4,21 s 29,59 s 278,19 s

In practice this means that when the sensor has

stopped gathering raw data, the application spends the

rest of its running time processing the queued raw

data. Since the applications made with the frame-

work can be hugely different, there are no implicit

frequency rates for the sensors in different platforms

where data can be collected in real time.

However, an estimation of the memory consump-

tion of the application can be made when the struc-

ture of single datapacket is observed. In the demostra-

tion application one datapacket consisted of four vari-

ables from the accelerometer of the Shake sensor box.

When the application was compiled with GNU G++-

compiler and used in the N800, the size of the re-

sulting package was 32 bytes as seen in Figure 3.

This means that with 100 Hz frequency 3200 bytes

of memory was used every second.

When the MySQL database acted as a sink, the

processing speeds of the applications were more sim-

ilar, although the applications run on the desktop PCs

were generally a bit quicker. The execution times

were not evaluated, since the MySQL sink implemen-

tation was unoptimized, which could be observed as

slowness in all platforms. It was only noted that dif-

ferent sink implementations worked and the MySQL

connection from the framework needed more opti-

mization.

In the end the ﬁnal result was that both test cases

were run successfully: no data packets were dropped

during the process and the execution times did not

increase to disproportionate dimensions. During the

tests the processor load of the programs in the N800

with one Shake sensor was constantly around 30%.

With two sensors the processor load was 70-95%, im-

plying that with a little optimization the N800 could

serve as a functional platform for actual MSA-based

applications in the future.

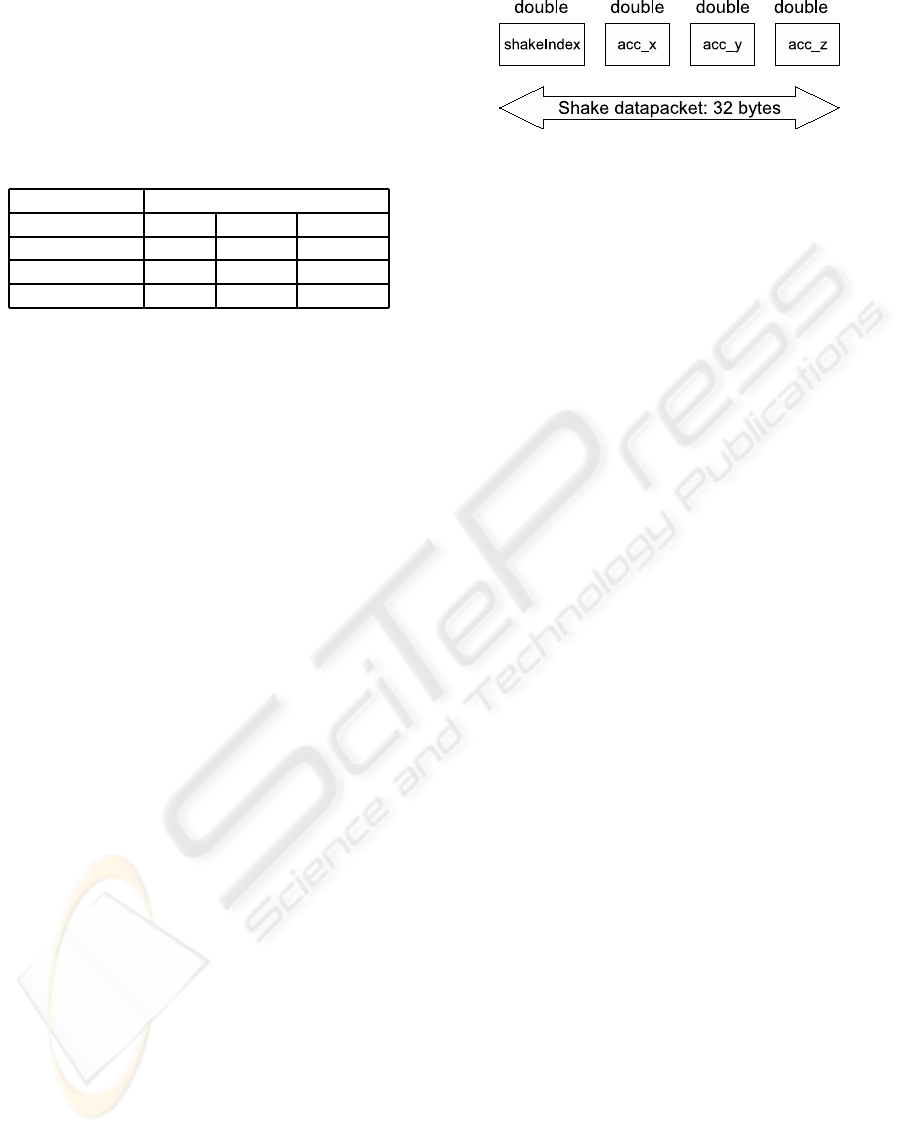

Figure 3: An example datapacket.

5 CONCLUSIONS

This paper is the ﬁrst step in exploring the area of

mobile data mining frameworks. It presented Mobile

Smart Archive, a data mining application framework

for mobile systems. It is designed for building data

mining applications for mobile platforms. Especially

data stream mining using one or more physical sen-

sors is supported. The framework is based on the

existing Smart Archive framework, but it is imple-

mented using C++ programming language and it has

been adapted and modiﬁed to utilize mobile devices

better.

With MSA, writing mobile data mining software

for data stream mining is signiﬁcantly easier. There

is an underlying framework for looking after generic

data mining functionalities, thus the application de-

veloper can concentrate on implementing application-

speciﬁc classes and functions. This reduces the im-

plementation time of a new application and generates

fewer errors, since the framework is thoroughly tested

and robust.

A demonstration application was created for dif-

ferent platforms to test the portability of the frame-

work. The execution speeds of the programs were

tested and it was observed that the data were col-

lected successfully. In this paper we demonstrated

that, compared with building a mobile data mining ap-

plication from scratch, the MSA framework allows an

application to be built faster and in a less error-prone

way.

REFERENCES

Berthold, M. R., Cebron, N., Dill, F., Fatta, G. D., Gabriel,

T. R., Georg, F., Meinl, T., Ohl, P., Sieb, C., and

Wiswedel, B. (2006). Knime: The Konstanz Infor-

mation Miner. In Proceedings of the 4th Annual In-

dustrial Simulation Conference, pages 58–61.

Hsu, J. (2002). Data Mining Trends and Developments: The

Key Data Mining Technologies and Applications for

the 21st Century. In The Proceedings of 19th Annual

Information Systems Education Conference (ISECON

2002).

ICAART 2009 - International Conference on Agents and Artificial Intelligence

212

Johnson, R. E. and Foote, B. (1988). Designing Reusable

Classes. Journal of Object-Oriented Programming,

1(2):22–35.

Kargupta, H., Bhargava, R., Kun, L., Powers, M., Blair, P.,

Bushra, S., and Dull, J. (2004). VEDAS: A Mobile

and Distributed Data Stream Mining System for Real-

Time Vehicle Monitoring. In Proceedings of the fourth

SIAM international conference on data mining, pages

300–311.

Kargupta, H., Park, B.-H., Pittie, S., Liu, L., Kushraj, D.,

and Sarkar, K. (2002). MobiMine: monitoring the

stock market from a PDA. ACM SIGKDD Explo-

rations Newsletter, 3(2):37–46.

Laurinen, P., Tuovinen, L., and Röning, J. (2005). Smart

Archive: A Component-based Data Mining Applica-

tion Framework. In Proceedings of the 5th Interna-

tional Conference on Intelligent Systems Design and

Applications, pages 20–26, Wroclaw, Poland. IEEE

Computer Society Press.

Mierswa, I., Wurst, M., Klingenberg, R., Scholz, M., and

Euler, T. (2006). YALE: Rapid Prototyping for Com-

plex Data Mining Tasks. In Proceedings of the 12th

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, pages 935–940.

NCSA Automated Learning Group (2003). D2K Toolkit

User Manual.

SAMH Engineering Services (2007). SHAKE Sens-

ing Hardware Accessory for Kinaestethic Expression

Model SK6. Dublin, Ireland, revision f edition.

Smirnov, I. B. (2007). Raw Pointers in Application Classes

of C++ Considered Harmful. ACM SIGPLAN Notices,

42(4):23–31.

Thuraisingham, B., Khan, L., Clifton, C., Maurer, J., and

Ceruti, M. (2005). Dependable Real-time Data Min-

ing. In Proceedings of the Eight International Sympo-

sium on Object-Oriented Real-Time Distributed Com-

puting, pages 158–165.

Tuovinen, L., Laurinen, P., Juutilainen, I., and Röning, J.

(2008). Data Mining Applications for Diverse Indus-

trial Application Domains with Smart Archive. In

Proceedings of the IASTED International Conference

on Software Engineering, pages 56–61.

Wang, F., Helian, N., Guo, Y., and Jin, H. (2003). A Dis-

tributed and Mobile Data Mining System. In Pro-

ceedings of the Fourth International Conference on

Parallel and Distributed Computing, Applications and

Technologies, pages 916– 918.

COMPONENT-BASED FRAMEWORK FOR MOBILE DATA MINING WITH SUPPORT FOR REAL-TIME

SENSORS

213
