EMOTION-BASED MULTIMEDIA RETRIEVAL AND DELIVERY

THROUGH ONLINE USER BIOSIGNALS

Multichannel Online Biosignals Towards Adaptative GUI and Content Delivery

Vasco Vinhas, Luís Paulo Reis and Eugénio Oliveira

FEUP - Faculdade de Engenharia da Universidade do Porto, Rua Dr. Roberto Frias s/n, Porto, Portugal

DEI - Departamento de Engenharia Informática, Rua Dr. Roberto Frias s/n, Porto, Portugal

LIACC - Laboratório de Inteligência Artificial e Ciência de Computadores, Rua do Campo Alegre 823, Porto, Portugal

Keywords: Affective Computing, Emotion Assessment, Biosignals, Multimedia, Interfaces.

Abstract: Affective computing and multichannel multimedia distribution have gathered the time and investment of

industry and academics. The proposed system merges such domains so that ubiquitous system can be

enhanced through online user emotion assessment based on user’s biosignals. It was used IAPS as a

emotional library for controlled visual stimuli and biosignals were collected in real-time - heartbeat rate and

skin conductance - in order to online assess the user's emotional state through Russell’s Circumplex Model

of Affect. In order to improve usability and session setup, a distributed architecture was used so that

software models might be physically detached. The conducted experimental sessions and the validation

interviews supported the system's efficiency not only in real-time discrete emotional state assessment but

also considering the emotion inducing process. The next logic step consists in replicating the achieved

success in multi-format multimedia contents without the need of pre-defined restricted emotional metadata.

1 INTRODUCTION

Emotional state assessment constitutes a

transversal research topic that has captured the

attention of several knowledge domains. In

parallel with this reality, both the multimedia

industry and ubiquitous applications have gained

a crescent academic and industrial significance

and impact. Having this in consideration, one

shall refer the integration of the enunciated

domains as an opportunity to potentiate each of

the areas and explore mutual synergies.

The present project intends to perform

automatic real-time discrete user emotional state

assessment and with this information, and by

following a flexible emotional policy, deliver the

next multimedia content appropriately. The

authors believe that the success of such system

would enable the intention of developing a fully

automatic affective system that would be able to

provide the user the exact multimedia content

that he or she would like best to be presented

with, in terms of emotional content. This is

considered to be a major breakthrough with

immediate practical applications not only to

multimedia content providers but also to

videogame industry, marketing and advertisement

and even medical and psychiatric procedures.

The outcome of such project would also be

useful, mainly considering the emotion

assessment engine, to greatly enhance ubiquitous

computing through user interfaces immediate

adaptation to the user's emotional profile.

This document is structured as follows: In the

next section, the current state of the art,

considering emotion induction and classification

is presented; in section 3, the project's global

architecture and functionalities are depicted; and

its experimental results are illustrated through

section 4; finally in the last section, conclusions

are withdrawn and the most significant future

work areas are identified.

2 STATE OF THE ART

Researchers in the domains related to emotion

assessment had very few solid ground standards

both for specifying the emotional charge of

stimuli and also a reasonable acceptable

232

Vinhas V., Reis L. and Oliveira E. (2009).

EMOTION-BASED MULTIMEDIA RETRIEVAL AND DELIVERY THROUGH ONLINE USER BIOSIGNALS - Multichannel Online Biosignals Towards

Adaptative GUI and Content Delivery.

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence, pages 232-237

DOI: 10.5220/0001658502320237

 SciTePress

emotional state representation model. This issue

constituted a serious hurdle for research

comparison and conclusion validation. The

extreme need of such metrics led several attempts

to systematize this knowledge domain.

Considering first the definition problem,

Damásio states that an emotional state can be

defined as a collection of responses triggered by

different parts of the body or the brain through

both neural and hormonal networks (Damásio,

1998). Experiments conducted with patients with

brain lesions in specific areas led to the

conclusion that their social behaviour was highly

affective, together with the emotional responses.

It is unequivocal to state that emotions are

essential for humans, as they play a vital role in

their everyday life: in perception, judgment and

action processes (Damásio, 1994).

One of the major models of emotion

representation is the Circumplex Model of Affect

proposed by Russell. This is a spatial model

based on dimensions of affect that are interrelated

in a very methodical fashion (Russel, 1980).

Affective concepts fall in a circle in the following

order: pleasure, excitement, arousal, distress,

displeasure, depression, sleepiness, and

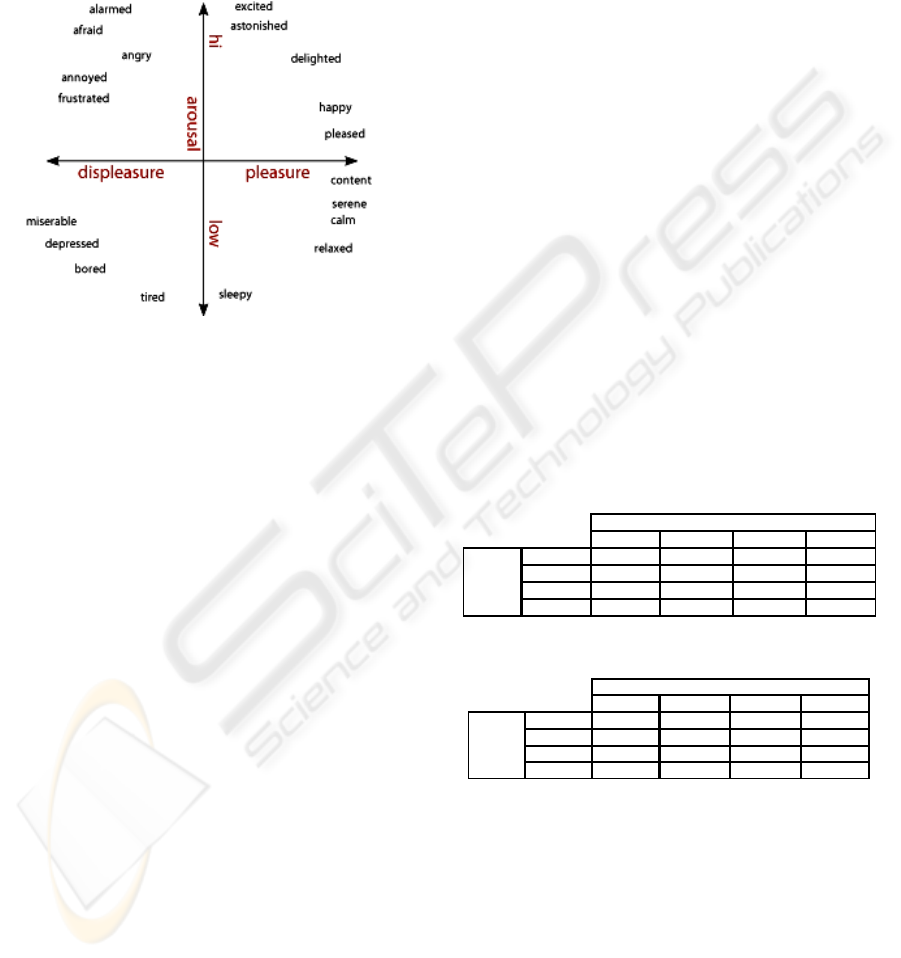

relaxation - see Figure 4B. According to this

model, there are two components of affect that

exist: the first is pleasure-displeasure, the

horizontal dimension of the model, and the

second is arousal-sleep, the vertical dimension of

the model. Therefore, it seems that any affect

stimuli can be defined in terms of its valence and

arousal components. The remaining variables

mentioned above do not act as dimensions, but

rather help to define the quadrants of the

affective space. Although the existence of

criticism concerning the impact of different

cultures in emotion expression and induction, as

discussed by Altarriba (Altarriba, 2003),

Russell’s model is relative immune to this issue if

the stimuli are correctly defined in a rather

universal form. Having this in mind, the

circumplex model of affect was the emotion

representation abstraction used in the proposed

project.

Regarding induction methods, in order to

analyse biometric data that contains a discrete set

of emotional states, it is essential to create and

define an experimental environment that is able

to induce a subject in a specific and controlled

emotional state. It is a common practice to use an

actor as one possible approach to human beings

emotions’ simulation (Chanel, 2005). As the actor

predicts specific emotions, outside aspects as

facial expression or voice change accordingly.

However, the physiological responses will not

suffer any variations, which lead to one of the

biggest disadvantages of this approach, as the

gathered biometric information does not represent

the real emotional state of the actor. An

alternative method, adopted in this study, is the

use of multimedia stimuli (Chanel, 2005). These

stimuli contain a variety of contents such as

music, videos, text and images. The main

advantage of this method resides in the strong

correlation between the induced emotional states

and the physiological responses, as the emotions

are no longer simulated.

To assess the three dimensions of pleasure,

arousal, and dominance, the Self-Assessment

Manikin (SAM), an affective rating system

devised by Lang (Lang, 1980) was used. In this

system, a graphic figure depicting values along

each of the three dimensions on a continuously

varying scale is used to indicate emotional

reactions as depicted in

Figure 1. Each picture in

the IAPS is rated by a large group of people, both

men and women, for the feelings of pleasure and

arousal that the picture evokes during viewing.

In order to use the most suitable method for

this study, it was used the IAPS library. It was

developed to provide ratings of affect for a large

set of emotionally-evocative, internationally-

accessible, color photographs that include

contents across a wide range of semantic

categories (Bradley, Lang) so that cultural and

intrinsic variables could be, as much as possible,

discarded from the evaluation. The results of the

experimental sessions, alongside with the

identified used pictures are made available

through this library. Further details about the

project are not in the scope of this document and

are redirected to the IAPS instruction manual

(Lang, 2005).

Emotions assessment needs reliable and accurate

communications with the subject so that the

results are conclusive and the emotions correctly

classified. This communication can occur through

several channels and is supported by specific

equipment. The invasive methods are clearly

more precise, however more dangerous and will

not be considered for this study. On the other

hand, non invasive methods such as EEG, fMRI,

GSR, oximeter and others have pointed the way

towards gathering together the advantages of

inexpensive equipment and non-medical

environments with interesting accuracy levels.

Electrocorticography, have enabled complex

BCI like playing a videogame or operating a

robot (Leuthardt, 2004). Some more recent

EMOTION-BASED MULTIMEDIA RETRIEVAL AND DELIVERY THROUGH ONLINE USER BIOSIGNALS -

Multichannel Online Biosignals Towards Adaptative GUI and Content Delivery

233

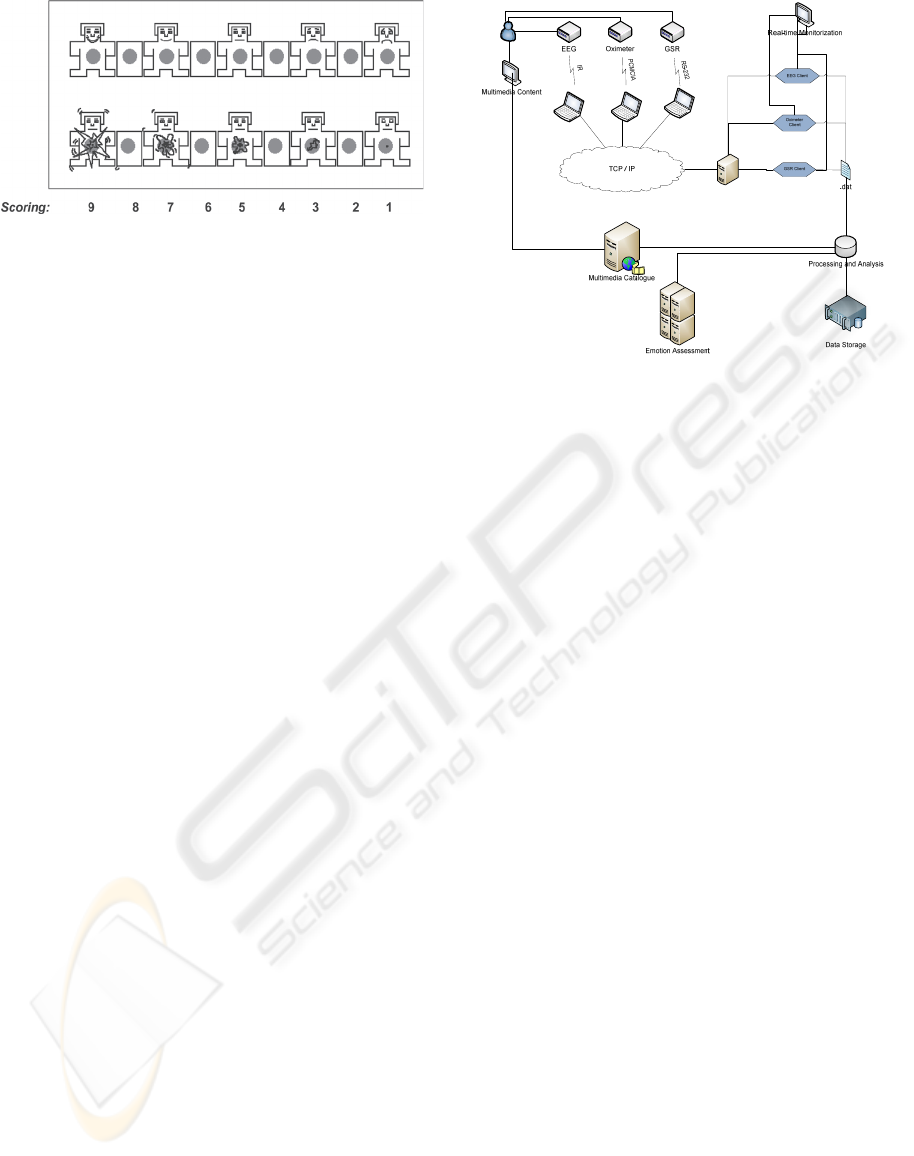

Figure 1: The self-assessment manikin (SAM) (Lang,

1980).

have successfully used just EEG information for

emotion assessment (Ishino, 2003). These

approaches have the great advantage of being

based on non-invasive solutions, enabling its

usage in general population in a non-medical

environment. Encouraged by these results, the

current research direction seems to be the

addition of other inexpensive, non-invasive

hardware to the equation. Practical examples of

this are the introduction of GSR and oximeters by

Takahashi (2004), Kim (2008) and Chanel

(2005). For this study, the Oxicard oximeter and

the ToughtStream GSR equipments shall be used.

3 PROJECT DESCRIPTION

3.1 Architecture

The main principle of the proposed system resides in

the fact of its distribution capability as each of its

main modules can be allocated and run in different

machines - in spite of being possible to concentrate

all functional units in one computer. Having this

guideline in mind, and as illustrated in

Figure 2, the

three key modules are the biosignals equipment data

collector, the emotional picture database and the

interpretation and visualization control module. This

architecture independence enables physical

distribution through several machines, although

this feature can be overridden by placing all

software units in a single entity, and

simultaneously allows the system's usage in

several environments as it is easy to setup a new

experimental session with this degree of freedom

as long as there is a TCP/IP network.

The database unit consists in the relational

module depicted in subsection 3.2 and intends to

constitute a replica of the IAPS library but in a

relational database environment. The current

model is stored in the campus's Oracle 10g server

but the system is considered to be database

Figure 2: System’s Global Architecture.

agnostic. This unit's intention is not only IAPS

emulation but also to constitute both a biosignals

record repository - by gathering all data provided

during experimental sessions - and a refined base

station for emotion classification. Further details

shall be found in the dedicated subsection.

The system's second unit consists in the

biosignals collection module that by itself

constitutes a distributed system. Its main

characteristics are based on the hardware set

composition flexibility as the aggregation unit

supports several equipments. The instantiated

module is an adaptation of the Multichannel

Emotion Assessment Framework (Teixeira, 2008)

as, for this particular project, it is used the

oximeter data and the GSR equipment.

Each of this hardware equipments are

physically attached to the user by means of

minimal invasive techniques: the oximeter sensor

just plugs around any user's hand finger and the

GSR dry electrodes make contact with the user's

left or right hand palm through a wrist-band

lookalike. The used oximeter, Oxicard, connects

to a personal computer through a PCMCIA and

the GSR, ThoughtStream, uses a standard RS-232

connection. For each of the equipments, there

were designed and developed distinct drivers

both with TCP/IP communication capabilities in

order to efficiently collect and further distribute

the data to one or multiple client applications.

This driver network capability was properly

exploited in this project in order to enable data

collection in one computer and data processing in

another.

Finally, considering architecture description,

one shall mention the interpretation and

visualization unit. This module is responsible for

ICAART 2009 - International Conference on Agents and Artificial Intelligence

234

accessing the available data provided by the

collector unit and from this determine the most

likely user's emotional state and from the

previously defined emotional policy, the user's

given baseline and the historical data determine

and extract, from the database, the next picture to

present. Further details on this specific unit shall

be point out in subsection 3.3.

3.2 Database Model

As mentioned before, the key function of the

developed database resides in the replication of

the IAPS offline file system based picture

collection. As described in section 2, this library

consists in thousands of pictures with emotional

metadata, namely valence, arousal and dominance

values. The first undertaken action was to design

a database relational model to accommodate such

collection and further load it with the data -

emotional metadata and picture representations as

BLOBs. In spite of the importance of this feature,

it is possible to understand, through

Figure 3, that

the database model was designed to store other

information rather than IPAS emulation.

Although the process how this data is handled

and interpreted is subject of the next subsection,

in this one ought to mention how data is

organized.

Having this in mind, the first extra

enhancement resides in user information record

as it is important to know who is performing the

session as each user as different emotional state

triggers, value definitions, and biosignals

baselines. Using this user identification, It was

designed session models in order to accommodate

all biosignals data provided by each of the used

equipments, both for offline analysis and also

online relative real-time emotional state

assessment.

Another issue that needs to be addressed is the

session emotional policy. In other words, what

shall the system do in what concerns next picture

retrieval: corroborate current emotional state by

choosing a similar content; contradict current

emotional state by picking an antagonist picture

or simple lock a desired state such as joy,

sadness, excitement, neutral, amongst others.

3.3 Calibration

First considering the multimedia content

visualization tool, as illustrated in Figure 4A, its

graphical user interface is designed to be as

simplest as possible in order not to maximize the

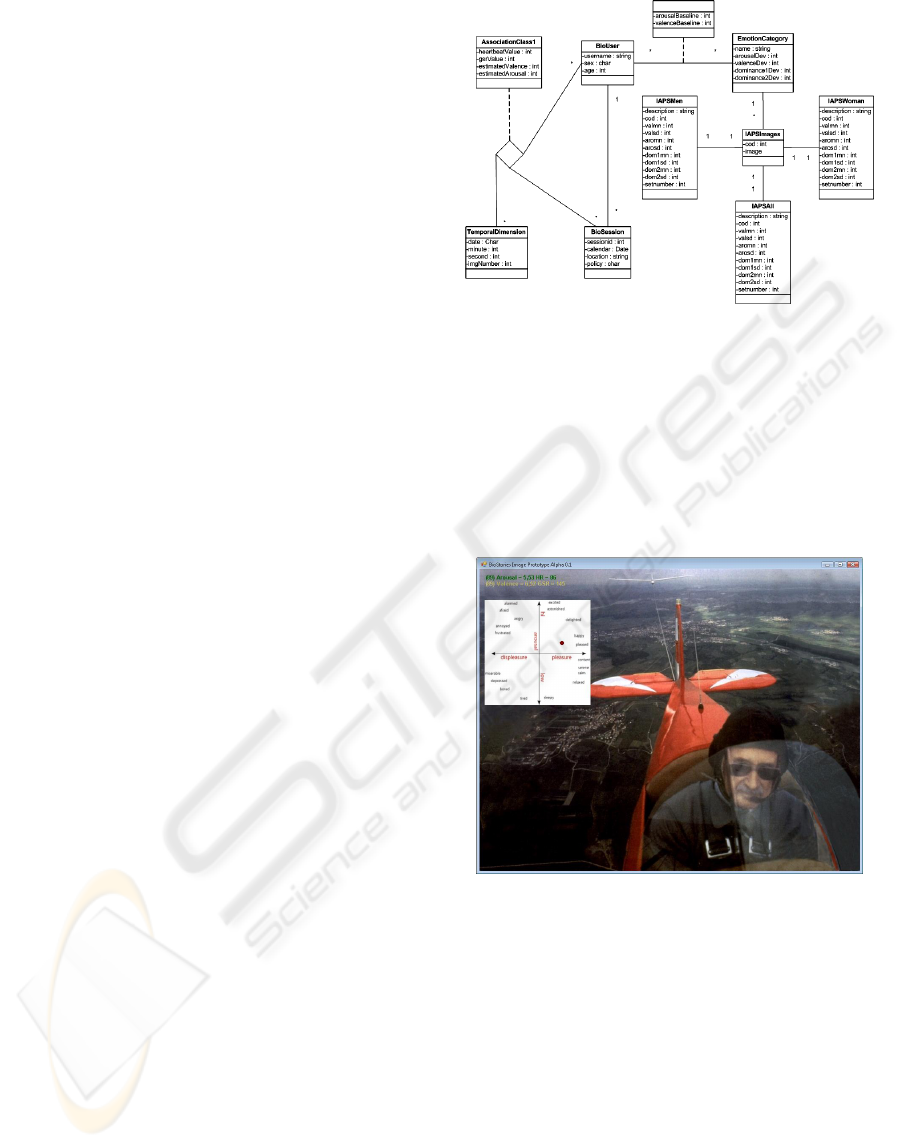

Figure 3: Database Model.

user's immersion sensation.

Following this principle, for default, the

application runs in full screen mode stretching

the selected picture from the database to whole

screen resolution. The picture is displayed for six

seconds, interval that when ended triggers the

emotion assessment procedure so that the next

picture is selected and downloaded.

Figure 4A: Application Running Screenshot.

Mainly for debugging/analysis purposes, there

were added two additional interface controls. The

first is the textual information regarding both the

heartbeat rate collected by the oximeter and the

skin conductance value provided by the GSR

equipment. Also in this textual form, located in

the top-left corner of the screen it is possible to

acknowledge the actual number of pictures that

match the current emotional state. The second

added control is the emotional bi-dimensional

space considering valence and arousal values,

commonly named as the circumplex model of

affect. As more visible in

Figure 4B, in this model

it is possible to directly map arousal in the Y axis

and valence In the X axis. In the presented

EMOTION-BASED MULTIMEDIA RETRIEVAL AND DELIVERY THROUGH ONLINE USER BIOSIGNALS -

Multichannel Online Biosignals Towards Adaptative GUI and Content Delivery

235

project, the heartbeat rate was used as arousal

indicator where high rates mean high arousal

levels and for valence control the skin

conductance was used as high conductance values

generally mean higher levels of transpiration and

therefore tension and displeasure, on the other

hand, low levels of transpiration tend to point no

stress indicators, thus act as pleasure indicators.

Figure 4B: Circumplex Model of Affect.

By asking the users, at their first application

usage, to indirectly define their emotional

baseline just by, after equipment data collection

being enabled, to point in the circumplex model,

what is their most accurate current emotional

state it was possible to define, for each particular

individual a single fully adapted affect model and

bidimensional space. Although, in the first

interaction, there is only one defined point of

affect baseline and the positioning in the

emotional state domain is effectuated by default,

there is the possibility, as partially depicted in the

previous subsection, to the user define multiple

baseline points do that space navigation become

more accurate as it is done with more user-

specific information.

In what concerns the next picture policy, this

action is conducted based on the session's defined

policy and if this is not fixed to one particular

state, it is inferred the current user's emotional

state - that can be optionally visualized through

the red dot drawn over the circumplex model -

and the scaled to 1 to 9 valence and arousal

values are extracted. If the defined policy is to

corroborate the current state, it is defined a 10%

tolerance area around the emotional point and a

random picture is retrieved from the database that

matches the defined domain. On the other hand,

if the policy is to contradict the current state, the

search domain is reversed around the neutral

point - the search area is the located in the

crossed quadrant - and again a random content

amongst the eligible ones is selected to

presentation. In the remaining cases of fixed

policy, a typical emotional category baseline is

gathered from the database and a similar

tolerance area is defined. In spite of the

remaining process being known, if the user's

emotional state does not converge to the desired

one, the tolerance area is continually shifted to

more extreme valence and/or arousal values.

4 RESULTS

Besides the practical results achieved related to

the system's global architecture robustness and

efficiency, for what concerns the main project's

intentions, the most pertinent results reside in the

emotional states assessment and induction

success rates. In order to produce metrics to

evaluate the conducted process, two interviews

were conducted to users after the experimental

session's end. The experimental sessions were

composed of six series of ten pictures, and the

analyzed sample was composed by twenty-five

undergraduate students with no prior knowledge

of the project's characteristics.

Table 1: Emotion Assessment Confusion Table.

1st Quadrant 2nd Quadrant 3rd Quadrant 4th Quadrant

1st Quadrant

20%

3% 2% 4%

2nd Quadrant 6%

11%

2% 1%

3rd Quadrant 1% 2%

15%

4th Quadrant 6% 4% 4%

14%

Automatic Assessment

Users

Table 2: Emotion Induction Confusion Table.

In the first interview, it was asked to the users to

point what was the most significant emotional

state for each of the ten pictures that they have

just seen. The results are shown in Ta ble 1 .

Considering the emotion induction process, a

similar interview process was performed and the

extracted data is condensed in Table 2. It is

patent that most of users tend to locate

themselves in the first quadrant. The system

achieves better classification results in assessing

emotional states located in the first and third

quadrants - 61% and 65%. In this case, the

1st Quadrant 2nd Quadrant 3rd Quadrant 4th Quadrant

1st Quadrant

20%

3% 2% 4%

2nd Quadrant 6% 11% 2% 1%

3rd Quadrant 1% 2%

15%

4th Quadrant 6% 4% 4%

14%

Automatic Assessment

Users

ICAART 2009 - International Conference on Agents and Artificial Intelligence

236

system was used to put into practice a fixed

emotion induction policy with fixed emotional

states. It was performed, for each user, with an

appropriate time interval, four sessions, each one

to each particular quadrant. Through the data

analysis it is possible to state that induction

towards the first and third quadrant is more

effective and induction towards the second

quadrant was not successful - this is particularly

due to distinct individual reactions to the

presented content.

5 CONCLUSIONS AND FUTURE

WORK

The distributed architectural paradigm proved to

be not only robust but effective, preserving

system modularity. It was achieved an immersive

interface that capably was able to retrieve

biosignals data and access picture database.

The automatic emotion assessment following

the enunciated state distribution through Russell’s

model, according to the performed interviews,

showed to achieve success rates of 65% - in a

four hypothesis situation. On the other hand, the

emotion induction, by means of IAPS library

usage and valence/arousal values, was

particularly successful with hit rates of 70-80%

for three of the four quadrants. The authors are

interested in exploiting this approach by refining

emotional state assessment through adding

biosignals, such as respiratory movements and

electromyography to therefore perform

information fusion to axis movement. Another

development considering emotional assessment

was the fully comply with the third dimension

represented by dominance.

Orthogonally, there have been identified

project's extensions, in order to enhance the

whole system's applicability in several practical

domains. The first improvement should be the

constitution of a multimedia database composed

not only by pictures with a significant metadata

layer so that it would be possible to build, in real-

time, a dynamic storyline.

This feature would enable flexible storytelling

based on audience emotion non-intentional

feedback. This type of systems would have vast

applicability in all entertainment industry,

marketing and advertisement as well as user

interfaces enhancement. Its appliance would also

be possible and even desirable in medical,

especially psychiatric, procedures namely in

phobia treatment emotional response assessment.

REFERENCES

Altarriba, J., Basnight, D. M., & Canary, T. M. 2003.

Emotion representation and perception across

cultures. In W. J. Lonner, D. L. Dinnel, S. A.

Hayes, & D. N. Sattler (Eds.), Readings in

Psychology and Culture (Unit 4, Chapter 5), Center

for Cross-Cultural Research, Western Washington

University, Bellingham, Washington USA.

Chanel, G., et al. 2005. Emotion Assessment: Arousal

Evaluation using EEG's and Peripheral

Physiological Signals. University of Geneva,

Switzerland: Computer Science Department, pp

530-537, vol 4105/2006.

Damásio, A. R. 1994. Descartes error: Emotion,

reason and human brain. Europa-América.

Damásio, A. R. 1998. Emotions and the Human Brain.

Iowa, USA: Department of Neurology.

Ishino, K. (2003). A feeling estimation system using a

simple electroencephalograph. Journal of Neural

Engineering, pp. 63-71.

Kim, J. & André, E (2008). Multi-Channel BioSignal

Analysis for Automatic Emotion Recognition.

Biosignals 2008.

Lang, P. J. 1980. Behavioral treatment and bio-

behavioral assessment: Computer applications. In

J. B. Sidowski, J. H. Johnson, & T. A. Williams

(Eds.), Technology in mental health care delivery

systems (pp. 119–137). Norwood, NJ: Ablex.

Lang, P.J., Bradley, M.M., & Cuthbert, B.N. 2005.

International affective picture system (IAPS):

Affective ratings of pictures and instruction

manual. Technical Report A-6. University of

Florida, Gainesville, FL.

Bradley, B. C. & Lang, P.G. Studying emotion with the

International Affective Picture System (IAPS). In J.

A. Coan and J.J. B. Allen (Eds). Handbook of

Emotion Elicitation and Assessment. Oxford

University Press.

Leuthardt, E. 2004. A braincomputer interface using

electrocorticographic signals in humans. IEEE

International Conference on Systems, Man, and

Cybernetics, pp. 4204-4209..

Russell, J. A. 1980. A circumplex model of affect.

Journal of Personality and Social Psychology, 39,

1161-1178.

Takahaski, K. 2004. Remarks on Emotion Recognition

from Bio-Potential Signals. 2nd International

Conference on Autonomous Robots and Agents pp

1148-1153, vol 3.

Teixeira, J., Vinhas, V. et al. 2008. Multichannel

Emotion Assessment Framework: Gender and

High-Frequency Electroencephalography as Key-

Factors. ICINCO 2008,

EMOTION-BASED MULTIMEDIA RETRIEVAL AND DELIVERY THROUGH ONLINE USER BIOSIGNALS -

Multichannel Online Biosignals Towards Adaptative GUI and Content Delivery

237
